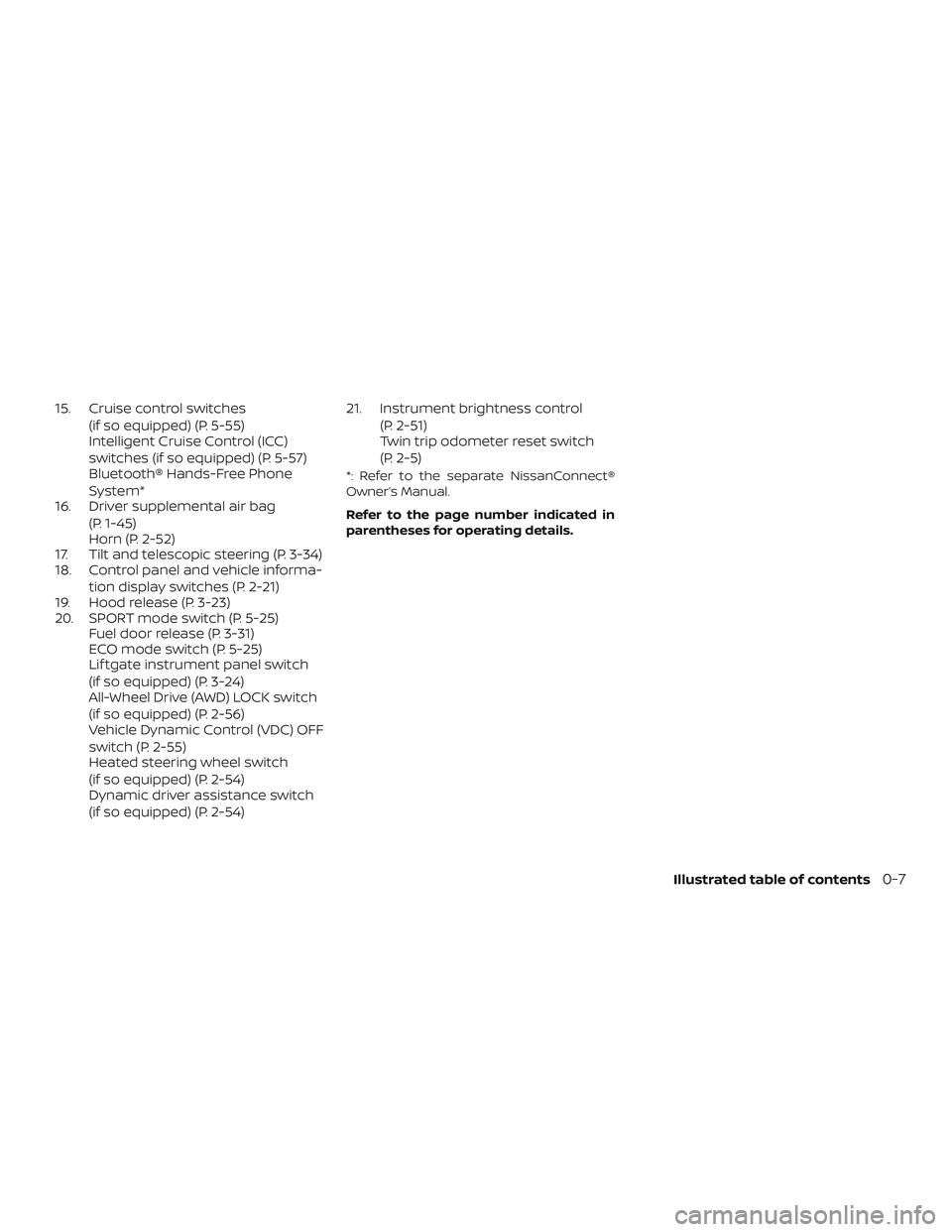

15. Cruise control switches(if so equipped) (P. 5-55)
Intelligent Cruise Control (ICC)
switches (if so equipped) (P. 5-57)
Bluetooth® Hands-Free Phone
System*
16. Driver supplemental air bag
(P. 1-45)
Horn (P. 2-52)
17. Tilt and telescopic steering (P. 3-34)
18. Control panel and vehicle informa-
tion display switches (P. 2-21)
19. Hood release (P. 3-23)
20. SPORT mode switch (P. 5-25) Fuel door release (P. 3-31)
ECO mode switch (P. 5-25)
Lif tgate instrument panel switch
(if so equipped) (P. 3-24)
All-Wheel Drive (AWD) LOCK switch
(if so equipped) (P. 2-56)
Vehicle Dynamic Control (VDC) OFF
switch (P. 2-55)
Heated steering wheel switch
(if so equipped) (P. 2-54)
Dynamic driver assistance switch
(if so equipped) (P. 2-54) 21. Instrument brightness control
(P. 2-51)
Twin trip odometer reset switch
(P. 2-5)
*: Refer to the separate NissanConnect®
Owner’s Manual.
Refer to the page number indicated in
parentheses for operating details.
Illustrated table of contents0-7

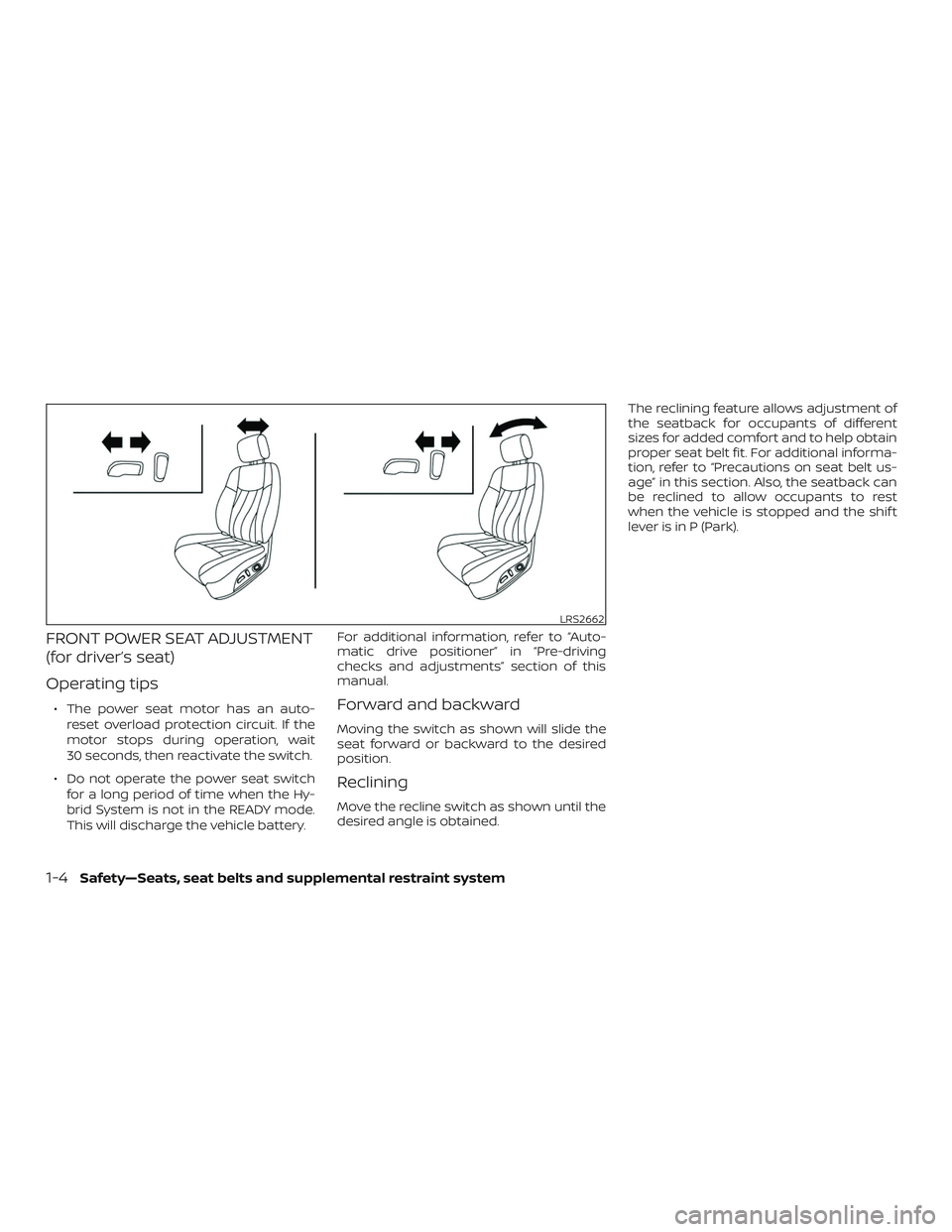

FRONT POWER SEAT ADJUSTMENT
(for driver’s seat)
Operating tips
∙ The power seat motor has an auto-reset overload protection circuit. If the
motor stops during operation, wait
30 seconds, then reactivate the switch.
∙ Do not operate the power seat switch for a long period of time when the Hy-
brid System is not in the READY mode.
This will discharge the vehicle battery. For additional information, refer to “Auto-
matic drive positioner” in “Pre-driving
checks and adjustments” section of this
manual.Forward and backward
Moving the switch as shown will slide the
seat forward or backward to the desired
position.
Reclining
Move the recline switch as shown until the
desired angle is obtained. The reclining feature allows adjustment of
the seatback for occupants of different
sizes for added comfort and to help obtain
proper seat belt fit. For additional informa-
tion, refer to “Precautions on seat belt us-
age” in this section. Also, the seatback can
be reclined to allow occupants to rest
when the vehicle is stopped and the shif t
lever is in P (Park).
LRS2662
1-4Safety—Seats, seat belts and supplemental restraint system

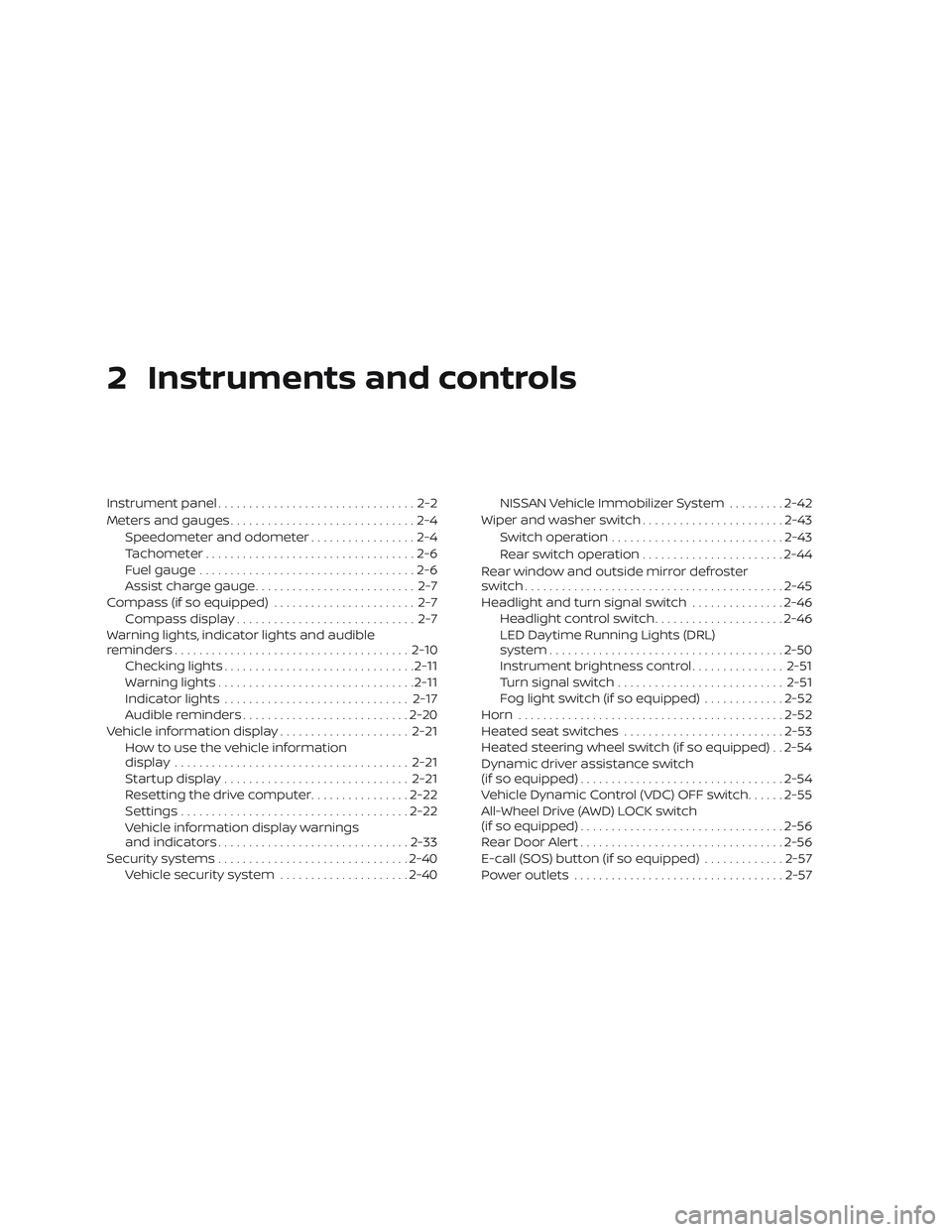

2 Instruments and controls
Instrument panel................................2-2
Meters and gauges ..............................2-4
Speedometer and odometer .................2-4
Tachometer ..................................2-6
Fuel gauge ...................................2-6
Assist charge gauge .......................... 2-7
Compass (if so equipped) ....................... 2-7
Compass display ............................. 2-7
Warning lights, indicator lights and audible
reminders ...................................... 2-10
Checking lights ............................... 2-11
Warning lights ................................ 2-11
Indicator lights .............................. 2-17
Audible reminders ........................... 2-20
Vehicle information display .....................2-21
How to use the vehicle information
display ...................................... 2-21
Startup display .............................. 2-21
Resetting the drive computer ................2-22
Settings ..................................... 2-22
Vehicle information display warnings
and indicators ............................... 2-33
Security systems ............................... 2-40
Vehicle security system .....................2-40NISSAN Vehicle Immobilizer System
.........2-42
Wiper and washer switch .......................2-43
Switch operation ............................ 2-43
Rear switch operation .......................2-44
Rear window and outside mirror defroster
switch .......................................... 2-45
Headlight and turn signal switch ...............2-46
Headlight control switch .....................2-46
LED Daytime Running Lights (DRL)
system ...................................... 2-50
Instrument brightness control ...............2-51
Turn signal switch ........................... 2-51
Fog light switch (if so equipped) .............2-52
Horn ........................................... 2-52
Heated seat switches .......................... 2-53
Heated steering wheel switch (if so equipped) . . 2-54
Dynamic driver assistance switch
(if so equipped) ................................. 2-54
V ehicle

Dynamic Control (VDC) OFF switch ......2-55
All-Wheel Drive (AWD) LOCK switch
(if so equipped) ................................. 2-56
Rear Door Alert ................................. 2-56
E-call (SOS) button (if so equipped) .............2-57
Power outlets .................................. 2-57

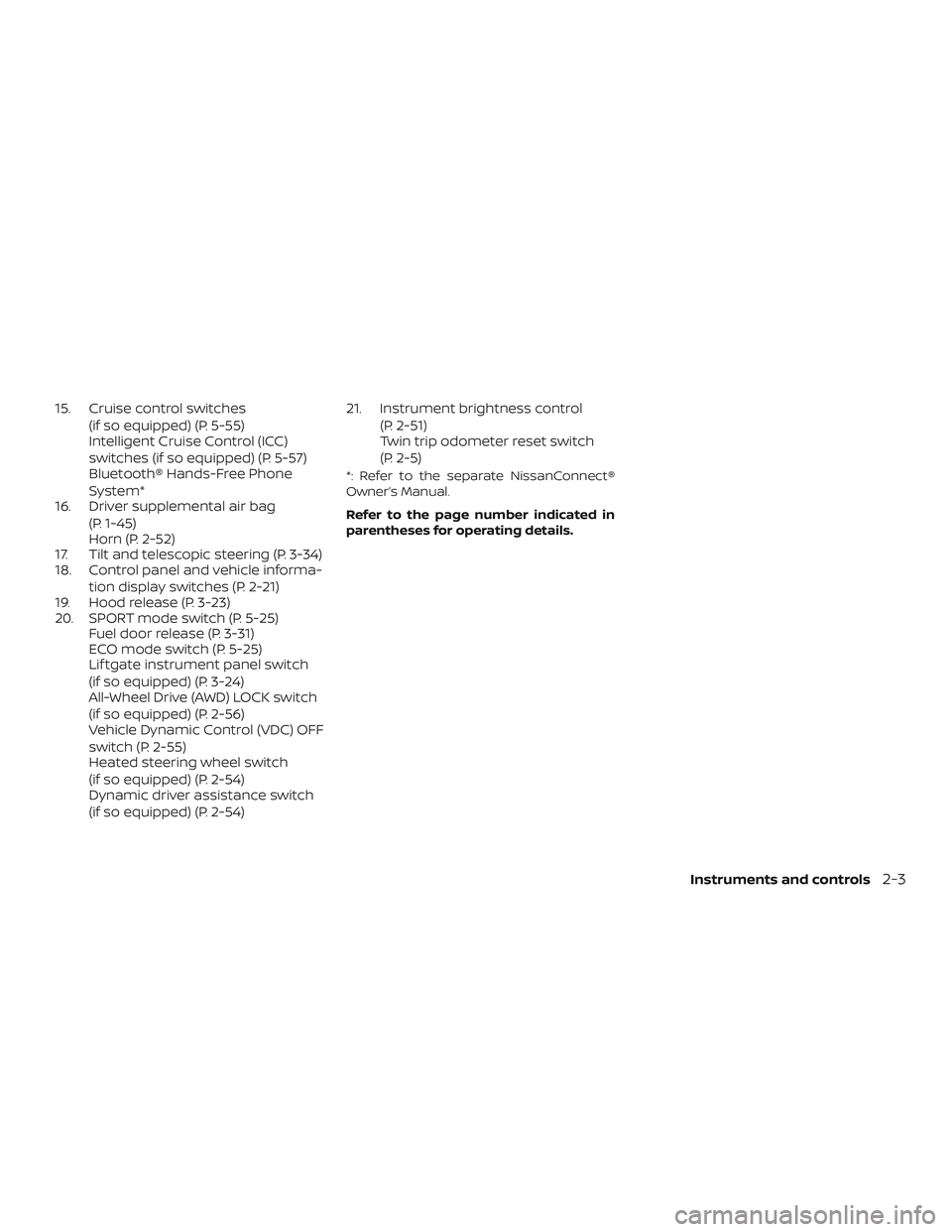

15. Cruise control switches(if so equipped) (P. 5-55)
Intelligent Cruise Control (ICC)
switches (if so equipped) (P. 5-57)
Bluetooth® Hands-Free Phone
System*
16. Driver supplemental air bag
(P. 1-45)
Horn (P. 2-52)
17. Tilt and telescopic steering (P. 3-34)
18. Control panel and vehicle informa-
tion display switches (P. 2-21)
19. Hood release (P. 3-23)
20. SPORT mode switch (P. 5-25) Fuel door release (P. 3-31)
ECO mode switch (P. 5-25)
Lif tgate instrument panel switch
(if so equipped) (P. 3-24)
All-Wheel Drive (AWD) LOCK switch
(if so equipped) (P. 2-56)
Vehicle Dynamic Control (VDC) OFF
switch (P. 2-55)
Heated steering wheel switch
(if so equipped) (P. 2-54)
Dynamic driver assistance switch
(if so equipped) (P. 2-54) 21. Instrument brightness control
(P. 2-51)
Twin trip odometer reset switch
(P. 2-5)
*: Refer to the separate NissanConnect®
Owner’s Manual.
Refer to the page number indicated in
parentheses for operating details.
Instruments and controls2-3

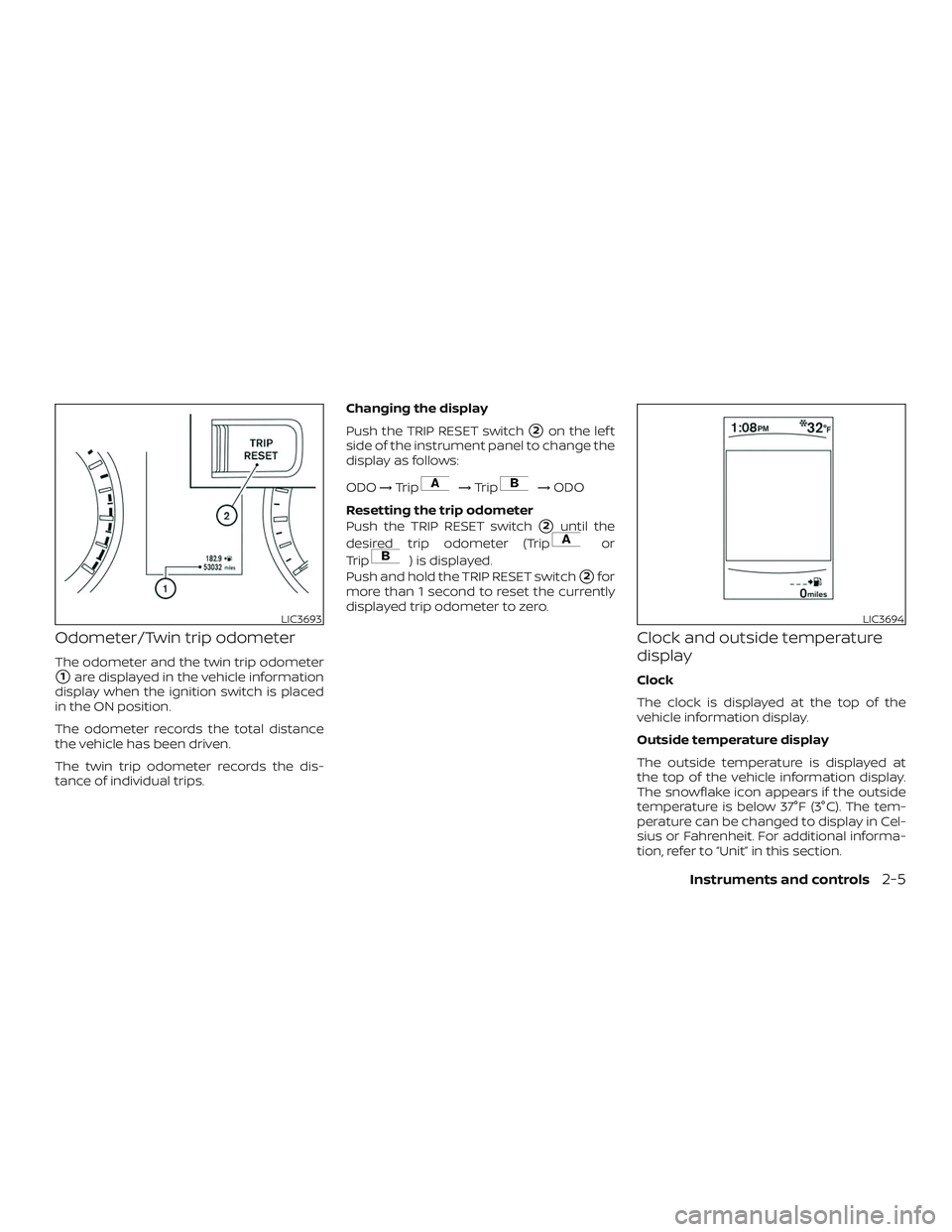

Odometer/Twin trip odometer
The odometer and the twin trip odometer
1are displayed in the vehicle information
display when the ignition switch is placed
in the ON position.
The odometer records the total distance
the vehicle has been driven.
The twin trip odometer records the dis-
tance of individual trips. Changing the display
Push the TRIP RESET switch
2on the lef t
side of the instrument panel to change the
display as follows:
ODO →Trip
→Trip→ ODO
Resetting the trip odometer
Push the TRIP RESET switch
2until the
desired trip odometer (Trip
or
Trip
) is displayed.
Push and hold the TRIP RESET switch
2for
more than 1 second to reset the currently
displayed trip odometer to zero.
Clock and outside temperature
display
Clock
The clock is displayed at the top of the
vehicle information display.
Outside temperature display
The outside temperature is displayed at
the top of the vehicle information display.
The snowflake icon appears if the outside
temperature is below 37°F (3°C). The tem-
perature can be changed to display in Cel-
sius or Fahrenheit. For additional informa-
tion, refer to “Unit” in this section.
LIC3693LIC3694
Instruments and controls2-5

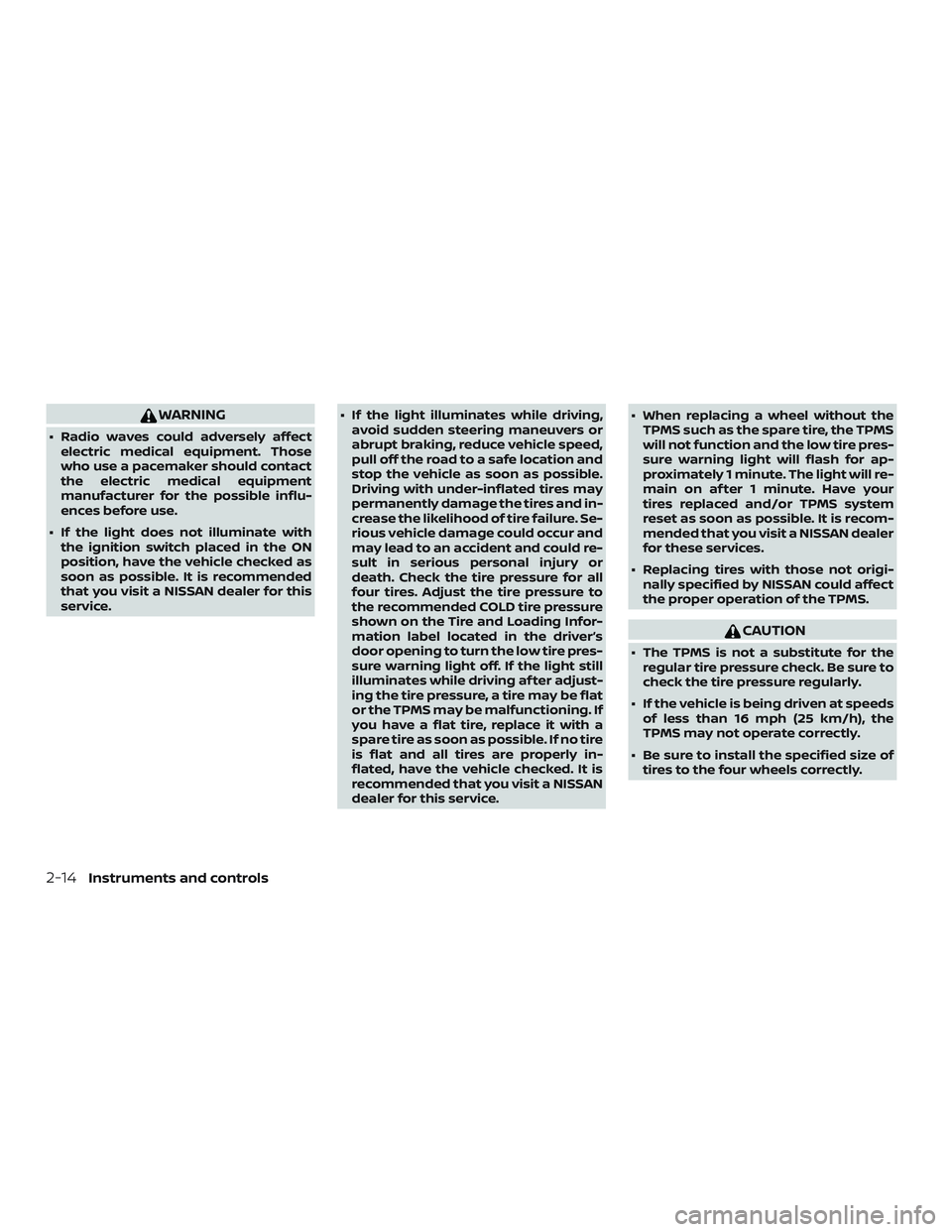

WARNING
∙ Radio waves could adversely affectelectric medical equipment. Those
who use a pacemaker should contact
the electric medical equipment
manufacturer for the possible influ-
ences before use.
∙ If the light does not illuminate with the ignition switch placed in the ON
position, have the vehicle checked as
soon as possible. It is recommended
that you visit a NISSAN dealer for this
service. ∙ If the light illuminates while driving,
avoid sudden steering maneuvers or
abrupt braking, reduce vehicle speed,
pull off the road to a safe location and
stop the vehicle as soon as possible.
Driving with under-inflated tires may
permanently damage the tires and in-
crease the likelihood of tire failure. Se-
rious vehicle damage could occur and
may lead to an accident and could re-
sult in serious personal injury or
death. Check the tire pressure for all
four tires. Adjust the tire pressure to
the recommended COLD tire pressure
shown on the Tire and Loading Infor-
mation label located in the driver’s
door opening to turn the low tire pres-
sure warning light off. If the light still
illuminates while driving af ter adjust-
ing the tire pressure, a tire may be flat
or the TPMS may be malfunctioning. If
you have a flat tire, replace it with a
spare tire as soon as possible. If no tire
is flat and all tires are properly in-
flated, have the vehicle checked. It is
recommended that you visit a NISSAN
dealer for this service. ∙ When replacing a wheel without the
TPMS such as the spare tire, the TPMS
will not function and the low tire pres-
sure warning light will flash for ap-
proximately 1 minute. The light will re-
main on af ter 1 minute. Have your
tires replaced and/or TPMS system
reset as soon as possible. It is recom-
mended that you visit a NISSAN dealer
for these services.
∙ Replacing tires with those not origi- nally specified by NISSAN could affect
the proper operation of the TPMS.
CAUTION
∙ The TPMS is not a substitute for theregular tire pressure check. Be sure to
check the tire pressure regularly.
∙ If the vehicle is being driven at speeds of less than 16 mph (25 km/h), the
TPMS may not operate correctly.
∙ Be sure to install the specified size of tires to the four wheels correctly.
2-14Instruments and controls

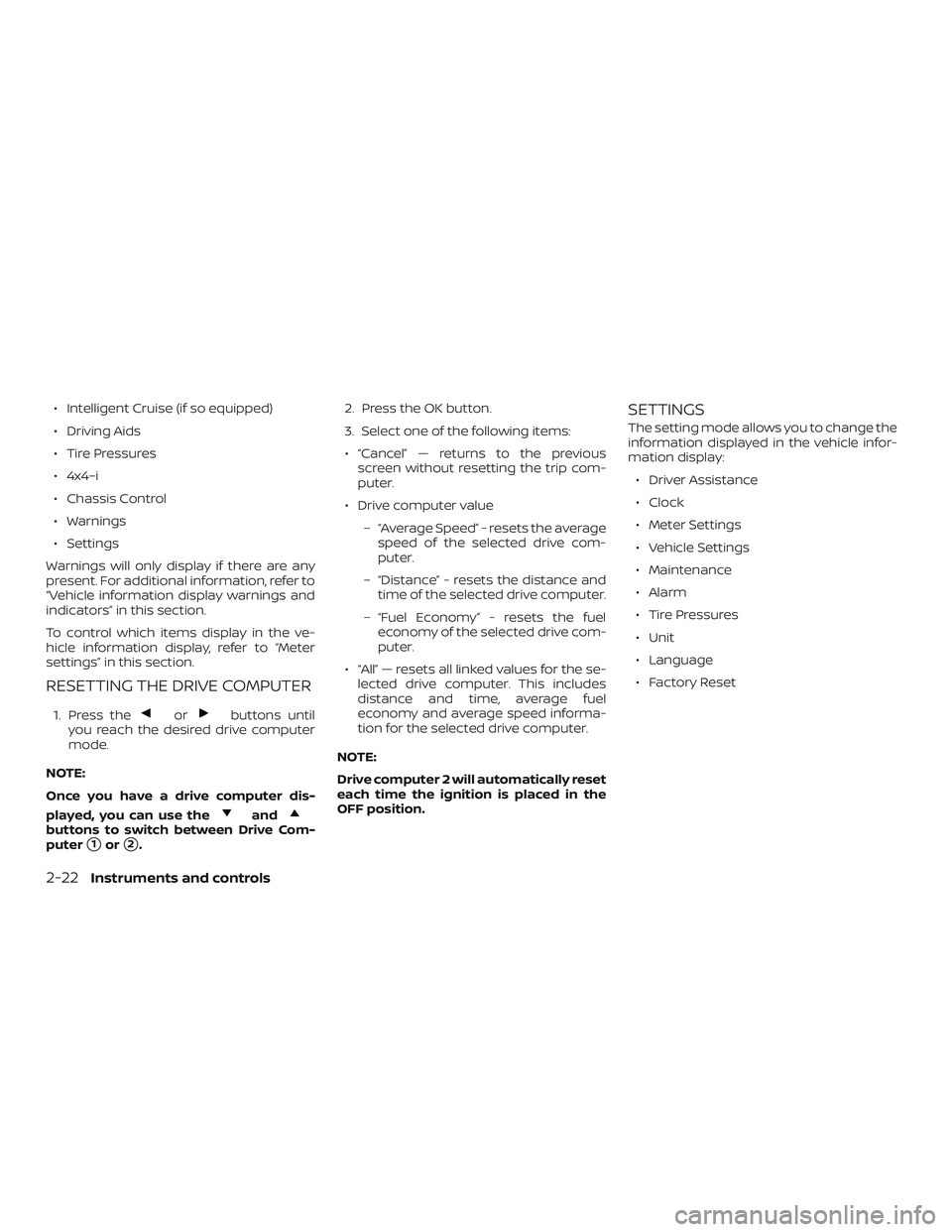

∙ Intelligent Cruise (if so equipped)
∙ Driving Aids
∙ Tire Pressures
∙ 4x4–i
∙ Chassis Control
∙ Warnings
∙ Settings
Warnings will only display if there are any
present. For additional information, refer to
“Vehicle information display warnings and
indicators” in this section.
To control which items display in the ve-
hicle information display, refer to “Meter
settings” in this section.
RESETTING THE DRIVE COMPUTER
1. Press theorbuttons until
you reach the desired drive computer
mode.
NOTE:
Once you have a drive computer dis-
played, you can use the
andbuttons to switch between Drive Com-
puter
1or2. 2. Press the OK button.
3. Select one of the following items:
∙ “Cancel” — returns to the previous screen without resetting the trip com-
puter.
∙ Drive computer value – “Average Speed” - resets the averagespeed of the selected drive com-
puter.
– “Distance” - resets the distance and time of the selected drive computer.
– “Fuel Economy” - resets the fuel economy of the selected drive com-
puter.
∙ “All” — resets all linked values for the se- lected drive computer. This includes
distance and time, average fuel
economy and average speed informa-
tion for the selected drive computer.
NOTE:
Drive computer 2 will automatically reset
each time the ignition is placed in the
OFF position.
SETTINGS
The setting mode allows you to change the
information displayed in the vehicle infor-
mation display: ∙ Driver Assistance
∙ Clock
∙ Meter Settings
∙ Vehicle Settings
∙ Maintenance
∙ Alarm
∙ Tire Pressures
∙ Unit
∙ Language
∙ Factory Reset
2-22Instruments and controls

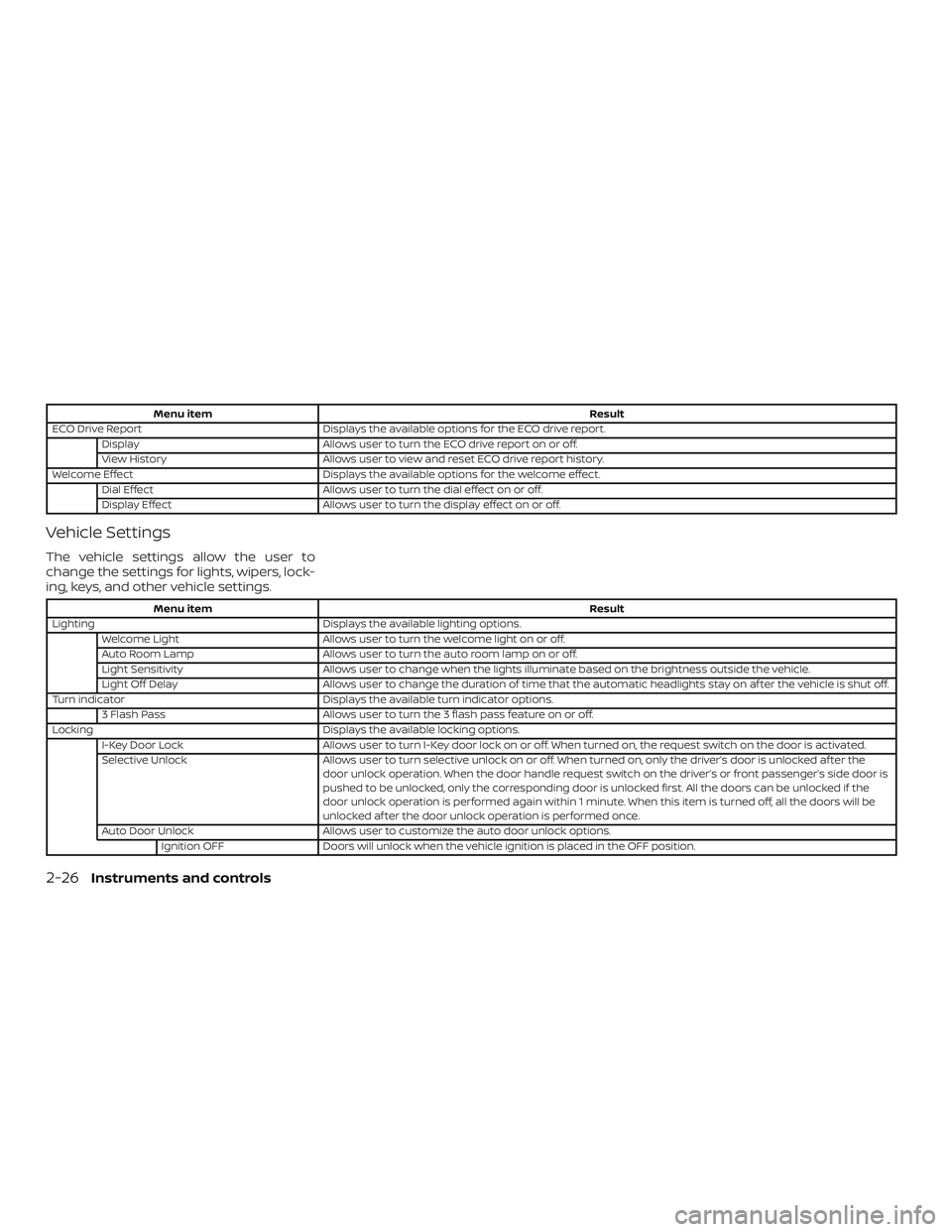

Menu itemResult
ECO Drive Report Displays the available options for the ECO drive report.
Display Allows user to turn the ECO drive report on or off.
View History Allows user to view and reset ECO drive report history.
Welcome Effect Displays the available options for the welcome effect.
Dial Effect Allows user to turn the dial effect on or off.
Display Effect Allows user to turn the display effect on or off.
Vehicle Settings
The vehicle settings allow the user to
change the settings for lights, wipers, lock-
ing, keys, and other vehicle settings.
Menu item Result
Lighting Displays the available lighting options.
Welcome Light Allows user to turn the welcome light on or off.
Auto Room Lamp Allows user to turn the auto room lamp on or off.
Light Sensitivity Allows user to change when the lights illuminate based on the brightness outside the vehicle.
Light Off Delay Allows user to change the duration of time that the automatic headlights stay on af ter the vehicle is shut off.
Turn indicator Displays the available turn indicator options.
3 Flash Pass Allows user to turn the 3 flash pass feature on or off.
Locking Displays the available locking options.
I-Key Door Lock Allows user to turn I-Key door lock on or off. When turned on, the request switch on the door is activated.
Selective Unlock Allows user to turn selective unlock on or off. When turned on, only the driver’s door is unlocked af ter the
door unlock operation. When the door handle request switch on the driver’s or front passenger’s side door is
pushed to be unlocked, only the corresponding door is unlocked first. All the doors can be unlocked if the
door unlock operation is performed again within 1 minute. When this item is turned off, all the doors will be
unlocked af ter the door unlock operation is performed once.
Auto Door Unlock Allows user to customize the auto door unlock options.
Ignition OFF Doors will unlock when the vehicle ignition is placed in the OFF position.
2-26Instruments and controls

Maintenance
The maintenance menu allows the user to
set reminders for various vehicle mainte-
nance items.
WARNING
The tire replacement indicator is not a
substitute for regular tire checks, in-
cluding tire pressure checks. For addi-
tional information, refer to “Changing
wheels and tires” in the “Do-it-yourself ”
section of this manual. Many factors in-
cluding tire inflation, alignment, driving
habits and road conditions affect tire
wear and when tires should be re-
placed. Setting the tire replacement in-
dicator for a certain driving distance
does not mean your tires will last that
long. Use the tire replacement indicator
as a guide only and always perform
regular tire checks. Failure to perform
regular tire checks, including tire pres-
sure checks could result in tire failure.
Serious vehicle damage could occur
and may lead to a collision, which could
result in serious personal injury or
death.
Menu itemResult
Maintenance Displays various maintenance reminder options.
Oil and Filter Allows user to set a reminder at a specific interval or reset the current one.
Oil Filter Allows user to set a reminder at a specific interval or reset the current one.
Tire Allows user to set a reminder at a specific interval or reset the current one.
Other Allows user to set a reminder at a specific interval or reset the current one.
2-28Instruments and controls

Language
The language menu allows the user to
change the languages displayed in the ve-
hicle information display.
Menu itemResult
Language Displays available language options for the vehicle information display.
Factory Reset
The factory reset menu allows the user to
restore the vehicle information display set-
tings to factory status.
Menu item Result
Factory Reset Allows user to reset the vehicle information display settings to the original factory settings. Once selected,
the user can confirm or cancel the reset.
2-30Instruments and controls
