NISSAN ROGUE SELECT 2014 2.G Owners Manual
Manufacturer: NISSAN, Model Year: 2014, Model line: ROGUE SELECT, Model: NISSAN ROGUE SELECT 2014 2.GPages: 323, PDF Size: 3.05 MB
Page 311 of 323
Black plate (309,1)
[ Edit: 2013/ 10/ 22 Model: S35-D ]
GUID-3B40933D-04EA-4271-9050-E3FEA1D4C2D0
WARNING
A vehicle equipped with All-Wheel Drive
(AWD) should never be tested using a
two wheel dynamometer (such as the
dynamometers used by some states for
emissions testing) , or similar equip-
ment. Make sure you inform test facility
personnel that your vehicle is equipped
with AWD before it is placed on a
dynamometer. Using the wrong test
equipment may result in transmission
damage or unexpected vehicle move-
ment which could result in serious
vehicle damage or personal injury.
Due to legal requirements in some states, your
vehicle may be required to be in what is called
the “ready condition” for an Inspection/Main-
tenance (I/M) test of the emission control
system.
The vehicle is set to the “ready condition” when
it is driven through certain driving patterns.
Usually, the “ready condition” can be obtained
by ordinary usage of the vehicle.
If a powertrain system component is repaired or
the battery is disconnected, the vehicle may be
reset to a “not ready condition”. Before taking the I/M test, check the vehicle’s inspection/
maintenance test readiness condition. Place the
ignition switch in the ON position without
starting the engine. If the Malfunction Indicator
Light (MIL) comes on steady for 20 seconds and
then blinks for 10 seconds, the I/M test
condition is “not ready”. If the MIL does not
blink after 20 seconds, the I/M test condition is
“ready”.
Contact a NISSAN dealer to set “ready condi-
tion” or to prepare the vehicle for testing.
GUID-D562961D-9AFE-4754-8C59-8C01CE2FEDDBThis vehicle is equipped with an Event Data
Recorder (EDR) . The main purpose of an EDR is
to record, in certain crash or near crash-like
situations, such as an air bag deployment or
hitting a road obstacle, data that will assist in
understanding how a vehicle’s systems per-
formed. The EDR is designed to record data
related to vehicle dynamics and safety systems
for a short period of time, typically 30 seconds
or less. The EDR in this vehicle is designed to
record such data as:
.
How various systems in your vehicle were
operating;
. Whether or not the driver and passenger
safety belts were buckled/fastened;
. How far (if at all) the driver was depressing
the accelerator and/or brake pedal; and,
. How fast the vehicle was traveling.
. Sounds are not recorded.
These data can help provide a better under-
standing of the circumstances in which crashes
and injuries occur.
NOTE: EDR data are recorded by your vehicle
only if a nontrivial crash situation occurs; no data
are recorded by the EDR under normal driving
conditions and no personal data (e.g. name,
gender, age and crash location) are recorded.
However, other parties, such as law enforce-
ment, could combine the EDR data with the type
Technical and consumer information9-27
READINESS FOR INSPECTION/
MAINTENANCE (I/M) TEST EVENT DATA RECORDERS (EDR)
Condition:
Page 312 of 323
Black plate (310,1)
[ Edit: 2013/ 10/ 22 Model: S35-D ]
9-28Technical and consumer information
of personally identifying data routinely acquired
during a crash investigation.
To read data recorded by an EDR, special
equipment is required and access to the vehicle
or the EDR is needed. In addition to the vehicle
manufacturer and NISSAN dealer, other parties,
such as law enforcement, that have the special
equipment, can read the information if they have
access to the vehicle or the EDR. EDR data will
only be accessed with the consent of the vehicle
owner or lessee or as otherwise required or
permitted by law.
GUID-01ECFC68-80F1-4930-A150-93111F5483D4Genuine NISSAN Service Manuals for this
model year and prior can be purchased. A
genuine NISSAN Service Manual is the best
source of service and repair information for your
vehicle. This manual is the same one used by the
factory trained technicians working at NISSAN
dealerships. Genuine NISSAN Owner’s Man-
uals can also be purchased.
For current pricing and availability of genuine
NISSAN Service Manuals,contact:
1-800-450-9491
www.nissan-techinfo.com
For current pricing and availability of genuine
NISSAN Owner’s Manuals, contact:
1-800-247-5321
OWNER’S MANUAL/SERVICE
MANUAL ORDER INFORMATION
Condition:
Page 313 of 323
Black plate (311,1)
[ Edit: 2013/ 10/ 22 Model: S35-D ]

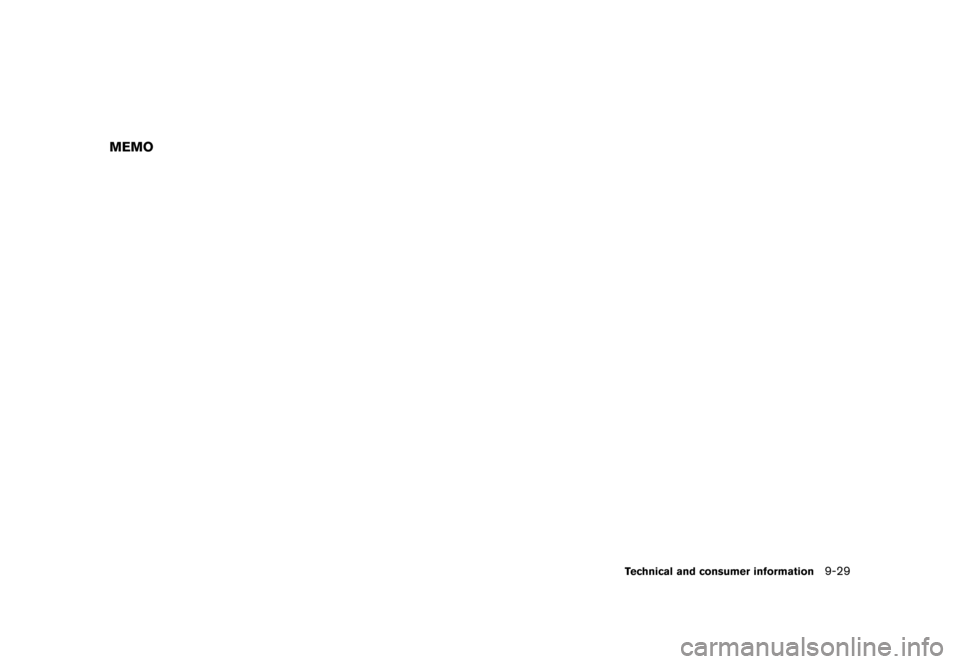

MEMO
Technical and consumer information9-29
Condition:
Page 314 of 323
Black plate (312,1)
[ Edit: 2013/ 10/ 22 Model: S35-D ]

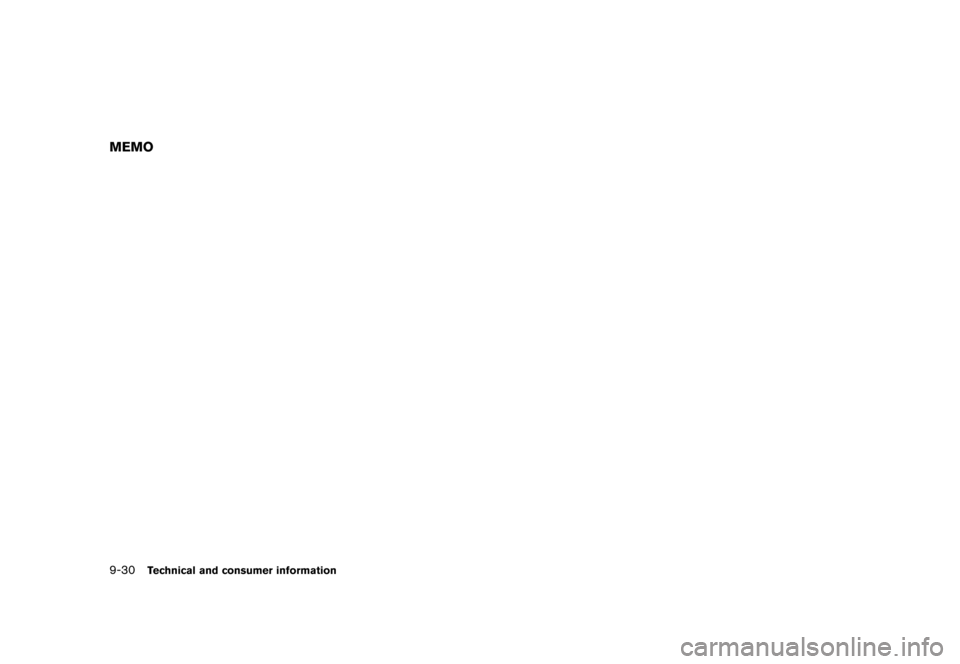

9-30Technical and consumer information
MEMO
Condition:
Page 315 of 323
Black plate (313,1)
[ Edit: 2013/ 10/ 22 Model: S35-D ]
10 Index
A
ABS (Anti-lock Braking System)...
............................ 5-26
Advanced air bag system ...
......................................... 1-45
Air bag system Advanced air bag system ...
.................................. 1-45
Front passenger air bag and status light ...
....... 1-46
Front-seat mounted side-impact supplemental
air bag system ...
....................................................... 1-50
Roof-mounted curtain side-impact and
rollover supplemental air bag system ...
............. 1-50
Air bag warning labels ...
............................................... 1-52
Air bag warning light ...
...................................... 1-53, 2-14
Air cleaner housing filter ...
........................................... 8-16
Air conditioner Air conditioner operation ...
....................................... 4-8
Air conditioner service ...
........................................ 4-11
Air conditioner specification label ...
.................... 9-10
Air conditioning system refrigerant and
lubricant recommendations ...
....................... 4-11, 9-6
Alarm, How to stop alarm (see vehicle
security system) ...
........................................................... 2-27
Alcohol, drugs and driving ...
.......................................... 5-7
All-wheel drive (AWD) ...
............................................... 5-21
All-wheel drive (AWD) warning light ...
...................... 2-10
Antenna ...
.......................................................................... 4-39
Anti-lock Braking System (ABS) ...
............................ 5-26
Anti-lock braking system (ABS) warning light ...
..... 2-10
Appearance care Exterior appearance care ...
...................................... 7-2
Interior appearance care ...
....................................... 7-4
Audible reminders ...
....................................................... 2-16
Audio operation precautions ...
.................................... 4-12
Audio system ...
................................................................ 4-12
Steering wheel audio controls ...
.......................... 4-38 Automatic
Door locks ...
................................................................. 3-4
Average speed (MPH or km/h) ...
............................... 2-23
Avoiding collision and rollover ...
................................... 5-5
B
Back door (See lift gate) ...
.......................................... 3-10
Battery ...
............................................................................ 8-13
Battery replacement, Keyfob ...
............................. 8-22
Battery saver system ...
........................................... 2-32
Keyfob battery replacement ...
............................... 8-22
Before starting the engine ...
........................................ 5-11
Belts (See drive belts) ...
............................................... 8-14
Bluetooth
®Hands-Free Phone System ...
................ 4-41
Booster seats ...
............................................................... 1-35
Brake Anti-lock Braking System (ABS) ...
..................... 5-26
Brake fluid ...
.............................................................. 8-11
Brake system ...
......................................................... 5-25
Parking brake operation ...
..................................... 5-17
Warning light ...
......................................................... 2-11
Break-in schedule ...
....................................................... 5-19
Brightness control Instrument panel ...
...................................................... 2-8
Bulb check/instrument panel ...
................................... 2-10
Bulb replacement ...
........................................................ 8-24
C
Capacities and recommended fuel/lubricants ...
....... 9-2
Car phone or CB radio ...
............................................. 4-40
Cargo cover ...
.................................................................. 2-38
Cargo light ...
.................................................................... 2-46
Catalytic converter, Three way catalyst ...
................... 5-3
CD/CF/USB memory care and cleaning ...
.............. 4-38 Ceiling light
...
................................................................... 2-45
Child restraints ...
............................................................. 1-21
Booster seats ...
........................................................ 1-35
LATCH system ...
...................................................... 1-22
Precautions on child restraints ...
......................... 1-21
Child safety ...
................................................................... 1-19
Child safety rear door lock ...
......................................... 3-5
Chimes, Audible reminders ...
...................................... 2-16
Circuit breaker, Fusible link ...
...................................... 8-20
Cleaning exterior and interior ...
............................ 7-2, 7-4
Clock ...
...................................................... 2-24, 4-23, 4-31
Coat hooks ...
................................................................... 2-40
Cold weather driving ...
.................................................. 5-29
Compact Disc (CD) player (See
audio system) ...
................................................... 4-25, 4-33
Console box ...
................................................................. 2-37
Continuously Variable Transmission
(CVT) fluid ...
..................................................................... 8-11
Controls, Steering wheel audio controls ...
............... 4-38
Coolant Capacities and
recommended fuel/lubricants ...
............................... 9-2
Changing engine coolant ...
...................................... 8-8
Checking engine coolant level ...
............................. 8-8
Corrosion protection ...
.................................................... 7-6
Cover, Cargo cover ...
.................................................... 2-38
Cruise control ...
............................................................... 5-17
Cup holders ...
.................................................................. 2-34
CVT, Driving with CVT (Continuously
Variable Transmission) ...
................................... 5-10, 5-12D
Defroster switch, Rear window
defroster switch ...
........................................................... 2-30
Dimensions and weights ...
............................................. 9-8
Condition:
Page 316 of 323
Black plate (314,1)
[ Edit: 2013/ 10/ 22 Model: S35-D ]
10-2
Drive belts...
..................................................................... 8-14
Driving All-wheel drive (AWD) ...
........................................ 5-21
Cold weather driving ...
........................................... 5-29
Distance (miles or km) ...
........................................ 2-24
Driving with CVT (Continuously
Variable Transmission) ...
............................. 5-10, 5-12
On-pavement and off-road driving ...
..................... 5-6
Precautions when starting and driving ...
.............. 5-2
Safety precautions ...
.................................................. 5-7
E
Economy, Fuel ...
.............................................................. 5-20
Elapsed time ...
................................................................. 2-24
Electric power steering system ...
............................... 5-25
Electric power steering warning light ...
.................... 2-11
Emission control information label ...
.......................... 9-10
Emission control system warranty ...
........................... 9-26
Engine Before starting the engine ...
................................. 5-11
Break-in schedule ...
................................................ 5-19
Capacities and
recommended fuel/lubricants ...
............................... 9-2
Changing engine coolant ...
...................................... 8-8
Changing engine oil and filter ...
.............................. 8-9
Checking engine coolant level ...
............................. 8-8
Checking engine oil level ...
...................................... 8-9
Coolant temperature gauge ...
................................. 2-6
Engine compartment check locations ...
................ 8-6
Engine cooling system ...
........................................... 8-7
Engine oil ...
................................................................... 8-9
Engine oil and oil filter recommendation ...
........... 9-5
Engine oil viscosity ...
.................................................. 9-5
Engine serial number ...
.............................................. 9-9
Engine specifications ...
............................................. 9-7
If your vehicle overheats ...
..................................... 6-11 Starting the engine
...
.............................................. 5-11
Event Data Recorders (EDR) ...
................................... 9-27
Exhaust gas (carbon monoxide) ...
................................ 5-2
Extended storage fuse warning ...
............................... 2-20
Exterior light indicator ...
................................................ 2-14
F
F.M.V.S.S. certification label ...
....................................... 9-9
Filter Air cleaner housing filter ...
.................................... 8-16
Changing engine oil and filter ...
.............................. 8-9
Flashers (See hazard warning flasher switch) ...
....... 6-2
Flat tire ...
............................................................................. 6-2
Flat towing ...
.................................................................... 9-24
Floor mat cleaning ...
........................................................ 7-5
Fluid Brake fluid ...
.............................................................. 8-11
Capacities and
recommended fuel/lubricants ...
............................... 9-2
Continuously Variable Transmission
(CVT) fluid ...
.............................................................. 8-11
Engine coolant ...
......................................................... 8-7
Engine oil ...
................................................................... 8-9
Window washer fluid ...
.......................................... 8-12
FM-AM radio with Compact Disc (CD) player ...
.... 4-22
FM-AM-SAT radio with Compact Disc
(CD) player ...
................................................................... 4-30
Fog light switch ...
........................................................... 2-32
Front manual seat adjustment ...
.................................... 1-3
Front passenger air bag and status light ...
.............. 1-46
Front seat, Front seat adjustment ...
............................. 1-3
Fuel Capacities and
recommended fuel/lubricants ...
............................... 9-2
Fuel economy ...
........................................................ 5-20
Fuel octane rating ...
................................................... 9-3 Fuel recommendation
...
............................................. 9-3
Fuel-filler cap ...
......................................................... 3-11
Fuel-filler door ...
....................................................... 3-11
Gauge ...
........................................................................ 2-7
Loose fuel cap warning ...
........................... 2-19, 3-12
Fuel efficient driving tips ...
........................................... 5-19
Fuses ...
.............................................................................. 8-19
Fusible links ...
.................................................................. 8-20G
Gas cap ...
......................................................................... 3-11
Gauge ...
.............................................................................. 2-4
Engine coolant temperature gauge ...
.................... 2-6
Fuel gauge ...
................................................................ 2-7
Tachometer ...
............................................................... 2-6
Trip computer ...
........................................................ 2-22
General maintenance ...
................................................... 8-2
Glove box ...
...................................................................... 2-36
H
Hands-Free Phone System, Bluetooth®...
............... 4-41
Hazard warning flasher switch ...
................................... 6-2
Head restraints/headrests ...
........................................... 1-5
Headlights Bulb replacement ...
................................................. 8-25
Headlight switch ...
................................................... 2-31
Heater Heater and air conditioner operation ...
................. 4-8
Hood release ...
.................................................................. 3-9
Hook Coat hooks ...
............................................................ 2-40
Luggage hook ...
....................................................... 2-39
Utility hook ...
............................................................. 2-40
Horn ...
................................................................................ 2-33
Condition:
Page 317 of 323
Black plate (315,1)
[ Edit: 2013/ 10/ 22 Model: S35-D ]
I
Ignition switch...
.............................................................. 5-10
Key positions ...
......................................................... 5-10
Immobilizer system ...
...................................................... 2-27
Indicator lights ...
.............................................................. 2-14
Inside mirror ...
.................................................................. 3-14
Inspection/maintenance (I/M) test ...
.......................... 9-27
Instrument brightness control ...
.................................... 2-8
Instrument panel ...
............................................................ 2-3
Interior light replacement ...
........................................... 8-26
Interior lights ...
................................................................. 2-44
iPod
®connecting ...
........................................................ 4-26
iPod®player operation ...
............................................... 4-35
ISOFIX child restraint ...
................................................. 1-22
J
Jump starting ...
.................................................................. 6-9
K
Keyless entry
(See remote keyless entry system) ...
.................... 3-5
Keys ...
.................................................................................. 3-2
L
Labels
Air bag warning labels ...
........................................ 1-52
Air conditioner specification label ...
.................... 9-10
Emission control information label ...
................... 9-10
Engine serial number ...
.............................................. 9-9
F.M.V.S.S. certification label ...
................................. 9-9
Tire and Loading information label ...
....... 8-30, 9-10
Vehicle identification number (VIN) ...
.................... 9-8
LATCH system ...
............................................................. 1-22 License plate, Installing front license plate
...
.......... 9-11
Lift gate ...
.......................................................................... 3-10
Light Air bag warning light ...
........................................... 1-53
Bulb replacement ...
................................................. 8-24
Cargo light ...
............................................................. 2-46
Ceiling light ...
............................................................ 2-45
Fog light switch ...
.................................................... 2-32
Headlight switch ...
................................................... 2-31
Headlights bulb replacement ...
............................ 8-25
Indicator lights ...
....................................................... 2-14
Interior lights ...
.......................................................... 2-44
Map lights ...
.............................................................. 2-44
Replacement ...
.......................................................... 8-24
Vanity mirror lights ...
............................................... 2-46
Warning/indicator lights and
audible reminders ...
................................................. 2-10
Lights, Exterior and interior light replacement ...
..... 8-26
Loading information (See vehicle
loading information) ...
.................................................... 9-12
Lock Automatic door locks ...
............................................. 3-4
Door locks ...
................................................................. 3-3
Lift gate lock ...
.......................................................... 3-10
Power door lock ...
...................................................... 3-3
Loose fuel cap warning ...
................................. 2-19, 3-12
Low fuel warning light ...
................................................ 2-12
Low tire pressure warning light ...
............................... 2-12
Low tire pressure warning system
(See tire pressure monitoring system (TPMS)) ...
.... 5-3
Luggage floor box ...
....................................................... 2-37
Luggage hooks ...
............................................................ 2-39
Luggage side box ...
....................................................... 2-38
M
Maintenance
Battery ...
..................................................................... 8-13
General maintenance ...
............................................. 8-2
Indicators for maintenance ...
................................ 2-21
Inside the vehicle ...
.................................................... 8-3
Maintenance precautions ...
...................................... 8-5
Maintenance requirements ...
.................................... 8-2
Outside the vehicle ...
................................................. 8-2
Seat belt maintenance ...
........................................ 1-18
Malfunction indicator light (MIL) ...
.............................. 2-15
Manual air conditioner ...
.................................................. 4-9
Manual front seat adjustment ...
..................................... 1-3
Map lights ...
..................................................................... 2-44
Master warning light ...
................................................... 2-13
Meter, Trip computer ...
.................................................. 2-22
Meters and gauges ...
....................................................... 2-4
Instrument brightness control ...
.............................. 2-8
Mirror Inside mirror ...
........................................................... 3-14
Outside mirrors ...
..................................................... 3-14
Mirror, Vanity mirror ...
.................................................... 3-15
Monitor, Rearview monitor ...
.......................................... 4-2
N
New vehicle break-in ...
.................................................. 5-19
NISSAN Vehicle Immobilizer System ...
..................... 2-27
O
Off-road recovery ...
.......................................................... 5-6
Oil Capacities and
recommended fuel/lubricants ...
............................... 9-2
Changing engine oil and filter ...
.............................. 8-9
10-3
Condition:
Page 318 of 323
Black plate (316,1)
[ Edit: 2013/ 10/ 22 Model: S35-D ]
10-4
Checking engine oil level...
...................................... 8-9
Engine oil ...
................................................................... 8-9
Engine oil viscosity ...
.................................................. 9-5
One Short Call ...
............................................................. 4-43
Operation, Indicators for operation ...
........................ 2-19
Outside air temperature ...
............................................ 2-17
Outside mirrors ...
............................................................ 3-14
Overdrive OFF switch ...
................................................ 5-15
Overheat, If your vehicle overheats ...
........................ 6-11
Owner’s Manual/Service Manual
order information ...
......................................................... 9-28
P
Panic alarm ...
..................................................................... 3-7
Parking Brake break-in ...
....................................................... 5-26
Parking brake operation ...
..................................... 5-17
Parking on hills ...
..................................................... 5-24
Phone Bluetooth
®Hands-Free Phone System ...
......... 4-41
Car phone or CB radio ...
...................................... 4-40
Power Electric power steering system ...
........................ 5-25
Power door lock ...
...................................................... 3-3
Power outlet ...
.......................................................... 2-33
Power windows ...
.................................................... 2-41
Precautions Audio operation ...
.................................................... 4-12
Braking precautions ...
............................................. 5-25
Child restraints ...
...................................................... 1-21
Cruise control ...
........................................................ 5-17
Driving safety ...
............................................................ 5-7
Maintenance ...
............................................................. 8-5
On-pavement and off-road driving ...
..................... 5-6
Seat belt usage ...
....................................................... 1-9
Supplemental restraint system ...
.......................... 1-39 When starting and driving
...
.................................... 5-2
Push starting ...
................................................................ 6-11
R
Radio ...
.............................................................................. 4-12
Car phone or CB radio ...
...................................... 4-40
FM-AM radio with Compact Disc
(CD) player ...
............................................................ 4-22
Steering wheel audio controls ...
.......................... 4-38
Range (distance to empty) ...
....................................... 2-24
Rapid air pressure loss ...
................................................ 5-6
Readiness for inspection/maintenance
(I/M) test ...
........................................................................ 9-27
Rear center seat belt ...
................................................. 1-15
Rear door lock, Child safety rear door lock ...
........... 3-5
Rear seats ...
....................................................................... 1-4
Rear window defroster switch ...
................................. 2-30
Rear window wiper and washer switch ...
................ 2-29
Rearview monitor ...
........................................................... 4-2
Recorders, Event data ...
............................................... 9-27
Registering your vehicle in another country ...
........... 9-8
Remote keyless entry system ...
..................................... 3-5
Reporting safety defects ...
........................................... 9-26
Rollover ...
............................................................................ 5-5
Roof Roof rack ...
................................................................ 2-40
S
Safety
Child seat belts ...
.................................................... 1-19
Towing safety ...
......................................................... 9-21
Satellite radio operation ...
............................................ 4-32
Seat adjustment Front manual seat adjustment ...
.............................. 1-3
Front seats ...
................................................................ 1-3 Seat belt(s)
Child safety ...
............................................................ 1-19
Infants ...
...................................................................... 1-20
Injured persons ...
..................................................... 1-11
Larger children ...
...................................................... 1-20
Precautions on seat belt usage ...
........................... 1-9
Pregnant women ...
.................................................. 1-11
Rear center seat belt ...
.......................................... 1-15
Seat belt cleaning ...
................................................... 7-6
Seat belt extenders ...
.............................................. 1-18
Seat belt hooks ...
.................................................... 1-15
Seat belt maintenance ...
........................................ 1-18
Seat belt warning light ...
........................................ 2-13
Seat belts ...
.................................................................. 1-9
Seat belts with pretensioners ...
........................... 1-51
Shoulder belt height adjustment ...
...................... 1-14
Small children ...
........................................................ 1-20
Three-point type ...
................................................... 1-11
Seat(s) Seats ...
.......................................................................... 1-2
Security system (NISSAN Vehicle Immobilizer
System) , Engine start ...
................................................. 2-27
Security system, Vehicle security system ...
............. 2-26
Servicing air conditioner ...
............................................ 4-11
Settings ...
.......................................................................... 2-24
Shift lever, Shift lock release ...
................................... 5-16
Shift lock release Transmission ...
.......................................................... 5-16
Shifting CVT (Continuously
Variable Transmission) ...
............................. 5-10, 5-12
Shoulder belt height adjustment ...
............................. 1-14
Spare tire ...
.............................................................. 8-38, 9-7
Spark plugs ...
.................................................................. 8-15
Sport mode switch ...
..................................................... 5-14
Starting Before starting the engine ...
................................. 5-11
Condition:
Page 319 of 323
Black plate (317,1)
[ Edit: 2013/ 10/ 22 Model: S35-D ]
Jump starting...
............................................................ 6-9
Precautions when starting and driving ...
.............. 5-2
Push starting ...
......................................................... 6-11
Starting the engine ...
.............................................. 5-11
Status light, Front passenger air bag ...
.................... 1-46
Steering Electric power steering system ...
........................ 5-25
Steering wheel switch for audio controls ...
...... 4-38
Tilting steering wheel ...
.......................................... 3-13
Storage ...
.......................................................................... 2-34
Sun visors ...
..................................................................... 3-13
Sunglasses holder ...
...................................................... 2-35
Supplemental air bag warning labels ...
..................... 1-52
Supplemental air bag warning light ...
............ 1-53, 2-14
Supplemental restraint system ...
................................. 1-39
Precautions on supplemental
restraint system ...
..................................................... 1-39
Switch All-Wheel Drive (AWD) lock switch ...
................ 5-21
Audio control steering wheel switch ...
............... 4-38
Fog light switch ...
.................................................... 2-32
Hazard warning flasher switch ...
............................. 6-2
Headlight switch ...
................................................... 2-31
Ignition switch ...
....................................................... 5-10
Overdrive OFF switch ...
......................................... 5-15
Power door lock switch ...
......................................... 3-4
Rear window defroster switch ...
.......................... 2-30
Sport mode switch ...
.............................................. 5-14
Turn signal switch ...
................................................ 2-32
Vehicle dynamic control (VDC) off switch ...
..... 2-33
T
Tachometer ...
..................................................................... 2-6
Temperature gauge, Engine coolant
temperature gauge ...
........................................................ 2-6 Theft (NISSAN Vehicle Immobilizer System) ,
Engine start
...
................................................................... 2-27
Three-way catalyst ...
........................................................ 5-3
Tilting steering wheel ...
................................................. 3-13
Tire pressure, Low tire pressure warning light ...
.... 2-12
Tires Flat tire ...
....................................................................... 6-2
Low tire pressure warning system ...
...................... 5-3
Tire and Loading information label ...
....... 8-30, 9-10
Tire chains ...
.............................................................. 8-35
Tire dressing ...
............................................................. 7-4
Tire pressure ...
......................................................... 8-29
Tire pressure monitoring
system (TPMS) ...
............................................... 5-3, 6-2
Tire rotation ...
............................................................ 8-36
Types of tires ...
......................................................... 8-34
Uniform tire quality grading ...
............................... 9-25
Wheel/tire size ...
......................................................... 9-7
Wheels and tires ...
.................................................. 8-29
Tonneau cover (see cargo cover) ...
........................... 2-38
Towing Flat towing ...
............................................................. 9-24
Tow truck towing ...
.................................................. 6-12
Towing safety ...
......................................................... 9-21
Trailer towing ...
......................................................... 9-16
TPMS, Tire pressure monitoring system ...
................. 5-3
TPMS, Tire pressure warning system ...
...................... 6-2
Trailer towing ...
................................................................ 9-16
Transmission Continuously Variable Transmission
(CVT) fluid ...
.............................................................. 8-11
Driving with CVT (Continuously
Variable Transmission) ...
............................. 5-10, 5-12
Transmission shift lever lock release ...
............... 5-16
Transmitter (See remote keyless entry system) ...
.... 3-5
Traveling or registering your vehicle in
another country ...
.............................................................. 9-8 Trip computer
...
............................................................... 2-22
Turn signal switch ...
....................................................... 2-32
U
Underbody cleaning ...
..................................................... 7-3
Uniform tire quality grading ...
...................................... 9-25
USB memory operation ...
............................................. 4-34
Utility hook ...
.................................................................... 2-40
V
Vanity mirror ...
.................................................................. 3-15
Vanity mirror lights ...
...................................................... 2-46
Vehicle Dimensions and weights ...
....................................... 9-8
Identification number (VIN) ...
................................... 9-8
Information display ...
............................................... 2-17
Loading information ...
............................................. 9-12
Recovery (freeing a stuck vehicle) ...
.................. 6-14
Security system ...
.................................................... 2-26
Vehicle dynamic control (VDC) off switch ...
..... 2-33
Vehicle dynamic control (VDC) system ...
.......... 5-27
Vehicle dynamic control (VDC) warning light ...
...... 2-14
Ventilators ...
........................................................................ 4-7
Voice command (Bluetooth
®Hands-Free
Phone System) ...
............................................................ 4-46
Voice Prompt Interrupt ...
............................................... 4-43
W
Warning
Hazard warning flasher switch ...
............................. 6-2
Lights ...
....................................................................... 2-10
Tire pressure monitoring
system (TPMS) ...
............................................... 5-3, 6-2
10-5
Condition:
Page 320 of 323
Black plate (318,1)
[ Edit: 2013/ 10/ 22 Model: S35-D ]
10-6
Warning/indicator lights and
audible reminders...
.................................................... 2-9
Warning labels, Air bag warning labels ...
................. 1-52
Warning light Air bag warning light ...
................................ 1-53, 2-14
All-wheel drive (AWD) warning light ...
............... 2-10
Anti-lock braking system (ABS)
warning light ...
.......................................................... 2-10
AWD warning light ...
.............................................. 5-22
Brake warning light ...
.............................................. 2-11
Electric power steering warning light ...
............. 2-11
Low fuel warning light ...
......................................... 2-12
Low tire pressure warning light ...
........................ 2-12
Seat belt warning light ...
........................................ 2-13
Warranty, Emission control system warranty ...
....... 9-26
Washer switch Rear window wiper and washer switch ...
......... 2-29
Windshield wiper and washer switch ...
............. 2-28
Washing ...
........................................................................... 7-2
Waxing ...
............................................................................. 7-2
Weights (See dimensions and weights) ...
................. 9-8
Wheel/tire size ...
............................................................... 9-7
Wheels and tires ...
......................................................... 8-29
Care of wheels ...
........................................................ 7-3
Cleaning aluminum alloy wheels ...
......................... 7-3
Window washer fluid ...
................................................. 8-12
Window(s) Cleaning ...
.................................................................... 7-3
Power windows ...
.................................................... 2-41
Windshield wiper and washer switch ...
.................... 2-28
Wiper Rear window wiper and washer switch ...
......... 2-29
Rear window wiper blade ...
.................................. 8-18
Windshield wiper and washer switch ...
............. 2-28
Wiper blades ...
......................................................... 8-17
Condition:
