ModelQR25DE
Type Gasoline, 4-cycle, DOHC
Cylinder arrangement 4-cylinder, in-line
Bore 6Stroke in (mm)3.563.9 (89.0 6100.0)
Displacement cu in (cm
3) 151.82 (2,488)
Firing order 1-3-4-2
Idle speed rpm
No adjustment is necessary.
Ignition timing (B.T.D.C.) degree/rpm
Spark plug Standard DILKAR6A-11
Spark plug gap (Normal) in (mm) 0.043 (1.1)
Camshaft operation Timing chain
WHEELS AND TIRESS35-D-110201-933AA0E8-B3B1-4A14-92D7-9E7B142878DE
Road wheelGUID-44AC539A-3F91-448E-A4D5-CA65C640823B
Type
Size Offset in (mm)
Steel 1666-1/2JJ 1.57 (40)
Spare 16 64T 1.18\b30
TireGUID-BB534AE7-3A12-455C-A852-BB5320A123EC
Type
Size Pressure PSI
(kPa) [Cold]
Conventional P215/70R16
99H
33 (230)
Spare T155/90D16 60 (420)
Technical and consumer information9-7
SPECIFICATIONS
Condition:
Page 292 of 323
Black plate (290,1)
[ Edit: 2013/ 10/ 22 Model: S35-D ]
9-8Technical and consumer information
DIMENSIONS AND WEIGHTSS35-D-110201-C0BD9505-CF16-45D9-ADC2-03F9DD3B48B2
Overall length in (mm) 183.3 (4,655)*1183.9 (4,670)*2
Overall width in (mm) 70.9 (1,800)
Overall height in (mm) 65.3 (1,658) 66.3 (1,683)*3
Front tread in (mm) 60.6 (1,540)
Rear tread in (mm) 61.0 (1,550)
Wheelbase in (mm) 105.9 (2,690)
Gross Vehicle
Weight Rating
(GVWR) lb (kg)
See the F.M.V.S.S.
certification label on the
driver’s side center pil-
lar.
Gross Axle
Weight Rating
(GAWR)
Front lb (kg)
Rear lb (kg)
*1: Without front license plate bracket
*2: With front license plate bracket
*3: With roof rail
S35-D-110201-97696DB0-9FA1-454C-9A54-75CB658B4436When planning to travel in another coun-
try, you should first find out if the fuel available is
suitable for your vehicle’s engine.
Using fuel with an octane rating that is too low
may cause engine damage. All gasoline vehicles
must be operated with unleaded gasoline.
Therefore, avoid taking your vehicle to areas
where appropriate fuel is not available.
When transferring the registration of your
vehicle to another country, state, province
or district, it may be necessary to modify the
vehicle to meet local laws and regulations.
The laws and regulations for motor vehicle
emission control and safety standards vary
according to the country, state, province or
district; therefore, vehicle specifications may
differ.
When any vehicle is to be taken into
another country, state, province or district
and registered, its modifications, transpor-
tation, and registration are the responsi-
bility of the user. NISSAN is not
responsible for any inconvenience that
may result.S35-D-110201-AF2DD131-9602-439B-9C4F-B002B286C468
STI0457
VEHICLE IDENTIFICATION NUMBER
(VIN) PLATE
S35-D-110201-3F76E755-25B1-43D9-AFCF-FF5F50E32C88The vehicle identification number plate is at-
tached as shown. This number is the identifica-
tion for your vehicle and is used in the vehicle
registration.
WHEN TRAVELING OR
REGISTERING YOUR VEHICLE IN
ANOTHER COUNTRY VEHICLE IDENTIFICATION
Condition:
Page 293 of 323
Black plate (291,1)
[ Edit: 2013/ 10/ 22 Model: S35-D ]
STI0553
VEHICLE IDENTIFICATION NUMBER
(chassis number)
S35-D-110201-859767E6-F86B-4A5A-B7CB-B6320904327EThe vehicle identification number is located as
shown.
Remove the cover to access the number.
SDI2121

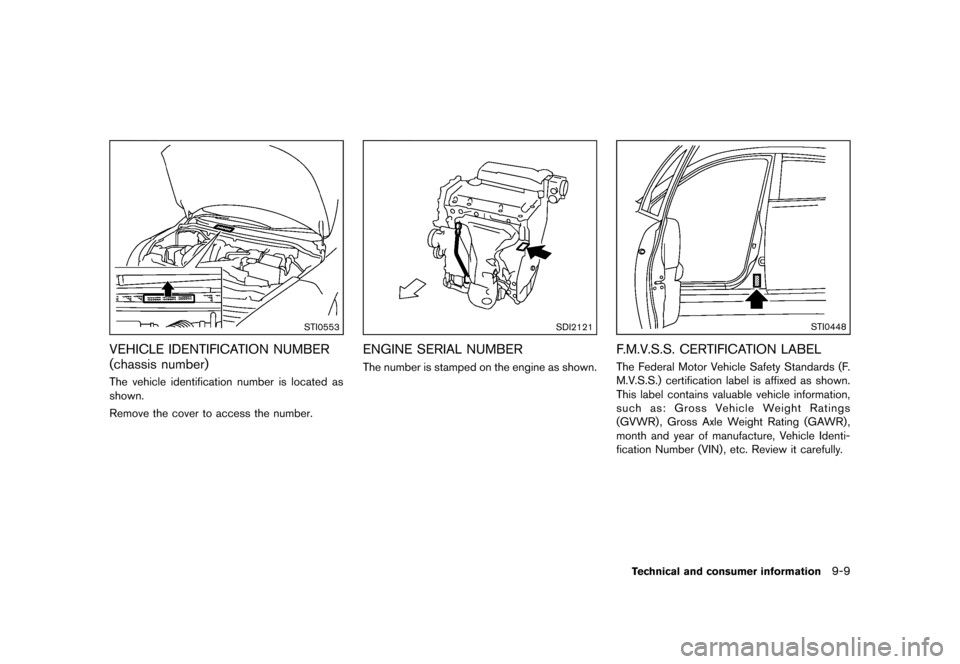

ENGINE SERIAL NUMBERS35-D-110201-CB8324CE-1974-419D-AC72-4A30E1369F8BThe number is stamped on the engine as shown.
STI0448
F.M.V.S.S. CERTIFICATION LABELS35-D-110201-12E3C8D7-CF92-4ECA-8F69-6F7ACEA8B044The Federal Motor Vehicle Safety Standards (F.
M.V.S.S.) certification label is affixed as shown.
This label contains valuable vehicle information,
such as: Gross Vehicle Weight Ratings
(GVWR), Gross Axle Weight Rating (GAWR) ,
month and year of manufacture, Vehicle Identi-
fication Number (VIN) , etc. Review it carefully.
Technical and consumer information9-9
Condition:
Page 294 of 323
Black plate (292,1)
[ Edit: 2013/ 10/ 22 Model: S35-D ]
9-10Technical and consumer information
STI0554

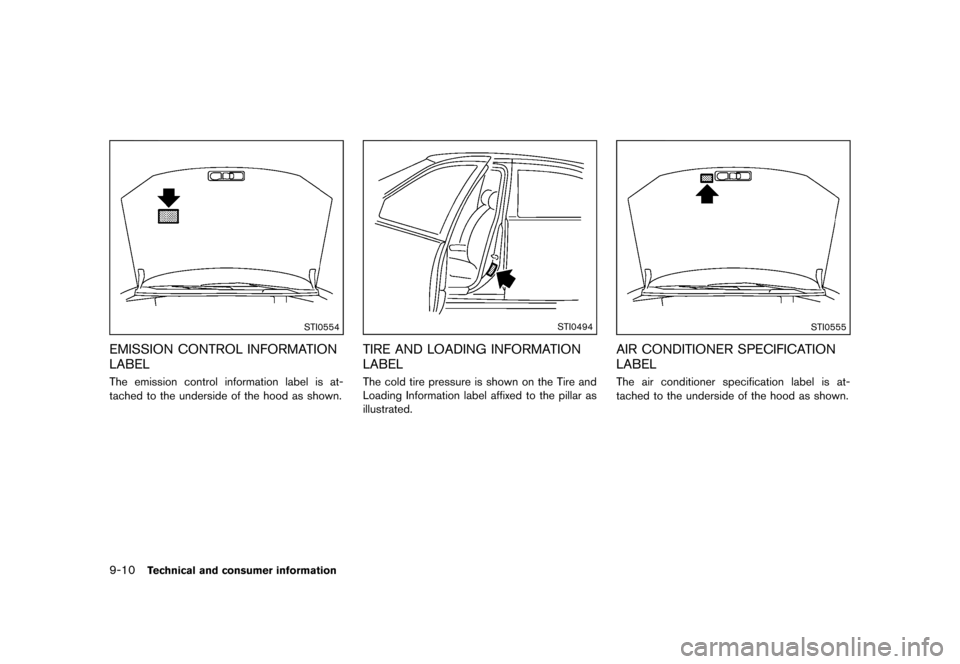

EMISSION CONTROL INFORMATION
LABEL
GUID-66B2F781-E0EB-479C-AB4A-981653668323The emission control information label is at-
tached to the underside of the hood as shown.
STI0494
TIRE AND LOADING INFORMATION
LABEL
S35-D-110201-A6628635-F2F6-406F-8A41-BB648265F3A3The cold tire pressure is shown on the Tire and
Loading Information label affixed to the pillar as
illustrated.
STI0555
AIR CONDITIONER SPECIFICATION
LABEL
S35-D-110201-AD318A46-F994-493D-A23F-30C24E4DCD3DThe air conditioner specification label is at-
tached to the underside of the hood as shown.
Condition:
Page 295 of 323
Black plate (293,1)
[ Edit: 2013/ 10/ 22 Model: S35-D ]
GUID-8C7B3EDE-5B46-4444-AAEA-39E13F6CC646
STI0599

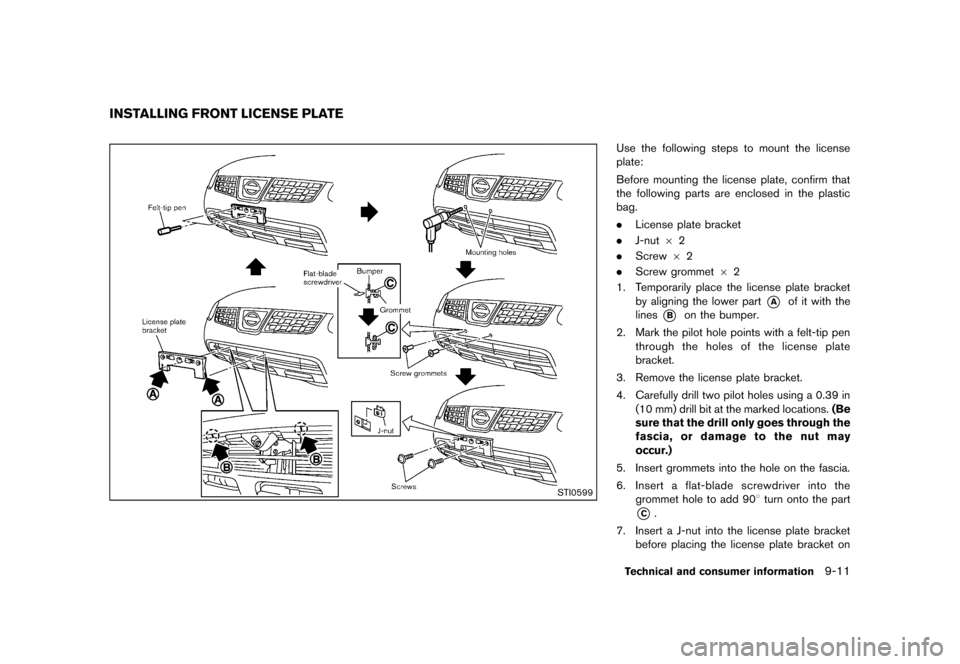

Use the following steps to mount the license
plate:
Before mounting the license plate, confirm that
the following parts are enclosed in the plastic
bag.
.License plate bracket
. J-nut 62
. Screw 62
. Screw grommet 62
1. Temporarily place the license plate bracket by aligning the lower part
*Aof it with the
lines
*Bon the bumper.
2. Mark the pilot hole points with a felt-tip pen through the holes of the license plate
bracket.
3. Remove the license plate bracket.
4. Carefully drill two pilot holes using a 0.39 in (10 mm) drill bit at the marked locations. (Be
sure that the drill only goes through the
fascia, or damage to the nut may
occur.)
5. Insert grommets into the hole on the fascia.
6. Insert a flat-blade screwdriver into the
grommet hole to add 908 turn onto the part
*C.
7. Insert a J-nut into the license plate bracket before placing the license plate bracket on
Technical and consumer information9-11
INSTALLING FRONT LICENSE PLATE
Condition:
Page 296 of 323
Black plate (294,1)
[ Edit: 2013/ 10/ 22 Model: S35-D ]

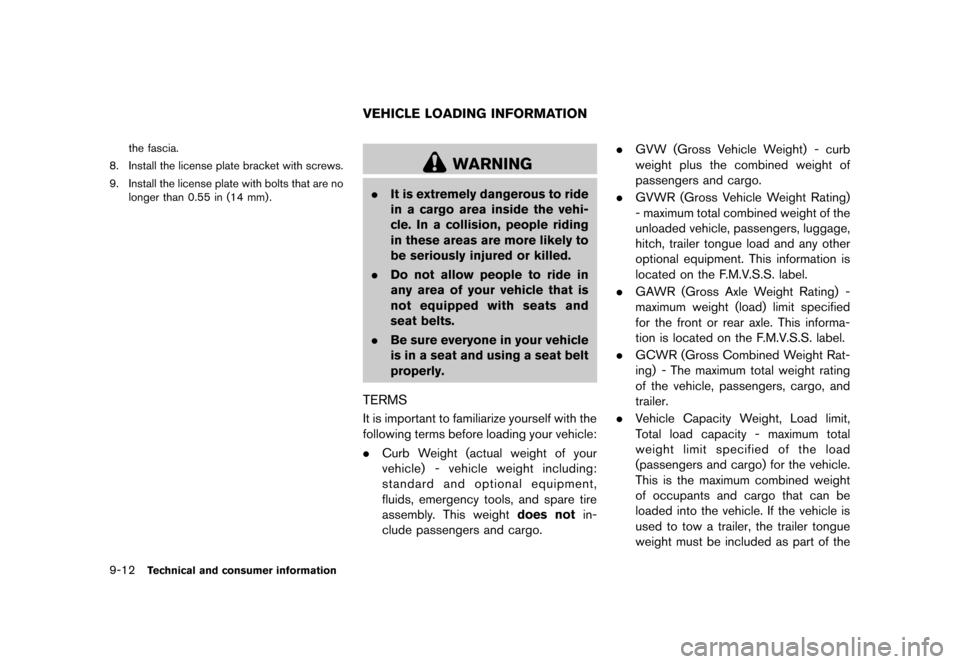

9-12Technical and consumer information
the fascia.
8. Install the license plate bracket with screws.
9. Install the license plate with bolts that are no longer than 0.55 in (14 mm).
GUID-BB9A5124-3B7E-4C93-AAB5-7F52C2C592B1
WARNING
.It is extremely dangerous to ride
in a cargo area inside the vehi-
cle. In a collision, people riding
in these areas are more likely to
be seriously injured or killed.
. Do not allow people to ride in
any area of your vehicle that is
not equipped with seats and
seat belts.
. Be sure everyone in your vehicle
is in a seat and using a seat belt
properly.
TERMSGUID-D054302B-C9E3-4215-B3F5-DCA601494CB0It is important to familiarize yourself with the
following terms before loading your vehicle:
.Curb Weight (actual weight of your
vehicle) - vehicle weight including:
standard and optional equipment,
fluids, emergency tools, and spare tire
assembly. This weight does notin-
clude passengers and cargo. .
GVW (Gross Vehicle Weight) - curb
weight plus the combined weight of
passengers and cargo.
. GVWR (Gross Vehicle Weight Rating)
- maximum total combined weight of the
unloaded vehicle, passengers, luggage,
hitch, trailer tongue load and any other
optional equipment. This information is
located on the F.M.V.S.S. label.
. GAWR (Gross Axle Weight Rating) -
maximum weight (load) limit specified
for the front or rear axle. This informa-
tion is located on the F.M.V.S.S. label.
. GCWR (Gross Combined Weight Rat-
ing) - The maximum total weight rating
of the vehicle, passengers, cargo, and
trailer.
. Vehicle Capacity Weight, Load limit,
Total load capacity - maximum total
weight limit specified of the load
(passengers and cargo) for the vehicle.
This is the maximum combined weight
of occupants and cargo that can be
loaded into the vehicle. If the vehicle is
used to tow a trailer, the trailer tongue
weight must be included as part of the
VEHICLE LOADING INFORMATION
Condition:
Page 297 of 323
Black plate (295,1)
[ Edit: 2013/ 10/ 22 Model: S35-D ]

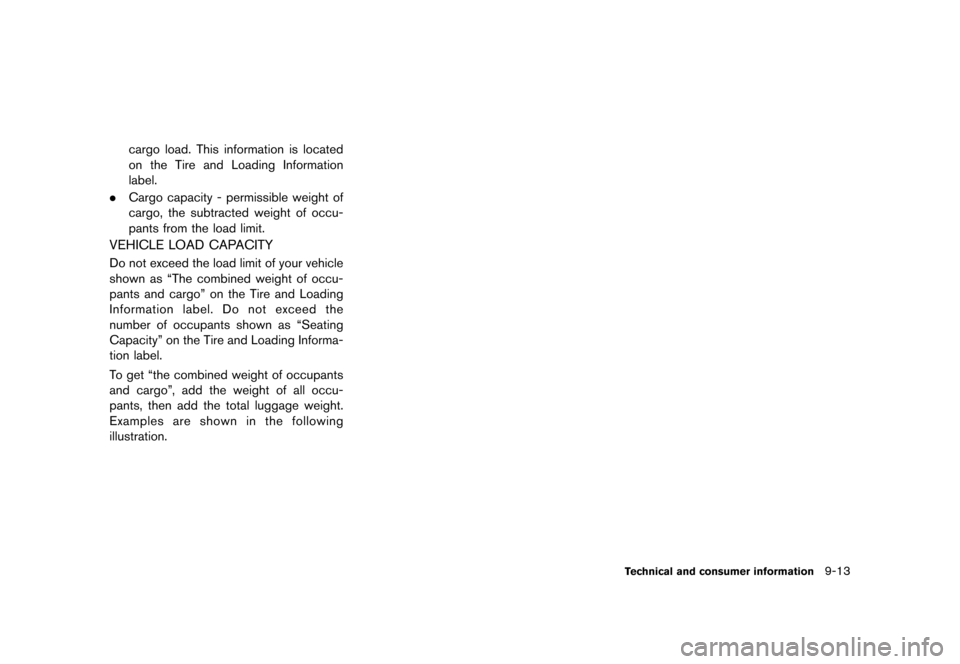

cargo load. This information is located
on the Tire and Loading Information
label.
. Cargo capacity - permissible weight of
cargo, the subtracted weight of occu-
pants from the load limit.
VEHICLE LOAD CAPACITYGUID-38380F31-0804-401A-AFE8-18E1DA7E686DDo not exceed the load limit of your vehicle
shown as “The combined weight of occu-
pants and cargo” on the Tire and Loading
Information label. Do not exceed the
number of occupants shown as “Seating
Capacity” on the Tire and Loading Informa-
tion label.
To get “the combined weight of occupants
and cargo”, add the weight of all occu-
pants, then add the total luggage weight.
Examples are shown in the following
illustration.
Technical and consumer information9-13
Condition:
Page 298 of 323
Black plate (296,1)
[ Edit: 2013/ 10/ 22 Model: S35-D ]
9-14Technical and consumer information
STI0445

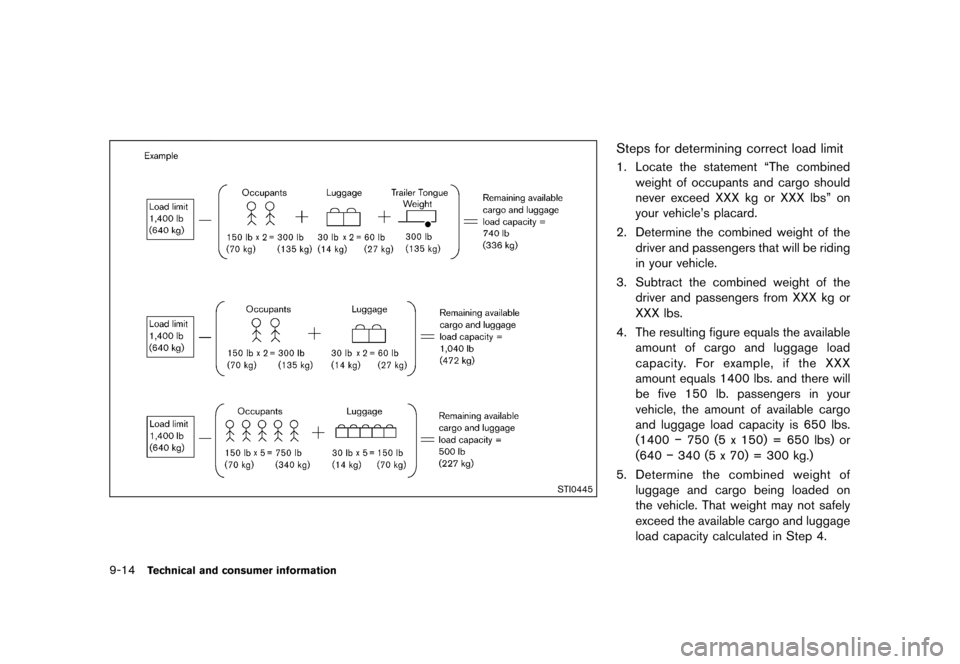

Steps for determining correct load limitGUID-6705079D-CAFB-42C4-8404-44D73E33B3511. Locate the statement “The combinedweight of occupants and cargo should
never exceed XXX kg or XXX lbs” on
your vehicle’s placard.
2. Determine the combined weight of the driver and passengers that will be riding
in your vehicle.
3. Subtract the combined weight of the driver and passengers from XXX kg or
XXX lbs.
4. The resulting figure equals the available amount of cargo and luggage load
capacity. For example, if the XXX
amount equals 1400 lbs. and there will
be five 150 lb. passengers in your
vehicle, the amount of available cargo
and luggage load capacity is 650 lbs.
(1400 −750 (5 x 150) = 650 lbs) or
(640 −340 (5 x 70) = 300 kg.)
5. Determine the combined weight of
luggage and cargo being loaded on
the vehicle. That weight may not safely
exceed the available cargo and luggage
load capacity calculated in Step 4.
Condition:
Page 299 of 323
Black plate (297,1)
[ Edit: 2013/ 10/ 22 Model: S35-D ]
6. If your vehicle will be towing a trailer,load from your trailer will be transferred
to your vehicle. Consult this manual to
determine how this reduces the avail-
able cargo and luggage load capacity
of your vehicle.
Before driving a loaded vehicle, confirm
that you do not exceed the Gross Vehicle
Weight Rating (GVWR) or the Gross Axle
Weight Rating (GAWR) for your vehicle.
(See “Measurement of weights” (P.9-16) .)
Also check tires for proper inflation pres-
sures. See the Tire and Loading Information
label.
JVI0850X

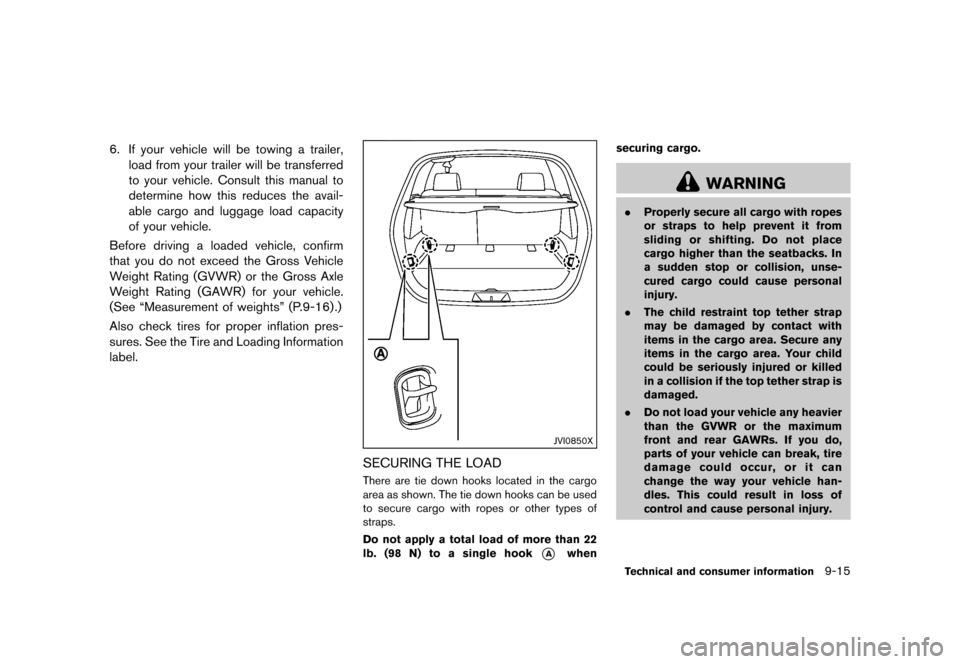

SECURING THE LOADGUID-C5ADB899-0DC1-4071-8A50-14EE85DD830DThere are tie down hooks located in the cargo
area as shown. The tie down hooks can be used
to secure cargo with ropes or other types of
straps.
Do not apply a total load of more than 22
lb. (98 N) to a single hook
*Awhen securing cargo.
WARNING
.
Properly secure all cargo with ropes
or straps to help prevent it from
sliding or shifting. Do not place
cargo higher than the seatbacks. In
a sudden stop or collision, unse-
cured cargo could cause personal
injury.
. The child restraint top tether strap
may be damaged by contact with
items in the cargo area. Secure any
items in the cargo area. Your child
could be seriously injured or killed
in a collision if the top tether strap is
damaged.
. Do not load your vehicle any heavier
than the GVWR or the maximum
front and rear GAWRs. If you do,
parts of your vehicle can break, tire
damage could occur, or it can
change the way your vehicle han-
dles. This could result in loss of
control and cause personal injury.
Technical and consumer information9-15
Condition:
Page 300 of 323
Black plate (298,1)
[ Edit: 2013/ 10/ 22 Model: S35-D ]
9-16Technical and consumer information

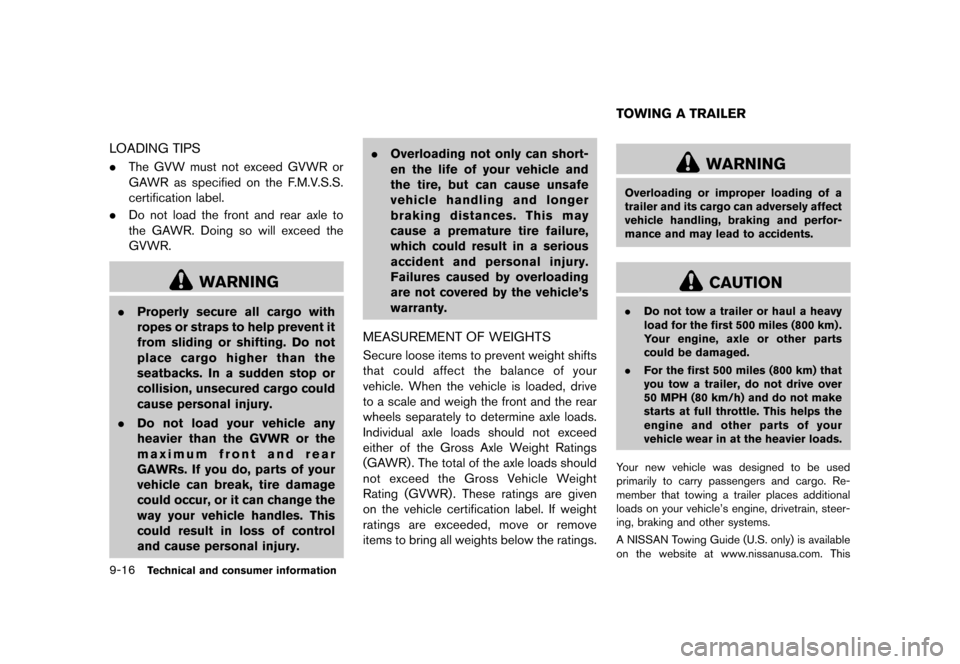

LOADING TIPSGUID-CCF58CFF-D49E-4D69-894F-4222D9AD3A99.The GVW must not exceed GVWR or
GAWR as specified on the F.M.V.S.S.
certification label.
. Do not load the front and rear axle to
the GAWR. Doing so will exceed the
GVWR.
WARNING
.Properly secure all cargo with
ropes or straps to help prevent it
from sliding or shifting. Do not
place cargo higher than the
seatbacks. In a sudden stop or
collision, unsecured cargo could
cause personal injury.
. Do not load your vehicle any
heavier than the GVWR or the
maximum front and rear
GAWRs. If you do, parts of your
vehicle can break, tire damage
could occur, or it can change the
way your vehicle handles. This
could result in loss of control
and cause personal injury. .
Overloading not only can short-
en the life of your vehicle and
the tire, but can cause unsafe
vehicle handling and longer
braking distances. This may
cause a premature tire failure,
which could result in a serious
accident and personal injury.
Failures caused by overloading
are not covered by the vehicle’s
warranty.
MEASUREMENT OF WEIGHTSGUID-C42BDC9B-1E48-4CC9-93DD-223E72FBF0D1Secure loose items to prevent weight shifts
that could affect the balance of your
vehicle. When the vehicle is loaded, drive
to a scale and weigh the front and the rear
wheels separately to determine axle loads.
Individual axle loads should not exceed
either of the Gross Axle Weight Ratings
(GAWR). The total of the axle loads should
not exceed the Gross Vehicle Weight
Rating (GVWR) . These ratings are given
on the vehicle certification label. If weight
ratings are exceeded, move or remove
items to bring all weights below the ratings.
GUID-6E94EE6F-56CB-48E7-B357-BC00A3528549
WARNING
Overloading or improper loading of a
trailer and its cargo can adversely affect
vehicle handling, braking and perfor-
mance and may lead to accidents.
CAUTION
. Do not tow a trailer or haul a heavy
load for the first 500 miles (800 km) .
Your engine, axle or other parts
could be damaged.
. For the first 500 miles (800 km) that
you tow a trailer, do not drive over
50 MPH (80 km/h) and do not make
starts at full throttle. This helps the
engine and other parts of your
vehicle wear in at the heavier loads.
Your new vehicle was designed to be used
primarily to carry passengers and cargo. Re-
member that towing a trailer places additional
loads on your vehicle’s engine, drivetrain, steer-
ing, braking and other systems.
A NISSAN Towing Guide (U.S. only) is available
on the website at www.nissanusa.com. This
TOWING A TRAILER
Condition:
