0-2Illustrated table of contents

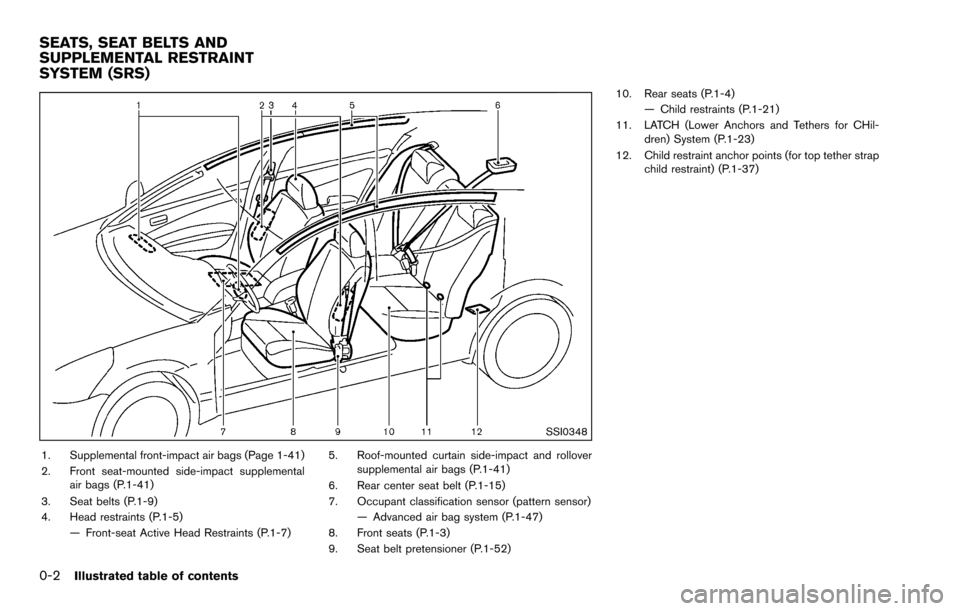

SSI0348
1. Supplemental front-impact air bags (Page 1-41)
2. Front seat-mounted side-impact supplementalair bags (P.1-41)
3. Seat belts (P.1-9)
4. Head restraints (P.1-5) — Front-seat Active Head Restraints (P.1-7) 5. Roof-mounted curtain side-impact and rollover
supplemental air bags (P.1-41)
6. Rear center seat belt (P.1-15)
7. Occupant classification sensor (pattern sensor) — Advanced air bag system (P.1-47)
8. Front seats (P.1-3)
9. Seat belt pretensioner (P.1-52) 10. Rear seats (P.1-4)
— Child restraints (P.1-21)
11. LATCH (Lower Anchors and Tethers for CHil- dren) System (P.1-23)
12. Child restraint anchor points (for top tether strap child restraint) (P.1-37)
SEATS, SEAT BELTS AND
SUPPLEMENTAL RESTRAINT
SYSTEM (SRS)

JVC0751X
1. Hood (P.3-9)
2. Headlight and turn signal lights— Switch operation (P.2-29)
— Bulb replacement (P.8-24)
3. Windshield wiper and washer — Switch operation (P.2-27)
— Blade replacement (P.8-17) — Window washer fluid (P.8-12)
4. Roof rack (rail)* (P.2-38)
5. Outside mirrors (P.3-14)
6. Power windows (P.2-39)
7. Recovery hook (P.6-14)
8. License plate installation (P.9-11) 9. Tires
— Wheel and tires (P.8-29, P.9-7)
— Flat tire (P.6-2)
— Tire Pressure Monitoring System (TPMS)
(P.2-12, P.5-3)
10. Doors — Keys (P.3-2)
— Door locks (P.3-3)
— Remote keyless entry system (P.3-5)
— Security system (P.2-24)
11. Child safety rear door lock (P.3-5)
*: if so equipped
Illustrated table of contents0-3
EXTERIOR FRONT

0-4Illustrated table of contents
JVC0576X
1. Lift gate (P.3-10)
2. Rearview camera* (P.4-2)
3. Rear window wiper and washer— Switch operation (P.2-28)
— Window washer fluid (P.8-12)
4. Rear window defroster (P.2-29) 5. High-mounted stop light
— Bulb replacement (P.8-26)
6. Antenna (P.4-38)
— Satellite radio antenna* (P.4-12)
7. Back-up light — Bulb replacement (P.8-26) 8. Rear combination light
— Bulb replacement (P.8-26)
9. Fuel-filler door
— Operation (P.3-11)
— Fuel information (P.9-3)
*: if so equipped
EXTERIOR REAR

JVC0577X
1. Cargo cover* (P.2-36)
2. Coat hooks (P.2-38)
3. Ceiling light (P.2-43)
4. Door armrest— Power window switch (P.2-39)
— Power door lock switch (P.3-4)
5. Sun visors (P.3-13) 6. Front map lights (P.2-42)
7. Sunglasses holder (P.2-33)
8. Inside mirror (P.3-14)
9. Cargo area
— Storages (P.2-35)
— Luggage hooks (P.2-37)
— Cargo light (P.2-44) — Spare tire (P.6-4)
10. Rear cup holders (P.2-32)
11. Console box (P.2-35) — Power outlet (P.2-31)
—iPod
Šor USB connection port* (P.4-26)
12. Front cup holders (P.2-32)
*: if so equipped
Illustrated table of contents0-5
PASSENGER COMPARTMENT

0-6Illustrated table of contents
JVC0578X
1. Side ventilator (P.4-7)
2. Headlight and turn signal switch(P.2-29)
3. Steering-wheel-mounted controls (left side)* — Audio control* (P.4-37)
— Bluetooth
ŠHands-Free Phone System con-
trol* (P.4-40) 4. Steering wheel
— Horn (P.2-31)
— Driver supplemental air bag (P.1-41)
— Electric power steering system (P.5-24)
5. Meters and gauges (P.2-4)
6. Steering-wheel-mounted controls (right side) — Cruise control switches* (P.5-17) 7. Wiper and washer switch (P.2-27)
8. Center ventilator (P.4-7)
9. Hazard warning flasher switch (P.6-2)
10. Audio system (P.4-12)
— Clock (P.4-22, P.4-30)
— RearView Monitor* (P.4-2)
11. Front passenger supplemental air bag (P.1-41)
12. Outside remote mirror control switch (P.3-14)
13. All-Wheel Drive (AWD) LOCK switch* (P.5-20)
14. Fuse box cover (P.8-20)
15. Vehicle Dynamic Control (VDC) OFF switch (P.2-31, P.5-27)
16. Hood release handle (P.3-9)
17. Tilting steering wheel lever (P.3-13)
18. Parking brake (P.5-16)
19. Ignition switch (P.5-9)
20. Sport mode switch (P.5-14)
21. Power outlet (P.2-31)
22. Heater/air conditioner control (P.4-8)
23 Shift lever (P.5-12)
24. Front passenger air bag status light (P.1-48)
25. Rear window defroster switch (P.2-29)
26. Glove box (P.2-34)
*: if so equipped
INSTRUMENT PANEL

JVC0301X
1. Tachometer (P.2-6)
2. Warning/indicator lights (P.2-9)
3. Vehicle information display (P.2-17)
4. Speedometer (P.2-5)
5. Engine coolant temperature gauge (P.2-6)
6.
switch (twin trip odometer control and
brightness control) (P.2-5, P.2-8) 7.
switch (settings control and trip computer
control) (P.2-17)
8. Fuel gauge (P.2-7)
Illustrated table of contents0-7
METERS AND GAUGES

0-8Illustrated table of contents
SDI2127
QR25DE ENGINE1. Engine oil filler cap (P.8-9)
2. Brake fluid reservoir (P.8-11)
3. Air cleaner (P.8-16)
4. Engine coolant reservoir (P.8-8)
5. Window washer fluid reservoir (P.8-12)
6. Engine drive belt location (P.8-14)7. Engine oil dipstick (P.8-9)
8. Radiator filler cap (P.8-7)
— Vehicle overheat (P.6-11)
9. Battery (P.8-13) — Jump starting (P.6-9)
10. Fuse/fusible link holder (P.8-19)
ENGINE COMPARTMENT

Warninglight Name
Page
All-Wheel Drive (AWD) warning
light (AWD models) (if so
equipped) 2-10
Anti-lock Braking System (ABS)
warning light
2-10
Brake warning light
2-11
Charge warning light2-11
Electric power steering warning
light2-11
Engine oil pressure warning
light2-12
Low fuel warning light
2-12
Low tire pressure warning light2-12
Master warning light2-13
Seat belt warning light2-13
Supplemental air bag warning
light2-14
Vehicle Dynamic Control (VDC)
warning light
2-14Indicator
light Name
Page
All-Wheel Drive (AWD) LOCK
indicator light (AWD models) (if
so equipped) 2-14
Exterior light indicator
2-14
Front passenger air bag status
light2-15
High beam indicator light
2-15
Malfunction Indicator Light
(MIL)2-15
Overdrive off indicator light
2-16
Security indicator light2-16
SPORT mode indicator light2-16
Turn signal/hazard indicator
lights2-16
Vehicle Dynamic Control (VDC)
off indicator light2-16
Illustrated table of contents0-9
WARNING AND INDICATOR LIGHTS

0-10Illustrated table of contents
MEMO
