CHECKING BULBS
With all doors closed, apply the parking brake
and place the ignition switch in the ON position
without starting the engine. The following lights
will come on:
or,,,,,
,,,,,,
If equipped, the following lights come on briefly
and then go off:
or,,,
If any light fails to come on, it may indicate
an open circuit in the electrical system.
Have the system repaired promptly.
WARNING LIGHTS
orAnti-lock BrakingSystem (ABS)
warning light
When the ignition switch is placed in the ON
position, the ABS warning light illuminates and
then turns off. This indicates the ABS is opera-
tional.
If the ABS warning light illuminates while the
engine is running or while driving, it may indicate the ABS is not functioning properly. Have the
system checked by a NISSAN dealer.
If an ABS malfunction occurs, the anti-lock func-
tion is turned off. The brake system then operates
normally but without anti-lock assistance. For
additional information, refer to “Brake system” in
the “Starting and driving” section of this manual.
orBrake warning light
This light functions for both the parking brake and
the foot brake systems.
Parking brake indicator
When the ignition switch is placed in the ON
position, the light comes on when the parking
brake is applied.
Low brake fluid warning light
When the ignition switch is placed in the ON
position, the light warns of a low brake fluid level.
If the light comes on while the engine is running,
with the parking brake not applied, stop the ve-
hicle and perform the following:
1. Check the brake fluid level. Add brake fluid as necessary. For additional information, re-
fer to “Brake fluid” in the “Maintenance and
do-it-yourself” section of this manual. 2. If the brake fluid level is correct, have the
warning system checked by a NISSAN
dealer.
WARNING
●Your brake system may not be working
properly if the warning light is on. Driv-
ing could be dangerous. If you judge it
to be safe, drive carefully to the nearest
service station for repairs. Otherwise,
have your vehicle towed because driv-
ing it could be dangerous.
● Pressing the brake pedal with the en-
gine stopped and/or a low brake fluid
level may increase your stopping dis-
tance and braking will require greater
pedal effort and pedal travel.
● If the brake fluid level is below the
MINIMUM or MIN mark on the brake
fluid reservoir, do not drive until the
brake system has been checked at a
NISSAN dealer.
Anti-lock Braking System (ABS) warning
indicator
When the parking brake is released and the
brake fluid level is sufficient, if both the brake
warning light and the ABS warning light illumi-
nates, it may indicate the ABS is not functioning
Instruments and controls2-15
Page 100 of 402
FCC Notice:
For USA:
This device complies with part 15 of the
FCC Rules. Operation is subject to the fol-
lowing two conditions: (1) This device may
not cause harmful interference, and (2) this
device must accept any interference re-
ceived, including interference that may
cause undesired operation.
NOTE:
Changes or modifications not expressly ap-
proved by the party responsible for compli-
ance could void the user’s authority to op-
erate the equipment.
For Canada:
This device complies with Industry Canada
licence-exempt RSS standard(s) . Opera-
tion is subject to the following two condi-
tions: (1) this device may not cause inter-
ference, and (2) this device must accept any
interference, including interference that
may cause undesired operation of the de-
vice.
Security indicator light
For vehicles without Intelligent Key: This light
blinks whenever the ignition switch is placed in
the LOCK, OFF or ACC position.
For vehicles with Intelligent Key: This light blinks
when the ignition switch is placed in the LOCK
position with the key removed from the ignition
switch.
This function indicates the NISSAN Vehicle Im-
mobilizer System is operational.If the NISSAN Vehicle Immobilizer System is mal-
functioning, the light will remain on while the
ignition switch is placed in the ON position.
If the light still remains on and/or the en-
gine will not start, see a NISSAN dealer for
NISSAN Vehicle Immobilizer System ser-
vice as soon as possible. Please bring all
registered keys that you have when visiting
a NISSAN dealer for service.
LIC0474
Instruments and controls2-25
Page 202 of 402
APPS button
Press the APPS button to launch the Smart-
phone Integration Mode. For additional informa-
tion, refer to “NissanConnect
SMMobile Apps” in
this section regarding this feature.
For additional information, refer to “Bluetooth®
Hands-Free Phone system without Navigation” in
this section regarding connecting your phone.
(back) button
Pressing the
(back) button will return the
user to the previous menu.
FM/AM/SAT radio operation
FM·AM button
Press the FM·AM button to change the band as
follows:
AM →FM1 →FM2 →AM
If another audio source is playing when the
FM·AM button is pressed, the audio source play-
ing will automatically be turned off and the last
radio station played will begin playing.
The FM stereo indicator (STEREO) is shown on
the screen during FM stereo reception. When the
stereo broadcast signal is weak, the radio auto-
matically changes from stereo to monaural re-
ception. XM band select
Press the XM button to change the band as
follows:
XM1*
→XM2* →XM3* →XM1 (satellite, if so
equipped)
When the XM button is pressed while the ignition
switch is in the ACC or ON position, the radio will
come on at the station last played.
The last station played will also come on when
the
(power) is pressed ON.
*When the XM button is pressed, the satellite
radio reception will not be available unless an
optional satellite receiver and antenna are in-
stalled and a SiriusXM® Satellite Radio service
subscription is active. Satellite radio is not avail-
able in Alaska, Hawaii and Guam.
If a compact disc is playing when the XM button
is pressed, the compact disc will automatically be
turned off and the last radio station played will
come on.
TUNE/SCROLL knob (Tuning)
Turn the TUNE/SCROLL knob to the left or right
for manual tuning.
SEEK tuning
Press the
orSEEK buttons to tune
from low to high or high to low frequencies and to
stop at the next broadcasting station.
SCAN tuning
Press the SCAN button to stop at each broad-
casting station for 5 seconds. SCAN will appear
on the screen while the radio is scan tuning.
Pressing the button again during this 5 second
period will stop SCAN tuning and the radio will
remain tuned to that station. If the SCAN button is
not pressed within 5 seconds, SCAN tuning
moves to the next station.
1 to 6 Station memory operations
Six stations can be set for the AM band. Twelve
stations can be set for the FM band (six for FM1,
six for FM2) .
1. Choose the radio band AM, FM1 or FM2 using the FM·AM select button.
2. Tune to the desired station using the
SEEK button or theTRACK button.
Press and hold any of the desired station
memory buttons (1 – 6) until the preset
number is updated on the display and a
beep is heard.
Monitor, climate, audio, phone and voice recognition systems4-43
Page 207 of 402
BACK button
Pressing the BACK button will return the user to
the previous menu.
SXM settings
To view the SXM settings:1. Press the [
] button.
2. Touch the “Settings” key.
3. Touch the “SXM” key.
The signal strength, activation status and other
information are displayed on the screen.
FM/AM/SAT radio operation
FM·AM button
Press the FM·AM button to change the band as
follows:
AM →FM1 →FM2 →AM
If another audio source is playing when the
FM·AM button is pressed, the audio source play-
ing will automatically be turned off and the last
radio station played will begin playing.
The FM stereo indicator (ST) is shown on the
screen during FM stereo reception. When the
stereo broadcast signal is weak, the radio auto-
matically changes from stereo to monaural re-
ception. SXM band select
Pressing the SXM button will change the band as
follows:
SXM1*
→SXM2* →SXM3* →SXM1* (satellite,
if so equipped)
When the SXM button is pressed while the igni-
tion switch is in the ACC or ON position, the
radio will come on at the last station played.
The last station played will also come on when the
ON-OFF button is pressed to turn the radio on.
*When the SXM button is pressed, the satellite
radio mode will be skipped unless an optional
satellite receiver and antenna are installed and a
SiriusXM® Satellite Radio service subscription is
active. Satellite radio is not available in Alaska,
Hawaii and Guam.
If a compact disc is playing when the SXM button
is pressed, the compact disc will automatically be
turned off and the last radio station played will
come on.
While the radio is in SXM mode, the operation
can be controlled through the touch-screen.
Touch the “Channels” key to display a list of
channels. Touch a channel displayed on the list to
change to that channel. Touch the “Categories” key to display a list of categories. Touch a cat-
egory displayed on the list to display options
within that category.
Tuning with the touch-screen
When in AM or FM mode, the radio can be tuned
using the touch-screen. To bring up the visual tuner,
touch the “Tune” key on the lower right corner of the
screen. A screen appears with a bar running from
low frequencies on the left to high frequencies on
the right. Touch the screen at the location of the
frequency you wish to tune and the station will
change to that frequency. To return to the regular
radio display screen, touch the “OK” key.
Tuning with the TUNE knob
The radio can also be manually tuned using the
TUNE knob. When in FM or AM mode, turn the
TUNE knob to the left for lower frequencies or to
the right for higher frequencies. When in SXM
mode, turn the TUNE knob to change the channel.
SEEK tuning
When in FM or AM mode, press the seek
buttons
orto tune from low to high
or high to low frequencies and to stop at the next
broadcasting station.
When in SXM mode, press the seek
buttons
orto change the category.
4-48Monitor, climate, audio, phone and voice recognition systems
Page 368 of 402
Wheel nut tightening torque:83 ft-lb (113 N·m)
The wheel nuts must be kept tight-
ened to specifications at all times. It
is recommended that wheel nuts be
tightened to specification at each
tire rotation interval.
WARNING
● After rotating the tires, check and
adjust the tire pressure.
● Retighten the wheel nuts when
the vehicle has been driven for
600 miles (1,000 km) (also in
cases of a flat tire, etc.) .
● Do not include the spare tire in
the tire rotation.
● For additional information re-
garding tires, refer to “Important
Tire Safety Information” (US) or
“Tire Safety Information”
(Canada) in the Warranty Infor-
mation Booklet.

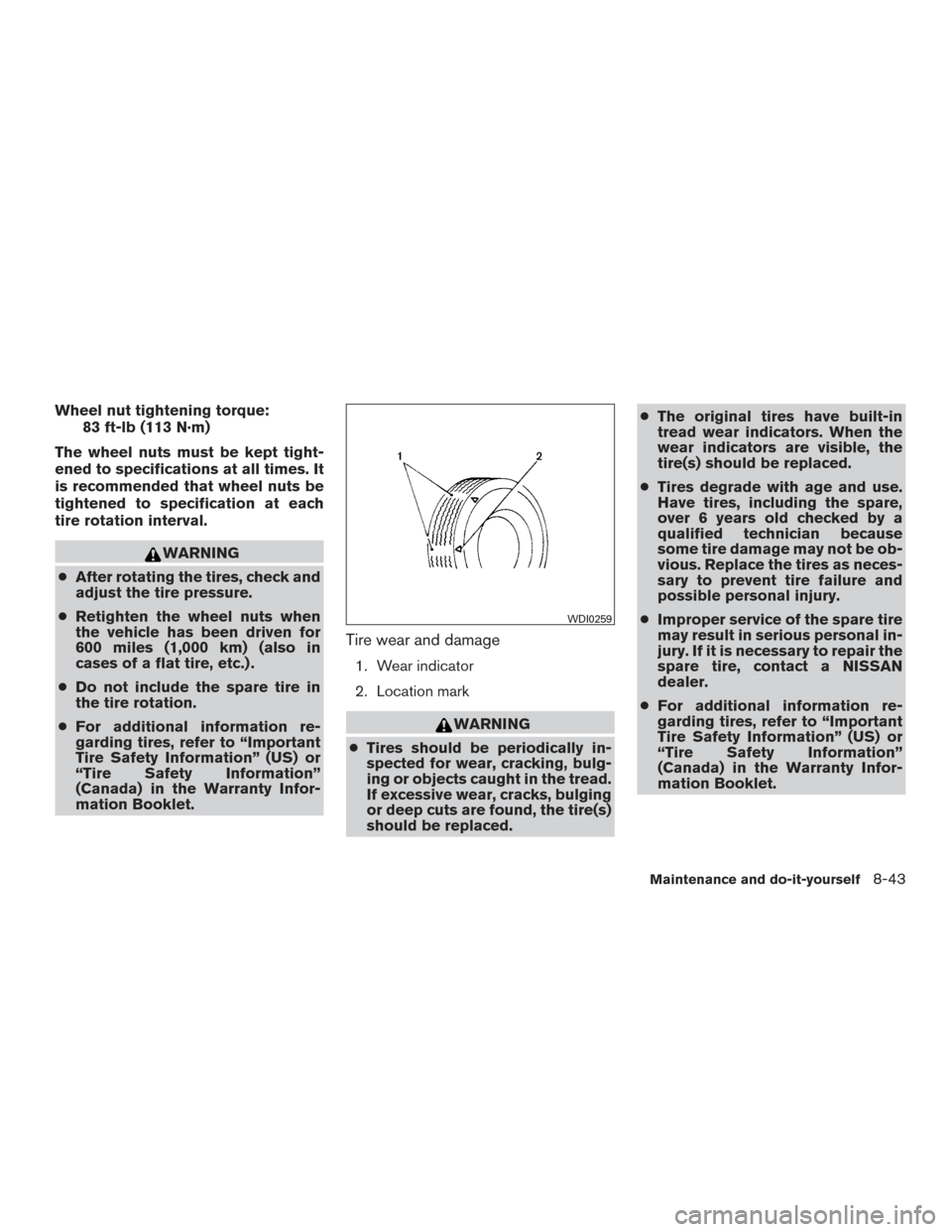

Tire wear and damage
1. Wear indicator
2. Location mark
WARNING
● Tires should be periodically in-
spected for wear, cracking, bulg-
ing or objects caught in the tread.
If excessive wear, cracks, bulging
or deep cuts are found, the tire(s)
should be replaced. ●
The original tires have built-in
tread wear indicators. When the
wear indicators are visible, the
tire(s) should be replaced.
● Tires degrade with age and use.
Have tires, including the spare,
over 6 years old checked by a
qualified technician because
some tire damage may not be ob-
vious. Replace the tires as neces-
sary to prevent tire failure and
possible personal injury.
● Improper service of the spare tire
may result in serious personal in-
jury. If it is necessary to repair the
spare tire, contact a NISSAN
dealer.
● For additional information re-
garding tires, refer to “Important
Tire Safety Information” (US) or
“Tire Safety Information”
(Canada) in the Warranty Infor-
mation Booklet.
WDI0259
Maintenance and do-it-yourself8-43
Page 394 of 402

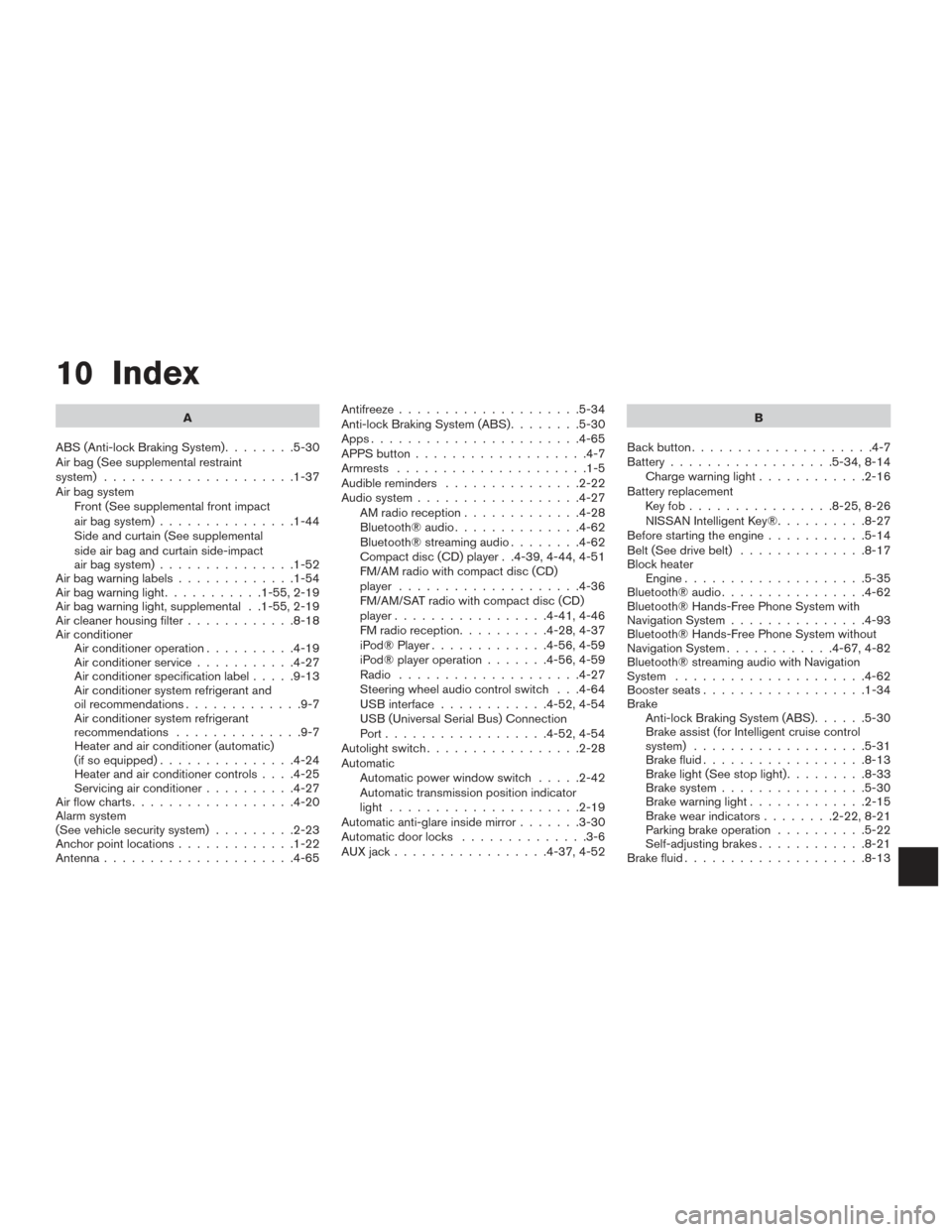

10 Index
A
ABS (Anti-lock Braking System) ........5-30
Air bag (See supplemental restraint
system) .....................1-37
Air bag system Front (See supplemental front impact
air bag system) ...............1-44
Side and curtain (See supplemental
side air bag and curtain side-impact
air bag system) ...............1-52
Airbagwarninglabels.............1-54
Airbagwarninglight...........1-55,2-19
Air bag warning light, supplemental . .1-55, 2-19
Air cleaner housing filter ............8-18
Air conditioner Air conditioner operation ..........4-19
Air conditioner service ...........4-27
Air conditioner specification label .....9-13
Air conditioner system refrigerant and
oil recommendations .............9-7
Air conditioner system refrigerant
recommendations ..............9-7
Heater and air conditioner (automatic)
(if so equipped) ...............4-24
Heater and air conditioner controls ....4-25
Servicing air conditioner ..........4-27
Airflowcharts..................4-20
Alarm system
(See vehicle security system) .........2-23
Anchor point locations .............1-22
Antenna .....................4-65 Antifreeze
....................5-34
Anti-lock Braking System (ABS) ........5-30
Apps .......................4-65
APPS button ...................4-7
Armrests .....................1-5
Audible reminders ...............2-22
Audio system ..................4-27
AMradioreception.............4-28
Bluetooth®audio..............4-62
Bluetooth® streaming audio ........4-62
Compact disc (CD) player . .4-39, 4-44, 4-51
FM/AM radio with compact disc (CD)
player ....................4-36
FM/AM/SAT radio with compact disc (CD)
player.................4-41,4-46
FMradioreception..........4-28,4-37
iPod® Player .............4-56,4-59
iPod® player operation .......4-56,4-59
Radio ....................4-27
Steering wheel audio control switch . . .4-64
USB interface ............4-52,4-54
USB (Universal Serial Bus) Connection
Port..................4-52,4-54
Autolight switch .................2-28
Automatic Automatic power window switch .....2-42
Automatic transmission position indicator
light .....................2-19
Automatic anti-glare inside mirror .......3-30
Automatic door locks ..............3-6
AUXjack.................4-37,4-52 B
Back button ....................4-7
Battery ..................5-34, 8-14
Charge warning light ............2-16
Battery replacement Keyfob................8-25,8-26
NISSAN Intelligent Key® ..........8-27
Before starting the engine ...........5-14
Belt (See drive belt) ..............8-17
Block heater Engine ....................5-35
Bluetooth® audio ................4-62
Bluetooth® Hands-Free Phone System with
Navigation System ...............4-93
Bluetooth® Hands-Free Phone System without
Navigation System ............4-67,4-82
Bluetooth® streaming audio with Navigation
System .....................4-62
Boosterseats..................1-34
Brake Anti-lock Braking System (ABS) ......5-30
Brake assist (for Intelligent cruise control
system) ...................5-31
Brake fluid ..................8-13
Brakelight(Seestoplight).........8-33
Brake system ................5-30
Brakewarninglight.............2-15
B
rakewearindicators........2-22,8-21
Parking brake operation ..........5-22
Self-adjusting brakes ............8-21
Brake fluid ....................8-13
Page 399 of 402
Pregnant women...............1-12
Seat belt extenders .............1-15
Seat belt maintenance ............1-16
Seat belts .................1-9,7-5
Shoulder belt height adjustment ......1-15
Three-point type with retractor .......1-12
Seat belt extenders ...............1-15
Seatbeltwarninglight..........1-12,2-19
Seats Adjustment ...................1-2
Armrests....................1-5
Frontseats...................1-2
Heatedseats.................2-31
Manual front seat adjustment .........1-3
Rear seat ....................1-4
Security indicator light ..............2-21
Security system (NISSAN Vehicle Immobilizer
System) , engine start .......2-24,5-10,5-13
Security systems Vehicle security system ........2-23,2-23
Self-adjusting brakes ..............8-21
Service manual order form ...........9-22
Servicing air conditioner .............4-27
Setting button ...............4-7,4-37
Shifting Continuously Variable Transmission
(CVT) .....................5-17
Manual transmission .............5-21
Shift lock release .................5-18
Shoulder belt height adjustment ........1-15
Side air bag system (See supplemental
side air bag and curtain side-impact air bag
system)......................1-52
Smartphone connectivity ............4-65
Spark plug replacement .............8-18
Spark plugs ...................8-18 Specifications
...................9-8
Speedometer ...................2-4
Speedometer and odometer ...........2-4
Spotlights(Seemaplight) ...........2-47
SRSwarninglabel................1-54
Stability control .................5-32
Starting Before starting the engine ..........5-14
Jump starting ..............6-8,8-16
Precautions when starting and driving ....5-2
Push starting .................6-10
Starting the engine ..........5-14,5-15
Starting the engine ............5-14,5-15
Steering Power steering system ...........5-29
Steeringwheel..................3-28
Steering wheel audio control switch ......4-64
Stoplight.....................8-33
Storage......................2-34
Storage tray ...................2-35
Sunglassescase.................2-36
Sunglassesholder................2-36
Sunroof......................2-43
Sunroof(seeMoonroof).............2-43
Sun visors ....................3-28
Supplemental air bag warning labels ......1-54
Supplemental air bag warning light . . .1-55, 2-19
Supplemental front impact air bag system . . .1-44
Supplemental restraint system Information and warning labels .......1-54
Precautions on supplemental restraint
system ....................1-37
Supplemental restraint system
(Supplemental air bag system) .........1-37
Supplemental side and curtain side-impact
air bag system ..................1-52 Switch
Autolightswitch...............2-28
Automatic power window switch ......2-42
Fog light switch ...............2-30
Hazard warning flasher switch ........6-2
Headlightandturnsignalswitch......2-27
Headlight control switch ..........2-27
Ignition switch .................
5-8
Instrument brightness control ........2-29
Power door lock switch ............3-5
Rearwindowdefrosterswitch .......2-27
Turnsignalswitch..............2-30
Vehicle dynamic control (VDC) off
switch .....................2-32
Wiper and washer switch ..........2-26
T
Tachometer ....................2-6
Temperature gauge Engine coolant temperature gauge .....2-6
Theft (NISSAN Vehicle Immobilizer System) ,
engine start .............2-24,5-10,5-13
Three-way catalyst ................5-2
Tilt Telescopic steering .............3-28
Tire Flat tire .....................6-3
Spare tire ................6-4,8-45
Tire and Loading Information label .....9-13
Tire chains ..................8-42
Tire pressure .................8-35
Tire rotation..................8-42
Types of tires .................8-41
Uniform tire quality grading .........9-18
10-6
