Page 361 of 528

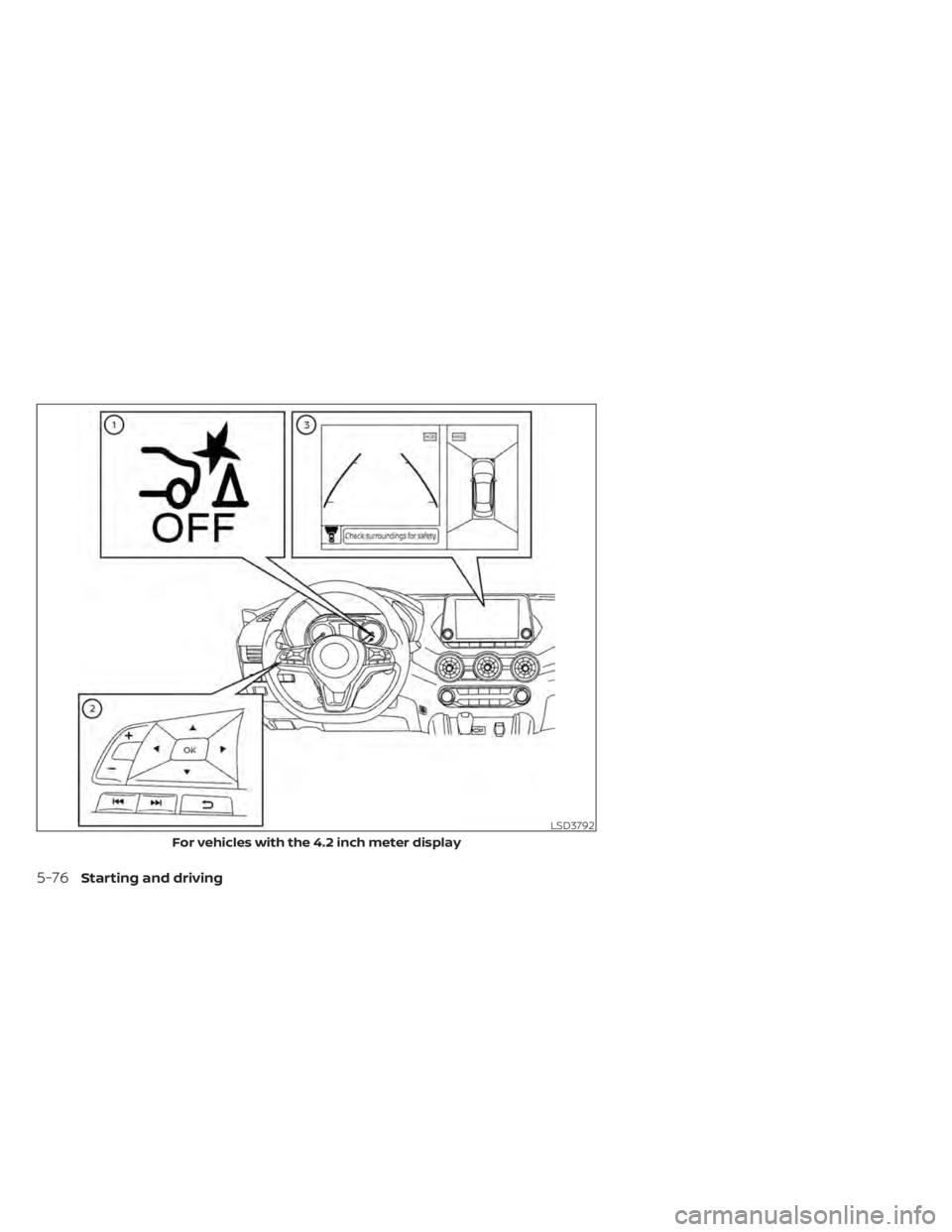

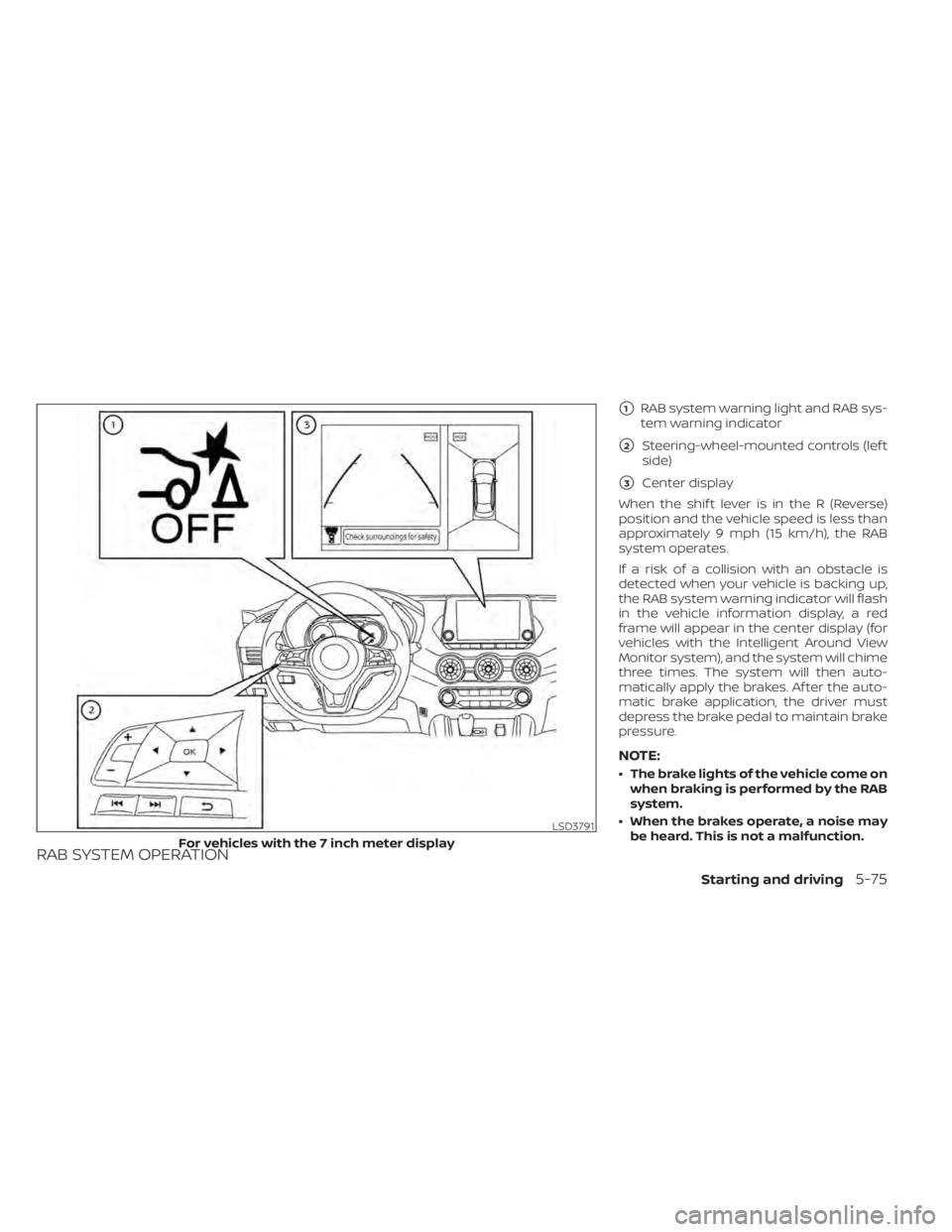

NISSAN SENTRA 2021  Owners Manual RAB SYSTEM OPERATION
1RAB system warning light and RAB sys-
tem warning indicator
2Steering-wheel-mounted controls (lef t
side)
3Center display
When the shif t lever is in the R (Reverse)
position

Page 362 of 528

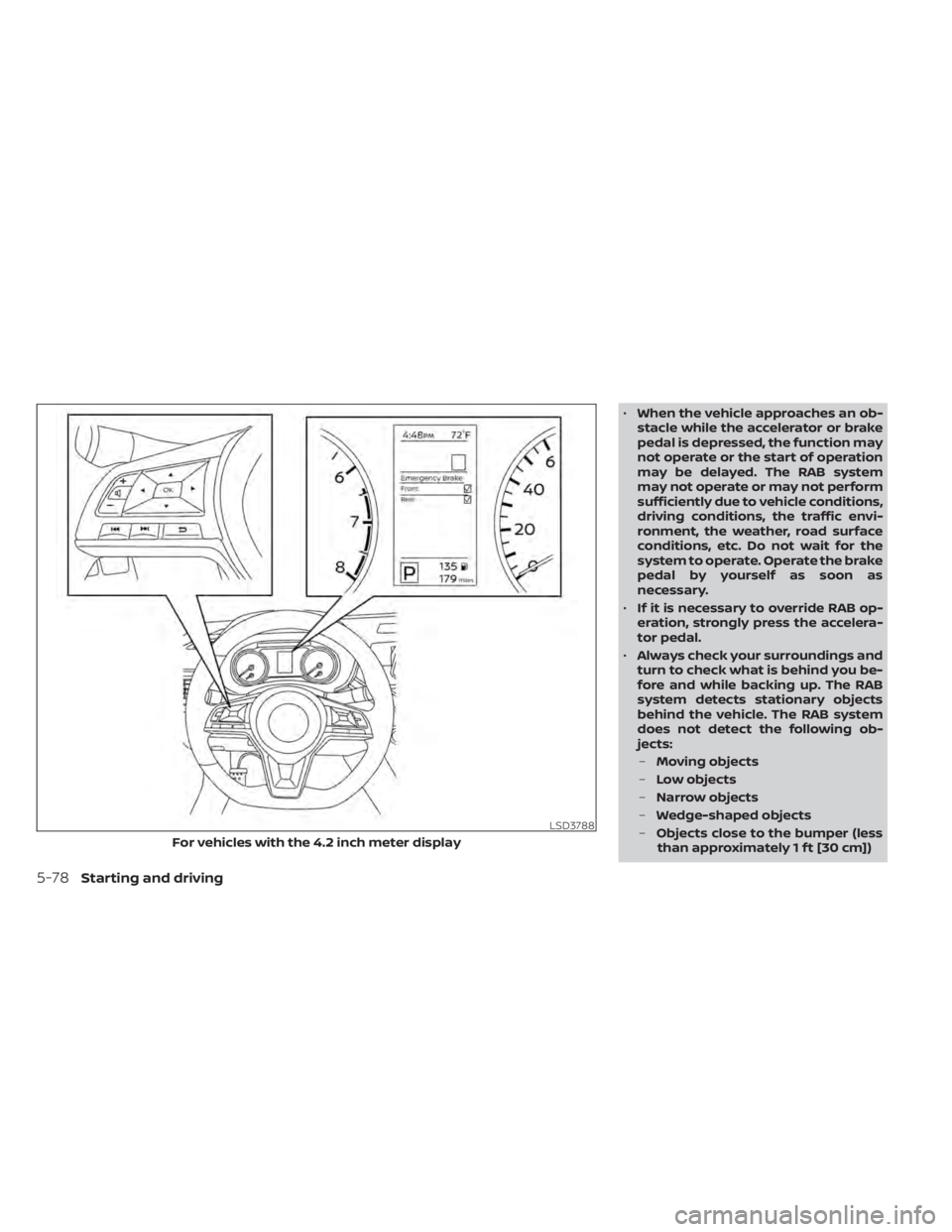

NISSAN SENTRA 2021  Owners Manual LSD3792
For vehicles with the 4.2 inch meter display

Page 363 of 528

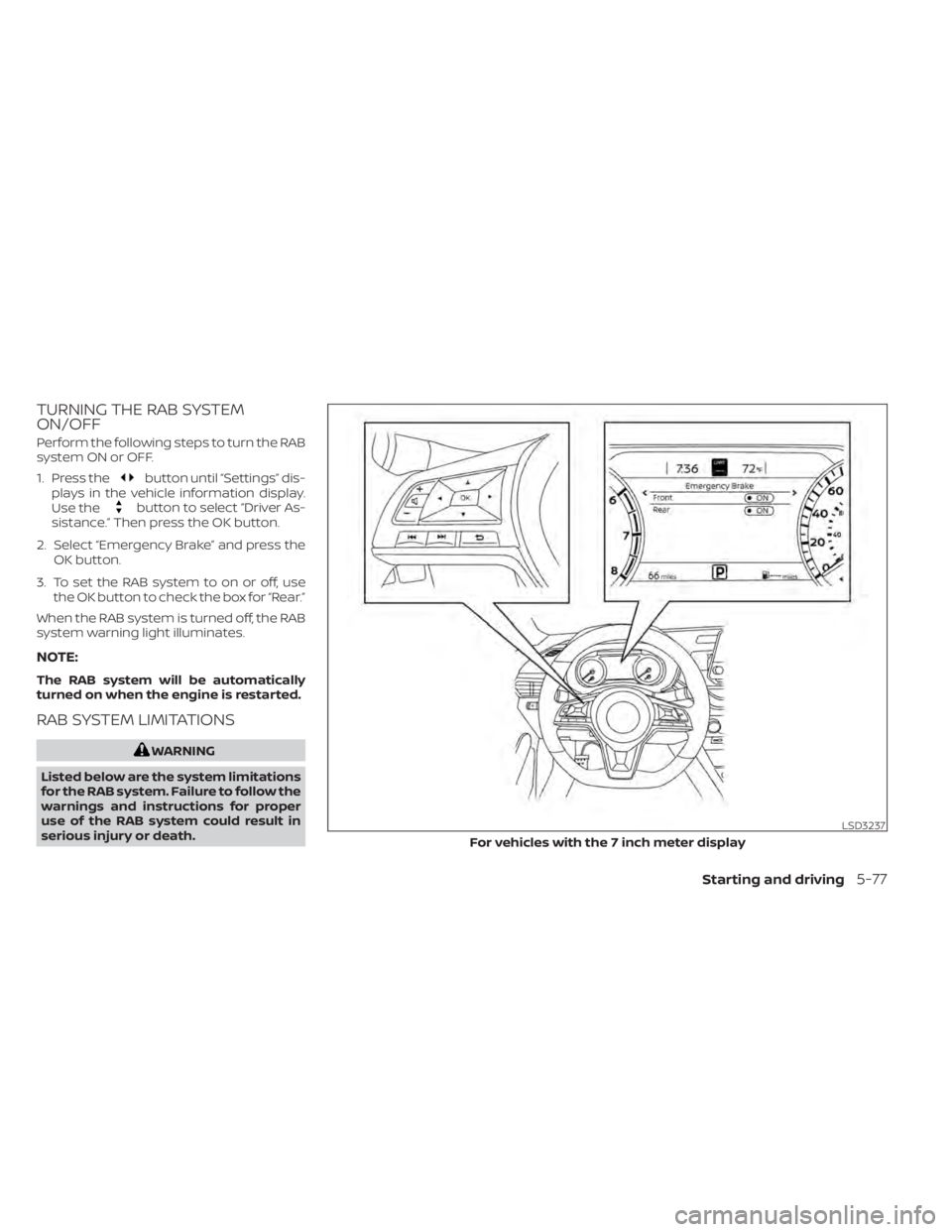

NISSAN SENTRA 2021  Owners Manual TURNING THE RAB SYSTEM
ON/OFF
Perform the following steps to turn the RAB
system ON or OFF.
1. Press the
button until “Settings” dis-
plays in the vehicle information display.
Use the
button to se

Page 364 of 528

NISSAN SENTRA 2021  Owners Manual •When the vehicle approaches an ob-
stacle while the accelerator or brake
pedal is depressed, the function may
not operate or the start of operation
may be delayed. The RAB system
may not operate or

Page 365 of 528

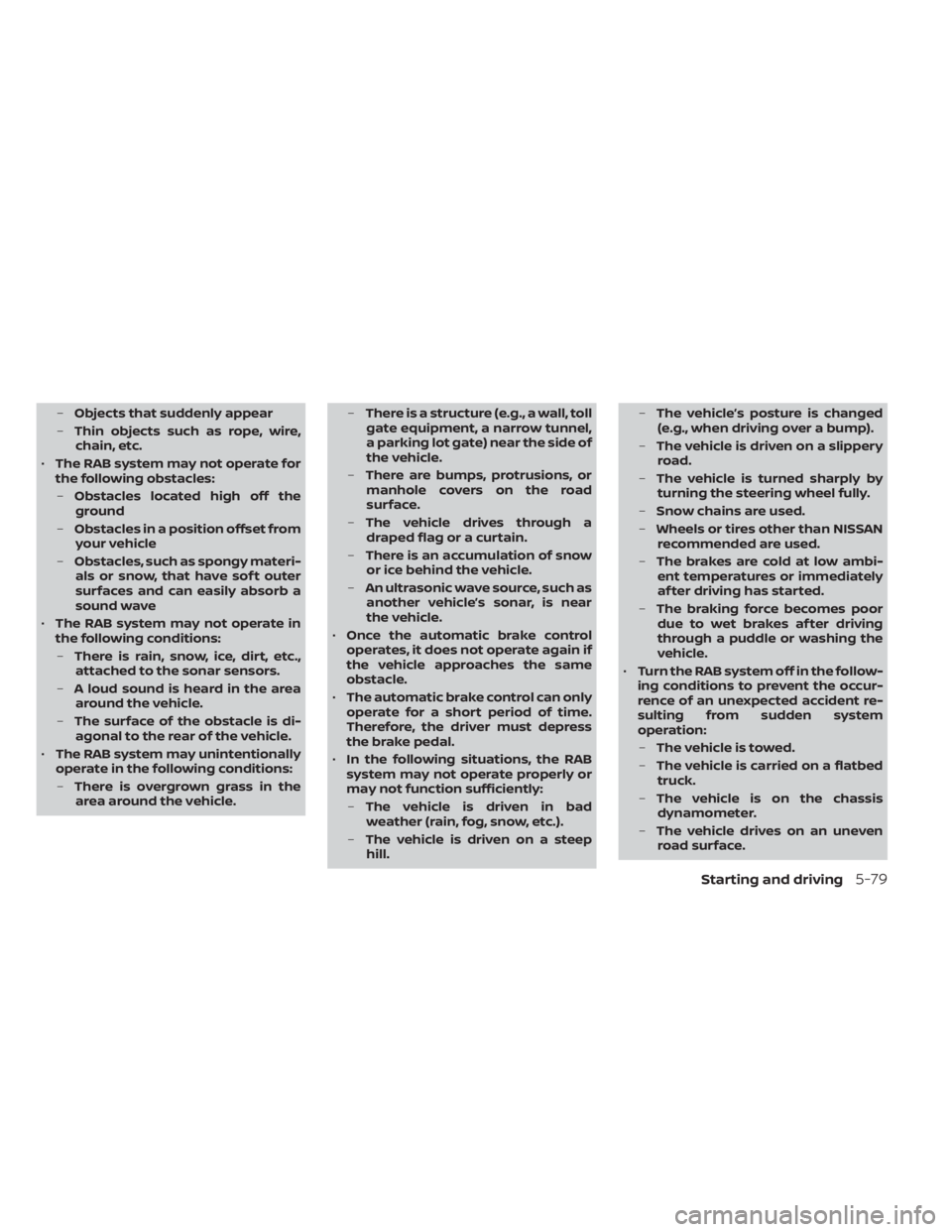

NISSAN SENTRA 2021  Owners Manual –Objects that suddenly appear
– Thin objects such as rope, wire,
chain, etc.
• The RAB system may not operate for
the following obstacles:
– Obstacles located high off the
ground
– Obstacles

Page 366 of 528

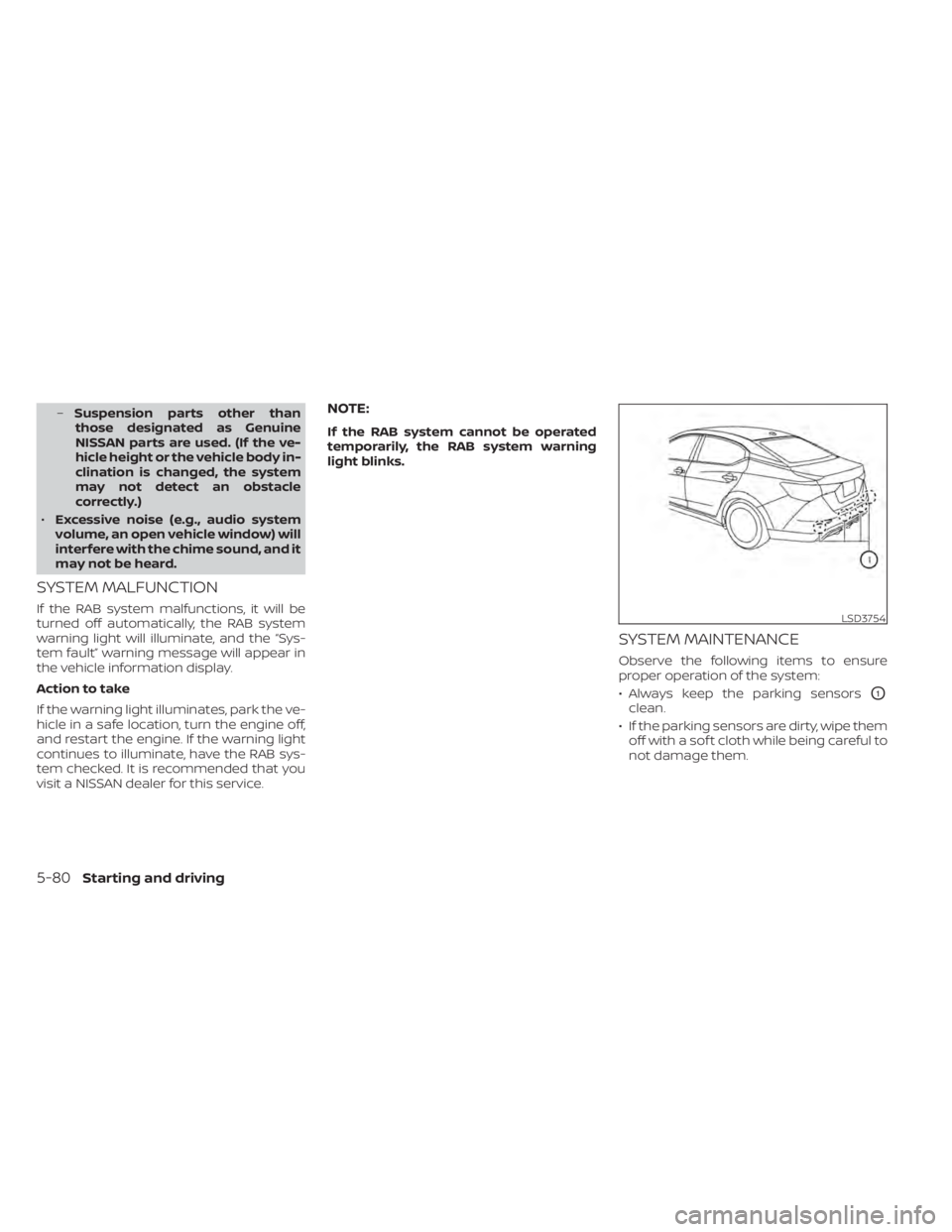

NISSAN SENTRA 2021  Owners Manual –Suspension parts other than
those designated as Genuine
NISSAN parts are used. (If the ve-
hicle height or the vehicle body in-
clination is changed, the system
may not detect an obstacle
correctly

Page 367 of 528

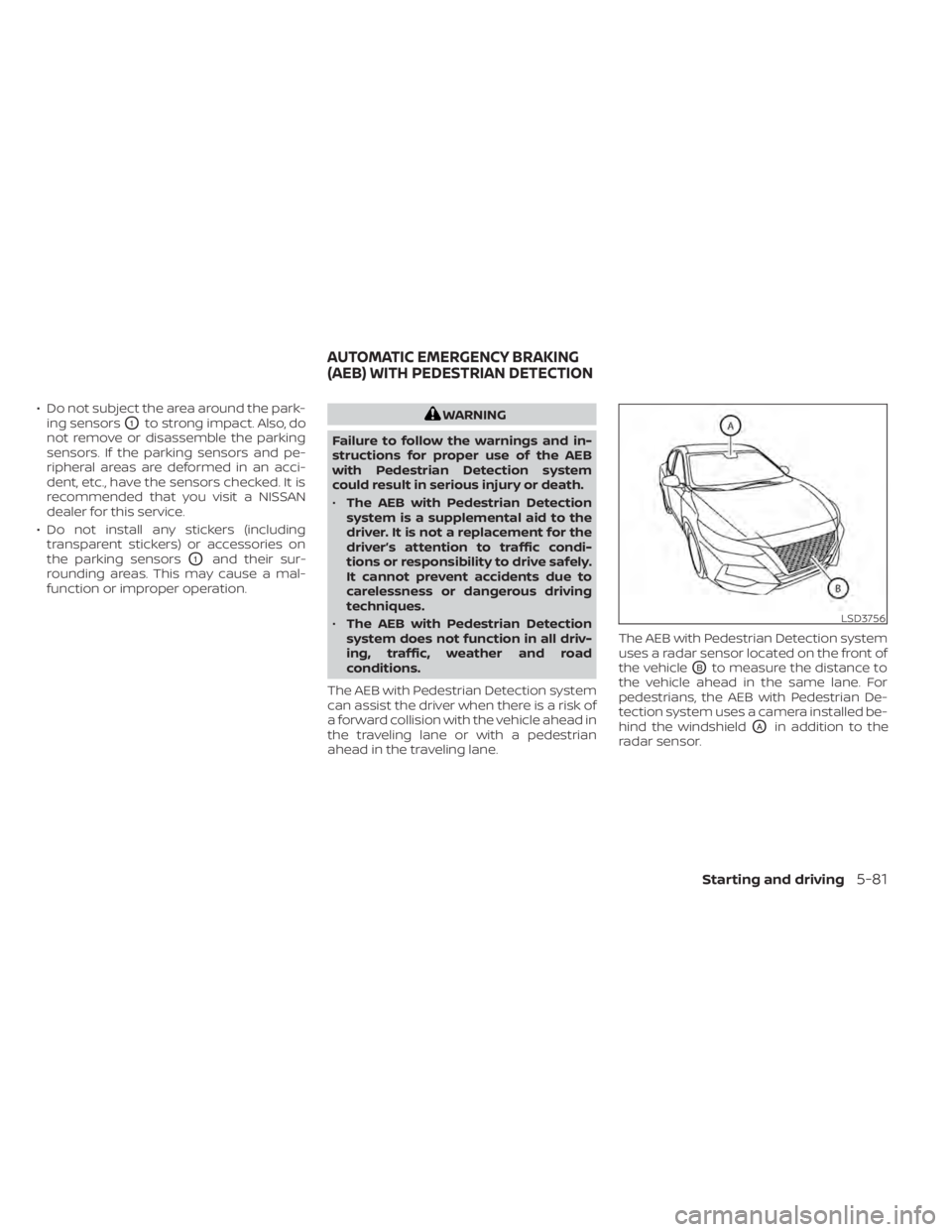

NISSAN SENTRA 2021  Owners Manual • Do not subject the area around the park-ing sensors
O1to strong impact. Also, do
not remove or disassemble the parking
sensors. If the parking sensors and pe-
ripheral areas are deformed in an acc

Page 368 of 528

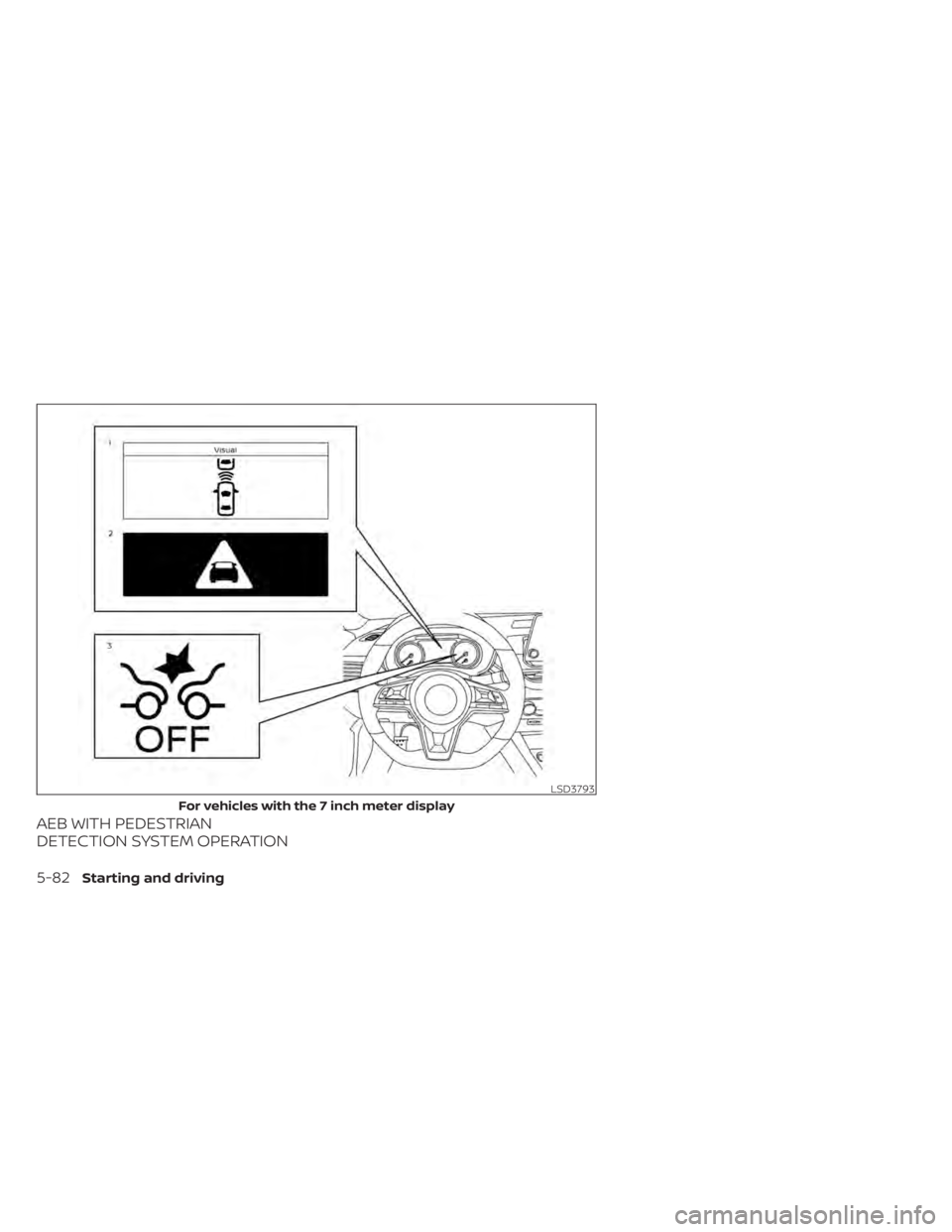

NISSAN SENTRA 2021  Owners Manual AEB WITH PEDESTRIAN
DETECTION SYSTEM OPERATION
LSD3793
For vehicles with the 7 inch meter display

Page 369 of 528

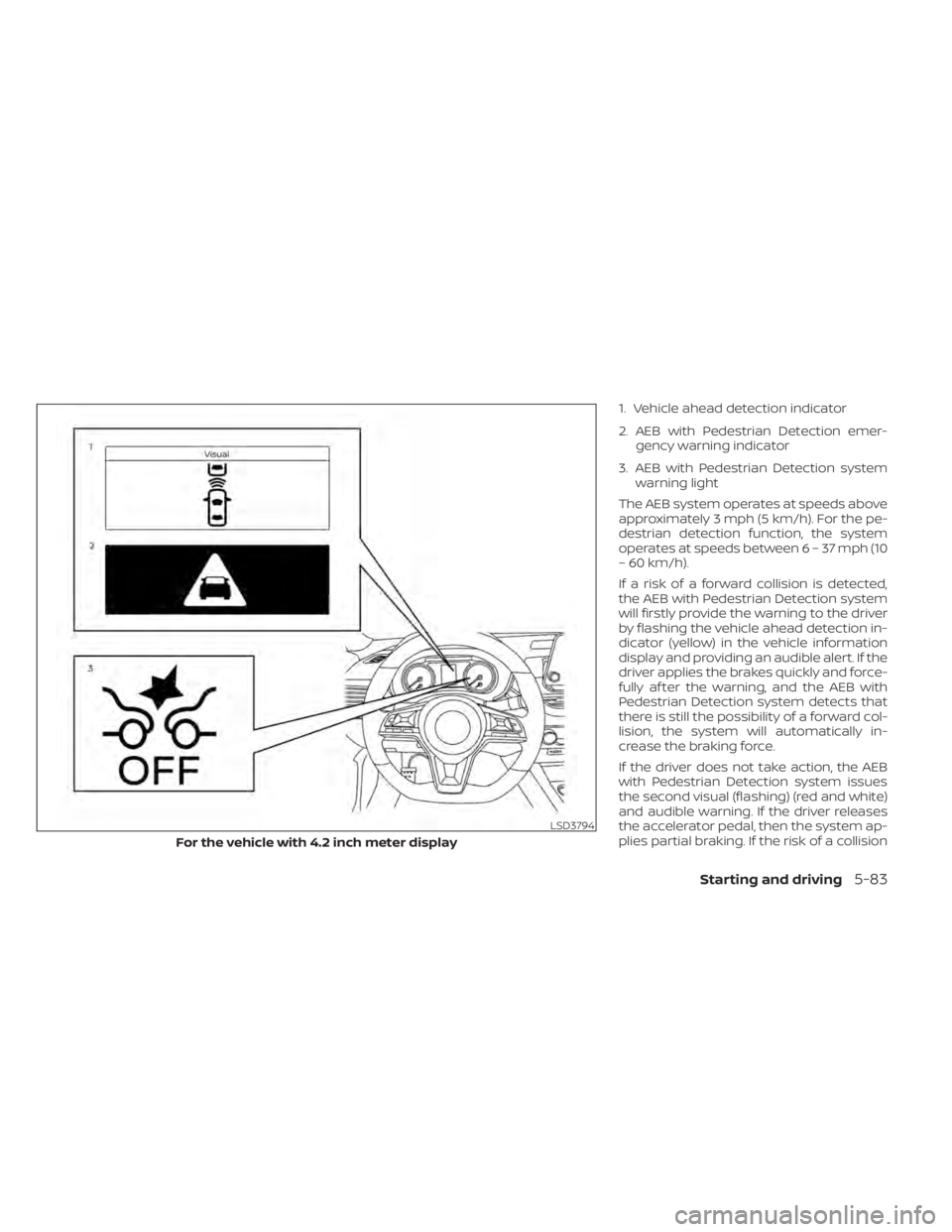

NISSAN SENTRA 2021  Owners Manual 1. Vehicle ahead detection indicator
2. AEB with Pedestrian Detection emer-gency warning indicator
3. AEB with Pedestrian Detection system warning light
The AEB system operates at speeds above
approxi

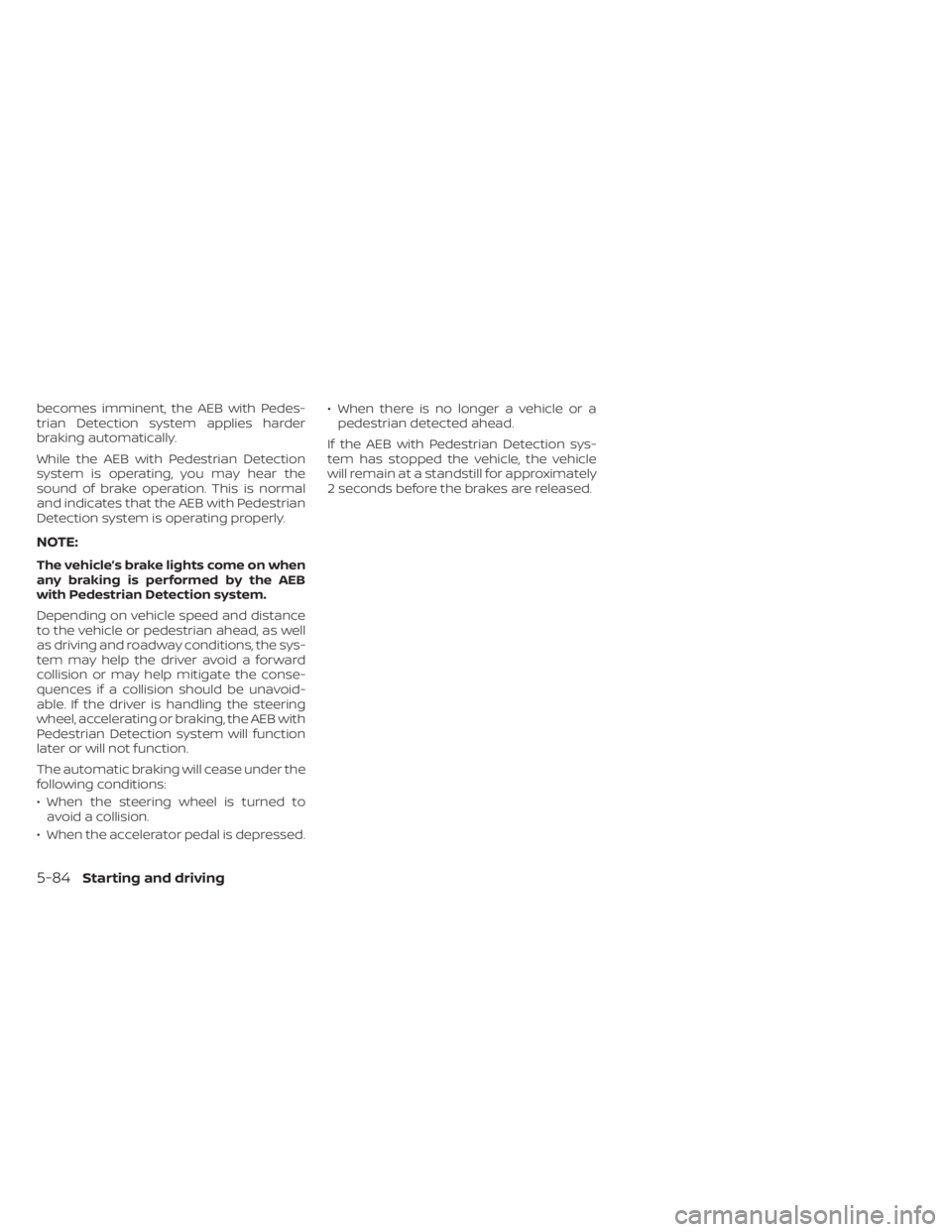

Page 370 of 528

NISSAN SENTRA 2021  Owners Manual becomes imminent, the AEB with Pedes-
trian Detection system applies harder
braking automatically.
While the AEB with Pedestrian Detection
system is operating, you may hear the
sound of brake operatio
