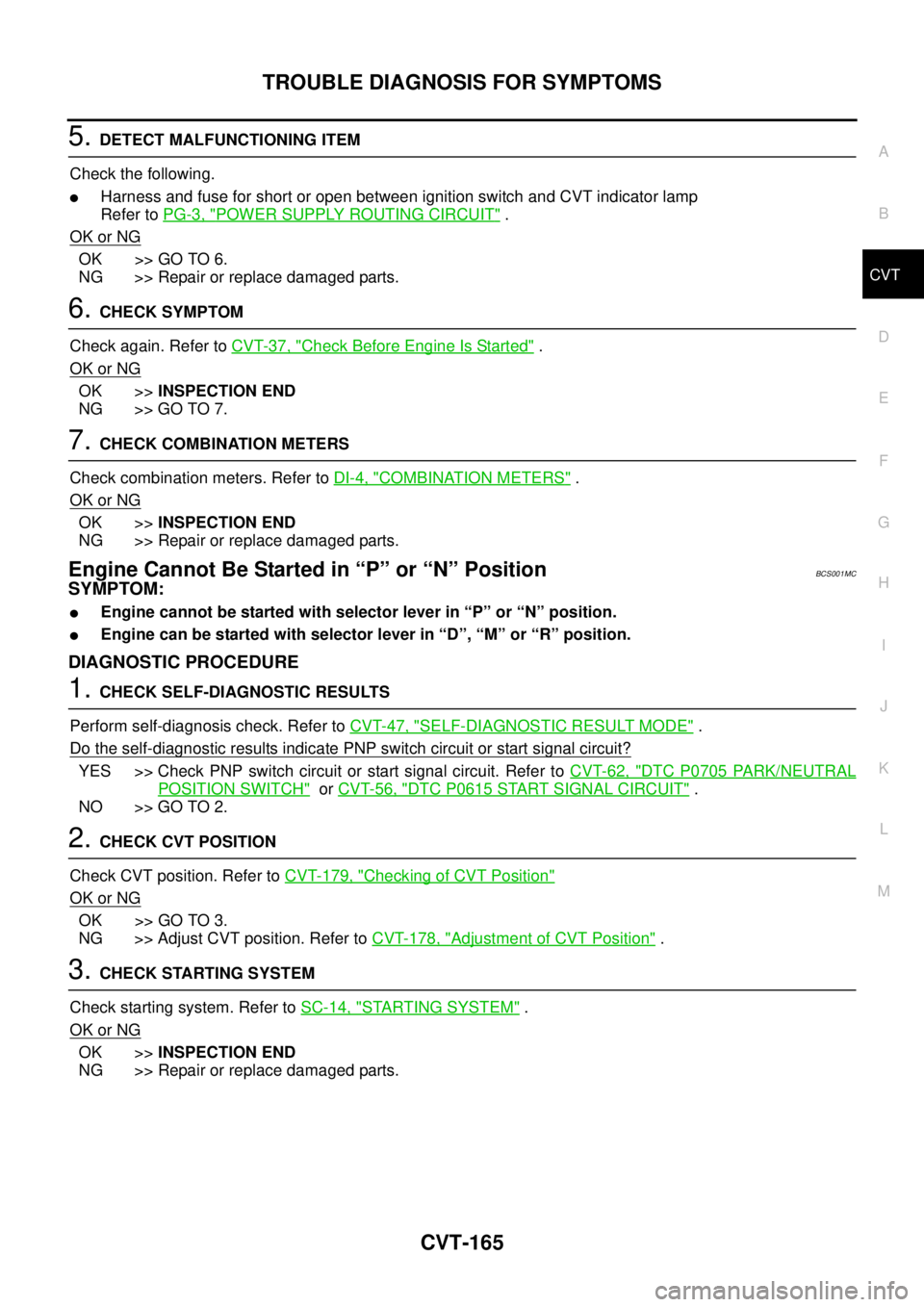

NISSAN TEANA 2003 Service Manual

TROUBLE DIAGNOSIS FOR SYMPTOMS
CVT-165
D
E
F
G
H
I
J
K
L
MA
B
CVT

5. DETECT MALFUNCTIONING ITEM
Check the following.

Harness and fuse for short or open between ignition switch and CVT indicator lamp
Refer to PG-3, "
POWER SUPPLY ROUTING CIRCUIT" .
OK or NG
OK >> GO TO 6.
NG >> Repair or replace damaged parts.
6. CHECK SYMPTOM
Check again. Refer to CVT-37, "
Check Before Engine Is Started" .
OK or NG
OK >>INSPECTION END
NG >> GO TO 7.
7. CHECK COMBINATION METERS
Check combination meters. Refer to DI-4, "
COMBINATION METERS" .
OK or NG
OK >>INSPECTION END
NG >> Repair or replace damaged parts.
Engine Cannot Be Started in “P” or “N” PositionBCS001MC
SYMPTOM:

Engine cannot be started with selector lever in “P” or “N” position.

Engine can be started with selector lever in “D”, “M” or “R” position.
DIAGNOSTIC PROCEDURE
1. CHECK SELF-DIAGNOSTIC RESULTS
Perform self-diagnosis check. Refer to CVT-47, "
SELF-DIAGNOSTIC RESULT MODE" .
Do the self-diagnostic results indicate PNP switch circuit or start signal circuit?
YES >> Check PNP switch circuit or start signal circuit. Refer to CVT-62, "DTC P0705 PARK/NEUTRAL
POSITION SWITCH" or CVT-56, "DTC P0615 START SIGNAL CIRCUIT" .
NO >> GO TO 2.
2. CHECK CVT POSITION
Check CVT position. Refer to CVT-179, "
Checking of CVT Position"
OK or NG
OK >> GO TO 3.
NG >> Adjust CVT position. Refer to CVT-178, "
Adjustment of CVT Position" .
3. CHECK STARTING SYSTEM
Check starting system. Refer to SC-14, "
STARTING SYSTEM" .
OK or NG
OK >>INSPECTION END
NG >> Repair or replace damaged parts.

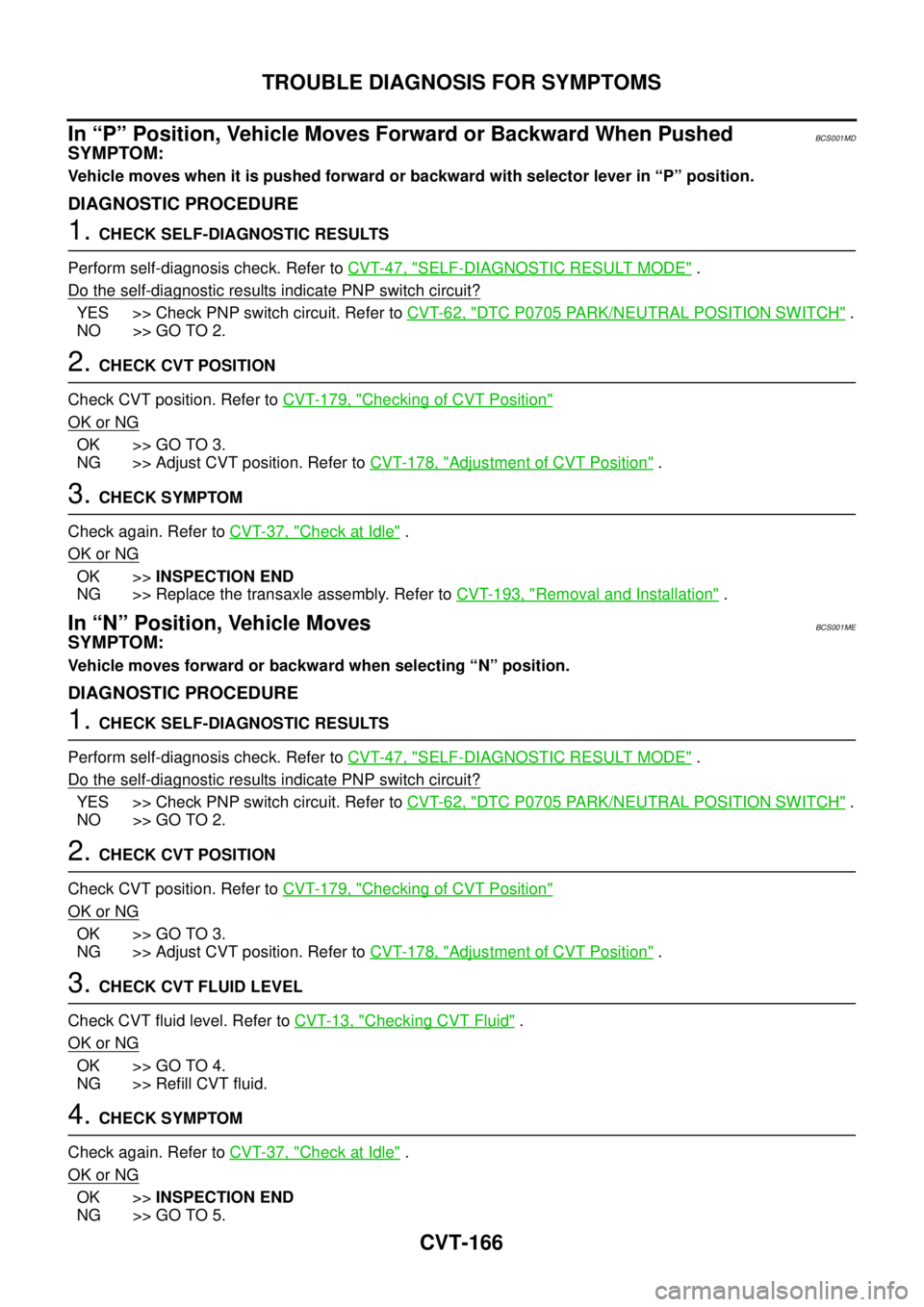

CVT-166
TROUBLE DIAGNOSIS FOR SYMPTOMS

In “P” Position, Vehicle Moves Forward or Backward When PushedBCS001MD
SYMPTOM:
Vehicle moves when it is pushed forward or backward with selector lever in “P” position.
DIAGNOSTIC PROCEDURE
1. CHECK SELF-DIAGNOSTIC RESULTS
Perform self-diagnosis check. Refer to CVT-47, "
SELF-DIAGNOSTIC RESULT MODE" .
Do the self-diagnostic results indicate PNP switch circuit?
YES >> Check PNP switch circuit. Refer to CVT-62, "DTC P0705 PARK/NEUTRAL POSITION SWITCH" .
NO >> GO TO 2.
2. CHECK CVT POSITION
Check CVT position. Refer to CVT-179, "
Checking of CVT Position"
OK or NG
OK >> GO TO 3.
NG >> Adjust CVT position. Refer to CVT-178, "
Adjustment of CVT Position" .
3. CHECK SYMPTOM
Check again. Refer to CVT-37, "
Check at Idle" .
OK or NG
OK >>INSPECTION END
NG >> Replace the transaxle assembly. Refer to CVT-193, "
Removal and Installation" .
In “N” Position, Vehicle MovesBCS001ME
SYMPTOM:
Vehicle moves forward or backward when selecting “N” position.
DIAGNOSTIC PROCEDURE
1. CHECK SELF-DIAGNOSTIC RESULTS
Perform self-diagnosis check. Refer to CVT-47, "
SELF-DIAGNOSTIC RESULT MODE" .
Do the self-diagnostic results indicate PNP switch circuit?
YES >> Check PNP switch circuit. Refer to CVT-62, "DTC P0705 PARK/NEUTRAL POSITION SWITCH" .
NO >> GO TO 2.
2. CHECK CVT POSITION
Check CVT position. Refer to CVT-179, "
Checking of CVT Position"
OK or NG
OK >> GO TO 3.
NG >> Adjust CVT position. Refer to CVT-178, "
Adjustment of CVT Position" .

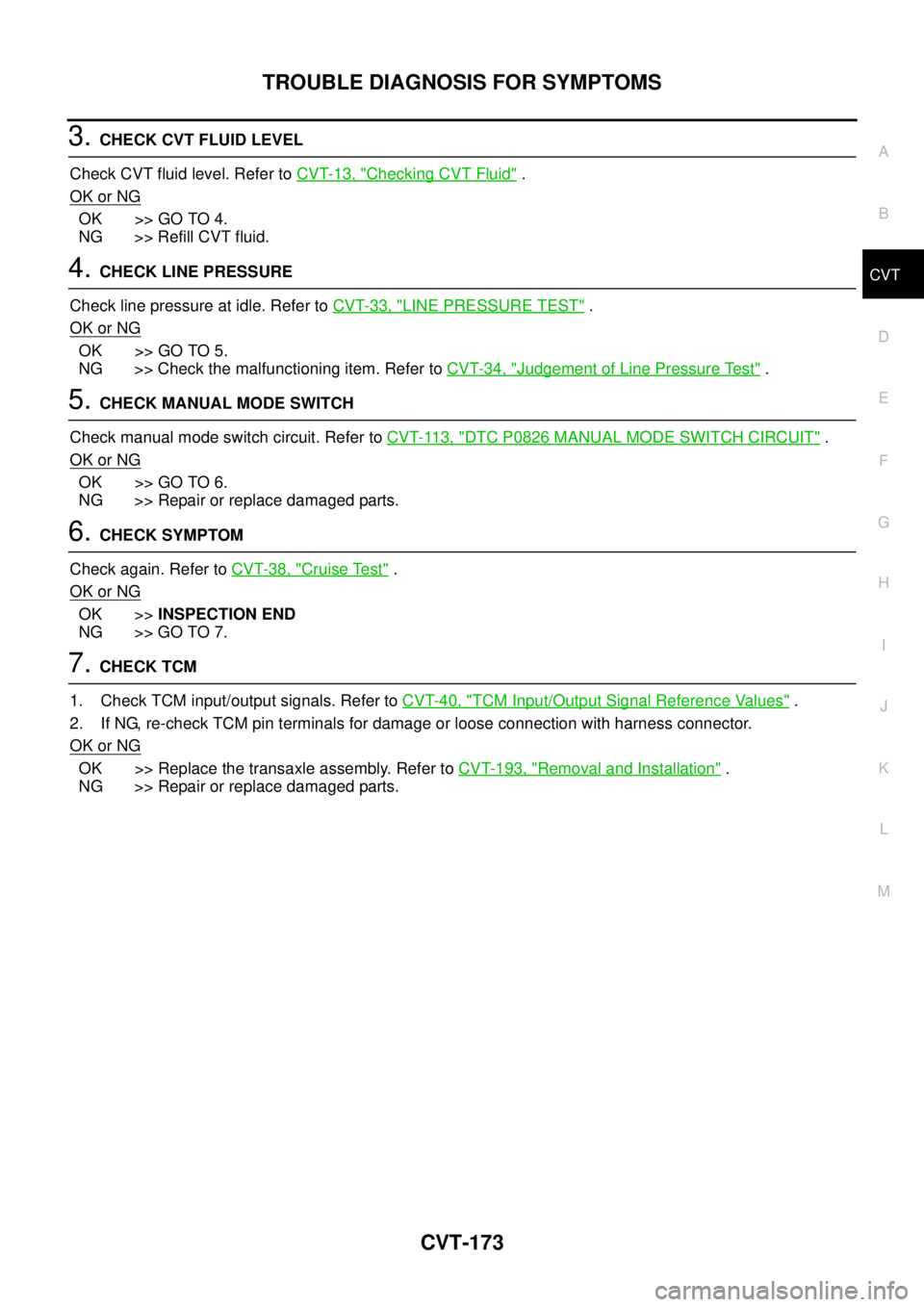

3. CHECK CVT FLUID LEVEL
Check CVT fluid level. Refer to CVT-13, "
Checking CVT Fluid" .
OK or NG
OK >> GO TO 4.
NG >> Refill CVT fluid.
4. CHECK SYMPTOM
Check again. Refer to CVT-37, "
Check at Idle" .
OK or NG
OK >>INSPECTION END
NG >> GO TO 5.

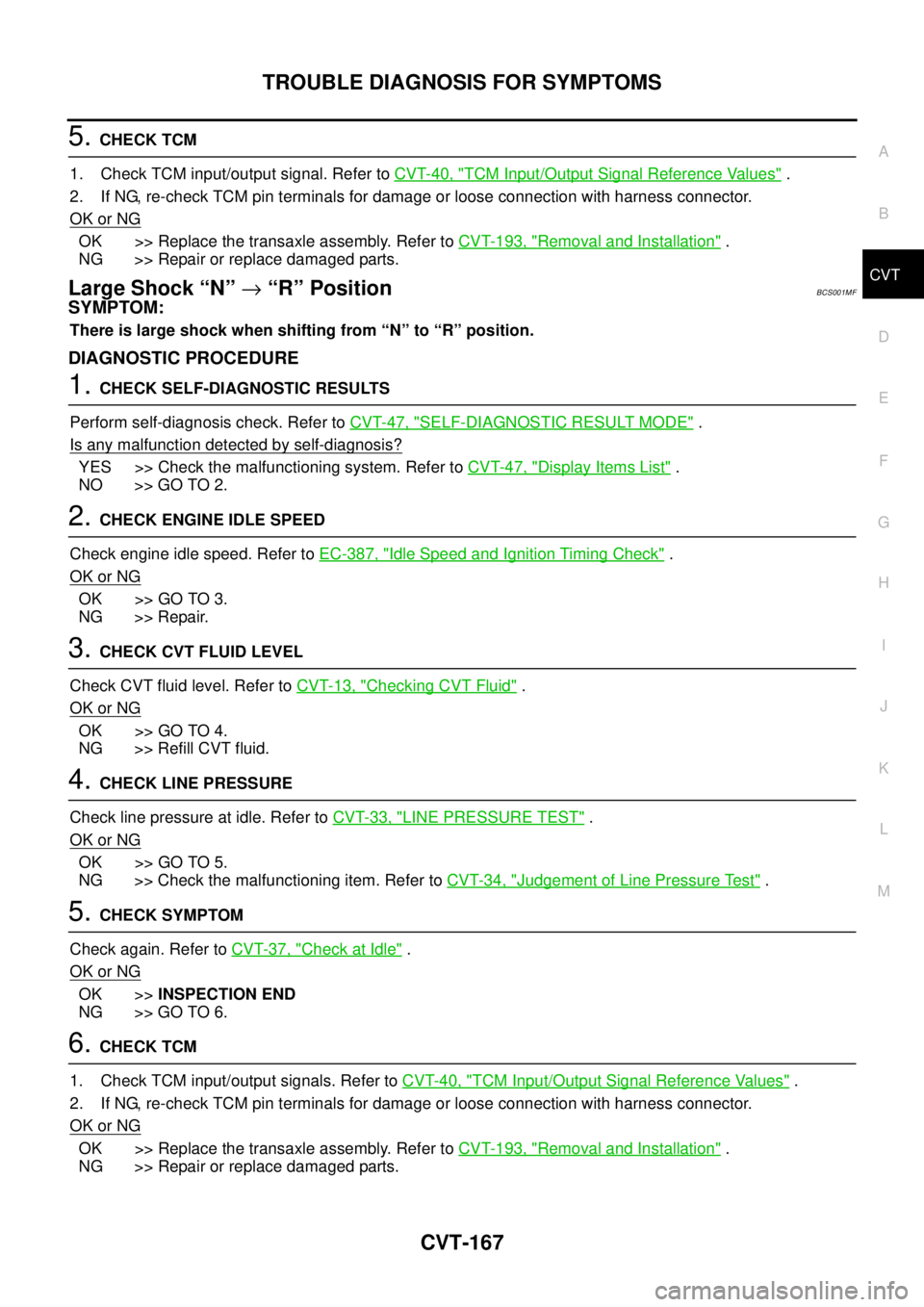

TROUBLE DIAGNOSIS FOR SYMPTOMS
CVT-167
D
E
F
G
H
I
J
K
L
MA
B
CVT

5. CHECK TCM
1. Check TCM input/output signal. Refer to CVT-40, "
TCM Input/Output Signal Reference Values" .
2. If NG, re-check TCM pin terminals for damage or loose connection with harness connector.
OK or NG
OK >> Replace the transaxle assembly. Refer to CVT-193, "Removal and Installation" .
NG >> Repair or replace damaged parts.
Large Shock “N” → “R” PositionBCS001MF
SYMPTOM:
There is large shock when shifting from “N” to “R” position.
DIAGNOSTIC PROCEDURE
1. CHECK SELF-DIAGNOSTIC RESULTS
Perform self-diagnosis check. Refer to CVT-47, "
SELF-DIAGNOSTIC RESULT MODE" .
Is any malfunction detected by self-diagnosis?
YES >> Check the malfunctioning system. Refer to CVT-47, "Display Items List" .
NO >> GO TO 2.
2. CHECK ENGINE IDLE SPEED
Check engine idle speed. Refer to EC-387, "
Idle Speed and Ignition Timing Check" .
OK or NG
OK >> GO TO 3.
NG >> Repair.
3. CHECK CVT FLUID LEVEL
Check CVT fluid level. Refer to CVT-13, "
Checking CVT Fluid" .
OK or NG
OK >> GO TO 4.
NG >> Refill CVT fluid.
4. CHECK LINE PRESSURE
Check line pressure at idle. Refer to CVT-33, "
LINE PRESSURE TEST" .
OK or NG
OK >> GO TO 5.
NG >> Check the malfunctioning item. Refer to CVT-34, "
Judgement of Line Pressure Test" .
5. CHECK SYMPTOM
Check again. Refer to CVT-37, "
Check at Idle" .
OK or NG
OK >>INSPECTION END
NG >> GO TO 6.
6. CHECK TCM
1. Check TCM input/output signals. Refer to CVT-40, "
TCM Input/Output Signal Reference Values" .
2. If NG, re-check TCM pin terminals for damage or loose connection with harness connector.
OK or NG
OK >> Replace the transaxle assembly. Refer to CVT-193, "Removal and Installation" .
NG >> Repair or replace damaged parts.

CVT-168
TROUBLE DIAGNOSIS FOR SYMPTOMS

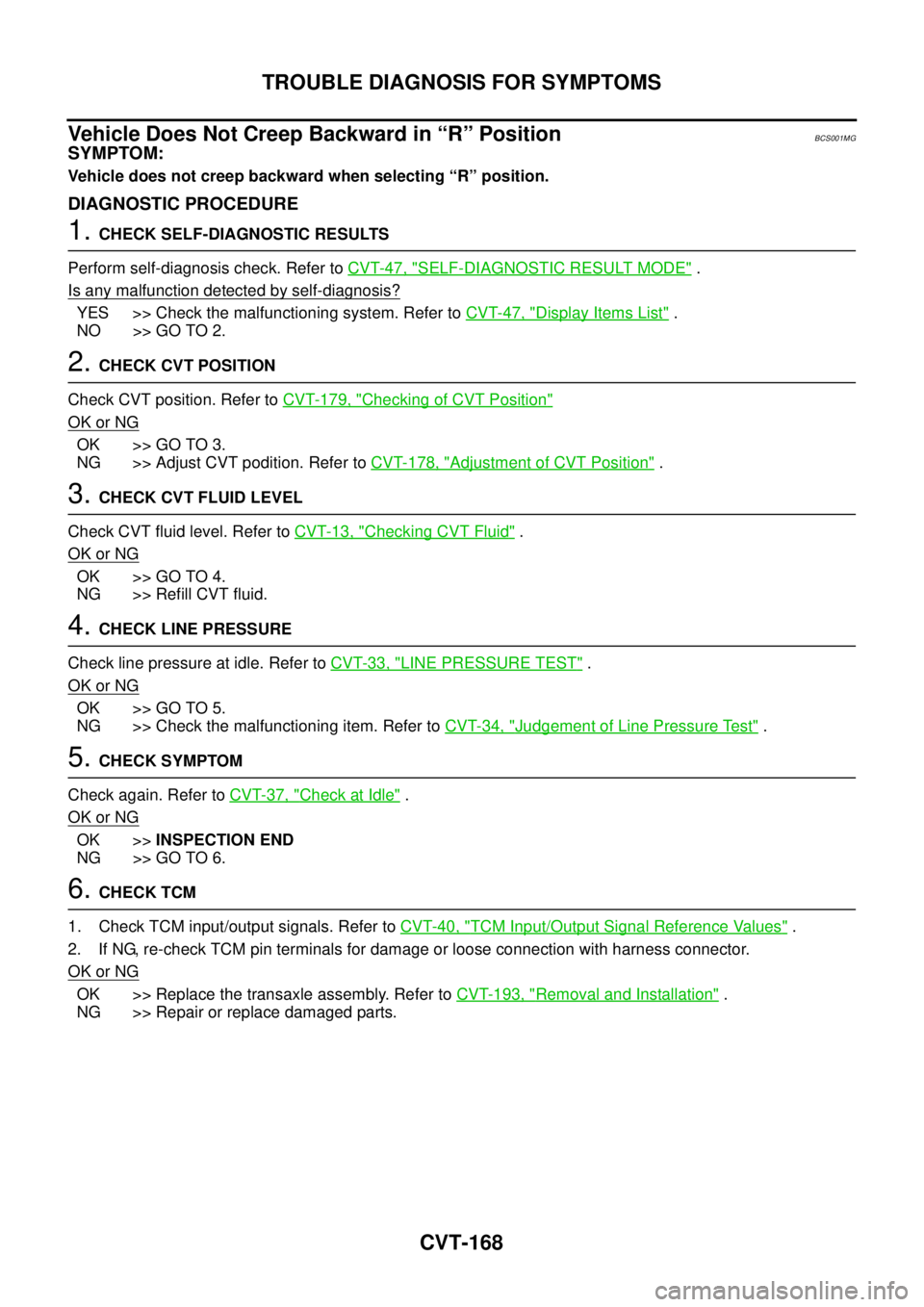

Vehicle Does Not Creep Backward in “R” PositionBCS001MG
SYMPTOM:
Vehicle does not creep backward when selecting “R” position.
DIAGNOSTIC PROCEDURE
1. CHECK SELF-DIAGNOSTIC RESULTS
Perform self-diagnosis check. Refer to CVT-47, "
SELF-DIAGNOSTIC RESULT MODE" .
Is any malfunction detected by self-diagnosis?
YES >> Check the malfunctioning system. Refer to CVT-47, "Display Items List" .
NO >> GO TO 2.
2. CHECK CVT POSITION
Check CVT position. Refer to CVT-179, "
Checking of CVT Position"
OK or NG
OK >> GO TO 3.
NG >> Adjust CVT podition. Refer to CVT-178, "
Adjustment of CVT Position" .
3. CHECK CVT FLUID LEVEL
Check CVT fluid level. Refer to CVT-13, "
Checking CVT Fluid" .
OK or NG
OK >> GO TO 4.
NG >> Refill CVT fluid.
4. CHECK LINE PRESSURE
Check line pressure at idle. Refer to CVT-33, "
LINE PRESSURE TEST" .
OK or NG
OK >> GO TO 5.
NG >> Check the malfunctioning item. Refer to CVT-34, "
Judgement of Line Pressure Test" .
5. CHECK SYMPTOM
Check again. Refer to CVT-37, "
Check at Idle" .
OK or NG
OK >>INSPECTION END
NG >> GO TO 6.
6. CHECK TCM
1. Check TCM input/output signals. Refer to CVT-40, "
TCM Input/Output Signal Reference Values" .
2. If NG, re-check TCM pin terminals for damage or loose connection with harness connector.
OK or NG
OK >> Replace the transaxle assembly. Refer to CVT-193, "Removal and Installation" .
NG >> Repair or replace damaged parts.

TROUBLE DIAGNOSIS FOR SYMPTOMS
CVT-169
D
E
F
G
H
I
J
K
L
MA
B
CVT

Vehicle Does Not Creep Forward in “D” PositionBCS001MH
SYMPTOM:
Vehicle does not creep forward when selecting “D” position.
DIAGNOSTIC PROCEDURE
1. CHECK SELF-DIAGNOSTIC RESULTS
Perform self-diagnosis check. Refer to CVT-47, "
SELF-DIAGNOSTIC RESULT MODE" .
Is any malfunction detected by self-diagnosis?
YES >> Check the malfunctioning system. Refer to CVT-47, "Display Items List" .
NO >> GO TO 2.
2. CHECK CVT POSITION
Check CVT position. Refer to CVT-179, "
Checking of CVT Position"
OK or NG
OK >> GO TO 3.
NG >> Adjust CVT position. Refer to CVT-178, "
Adjustment of CVT Position" .
3. CHECK CVT FLUID LEVEL
Check CVT fluid level. Refer to CVT-13, "
Checking CVT Fluid" .
OK or NG
OK >> GO TO 4.
NG >> Refill CVT fluid.
4. CHECK LINE PRESSURE
Check line pressure at idle. Refer to CVT-33, "
LINE PRESSURE TEST" .
OK or NG
OK >> GO TO 5.
NG >> Check the malfunctioning item. Refer to CVT-34, "
Judgement of Line Pressure Test" .
5. CHECK SYMPTOM
Check again. Refer to CVT-37, "
Check at Idle" .
OK or NG
OK >>INSPECTION END
NG >> GO TO 6.
6. CHECK TCM
1. Check TCM input/output signals. Refer to CVT-40, "
TCM Input/Output Signal Reference Values" .
2. If NG, re-check TCM pin terminals for damage or loose connection with harness connector.
OK or NG
OK >> Replace the transaxle assembly. Refer to CVT-193, "Removal and Installation" .
NG >> Repair or replace damaged parts.

CVT-170
TROUBLE DIAGNOSIS FOR SYMPTOMS

CVT Does Not ShiftBCS001MI
SYMPTOM:
CVT does not shift at the specified speed on “Cruise Test”.
DIAGNOSTIC PROCEDURE
1. CHECK SELF-DIAGNOSTIC RESULTS
Perform self-diagnosis check. Refer to CVT-47, "
SELF-DIAGNOSTIC RESULT MODE" .
Is any malfunction detected by self-diagnosis?
YES >> Check the malfunctioning system. Refer to CVT-47, "Display Items List" .
NO >> GO TO 2.
2. CHECK CVT POSITION
Check CVT position. Refer to CVT-179, "
Checking of CVT Position"
OK or NG
OK >> GO TO 3.
NG >> Adjust CVT position. Refer to CVT-178, "
Adjustment of CVT Position" .
3. CHECK CVT FLUID LEVEL
Check CVT fluid level. Refer to CVT-13, "
Checking CVT Fluid" .
OK or NG
OK >> GO TO 4.
NG >> Refill CVT fluid.
4. CHECK LINE PRESSURE
Check line pressure at idle. Refer to CVT-33, "
LINE PRESSURE TEST" .
OK or NG
OK >> GO TO 5.
NG >> Check the malfunctioning item. Refer to CVT-34, "
Judgement of Line Pressure Test" .
5. CHECK SYMPTOM
Check again. Refer to CVT-38, "
Cruise Test" .
OK or NG
OK >>INSPECTION END
NG >> GO TO 6.
6. CHECK TCM
1. Check TCM input/output signals. Refer to CVT-40, "
TCM Input/Output Signal Reference Values" .
2. If NG, re-check TCM pin terminals for damage or loose connection with harness connector.
OK or NG
OK >> Replace the transaxle assembly. Refer to CVT-193, "Removal and Installation" .
NG >> Repair or replace damaged parts.

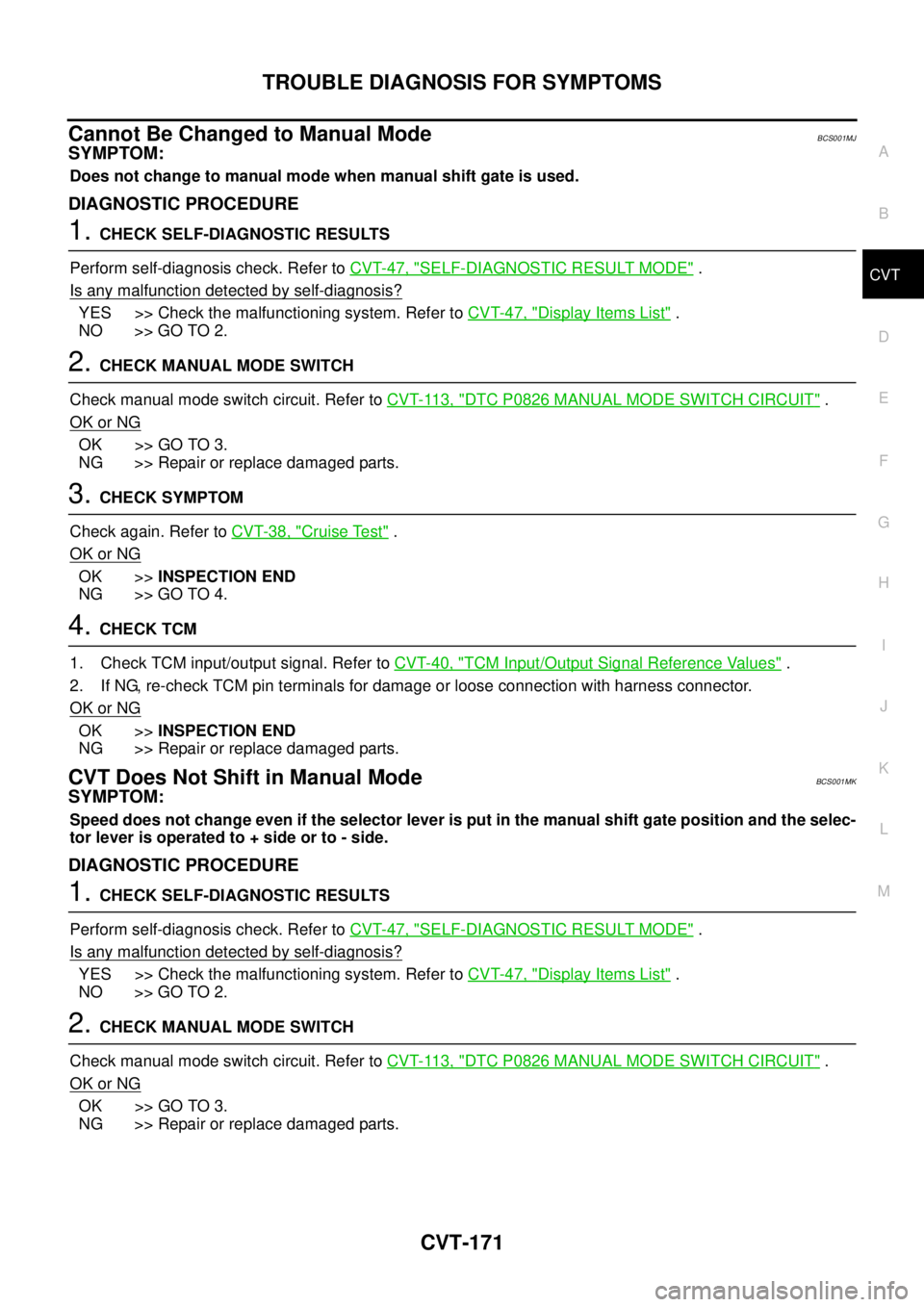

TROUBLE DIAGNOSIS FOR SYMPTOMS
CVT-171
D
E
F
G
H
I
J
K
L
MA
B
CVT

Cannot Be Changed to Manual ModeBCS001MJ
SYMPTOM:
Does not change to manual mode when manual shift gate is used.
DIAGNOSTIC PROCEDURE
1. CHECK SELF-DIAGNOSTIC RESULTS
Perform self-diagnosis check. Refer to CVT-47, "
SELF-DIAGNOSTIC RESULT MODE" .
Is any malfunction detected by self-diagnosis?
YES >> Check the malfunctioning system. Refer to CVT-47, "Display Items List" .
NO >> GO TO 2.
2. CHECK MANUAL MODE SWITCH
Check manual mode switch circuit. Refer to CVT-113, "
DTC P0826 MANUAL MODE SWITCH CIRCUIT" .
OK or NG
OK >> GO TO 3.
NG >> Repair or replace damaged parts.
3. CHECK SYMPTOM
Check again. Refer to CVT-38, "
Cruise Test" .
OK or NG
OK >>INSPECTION END
NG >> GO TO 4.
4. CHECK TCM
1. Check TCM input/output signal. Refer to CVT-40, "
TCM Input/Output Signal Reference Values" .
2. If NG, re-check TCM pin terminals for damage or loose connection with harness connector.
OK or NG
OK >>INSPECTION END
NG >> Repair or replace damaged parts.
CVT Does Not Shift in Manual ModeBCS001MK
SYMPTOM:
Speed does not change even if the selector lever is put in the manual shift gate position and the selec-
tor lever is operated to + side or to - side.
DIAGNOSTIC PROCEDURE
1. CHECK SELF-DIAGNOSTIC RESULTS
Perform self-diagnosis check. Refer to CVT-47, "
SELF-DIAGNOSTIC RESULT MODE" .
Is any malfunction detected by self-diagnosis?
YES >> Check the malfunctioning system. Refer to CVT-47, "Display Items List" .
NO >> GO TO 2.
2. CHECK MANUAL MODE SWITCH
Check manual mode switch circuit. Refer to CVT-113, "
DTC P0826 MANUAL MODE SWITCH CIRCUIT" .
OK or NG
OK >> GO TO 3.
NG >> Repair or replace damaged parts.

CVT-172

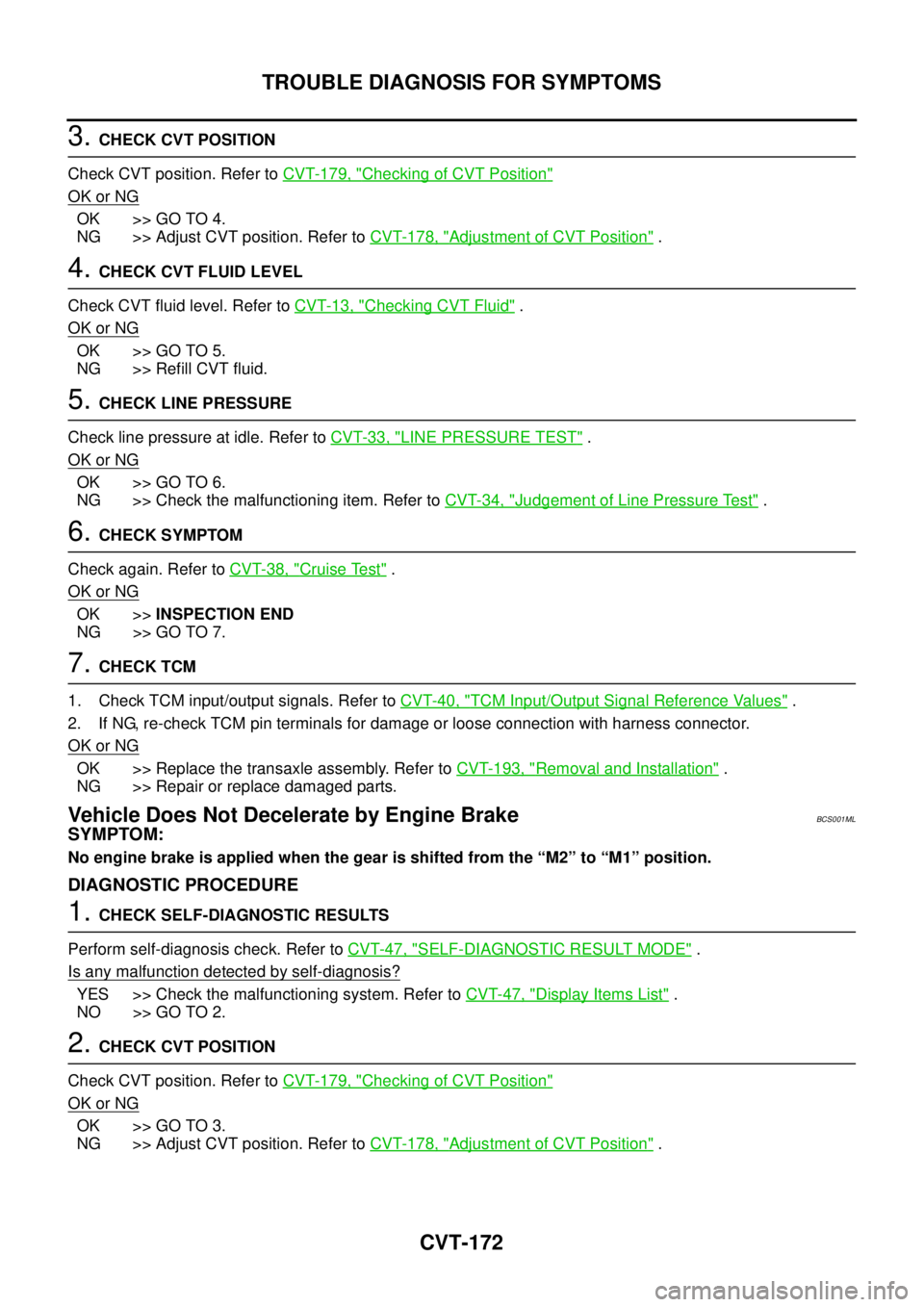

TROUBLE DIAGNOSIS FOR SYMPTOMS

3. CHECK CVT POSITION
Check CVT position. Refer to CVT-179, "
Checking of CVT Position"
OK or NG
OK >> GO TO 4.
NG >> Adjust CVT position. Refer to CVT-178, "
Adjustment of CVT Position" .
4. CHECK CVT FLUID LEVEL
Check CVT fluid level. Refer to CVT-13, "
Checking CVT Fluid" .
OK or NG
OK >> GO TO 5.
NG >> Refill CVT fluid.
5. CHECK LINE PRESSURE
Check line pressure at idle. Refer to CVT-33, "
LINE PRESSURE TEST" .
OK or NG
OK >> GO TO 6.
NG >> Check the malfunctioning item. Refer to CVT-34, "
Judgement of Line Pressure Test" .
6. CHECK SYMPTOM
Check again. Refer to CVT-38, "
Cruise Test" .
OK or NG
OK >>INSPECTION END
NG >> GO TO 7.
7. CHECK TCM
1. Check TCM input/output signals. Refer to CVT-40, "
TCM Input/Output Signal Reference Values" .
2. If NG, re-check TCM pin terminals for damage or loose connection with harness connector.
OK or NG
OK >> Replace the transaxle assembly. Refer to CVT-193, "Removal and Installation" .
NG >> Repair or replace damaged parts.
Vehicle Does Not Decelerate by Engine BrakeBCS001ML
SYMPTOM:
No engine brake is applied when the gear is shifted from the “M2” to “M1” position.
DIAGNOSTIC PROCEDURE
1. CHECK SELF-DIAGNOSTIC RESULTS
Perform self-diagnosis check. Refer to CVT-47, "
SELF-DIAGNOSTIC RESULT MODE" .
Is any malfunction detected by self-diagnosis?
YES >> Check the malfunctioning system. Refer to CVT-47, "Display Items List" .
NO >> GO TO 2.
2. CHECK CVT POSITION
Check CVT position. Refer to CVT-179, "
Checking of CVT Position"
OK or NG
OK >> GO TO 3.
NG >> Adjust CVT position. Refer to CVT-178, "
Adjustment of CVT Position" .

TROUBLE DIAGNOSIS FOR SYMPTOMS
CVT-173
D
E
F
G
H
I
J
K
L
MA
B
CVT

3. CHECK CVT FLUID LEVEL
Check CVT fluid level. Refer to CVT-13, "
Checking CVT Fluid" .
OK or NG
OK >> GO TO 4.
NG >> Refill CVT fluid.
4. CHECK LINE PRESSURE
Check line pressure at idle. Refer to CVT-33, "
LINE PRESSURE TEST" .
OK or NG
OK >> GO TO 5.
NG >> Check the malfunctioning item. Refer to CVT-34, "
Judgement of Line Pressure Test" .
5. CHECK MANUAL MODE SWITCH
Check manual mode switch circuit. Refer to CVT-113, "
DTC P0826 MANUAL MODE SWITCH CIRCUIT" .
OK or NG
OK >> GO TO 6.
NG >> Repair or replace damaged parts.
6. CHECK SYMPTOM
Check again. Refer to CVT-38, "
Cruise Test" .
OK or NG
OK >>INSPECTION END
NG >> GO TO 7.
7. CHECK TCM
1. Check TCM input/output signals. Refer to CVT-40, "
TCM Input/Output Signal Reference Values" .
2. If NG, re-check TCM pin terminals for damage or loose connection with harness connector.
OK or NG
OK >> Replace the transaxle assembly. Refer to CVT-193, "Removal and Installation" .
NG >> Repair or replace damaged parts.

CVT-174

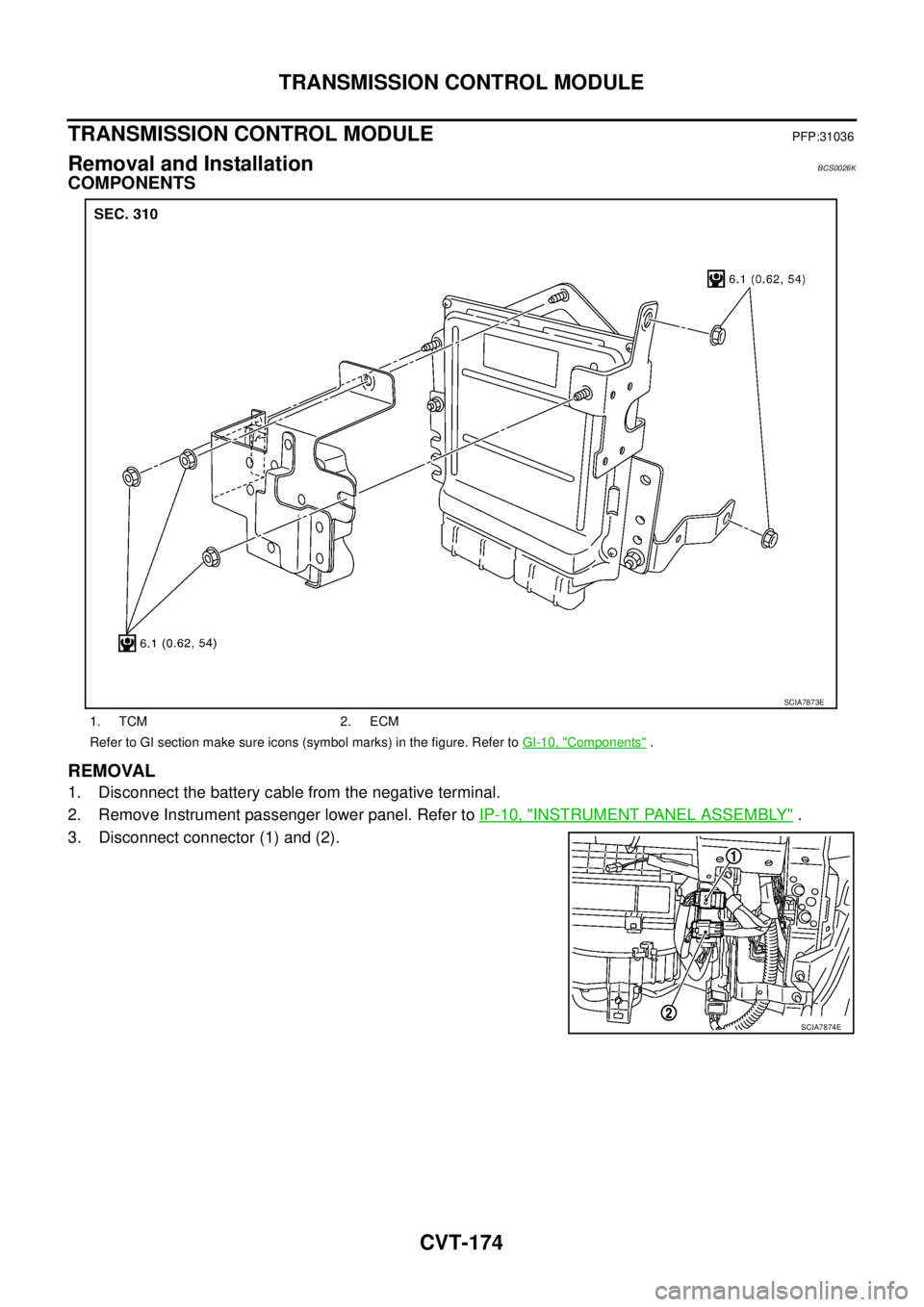

TRANSMISSION CONTROL MODULE

TRANSMISSION CONTROL MODULEPFP:31036
Removal and InstallationBCS0026K
COMPONENTS
REMOVAL
1. Disconnect the battery cable from the negative terminal.
2. Remove Instrument passenger lower panel. Refer to IP-10, "
INSTRUMENT PANEL ASSEMBLY" .
3. Disconnect connector (1) and (2).
1. TCM 2. ECM
Refer to GI section make sure icons (symbol marks) in the figure. Refer to GI-10, "
Components" .
SCIA7873E
SCIA7874E
