ACCELERATOR CONTROL SYSTEM
ACC-3
C
D
E
F
G
H
I
J
K
L
MA
ACC

ACCELERATOR CONTROL SYSTEMPFP:18005
Removal and InstallationBBS005AN
REMOVAL
1. Disconnect accelerator pedal position sensor harness connector.

Pull connector lock in a rear direction in the figure, to discon-
nect accelerator pedal position sensor harness connector.
2. Loosen mounting bolts and nut, and remove accelerator pedal assembly.
CAUTION:

Do not disassemble accelerator pedal assembly. Do not remove accelerator pedal position sen-
sor from accelerator pedal assembly.

Avoid impact from dropping etc. during handling.

Be careful to keep accelerator pedal assembly away from water.
INSTALLATION
Installation is the reverse order of removal.
INSPECTION AFTER INSTALLATION

Make sure that accelerator pedal moves smoothly within the whole operation range.

Make sure that accelerator pedal securely returns to the original position.

For the electrical inspection of accelerator pedal position sensor, refer to the following.
–QR20DE
EC-251, "
DTC P2122, P2123 APP SENSOR", EC-258, "DTC P2127, P2128 APP SENSOR" and EC-
272, "DTC P2138 APP SENSOR"
–VQ23DE and VQ35DE
1. Accelerator pedal assembly
: Vehicle front
PBIC4773E
PBIC2814E

ACC-4
ACCELERATOR CONTROL SYSTEM

EC-631, "DTC P2122, P2123 APP SENSOR", EC-638, "DTC P2127, P2128 APP SENSOR" and EC-
652, "DTC P2138 APP SENSOR"
CAUTION:

When harness connector of accelerator pedal position sensor is disconnected, perform “Acceler-
ator Pedal Released Position Learning”. Refer to the following.
–QR20DE
EC-47, "
Accelerator Pedal Released Position Learning"
–VQ23DE and VQ35DE
EC-389, "
Accelerator Pedal Released Position Learning"

AT-1
AUTOMATIC TRANSAXLE
C TRANSMISSION/TRANSAXLE
CONTENTS
D
E
F
G
H
I
J
K
L
M
SECTION AT
A
B
AT

AUTOMATIC TRANSAXLE
INDEX FOR DTC ........................................................ 5
Alphabetical Index .................................................... 5
PRECAUTIONS .......................................................... 6
Precautions for Supplemental Restraint System
(SRS) “AIR BAG” and “SEAT BELT PRE-TEN-
SIONER” .................................................................. 6
Precautions Necessary for Steering Wheel Rotation
After Battery Disconnect .......................................... 6
Precautions .............................................................. 7
Service Notice or Precautions .................................. 8
PREPARATION ........................................................... 9
Special Service Tools ............................................... 9
Commercial Service Tools ...................................... 12
A/T FLUID ................................................................. 14
Checking A/T Fluid ................................................. 14
Changing A/T Fluid ................................................ 15
A/T CONTROL SYSTEM .......................................... 16
Cross-Sectional View ............................................. 16
Shift Mechanism ..................................................... 17
TCM Function ......................................................... 26
CAN Communication .............................................. 27
Input/Output Signal of TCM .................................... 27
Line Pressure Control ............................................ 28
Shift Control ........................................................... 29
Lock-up Control ...................................................... 30
Engine Brake Control (Overrun Clutch Control) ..... 31
Control Valve .......................................................... 33
TROUBLE DIAGNOSIS ............................................ 34
DTC Inspection Priority Chart ................................ 34
Fail-safe ................................................................. 34
How to Perform Trouble Diagnoses for Quick and
Accurate Repair ..................................................... 36
A/T Electrical Parts Location .................................. 41
Circuit Diagram ...................................................... 42
Inspections Before Trouble Diagnosis .................... 43
Road Test ............................................................... 48
Check Before Engine Is Started ............................. 48
Check at Idle .......................................................... 48
Cruise Test — Part 1 .............................................. 50
Cruise Test — Part 2 .............................................. 51Cruise Test — Part 3 .............................................. 52
Vehicle Speed Which Gear Shifting Occurs ........... 54
Vehicle Speed at When Lock-up Occurs/Releases ... 54
Symptom Chart ....................................................... 55
TCM Terminals and Reference Value ..................... 64
CONSULT-II Function (A/T) .................................... 67
Diagnostic Procedure Without CONSULT-II ........... 76
VEHICLE SPEED SENSOR·A/T (REVOLUTION
SENSOR) .................................................................. 80
Description .............................................................. 80
CONSULT-II Reference Value ................................ 80
On Board Diagnosis Logic ...................................... 80
Possible Cause ....................................................... 80
DTC Confirmation Procedure ................................. 80
Wiring Diagram — AT — VSSA/T .......................... 82
Diagnostic Procedure ............................................. 83
VEHICLE SPEED SENSOR MTR ............................. 86
Description .............................................................. 86
CONSULT-II Reference Value ................................ 86
On Board Diagnosis Logic ...................................... 86
Possible Cause ....................................................... 86
DTC Confirmation Procedure ................................. 86
Wiring Diagram — AT — VSSMTR ........................ 87
Diagnostic Procedure ............................................. 88
SHIFT SOLENOID VALVE A .................................... 90
Description .............................................................. 90
CONSULT-II Reference Value ................................ 90
On Board Diagnosis Logic ...................................... 90
Possible Cause ....................................................... 90
DTC Confirmation Procedure ................................. 90
Wiring Diagram — AT — SSV/A ............................. 91
Diagnostic Procedure ............................................. 92
Component Inspection ............................................ 94
SHIFT SOLENOID VALVE B .................................... 95
Description .............................................................. 95
CONSULT-II Reference Value ................................ 95
On Board Diagnosis Logic ...................................... 95
Possible Cause ....................................................... 95
DTC Confirmation Procedure ................................. 95
Wiring Diagram — AT — SSV/B ............................. 96

AT-2 Diagnostic Procedure ............................................. 97
Component Inspection ............................................ 99
OVERRUN CLUTCH SOLENOID VALVE ...............100
Description ............................................................100
CONSULT-II Reference Value ..............................100
On Board Diagnosis Logic ....................................100
Possible Cause .....................................................100
DTC Confirmation Procedure ...............................100
Wiring Diagram — AT — OVRCSV ......................101
Diagnostic Procedure ...........................................102
Component Inspection ..........................................104
TORQUE CONVERTER CLUTCH SOLENOID
VALVE .....................................................................105
Description ............................................................105
CONSULT-II Reference Value ..............................105
On Board Diagnosis Logic ....................................105
Possible Cause .....................................................105
DTC Confirmation Procedure ...............................105
Wiring Diagram — AT — TCV ..............................106
Diagnostic Procedure ...........................................107
Component Inspection ..........................................109
BATT/FLUID TEMP SEN (A/T FLUID TEMP SEN-
SOR CIRCUIT AND TCM POWER SOURCE) ........110
Description ............................................................110
CONSULT-II Reference Value ..............................110
On Board Diagnosis Logic ....................................110
Possible Cause .....................................................110
DTC Confirmation Procedure ...............................110
Wiring Diagram — AT — BA/FTS ..........................111
Diagnostic Procedure ...........................................112
Component Inspection ..........................................115
ENGINE SPEED SIGNAL .......................................116
Description ............................................................116
CONSULT-II Reference Value ..............................116
On Board Diagnosis Logic ....................................116
Possible Cause .....................................................116
DTC Confirmation Procedure ...............................116
Wiring Diagram — AT — ENGSS .........................117
Diagnostic Procedure ...........................................118
TURBINE REVOLUTION SENSOR ........................120
Description ............................................................120
CONSULT-II Reference Value ..............................120
On Board Diagnosis Logic ....................................120
Possible Cause .....................................................120
DTC Confirmation Procedure ...............................120
Wiring Diagram — AT — PT/SEN ........................121
Diagnostic Procedure ...........................................122
LINE PRESSURE SOLENOID VALVE ...................126
Description ............................................................126
CONSULT-II Reference Valve ..............................126
On Board Diagnosis Logic ....................................126
Possible Cause .....................................................126
DTC Confirmation Procedure ...............................126
Wiring Diagram — AT — LPSV ............................127
Diagnostic Procedure ...........................................129
Component Inspection ..........................................132
CAN COMMUNICATION LINE ................................133
Description ............................................................133
On Board Diagnosis Logic ....................................133Possible Cause .....................................................133
DTC Confirmation Procedure ................................133
Wiring Diagram — AT — CAN ..............................134
Diagnostic Procedure ............................................135
A/T 1ST GEAR FUNCTION .....................................136
Description ............................................................136
On Board Diagnosis Logic ....................................136
Possible Cause .....................................................136
DTC Confirmation Procedure ................................137
Diagnostic Procedure ............................................138
A/T 2ND GEAR FUNCTION ....................................140
Description ............................................................140
On Board Diagnosis Logic ....................................140
Possible Cause .....................................................140
DTC Confirmation Procedure ................................141
Diagnostic Procedure ............................................142
A/T 3RD GEAR FUNCTION ....................................143
Description ............................................................143
On Board Diagnosis Logic ....................................143
Possible Cause .....................................................143
DTC Confirmation Procedure ................................144
Diagnostic Procedure ............................................145
A/T 4TH GEAR FUNCTION ....................................146
Description ............................................................146
CONSULT-II Reference Value ...............................146
On Board Diagnosis Logic ....................................146
Possible Cause .....................................................146
DTC Confirmation Procedure ................................147
Diagnostic Procedure ............................................147
A/T TCC S/V FUNCTION (LOCK-UP) .....................151
Description ............................................................151
CONSULT-II Reference Value ...............................151
On Board Diagnosis Logic ....................................151
Possible Cause .....................................................151
DTC Confirmation Procedure ................................152
Diagnostic Procedure ............................................152
CONTROL UNIT (RAM) ..........................................156
Description ............................................................156
On Board Diagnosis Logic ....................................156
Possible Cause .....................................................156
DTC Confirmation Procedure ................................156
Diagnostic Procedure ............................................156
CONTROL UNIT (ROM) ..........................................157
Description ............................................................157
On Board Diagnosis Logic ....................................157
Possible Cause .....................................................157
DTC Confirmation Procedure ................................157
Diagnostic Procedure ............................................157
MAIN POWER SUPPLY AND GROUND CIRCUIT .158
Wiring Diagram — AT — MAIN .............................158
Diagnostic Procedure ............................................159
PNP, 3RD POSITION SWITCH AND CLOSED
THROTTLE, WIDE OPEN THROTTLE POSITION
SIGNAL ...................................................................161
CONSULT-II Reference Value ...............................161
TCM Terminals and Reference Value ...................161
Diagnostic Procedure ............................................162
Component Inspection ..........................................166
BRAKE SIGNAL CIRCUIT ......................................167

AT-3
D
E
F
G
H
I
J
K
L
MA
B
AT
CONSULT-II Reference Value .............................. 167
Diagnostic Procedure ........................................... 167
TROUBLE DIAGNOSIS FOR SYMPTOMS ............ 168
Wiring Diagram — AT — NONDTC ...................... 168
A/T CHECK Indicator Lamp Does Not Come On . 173
Engine Cannot Be Started in “P” and “N” Position . 175
In “P” Position, Vehicle Moves Forward or Backward
When Pushed ....................................................... 176
In “N” Position, Vehicle Moves ............................. 176
Large Shock. “N” → “R” Position .......................... 177
Vehicle Does Not Creep Backward in “R” Position . 179
Vehicle Does Not Creep Forward in “D”, “3”, “2” or
“1” Position ........................................................... 181
Vehicle Cannot Be Started From D
1 ..................... 182
A/T Does Not Shift: D
1 → D2 or Does Not Kickdown:
D
4 → D2 ............................................................... 184
A/T Does Not Shift: D
2 → D3 ............................... 186
A/T Does Not Shift: D
3 → D4 ............................... 188
A/T Does Not Perform Lock-up ............................ 191
A/T Does Not Hold Lock-up Condition ................. 193
Lock-up Is Not Released ...................................... 195
Engine Speed Does Not Return To Idle (Light Brak-
ing D
4 → D3 ) ....................................................... 195
A/T Does Not Shift: D
4 → 33 , When A/T Selector
Lever “D” → “3” .................................................... 197
A/T Does Not Shift: 3
3 → 22 , When Selector Lever
“3” → “2” Position ................................................. 198
A/T Does Not Shift: 2
2 → 11 , When Selector Lever
“2” → “1” Position ................................................. 200
Vehicle Does Not Decelerate By Engine Brake (D
4
→ 3
3 ) ................................................................... 203
Vehicle Does Not Decelerate By Engine Brake (3
3
→ 2
2 ) ................................................................... 205
Vehicle Does Not Decelerate By Engine Brake (2
2
→ 1
1 ) ................................................................... 208
TCM Self-diagnosis Does Not Activate ................ 210
TRANSMISSION CONTROL MODULE ..................211
Removal and Installation ....................................... 211
SHIFT CONTROL SYSTEM ................................... 213
Control Device Removal and Installation ............. 213
Adjustment of A/T Position ................................... 215
Checking of A/T Position ...................................... 215
A/T SHIFT LOCK SYSTEM .................................... 216
Description ........................................................... 216
Shift Lock System Electrical Parts Location ......... 216
Wiring Diagram — AT — SHIFT ........................... 217
Shift Lock Control Unit Reference Values ............ 221
Component Inspection ......................................... 222
ON-VEHICLE SERVICE ......................................... 225
Control Valve Assembly and Accumulators .......... 225
Park/Neutral Position (PNP) Switch ..................... 230
Differential Side Oil Seal Replacement ................ 231
Revolution Sensor Replacement .......................... 233
Turbine Revolution Sensor (Power Train Revolution
Sensor) Replacement .......................................... 234
AIR BREATHER HOSE .......................................... 236
Removal and Installation [Air Breather Hose (Oil
Catch Tank to Air Duct)] ....................................... 236
Removal and Installation [Oil Catch Tank and Air Breather Hose (A/T assembly to Oil catch tank)] . 239
TRANSAXLE ASSEMBLY ......................................241
Removal and Installation ......................................241
OVERHAUL ............................................................246
Components .........................................................246
Oil Channel ...........................................................252
Locations of Adjusting Shims, Needle Bearings and
Thrust Washers ....................................................253
Locations of Snap Rings .......................................254
DISASSEMBLY .......................................................255
Disassembly .........................................................255
REPAIR FOR COMPONENT PARTS .....................272
Manual Shaft ........................................................272
Oil Pump ...............................................................275
Control Valve Assembly ........................................280
Control Valve Upper Body ....................................289
Control Valve Lower Body ....................................293
Reverse Clutch .....................................................296
High Clutch ...........................................................301
Forward and Overrun Clutches ............................307
Low & Reverse Brake ...........................................315
Rear Internal Gear, Forward Clutch Hub and Over-
run Clutch Hub ......................................................319
Output Shaft, Idler Gear, Reduction Pinion Gear and
Bearing Retainer ...................................................323
Band Servo Piston Assembly ...............................329
Final Drive ............................................................335
ASSEMBLY .............................................................339
Assembly (1) .........................................................339
Adjustment (1) ......................................................340
Assembly (2) .........................................................345
Adjustment (2) ......................................................352
Assembly (3) .........................................................355
SERVICE DATA AND SPECIFICATIONS (SDS) ....362
General Specifications ..........................................362
Vehicle Speed Which Gear Shifting Occurs .........362
Vehicle Speed at When Lock-up Occurs/Releases .362
Stall Revolution .....................................................363
Line Pressure .......................................................363
Adjusting shims, Needle Bearings, Thrust Washers
and Snap Rings ....................................................363
Control Valves ......................................................364
Accumulator ..........................................................365
Clutch and Brakes ................................................366
Final Drive ............................................................367
Planetary Carrier and Oil Pump ............................367
Input Shaft ............................................................367
Reduction Pinion Gear .........................................367
Band Servo ...........................................................368
Output Shaft .........................................................368
Bearing Retainer ...................................................368
Total End Play .......................................................368
Reverse Clutch End Play ......................................368
Removal and Installation ......................................368
Shift Solenoid Valves ............................................368
Solenoid Valves ....................................................368
A/T Fluid Temperature Sensor ..............................368
Revolution Sensor ................................................369

AT-4 Dropping Resistor .................................................369
Turbine Revolution Sensor (Power Train Revolution Sensor) .................................................................369

INDEX FOR DTC
AT-5
D
E
F
G
H
I
J
K
L
MA
B
AT

INDEX FOR DTCPFP:00024
Alphabetical Index BCS000ZD
NOTE:
If DTC “CAN COMM CIRCUIT” is displayed with other DTCs, first perform the trouble diagnosis for
“CAN COMMUNICATION LINE”. Refer to AT- 1 3 3
.
X: Applicable, —: Not applicable
Items (CONSULT-II screen terms)TCM self-diagnosis
Reference
page A/T CHECK
indicator lamp“A/T” with
CONSULT-II
A/T 1ST GR FNCTN — XAT- 1 3 6
A/T 2ND GR FNCTN — XAT- 1 4 0
A/T 3RD GR FNCTN — XAT- 1 4 3
A/T 4TH GR FNCTN — XAT- 1 4 6
A/T TCC S/V FNCTN — XAT- 1 5 1
BATT/FLUID TEMP SEN X XAT- 11 0
CAN COMM CIRCUIT X XAT- 1 3 3
CONTROL UNIT (RAM) — XAT- 1 5 6
CONTROL UNIT (ROM) — XAT- 1 5 7
ENGINE SPEED SIG X XAT- 11 6
LINE PRESSURE S/V X XAT- 1 2 6
OVERRUN CLUTCH S/V X XAT- 1 0 0
SHIFT SOLENOID/V A X XAT- 9 0
SHIFT SOLENOID/V B X XAT- 9 5
T/C CLUTCH SOL/V X XAT- 1 0 5
TURBINE SENSOR X XAT- 1 2 0
VHCL SPEED SEN-A/T X XAT- 8 0
VHCL SPEED SEN-MTR X XAT- 8 6

AT-26
A/T CONTROL SYSTEM

TCM FunctionBCS000ZP
The function of the TCM is to:

Receive input signals sent from various switches and sensors.

Determine required line pressure, shifting point, lock-up operation, and engine brake operation.

Send required output signals to the respective solenoids.
CONTROL SYSTEM OUTLINE
The automatic transmission senses vehicle operating conditions through various sensors or signals. It always
controls the optimum shift position and reduces shifting and lock-up shocks.

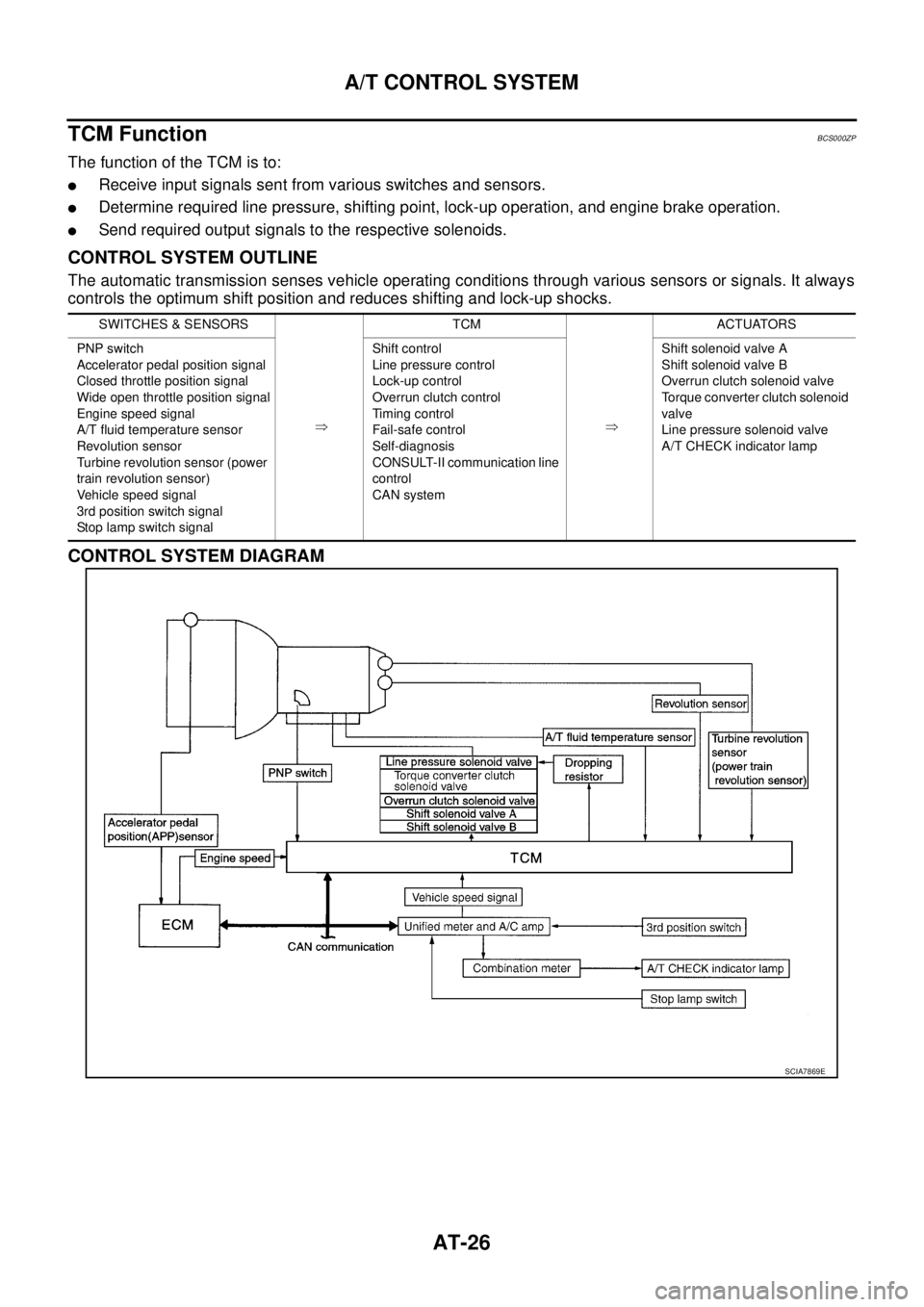

CONTROL SYSTEM DIAGRAM
SWITCHES & SENSORS

TCM

ACTUATORS
PNP switch
Accelerator pedal position signal
Closed throttle position signal
Wide open throttle position signal
Engine speed signal
A/T fluid temperature sensor
Revolution sensor
Turbine revolution sensor (power
train revolution sensor)
Vehicle speed signal
3rd position switch signal
Stop lamp switch signalShift control
Line pressure control
Lock-up control
Overrun clutch control
Timing control
Fail-safe control
Self-diagnosis
CONSULT-II communication line
control
CAN systemShift solenoid valve A
Shift solenoid valve B
Overrun clutch solenoid valve
Torque converter clutch solenoid
valve
Line pressure solenoid valve
A/T CHECK indicator lamp
SCIA7869E

A/T CONTROL SYSTEM
AT-27
D
E
F
G
H
I
J
K
L
MA
B
AT

CAN CommunicationBCS000ZQ
SYSTEM DESCRIPTION
CAN (Controller Area Network) is a serial communication line for real time application. It is an on-vehicle mul-
tiplex communication line with high data communication speed and excellent error detection ability. Many elec-
tronic control units are equipped onto a vehicle, and each control unit shares information and links with other
control units during operation (not independent). In CAN communication, control units are connected with 2
communication lines (CAN H line, CAN L line) allowing a high rate of information transmission with less wiring.
Each control unit transmits/receives data but selectively reads required data only. For details, refer to LAN-49,
"CAN System Specification Chart" .
Input/Output Signal of TCMBCS000ZR
*1: Spare for vehicle speed sensor·A/T (revolution sensor)
*2: Spare for accelerator pedal position signal
*3: If these input and output signals are different, the TCM triggers the fail-safe function.
*4: Used as a condition for starting self-diagnostics; if self-diagnostics are not started, it is judged that there is some kind of error.
*5: Input by CAN communications.
*6: Output by CAN communications.Control itemLine
pressure
controlVehicle
speed
controlShift
controlLock-up
controlEngine
brake
controlFail-safe
functionSelf-diag-
nostics
function
InputAccelerator pedal position signal
(*5)XXXXX(*3) XX
Vehicle speed sensor A/T
(Revolution sensor)XXXXX(*3) XX
Vehicle speed sensor MTR
(*1)XXXX X
Closed throttle position signal
(*5)(*2) X(*2) XXX(*4) X
Wide open throttle position signal
(*5)(*2) X (*2) X (*4) X
Turbine revolution sensor (Power
train revolution sensor)XX X XX
Engine speed signal X X X X
PNP switch XXXXX(*3) X(*4) X
Stop lamp switch signal
(*5)XX (*4) X
A/T fluid temperature sensors X X X X X X
3rd position switch signal
(*5)XXXX (*4) X
TCM power supply voltage signal X X X X
Out-
putShift solenoid valve A/B X (*3) X X
Line pressure solenoid X (*3) X X
Torque converter clutch solenoid
valveX(*3) XX
Overrun clutch solenoid valve X X (*3) X X
A/T CHECK indicator lamp
(*6)X

A/T CONTROL SYSTEM
AT-29
D
E
F
G
H
I
J
K
L
MA
B
AT

AT LOW FLUID TEMPERATURE

A/T fluid viscosity and frictional characteristics of the clutch facing change with A/T fluid temperature.
Clutch engaging or band-contacting pressure is compensated for, according to A/T fluid temperature, to
stabilize shifting quality.

The line pressure is reduced below 60°C (140°F) to prevent
shifting shock due to low viscosity of A/T fluid when temperature
is low.

Line pressure is increased to a maximum irrespective of the
throttle opening when A/T fluid temperature drops to −10°C
(14°F). This pressure rise is adopted to prevent a delay in clutch
and brake operation due to extreme drop of A/T fluid viscosity at
low temperature.
Shift ControlBCS000ZT
The shift is regulated entirely by electronic control to accommodate vehicle speed and varying engine opera-
tions. This is accomplished by electrical signals transmitted by the revolution sensor and the ECM (accelerator
pedal position sensor). This results in improved acceleration performance and fuel economy.
CONTROL OF SHIFT SOLENOID VALVES A AND B
The TCM activates shift solenoid valves A and B according to sig-
nals from the accelerator pedal position sensor and revolution sen-
sor to select the optimum gear position on the basis of the shift
schedule memorized in the TCM.
The shift solenoid valve performs simple ON-OFF operation. When
set to “ON”, the drain circuit closes and pilot pressure is applied to
the shift valve.
RELATION BETWEEN SHIFT SOLENOID VALVES A AND B AND GEAR POSITIONS
SCIA4829E
SCIA4830E
SAT008J
Gear position 1 2 3 4
Shift solenoid valve A ON (Closed) OFF (Open) OFF (Open) ON (Closed)
Shift solenoid valve B ON (Closed) ON (Closed) OFF (Open) OFF (Open)
