EVAPORATIVE EMISSION SYSTEM
EC-369
[VQ]
C
D
E
F
G
H
I
J
K
L
MA
EC

Component InspectionBBS004XS
EVAP CANISTER

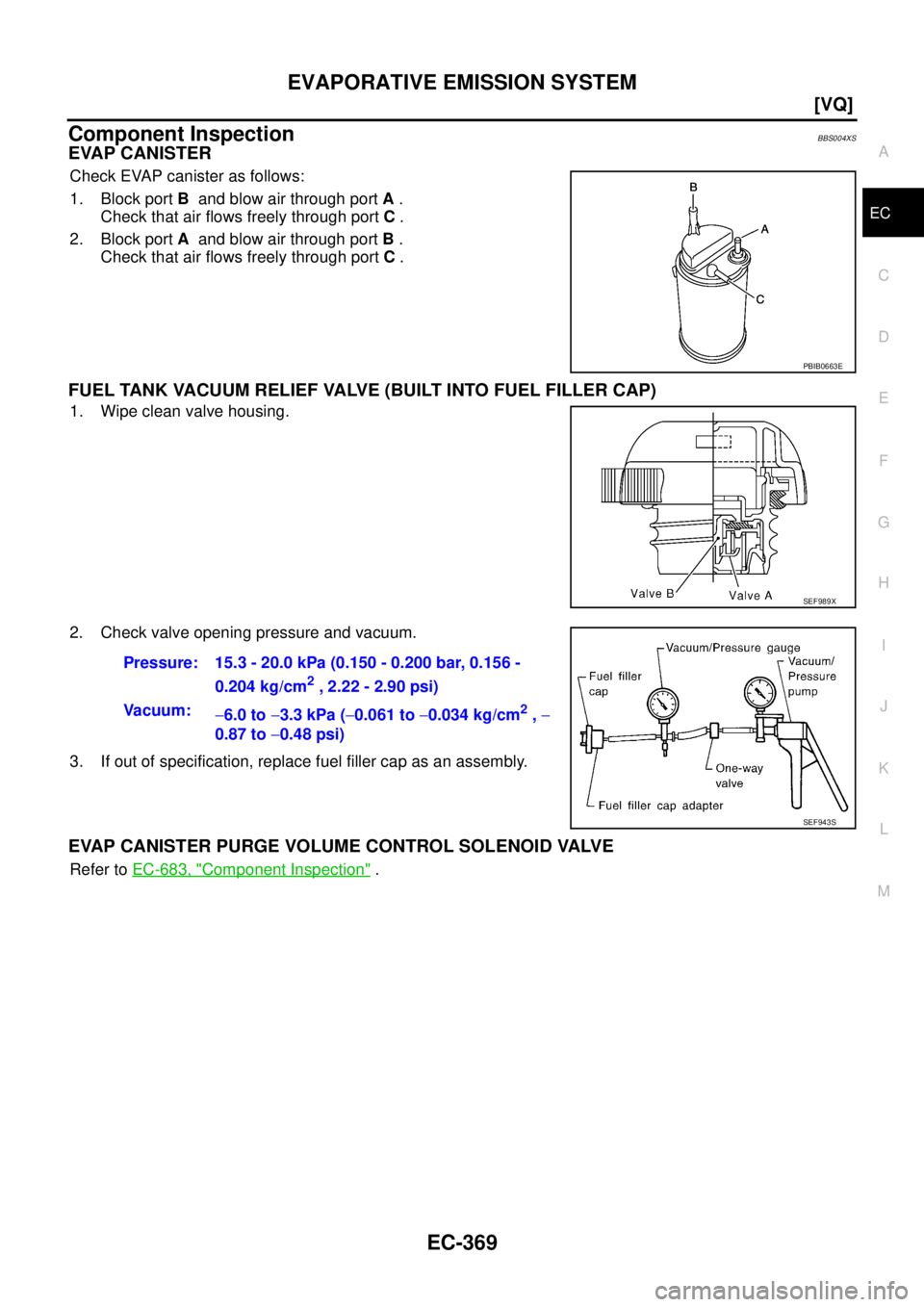

Check EVAP canister as follows:
1. Block port B and blow air through port A .
Check that air flows freely through port C .
2. Block port A and blow air through port B .
Check that air flows freely through port C .
FUEL TANK VACUUM RELIEF VALVE (BUILT INTO FUEL FILLER CAP)
1. Wipe clean valve housing.
2. Check valve opening pressure and vacuum.
3. If out of specification, replace fuel filler cap as an assembly.
EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE
Refer to EC-683, "Component Inspection" .
PBIB0663E
SEF989X
Pressure: 15.3 - 20.0 kPa (0.150 - 0.200 bar, 0.156 -
0.204 kg/cm
2 , 2.22 - 2.90 psi)
Va c u u m :
−6.0 to −3.3 kPa (−0.061 to −0.034 kg/cm
2 , −
0.87 to −0.48 psi)
SEF943S

EC-370
[VQ]
POSITIVE CRANKCASE VENTILATION

POSITIVE CRANKCASE VENTILATIONPFP:11810
DescriptionBBS004XT
SYSTEM DESCRIPTION

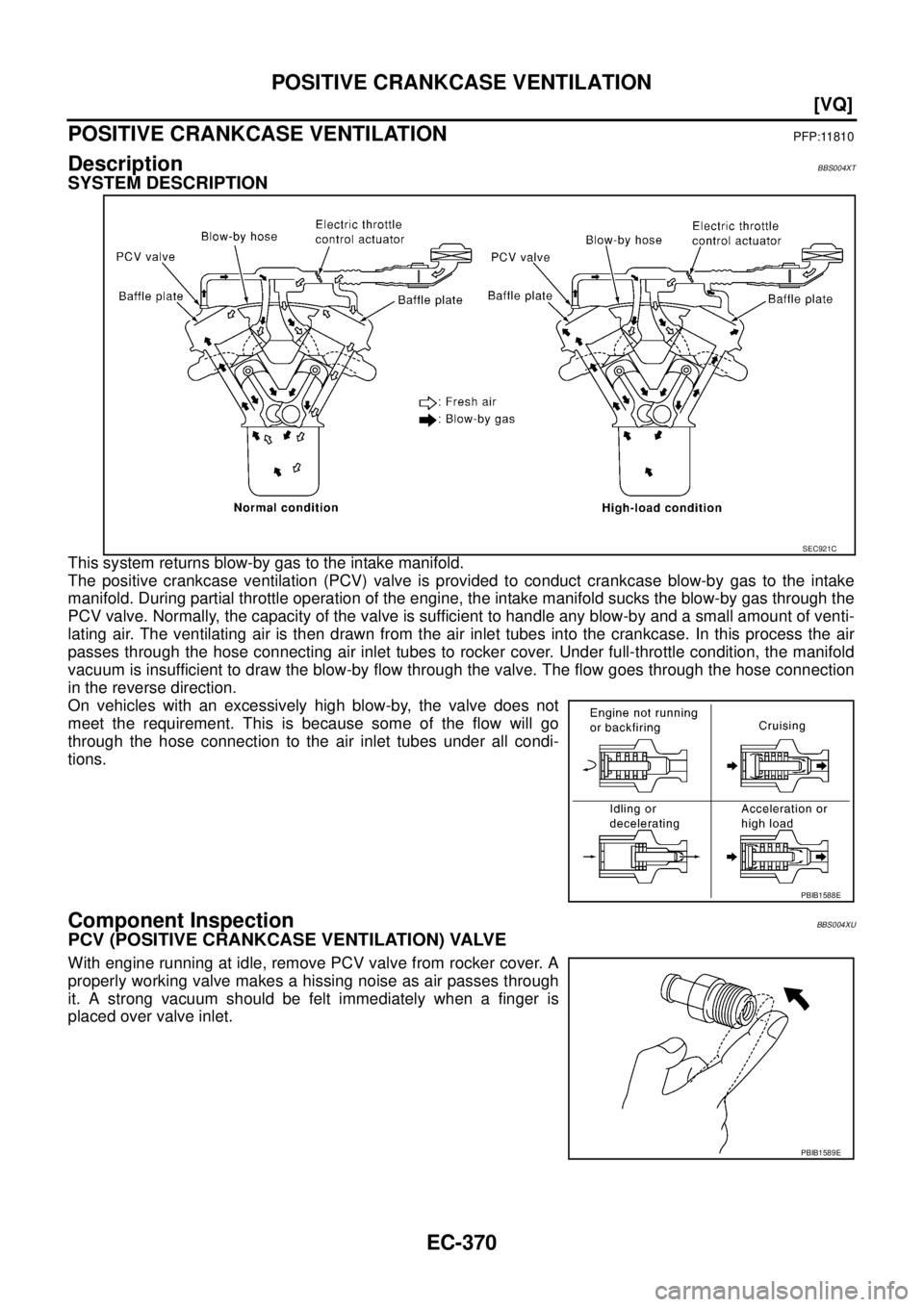

This system returns blow-by gas to the intake manifold.
The positive crankcase ventilation (PCV) valve is provided to conduct crankcase blow-by gas to the intake
manifold. During partial throttle operation of the engine, the intake manifold sucks the blow-by gas through the
PCV valve. Normally, the capacity of the valve is sufficient to handle any blow-by and a small amount of venti-
lating air. The ventilating air is then drawn from the air inlet tubes into the crankcase. In this process the air
passes through the hose connecting air inlet tubes to rocker cover. Under full-throttle condition, the manifold
vacuum is insufficient to draw the blow-by flow through the valve. The flow goes through the hose connection
in the reverse direction.
On vehicles with an excessively high blow-by, the valve does not
meet the requirement. This is because some of the flow will go
through the hose connection to the air inlet tubes under all condi-
tions.
Component InspectionBBS004XU
PCV (POSITIVE CRANKCASE VENTILATION) VALVE
With engine running at idle, remove PCV valve from rocker cover. A
properly working valve makes a hissing noise as air passes through
it. A strong vacuum should be felt immediately when a finger is
placed over valve inlet.
SEC921C
PBIB1588E
PBIB1589E

POSITIVE CRANKCASE VENTILATION
EC-371
[VQ]
C
D
E
F
G
H
I
J
K
L
MA
EC

PCV VALVE VENTILATION HOSE
1. Check hoses and hose connections for leaks.
2. Disconnect all hoses and clean with compressed air. If any hose
cannot be freed of obstructions, replace.
S-ET277

EC-372
[VQ]
NATS (NISSAN ANTI-THEFT SYSTEM)

NATS (NISSAN ANTI-THEFT SYSTEM)PFP:25386
DescriptionBBS004XV

If the security indicator lights up with the ignition switch in
the ON position or “NATS MALFUNCTION” is displayed on
“SELF-DIAG RESULTS” screen, perform self-diagnostic
results mode with CONSULT-II using NATS program card.
Refer to BL-139, "
NATS(Nissan Anti-Theft System)" .

Confirm no self-diagnostic results of NATS is displayed
before touching “ERASE” in “SELF-DIAG RESULTS” mode
with CONSULT-II.

When replacing ECM, initialization of NATS system and reg-
istration of all NATS ignition key IDs must be carried out
with CONSULT-II using NATS program card.
Therefore, be sure to receive all keys from vehicle owner.
Regarding the procedures of NATS initialization and all NATS ignition key ID registration, refer to
CONSULT-II Operation Manual, NATS.
SEF543X

ON BOARD DIAGNOSTIC (OBD) SYSTEM
EC-373
[VQ]
C
D
E
F
G
H
I
J
K
L
MA
EC

ON BOARD DIAGNOSTIC (OBD) SYSTEMPFP:00028
IntroductionBBS004XW
The ECM has an on board diagnostic system, which detects malfunctions related to engine sensors or actua-
tors. The ECM also records various emission-related diagnostic information including:
The above information can be checked using procedures listed in the table below.
×: Applicable —: Not applicable
*: When DTC and 1st trip DTC simultaneously appear on the display, they cannot be clearly distinguished from each other.
The malfunction indicator (MI) on the instrument panel lights up when the same malfunction is detected in two
consecutive trips (Two trip detection logic), or when the ECM enters fail-safe mode. (Refer to EC-401, "
Fail-
Safe Chart" .)
Two Trip Detection LogicBBS004XX
When a malfunction is detected for the first time, 1st trip DTC and 1st trip Freeze Frame data are stored in the
ECM memory. The MI will not light up at this stage. <1st trip>
If the same malfunction is detected again during the next drive, the DTC and Freeze Frame data are stored in
the ECM memory, and the MI lights up. The MI lights up at the same time when the DTC is stored. <2nd trip>
The “trip” in the “Two Trip Detection Logic” means a driving mode in which self-diagnosis is performed during
vehicle operation. When the ECM enters fail-safe mode (Refer to EC-401, "
Fail-Safe Chart" .), the DTC is
stored in the ECM memory even in the 1st trip.
When there is an open circuit on MI circuit, the ECM cannot warn the driver by lighting up MI when there is
malfunction on engine control system.
Therefore, when electrical controlled throttle and part of ECM related diagnoses are continuously detected as
NG for 5 trips, ECM warns the driver that engine control system malfunctions and MI circuit is open by means
of operating fail-safe function.
The fail-safe function also operates when above diagnoses except MI circuit are detected and demands the
driver to repair the malfunction.
Emission-related Diagnostic InformationBBS004XY
EMISSION-RELATED DIAGNOSTIC INFORMATION ITEMS
×: Applicable –: Not applicable Emission-related diagnostic information
Diagnostic Trouble Code (DTC)
Freeze Frame data
1st Trip Diagnostic Trouble Code (1st Trip DTC)
1st Trip Freeze Frame data
DTC 1st trip DTC Freeze Frame data 1st trip Freeze Frame data
CONSULT-II×× × ×
ECM××*— —
Engine operating condition in fail-safe mode Engine speed will not rise more than 2,500 rpm due to the fuel cut
Items
(CONSULT-II screen terms)DTC*1
Trip MI Reference page
CONSULT-II
ECM*2
CAN COMM CIRCUIT U1000
1000*32—EC-458
CAN COMM CIRCUIT U1001
1001*3 2—EC-458
NO DTC IS DETECTED.
FURTHER TESTING
MAY BE REQUIRED.P0000 0000—— —
INT/V TIM CONT-B1 P0011 0011 2 —EC-461
INT/V TIM CONT-B2 P0021 0021 2 —EC-461
MAF SEN/CIRCUIT P0102 0102 1×EC-466
MAF SEN/CIRCUIT P0103 0103 1×EC-466
ECT SEN/CIRC P0117 0117 2×EC-474

EC-374
[VQ]
ON BOARD DIAGNOSTIC (OBD) SYSTEM

ECT SEN/CIRC P0118 0118 2×EC-474
TP SEN 2/CIRC P0122 0122 1×EC-479
TP SEN 2/CIRC P0123 0123 1×EC-479
HO2S1 (B1) P0132 0132 2×EC-486
HO2S1 (B1) P0134 0134 2×EC-496
HO2S1 (B2) P0152 0152 2×EC-486
HO2S1 (B2) P0154 0154 2×EC-496
TP SEN 1/CIRC P0222 0222 1×EC-505
TP SEN 1/CIRC P0223 0223 1×EC-505
KNOCK SEN/CIRC-B1 P0327 0327 2 —EC-512
KNOCK SEN/CIRC-B1 P0328 0328 2 —EC-512
CKP SEN/CIRCUIT P0335 0335 2×EC-517
CMP SEN/CIRC-B1 P0340 0340 2×EC-524
CMP SEN/CIRC-B2 P0345 0345 2×EC-524
PW ST P SEN/CIRC P0550 0550 2 —EC-533
ECM P0605 0605 1 or 2× or —EC-538
ECM BACK UP/CIRCUIT P1065 1065 2×EC-541
I N T / V T I M V / C I R - B 1 P 1111 1111 2×EC-545
ETC ACTR P1121 1121 1×EC-552
ETC FUNCTION/CIRC P1122 1122 1×EC-555
ETC MOT PWR P1124 1124 1×EC-562
ETC MOT PWR P1126 1126 1×EC-562
ETC MOT P1128 1128 1×EC-568
INT/V TIM V/CIR-B2 P1136 1136 2×EC-545
TCS C/U FUNCTN P1211 1211 2 —EC-573
TCS/CIRC P1212 1212 2 —EC-574
ENG OVER TEMP P1217 1217 1×EC-575
CTP LEARNING P1225 1225 2 —EC-586
CTP LEARNING P1226 1226 2 —EC-588
SENSOR POWER/CIRC P1229 1229 1×EC-590
ASCD SW P1564 1564 1 —EC-595
ASCD BRAKE SW P1572 1572 1 —EC-602
ASCD VHL SPD SEN P1574 1574 1 —EC-611
NATS MALFUNCTION P1610 - P1615 1610 - 1615 2 —BL-139
CVT C/U FUNCT P1700 1700 1 —EC-613
P-N POS SW/CIRCUIT P1706 1706 2×EC-614
IN PULY SPEED P1715 1715 2 —EC-622
V/SP SEN (A/T OUT) P1720 1720 2 —EC-624
BRAKE SW/CIRCUIT P1805 1805 1×EC-626
APP SEN 1/CIRC P2122 2122 1×EC-631
APP SEN 1/CIRC P2123 2123 1×EC-631
APP SEN 2/CIRC P2127 2127 1×EC-638
APP SEN 2/CIRC P2128 2128 1×EC-638
Items
(CONSULT-II screen terms)DTC*1
Trip MI Reference page
CONSULT-II
ECM*2

ON BOARD DIAGNOSTIC (OBD) SYSTEM
EC-375
[VQ]
C
D
E
F
G
H
I
J
K
L
MA
EC

*1: 1st trip DTC No. is the same as DTC No.
*2: In Diagnostic Test Mode II (Self-diagnostic results)
*3: The trouble shooting for this DTC needs CONSULT-II.
DTC AND 1ST TRIP DTC
The 1st trip DTC (whose number is the same as the DTC number) is displayed for the latest self-diagnostic
result obtained. If the ECM memory was cleared previously, and the 1st trip DTC did not reoccur, the 1st trip
DTC will not be displayed.
If a malfunction is detected during the 1st trip, the 1st trip DTC is stored in the ECM memory. The MI will not
light up (two trip detection logic). If the same malfunction is not detected in the 2nd trip (meeting the required
driving pattern), the 1st trip DTC is cleared from the ECM memory. If the same malfunction is detected in the
2nd trip, both the 1st trip DTC and DTC are stored in the ECM memory and the MI lights up. In other words,
the DTC is stored in the ECM memory and the MI lights up when the same malfunction occurs in two consec-
utive trips. If a 1st trip DTC is stored and a non-diagnostic operation is performed between the 1st and 2nd
trips, only the 1st trip DTC will continue to be stored. For fail-safe items, the DTC is stored in the ECM memory
even in the 1st trip.
Procedures for clearing the DTC and the 1st trip DTC from the ECM memory are described in EC-376, "
HOW
TO ERASE EMISSION-RELATED DIAGNOSTIC INFORMATION" .
When a 1st trip DTC is detected, check, print out or write down and erase (1st trip) DTC and Freeze Frame
data as specified in Work Flow procedure Step 2, refer to EC-395, "
WORK FLOW" . Then perform DTC Con-
firmation Procedure or Overall Function Check to try to duplicate the malfunction. If the malfunction is dupli-
cated, the item requires repair.
How to Read DTC and 1st Trip DTC
DTC and 1st trip DTC can be read by the following methods.
With CONSULT-II

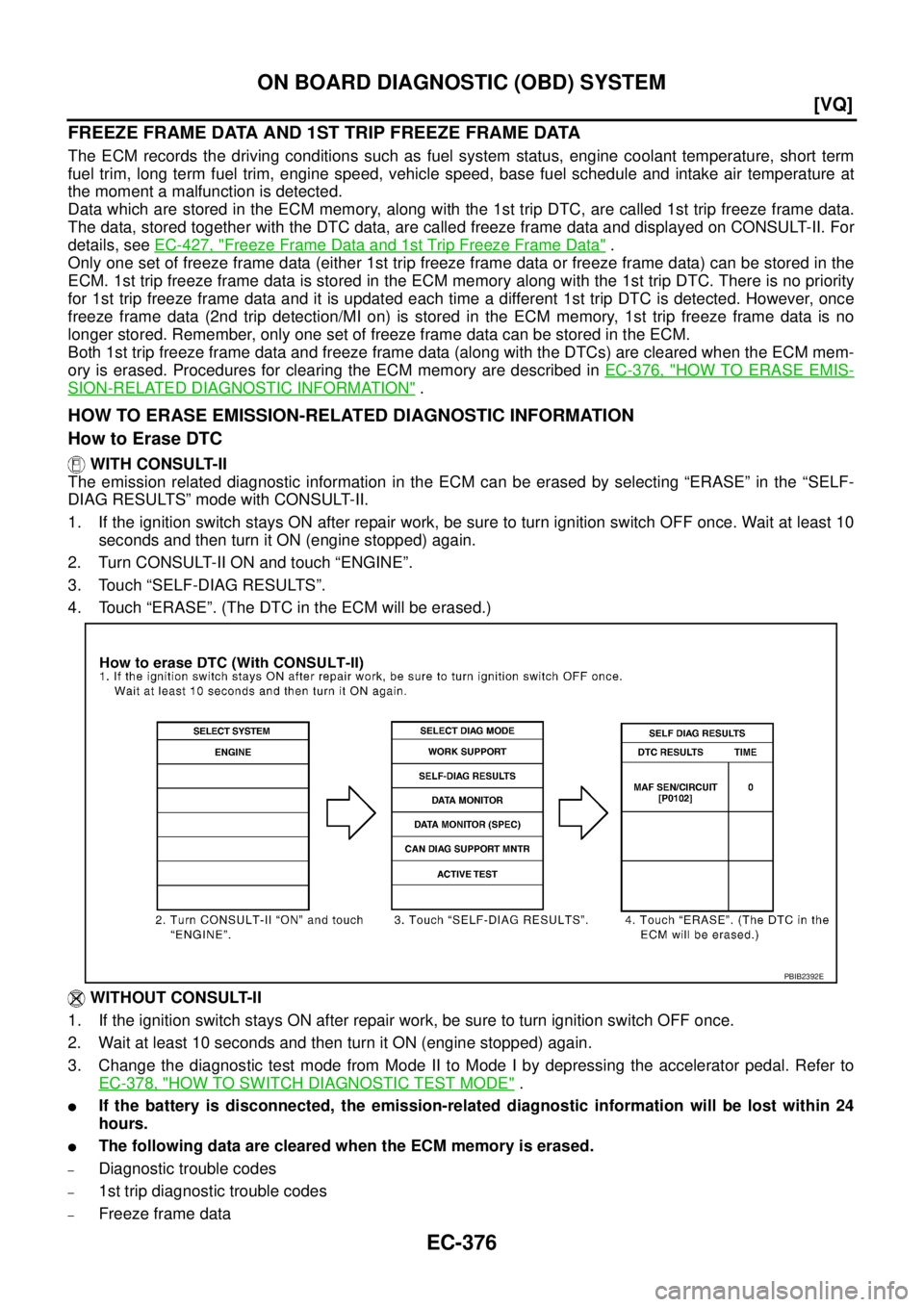

CONSULT-II displays the DTC in “SELF-DIAG RESULTS” mode. Examples: P0117, P0340, P1065, etc.
(CONSULT-II also displays the malfunctioning component or system.)
Without CONSULT-II

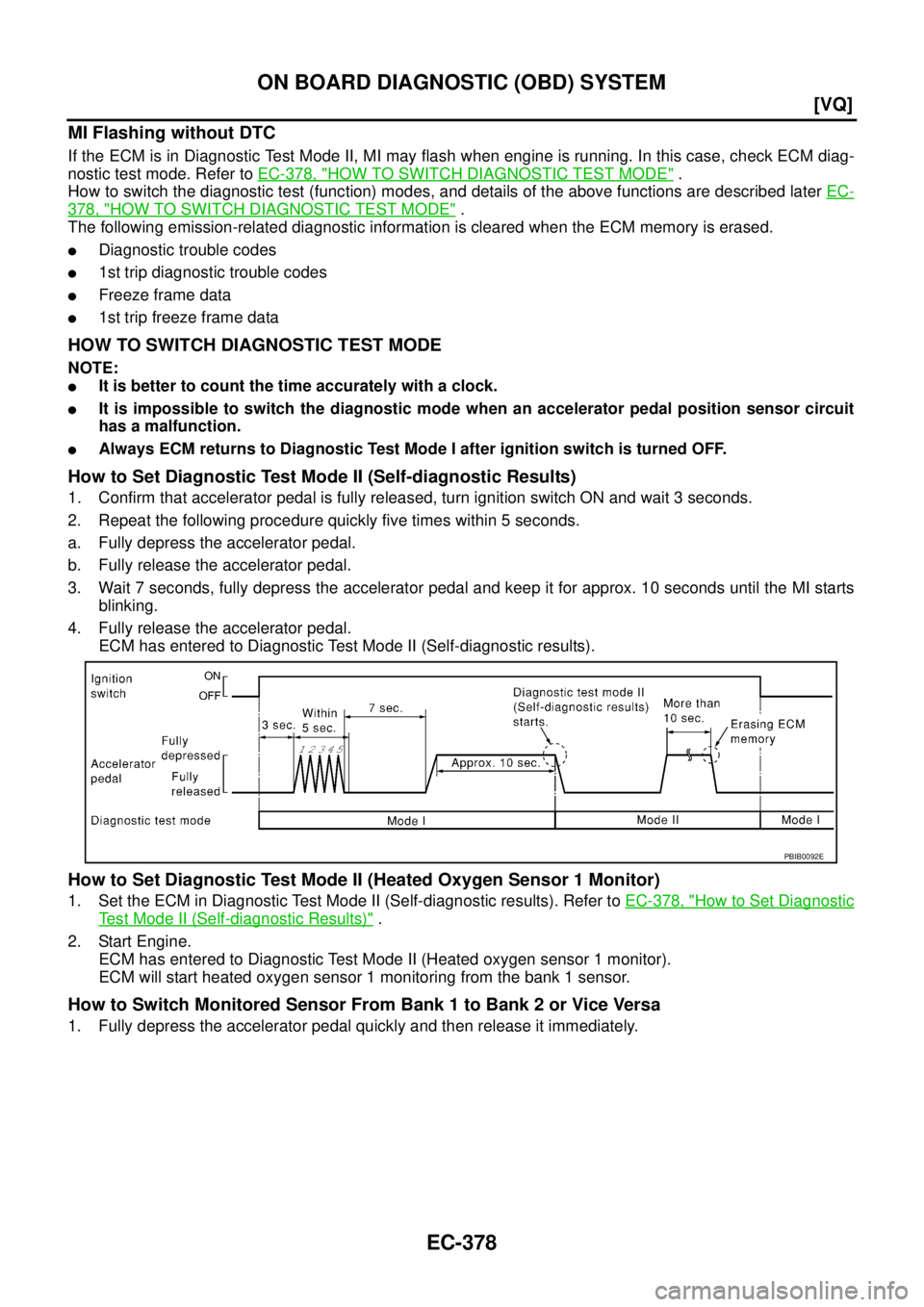

The number of blinks of the MI in the Diagnostic Test Mode II (Self-Diagnostic Results) indicates the DTC.
Example: 0117, 0340, 1065, etc.

1st trip DTC No. is the same as DTC No.

Output of a DTC indicates a malfunction. However, the Diagnostic Test Mode II does not indicate
whether the malfunction is still occurring or has occurred in the past and has returned to normal.
CONSULT-II can identify malfunction status as shown below. Therefore, using CONSULT-II (if avail-
able) is recommended.

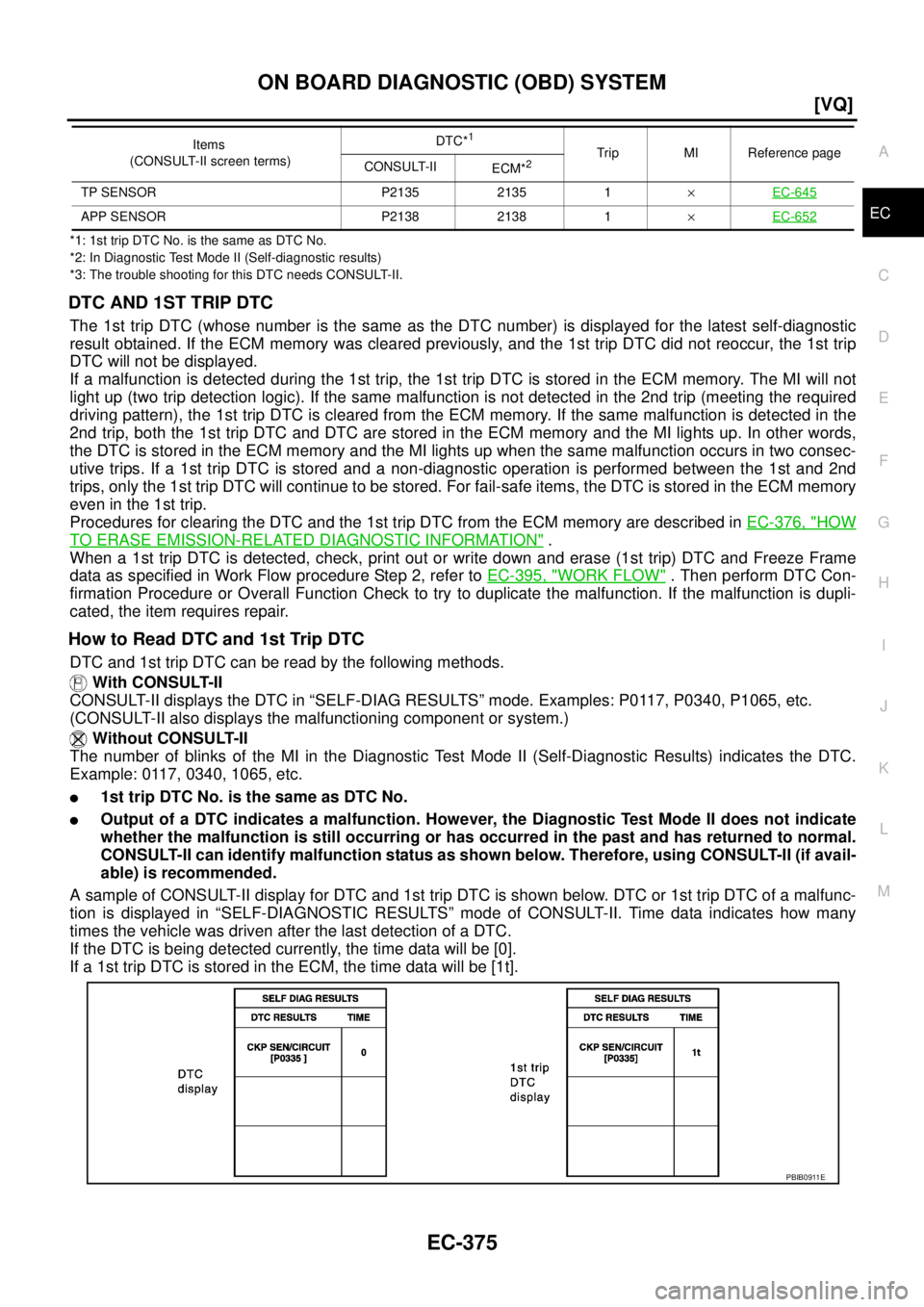

A sample of CONSULT-II display for DTC and 1st trip DTC is shown below. DTC or 1st trip DTC of a malfunc-
tion is displayed in “SELF-DIAGNOSTIC RESULTS” mode of CONSULT-II. Time data indicates how many
times the vehicle was driven after the last detection of a DTC.
If the DTC is being detected currently, the time data will be [0].
If a 1st trip DTC is stored in the ECM, the time data will be [1t].
TP SENSOR P2135 2135 1×EC-645
APP SENSOR P2138 2138 1×EC-652
Items
(CONSULT-II screen terms)DTC*1
Trip MI Reference page
CONSULT-II
ECM*2
PBIB0911E

EC-376
[VQ]
ON BOARD DIAGNOSTIC (OBD) SYSTEM

FREEZE FRAME DATA AND 1ST TRIP FREEZE FRAME DATA
The ECM records the driving conditions such as fuel system status, engine coolant temperature, short term
fuel trim, long term fuel trim, engine speed, vehicle speed, base fuel schedule and intake air temperature at
the moment a malfunction is detected.
Data which are stored in the ECM memory, along with the 1st trip DTC, are called 1st trip freeze frame data.
The data, stored together with the DTC data, are called freeze frame data and displayed on CONSULT-II. For
details, see EC-427, "
Freeze Frame Data and 1st Trip Freeze Frame Data" .
Only one set of freeze frame data (either 1st trip freeze frame data or freeze frame data) can be stored in the
ECM. 1st trip freeze frame data is stored in the ECM memory along with the 1st trip DTC. There is no priority
for 1st trip freeze frame data and it is updated each time a different 1st trip DTC is detected. However, once
freeze frame data (2nd trip detection/MI on) is stored in the ECM memory, 1st trip freeze frame data is no
longer stored. Remember, only one set of freeze frame data can be stored in the ECM.
Both 1st trip freeze frame data and freeze frame data (along with the DTCs) are cleared when the ECM mem-
ory is erased. Procedures for clearing the ECM memory are described in EC-376, "
HOW TO ERASE EMIS-
SION-RELATED DIAGNOSTIC INFORMATION" .
HOW TO ERASE EMISSION-RELATED DIAGNOSTIC INFORMATION
How to Erase DTC
WITH CONSULT-II
The emission related diagnostic information in the ECM can be erased by selecting “ERASE” in the “SELF-
DIAG RESULTS” mode with CONSULT-II.
1. If the ignition switch stays ON after repair work, be sure to turn ignition switch OFF once. Wait at least 10
seconds and then turn it ON (engine stopped) again.
2. Turn CONSULT-II ON and touch “ENGINE”.
3. Touch “SELF-DIAG RESULTS”.
4. Touch “ERASE”. (The DTC in the ECM will be erased.)
WITHOUT CONSULT-II
1. If the ignition switch stays ON after repair work, be sure to turn ignition switch OFF once.
2. Wait at least 10 seconds and then turn it ON (engine stopped) again.
3. Change the diagnostic test mode from Mode II to Mode I by depressing the accelerator pedal. Refer to
EC-378, "
HOW TO SWITCH DIAGNOSTIC TEST MODE" .

If the battery is disconnected, the emission-related diagnostic information will be lost within 24
hours.

The following data are cleared when the ECM memory is erased.
–Diagnostic trouble codes
–1st trip diagnostic trouble codes
–Freeze frame data
PBIB2392E

ON BOARD DIAGNOSTIC (OBD) SYSTEM

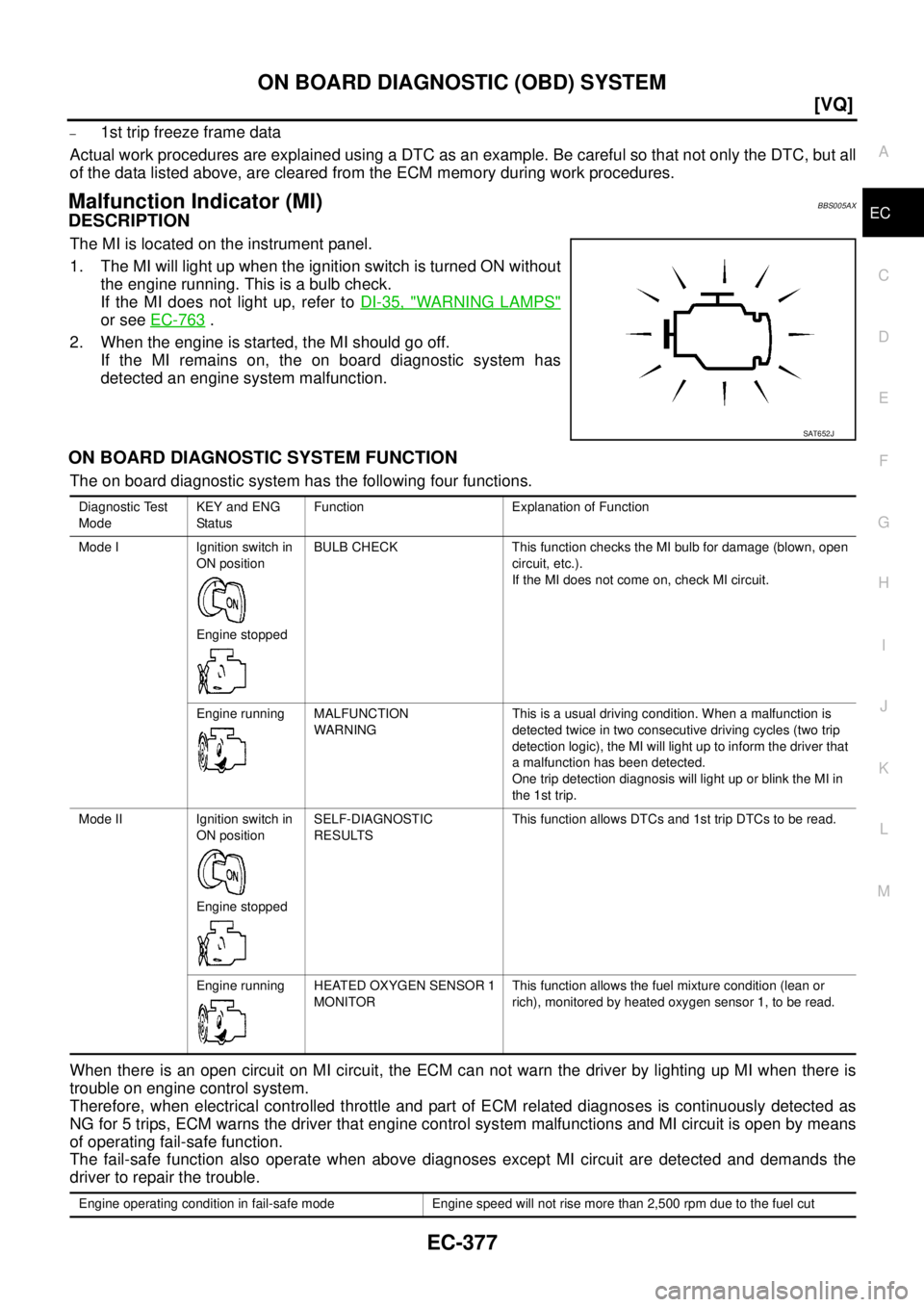

EC-377
[VQ]
C
D
E
F
G
H
I
J
K
L
MA
EC

–1st trip freeze frame data
Actual work procedures are explained using a DTC as an example. Be careful so that not only the DTC, but all
of the data listed above, are cleared from the ECM memory during work procedures.
Malfunction Indicator (MI)BBS005AX
DESCRIPTION
The MI is located on the instrument panel.
1. The MI will light up when the ignition switch is turned ON without
the engine running. This is a bulb check.
If the MI does not light up, refer to DI-35, "
WARNING LAMPS"
or see EC-763 .
2. When the engine is started, the MI should go off.
If the MI remains on, the on board diagnostic system has
detected an engine system malfunction.
ON BOARD DIAGNOSTIC SYSTEM FUNCTION
The on board diagnostic system has the following four functions.
When there is an open circuit on MI circuit, the ECM can not warn the driver by lighting up MI when there is
trouble on engine control system.
Therefore, when electrical controlled throttle and part of ECM related diagnoses is continuously detected as
NG for 5 trips, ECM warns the driver that engine control system malfunctions and MI circuit is open by means
of operating fail-safe function.
The fail-safe function also operate when above diagnoses except MI circuit are detected and demands the
driver to repair the trouble.
SAT652J
Diagnostic Test
ModeKEY and ENG
StatusFunction Explanation of Function
Mode I Ignition switch in
ON position
Engine stoppedBULB CHECK This function checks the MI bulb for damage (blown, open
circuit, etc.).
If the MI does not come on, check MI circuit.
Engine running MALFUNCTION
WARNINGThis is a usual driving condition. When a malfunction is
detected twice in two consecutive driving cycles (two trip
detection logic), the MI will light up to inform the driver that
a malfunction has been detected.
One trip detection diagnosis will light up or blink the MI in
the 1st trip.
Mode II Ignition switch in
ON position
Engine stoppedSELF-DIAGNOSTIC
RESULTSThis function allows DTCs and 1st trip DTCs to be read.
Engine running HEATED OXYGEN SENSOR 1
MONITORThis function allows the fuel mixture condition (lean or
rich), monitored by heated oxygen sensor 1, to be read.
Engine operating condition in fail-safe mode Engine speed will not rise more than 2,500 rpm due to the fuel cut

EC-378
[VQ]
ON BOARD DIAGNOSTIC (OBD) SYSTEM

MI Flashing without DTC
If the ECM is in Diagnostic Test Mode II, MI may flash when engine is running. In this case, check ECM diag-
nostic test mode. Refer to EC-378, "
HOW TO SWITCH DIAGNOSTIC TEST MODE" .
How to switch the diagnostic test (function) modes, and details of the above functions are described later EC-
378, "HOW TO SWITCH DIAGNOSTIC TEST MODE" .
The following emission-related diagnostic information is cleared when the ECM memory is erased.

Diagnostic trouble codes

1st trip diagnostic trouble codes

Freeze frame data

1st trip freeze frame data
HOW TO SWITCH DIAGNOSTIC TEST MODE
NOTE:

It is better to count the time accurately with a clock.

It is impossible to switch the diagnostic mode when an accelerator pedal position sensor circuit
has a malfunction.

Always ECM returns to Diagnostic Test Mode I after ignition switch is turned OFF.
How to Set Diagnostic Test Mode II (Self-diagnostic Results)
1. Confirm that accelerator pedal is fully released, turn ignition switch ON and wait 3 seconds.
2. Repeat the following procedure quickly five times within 5 seconds.
a. Fully depress the accelerator pedal.
b. Fully release the accelerator pedal.
3. Wait 7 seconds, fully depress the accelerator pedal and keep it for approx. 10 seconds until the MI starts
blinking.
4. Fully release the accelerator pedal.
ECM has entered to Diagnostic Test Mode II (Self-diagnostic results).
How to Set Diagnostic Test Mode II (Heated Oxygen Sensor 1 Monitor)
1. Set the ECM in Diagnostic Test Mode II (Self-diagnostic results). Refer to EC-378, "How to Set Diagnostic
Test Mode II (Self-diagnostic Results)" .
2. Start Engine.
ECM has entered to Diagnostic Test Mode II (Heated oxygen sensor 1 monitor).
ECM will start heated oxygen sensor 1 monitoring from the bank 1 sensor.
How to Switch Monitored Sensor From Bank 1 to Bank 2 or Vice Versa
1. Fully depress the accelerator pedal quickly and then release it immediately.
PBIB0092E
