AT device harness connector NISSAN TEANA 2003 User Guide

DTC P0826 MANUAL MODE SWITCH CIRCUIT
CVT-117
D
E
F
G
H
I
J
K
L
MA
B
CVT

Component InspectionBCS001JV
MANUAL MODE SWITCH
Check continuity between CVT device harness connector terminals.
Item Position Connector Terminal Continuity
Manual mode
select switchAuto
M9212 - 11
Ye s Manual 3 - 11
Manual mode
position select
switchUp 8 - 11
Down 7 - 11
SCIA4591E

SHIFT CONTROL SYSTEM
CVT-177
D
E
F
G
H
I
J
K
L
MA
B
CVT

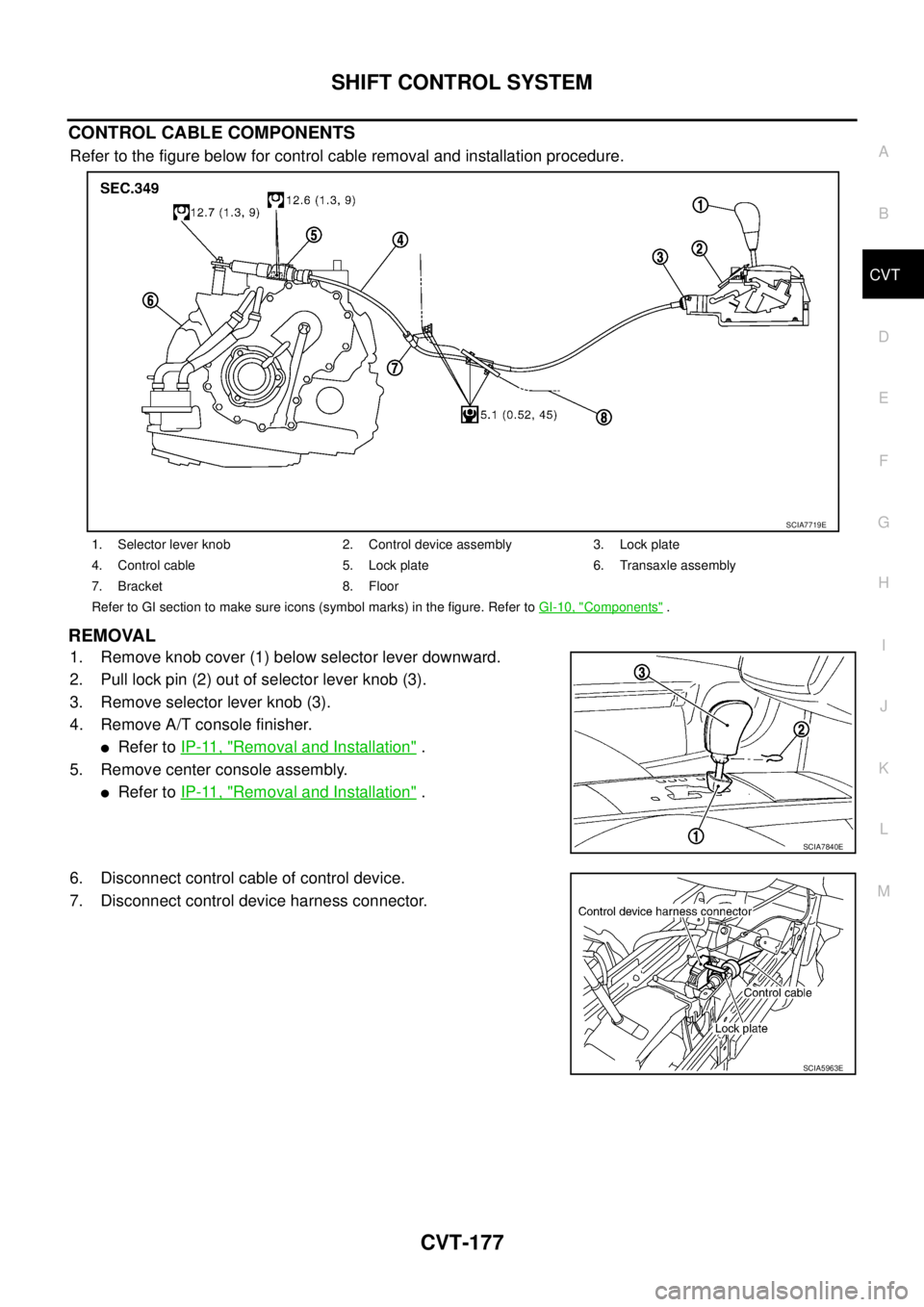

CONTROL CABLE COMPONENTS
Refer to the figure below for control cable removal and installation procedure.
REMOVAL
1. Remove knob cover (1) below selector lever downward.
2. Pull lock pin (2) out of selector lever knob (3).
3. Remove selector lever knob (3).
4. Remove A/T console finisher.

Refer to IP-11, "Removal and Installation" .
5. Remove center console assembly.

Refer to IP-11, "Removal and Installation" .
6. Disconnect control cable of control device.
7. Disconnect control device harness connector.
1. Selector lever knob 2. Control device assembly 3. Lock plate
4. Control cable 5. Lock plate 6. Transaxle assembly
7. Bracket 8. Floor
Refer to GI section to make sure icons (symbol marks) in the figure. Refer to GI-10, "
Components" .
SCIA7719E
SCIA7840E
SCIA5963E

CVT-184

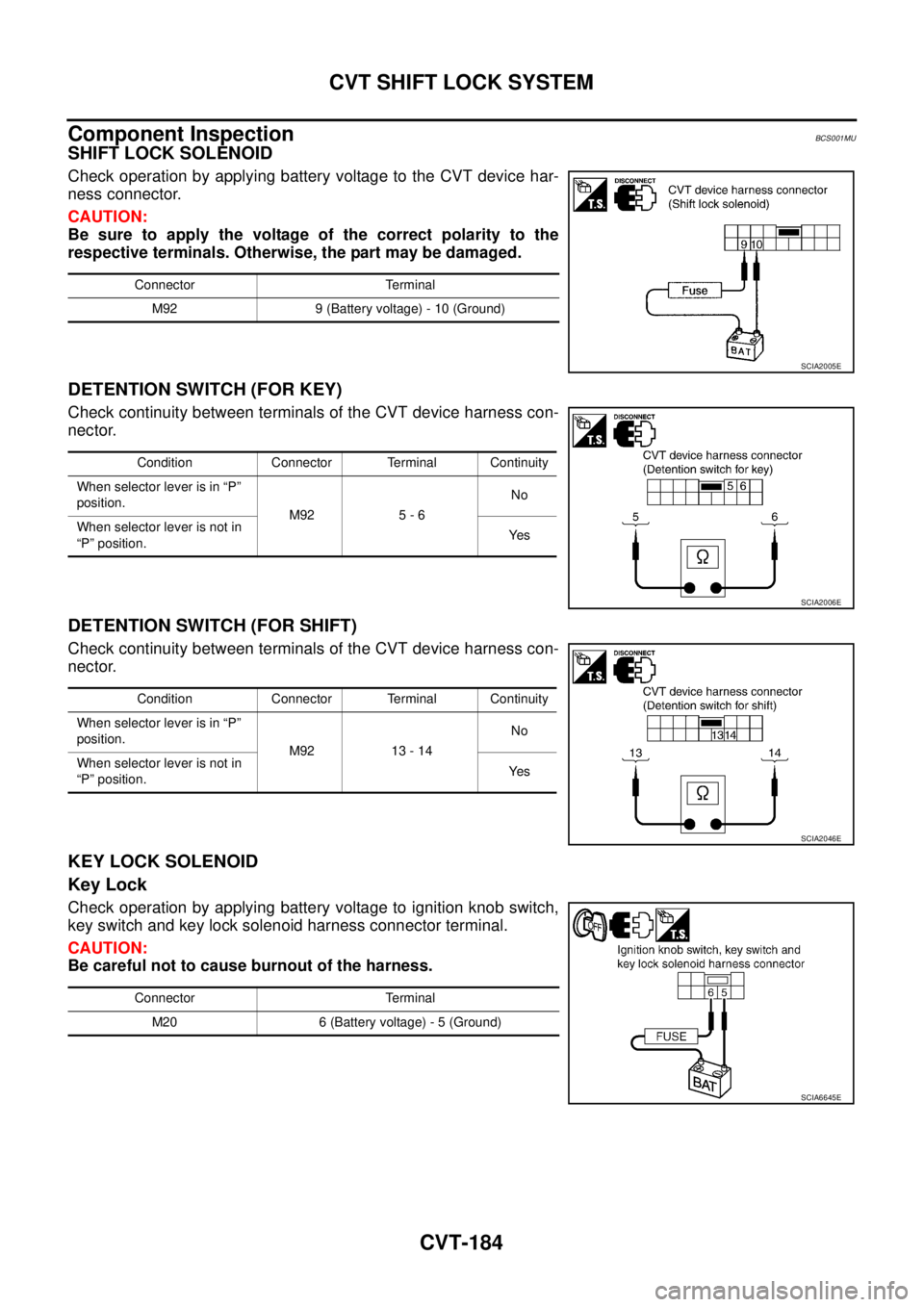

CVT SHIFT LOCK SYSTEM

Component InspectionBCS001MU
SHIFT LOCK SOLENOID
Check operation by applying battery voltage to the CVT device har-
ness connector.
CAUTION:
Be sure to apply the voltage of the correct polarity to the
respective terminals. Otherwise, the part may be damaged.
DETENTION SWITCH (FOR KEY)
Check continuity between terminals of the CVT device harness con-
nector.
DETENTION SWITCH (FOR SHIFT)
Check continuity between terminals of the CVT device harness con-
nector.
KEY LOCK SOLENOID
Key Lock
Check operation by applying battery voltage to ignition knob switch,
key switch and key lock solenoid harness connector terminal.
CAUTION:
Be careful not to cause burnout of the harness.
Connector Terminal
M92 9 (Battery voltage) - 10 (Ground)
SCIA2005E
Condition Connector Terminal Continuity
When selector lever is in “P”
position.
M92 5 - 6No
When selector lever is not in
“P” position.Ye s
SCIA2006E
Condition Connector Terminal Continuity
When selector lever is in “P”
position.
M92 13 - 14No
When selector lever is not in
“P” position.Ye s
SCIA2046E
Connector Terminal
M20 6 (Battery voltage) - 5 (Ground)
SCIA6645E

EC-5
C
D
E
F
G
H
I
J
K
L
M
ECA
PREPARATION ....................................................... 355
Special Service Tools ........................................... 355
Commercial Service Tools .................................... 356
ENGINE CONTROL SYSTEM ................................ 357
System Diagram ................................................... 357
Multiport Fuel Injection (MFI) System .................. 358
Electronic Ignition (EI) System ............................. 360
Fuel Cut Control (at No Load and High Engine
Speed) .................................................................. 361
AIR CONDITIONING CUT CONTROL ................... 362
Input/Output Signal Chart ..................................... 362
System Description .............................................. 362
AUTOMATIC SPEED CONTROL DEVICE (ASCD) . 363
System Description .............................................. 363
Component Description ........................................ 364
CAN COMMUNICATION ........................................ 365
System Description .............................................. 365
EVAPORATIVE EMISSION SYSTEM ..................... 366
Description ........................................................... 366
Component Inspection ......................................... 369
POSITIVE CRANKCASE VENTILATION ............... 370
Description ........................................................... 370
Component Inspection ......................................... 370
NATS (NISSAN ANTI-THEFT SYSTEM) ................ 372
Description ........................................................... 372
ON BOARD DIAGNOSTIC (OBD) SYSTEM .......... 373
Introduction .......................................................... 373
Two Trip Detection Logic ...................................... 373
Emission-related Diagnostic Information .............. 373
Malfunction Indicator (MI) ..................................... 377
BASIC SERVICE PROCEDURE ............................ 381
Basic Inspection ................................................... 381
Idle Speed and Ignition Timing Check .................. 387
Procedure After Replacing ECM .......................... 389
Accelerator Pedal Released Position Learning .... 389
Throttle Valve Closed Position Learning .............. 389
Idle Air Volume Learning ...................................... 389
Fuel Pressure Check ............................................ 392
TROUBLE DIAGNOSIS .......................................... 394
Trouble Diagnosis Introduction ............................. 394
DTC Inspection Priority Chart .............................. 400
Fail-Safe Chart ..................................................... 401
Symptom Matrix Chart ......................................... 402
Engine Control Component Parts Location .......... 406
Vacuum Hose Drawing ......................................... 412
Circuit Diagram .................................................... 413
ECM Harness Connector Terminal Layout ........... 415
ECM Terminals and Reference Value .................. 415
CONSULT-II Function (ENGINE) ......................... 425
CONSULT-II Reference Value in Data Monitor Mode
. 434
Major Sensor Reference Graph in Data Monitor
Mode .................................................................... 438
TROUBLE DIAGNOSIS - SPECIFICATION VALUE . 440
Description ........................................................... 440
Testing Condition .................................................. 440
Inspection Procedure ........................................... 440
Diagnostic Procedure ........................................... 441
TROUBLE DIAGNOSIS FOR INTERMITTENT INCI-DENT .......................................................................450
Description ............................................................450
Diagnostic Procedure ...........................................450
POWER SUPPLY AND GROUND CIRCUIT ...........451
Wiring Diagram .....................................................451
Diagnostic Procedure ...........................................452
Ground Inspection ................................................457
DTC U1000, U1001 CAN COMMUNICATION LINE .458
Description ............................................................458
On Board Diagnosis Logic ....................................458
DTC Confirmation Procedure ...............................458
Wiring Diagram .....................................................459
Diagnostic Procedure ...........................................460
DTC P0011, P0021 IVT CONTROL ........................461
Description ............................................................461
CONSULT-II Reference Value in Data Monitor Mode
.461
On Board Diagnosis Logic ....................................462
DTC Confirmation Procedure ...............................462
Overall Function Check ........................................463
Diagnostic Procedure ...........................................464
Component Inspection ..........................................465
Removal and Installation ......................................465
DTC P0102, P0103 MAF SENSOR ........................466
Component Description ........................................466
CONSULT-II Reference Value in Data Monitor Mode
.466
On Board Diagnosis Logic ....................................466
DTC Confirmation Procedure ...............................467
Wiring Diagram .....................................................468
Diagnostic Procedure ...........................................469
Component Inspection ..........................................472
Removal and Installation ......................................473
DTC P0117, P0118 ECT SENSOR .........................474
Component Description ........................................474
On Board Diagnosis Logic ....................................474
DTC Confirmation Procedure ...............................475
Wiring Diagram .....................................................476
Diagnostic Procedure ...........................................477
Component Inspection ..........................................478
Removal and Installation ......................................478
DTC P0122, P0123 TP SENSOR ............................479
Component Description ........................................479
CONSULT-II Reference Value in Data Monitor Mode
.479
On Board Diagnosis Logic ....................................479
DTC Confirmation Procedure ...............................480
Wiring Diagram .....................................................481
Diagnostic Procedure ...........................................482
Component Inspection ..........................................485
Removal and Installation ......................................485
DTC P0132, P0152 HO2S1 .....................................486
Component Description ........................................486
CONSULT-II Reference Value in Data Monitor Mode
.486
On Board Diagnosis Logic ....................................486
DTC Confirmation Procedure ...............................487
Wiring Diagram .....................................................488
Diagnostic Procedure ...........................................491

DTC P1564 ASCD STEERING SWITCH
EC-595
[VQ]
C
D
E
F
G
H
I
J
K
L
MA
EC

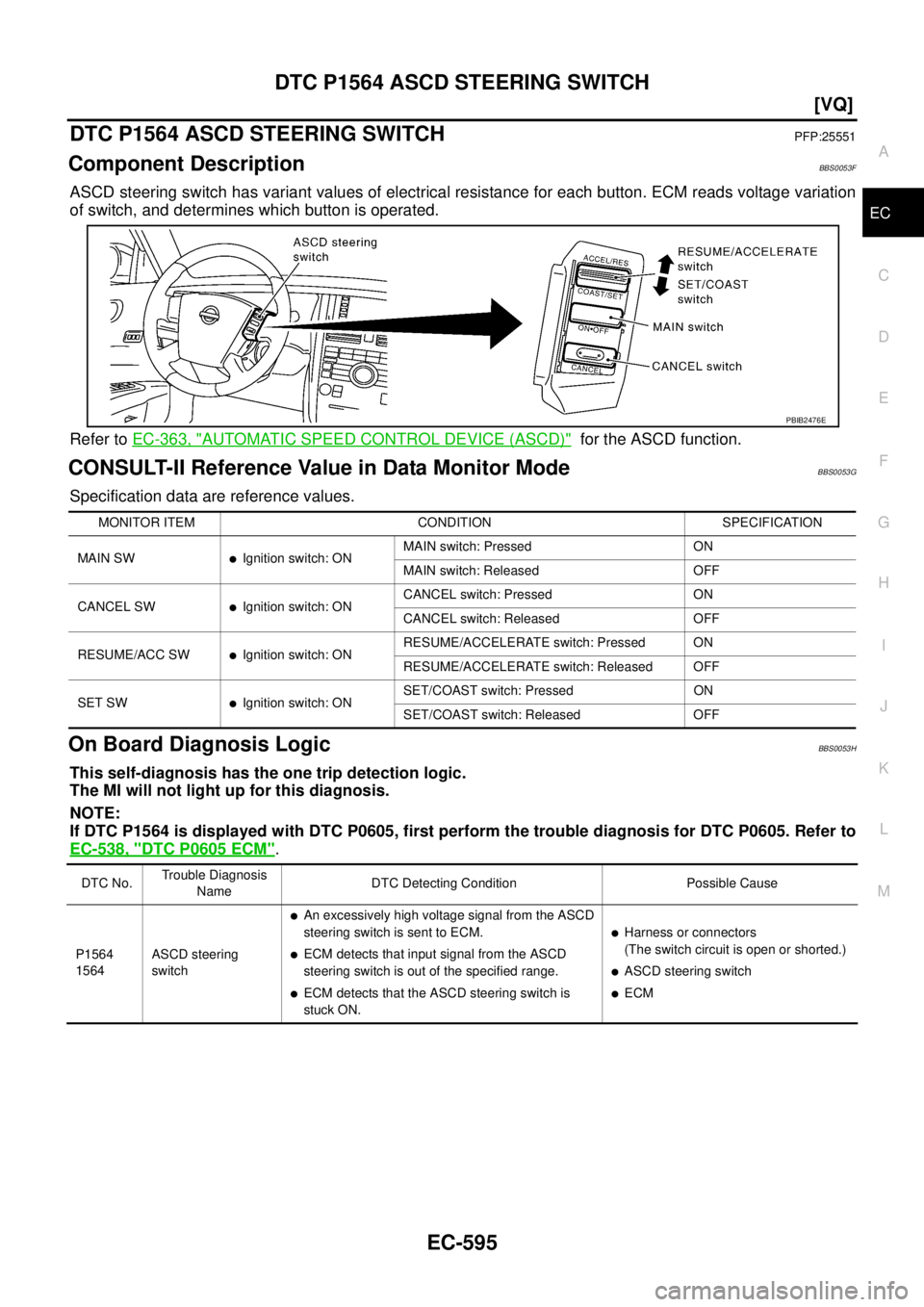

DTC P1564 ASCD STEERING SWITCHPFP:25551
Component DescriptionBBS0053F
ASCD steering switch has variant values of electrical resistance for each button. ECM reads voltage variation
of switch, and determines which button is operated.
Refer to EC-363, "
AUTOMATIC SPEED CONTROL DEVICE (ASCD)" for the ASCD function.
CONSULT-II Reference Value in Data Monitor ModeBBS0053G
Specification data are reference values.
On Board Diagnosis LogicBBS0053H
This self-diagnosis has the one trip detection logic.
The MI will not light up for this diagnosis.
NOTE:
If DTC P1564 is displayed with DTC P0605, first perform the trouble diagnosis for DTC P0605. Refer to
EC-538, "
DTC P0605 ECM".
PBIB2476E
MONITOR ITEM CONDITION SPECIFICATION
MAIN SW

Ignition switch: ONMAIN switch: Pressed ON
MAIN switch: Released OFF
CANCEL SW

Ignition switch: ONCANCEL switch: Pressed ON
CANCEL switch: Released OFF
RESUME/ACC SW

Ignition switch: ONRESUME/ACCELERATE switch: Pressed ON
RESUME/ACCELERATE switch: Released OFF
SET SW

Ignition switch: ONSET/COAST switch: Pressed ON
SET/COAST switch: Released OFF
DTC No.Trouble Diagnosis
NameDTC Detecting Condition Possible Cause
P1564
1564ASCD steering
switch

An excessively high voltage signal from the ASCD
steering switch is sent to ECM.

ECM detects that input signal from the ASCD
steering switch is out of the specified range.

ECM detects that the ASCD steering switch is
stuck ON.

Harness or connectors
(The switch circuit is open or shorted.)

ASCD steering switch

ECM

EC-602
[VQ]
DTC P1572 ASCD BRAKE SWITCH

DTC P1572 ASCD BRAKE SWITCHPFP:25320
Component DescriptionBBS0053M
When the brake pedal is depressed, ASCD brake switch is turned
OFF and stop lamp switch is turned ON. ECM detects the state of
the brake pedal by this input of two kinds (ON/OFF signal).
Refer to EC-363, "
AUTOMATIC SPEED CONTROL DEVICE
(ASCD)" for the ASCD function.
CONSULT-II Reference Value in Data Monitor ModeBBS0053N
Specification data are reference values.
On Board Diagnosis LogicBBS0053O
This self-diagnosis has the one trip detection logic.
The MI will not light up for this diagnosis.
NOTE:

If DTC P1572 is displayed with DTC P0605, first perform the trouble diagnosis for DTC P0605.
Refer to EC-538, "
DTC P0605 ECM" .

This self-diagnosis has the one trip detection logic. When malfunction A is detected, DTC is not
stored in ECM memory. And in that case, 1st trip DTC and 1st trip freeze frame data are displayed.
1st trip DTC is erased when ignition switch OFF. And even when malfunction A is detected in two
consecutive trips, DTC is not stored in ECM memory.
PBIB2469E
MONITOR ITEM CONDITION SPECIFICATION
BRAKE SW1
(ASCD brake switch)

Ignition switch: ONBrake pedal: Fully released ON
Brake pedal: Slightly depressed OFF
BRAKE SW2
(Stop lamp switch)

Ignition switch: ONBrake pedal: Fully released OFF
Brake pedal: Slightly depressed ON
DTC No.Trouble Diagnosis
NameDTC Detecting Condition Possible Cause
P1572
1572ASCD brake switchA)When the vehicle speed is above 30km/h
(19 MPH), ON signals from the stop lamp
switch and the ASCD brake switch are sent
to ECM at the same time.

Harness or connectors
(The stop lamp switch circuit is shorted.)

Harness or connectors
(The ASCD brake switch circuit is shorted.)

Stop lamp switch

ASCD brake switch

Incorrect stop lamp switch installation

Incorrect ASCD brake switch installation

ECM B)ASCD brake switch signal is not sent to
ECM for extremely long time while the vehi-
cle is driving

DTC P1574 ASCD VEHICLE SPEED SENSOR
EC-611
[VQ]
C
D
E
F
G
H
I
J
K
L
MA
EC

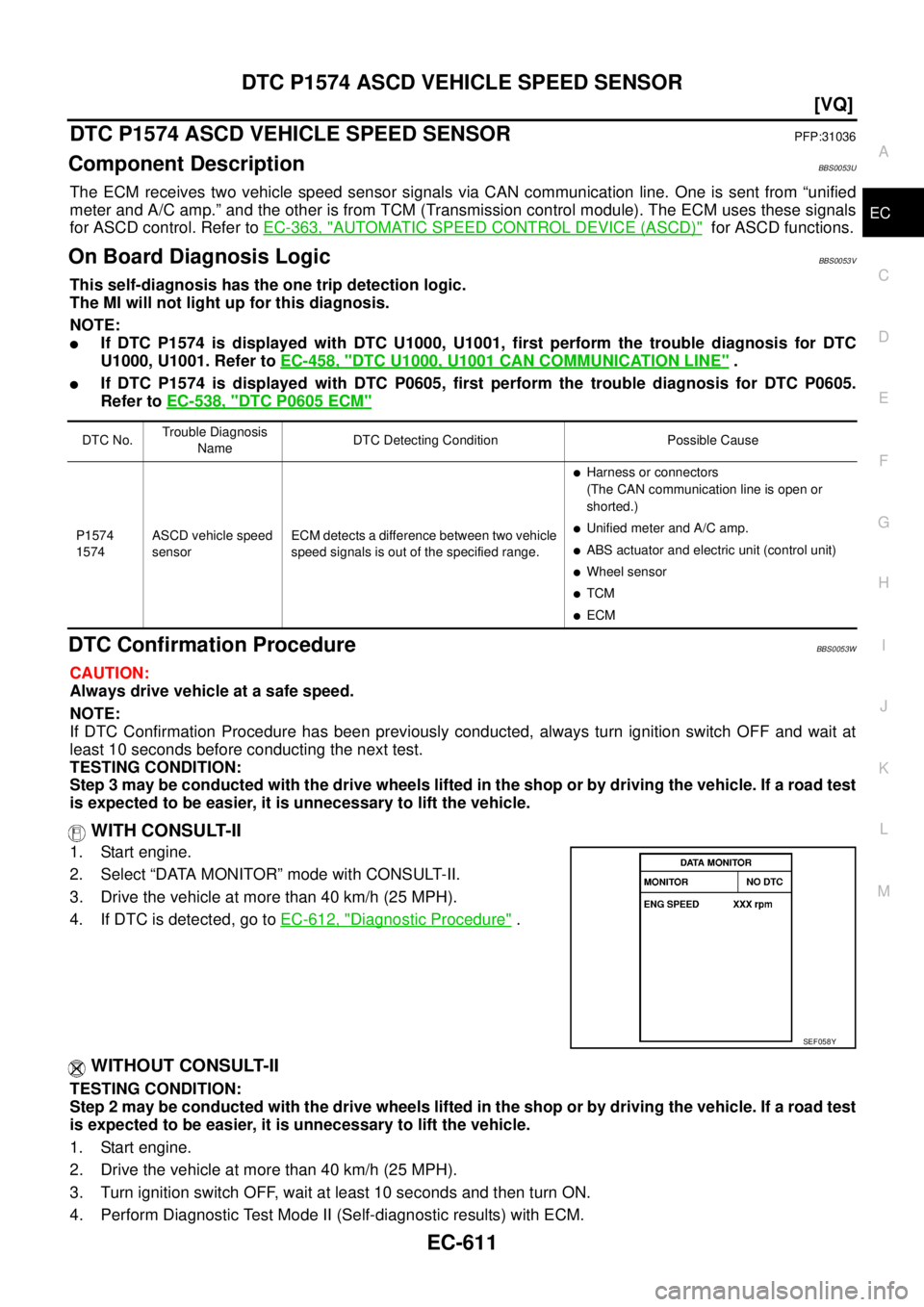

DTC P1574 ASCD VEHICLE SPEED SENSORPFP:31036
Component DescriptionBBS0053U
The ECM receives two vehicle speed sensor signals via CAN communication line. One is sent from “unified
meter and A/C amp.” and the other is from TCM (Transmission control module). The ECM uses these signals
for ASCD control. Refer to EC-363, "
AUTOMATIC SPEED CONTROL DEVICE (ASCD)" for ASCD functions.
On Board Diagnosis LogicBBS0053V
This self-diagnosis has the one trip detection logic.
The MI will not light up for this diagnosis.
NOTE:

If DTC P1574 is displayed with DTC U1000, U1001, first perform the trouble diagnosis for DTC
U1000, U1001. Refer to EC-458, "
DTC U1000, U1001 CAN COMMUNICATION LINE" .

If DTC P1574 is displayed with DTC P0605, first perform the trouble diagnosis for DTC P0605.
Refer to EC-538, "
DTC P0605 ECM"
DTC Confirmation ProcedureBBS0053W
CAUTION:
Always drive vehicle at a safe speed.
NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
TESTING CONDITION:
Step 3 may be conducted with the drive wheels lifted in the shop or by driving the vehicle. If a road test
is expected to be easier, it is unnecessary to lift the vehicle.
WITH CONSULT-II
1. Start engine.
2. Select “DATA MONITOR” mode with CONSULT-II.
3. Drive the vehicle at more than 40 km/h (25 MPH).
4. If DTC is detected, go to EC-612, "
Diagnostic Procedure" .
WITHOUT CONSULT-II
TESTING CONDITION:
Step 2 may be conducted with the drive wheels lifted in the shop or by driving the vehicle. If a road test
is expected to be easier, it is unnecessary to lift the vehicle.
1. Start engine.
2. Drive the vehicle at more than 40 km/h (25 MPH).
3. Turn ignition switch OFF, wait at least 10 seconds and then turn ON.
4. Perform Diagnostic Test Mode II (Self-diagnostic results) with ECM.
DTC No.Trouble Diagnosis
NameDTC Detecting Condition Possible Cause
P1574
1574ASCD vehicle speed
sensorECM detects a difference between two vehicle
speed signals is out of the specified range.

Harness or connectors
(The CAN communication line is open or
shorted.)

Unified meter and A/C amp.

ABS actuator and electric unit (control unit)

Wheel sensor

TCM

ECM
SEF058Y

GI-6
PRECAUTIONS

WARNING:
To prevent ECM from storing the diagnostic trouble codes, do not carelessly disconnect the harness
connectors which are related to the engine control system and TCM (transmission control module)
system. The connectors should be disconnected only when working according to the WORK FLOW of
TROUBLE DIAGNOSES in EC and AT sections.
Precautions for Three Way CatalystBAS00074
If a large amount of unburned fuel flows into the catalyst, the catalyst temperature will be excessively high. To
prevent this, follow the instructions.

Use unleaded gasoline only. Leaded gasoline will seriously damage the three way catalyst.

When checking for ignition spark or measuring engine compression, make tests quickly and only when
necessary.

Do not run engine when the fuel tank level is low, otherwise the engine may misfire, causing damage to
the catalyst.
Do not place the vehicle on flammable material. Keep flammable material off the exhaust pipe and the three
way catalyst.
Precautions for FuelBAS0008E
QR20DE/VQ23DE ENGINE (REGULAR GASOLINE, UNLEADED PREMIUM GASOLINE RECOM-
MENDED)
Use unleaded regular gasoline with an octane rating of at least 91 RON (research octane number).
CAUTION:
Do not use leaded gasoline. Using leaded gasoline will damage the three way catalyst. Using a fuel
other than that specified could adversely affect the emission control devices and systems, and could
also affect the warranty coverage validity.
VQ35DE ENGINE (PREMIUM GASOLINE)
Use unleaded premium gasoline with an octane rating of at least 95 RON (research octane number).
If unleaded premium gasoline is not available, unleaded regular gasoline with an octane rating of at least 91
RON (research octane number) can be used, but only under the following precautions:

have the fuel tank filled only partially with unleaded regular gasoline, and fill up with unleaded premium
gasoline as soon as possible.

avoid full throttle driving and abrupt acceleration.
However, for maximum vehicle performance, the use of unleaded premium gasoline is recommended.
CAUTION:
Do not use leaded gasoline. Using leaded gasoline will damage the three way catalyst. Using a fuel
other than that specified could adversely affect the emission control devices and systems, and could
also affect the warranty coverage validity.
Precautions for Multiport Fuel Injection System or Engine Control SystemBAS0008F

Before connecting or disconnecting any harness connector for
the multiport fuel injection system or ECM:
Turn ignition switch to “OFF” position.
Disconnect negative battery terminal.
Otherwise, there may be damage to ECM.

Before disconnecting pressurized fuel line from fuel pump to
injectors, be sure to release fuel pressure.

Be careful not to jar components such as ECM and mass air
flow sensor.
SGI787

IP-12

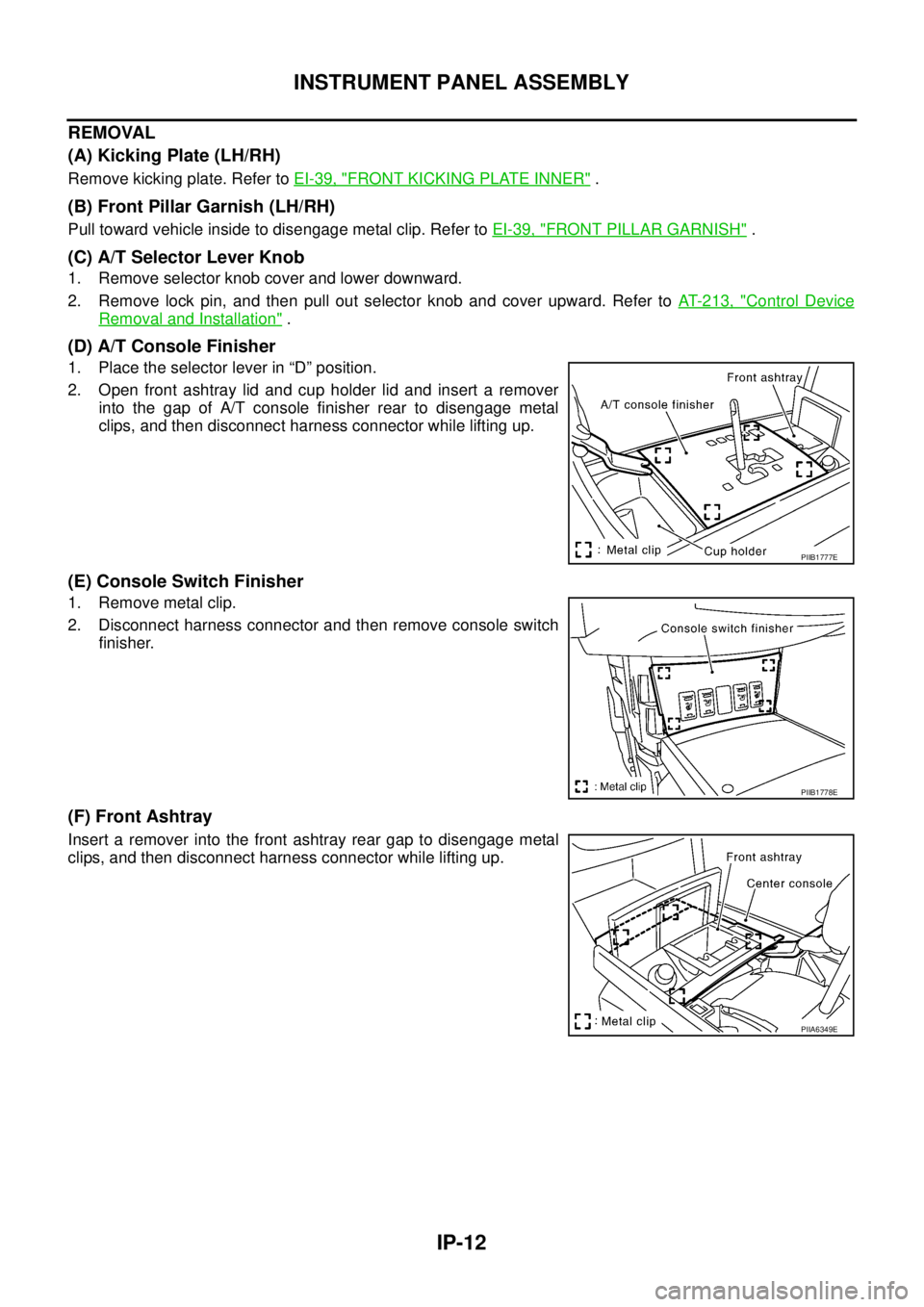

INSTRUMENT PANEL ASSEMBLY

REMOVAL
(A) Kicking Plate (LH/RH)
Remove kicking plate. Refer to EI-39, "FRONT KICKING PLATE INNER" .
(B) Front Pillar Garnish (LH/RH)
Pull toward vehicle inside to disengage metal clip. Refer to EI-39, "FRONT PILLAR GARNISH" .
(C) A/T Selector Lever Knob
1. Remove selector knob cover and lower downward.
2. Remove lock pin, and then pull out selector knob and cover upward. Refer to AT- 2 1 3 , "
Control Device
Removal and Installation" .
(D) A/T Console Finisher
1. Place the selector lever in “D” position.
2. Open front ashtray lid and cup holder lid and insert a remover
into the gap of A/T console finisher rear to disengage metal
clips, and then disconnect harness connector while lifting up.
(E) Console Switch Finisher
1. Remove metal clip.
2. Disconnect harness connector and then remove console switch
finisher.
(F) Front Ashtray
Insert a remover into the front ashtray rear gap to disengage metal
clips, and then disconnect harness connector while lifting up.
PIIB1777E
PIIB1778E
PIIA6349E

IP-14
INSTRUMENT PANEL ASSEMBLY

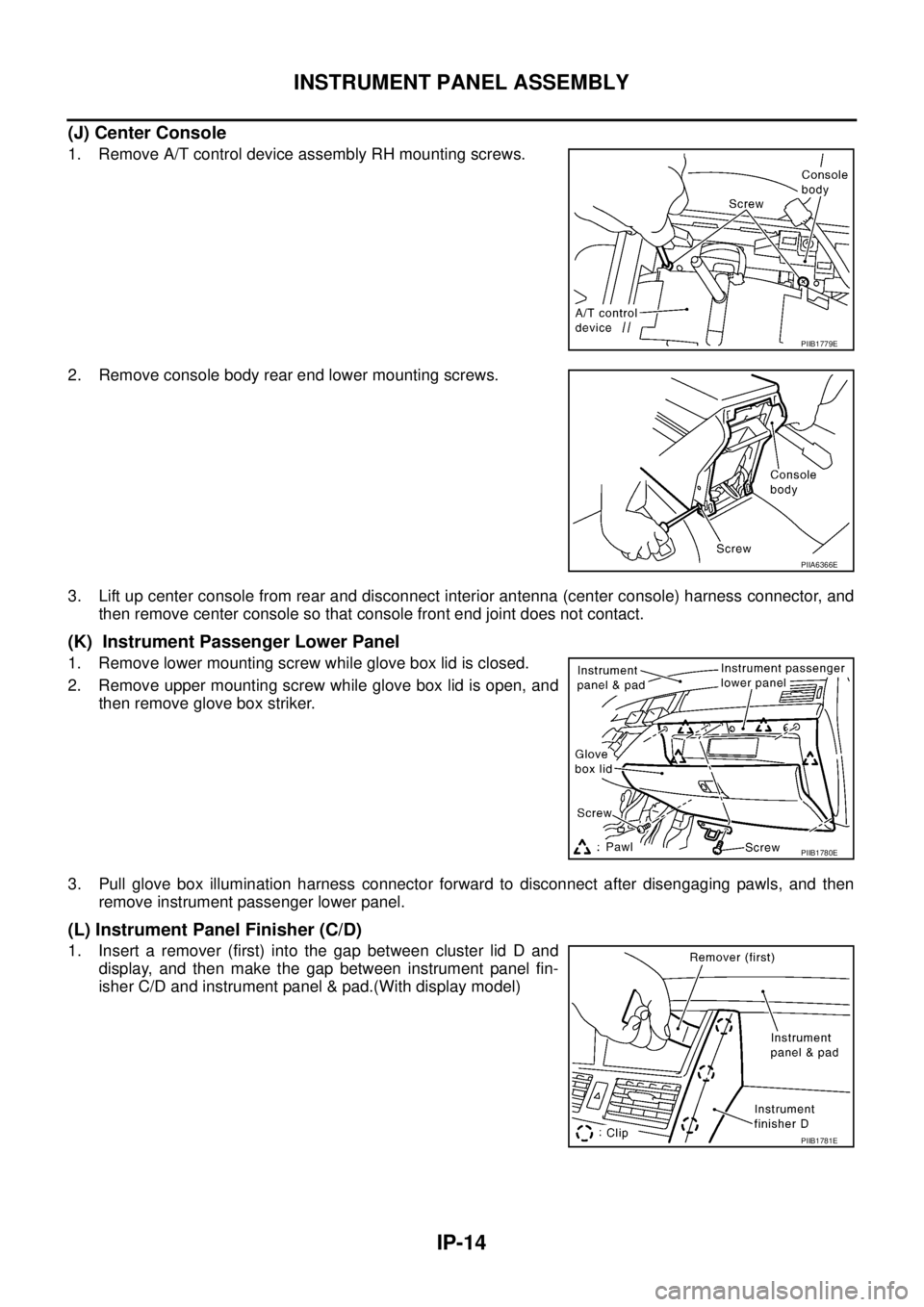

(J) Center Console
1. Remove A/T control device assembly RH mounting screws.
2. Remove console body rear end lower mounting screws.
3. Lift up center console from rear and disconnect interior antenna (center console) harness connector, and
then remove center console so that console front end joint does not contact.
(K) Instrument Passenger Lower Panel
1. Remove lower mounting screw while glove box lid is closed.
2. Remove upper mounting screw while glove box lid is open, and
then remove glove box striker.
3. Pull glove box illumination harness connector forward to disconnect after disengaging pawls, and then
remove instrument passenger lower panel.
(L) Instrument Panel Finisher (C/D)
1. Insert a remover (first) into the gap between cluster lid D and
display, and then make the gap between instrument panel fin-
isher C/D and instrument panel & pad.(With display model)
PIIB1779E
PIIA6366E
PIIB1780E
PIIB1781E
