AUTOMATIC DRIVE POSITIONER
SE-53
C
D
E
F
G
H
J
K
L
MA
B
SE

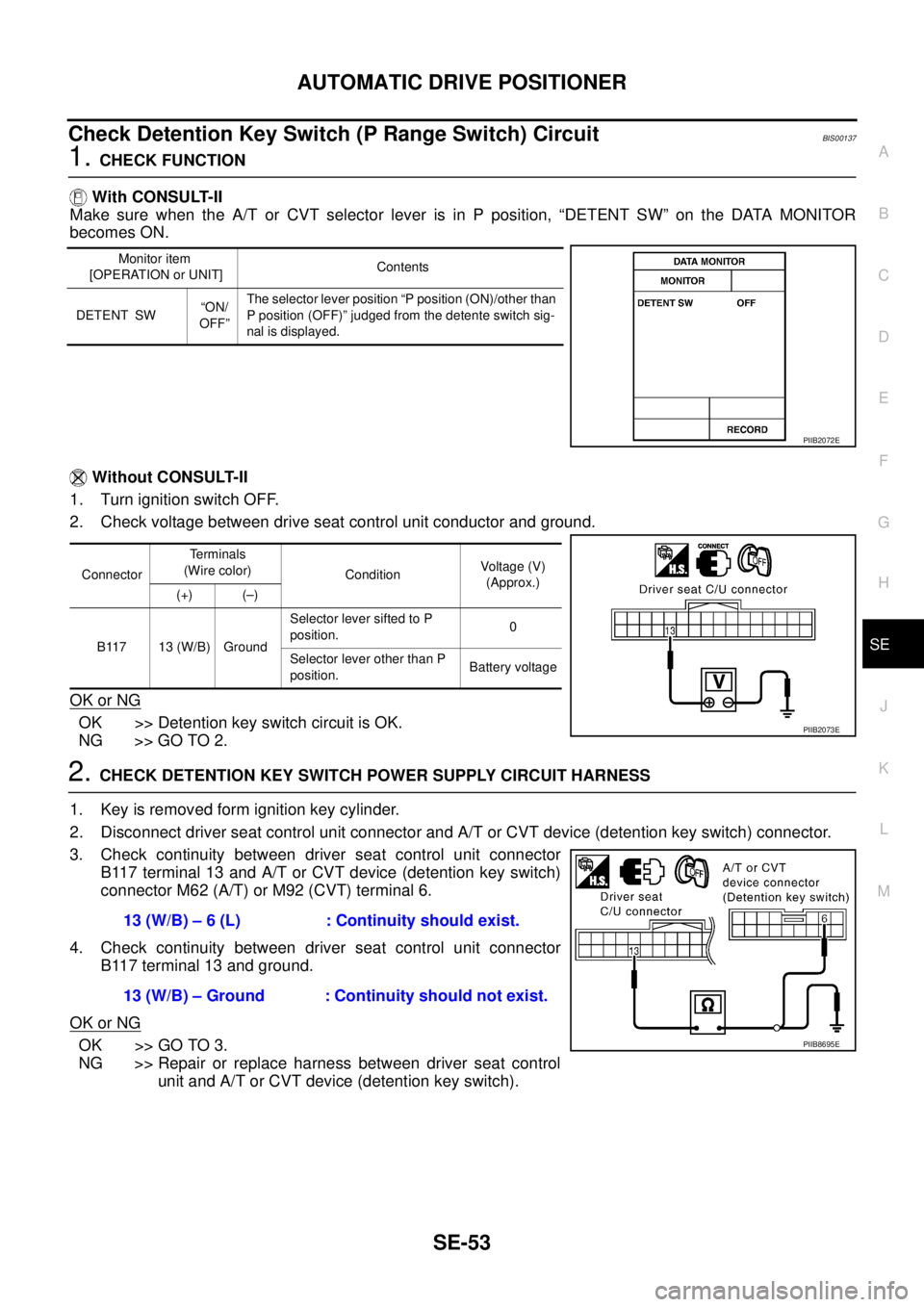

Check Detention Key Switch (P Range Switch) Circuit BIS00137
1. CHECK FUNCTION
With CONSULT-II
Make sure when the A/T or CVT selector lever is in P position, “DETENT SW” on the DATA MONITOR
becomes ON.
Without CONSULT-II
1. Turn ignition switch OFF.
2. Check voltage between drive seat control unit conductor and ground.
OK or NG
OK >> Detention key switch circuit is OK.
NG >> GO TO 2.
2. CHECK DETENTION KEY SWITCH POWER SUPPLY CIRCUIT HARNESS
1. Key is removed form ignition key cylinder.
2. Disconnect driver seat control unit connector and A/T or CVT device (detention key switch) connector.
3. Check continuity between driver seat control unit connector
B117 terminal 13 and A/T or CVT device (detention key switch)
connector M62 (A/T) or M92 (CVT) terminal 6.
4. Check continuity between driver seat control unit connector
B117 terminal 13 and ground.
OK or NG
OK >> GO TO 3.
NG >> Repair or replace harness between driver seat control
unit and A/T or CVT device (detention key switch).
Monitor item
[OPERATION or UNIT]Contents
DETENT SW“ON/
OFF”The selector lever position “P position (ON)/other than
P position (OFF)” judged from the detente switch sig-
nal is displayed.
PIIB2072E
ConnectorTerminals
(Wire color)
ConditionVoltage (V)
(Approx.)
(+) (–)
B117 13 (W/B) GroundSelector lever sifted to P
position.0
Selector lever other than P
position.Battery voltage
PIIB2073E
13 (W/B) – 6 (L) : Continuity should exist.
13 (W/B) – Ground : Continuity should not exist.
PIIB8695E

SE-54
AUTOMATIC DRIVE POSITIONER

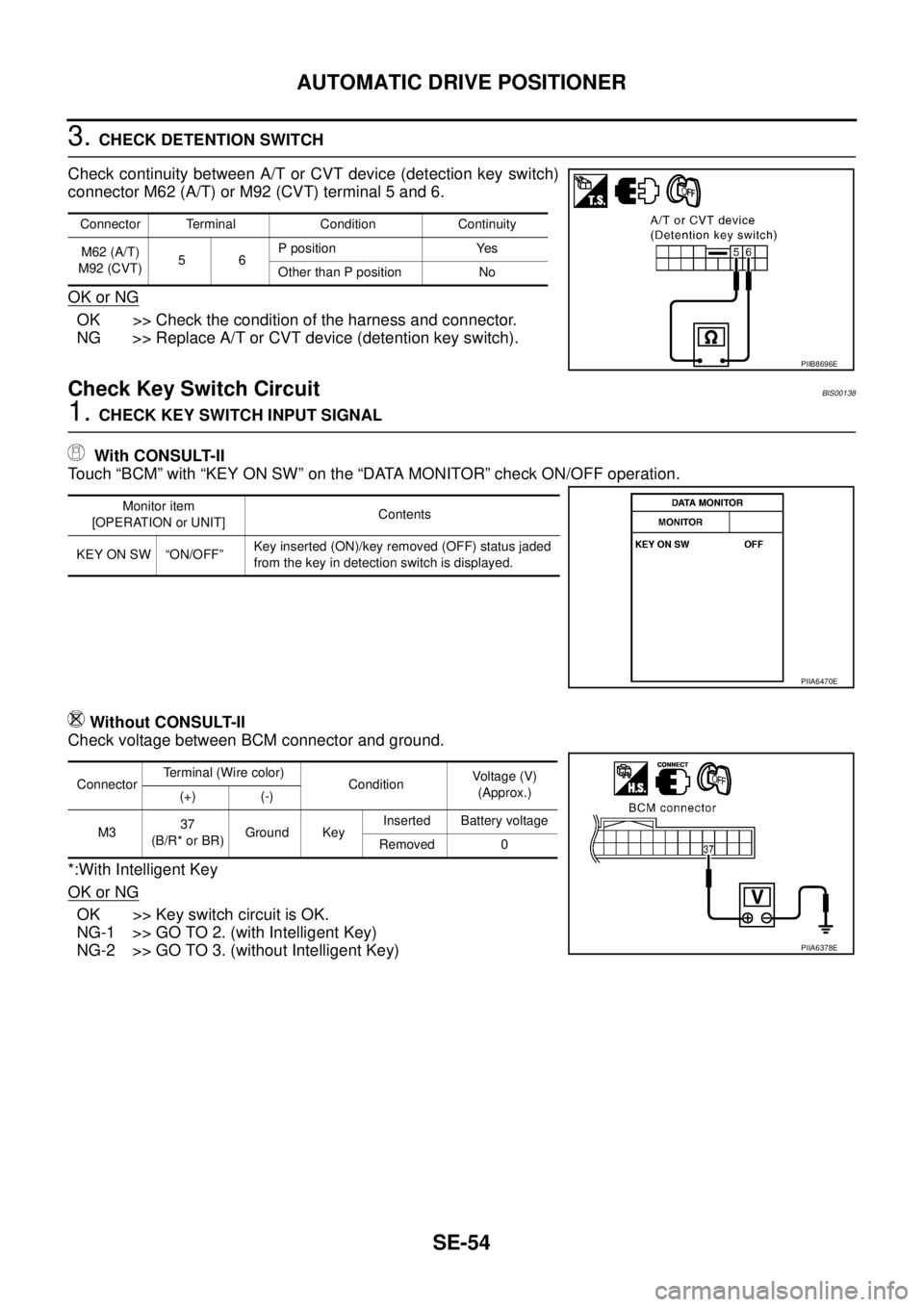

3. CHECK DETENTION SWITCH
Check continuity between A/T or CVT device (detection key switch)
connector M62 (A/T) or M92 (CVT) terminal 5 and 6.
OK or NG
OK >> Check the condition of the harness and connector.
NG >> Replace A/T or CVT device (detention key switch).
Check Key Switch CircuitBIS00138
1. CHECK KEY SWITCH INPUT SIGNAL
With CONSULT-II
Touch “BCM” with “KEY ON SW” on the “DATA MONITOR” check ON/OFF operation.
Without CONSULT-II
Check voltage between BCM connector and ground.
*:With Intelligent Key
OK or NG
OK >> Key switch circuit is OK.
NG-1 >> GO TO 2. (with Intelligent Key)
NG-2 >> GO TO 3. (without Intelligent Key)
Connector Terminal Condition Continuity
M62 (A/T)
M92 (CVT)56P position Yes
Other than P position No
PIIB8696E
Monitor item
[OPERATION or UNIT]Contents
KEY ON SW “ON/OFF”Key inserted (ON)/key removed (OFF) status jaded
from the key in detection switch is displayed.
PIIA6470E
ConnectorTerminal (Wire color)
ConditionVoltage (V)
(Approx.)
(+) (-)
M337
(B/R* or BR)Ground KeyInserted Battery voltage
Removed 0
PIIA6378E
