CVT-102
DTC P0746 PRESSURE CONTROL SOLENOID A PERFORMANCE (LINE PRES-
SURE SOLENOID VALVE)

DTC P0746 PRESSURE CONTROL SOLENOID A PERFORMANCE (LINE PRES-
SURE SOLENOID VALVE)
PFP:31941
DescriptionBCS001J3
The pressure control solenoid valve A (line pressure solenoid valve) regulates the oil pump discharge pres-
sure to suit the driving condition in response to a signal sent from the TCM.
CONSULT-II Reference ValueBCS001J4
Remarks: Specification data are reference values.
On Board Diagnosis LogicBCS001J5
Diagnostic trouble code “P0746 PRS CNT SOL/A FCTN” with CONSULT-II is detected under the following
conditions.

Unexpected gear ratio was detected in the LOW side due to excessively low line pressure.
Possible CauseBCS001J6

Line pressure control system

Output speed sensor (Secondary speed sensor)

Input speed sensor (Primary speed sensor)
DTC Confirmation ProcedureBCS001J7
CAUTION:
Always drive vehicle at a safe speed.
NOTE:
If “DTC Confirmation Procedure” has been previously performed, always turn ignition switch OFF and
wait at least 10 seconds before performing the next test.
After the repair, touch “ERASE” on “SELF-DIAG RESULTS” and then perform the following procedure to con-
firm the malfunction is eliminated.
WITH CONSULT-II
1. Turn ignition switch ON and select “DATA MONITOR” mode for
“TRANSMISSION” with CONSULT-II.
2. Start engine and maintain the following conditions for at least 10
consecutive seconds. Test start from 0 km/h (0 MPH).
ATF TEMP SEN: 1.0 - 2.0 V
ACC PEDAL OPEN: More than 1.0/8
RANGE: “D” position
VEHICLE SPEED: 10 km/h (6 MPH) More than
Driving location: Driving the vehicle uphill (increased
engine load) will help maintain the driving conditions
required for this test.
3. If DTC is detected, go to CVT-103, "
Diagnostic Procedure" .
Item name Condition Display value (Approx.)
PRI PRESS “N” position idle 0.3 - 0.7 MPa
BCIA0031E

DTC P0746 PRESSURE CONTROL SOLENOID A PERFORMANCE (LINE PRES-
SURE SOLENOID VALVE)

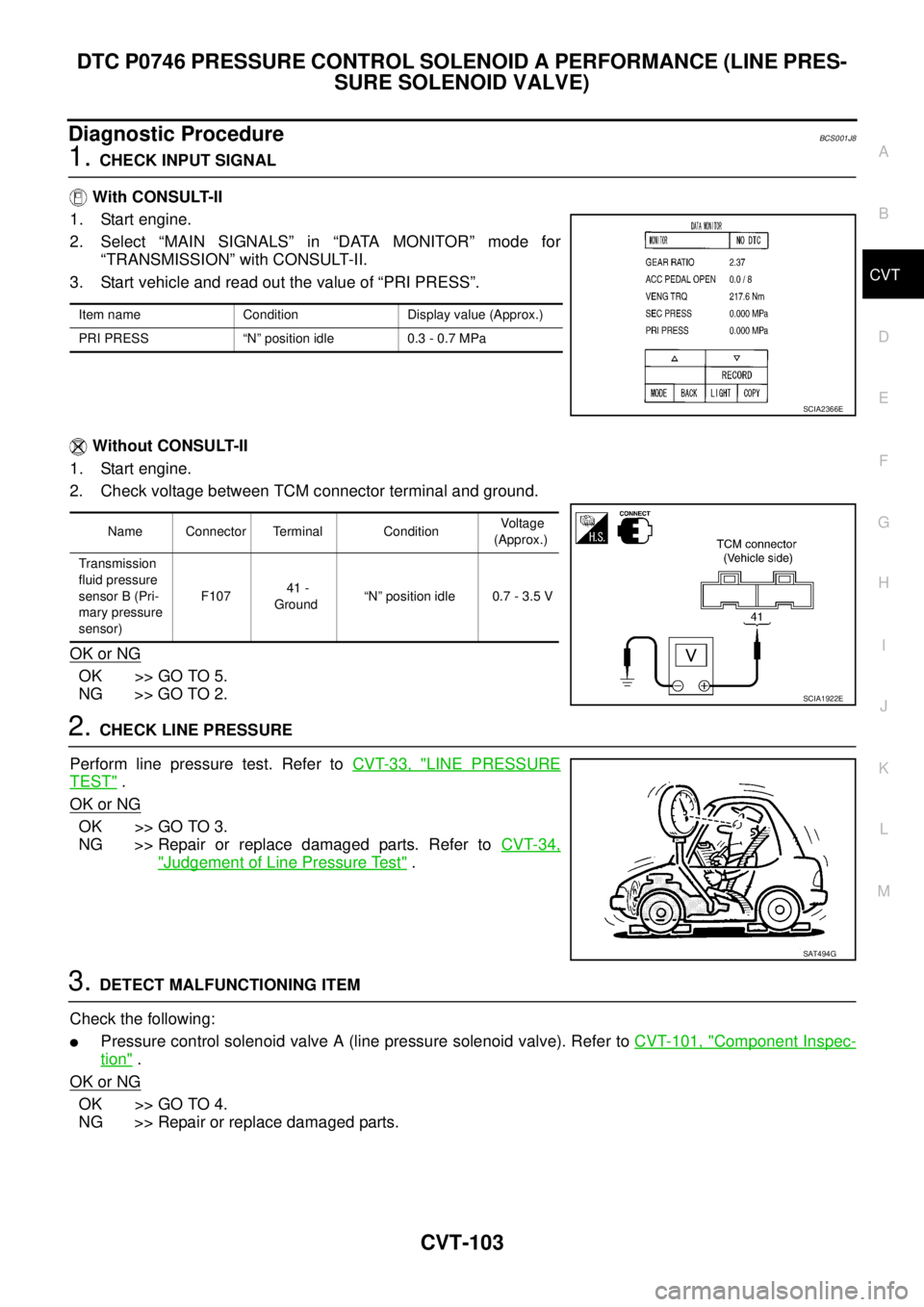

CVT-103
D
E
F
G
H
I
J
K
L
MA
B
CVT

Diagnostic ProcedureBCS001J8
1. CHECK INPUT SIGNAL
With CONSULT-II
1. Start engine.
2. Select “MAIN SIGNALS” in “DATA MONITOR” mode for
“TRANSMISSION” with CONSULT-II.
3. Start vehicle and read out the value of “PRI PRESS”.
Without CONSULT-II
1. Start engine.
2. Check voltage between TCM connector terminal and ground.
OK or NG
OK >> GO TO 5.
NG >> GO TO 2.
2. CHECK LINE PRESSURE
Perform line pressure test. Refer to CVT-33, "
LINE PRESSURE
TEST" .
OK or NG
OK >> GO TO 3.
NG >> Repair or replace damaged parts. Refer to CVT-34,
"Judgement of Line Pressure Test" .
3. DETECT MALFUNCTIONING ITEM
Check the following:

Pressure control solenoid valve A (line pressure solenoid valve). Refer to CVT-101, "Component Inspec-
tion" .
OK or NG
OK >> GO TO 4.
NG >> Repair or replace damaged parts.
Item name Condition Display value (Approx.)
PRI PRESS “N” position idle 0.3 - 0.7 MPa
SCIA2366E
Name Connector Terminal Condition Voltage
(Approx.)
Transmission
fluid pressure
sensor B (Pri-
mary pressure
sensor) F107 41 -
Ground“N” position idle 0.7 - 3.5 V
SCIA1922E
SAT494G

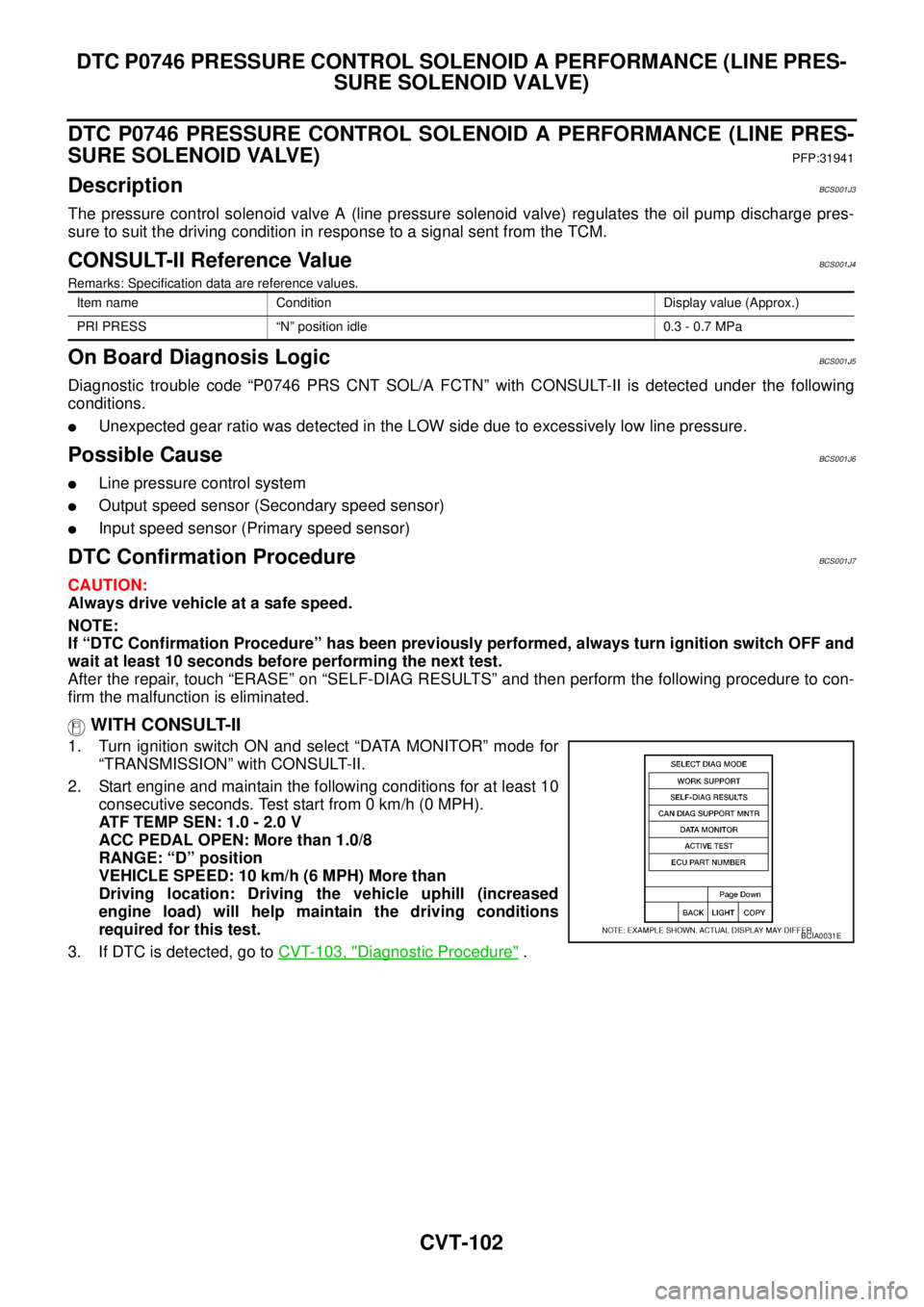

CVT-104
DTC P0746 PRESSURE CONTROL SOLENOID A PERFORMANCE (LINE PRES-
SURE SOLENOID VALVE)

4. CHECK OUTPUT SPEED SENSOR (SECONDARY SPEED SENSOR) SYSTEM AND INPUT SPEED
SENSOR (PRIMARY SPEED SENSOR) SYSTEM
Check output speed sensor (secondary speed sensor) system and input speed sensor (primary speed sensor)
system. Refer to CVT-79, "
DTC P0720 VEHICLE SPEED SENSOR CVT (SECONDARY SPEED SENSOR)" ,
CVT-74, "
DTC P0715 INPUT SPEED SENSOR CIRCUIT (PRI SPEED SENSOR)" .
OK or NG
OK >> GO TO 5.
NG >> Repair or replace damaged parts.
5. DETECT MALFUNCTIONING ITEM
Check the following:

Power supply and ground circuit for TCM. Refer to CVT-135, "Wiring Diagram — CVT — POWER" .

The TCM pin terminals for damage or loose connection with harness connector.
OK or NG
OK >> GO TO 6.
NG >> Repair or replace damaged parts.
6. CHECK DTC
Perform “DTC Confirmation Procedure”. Refer to CVT-102, "
DTC Confirmation Procedure" .
OK or NG
OK >>INSPECTION END
NG >> Replace the transaxle assembly or TCM. Refer to CVT-193, "
Removal and Installation" .

DTC P0776 PRESSURE CONTROL SOLENOID B PERFORMANCE (SEC PRES-
SURE SOLENOID VALVE)
CVT-105
D
E
F
G
H
I
J
K
L
MA
B
CVT

DTC P0776 PRESSURE CONTROL SOLENOID B PERFORMANCE (SEC PRES-
SURE SOLENOID VALVE)
PFP:31941
DescriptionBCS001J9
The pressure control solenoid valve B (secondary pressure solenoid valve) regulates the secondary pressure
to suit the driving condition in response to a signal sent from the TCM.
CONSULT-II Reference ValueBCS001JA
Remarks: Specification data are reference values.
On Board Diagnosis LogicBCS001JB
Diagnostic trouble code “P0776 PRS CNT SOL/B FCTN” with CONSULT-II is detected when secondary pres-
sure is too high or too low compared with the commanded value while driving.
Possible CauseBCS001JC

Harness or connectors
(Solenoid circuit is open or shorted.)

Pressure control solenoid valve B (Secondary pressure solenoid valve system)

Transmission fluid pressure sensor A (Secondary pressure sensor)

Line pressure control system

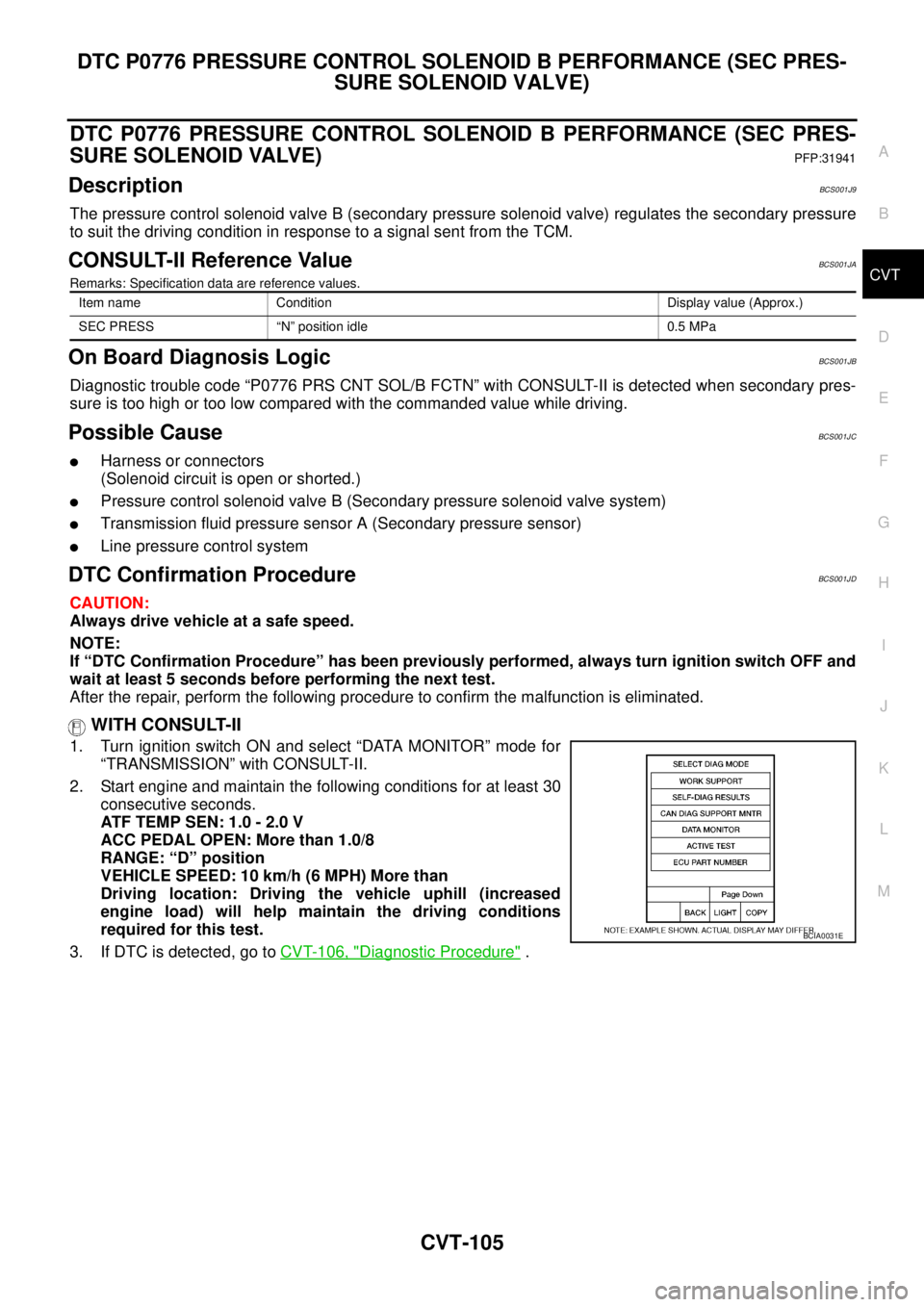

DTC Confirmation ProcedureBCS001JD
CAUTION:
Always drive vehicle at a safe speed.
NOTE:
If “DTC Confirmation Procedure” has been previously performed, always turn ignition switch OFF and
wait at least 5 seconds before performing the next test.
After the repair, perform the following procedure to confirm the malfunction is eliminated.
WITH CONSULT-II
1. Turn ignition switch ON and select “DATA MONITOR” mode for
“TRANSMISSION” with CONSULT-II.
2. Start engine and maintain the following conditions for at least 30
consecutive seconds.
ATF TEMP SEN: 1.0 - 2.0 V
ACC PEDAL OPEN: More than 1.0/8
RANGE: “D” position
VEHICLE SPEED: 10 km/h (6 MPH) More than
Driving location: Driving the vehicle uphill (increased
engine load) will help maintain the driving conditions
required for this test.
3. If DTC is detected, go to CVT-106, "
Diagnostic Procedure" .
Item name Condition Display value (Approx.)
SEC PRESS “N” position idle 0.5 MPa
BCIA0031E

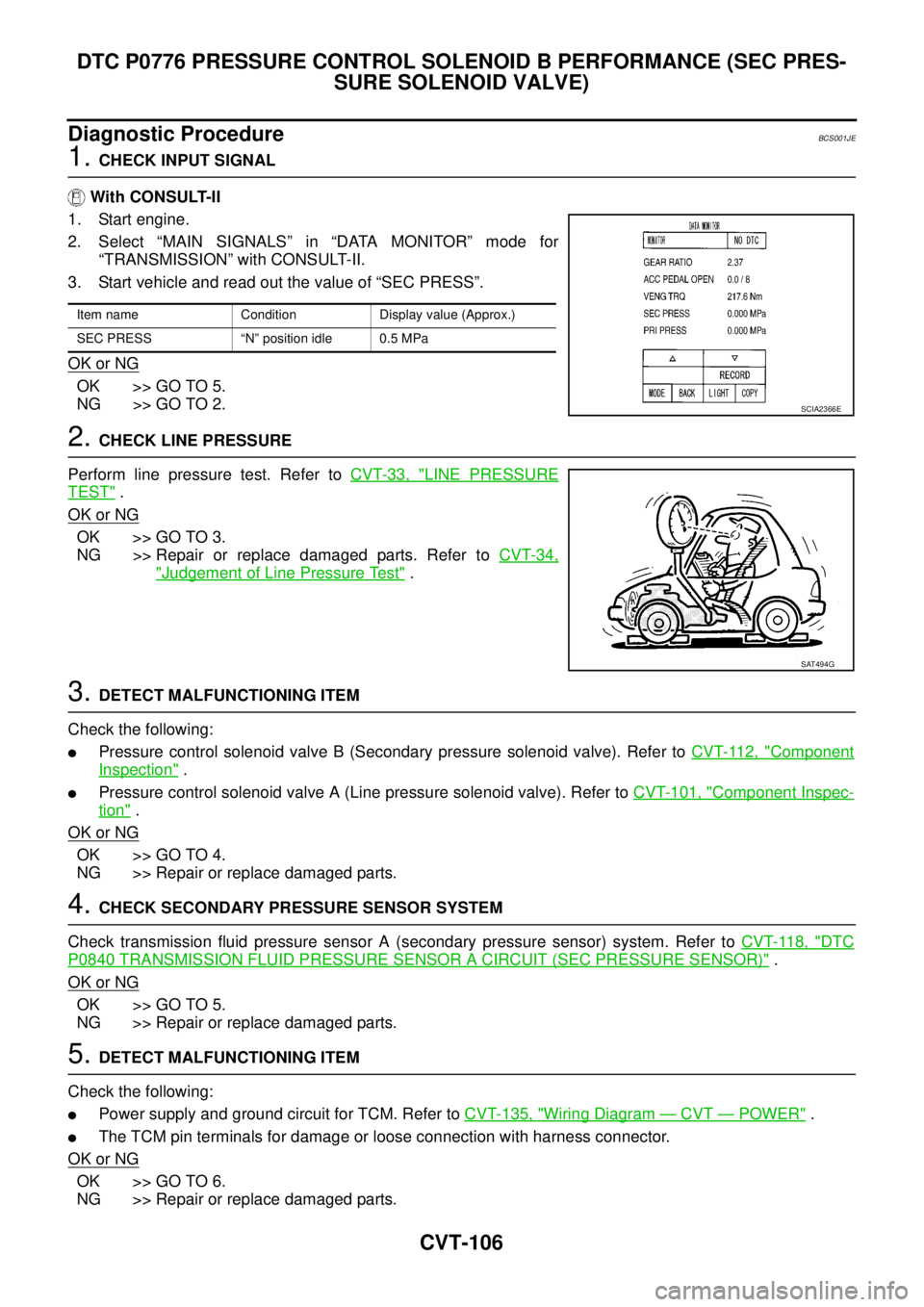

CVT-106
DTC P0776 PRESSURE CONTROL SOLENOID B PERFORMANCE (SEC PRES-
SURE SOLENOID VALVE)

Diagnostic ProcedureBCS001JE
1. CHECK INPUT SIGNAL
With CONSULT-II
1. Start engine.
2. Select “MAIN SIGNALS” in “DATA MONITOR” mode for
“TRANSMISSION” with CONSULT-II.
3. Start vehicle and read out the value of “SEC PRESS”.
OK or NG
OK >> GO TO 5.
NG >> GO TO 2.
2. CHECK LINE PRESSURE
Perform line pressure test. Refer to CVT-33, "
LINE PRESSURE
TEST" .
OK or NG
OK >> GO TO 3.
NG >> Repair or replace damaged parts. Refer to CVT-34,
"Judgement of Line Pressure Test" .
3. DETECT MALFUNCTIONING ITEM
Check the following:

Pressure control solenoid valve B (Secondary pressure solenoid valve). Refer to CVT-112, "Component
Inspection" .

Pressure control solenoid valve A (Line pressure solenoid valve). Refer to CVT-101, "Component Inspec-
tion" .
OK or NG
OK >> GO TO 4.
NG >> Repair or replace damaged parts.
4. CHECK SECONDARY PRESSURE SENSOR SYSTEM
Check transmission fluid pressure sensor A (secondary pressure sensor) system. Refer to CVT-118, "
DTC
P0840 TRANSMISSION FLUID PRESSURE SENSOR A CIRCUIT (SEC PRESSURE SENSOR)" .
OK or NG
OK >> GO TO 5.
NG >> Repair or replace damaged parts.
5. DETECT MALFUNCTIONING ITEM
Check the following:

Power supply and ground circuit for TCM. Refer to CVT-135, "Wiring Diagram — CVT — POWER" .

The TCM pin terminals for damage or loose connection with harness connector.
OK or NG
OK >> GO TO 6.
NG >> Repair or replace damaged parts.
Item name Condition Display value (Approx.)
SEC PRESS “N” position idle 0.5 MPa
SCIA2366E
SAT494G

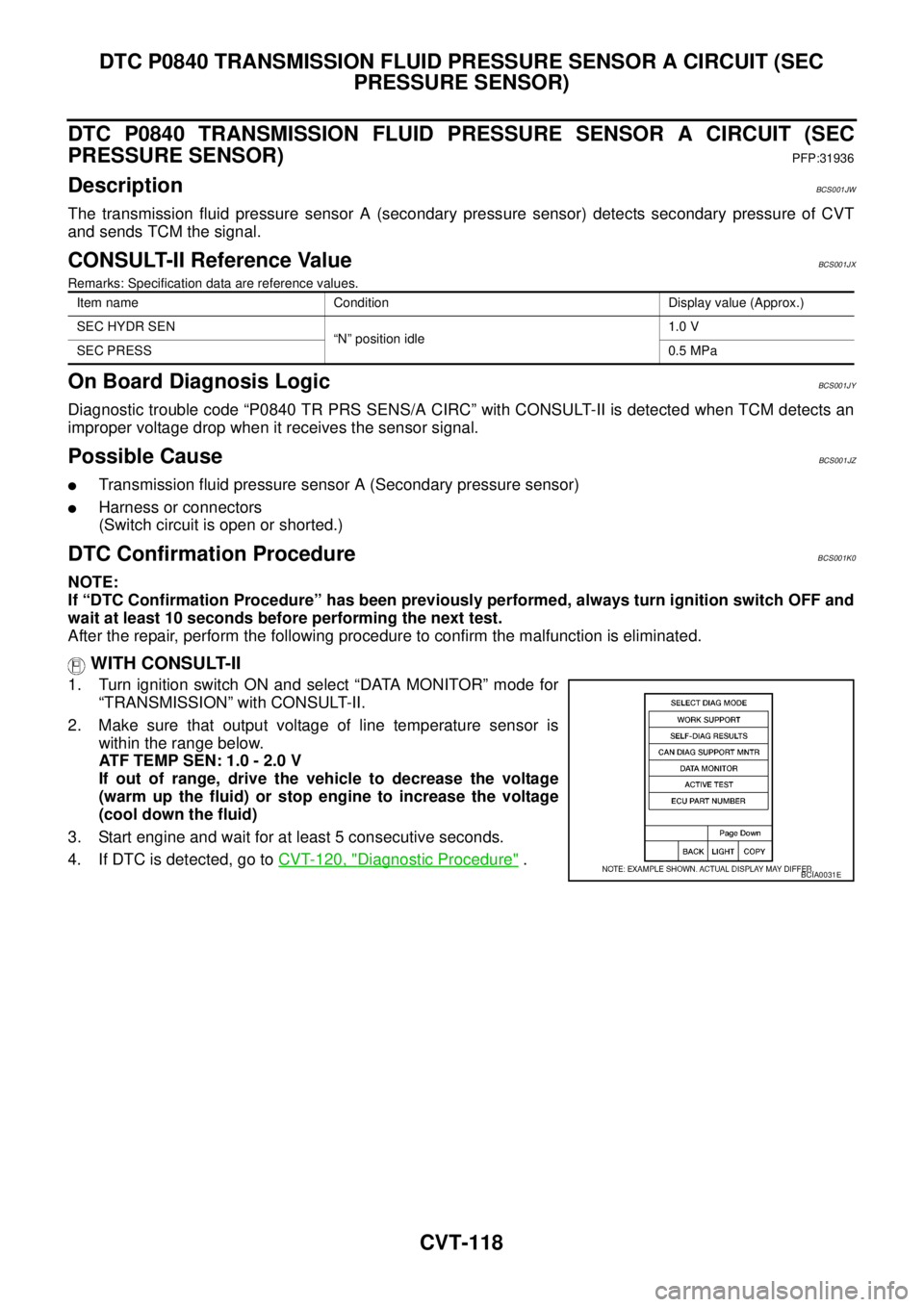

CVT-118
DTC P0840 TRANSMISSION FLUID PRESSURE SENSOR A CIRCUIT (SEC
PRESSURE SENSOR)

DTC P0840 TRANSMISSION FLUID PRESSURE SENSOR A CIRCUIT (SEC
PRESSURE SENSOR)
PFP:31936
DescriptionBCS001JW
The transmission fluid pressure sensor A (secondary pressure sensor) detects secondary pressure of CVT
and sends TCM the signal.
CONSULT-II Reference ValueBCS001JX
Remarks: Specification data are reference values.
On Board Diagnosis LogicBCS001JY
Diagnostic trouble code “P0840 TR PRS SENS/A CIRC” with CONSULT-II is detected when TCM detects an
improper voltage drop when it receives the sensor signal.
Possible CauseBCS001JZ

Transmission fluid pressure sensor A (Secondary pressure sensor)

Harness or connectors
(Switch circuit is open or shorted.)
DTC Confirmation ProcedureBCS001K0
NOTE:
If “DTC Confirmation Procedure” has been previously performed, always turn ignition switch OFF and
wait at least 10 seconds before performing the next test.
After the repair, perform the following procedure to confirm the malfunction is eliminated.
WITH CONSULT-II
1. Turn ignition switch ON and select “DATA MONITOR” mode for
“TRANSMISSION” with CONSULT-II.
2. Make sure that output voltage of line temperature sensor is
within the range below.
ATF TEMP SEN: 1.0 - 2.0 V
If out of range, drive the vehicle to decrease the voltage
(warm up the fluid) or stop engine to increase the voltage
(cool down the fluid)
3. Start engine and wait for at least 5 consecutive seconds.
4. If DTC is detected, go to CVT-120, "
Diagnostic Procedure" .
Item name Condition Display value (Approx.)
SEC HYDR SEN
“N” position idle1.0 V
SEC PRESS0.5 MPa
BCIA0031E

DTC P0840 TRANSMISSION FLUID PRESSURE SENSOR A CIRCUIT (SEC
PRESSURE SENSOR)
CVT-119
D
E
F
G
H
I
J
K
L
MA
B
CVT

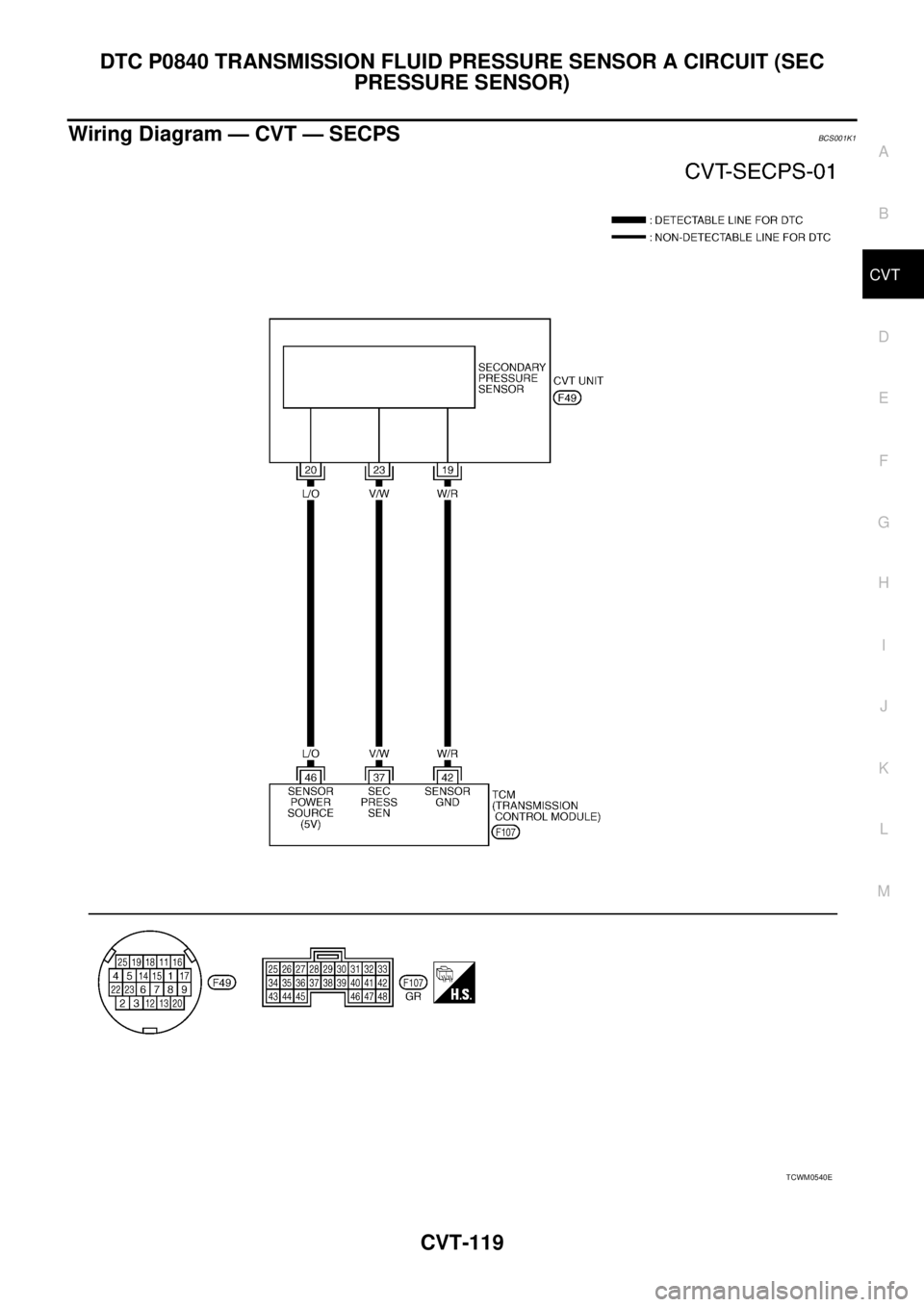

Wiring Diagram — CVT — SECPSBCS001K1
TCWM0540E

CVT-120
DTC P0840 TRANSMISSION FLUID PRESSURE SENSOR A CIRCUIT (SEC
PRESSURE SENSOR)

TCM terminal data are reference values, measured between each terminal and ground.

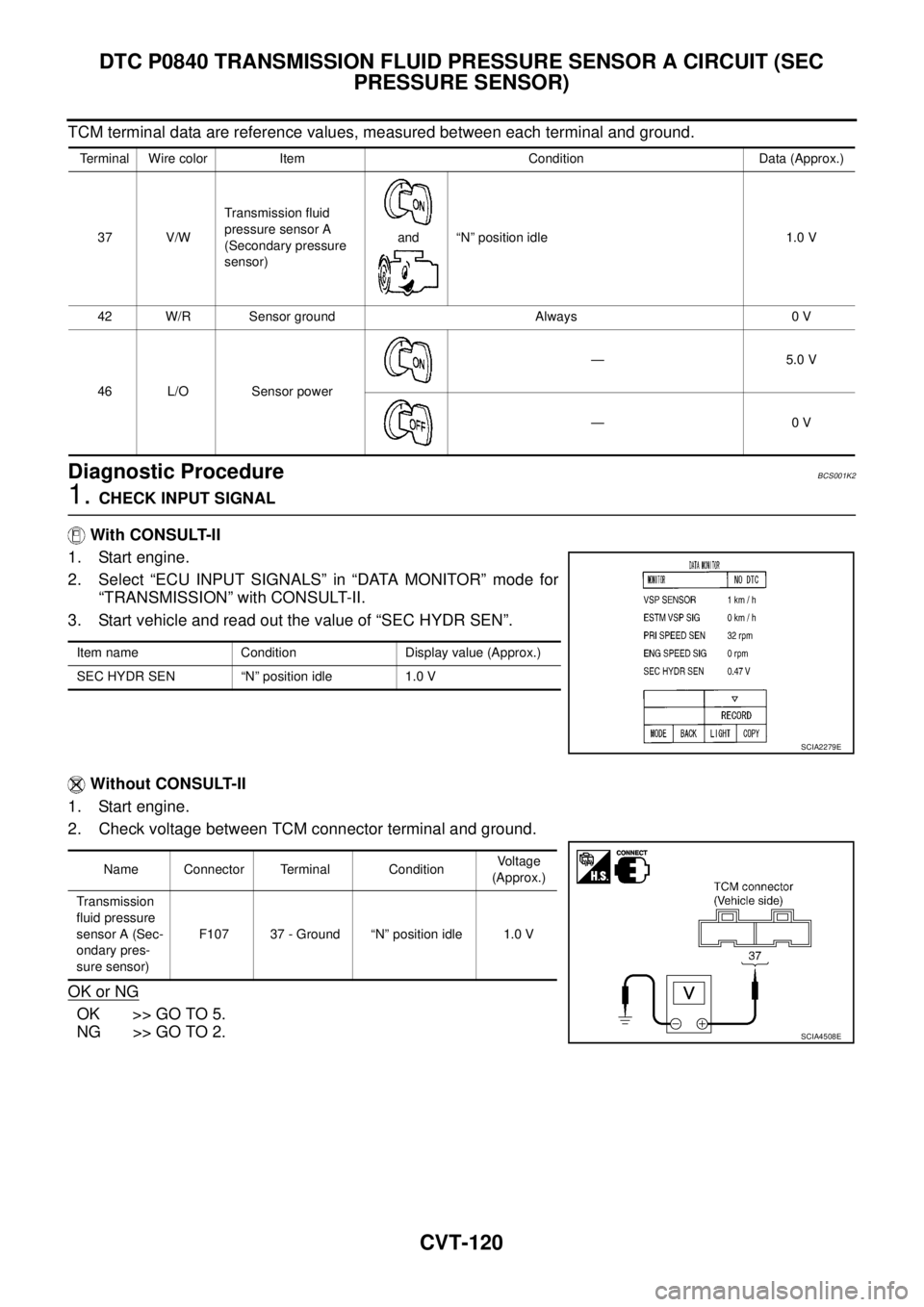

Diagnostic ProcedureBCS001K2
1. CHECK INPUT SIGNAL
With CONSULT-II
1. Start engine.
2. Select “ECU INPUT SIGNALS” in “DATA MONITOR” mode for
“TRANSMISSION” with CONSULT-II.
3. Start vehicle and read out the value of “SEC HYDR SEN”.
Without CONSULT-II
1. Start engine.
2. Check voltage between TCM connector terminal and ground.
OK or NG
OK >> GO TO 5.
NG >> GO TO 2.
Terminal Wire color Item Condition Data (Approx.)
37 V/WTransmission fluid
pressure sensor A
(Secondary pressure
sensor)and “N” position idle 1.0 V
42 W/R Sensor ground Always 0 V
46 L/O Sensor power— 5.0 V
—0 V
Item name Condition Display value (Approx.)
SEC HYDR SEN “N” position idle 1.0 V
SCIA2279E
Name Connector Terminal ConditionVoltage
(Approx.)
Transmission
fluid pressure
sensor A (Sec-
ondary pres-
sure sensor)F107 37 - Ground “N” position idle 1.0 V
SCIA4508E

DTC P0840 TRANSMISSION FLUID PRESSURE SENSOR A CIRCUIT (SEC
PRESSURE SENSOR)
CVT-121
D
E
F
G
H
I
J
K
L
MA
B
CVT

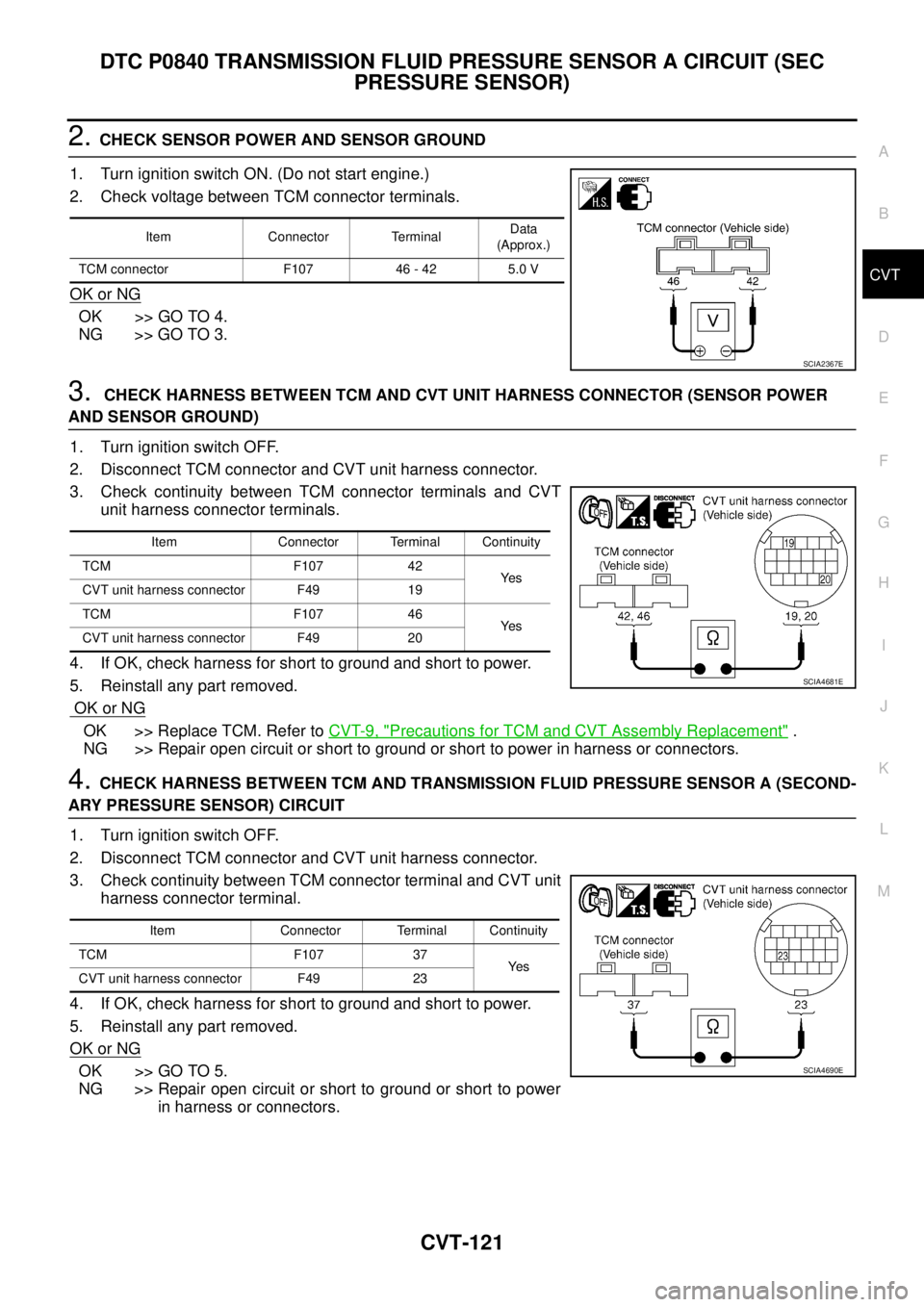

2. CHECK SENSOR POWER AND SENSOR GROUND
1. Turn ignition switch ON. (Do not start engine.)
2. Check voltage between TCM connector terminals.
OK or NG
OK >> GO TO 4.
NG >> GO TO 3.
3. CHECK HARNESS BETWEEN TCM AND CVT UNIT HARNESS CONNECTOR (SENSOR POWER
AND SENSOR GROUND)
1. Turn ignition switch OFF.
2. Disconnect TCM connector and CVT unit harness connector.
3. Check continuity between TCM connector terminals and CVT
unit harness connector terminals.
4. If OK, check harness for short to ground and short to power.
5. Reinstall any part removed.
OK or NG
OK >> Replace TCM. Refer to CVT-9, "Precautions for TCM and CVT Assembly Replacement" .
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
4. CHECK HARNESS BETWEEN TCM AND TRANSMISSION FLUID PRESSURE SENSOR A (SECOND-
ARY PRESSURE SENSOR) CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect TCM connector and CVT unit harness connector.
3. Check continuity between TCM connector terminal and CVT unit
harness connector terminal.
4. If OK, check harness for short to ground and short to power.
5. Reinstall any part removed.
OK or NG
OK >> GO TO 5.
NG >> Repair open circuit or short to ground or short to power
in harness or connectors.
Item Connector TerminalData
(Approx.)
TCM connector F107 46 - 42 5.0 V
SCIA2367E
Item Connector Terminal Continuity
TCM F107 42
Ye s
CVT unit harness connector F49 19
TCM F107 46
Ye s
CVT unit harness connector F49 20
SCIA4681E
Item Connector Terminal Continuity
TCM F107 37
Ye s
CVT unit harness connector F49 23
SCIA4690E

CVT-122
DTC P0840 TRANSMISSION FLUID PRESSURE SENSOR A CIRCUIT (SEC
PRESSURE SENSOR)

5. CHECK DTC
Perform “DTC Confirmation Procedure”. Refer to CVT-118, "
DTC Confirmation Procedure" .
OK or NG
OK >>INSPECTION END
NG >> GO TO 6.
6. CHECK TCM
1. Check TCM input/output signal. Refer to CVT-40, "
TCM Input/Output Signal Reference Values" .
2. If NG, re-check TCM pin terminals for damage or loose connection with harness connector.
OK or NG
OK >> Replace the transaxle assembly. Refer to CVT-193, "Removal and Installation" .
NG >> Repair or replace damaged parts.
