NISSAN TEANA 2003 Service Manual

CHASSIS AND BODY MAINTENANCE
MA-43
C
D
E
F
G
H
I
J
K
MA
B
MA

Drive ShaftBLS00065
Check boot and drive shaft for cracks, wear, damage and grease
leakage.
Lubricating Locks, Hinges and Hood LatchBLS00066
SFA108A
PIIB0598E

MA-44
CHASSIS AND BODY MAINTENANCE

Checking Seat Belt, Buckles, Retractors, Anchors and AdjustersBLS0008X
CAUTION:

After any collision, inspect all seat belt assemblies, including retractors and other attached hard-
wares (I.e. anchor bolt, guide rail set). Nissan recommends to replace all seat belt assemblies in
use during a collision, unless not damaged and properly operating after minor collision.
Also inspect seat belt assemblies not in use during a collision, and replace if damaged or improp-
erly operating.
Seat belt pre-tensioner should be replaced even if the seat belts are not in use during a frontal col-
lision where the driver and passenger air bags are deployed.

If any component of seat belt assembly is questionable, do not repair.
Replace as seat belt assembly.

If webbing is cut, frayed, or damaged, replace belt assembly.

Never oil tongue and buckle.

Use a genuine NISSAN seat belt assembly.
For details, refer to SB-6, "
Inspection" in SB section.

Check anchors for loose mounting

Check belts for damage

Check retractor for smooth operation

Check function of buckles and tongues when buckled and released
PIIB8606E

CHASSIS AND BODY MAINTENANCE
MA-45
C
D
E
F
G
H
I
J
K
MA
B
MA

Checking Body CorrosionBLS0009J
Visually check body panels for collision damage (scratches, chipping, rubbing, etc.) or damage to the anti-cor-
rosion materials. In particular, check the following locations.
HEMMED PANELS
Hood front end, door lower end, trunk lid rear end, etc.
PA N E L J O I N T
Side sill of rear fender and center pillar, rear wheel housing of rear fender, around strut tower in engine com-
partment, etc.
PA N E L E D G E
Trunk lid opening, sunroof opening, fender wheel-arch flange, fuel filler lid flange, around holes in panel, etc.
PARTS CONTACT
Waist moulding, windshield moulding, bumper, etc.
PROTECTORS
Damage or condition of mudguard, fender protector, chipping protector, etc.
ANTI-CORROSION MATERIALS
Damage or separation of anti-corrosion materials under the body.
DRAIN HOLES
Condition of drain holes at door and side sill. When repairing corroded areas, refer to the Corrosion Repair
Manual.

MA-46
SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)PFP:00030
Standard and LimitBLS00068
BELT DEFLECTION (QR20DE)
BELT DEFLECTION (VQ23DE AND VQ35DE)
ENGINE COOLANT CAPACITY (APPROXIMATE) (QR20DE)
Unit: (lmp qt)
ENGINE COOLANT CAPACITY (APPROXIMATE) (VQ23DE AND VQ35DE)
Unit: (lmp qt)
RADIATOR
Unit: kPa (bar, kg/cm2 , psi)
ENGINE OIL CAPACITY (APPROXIMATE) (QR20DE)
Unit: (lmp qt) Tension of drive belt Auto adjustment by auto-tensioner
Deflection adjustment Unit: mm (in)
Used belt
New belt
Limit After adjustment
Alternator and A/C compressor
belt7 (0.28)4.2 - 4.6
(0.17 - 0.18)3.7 - 4.1
(0.15 - 0.16)
Power steering oil pump belt 11 (0.43)7.3 - 8.0
(0.29 - 0.30)6.5 - 7.2
(0.26 - 0.28)
Applied pushing force 98 N (10 kg, 22 lb)
PBIC2449E
Engine coolant capacity (With reservoir tank at “MAX” level) 7.4 (6-1/2)
Reservoir tank coolant capacity (At “MAX” level) 0.8 (3/4)
Coolant capacity (With reservoir tank at “MAX” level)8.2 (7-1/4) [VQ23DE]
8.8 (7-3/4) [VQ35DE]
Reservoir tank coolant capacity (At “MAX” level) 0.8 (3/4)
Cap relief pressureStandard 78 - 98 (0.78 - 0.98, 0.8 - 1.0, 11 - 14)
Limit 59 (0.59, 0.6, 9)
Leakage test pressure 157 (1.57, 1.6, 23)
Drain and refillWith oil filter change 3.9 (3-3/8)
Without oil filter change 3.7 (3-1/4)
Dry engine (Overhaul)4.5 (4)

SERVICE DATA AND SPECIFICATIONS (SDS)
MA-47
C
D
E
F
G
H
I
J
K
MA
B
MA

ENGINE OIL CAPACITY (APPROXIMATE) (VQ23DE AND VQ35DE)
Unit: (lmp qt)
SPARK PLUG (PLATINUM-TIPPED TYPE) (QR20DE, VQ23DE AND VQ35DE)
WHEEL BALANCE
Drain and refill With oil filter change 4.0 (3-1/2)
Without oil filter change 3.7 (3-1/4)
Dry engine (Overhaul)5.0 (4-3/8)
MakeNGK
Standard typePLFR5A-11
Hot typePLFR4A-11
Cold typePLFR6A-11
Gap (nominal)1.1 mm (0.043 in)
Maximum allowable unbalanceDynamic (At rim flange) Less than 10 g (0.35 oz) (one side)
Static (At rim flange) Less than 20 g (0.70 oz)

MA-48
SERVICE DATA AND SPECIFICATIONS (SDS)

PB-1
PARKING BRAKE SYSTEM
F BRAKES
CONTENTS
C
D
E
G
H
I
J
K
L
M
SECTION PB
A
B
PB

PARKING BRAKE SYSTEM
PARKING BRAKE SYSTEM ...................................... 2
On-Vehicle Inspection .............................................. 2
PEDAL STROKE ................................................... 2
INSPECT COMPONENTS .................................... 2
ADJUSTMENT ...................................................... 2
PARKING BRAKE CONTROL ................................... 3
Components ............................................................. 3
Removal and Installation .......................................... 3
REMOVAL ............................................................. 3
INSTALLATION ..................................................... 4PARKING BRAKE SHOE ........................................... 5
Components ............................................................. 5
Removal and Installation .......................................... 5
REMOVE ............................................................... 5
INSPECTION AFTER REMOVAL ......................... 6
INSTALLATION ..................................................... 7
SERVICE DATA AND SPECIFICATIONS (SDS) ........ 8
Parking Drum Brake ................................................. 8
Parking Brake Control .............................................. 8

PB-2
PARKING BRAKE SYSTEM

PARKING BRAKE SYSTEMPFP:36010
On-Vehicle InspectionBFS000G1
PEDAL STROKE

When parking brake pedal is operated with a force of 196 N (20.0 kg, 44.1 lb), make sure parking brake
pedal stroke is within the specified number of notches. (Check it by listening and counting the ratchet
clicks.)

Make sure that brake warning lamp comes on when parking brake pedal is depressed with in one notch.
INSPECT COMPONENTS

Make sure the components are installed properly (check for looseness, backlash, etc.).

Check parking brake pedal assembly for bend, damage and cracks, and replace if necessary.

Check cable for wear and damage, and replace if necessary.

Check parking brake warning lamp switch for malfunction, and replace if necessary.
ADJUSTMENT
1. Insert a deep socket wrench to rotate adjusting nut and loosen
cable sufficiently. Then, return pedal.
2. Remove tyres from vehicle.
3. Using wheel nuts, fix disc rotor to hub and prevent it from tilting.
4. Remove adjusting hole plug installed on disc rotor. Using a flat-
bladed screwdriver, turn adjuster to clockwise in the figure until
disc rotor is locked. After locking, turn adjuster to opposite direc-
tion by 5 or 6 notches.
5. Rotate disc rotor to make sure that there is no drag. Then install
adjusting hole plug.
6. After adjusting the clearance of rear shoes, with no drag on rear
brake, adjuster cable as follows:
a. Operate pedal 10 or more times with a force of 490 N (50 kg,
11 0 l b ) .
b. Depress pedal until a deep socket wrench can be inserted.
Insert deep socket, and rotate adjusting nut to adjust pedal stroke.
CAUTION:
Do not reuse adjusting nut after removing it.
c. When parking brake pedal is operated with a force of 196 N (20.0 kg, 44.1 lb), make sure the stroke is
within the specified number of notches. (Check it by listening and counting the ratchet clicks.)
d. With parking brake pedal completely returned, make sure there is no drag on rear brake.Pedal stroke : 3 − 4 notches
SBR051C
Pedal stroke : 3 − 4 notches
PFIA0295E

PARKING BRAKE CONTROL
PB-3
C
D
E
G
H
I
J
K
L
MA
B
PB

PARKING BRAKE CONTROLPFP:36010

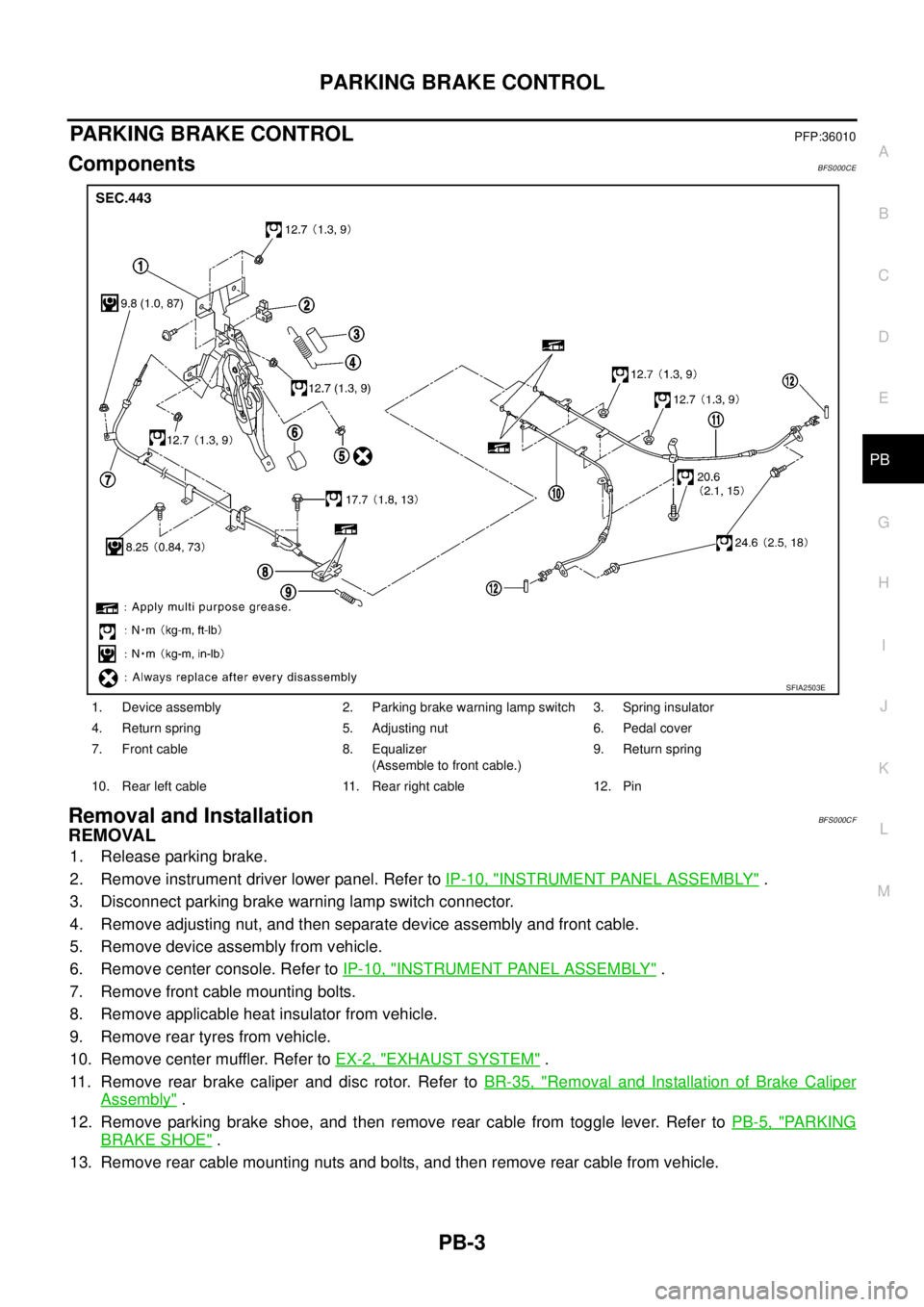

ComponentsBFS000CE
Removal and InstallationBFS000CF
REMOVAL
1. Release parking brake.
2. Remove instrument driver lower panel. Refer to IP-10, "
INSTRUMENT PANEL ASSEMBLY" .
3. Disconnect parking brake warning lamp switch connector.
4. Remove adjusting nut, and then separate device assembly and front cable.
5. Remove device assembly from vehicle.
6. Remove center console. Refer to IP-10, "
INSTRUMENT PANEL ASSEMBLY" .
7. Remove front cable mounting bolts.
8. Remove applicable heat insulator from vehicle.
9. Remove rear tyres from vehicle.
10. Remove center muffler. Refer to EX-2, "
EXHAUST SYSTEM" .
11. Remove rear brake caliper and disc rotor. Refer to BR-35, "
Removal and Installation of Brake Caliper
Assembly" .
12. Remove parking brake shoe, and then remove rear cable from toggle lever. Refer to PB-5, "
PA R K I N G
BRAKE SHOE" .
13. Remove rear cable mounting nuts and bolts, and then remove rear cable from vehicle.
1. Device assembly 2. Parking brake warning lamp switch 3. Spring insulator
4. Return spring 5. Adjusting nut 6. Pedal cover
7. Front cable 8. Equalizer
(Assemble to front cable.)9. Return spring
10. Rear left cable 11. Rear right cable 12. Pin
SFIA2503E

PB-4
PARKING BRAKE CONTROL

INSTALLATION
1. Install in the reverse order of removal. Tighten mounting bolts and nuts to the specified torque. Refer to
PB-3, "
Components" .
CAUTION:
Do not reuse adjusting nut after removing it.
2. Adjust parking brake. Refer to PB-2, "
ADJUSTMENT" .
