sensor NISSAN TEANA 2003 Service Manual

SE-28
AUTOMATIC DRIVE POSITIONER

Terminals and Reference Values for BCMBIS0012M
*: With Intelligent Key
Terminals and Reference Values for Driver Seat Control UnitBIS0012N
TerminalWire
ColorItemSignal
Input/OutputConditionVoltage (V)
(Approx.)
11 V Ignition switch (ACC) InputIgnition switch
(ACC or ON position)Battery voltage
37B/R*
or
BRKey switch signal InputKey switch ON (key is inserted in
ignition key cylinder)Battery voltage
Key switch OFF (key is removed
from ignition key cylinder)0
38 R Ignition switch (ON) InputIgnition switch
(ON or START position)Battery voltage
39 L CAN-H Input/Output — —
40 P CAN-L Input/Output — —
42 Y/R Power source (Fuse) Input — Battery voltage
52 B Ground (Power) — — 0
55 W/B Power supply (Fusible link) Input — Battery voltage
62 SB Front door switch (driver side) Output ON (Open) → OFF (Closed) 0 → Battery voltage
Te r m i -
nal Wire
ColorItemSignal
Input/OutputConditionVoltage (V)
(Approx.)
1WSeat memory switch
indictor 1 signalOutputMemory switch 1: ON 1
Memory switch 1: OFF Battery voltage
2 R CAN-H Input/Output — —
3 G Ignition switch (START) Input Ignition switch (START position) Battery voltage
4YSeat memory switch 1
signalInputMemory switch 1: ON 0
Memory switch 1: OFF 5
5 V Reclining sensor signal InputON (reclining motor operation)
Other than above 0 or 5
6 L Rear lifting sensor signal InputON (rear lifting motor operation)
Other than above 0 or 5
7GRSeat sliding switch
BACKWARD signalInputWhen seat sliding switch
BACKWARD operation0
Other than above Battery voltage
8BRSeat reclining switch
BACKWARD signalInputWhen seat reclining switch
BACKWARD operation0
Other than above Battery voltage
PIIB2807E
PIIB2809E

AUTOMATIC DRIVE POSITIONER
SE-29
C
D
E
F
G
H
J
K
L
MA
B
SE

9LGFront lifting switch
DOWN signalInputWhen front lifting switch DOWN
operation0
Other than above Battery voltage
10 PRear lifting switch
DOWN signalInputWhen rear lifting switch DOWN
operation0
Other than above Battery voltage
11 OSeat memory switch
indictor 2 signalOutputMemory switch 2: ON 1
Memory switch 2: OFF Battery voltage
12 G/W CAN-L Input/Output — —
13 W/B Detention key switch InputSelector lever other than P position Battery voltage
Selector lever is on P position 0
14 R/BSeat memory switch 2
signalInputMemory switch 2: ON 0
Memory switch 2: OFF 5
15 G/B Set switch signal InputSet witch: ON 0
Set witch: OFF 5
16 Y/B Sliding sensor signal InputON (sliding motor operation)
Other than above 0 or 5
17 L/BFront lifting sensor
signalInputON (front lifting motor operation)
Other than above 0 or 5
18 LG/BSeat sliding switch
FORWARD signalInputWhen seat sliding switch
FORWARD operation0
Other than above Battery voltage
19 P/BSeat reclining switch
FORWARD signalInputWhen seat reclining switch
FORWARD operation0
Other than above Battery voltage
20 SBFront lifting switch UP
signalInputWhen front lifting switch UP
operation0
Other than above Battery voltage
21 R/WRear lifting switch UP
signalInputWhen rear lifting switch UP
operation0
Other than above Battery voltage
22 B Ground (Sensor) — — 0
23 B Ground (Signal) — — 0
24 B/R Power source (PTC) Input — Battery voltage Termi-
nal Wire
ColorItemSignal
Input/OutputConditionVoltage (V)
(Approx.)
PIIB2808E
PIIB2809E

AUTOMATIC DRIVE POSITIONER
SE-35
C
D
E
F
G
H
J
K
L
MA
B
SE

Check CAN Communication System BIS0012R
1. CHECK SELF-DIAGNOSTIC RESULT
CAUTION:
If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be
detected in self-diagnosis depending on control unit which carry out CAN communication.
With CONSULT-II
1. Connect CONSULT-II, and turn ignition switch ON.
2. Touch “AUTO DRIVE POS” on “SELECT SYSTEM” screen.
3. Touch “SELF-DIAG RESULTS” on “SELECT DIAG MODE” screen.
4. Check display content in self-diagnostic results.
Displayed U1000?
Ye s > > G O T O LAN-49, "CAN System Specification Chart" .
No >> Inspection END.
Symptom ChartBIS0012S
Symptom Diagnoses / service procedureReference
page
A part of seat system does not operate
(both automatically and manually).1. Check sliding motor circuit SE-36
2. Check reclining motor circuit SE-37
3. Check front lifter motor circuit SE-39
4. Check rear lifter motor circuit SE-40
5. If the above systems are normal, replace the driver
seat control unitSE-16
A part of seat system does not operate
(only automatic operation).1. Check sliding sensor circuit SE-42
2. Check reclining sensor circuit SE-43
3. Check front lifting sensor circuit SE-44
4. Check rear lifting sensor circuit SE-45
5. If the above systems are normal, replace the driver
seat control unitSE-16
All the automatic operations do not operate.1. Check detention switch (P range switch) circuit SE-53
2. Check key switch and key lock solenoid circuit
(with Intelligent Key)SE-54
3. Check key switch circuit (without Intelligent Key)SE-54
4. If the above systems are normal, replace the driver
seat control unitSE-16
A part of seat system does not operate
(only manual operation).1. Check Sliding switch circuit SE-47
2. Check reclining switch circuit SE-48
3. Check front lifting switch circuit SE-50
4. Check rear lifting switch circuit SE-51
5. If the above systems are normal, replace the driver
seat control unitSE-16
Only memory switch operation dose not operate.1. Check seat memory switch circuit SE-562. If the above systems are normal, replace the driver
seat control unitSE-16
Seat memory indicator lamps 1 and 2 do not illuminate.1. Check seat memory indicator lamp circuitSE-572. If all the above systems are normal, replace the driver
seat control unitSE-16

SE-42
AUTOMATIC DRIVE POSITIONER

Check Sliding Sensor Circuit BIS0012X
1. CHECK FUNCTION
With CONSULT-II
Check operation with “SLIDE PULSE” on the DATA MONITOR to make sure the pulse changes.
Without CONSULT-II
1. Turn ignition switch OFF.
2. Check signal between driver seat control unit connector and ground, with oscilloscope.
OK or NG
OK >> Sliding sensor circuit is OK.
NG >> GO TO 2.
2. CHECK SLIDING SENSOR HARNESS CONTINUITY
1. Disconnect driver seat control unit connector and sliding motor connector.
2. Check continuity between driver seat control unit connector
B117 terminals 16, 22 and sliding motor B123 terminals 16, 22.
3. Check continuity between driver seat control unit connector
B117 terminals 16, 22 and ground.
OK or NG
OK >> Replace sliding motor.
NG >> Repair or replace harness between driver seat control unit and sliding motor.
Monitor item [OPERATION or UNIT] Contents
SLIDE PULSE —Value (32768) when battery connects is
as standard. If it moves backward, the
value increases. If it moves for ward, the
value decreases.
PIIB2040E
ConnectorTerminals
(Wire color)
ConditionSignal
(Reference value)
(+) (–)
B117 16 (Y/B) GroundSliding
motor
operation
PIIB2042EPIIB2808E
16 (Y/B) – 16 (Y/B) : Continuity should exist.
22 (B) – 22 (B) : Continuity should exist.
16 (Y/B) – Ground : Continuity should not exist.
22 (B) – Ground : Continuity should not exist.
PIIB2043E

AUTOMATIC DRIVE POSITIONER
SE-43
C
D
E
F
G
H
J
K
L
MA
B
SE

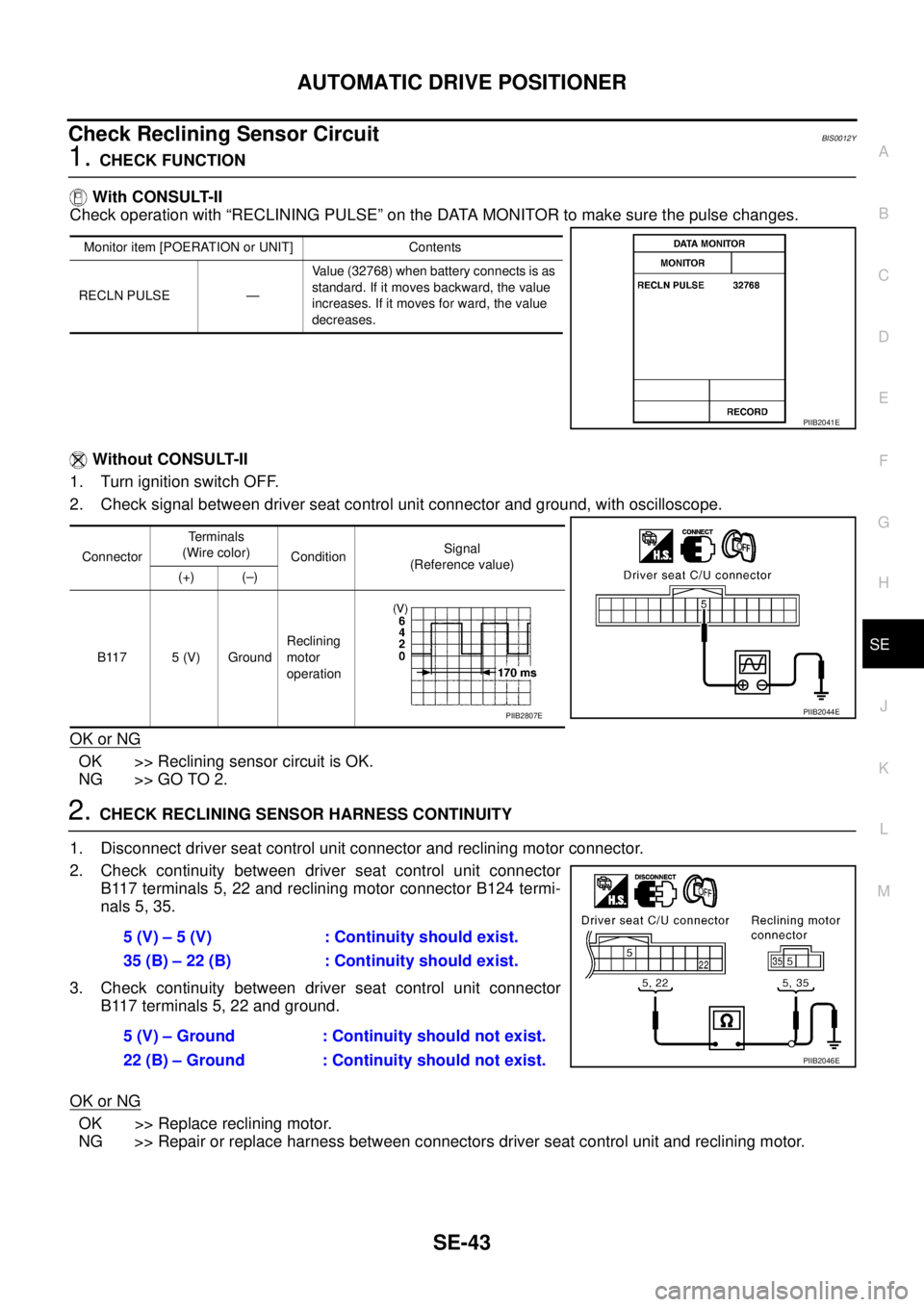

Check Reclining Sensor Circuit BIS0012Y
1. CHECK FUNCTION
With CONSULT-II
Check operation with “RECLINING PULSE” on the DATA MONITOR to make sure the pulse changes.
Without CONSULT-II
1. Turn ignition switch OFF.
2. Check signal between driver seat control unit connector and ground, with oscilloscope.
OK or NG
OK >> Reclining sensor circuit is OK.
NG >> GO TO 2.
2. CHECK RECLINING SENSOR HARNESS CONTINUITY
1. Disconnect driver seat control unit connector and reclining motor connector.
2. Check continuity between driver seat control unit connector
B117 terminals 5, 22 and reclining motor connector B124 termi-
nals 5, 35.
3. Check continuity between driver seat control unit connector
B117 terminals 5, 22 and ground.
OK or NG
OK >> Replace reclining motor.
NG >> Repair or replace harness between connectors driver seat control unit and reclining motor.
Monitor item [POERATION or UNIT] Contents
RECLN PULSE —Value (32768) when battery connects is as
standard. If it moves backward, the value
increases. If it moves for ward, the value
decreases.
PIIB2041E
ConnectorTerminals
(Wire color)
ConditionSignal
(Reference value)
(+) (–)
B117 5 (V) GroundReclining
motor
operation
PIIB2044EPIIB2807E
5 (V) – 5 (V) : Continuity should exist.
35 (B) – 22 (B) : Continuity should exist.
5 (V) – Ground : Continuity should not exist.
22 (B) – Ground : Continuity should not exist.
PIIB2046E

SE-44
AUTOMATIC DRIVE POSITIONER

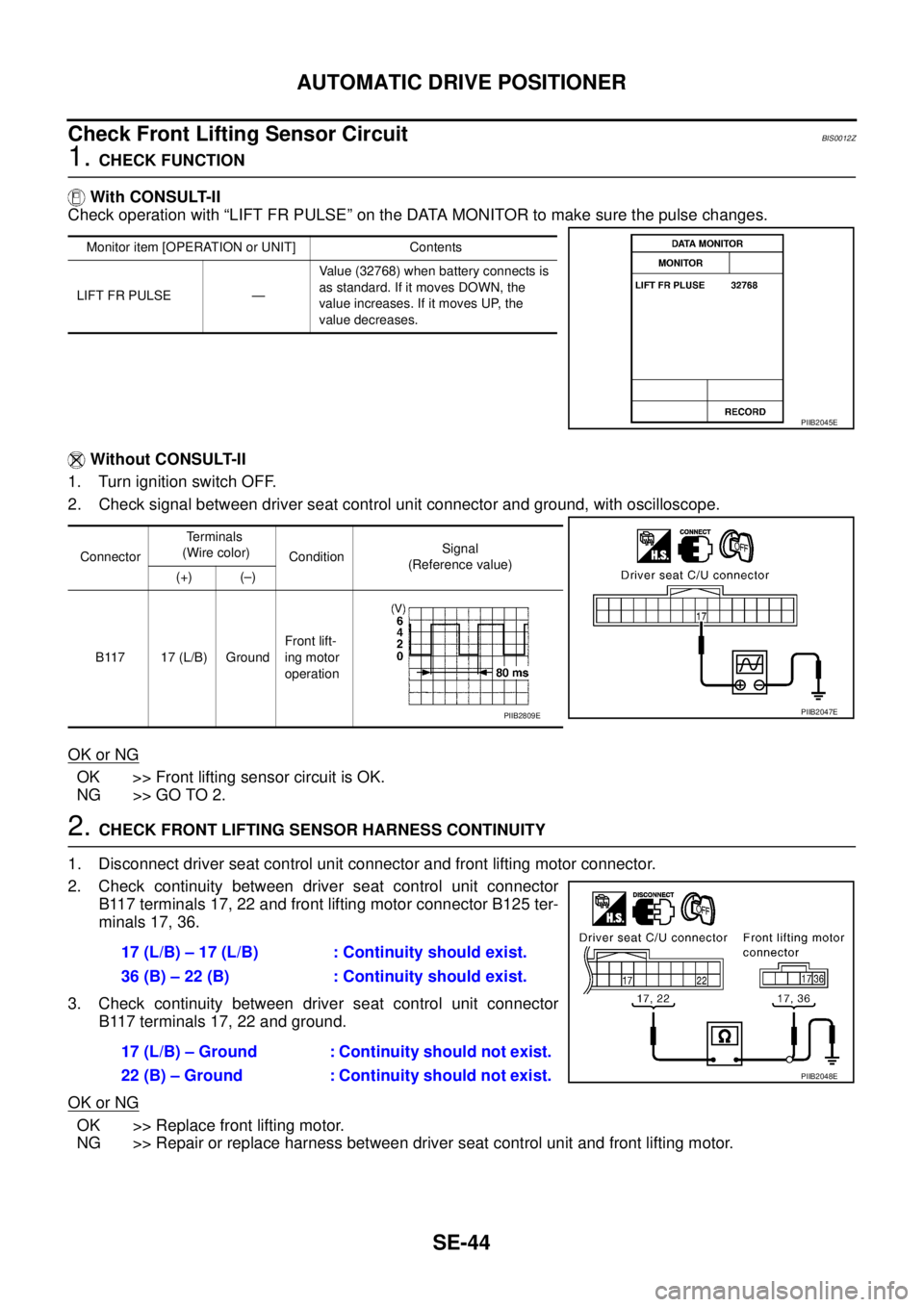

Check Front Lifting Sensor Circuit BIS0012Z
1. CHECK FUNCTION
With CONSULT-II
Check operation with “LIFT FR PULSE” on the DATA MONITOR to make sure the pulse changes.
Without CONSULT-II
1. Turn ignition switch OFF.
2. Check signal between driver seat control unit connector and ground, with oscilloscope.
OK or NG
OK >> Front lifting sensor circuit is OK.
NG >> GO TO 2.
2. CHECK FRONT LIFTING SENSOR HARNESS CONTINUITY
1. Disconnect driver seat control unit connector and front lifting motor connector.
2. Check continuity between driver seat control unit connector
B117 terminals 17, 22 and front lifting motor connector B125 ter-
minals 17, 36.
3. Check continuity between driver seat control unit connector
B117 terminals 17, 22 and ground.
OK or NG
OK >> Replace front lifting motor.
NG >> Repair or replace harness between driver seat control unit and front lifting motor.
Monitor item [OPERATION or UNIT] Contents
LIFT FR PULSE —Value (32768) when battery connects is
as standard. If it moves DOWN, the
value increases. If it moves UP, the
value decreases.
PIIB2045E
ConnectorTe r m i n a l s
(Wire color)
ConditionSignal
(Reference value)
(+) (–)
B117 17 (L/B) GroundFront lift-
ing motor
operation
PIIB2047EPIIB2809E
17 (L/B) – 17 (L/B) : Continuity should exist.
36 (B) – 22 (B) : Continuity should exist.
17 (L/B) – Ground : Continuity should not exist.
22 (B) – Ground : Continuity should not exist.
PIIB2048E

AUTOMATIC DRIVE POSITIONER
SE-45
C
D
E
F
G
H
J
K
L
MA
B
SE

Check Rear Lifting Sensor Circuit BIS00130
1. CHECK REAR END LIFTING SENSOR INPUT/OUTPUT SIGNAL
With CONSULT-II
Check operation with “LIFT RP PULSE” on the DATA MONITOR to make sure pulse changes.
Without CONSULT-II
1. Turn ignition switch OFF.
2. Check signal between driver seat control unit connector ground, with oscilloscope.
OK or NG
OK >> Rear lifting sensor circuit is OK.
NG >> GO TO 2.
2. CHECK REAR LIFTING SENSOR HARNESS CONTINUITY
1. Disconnect driver seat control unit connector and rear lifting motor connector.
2. Check continuity between driver seat control unit connector
B117 terminals 6, 22 and rear lifting motor connector B126 ter-
minals 6, 37.
3. Check continuity between driver seat control unit connector
B117 terminals 6, 22 and ground.
OK or NG
OK >> Replace rear lifting motor.
NG >> Repair or replace harness between driver seat control unit and rear lifting motor.
Monitor item [OPERATION or UNIT
LIFT RR PULSE —Value (32768) when battery connects is as
standard. If it moves DOWN, the value
increases. If it moves UP, the value
decreases.
PIIB2050E
ConnectorTe r m i n a l s
(Wire color)
ConditionSignal
(Reference value)
(+) (–)
B117 6 (L) GroundRear lift-
ing motor
operation
PIIB2049EPIIB2809E
6 (L) – 6 (L) : Continuity should exist.
37 (B) – 22 (B) : Continuity should exist.
6 (L) – Ground : Continuity should not exist.
22 (B) – Ground : Continuity should not exist.
PIIB2051E

SRS-1
SUPPLEMENTAL RESTRAINT SYSTEM (SRS)
H RESTRAINTS
CONTENTS
C
D
E
F
G
I
J
K
L
M
SECTION SRS
A
B
SRS

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)
PRECAUTIONS .......................................................... 3
Precautions for Supplemental Restraint System
(SRS) “AIR BAG” and “SEAT BELT PRE-TEN-
SIONER” .................................................................. 3
Precautions for SRS “AIR BAG” and “SEAT BELT
PRE-TENSIONER” Service ..................................... 3
PREPARATION ........................................................... 4
Special Service Tools ............................................... 4
Commercial Service Tools ........................................ 4
SUPPLEMENTAL RESTRAINT SYSTEM (SRS) ....... 5
SRS Configuration ................................................... 5
Front Seat Belt Pre-Tensioner with 2 Stage Load
Limiter ...................................................................... 6
Front Side Air Bag .................................................... 6
Side Curtain Air Bag ................................................. 6
TROUBLE DIAGNOSIS .............................................. 7
Trouble Diagnosis Introduction ................................. 7
DIAGNOSIS FUNCTION ....................................... 7
HOW TO PERFORM TROUBLE DIAGNOSES
FOR QUICK AND ACCURATE REPAIR ............... 7
WORK FLOW ........................................................ 8
Component Parts Location ....................................... 9
Schematic .............................................................. 10
Wiring Diagram — SRS — ...................................... 11
CONSULT-II Function ............................................ 14
DIAGNOSIS MODE FOR CONSULT-II ............... 14
HOW TO CHANGE SELF-DIAGNOSIS MODE
WITH CONSULT-II .............................................. 14
HOW TO ERASE SELF-DIAGNOSIS RESULTS ... 15
Self-Diagnosis Function (Without CONSULT-II) ..... 15
HOW TO CHANGE SELF-DIAGNOSIS MODE
WITHOUT CONSULT-II ...................................... 15
HOW TO ERASE SELF-DIAGNOSTIC
RESULTS ............................................................ 15
SRS Operation Check ............................................ 16
DIAGNOSTIC PROCEDURE 1 ........................... 16
Trouble Diagnosis with CONSULT-II ...................... 18
DIAGNOSTIC PROCEDURE 2 ........................... 18
DIAGNOSTIC PROCEDURE 3 ........................... 22
DIAGNOSTIC PROCEDURE 4 (CONTINUED FROM DIAGNOSTIC PROCEDURE 2) .............. 24
DIAGNOSTIC PROCEDURE 5 ........................... 24
Trouble Diagnosis without CONSULT-II ................. 29
DIAGNOSTIC PROCEDURE 6 ........................... 29
WARNING LAMP FLASH CODE CHART ........... 29
Trouble Diagnosis: “AIR BAG” Warning Lamp Does
Not Turn OFF ......................................................... 33
DIAGNOSTIC PROCEDURE 7 ........................... 33
Trouble Diagnosis: “AIR BAG” Warning Lamp Does
Not Turn ON ........................................................... 34
DIAGNOSTIC PROCEDURE 8 ........................... 34
DRIVER AIR BAG MODULE .................................... 35
Removal and Installation ........................................ 35
REMOVAL ........................................................... 35
INSTALLATION ................................................... 36
SPIRAL CABLE ........................................................ 37
Removal and Installation ........................................ 37
REMOVAL ........................................................... 37
INSTALLATION ................................................... 38
FRONT PASSENGER AIR BAG MODULE .............. 39
Removal and Installation ........................................ 39
REMOVAL ........................................................... 39
INSTALLATION ................................................... 39
FRONT SIDE AIR BAG MODULE ............................ 40
Removal and Installation ........................................ 40
REMOVAL ........................................................... 40
INSTALLATION ................................................... 41
SIDE CURTAIN AIR BAG MODULE ........................ 42
Removal and Installation ........................................ 42
REMOVAL ........................................................... 42
INSTALLATION ................................................... 43
CRASH ZONE SENSOR ........................................... 44
Removal and Installation ........................................ 44
REMOVAL ........................................................... 44
INSTALLATION ................................................... 44
SIDE AIR BAG (SATELLITE) SENSOR ................... 45
Removal and Installation ........................................ 45
REMOVAL ........................................................... 45
INSTALLATION ................................................... 45

SRS-2 FRONT SEAT BELT PRE-TENSIONER ................... 46
Removal and Installation ........................................ 46
DIAGNOSIS SENSOR UNIT ..................................... 47
Removal and Installation ........................................ 47
REMOVAL ........................................................... 47
INSTALLATION .................................................... 47
ECU DISCRIMINATED NO. ................................. 47
DISPOSAL OF AIR BAG MODULE AND SEAT BELT
PRE-TENSIONER ..................................................... 48
Caution for Air Bag Module and Seat Belt Pre-Ten-
sioner ...................................................................... 48
CHECKING DEPLOYMENT TOOL ..................... 48
DEPLOYMENT PROCEDURES FOR AIR BAG
MODULE (OUTSIDE OF VEHICLE) ................... 49
DEPLOYMENT PROCEDURES FOR SEAT
BELT PRE-TENSIONER (OUTSIDE OF VEHI-CLE) ..................................................................... 53
DEPLOYMENT OF AIR BAG MODULE AND
SEAT BELT PRE-TENSIONER WHILE
MOUNTED IN VEHICLE ...................................... 54
DISPOSING OF AIR BAG MODULE AND SEAT
BELT PRE-TENSIONER ...................................... 54
COLLISION DIAGNOSIS .......................................... 55
For Frontal Collision ................................................ 55
SRS INSPECTION (FOR FRONTAL COLLI-
SION) ................................................................... 55
For Side Collision .................................................... 57
WHEN THE SIDE AIR BAG IS ACTIVATED IN A
SIDE COLLISION: ............................................... 57
WHEN SRS IS NOT ACTIVATED IN A SIDE COL-
LISION: ................................................................ 57
SRS INSPECTION (FOR SIDE COLLISION) ...... 57

PRECAUTIONS
SRS-3
C
D
E
F
G
I
J
K
L
MA
B
SRS

PRECAUTIONSPFP:00001
Precautions for Supplemental Restraint System (SRS) “AIR BAG” and “SEAT
BELT PRE-TENSIONER”
BHS0003U
The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. Information necessary to service the system safely is included in the SRS and SB section of
this Service Manual.
WARNING:

To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death
in the event of a collision which would result in air bag inflation, all maintenance must be per-
formed by an authorized NISSAN/INFINITI dealer.

Improper maintenance, including incorrect removal and installation of the SRS, can lead to per-
sonal injury caused by unintentional activation of the system. For removal of Spiral Cable and Air
Bag Module, see the SRS section.

Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this
Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or
harness connectors.
Precautions for SRS “AIR BAG” and “SEAT BELT PRE-TENSIONER” ServiceBHS0003V

Do not use electrical test equipment to check SRS circuits unless instructed to in this Service Manual.

Before servicing the SRS, turn ignition switch OFF, and disconnect both battery cables. Then wait at least
3 minutes.
For approximately 3 minutes after the cables are removed, it is still possible for the air bag and seat belt
pre-tensioner to deploy. Therefore, do not work on any SRS connectors or wires until at least 3 minutes
have passed.

Diagnosis sensor unit must always be installed with their arrow marks “⇐” pointing towards the front of the
vehicle for proper operation. Also check diagnosis sensor unit for cracks, deformations or rust before
installation and replace if required.

The spiral cable must be set to the neutral position since its rotations are limited. Do not attempt to turn
steering wheel or column, if steering gear was disconnected from the column shaft.

Handle air bag module carefully. Always put a driver air bag module with the pad side facing upward.

Conduct self-diagnosis to check entire SRS for proper function after replacing any components.

After an air bag is deployed, the front instrument panel assembly should be replaced if damaged.

Always replace instrument panel pad following front passenger air bag deployment.
