water pump NISSAN TEANA 2003 Service Manual

CO-1
ENGINE COOLING SYSTEM
B ENGINE
CONTENTS
C
D
E
F
G
H
I
J
K
L
M
SECTION CO
A
CO

ENGINE COOLING SYSTEM
QR
PRECAUTIONS .......................................................... 3
Precautions for Supplemental Restraint System
(SRS) “AIR BAG” and “SEAT BELT PRE-TEN-
SIONER” .................................................................. 3
Precautions for Liquid Gasket .................................. 3
REMOVAL OF LIQUID GASKET SEALING .......... 3
LIQUID GASKET APPLICATION PROCEDURE ..... 3
PREPARATION ........................................................... 5
Special Service Tools ............................................... 5
Commercial Service Tools ........................................ 5
OVERHEATING CAUSE ANALYSIS .......................... 6
Troubleshooting Chart .............................................. 6
COOLING SYSTEM .................................................... 8
Cooling Circuit .......................................................... 8
System Chart ........................................................... 9
ENGINE COOLANT .................................................. 10
Inspection ............................................................... 10
LEVEL CHECK ................................................... 10
LEAK CHECK ..................................................... 10
Changing Engine Coolant ...................................... 10
DRAINING ENGINE COOLANT ......................... 10
REFILLING ENGINE COOLANT ......................... 11
FLUSHING COOLING SYSTEM ......................... 12
RADIATOR ................................................................ 13
Removal and Installation ........................................ 13
REMOVAL ........................................................... 13
INSTALLATION ................................................... 14
INSPECTION AFTER INSTALLATION ............... 14
Checking Radiator Cap .......................................... 14
Checking Radiator .................................................. 15
RADIATOR (ALUMINUM TYPE) .............................. 16
Disassembly and Assembly ................................... 16
PREPARATION ................................................... 16
DISASSEMBLY ................................................... 16
ASSEMBLY ......................................................... 17
INSPECTION ...................................................... 19
COOLING FAN ......................................................... 20
Removal and Installation ........................................ 20
REMOVAL ........................................................... 20INSTALLATION ................................................... 20
INSPECTION AFTER INSTALLATION ................ 20
Disassembly and Assembly .................................... 21
DISASSEMBLY ................................................... 21
INSPECTION AFTER DISASSEMBLY ................ 21
ASSEMBLY ......................................................... 21
WATER PUMP .......................................................... 22
Removal and Installation ........................................ 22
REMOVAL ........................................................... 22
INSPECTION AFTER REMOVAL ....................... 23
INSTALLATION ................................................... 23
INSPECTION AFTER INSTALLATION ................ 23
THERMOSTAT AND WATER CONTROL VALVE .... 24
Removal and Installation ........................................ 24
REMOVAL ........................................................... 24
INSPECTION AFTER REMOVAL ....................... 25
INSTALLATION ................................................... 25
INSPECTION AFTER INSTALLATION ................ 25
SERVICE DATA AND SPECIFICATIONS (SDS) ...... 26
Standard and Limit .................................................. 26
ENGINE COOLANT CAPACITY (APPROXI-
MATE) .................................................................. 26
THERMOSTAT .................................................... 26
WATER CONTROL VALVE ................................. 26
RADIATOR .......................................................... 26
VQ
PRECAUTIONS ........................................................ 27
Precautions for Supplemental Restraint System
(SRS) “AIR BAG” and “SEAT BELT PRE-TEN-
SIONER” ................................................................. 27
Precautions for Liquid Gasket ................................ 27
REMOVAL OF LIQUID GASKET SEALING ........ 27
LIQUID GASKET APPLICATION PROCEDURE ... 27
PREPARATION ......................................................... 29
Special Service Tools ............................................. 29
Commercial Service Tools ...................................... 29
OVERHEATING CAUSE ANALYSIS ........................ 30
Troubleshooting Chart ............................................ 30

CO-2 COOLING SYSTEM .................................................. 32
Cooling Circuit ........................................................ 32
System Chart .......................................................... 33
ENGINE COOLANT .................................................. 34
Inspection ............................................................... 34
LEVEL CHECK .................................................... 34
LEAK CHECK ...................................................... 34
Changing Engine Coolant ....................................... 34
DRAINING ENGINE COOLANT .......................... 34
REFILLING ENGINE COOLANT ......................... 35
FLUSHING COOLING SYSTEM ......................... 36
RADIATOR ................................................................ 37
Removal and Installation ........................................ 37
REMOVAL ........................................................... 37
INSTALLATION .................................................... 38
INSPECTION AFTER INSTALLATION ................ 38
Checking Radiator Cap .......................................... 38
Checking Radiator .................................................. 39
RADIATOR (ALUMINUM TYPE) ............................... 40
Disassembly and Assembly .................................... 40
PREPARATION ................................................... 40
DISASSEMBLY ................................................... 40
ASSEMBLY ......................................................... 41
INSPECTION ....................................................... 43
COOLING FAN .......................................................... 44
Removal and Installation ........................................ 44
REMOVAL ........................................................... 44INSTALLATION .................................................... 44
Disassembly and Assembly .................................... 45
DISASSEMBLY .................................................... 45
INSPECTION AFTER DISASSEMBLY ................ 45
ASSEMBLY .......................................................... 45
WATER PUMP ........................................................... 46
Removal and Installation ......................................... 46
REMOVAL ............................................................ 46
INSPECTION AFTER REMOVAL ........................ 47
INSTALLATION .................................................... 48
INSPECTION AFTER INSTALLATION ................ 49
WATER INLET AND THERMOSTAT ASSEMBLY .... 50
Removal and Installation ......................................... 50
REMOVAL ............................................................ 50
INSPECTION AFTER REMOVAL ........................ 51
INSTALLATION .................................................... 51
INSPECTION AFTER INSTALLATION ................ 51
WATER OUTLET AND WATER PIPING ................... 52
Removal and Installation ......................................... 52
REMOVAL ............................................................ 52
INSTALLATION .................................................... 53
INSPECTION AFTER INSTALLATION ................ 53
SERVICE DATA AND SPECIFICATIONS (SDS) ...... 54
Standard and Limit .................................................. 54
ENGINE COOLANT CAPACITY (APPROXI-
MATE) .................................................................. 54
RADIATOR ........................................................... 54
THERMOSTAT ..................................................

PREPARATION
CO-5
[QR]
C
D
E
F
G
H
I
J
K
L
MA
CO

PREPARATIONPFP:00002
Special Service ToolsBBS0059X
Commercial Service ToolsBBS0059Y
Tool number
Tool nameDescription
EG17650301
Radiator cap tester adapterAdapting radiator cap tester to radiator cap
and radiator filler neck
a: 28 (1.10) dia.
b: 31.4 (1.236) dia.
c: 41.3 (1.626) dia.
Unit: mm (in)
KV99103510
Radiator plate pliers AInstalling radiator upper and lower tanks
KV99103520
Radiator plate pliers BRemoving radiator upper and lower tanks
KV10111100
Seal cutterRemoving chain tensioner cover and water
pump cover
WS39930000
Tube presserPressing the tube of liquid gasket
S-NT564
S-NT224
S-NT225
NT046
S-NT052
Tool nameDescription
Radiator cap tester Checking radiator and radiator cap
PBIC1982E

CO-6
[QR]
OVERHEATING CAUSE ANALYSIS

OVERHEATING CAUSE ANALYSISPFP:00012
Troubleshooting ChartBBS0059Z
Symptom Check items
Cooling sys-
tem parts
malfunctionPoor heat transferWater pump malfunction Worn or loose drive belt
— Thermostat and water con-
trol valve stuck closed—
Damaged finsDust contamination or
paper clogging
Physical damage
Clogged radiator cooling
tubeExcess foreign material
(rust, dirt, sand, etc.)
Reduced air flowCooling fan does not oper-
ate
Fan assembly — High resistance to fan rota-
tion
Damaged fan blades
Damaged radiator shroud — — —
Improper engine coolant
mixture ratio—— —
Poor engine coolant quality — Engine coolant viscosity —
Insufficient engine coolantEngine coolant leaksCooling hoseLoose clamp
Cracked hose
Water pump Poor sealing
Radiator capLoose
Poor sealing
RadiatorO-ring for damage, deterio-
ration or improper fitting
Cracked radiator tank
Cracked radiator core
Reservoir tank Cracked reservoir tank
Overflowing reservoir tankExhaust gas leaks into
cooling systemCylinder head deterioration
Cylinder head gasket dete-
rioration

CO-22
[QR]

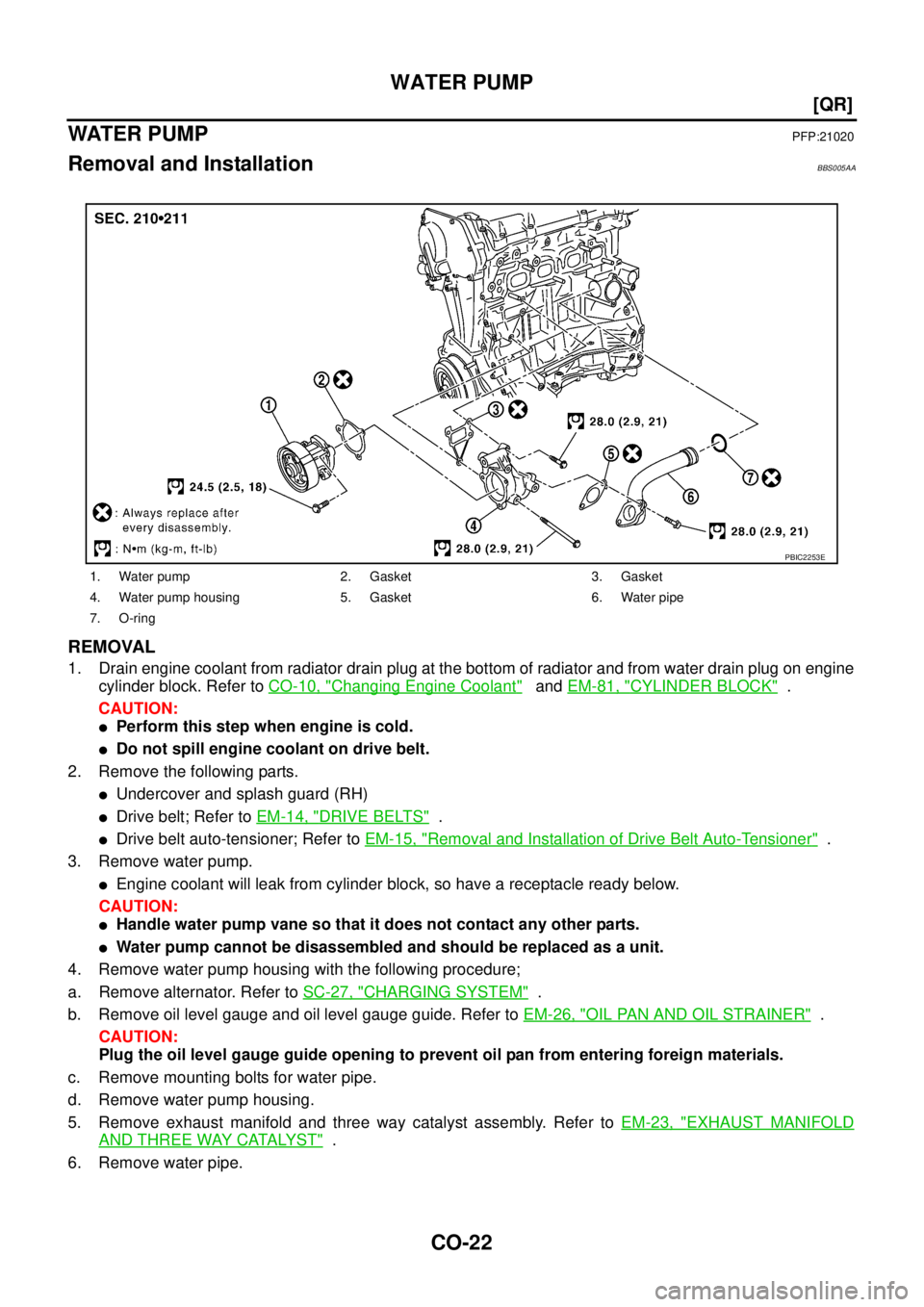

WATER PUMP

WATE R P U M PPFP:21020
Removal and InstallationBBS005AA
REMOVAL
1. Drain engine coolant from radiator drain plug at the bottom of radiator and from water drain plug on engine
cylinder block. Refer to CO-10, "
Changing Engine Coolant" and EM-81, "CYLINDER BLOCK" .
CAUTION:

Perform this step when engine is cold.

Do not spill engine coolant on drive belt.
2. Remove the following parts.

Undercover and splash guard (RH)

Drive belt; Refer to EM-14, "DRIVE BELTS" .

Drive belt auto-tensioner; Refer to EM-15, "Removal and Installation of Drive Belt Auto-Tensioner" .
3. Remove water pump.

Engine coolant will leak from cylinder block, so have a receptacle ready below.
CAUTION:

Handle water pump vane so that it does not contact any other parts.

Water pump cannot be disassembled and should be replaced as a unit.
4. Remove water pump housing with the following procedure;
a. Remove alternator. Refer to SC-27, "
CHARGING SYSTEM" .
b. Remove oil level gauge and oil level gauge guide. Refer to EM-26, "
OIL PAN AND OIL STRAINER" .
CAUTION:
Plug the oil level gauge guide opening to prevent oil pan from entering foreign materials.
c. Remove mounting bolts for water pipe.
d. Remove water pump housing.
5. Remove exhaust manifold and three way catalyst assembly. Refer to EM-23, "
EXHAUST MANIFOLD
AND THREE WAY CATALYST" .
6. Remove water pipe.
PBIC2253E
1. Water pump 2. Gasket 3. Gasket
4. Water pump housing 5. Gasket 6. Water pipe
7. O-ring

WATER PUMP
CO-23
[QR]
C
D
E
F
G
H
I
J
K
L
MA
CO

INSPECTION AFTER REMOVAL

Visually check if there is no significant dirt or rusting on water
pump body and vane.

Make sure that there is no looseness in vane shaft, and that it
turns smoothly when rotated by hand.

Replace water pump, if necessary.
INSTALLATION
Note the following, and install in the reverse order of removal.

When inserting water pipe end into cylinder block, apply a neutral detergent to O-ring. Then insert it imme-
diately.
INSPECTION AFTER INSTALLATION

Check for engine coolant leaks using radiator cap tester adapter [SST: EG17650301] and radiator cap
tester (commercial service tool). Refer to CO-10, "
LEAK CHECK" .

Start and warm up engine. Visually check if there is no leaks of engine coolant.
KBIA0155E

PREPARATION
CO-29
[VQ]
C
D
E
F
G
H
I
J
K
L
MA
CO

PREPARATIONPFP:00002
Special Service ToolsBBS004WT
Commercial Service ToolsBBS004WU
Tool number
Tool nameDescription
EG17650301
Radiator cap tester adapterAdapting radiator cap tester to radiator cap
and radiator filler neck
a: 28 (1.10) dia.
b: 31.4 (1.236) dia.
c: 41.3 (1.626) dia.
Unit: mm (in)
KV99103510
Radiator plate pliers AInstalling radiator upper and lower tanks
KV99103520
Radiator plate pliers BRemoving radiator upper and lower tanks
KV10111100
Seal cutterRemoving chain tensioner cover and water
pump cover
WS39930000
Tube presserPressing the tube of liquid gasket
S-NT564
S-NT224
S-NT225
NT046
S-NT052
Tool nameDescription
Radiator cap tester Checking radiator and radiator cap
PBIC1982E

CO-30
[VQ]
OVERHEATING CAUSE ANALYSIS

OVERHEATING CAUSE ANALYSISPFP:00012
Troubleshooting ChartBBS004WV
Symptom Check items
Cooling sys-
tem parts
malfunctionPoor heat transferWater pump malfunction Worn or loose drive belt
— Thermostat stuck closed —
Damaged finsDust contamination or
paper clogging
Physical damage
Clogged radiator cooling
tubeExcess foreign material
(rust, dirt, sand, etc.)
Reduced air flowCooling fan does not oper-
ate
Fan assembly — High resistance to fan rota-
tion
Damaged fan blades
Damaged radiator shroud — — —
Improper engine coolant
mixture ratio—— —
Poor engine coolant quality — Engine coolant viscosity —
Insufficient engine coolantEngine coolant leaksCooling hoseLoose clamp
Cracked hose
Water pump Poor sealing
Radiator capLoose
Poor sealing
RadiatorO-ring for damage, deterio-
ration or improper fitting
Cracked radiator tank
Cracked radiator core
Reservoir tank Cracked reservoir tank
Overflowing reservoir tankExhaust gas leaks into
cooling systemCylinder head deterioration
Cylinder head gasket dete-
rioration

CO-46
[VQ]
WATER PUMP

WATE R P U M PPFP:21020
Removal and InstallationBBS004X6
CAUTION:

When removing water pump assembly, be careful not to get engine coolant on drive belts.

Water pump cannot be disassembled and should be replaced as a unit.

After installing water pump, connect hose and clamp securely, then check for leaks using radiator
cap tester (commercial service tool) and radiator cap tester adapter [SST: EG17650301].
REMOVAL
1. Remove engine cover. Refer to EM-133, "INTAKE MANIFOLD COLLECTOR" .
2. Remove air duct (inlet). Refer to EM-131, "
AIR CLEANER AND AIR DUCT" .
3. Remove undercover and splash guard (RH).
4. Drain engine coolant from radiator. Refer to CO-34, "
Changing Engine Coolant" .
CAUTION:

Perform this step when engine is cold.

Do not spill engine coolant on drive belts.
5. Remove drive belts. Refer to EM-128, "
DRIVE BELTS" .
6. Remove reservoir tank of radiator. Refer to CO-37, "
RADIATOR" .
7. Remove reservoir tank of power steering oil pump with piping connected, and move it to aside.
8. Support oil pan (lower) bottom with transmission jack.
9. Remove engine mounting insulator (RH) and engine mounting bracket (RH). Refer to EM-223, "
ENGINE
ASSEMBLY" .
1. Water pump 2. Timing chain tensioner (primary) 3. Chain tensioner cover
4. Water drain plug (front) 5. Water pump cover 6. O-ring
7. O-ring
PBIC2515E

WATER PUMP
CO-47
[VQ]
C
D
E
F
G
H
I
J
K
L
MA
CO

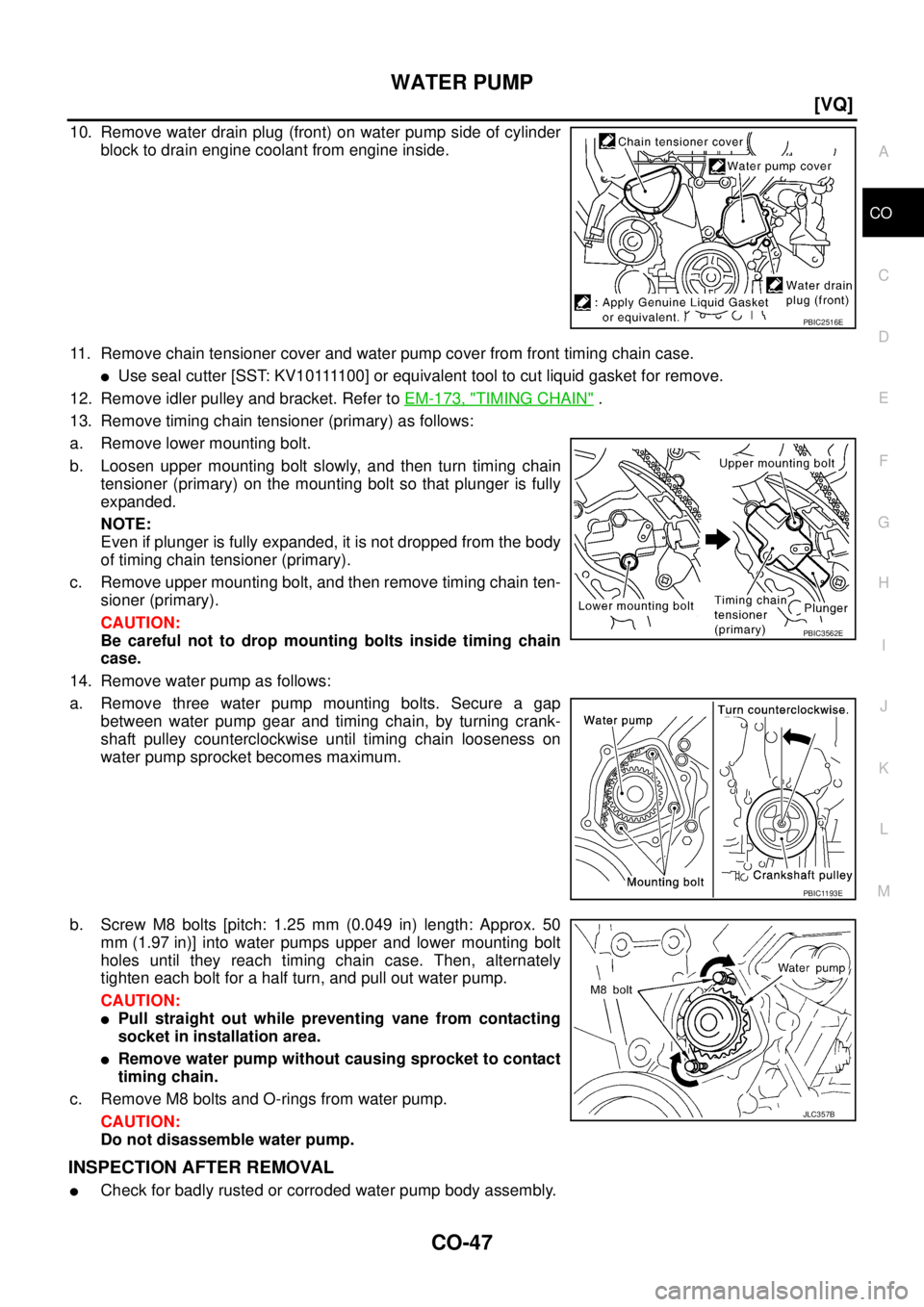

10. Remove water drain plug (front) on water pump side of cylinder
block to drain engine coolant from engine inside.
11. Remove chain tensioner cover and water pump cover from front timing chain case.

U s e s e a l c u t t e r [ S S T: K V 1 0 1111 0 0 ] o r e q u i v a l e n t t o o l t o c u t l i q u i d g a s k e t f o r r e m o v e .
12. Remove idler pulley and bracket. Refer to EM-173, "
TIMING CHAIN" .
13. Remove timing chain tensioner (primary) as follows:
a. Remove lower mounting bolt.
b. Loosen upper mounting bolt slowly, and then turn timing chain
tensioner (primary) on the mounting bolt so that plunger is fully
expanded.
NOTE:
Even if plunger is fully expanded, it is not dropped from the body
of timing chain tensioner (primary).
c. Remove upper mounting bolt, and then remove timing chain ten-
sioner (primary).
CAUTION:
Be careful not to drop mounting bolts inside timing chain
case.
14. Remove water pump as follows:
a. Remove three water pump mounting bolts. Secure a gap
between water pump gear and timing chain, by turning crank-
shaft pulley counterclockwise until timing chain looseness on
water pump sprocket becomes maximum.
b. Screw M8 bolts [pitch: 1.25 mm (0.049 in) length: Approx. 50
mm (1.97 in)] into water pumps upper and lower mounting bolt
holes until they reach timing chain case. Then, alternately
tighten each bolt for a half turn, and pull out water pump.
CAUTION:

Pull straight out while preventing vane from contacting
socket in installation area.

Remove water pump without causing sprocket to contact
timing chain.
c. Remove M8 bolts and O-rings from water pump.
CAUTION:
Do not disassemble water pump.
INSPECTION AFTER REMOVAL

Check for badly rusted or corroded water pump body assembly.
PBIC2516E
PBIC3562E
PBIC1193E
JLC357B
