fuel filter NISSAN TEANA 2014 Service Manual

< SERVICE DATA AND SPECIFICATIONS (SDS) 2014
QUICK REFERENCE CHART: ALTIMA
Fluids and Lubricants
INFOID:0000000010112411
Description Capacity (Approximate)
Metric US measure Imp measure
Fuel QR25DE
68 18 gal
15 gal
VQ35DE
Engine oil
Drain and refill With oil filter
change
QR25DE
4.6 4-7/8 qt
4 qt
VQ35DE 4.8 5-1/8 qt
4-1/4 qt
Without oil fil-
ter change QR25DE
4.3 4-1/2 qt
3-3/4 qt
VQ35DE 4.5 4-3/4 qt
4 qt
Dry engine
(engine overhaul) QR25DE
5.4 5-3/4 qt
4-3/4 qt
VQ35DE 5.3 5-5/8 qt
4-5/8 qt
Cooling system
(with reservoir tank
at MAX level) QR25DE
7.9 8-3/8 qt
7 qt
VQ35DE 9.2 9-3/4 qt
8-1/8 qt
CVT fluid RE0F10D
7.4 7-7/8 qt
6-1/2 qt
RE0F10E 8.2 8-5/8 qt
7-1/4 qt
Power steering fluid (E-PSF) 1.1 1-1/8 qt
1 qt
Brake fluid ———
Multi-purpose grease ———
Windshield washer fluid 4.5 4-3/4 qt
4 qt
Air conditioner system refrigerant 0.525 ± 0.025 kg 1.158 ± 0.055 lb 1.158 ± 0.055 lb
Air conditioner system oil 150 m5.1 fl oz
5.3 fl oz

EC-182
< BASIC INSPECTION >[QR25DE]

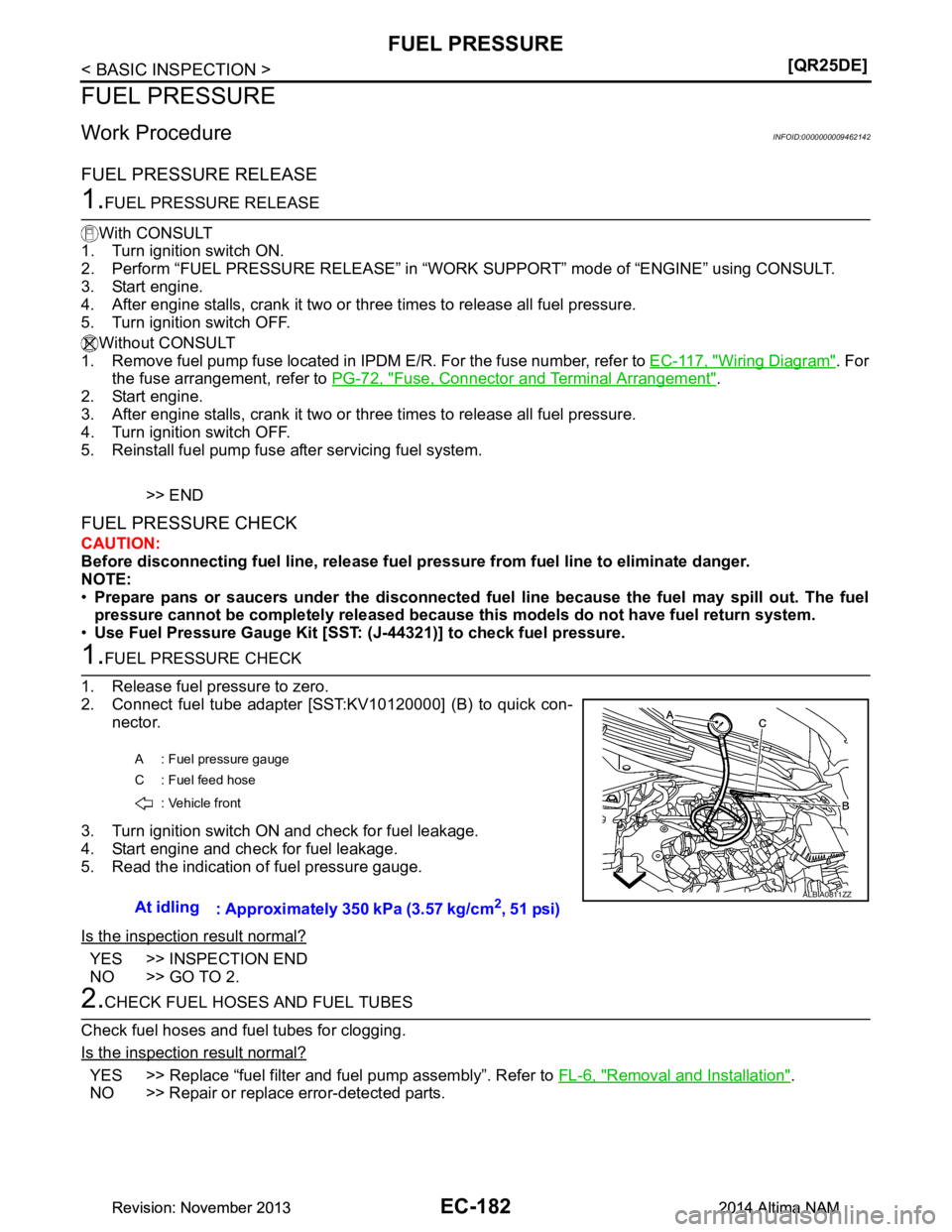

FUEL PRESSURE
FUEL PRESSURE
Work ProcedureINFOID:0000000009462142
FUEL PRESSURE RELEASE
1.FUEL PRESSURE RELEASE
With CONSULT
1. Turn ignition switch ON.
2. Perform “FUEL PRESSURE RELEA SE” in “WORK SUPPORT” mode of “ENGINE” using CONSULT.
3. Start engine.
4. After engine stalls, crank it two or three times to release all fuel pressure.
5. Turn ignition switch OFF.
Without CONSULT
1. Remove fuel pump fuse located in IPDM E/R. For the fuse number, refer to EC-117, "Wiring Diagram"
. For
the fuse arrangement, refer to PG-72, "Fuse, Connector and Terminal Arrangement"
.
2. Start engine.
3. After engine stalls, crank it two or three times to release all fuel pressure.
4. Turn ignition switch OFF.
5. Reinstall fuel pump fuse after servicing fuel system.
>> END
FUEL PRESSURE CHECK
CAUTION:
Before disconnecting fuel line, release fuel pr essure from fuel line to eliminate danger.
NOTE:
• Prepare pans or saucers under the disconnected fuel line because the fuel may spill out. The fuel
pressure cannot be completely released because th is models do not have fuel return system.
• Use Fuel Pressure Gauge Kit [SST: (J-44321)] to check fuel pressure.
1.FUEL PRESSURE CHECK
1. Release fuel pressure to zero.
2. Connect fuel tube adapter [SST:KV10120000] (B) to quick con-
nector.
3. Turn ignition switch ON and check for fuel leakage.
4. Start engine and check for fuel leakage.
5. Read the indication of fuel pressure gauge.
Is the inspection result normal?
YES >> INSPECTION END
NO >> GO TO 2.
2.CHECK FUEL HOSES AND FUEL TUBES
Check fuel hoses and fuel tubes for clogging.
Is the inspection result normal?
YES >> Replace “fuel filter and fuel pump assembly”. Refer to FL-6, "Removal and Installation".
NO >> Repair or replace error-detected parts.
A : Fuel pressure gauge
C : Fuel feed hose
: Vehicle front
At idling : Approximately 350 kPa (3.57 kg/cm2, 51 psi)
ALBIA0811ZZ
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

EC-198
< DTC/CIRCUIT DIAGNOSIS >[QR25DE]
TROUBLE DIAGNOSIS - SPECIFICATION VALUE
NOTE:
Check “A/F ALPHA-B1” for approximatel y 1 minute because they may fluctuate. It is NG if the indication is
out of the SP value even a little.
Is the measurement value within the SP value?
YES >> GO TO 17.
NO-1 >> Less than the SP value: GO TO 2.
NO-2 >> More than the SP value: GO TO 3.
2.CHECK “B/FUEL SCHDL”
Select “B/FUEL SCHDL” in “SPEC” of “DATA MONITOR” mode, and make sure that the indication is within the
SP value.
Is the measurement value within the SP value?
YES >> GO TO 4.
NO >> More than the SP value: GO TO 19.
3.CHECK “B/FUEL SCHDL”
Select “B/FUEL SCHDL” in “SPEC” of “DATA MONITOR” mode, and make sure that the indication is within the
SP value.
Is the measurement value within the SP value?
YES >> GO TO 6.
NO-1 >> More than the SP value: GO TO 6.
NO-2 >> Less than the SP value: GO TO 25.
4.CHECK “A/F ALPHA-B1”
1. Stop the engine.
2. Disconnect PCV hose, and then plug it.
3. Start engine.
4. Select “A/F ALPHA-B1” in “SPEC” of “DATA MONITO R” mode, and make sure that the indication is within
the SP value.
Is the measurement value within the SP value?
YES >> GO TO 5.
NO >> GO TO 6.
5.CHANGE ENGINE OIL
1. Stop the engine.
2. Change engine oil. NOTE:
This symptom may occur when a large amount of gasoline is mixed with engine oil because of driving
conditions (such as when engine oil temperature does not rise enough since a journey distance is too
short during winter). The symptom will not be detec ted after changing engine oil or changing driving con-
dition.
>>INSPECTION END
6.CHECK FUEL PRESSURE
Check fuel pressure. (Refer to EC-182, "Work Procedure"
.)
Is the inspection result normal?
YES >> GO TO 9.
NO-1 >> Fuel pressure is too high: Replace “f uel filter and fuel pump assembly”, refer to FL-6, "Removal
and Installation", and then GO TO 8.
NO-2 >> Fuel pressure is too low: GO TO 7.
7.DETECT MALFUNCTIONING PART
Check fuel hoses and fuel tubes for clogging
Is the inspection result normal?
YES >> Replace “fuel filter and fuel pump assembly”, refer to FL-6, "Removal and Installation", and then
GO TO 8.
NO >> Repair or replace and then GO TO 8.
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

EC-296
< DTC/CIRCUIT DIAGNOSIS >[QR25DE]
P0171 FUEL INJECTION SYSTEM FUNCTION
5. Check the continuity between A/F sensor 1
harness connector and ground, or ECM harness connector
and ground.
*1: Except for California
*2: For California
6. Also check harness for short to power.
Is the inspection result normal?
YES >> GO TO 4.
NO >> Repair or replace error-detected parts.
4.CHECK FUEL PRESSURE
Check fuel pressure. Refer to EC-182, "Work Procedure"
.
Is the inspection result normal?
YES >> GO TO 6.
NO >> GO TO 5.
5. DETECT MALFUNCTIONING PART
Check fuel hoses and fuel tubes for clogging. Refer to EM-41, "Exploded View"
.
Is the inspection result normal?
YES >> Replace “fuel filter and fuel pump assembly”. Refer to FL-6, "Removal and Installation".
NO >> Repair or replace error-detected parts.
6.CHECK MASS AIR FLOW SENSOR
With CONSULT
1. Install all removed parts.
2. Check “MASS AIR FLOW” in “DATA MONITO R” mode of “ENGINE” using CONSULT.
3. For specification, refer to EC-541, "Mass Air Flow Sensor"
.
With GST
1. Install all removed parts.
2. Check mass air flow sensor signal in Service $01 with GST.
3. For specification, refer to EC-541, "Mass Air Flow Sensor"
.
Is the measurement value within the specification?
YES >> GO TO 7.
NO >> Check connectors for rusted terminals or loose connections in the mass air flow sensor circuit or grounds. Refer to EC-232, "DTC Logic"
.
7.CHECK FUNCTION OF FUEL INJECTOR
With CONSULT
1. Start engine.
2. Perform “POWER BALANCE” in “ACTIVE TEST” mode of “ENGINE” using CONSULT.
3. Make sure that each circuit produces a momentary engine speed drop.
Without CONSULT
+ −Continuity
A/F sensor 1
Connector Terminal
F24 1
Ground Not existed
2
+ −Continuity
ECM
Connector Terminal
F14
*1
F91*2
41 Ground Not existed
45
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

EC-300
< DTC/CIRCUIT DIAGNOSIS >[QR25DE]
P0172 FUEL INJECTION SYSTEM FUNCTION
*1: Except for California
*2: For California
6. Also check harness for short to power.
Is the inspection result normal?
YES >> GO TO 4.
NO >> Repair or replace error-detected parts.
4.CHECK FUEL PRESSURE
Check fuel pressure. Refer to EC-182, "Work Procedure"
.
Is the inspection result normal?
YES >> GO TO 6.
NO >> GO TO 5.
5. DETECT MALFUNCTIONING PART
Check fuel hoses and fuel tubes for clogging. Refer to EM-41, "Exploded View"
.
Is the inspection result normal?
YES >> Replace “fuel filter and fuel pump assembly”. Refer to FL-6, "Removal and Installation".
NO >> Repair or replace error-detected parts.
6.CHECK MASS AIR FLOW SENSOR
With CONSULT
1. Install all removed parts.
2. Check “MASS AIR FLOW” in “DATA MONITO R” mode of “ENGINE” using CONSULT.
3. For specification, refer to EC-541, "Mass Air Flow Sensor"
.
With GST
1. Install all removed parts.
2. Check mass air flow sensor signal in Service $01 with GST.
3. For specification, refer to EC-541, "Mass Air Flow Sensor"
.
Is the measurement value within the specification?
YES >> GO TO 7.
NO >> Check connectors for rusted terminals or loose connections in the mass air flow sensor circuit or
grounds. Refer to EC-228, "DTC Logic"
.
7.CHECK FUNCTION OF FUEL INJECTOR
With CONSULT
1. Start engine.
2. Perform “POWER BALANCE” in “ACTIVE TEST” mode of “ENGINE” using CONSULT.
3. Make sure that each circuit produces a momentary engine speed drop.
Without CONSULT
1. Let engine idle.
+
−Continuity
A/F sensor 1
Connector Terminal
F24 1
Ground Not existed
2
+ −Continuity
ECM
Connector Terminal
F14
*1
F91*2
41 Ground Not existed
45
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

P0300, P0301, P0302, P0303, P0304 MISFIRE
EC-321
< DTC/CIRCUIT DIAGNOSIS > [QR25DE]
C
D E
F
G H
I
J
K L
M A
EC
NP
O
YES >> GO TO 7.
NO >> Check ignition coil, power transistor and their circuits. Refer to EC-511, "Diagnosis Procedure"
.
7.CHECK SPARK PLUG
Check the initial spark plug for fouling, etc.
Is the inspection result normal?
YES >> Replace spark plug(s) with standard type one(s). For spark plug type, refer to EM-111, "Standard and Limit"
.
NO >> Repair or clean spark plug. Then GO TO 8.
8.CHECK FUNCTION OF IGNITION COIL-3
1. Reconnect the initial spark plugs.
2. Crank engine for about 3 seconds, and recheck whether spark is generated between the spark plug and the grounded portion.
Is the inspection result normal?
YES >> INSPECTION END
NO >> Replace spark plug(s) with standard type one(s). For spark plug type. Refer to EM-111, "Standard
and Limit".
9.CHECK COMPRESSION PRESSURE
Check compression pressure. Refer to EM-26, "Compression pressure"
.
Is the inspection result normal?
YES >> GO TO 10.
NO >> Check pistons, piston rings, valves, valve seats and cylinder head gaskets.
10.CHECK FUEL PRESSURE
1. Install all removed parts.
2. Release fuel pressure to zero.
3. Install fuel pressure gauge and check fuel pressure. Refer to EC-182, "Work Procedure"
.
Is the inspection result normal?
YES >> GO TO 12.
NO >> GO TO 11.
11 .DETECT MALFUNCTIONING PART
Check fuel hoses and fuel tubes for clogging.
Is the inspection result normal?
YES >> Replace “fuel filter and fuel pump assembly”. Refer to FL-6, "Removal and Installation".
NO >> Repair or replace.
12.CHECK IGNITION TIMING
Check the following items.
For procedure, refer to EC-170, "Work Procedure"
.
For specification, refer to EC-541, "Ignition Timing"
.
Is the inspection result normal?
YES >> GO TO 13.
NO >> Follow the EC-170, "Work Procedure"
.
SEF156I
Spark should be generated.
At idling: Approximately 350 kPa (3.57 kg/cm
2, 51 psi)
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

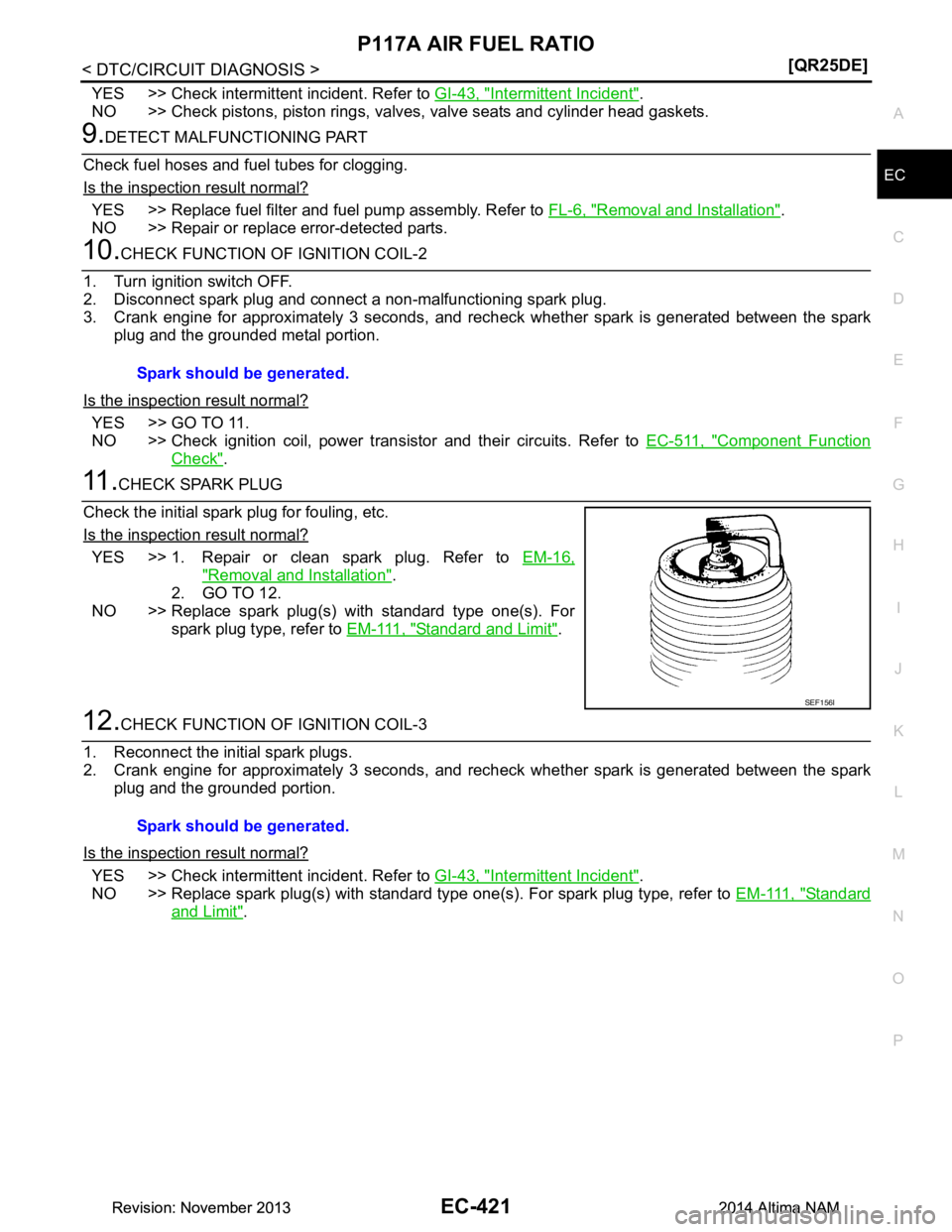

P117A AIR FUEL RATIOEC-421
< DTC/CIRCUIT DIAGNOSIS > [QR25DE]
C
D E
F
G H
I
J
K L
M A
EC
NP
O
YES >> Check intermittent incident. Refer to
GI-43, "Intermittent Incident".
NO >> Check pistons, piston rings, valves, valve seats and cylinder head gaskets.
9.DETECT MALFUNCTIONING PART
Check fuel hoses and fuel tubes for clogging.
Is the inspection result normal?
YES >> Replace fuel filter and fuel pump assembly. Refer to FL-6, "Removal and Installation".
NO >> Repair or replace error-detected parts.
10.CHECK FUNCTION OF IGNITION COIL-2
1. Turn ignition switch OFF.
2. Disconnect spark plug and connect a non-malfunctioning spark plug.
3. Crank engine for approximately 3 seconds, and rec heck whether spark is generated between the spark
plug and the grounded metal portion.
Is the inspection result normal?
YES >> GO TO 11.
NO >> Check ignition coil, power trans istor and their circuits. Refer to EC-511, "Component Function
Check".
11 .CHECK SPARK PLUG
Check the initial spark plug for fouling, etc.
Is the inspection result normal?
YES >> 1. Repair or clean spark plug. Refer to EM-16,
"Removal and Installation".
2. GO TO 12.
NO >> Replace spark plug(s) with standard type one(s). For spark plug type, refer to EM-111, "Standard and Limit"
.
12.CHECK FUNCTION OF IGNITION COIL-3
1. Reconnect the initial spark plugs.
2. Crank engine for approximately 3 seconds, and rec heck whether spark is generated between the spark
plug and the grounded portion.
Is the inspection result normal?
YES >> Check intermittent incident. Refer to GI-43, "Intermittent Incident".
NO >> Replace spark plug(s) with standard type one(s). For spark plug type, refer to EM-111, "Standard
and Limit".
Spark should be generated.
SEF156I
Spark should be generated.
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

ENGINE CONTROL SYSTEMEC-531
< SYMPTOM DIAGNOSIS > [QR25DE]
C
D E
F
G H
I
J
K L
M A
EC
NP
O
1 - 6: The numbers refer to the order of inspection. Va l v e
mecha-
nism Timing chain
55555 55 5 EM-62
Camshaft
EM-47
Intake valve timing controlEM-62
Intake valve
3EM-78
Exhaust valve
Exhaust Exhaust manifold/Tube/Muf- fler/Gasket 55555 55 5 EM-33
, EX-6
Three way catalyst
Lubrica-
tion Oil pan/Oil strainer/Oil pump/
Oil filter/Oil gallery/Oil cooler 55555 55 5 EM-36
,
LU-9,
LU-11
, LU-7,
LU-17
Oil level (Low)/Filthy oil LU-9
Cooling Radiator/Hose/Radiator filler
cap
55555 55 45 CO-17
Thermostat 5
CO-22
Water pumpCO-20
Water galleryCO-7
Cooling fan
5CO-18
Coolant level (Low)/Contami-
nated coolant CO-11
NVIS (NISSAN Vehicle Immobilizer Sys-
tem — NATS) 11
SEC-63
SYMPTOM
Reference page
HARD/NO START/RESTART (EXCP. HA)
ENGINE STALL
HESITATION/SURGING/FLAT SPOT
SPARK KNOCK/DETONATION
LACK OF POWER/POOR ACCELERATION
HIGH IDLE/LOW IDLE
ROUGH IDLE/HUNTING
IDLING VIBRATION
SLOW/NO RETURN TO IDLE
OVERHEATS/WATER TEMPERATURE HIGH
EXCESSIVE FUEL CONSUMPTION
EXCESSIVE OIL CONSUMPTION
BATTERY DEAD (UNDER CHARGE)
Warranty symptom code A AAB AC AD AE AF AG AH AJ AK AL AM HA
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

EC-688
< BASIC INSPECTION >[VQ35DE]
FUEL PRESSURE
YES >> INSPECTION END
NO >> GO TO 2.
2.CHECK FUEL HOSES
Check the following.
• Fuel hoses and fuel tubes for clogging
• Fuel filter for clogging
• Fuel pump
• Fuel pressure regulator for clogging
Is the inspection result normal?
YES >> Replace fuel pressure regulator.
NO >> Repair or replace error-detected parts.
CAUTION:
Before disconnecting Fuel Pressure Gauge kit [SST : — (J-44321)] and Fuel Pressure Adapter [SST: —
(J-44321-6)], release fuel pressure to zero.
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

EC-704
< DTC/CIRCUIT DIAGNOSIS >[VQ35DE]
TROUBLE DIAGNOSIS - SPECIFICATION VALUE
NOTE:
Check “A/F ALPHA-B1”, “A/F ALPHA-B2” for approximat ely 1 minute because they may fluctuate. It is NG
if the indication is out of the SP value even a little.
Is the measurement value within the SP value?
YES >> GO TO 17.
NO-1 >> Less than the SP value: GO TO 2.
NO-2 >> More than the SP value: GO TO 3.
2.CHECK “B/FUEL SCHDL”
Select “B/FUEL SCHDL” in “SPEC” of “DATA MONITOR” mode, and check that the indication is within the SP
value.
Is the measurement value within the SP value?
YES >> GO TO 4.
NO >> More than the SP value: GO TO 19.
3.CHECK “B/FUEL SCHDL”
Select “B/FUEL SCHDL” in “SPEC” of “DATA MONITOR” mode, and check that the indication is within the SP
value.
Is the measurement value within the SP value?
YES >> GO TO 6.
NO-1 >> More than the SP value: GO TO 6.
NO-2 >> Less than the SP value: GO TO 25.
4.CHECK “A/F ALPHA-B1”, “A/F ALPHA-B2”
1. Stop the engine.
2. Disconnect PCV hose, and then plug it.
3. Start engine.
4. Select “A/F ALPHA-B1”, “A/F ALPHA-B2” in “ SPEC” of “DATA MONITOR” mode, and check that each
indication is within the SP value.
Is the measurement value within the SP value?
YES >> GO TO 5.
NO >> GO TO 6.
5.CHANGE ENGINE OIL
1. Stop the engine.
2. Change engine oil. NOTE:
This symptom may occur when a large amount of gasoline is mixed with engine oil because of driving
conditions (such as when engine oil temperature does not rise enough since a journey distance is too
short during winter). The symptom will not be detec ted after changing engine oil or changing driving con-
ditions.
>> INSPECTION END
6.CHECK FUEL PRESSURE
Check fuel pressure. (Refer to EC-687, "Work Procedure"
.)
Is the inspection result normal?
YES >> GO TO 9.
NO-1 >> Fuel pressure is too high: Replace “f uel filter and fuel pump assembly”, refer to FL-6, "Removal
and Installation", and then GO TO 8.
NO-2 >> Fuel pressure is too low: GO TO 7.
7.DETECT MALFUNCTIONING PART
Check fuel hoses and fuel tubes for clogging.
Is the inspection result normal?
YES >> Replace “fuel filter and fuel pump assembly”, refer to FL-6, "Removal and Installation", and then
GO TO 8.
NO >> Repair or replace malfunctioning part and then GO TO 8.
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM
