HOW TO ERASE PERMANENT DTCEC-37
< BASIC INSPECTION > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
Work Procedure (Group B)INFOID:0000000006314656
NOTE:
Drive the vehicle according to only driving patterns
indicating “INCMP” in driving patterns B and D on the
“PERMANENT DTC STATUS” screen.
1.CHECK DTC
Check DTC.
Is any DTC detected?
YES >> Repair malfunction(s) and erase DTC. Refer to EC-103, "On Board Diagnosis Function".
NO >> GO TO 2.
2.CHECK PERMANENT DTC
With CONSULT-III
1. Turn ignition switch OFF and wait at least 10 seconds.
2. Turn ignition switch ON.
3. Turn ignition switch OFF and wait at least 10 seconds.
4. Turn ignition switch ON.
5. Select “PERMANENT DTC ST ATUS” mode with CONSULT-III.
With GST
1. Turn ignition switch OFF and wait at least 10 seconds.
2. Turn ignition switch ON.
3. Turn ignition switch OFF and wait at least 10 seconds.
4. Turn ignition switch ON.

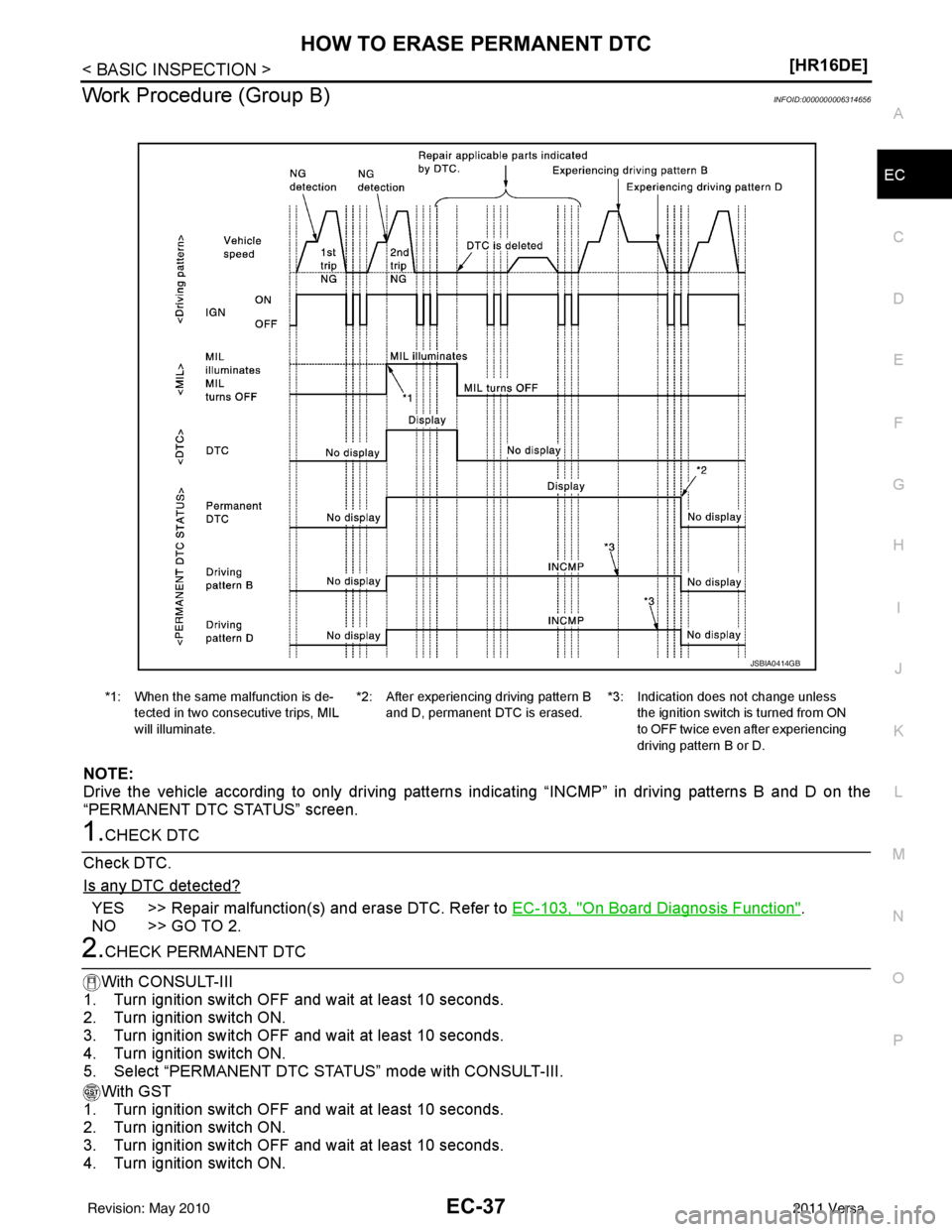

*1: When the same malfunction is de-
tected in two consecutive trips, MIL
will illuminate. *2: After experiencing driving pattern B
and D, permanent DTC is erased. *3: Indication does not change unless
the ignition switch is turned from ON
to OFF twice even after experiencing
driving pattern B or D.
JSBIA0414GB
Revision: May 2010 2011 Versa

EC-38
< BASIC INSPECTION >[HR16DE]
HOW TO ERASE PERMANENT DTC
5. Select Service $0A with GST.
Is any permanent DTC detected?
YES >> GO TO 3.
NO >> END
3.DRIVE DRIVING PATTERN B
CAUTION:
• Always drive at a safe speed.
• Never erase self-diagnosis results.
• If self-diagnosis results are erased during the trip of driving pattern B or D, the counter of driving
pattern B and D is reset.
With CONSULT-III
1. Start engine and warm it up to normal operating temperature.
2. Use “PERMANENT DTC WORK SUPPORT” mode with CONSULT-III to drive the vehicle according to driving pattern B. Refer to EC-106, "
CONSULT-III Function", EC-37, "Work Procedure (Group B)".
With GST
1. Start engine and warm it up to normal operating temperature.
2. Drive the vehicle according to driving pattern B. Refer to EC-37, "
Work Procedure (Group B)".
>> GO TO 4.
4.CHECK PERMANENT DTC
With CONSULT-III
1. Turn ignition switch OFF and wait at least 10 seconds.
2. Turn ignition switch ON.
3. Turn ignition switch OFF and wait at least 10 seconds.
4. Turn ignition switch ON.
5. Select “PERMANENT DTC ST ATUS” mode with CONSULT-III.
With GST
1. Turn ignition switch OFF and wait at least 10 seconds.
2. Turn ignition switch ON.
3. Turn ignition switch OFF and wait at least 10 seconds.
4. Turn ignition switch ON.
5. Select Service $0A with GST.
Is any permanent DTC detected?
YES >> GO TO 5.
NO >> END
5.DRIVE DRIVING PATTERN D
CAUTION:
• Always drive at a safe speed.
• Never erase self-diagnosis results.
• If self-diagnosis results are erased during the trip of driving pattern B or D, the counter of driving
pattern B and D is reset.
1. Drive the vehicle according to driving pattern D. Refer to EC-37, "
Work Procedure (Group B)".
>> GO TO 6.
6.CHECK PERMANENT DTC
With CONSULT-III
1. Turn ignition switch OFF and wait at least 10 seconds.
2. Turn ignition switch ON.
3. Turn ignition switch OFF and wait at least 10 seconds.
4. Turn ignition switch ON.
5. Select “PERMANENT DTC ST ATUS” mode with CONSULT-III.
With GST
1. Turn ignition switch OFF and wait at least 10 seconds.
2. Turn ignition switch ON.
Revision: May 2010 2011 Versa

HOW TO ERASE PERMANENT DTCEC-39
< BASIC INSPECTION > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
3. Turn ignition switch OFF and wait at least 10 seconds.
4. Turn ignition switch ON.
5. Select Service $0A with GST.
Is any permanent DTC detected?
YES >> GO TO 1.
NO >> END
Revision: May 2010
2011 Versa

EC-40
< FUNCTION DIAGNOSIS >[HR16DE]
ENGINE CONTROL SYSTEM
FUNCTION DIAGNOSIS
ENGINE CONTROL SYSTEM

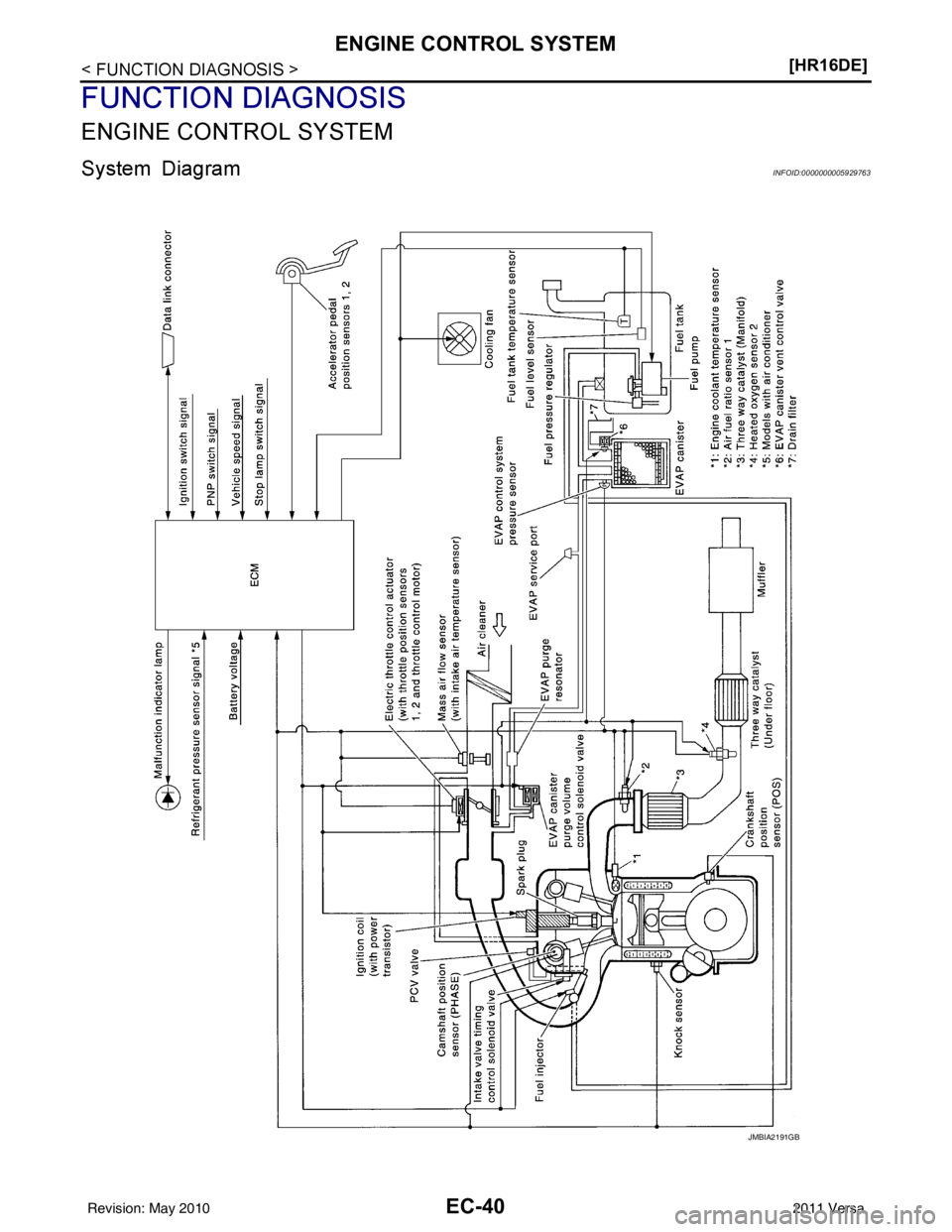

System DiagramINFOID:0000000005929763
JMBIA2191GB
Revision: May 2010
2011 Versa

ENGINE CONTROL SYSTEMEC-41
< FUNCTION DIAGNOSIS > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
System DescriptionINFOID:0000000005929764
ECM performs various controls such as fuel
injection control and ignition timing control.

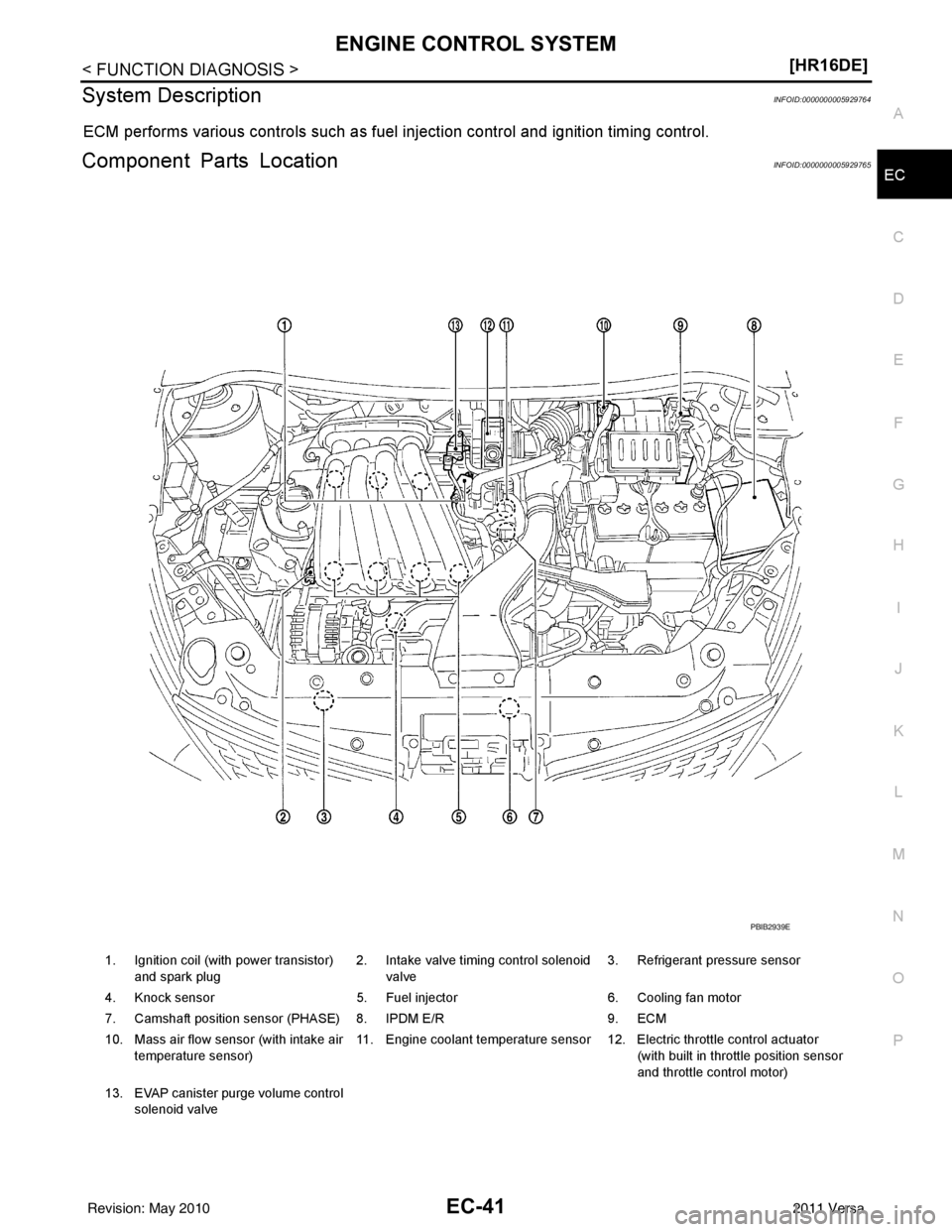

Component Parts LocationINFOID:0000000005929765
1. Ignition coil (with power transistor)
and spark plug 2. Intake valve timing control solenoid
valve 3. Refrigerant pressure sensor
4. Knock sensor 5. Fuel injector6. Cooling fan motor
7. Camshaft position sensor (PHASE) 8. IPDM E/R 9. ECM
10. Mass air flow sensor (with intake air temperature sensor) 11. Engine coolant temperature sensor 12. Electric throttle control actuator
(with built in throttle position sensor
and throttle control motor)
13. EVAP canister purge volume control solenoid valve
PBIB2939E
Revision: May 2010 2011 Versa

EC-42
< FUNCTION DIAGNOSIS >[HR16DE]
ENGINE CONTROL SYSTEM

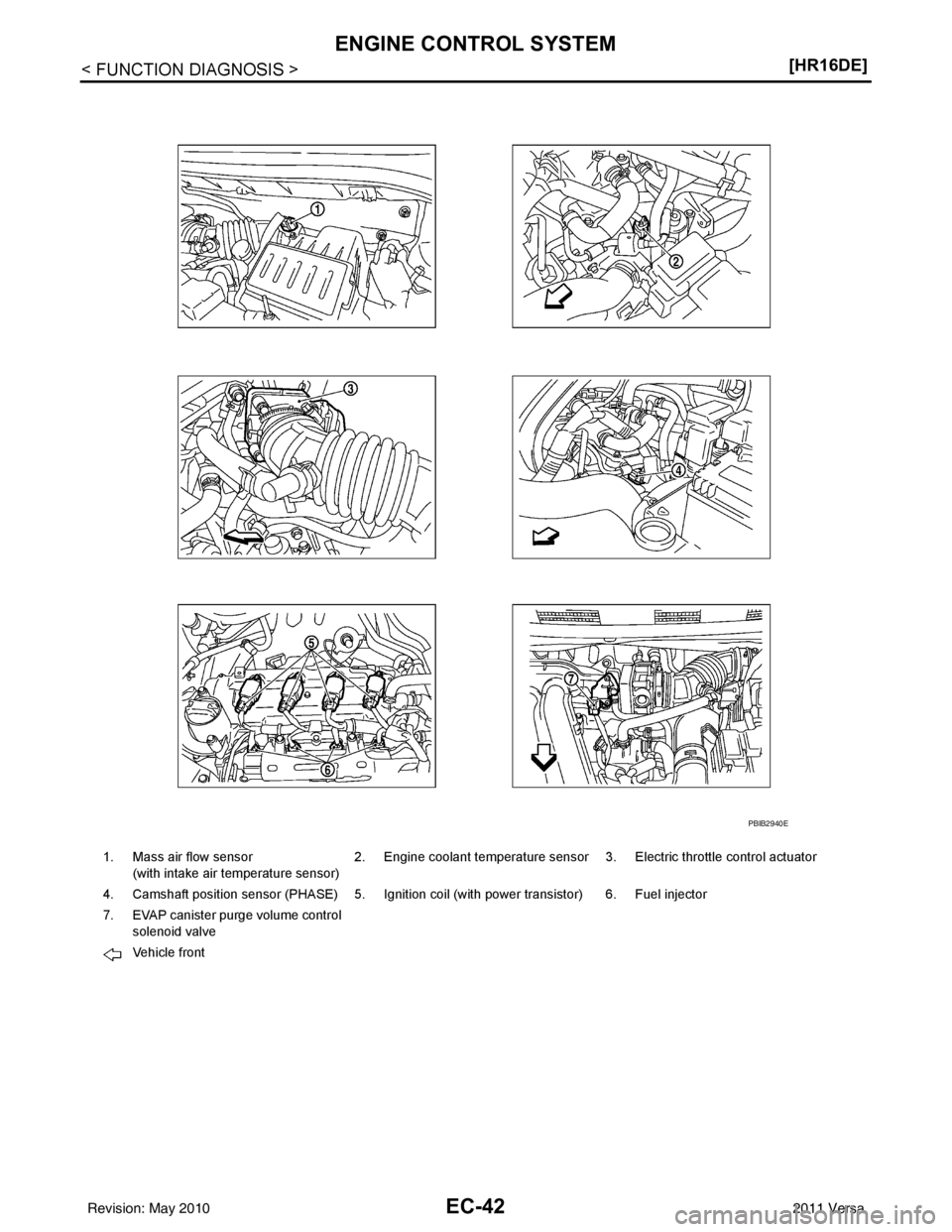

1. Mass air flow sensor
(with intake air temperature sensor) 2. Engine coolant temperature sensor 3. Electric throttle control actuator
4. Camshaft position sensor (PHASE) 5. Ignition coil (with power transistor) 6. Fuel injector
7. EVAP canister purge volume control solenoid valve
Vehicle front
PBIB2940E
Revision: May 2010 2011 Versa

ENGINE CONTROL SYSTEMEC-43
< FUNCTION DIAGNOSIS > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O

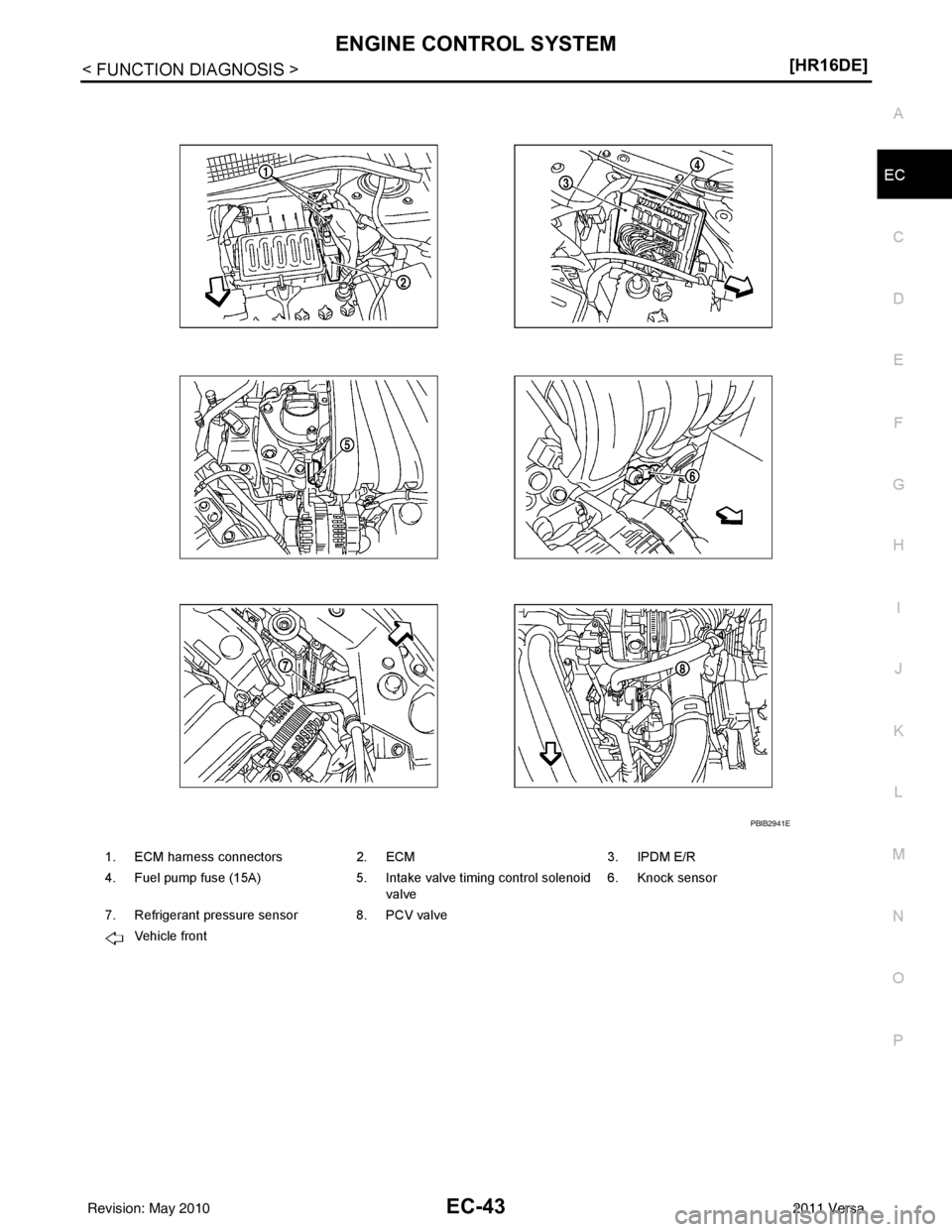

1. ECM harness connectors
2. ECM3. IPDM E/R
4. Fuel pump fuse (15A) 5. Intake valve timing control solenoid
valve 6. Knock sensor
7. Refrigerant pressure sensor 8. PCV valve Vehicle front
PBIB2941E
Revision: May 2010 2011 Versa

EC-44
< FUNCTION DIAGNOSIS >[HR16DE]
ENGINE CONTROL SYSTEM
1. Air fuel ratio (A/F) sensor 1 2. Three way catalyst (Manifold) 3. Heated oxygen sensor 2
4. Three way catalyst (Under floor) 5. Muffler
Vehicle front
1. Exhaust manifold 2. Air fuel ratio (A/F) sensor 1 3. Heated oxygen sensor 2
4. Heated oxygen sensor 2 harness connector
Vehicle front
JMBIA2192ZZ
PBIB2943E
Revision: May 2010 2011 Versa

ENGINE CONTROL SYSTEMEC-45
< FUNCTION DIAGNOSIS > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
Component DescriptionINFOID:0000000005929766

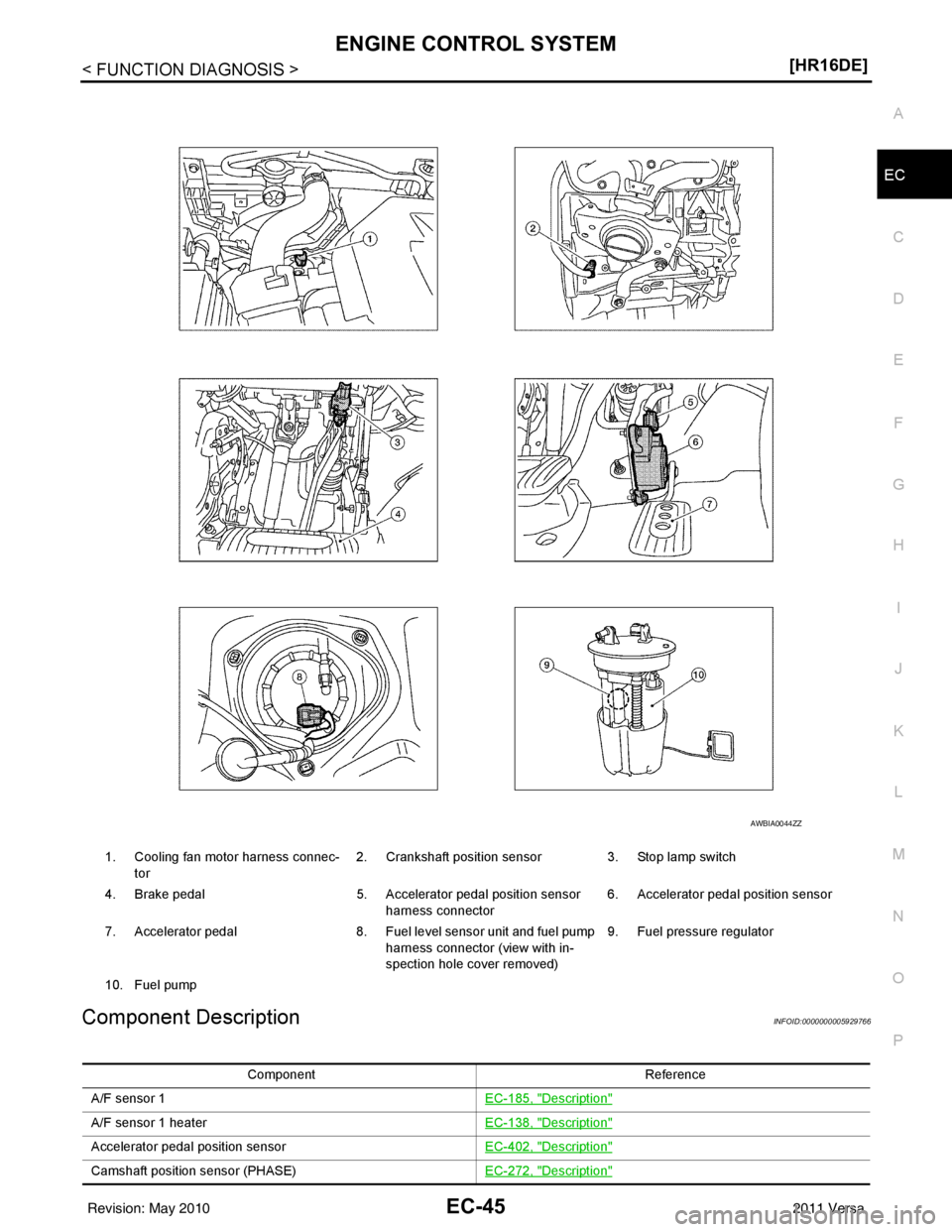

1. Cooling fan motor harness connec-
tor 2. Crankshaft position sensor 3. Stop lamp switch
4. Brake pedal 5. Accelerator pedal position sensor
harness connector 6. Accelerator pedal position sensor
7. Accelerator pedal 8. Fuel level sensor unit and fuel pump
harness connector (view with in-
spection hole cover removed) 9. Fuel pressure regulator
10. Fuel pump
AWBIA0044ZZ
Component Reference
A/F sensor 1 EC-185, "
Description"
A/F sensor 1 heaterEC-138, "Description"
Accelerator pedal position sensorEC-402, "Description"
Camshaft position sensor (PHASE)EC-272, "Description"
Revision: May 2010 2011 Versa

EC-46
< FUNCTION DIAGNOSIS >[HR16DE]
ENGINE CONTROL SYSTEM
Crankshaft position sensor (POS)
EC-267, "Description"
Cooling fan motorEC-71, "System Description"
Electric throttle control actuatorEC-400, "Description"
Engine coolant temperature sensorEC-168, "Description"
EVAP canister purge volume control solenoid valveEC-295, "Description"
EVAP canister vent control valveEC-305, "Description"
EVAP control system pressure sensorEC-316, "Description"
Fuel injectorEC-433, "Description"
Fuel level sensorEC-346, "Description"
Fuel pumpEC-437, "Description"
Fuel tank temperature sensorEC-244, "Description"
Heated oxygen sensor 2EC-207, "Description"
Heated oxygen sensor 2 heaterEC-142, "Description"
Ignition signalEC-442, "Description"
Intake air temperature sensorEC-164, "Description"
Intake valve timing control solenoid valveEC-89, "System Description"
Knock sensorEC-263, "Description"
Mass air flow sensorEC-150, "Description"
PCV valveEC-459, "Description"
Refrigerant pressure sensorEC-460, "Description"
Stop lamp switchEC-383, "Description"
Throttle control motorEC-396, "Description"
Throttle control motor relayEC-387, "Description"
Throttle position sensorEC-174, "Description"
Component Reference
