P0335 CKP SENSOR (POS)EC-267
< COMPONENT DIAGNOSIS > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
P0335 CKP SENSOR (POS)
DescriptionINFOID:0000000005929939
The crankshaft position sensor (POS
) is located on the oil pan facing
the gear teeth (cogs) of the signal pl ate. It detects the fluctuation of
the engine revolution.
The sensor consists of a permanent magnet and Hall IC.
When the engine is running, the high and low parts of the teeth
cause the gap with the sensor to change.
The changing gap causes the magnetic field near the sensor to
change.
Due to the changing magnetic fiel d, the voltage from the sensor
changes.
The ECM receives the voltage signal and detects the fluctuation of
the engine revolution.
ECM receives the signals as shown in the figure.
DTC LogicINFOID:0000000005929940
DTC DETECTION LOGIC
DTC CONFIRMATION PROCEDURE
1.PRECONDITIONING
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
TESTING CONDITION:
Before performing the follo wing procedure, confirm that battery vo ltage is more than 10.5 V with igni-
tion switch ON.
>> GO TO 2.
2.PERFORM DTC CONFIRMATION PROCEDURE
1. Start engine and let it idle for at least 5 seconds.
PBIA9209J
JMBIA0714GB
DTC No. Trouble diagnosis name DTC detecting conditionPossible cause
P0335 Crankshaft position sensor
(POS) circuit • The crankshaft position sensor (POS) signal
is not detected by the ECM during the first
few seconds of engine cranking.
• The proper pulse signal from the crankshaft position sensor (POS) is not sent to ECM
while the engine is running.
• The crankshaft position sensor (POS) signal is not in the normal pattern during engine run-
ning. • Harness or connectors
[Crankshaft position sensor (POS) cir-
cuit is open or shorted.]
(Refrigerant pressure sensor circuit is
shorted.)
(Accelerator pedal position sensor cir-
cuit is shorted.)
(EVAP control system pressure sensor
circuit is shorted.)
• Crankshaft position sensor (POS)
• Refrigerant pressure sensor
• Accelerator pedal position sensor
• EVAP control system pressure sensor
• Signal plate
Revision: May 2010 2011 Versa

EC-268
< COMPONENT DIAGNOSIS >[HR16DE]
P0335 CKP SENSOR (POS)
If engine does not start, crank
engine for at least 2 seconds.
2. Check 1st trip DTC.
Is 1st trip DTC detected?
YES >> Go to EC-269, "Diagnosis Procedure".
NO >> INSPECTION END
Wiring DiagramINFOID:0000000005929941
BBWA3071E
Revision: May 2010 2011 Versa

P0335 CKP SENSOR (POS)EC-269
< COMPONENT DIAGNOSIS > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
Diagnosis ProcedureINFOID:0000000005929942
1.CHECK GROUND CONNECTION
1. Turn ignition switch OFF.
2. Check ground connections E15, E24. Refer to EC-127, "
Ground Inspection".
Is the inspection result normal?
YES >> GO TO 2.
NO >> Repair or replace ground connection.
2.CHECK CRANKSHAFT POSITION (CKP) SEN SOR (POS) POWER SUPPLY CIRCUIT-I
1. Disconnect crankshaft position (CKP) sensor (POS) harness connector.
2. Turn ignition switch ON.
3. Check the voltage between CKP sensor (POS) harness connec- tor and ground.
Is the inspection result normal?
YES >> GO TO 8.
NO >> GO TO 3.
3.CHECK CKP SENSOR (POS) POWER SUPPLY CIRCUIT-II
1. Turn ignition switch ON.
2. Disconnect ECM harness connector.
3. Check the continuity between CKP sensor (POS) harness connector and ECM harness connector.
Is the inspection result normal?
YES >> GO TO 4.
NO >> Repair open circuit.
4.CHECK CKP SENSOR POWER SUPPLY CIRCUIT
Check harness for short to power and short to ground, between the following terminals.
Is the inspection result normal?
YES >> GO TO 5.
NO >> Repair short to ground or short to power in harness or connectors.
5.CHECK COMPONENTS
Check the following.
• Refrigerant pressure sensor (Refer to EC-461, "
Diagnosis Procedure".)
• EVAP control system pressure sensor (Refer to EC-318, "
Component Inspection".)
Is the inspection result normal?
CKP sensor (POS) Ground Voltage
Connector Terminal
F15 1 Ground Approx. 5 V
PBIB3312E
CKP sensor (POS) ECM
Continuity
Connector Terminal Connector Terminal
F15 1 F11 75 Existed
ECM Sensor
Connector Terminal NameConnector Terminal
F11 74 Refrigerant pressure sensor
E17 3
75 CKP sensor (POS) F15 1
76 EVAP control system pressure sensor B104 3
E16 102 APP sensor E12 5
Revision: May 2010 2011 Versa

EC-270
< COMPONENT DIAGNOSIS >[HR16DE]
P0335 CKP SENSOR (POS)
YES >> GO TO 6.
NO >> Replace malfunctioning components.
6.CHECK APP SENSOR
Refer to EC-405, "
Component Inspection".
Is the inspection result normal?
YES >> GO TO 12.
NO >> GO TO 7.
7.REPLACE ACCELERATOR PEDAL ASSEMBLY
1. Replace accelerator pedal assembly. Refer to ACC-4, "
Removal and Installation".
2. Perform EC-405, "
Special Repair Requirement".
>> INSPECTION END
8.CHECK CKP SENSOR (POS) GRO UND CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch OFF.
2. Check the continuity between CKP sensor (POS) harness connector and ECM harness connector.
3. Also check harness for short to ground and short to power.
Is the inspection result normal?
YES >> GO TO 9.
NO >> Repair open circuit or short to ground or short to power in harness or connectors.
9.CHECK CKP SENSOR (POS) INPUT SI GNAL CIRCUIT FOR OPEN AND SHORT
1. Disconnect ECM harness connector.
2. Check the continuity between CKP sensor (POS) harness connector and ECM harness connector.
3. Also check harness for short to ground and short to power.
Is the inspection result normal?
YES >> GO TO 10.
NO >> Repair open circuit or short to ground or short to power in harness or connectors.
10.CHECK CRANKSHAFT POSI TION SENSOR (POS)
Refer to EC-271, "
Component Inspection".
Is the inspection result normal?
YES >> GO TO 11.
NO >> Replace crankshaft position sensor (POS). Refer to EM-89, "
Exploded View".
11 .CHECK GEAR TOOTH
Visually check for chipping signal plate gear tooth.
Is the inspection result normal?
YES >> GO TO 12.
NO >> Replace the signal plate. Refer to EM-89, "
Exploded View".
12.CHECK INTERMITTENT INCIDENT
Refer to EC-122, "
Diagnosis Procedure".
CKP sensor (POS) ECM
Continuity
Connector Terminal Connector Terminal
F15 2 F11 62 Existed
CKP sensor (POS) ECM
Continuity
Connector Terminal Connector Terminal
F15 3 F11 61 Existed
Revision: May 2010 2011 Versa

P0335 CKP SENSOR (POS)EC-271
< COMPONENT DIAGNOSIS > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
>> INSPECTION END
Component InspectionINFOID:0000000005929943

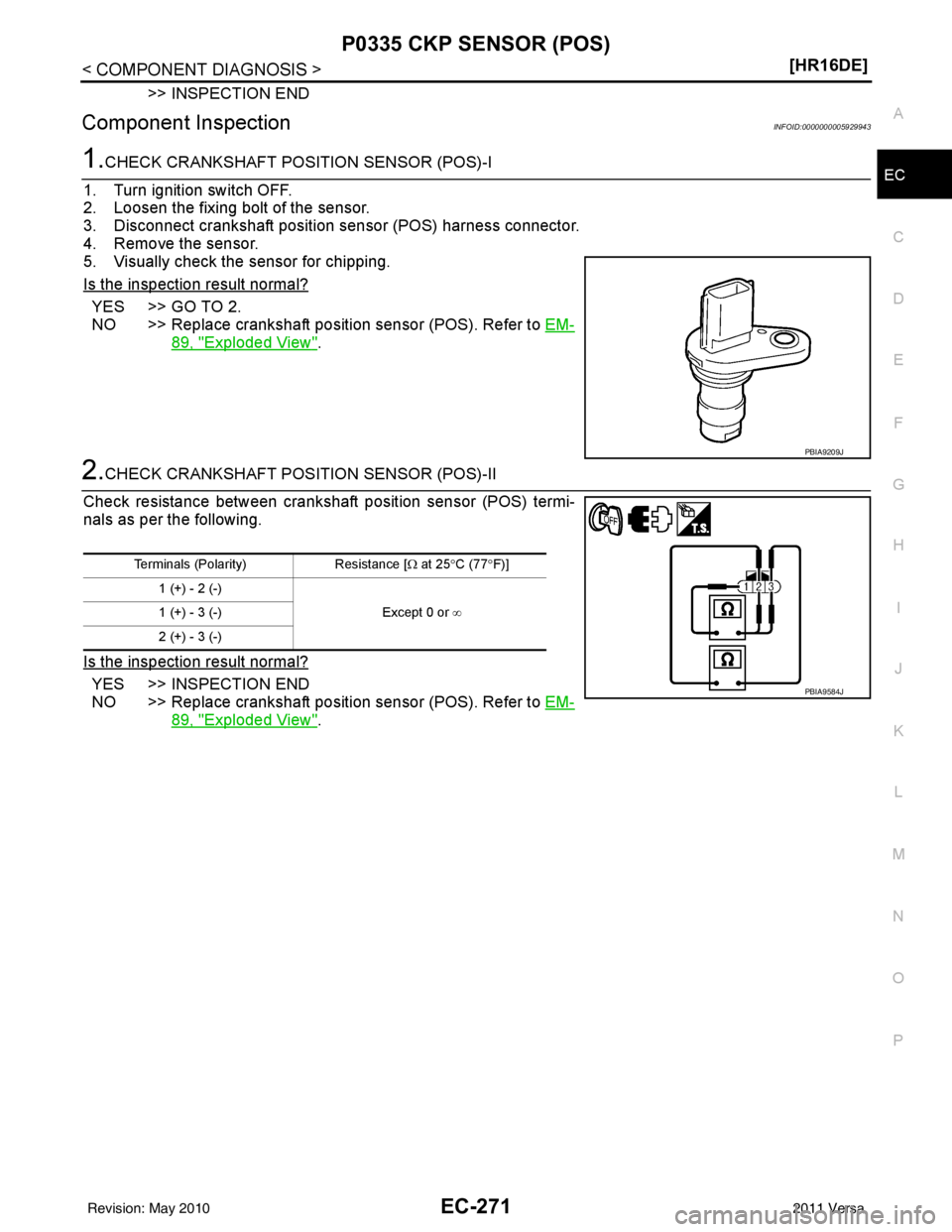

1.CHECK CRANKSHAFT POSI
TION SENSOR (POS)-I
1. Turn ignition switch OFF.
2. Loosen the fixing bolt of the sensor.
3. Disconnect crankshaft position sensor (POS) harness connector.
4. Remove the sensor.
5. Visually check the sensor for chipping.
Is the inspection result normal?
YES >> GO TO 2.
NO >> Replace crankshaft position sensor (POS). Refer to EM-
89, "Exploded View".
2.CHECK CRANKSHAFT POSITION SENSOR (POS)-II
Check resistance between crankshaft position sensor (POS) termi-
nals as per the following.
Is the inspection result normal?
YES >> INSPECTION END
NO >> Replace crankshaft position sensor (POS). Refer to EM-
89, "Exploded View".
PBIA9209J
Terminals (Polarity)Resistance [Ω at 25 °C (77 °F)]
1 (+) - 2 (-) Except 0 or ∞
1 (+) - 3 (-)
2 (+) - 3 (-)
PBIA9584J
Revision: May 2010 2011 Versa

EC-272
< COMPONENT DIAGNOSIS >[HR16DE]
P0340 CMP SENSOR (PHASE)
P0340 CMP SENSOR (PHASE)
DescriptionINFOID:0000000005929944
The camshaft position sensor (PHASE) senses the retraction of
camshaft (INT) to identify a particular cylinder. The camshaft position
sensor (PHASE) senses the piston position.
When the crankshaft position sensor (POS) system becomes inoper-
ative, the camshaft position sensor
(PHASE) provides various con-
trols of engine parts instead, utilizing timing of cylinder identification
signals.
The sensor consists of a permanent magnet and Hall IC.
When engine is running, the high and low parts of the teeth cause
the gap with the sensor to change.
The changing gap causes the magnetic field near the sensor to
change.
Due to the changing magnetic field, the voltage from the sensor changes.

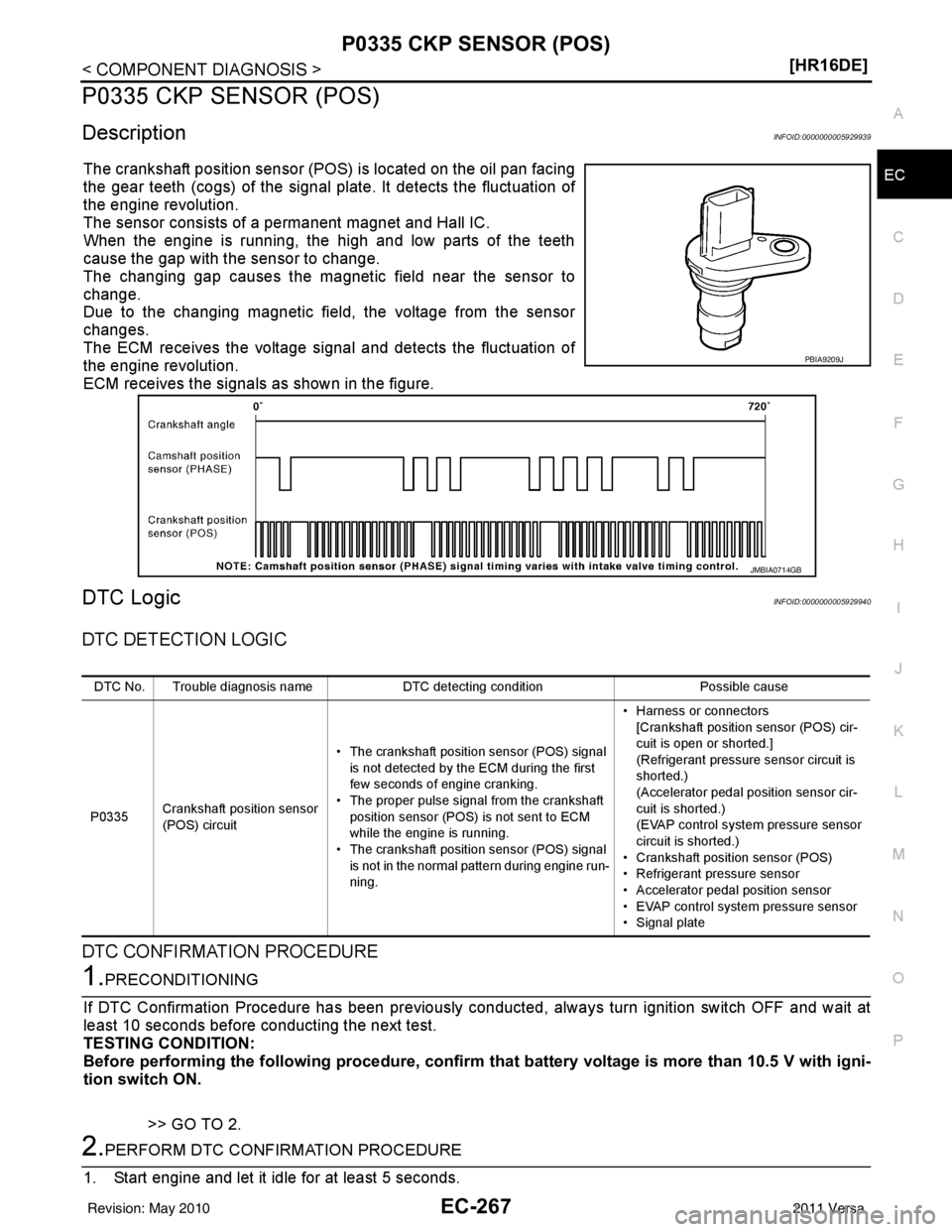

ECM receives the signals as shown in the figure.
DTC LogicINFOID:0000000005929945
DTC DETECTION LOGIC
NOTE:
If DTC P0340 is displayed with DTC P0643, first pe rform the trouble diagnosis for DTC P0643. Refer to
EC-362, "
DTC Logic".
DTC CONFIRMATION PROCEDURE
1.PRECONDITIONING
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
TESTING CONDITION:
Before performing the following procedure, confirm that battery voltage is more than 10.5 V with igni-
tion switch ON.
>> GO TO 2.
2.PERFORM DTC CONFIRMATION PROCEDURE-I
1. Start engine and let it idle for at least 5 seconds. If engine does not start, crank engine for at least 2 seconds.
2. Check 1st trip DTC.
PBIA9875J
JMBIA0714GB
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P0340 Camshaft position sensor
(PHASE) circuit • The cylinder No. signal is not sent to ECM for
the first few seconds during engine cranking.
• The cylinder No. signal is not sent to ECM during engine running.
• The cylinder No. signal is not in the normal pattern during engine running. • Harness or connectors
(The sensor circuit is open or shorted)
• Camshaft position sensor (PHASE)
• Camshaft (INT)
• Starter motor
• Starting system circuit
• Dead (Weak) battery
Revision: May 2010 2011 Versa

P0340 CMP SENSOR (PHASE)EC-273
< COMPONENT DIAGNOSIS > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
Is 1st trip DTC detected?
YES >> Go to EC-274, "Diagnosis Procedure".
NO >> GO TO 3.
3.PERFORM DTC CONFIRMATION PROCEDURE-I
1. Maintaining engine speed at more than 800 rpm for at least 5 seconds.
2. Check 1st trip DTC.
Is 1st trip DTC detected?
YES >> Go to EC-274, "Diagnosis Procedure".
NO >> INSPECTION END
Revision: May 2010 2011 Versa

EC-274
< COMPONENT DIAGNOSIS >[HR16DE]
P0340 CMP SENSOR (PHASE)

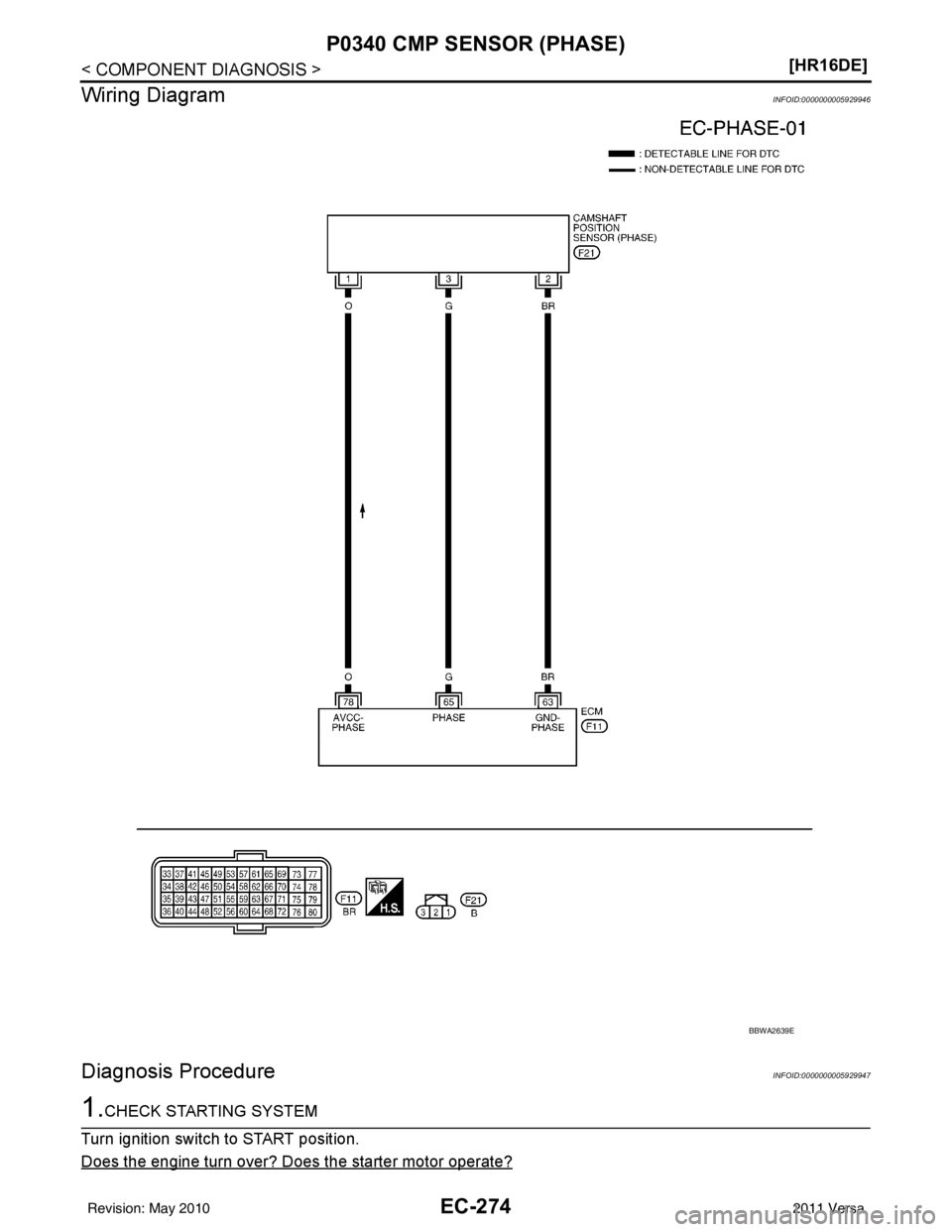

Wiring Diagram
INFOID:0000000005929946
Diagnosis ProcedureINFOID:0000000005929947
1.CHECK STARTING SYSTEM
Turn ignition switch to START position.
Does the engine turn over? Does the starter motor operate?
BBWA2639E
Revision: May 2010 2011 Versa

P0340 CMP SENSOR (PHASE)EC-275
< COMPONENT DIAGNOSIS > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
YES >> GO TO 2.
NO >> Check starting system (Refer to
SC-16, "
Trouble Diagnosis with Multitasking Battery Diagnostic
Station".).

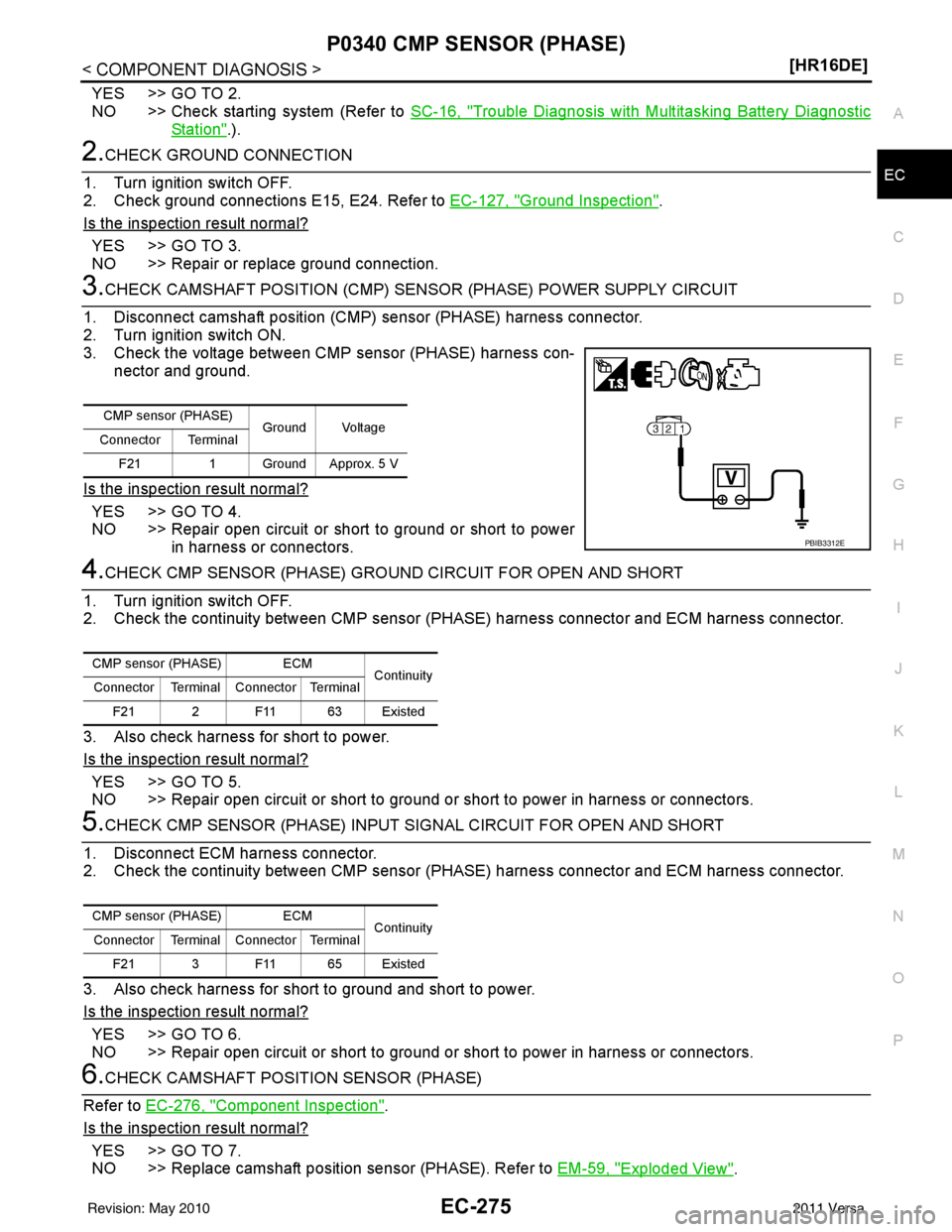

2.CHECK GROUND CONNECTION
1. Turn ignition switch OFF.
2. Check ground connections E15, E24. Refer to EC-127, "
Ground Inspection".
Is the inspection result normal?
YES >> GO TO 3.
NO >> Repair or replace ground connection.
3.CHECK CAMSHAFT POSITION (CMP) SEN SOR (PHASE) POWER SUPPLY CIRCUIT
1. Disconnect camshaft position (CMP) sensor (PHASE) harness connector.
2. Turn ignition switch ON.
3. Check the voltage between CMP sensor (PHASE) harness con- nector and ground.
Is the inspection result normal?
YES >> GO TO 4.
NO >> Repair open circuit or short to ground or short to power in harness or connectors.
4.CHECK CMP SENSOR (PHASE) GRO UND CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch OFF.
2. Check the continuity between CMP sensor (PHASE) harness connector and ECM harness connector.
3. Also check harness for short to power.
Is the inspection result normal?
YES >> GO TO 5.
NO >> Repair open circuit or short to ground or short to power in harness or connectors.
5.CHECK CMP SENSOR (PHASE) INPUT SI GNAL CIRCUIT FOR OPEN AND SHORT
1. Disconnect ECM harness connector.
2. Check the continuity between CMP sensor (PHASE) harness connector and ECM harness connector.
3. Also check harness for short to ground and short to power.
Is the inspection result normal?
YES >> GO TO 6.
NO >> Repair open circuit or short to ground or short to power in harness or connectors.
6.CHECK CAMSHAFT POSITI ON SENSOR (PHASE)
Refer to EC-276, "
Component Inspection".
Is the inspection result normal?
YES >> GO TO 7.
NO >> Replace camshaft position sensor (PHASE). Refer to EM-59, "
Exploded View".
CMP sensor (PHASE)
Ground Voltage
Connector Terminal
F21 1 Ground Approx. 5 V
PBIB3312E
CMP sensor (PHASE) ECM
Continuity
Connector Terminal Connector Terminal
F21 2 F11 63 Existed
CMP sensor (PHASE) ECM Continuity
Connector Terminal Connector Terminal
F21 3 F11 65 Existed
Revision: May 2010 2011 Versa

EC-276
< COMPONENT DIAGNOSIS >[HR16DE]
P0340 CMP SENSOR (PHASE)
7.CHECK CAMSHAFT (INT)
Check the following.
• Accumulation of debris to the si gnal plate of camshaft (1) rear end
• Chipping signal plate of camshaft rear end
Is the inspection result normal?
YES >> GO TO 8.
NO >> Remove debris and clean the signal plate of camshaft rear end or replace camshaft. Refer to EM-59,
"Exploded View".
8.CHECK INTERMITTENT INCIDENT
Refer to EC-122, "
Diagnosis Procedure".
>> INSPECTION END
Component InspectionINFOID:0000000005929948
1.CHECK CAMSHAFT POSI TION SENSOR (PHASE)-I
1. Turn ignition switch OFF.
2. Loosen the fixing bolt of the sensor.
3. Disconnect camshaft position sensor (PHASE) harness connector.
4. Remove the sensor.
5. Visually check the sensor for chipping.
Is the inspection result normal?
YES >> GO TO 2.
NO >> Replace camshaft position sensor (PHASE). Refer to EM-59, "
Exploded View".
2.CHECK CAMSHAFT POSITI ON SENSOR (PHASE)-II
Check resistance camshaft position sensor (PHASE) terminals as
per the following.
Is the inspection result normal?
YES >> INSPECTION END
NO >> Replace camshaft position sensor (PHASE). Refer to EM-59, "
Exploded View".
PBIA9557J
PBIA9876J
Terminals (Polarity) Resistance [ Ω at 25 °C (77 °F)]
1 (+) - 2 (-) Except 0 or ∞
1 (+) - 3 (-)
2 (+) - 3 (-)
PBIA9584J
Revision: May 2010 2011 Versa
