P2118 THROTTLE CONTROL MOTOREC-397
< COMPONENT DIAGNOSIS > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O

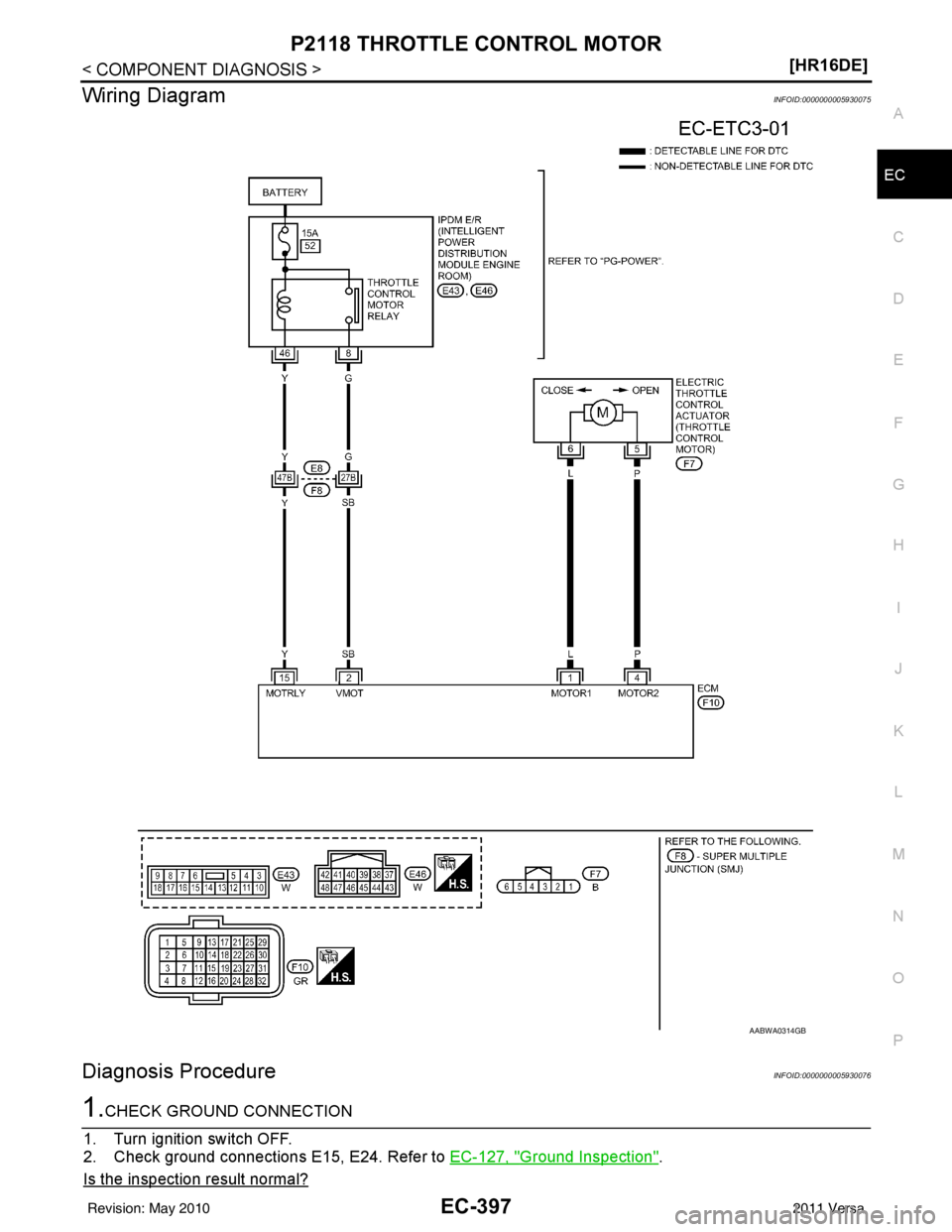

Wiring DiagramINFOID:0000000005930075
Diagnosis ProcedureINFOID:0000000005930076
1.CHECK GROUND CONNECTION
1. Turn ignition switch OFF.
2. Check ground connections E15, E24. Refer to EC-127, "
Ground Inspection".
Is the inspection result normal?
AABWA0314GB
Revision: May 2010 2011 Versa

EC-398
< COMPONENT DIAGNOSIS >[HR16DE]
P2118 THROTTLE CONTROL MOTOR
YES >> GO TO 2.
NO >> Repair or replace ground connection.
2.CHECK THROTTLE CONTROL MOTOR OUTPUT
SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Disconnect electric throttle control actuator harness connector.
2. Disconnect ECM harness connector.
3. Check the continuity between electric throttle control actuator harness connector and ECM harness con-
nector.
4. Also check harness for short to ground and short to power.
Is the inspection result normal?
YES >> GO TO 3.
NO >> Repair or replace.
3.CHECK THROTTLE CONTROL MOTOR
Refer to EC-398, "
Component Inspection".
Is the inspection result normal?
YES >> GO TO 4.
NO >> GO TO 5.
4.CHECK INTERMITTENT INCIDENT
Refer to EC-122, "
Diagnosis Procedure".
Is the inspection result normal?
YES >> GO TO 5.
NO >> Repair or replace harness or connectors.
5.REPLACE ELECTRIC THROTTLE CONTROL ACTUATOR
1. Replace electric throttle control actuator. Refer to EM-27, "
Exploded View".
2. Perform EC-399, "
Special Repair Requirement".
>> INSPECTION END
Component InspectionINFOID:0000000006141002
1.CHECK THROTTLE CONTROL MOTOR
1. Turn ignition switch OFF.
2. Disconnect electric throttle control actuator harness connector.
3. Check the resistance between electric throttle control actuator terminals as per the following.
Is the inspection result normal?
YES >> INSPECTION END
NO >> GO TO 2.
2.REPLACE ELECTRIC THROTTLE CONTROL ACTUATOR
Electric throttle control actuator ECM
Continuity
Connector Terminal Connector Terminal
F7 5
F10 1 Not existed
4Existed
6 1Existed
4 Not existed
Terminals
Resistance
5 and 6 Approx. 1 - 15 Ω [at 25 °C (77 °F)]
PBIB2909E
Revision: May 2010 2011 Versa

P2118 THROTTLE CONTROL MOTOREC-399
< COMPONENT DIAGNOSIS > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
1. Replace electric throttle control actuator. Refer to
EM-27, "Exploded View".
2. Perform EC-395, "
Special Repair Requirement".
>> INSPECTION END
Special Repair RequirementINFOID:0000000006141003
1.PERFORM THROTTLE VALVE CL OSED POSITION LEARNING
Refer to EC-25, "
THROTTLE VALVE CLOSED POSITION L EARNING : Special Repair Requirement"
>> GO TO 2.
2.PERFORM IDLE AIR VOLUME LEARNING
Refer to EC-26, "
IDLE AIR VOLUME LEARNING : Special Repair Requirement"
>> END
Revision: May 2010 2011 Versa

EC-400
< COMPONENT DIAGNOSIS >[HR16DE]
P2119 ELECTRIC THROTTLE CONTROL ACTUATOR
P2119 ELECTRIC THROTTLE CONTROL ACTUATOR
DescriptionINFOID:0000000005930079
Electric throttle control actuator consists of th
rottle control motor, throttle position sensor, etc.
The throttle control motor is operated by the ECM and it opens and closes the throttle valve.
The throttle position sensor detects the throttle valv e position, and feeds the voltage signal to the ECM. The
ECM judges the current opening angle of the throttle valve and controls the throttle valve opening angle in
response to driving conditions via the throttle control motor.
DTC LogicINFOID:0000000005930080
DTC DETECTION LOGIC
DTC CONFIRMATION PROCEDURE
1.PRECONDITIONING
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
>> GO TO 2.
2.PERFORM DTC CONFIRMATION PROCEDURE FOR MALFUNCTION A AND B
1. Turn ignition switch ON and wait at least 1 second.
2. Set selector lever to D (A/T) or 1st (M/T) position and wait at least 3 seconds.
3. Set selector lever to P (A/T) or Neutral (M/T) position.
4. Turn ignition switch OFF and wait at least 10 seconds.
5. Turn ignition switch ON and wait at least 1 second.
6. Set selector lever to D (A/T) or 1st (M/T) position and wait at least 3 seconds.
7. Set selector lever to P (A/T) or Neutral (M/T) position.
8. Turn ignition switch OFF, wait at least 10 seconds and then turn ON.
9. Check DTC.
Is DTC detected?
YES >> Go to EC-400, "Diagnosis Procedure".
NO >> GO TO 3.
3.PERFORM DTC CONFIRMATION PROCEDURE FOR MALFUNCTION C
1. Turn ignition switch ON and wait at least 1 second.
2. Set selector lever to D (A/T) or 1st (M/T) position and wait at least 3 seconds.
3. Set selector lever to P (A/T) or Neutral (M/T) position.
4. Start engine and let it idle for 3 seconds.
5. Check DTC.
Is DTC detected?
YES >> Go to EC-400, "Diagnosis Procedure".
NO >> INSPECTION END
Diagnosis ProcedureINFOID:0000000006141000
1.CHECK ELECTRIC THROTTLE CONTROL ACTUATOR VISUALLY
1. Turn ignition switch OFF.
2. Remove the intake air duct.
DTC No. Trouble diagnosis name DTC detecting conditionPossible cause
P2119 Electric throttle control
actuator A
Electric throttle control actuator does not function
properly due to the return spring malfunction.
• Electric throttle control actuator
B Throttle valve opening angle in fail-safe mode is
not in specified range.
C ECM detect the throttle valve is stuck open.
Revision: May 2010 2011 Versa

P2119 ELECTRIC THROTTLE CONTROL ACTUATOREC-401
< COMPONENT DIAGNOSIS > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
3. Check if foreign matter is c
aught between the throttle valve (1)
and the housing.
- Electric throttle control actuator (2)
Is the inspection result normal?
YES >> GO TO 2.
NO >> Remove the foreign matter and clean the electric throttle
control actuator inside.
2.REPLACE ELECTRIC THROTTLE CONTROL ACTUATOR
1. Replace electric throttle control actuator. Refer to EM-27, "
Exploded View".
2. Perform EC-377, "
Special Repair Requirement".
>> INSPECTION END
Special Repair RequirementINFOID:0000000006141001
1.PERFORM THROTTLE VALVE CL OSED POSITION LEARNING
Refer to EC-25, "
THROTTLE VALVE CLOSED POSITION L EARNING : Special Repair Requirement"
>> GO TO 2.
2.PERFORM IDLE AIR VOLUME LEARNING
Refer to EC-26, "
IDLE AIR VOLUME LEARNING : Special Repair Requirement"
>> END
JMBIA0447ZZ
Revision: May 2010 2011 Versa

EC-402
< COMPONENT DIAGNOSIS >[HR16DE]
P2122, P2123 APP SENSOR
P2122, P2123 APP SENSOR
DescriptionINFOID:0000000005930083
The accelerator pedal position sensor is installed on the upper end
of the accelerator pedal assembly. The sensor detects the accelera-
tor position and sends a signal to the ECM.
Accelerator pedal position sensor has two sensors. These sensors
are a kind of potentiometer which transform the accelerator pedal
position into output voltage, and emit the voltage signal to the ECM.
The ECM judges the current opening angle of the accelerator pedal
from these signals and controls the throttle control motor based on
these signals.
Idle position of the accelerator pedal is determined by the ECM
receiving the signal from the accelerator pedal position sensor. The
ECM uses this signal for the engine operation such as fuel cut.
DTC LogicINFOID:0000000005930084
DTC DETECTION LOGIC
NOTE:
If DTC P2122 or P2123 is displayed with DTC P0643, first perform the tro\
ubl
e diagnosis for DTC P0643.
Refer to EC-362, "
DTC Logic".
DTC CONFIRMATION PROCEDURE
1.PRECONDITIONING
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
TESTING CONDITION:
Before performing the following procedure, confirm that battery voltage is more than 8 V at idle.
>> GO TO 2.
2.PERFORM DTC CONFIRMATION PROCEDURE
1. Start engine and let it idle for 1 second.
2. Check DTC.
Is DTC detected?
YES >> Go to EC-403, "Diagnosis Procedure".
NO >> INSPECTION END
PBIB1741E
DTC No. Trouble diagnosis name DTC detecting conditionPossible cause
P2122 Accelerator pedal position
sensor 1 circuit low input An excessively low
voltage from the APP
sensor 1 is sent to ECM. • Harness or connectors
(APP sensor 1 circuit is open or shorted.)
• Accelerator pedal position sensor
(APP sensor 1)
P2123 Accelerator pedal position
sensor 1 circuit high input An excessively high voltage from the APP
sensor 1 is sent to ECM.
Revision: May 2010
2011 Versa

P2122, P2123 APP SENSOREC-403
< COMPONENT DIAGNOSIS > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O

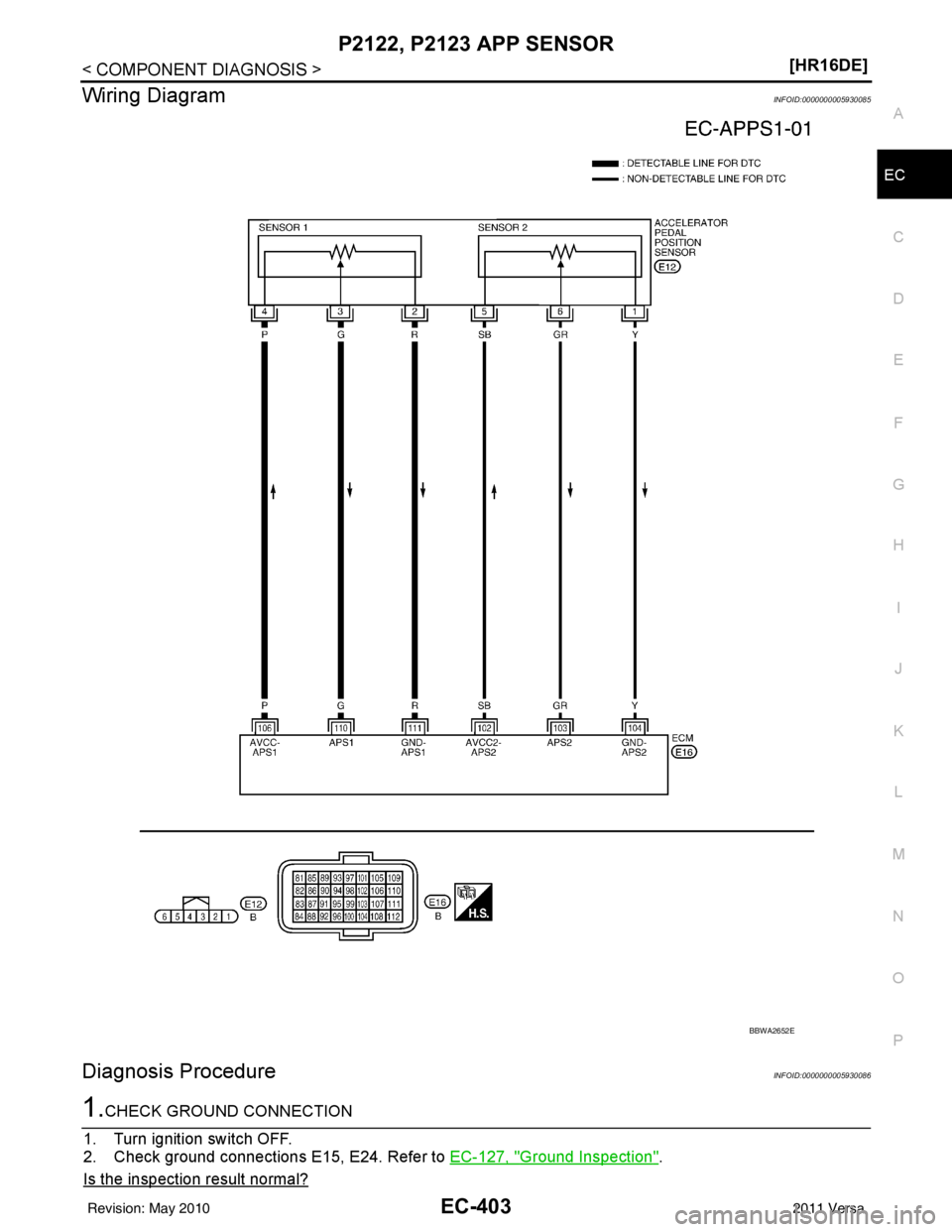

Wiring DiagramINFOID:0000000005930085
Diagnosis ProcedureINFOID:0000000005930086
1.CHECK GROUND CONNECTION
1. Turn ignition switch OFF.
2. Check ground connections E15, E24. Refer to EC-127, "
Ground Inspection".
Is the inspection result normal?
BBWA2652E
Revision: May 2010 2011 Versa

EC-404
< COMPONENT DIAGNOSIS >[HR16DE]
P2122, P2123 APP SENSOR
YES >> GO TO 2.
NO >> Repair or replace ground connection.
2.CHECK APP SENSOR 1 POWER SUPPLY CIRCUIT
1. Disconnect accelerator pedal position (APP) sensor harness connector.
2. Turn ignition switch ON.
3. Check the voltage between APP sensor harness connector and ground.
Is the inspection result normal?
YES >> GO TO 3.
NO >> Repair open circuit or short to ground or short to power in harness or connectors.
3.CHECK APP SENSOR 1 GROUND CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Check the continuity between APP sens or harness connector and ECM harness connector.
4. Also check harness for short to ground and short to power.
Is the inspection result normal?
YES >> GO TO 4.
NO >> Repair open circuit or short to ground or short to power in harness or connectors.
4.CHECK APP SENSOR INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Check the continuity between APP sens or harness connector and ECM harness connector.
2. Also check harness for short to ground and short to power.
Is the inspection result normal?
YES >> GO TO 5.
NO >> Repair open circuit or short to ground or short to power in harness or connectors.
5.CHECK APP SENSOR
Refer to EC-405, "
Component Inspection".
Is the inspection result normal?
YES >> GO TO 7.
NO >> GO TO 6.
6.REPLACE ACCELERATOR PEDAL ASSEMBLY
1. Replace accelerator pedal assembly. Refer to ACC-4, "
Removal and Installation".
2. Perform EC-405, "
Special Repair Requirement".
>> INSPECTION END
7.CHECK INTERMITTENT INCIDENT
APP sensor Ground Voltage
Connector Terminal
E12 4 Ground Approx. 5 V
PBIA9606J
APP sensor ECM
Continuity
Connector Terminal Connector Terminal
E12 2 E16 111 Existed
APP sensor ECM
Continuity
Connector Terminal Connector Terminal
E12 3 E16 110 Existed
Revision: May 2010 2011 Versa

P2122, P2123 APP SENSOREC-405
< COMPONENT DIAGNOSIS > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
Refer to
EC-122, "Diagnosis Procedure".
>> INSPECTION END
Component InspectionINFOID:0000000005930087
1.CHECK ACCELERATOR PEDAL POSITION SENSOR
1. Reconnect all harness connectors disconnected.
2. Turn ignition switch ON.
3. Check the voltage between ECM harness connector and ground.
Is the inspection result normal?
YES >> INSPECTION END
NO >> GO TO 2.
2.REPLACE ACCELERATOR PEDAL ASSEMBLY
1. Replace accelerator pedal assembly. Refer to ACC-4, "
Removal and Installation".
2. Perform EC-405, "
Special Repair Requirement".
>> INSPECTION END
Special Repair RequirementINFOID:0000000005930088
1.PERFORM ACCELERATOR PEDAL RE LEASED POSITION LEARNING
Refer to EC-25, "
ACCELERATOR PEDAL RELEASED POSITION LEARNING : Special Repair Requirement".
>> GO TO 2.
2.PERFORM THROTTLE VALVE CL OSED POSITION LEARNING
Refer to EC-25, "
THROTTLE VALVE CLOSED POSITION L EARNING : Special Repair Requirement".
>> GO TO 3.
3.PERFORM IDLE AIR VOLUME LEARNING
Refer to EC-26, "
IDLE AIR VOLUME LEARNING : Special Repair Requirement".
>> END
ECM Ground Condition Voltage
Connector Terminal
E16 11 0
(APP sensor 1 signal) GroundAccelerator
pedal Fully released 0.6 - 0.9 V
Fully depressed 3.9 - 4.7 V
103
(APP sensor 2 signal) Fully released 0.3 - 0.6 V
Fully depressed 1.95 - 2.4 V
PBIA9572J
Revision: May 2010
2011 Versa

EC-406
< COMPONENT DIAGNOSIS >[HR16DE]
P2127, P2128 APP SENSOR
P2127, P2128 APP SENSOR
DescriptionINFOID:0000000006140995
The accelerator pedal position sensor is installed on the upper end
of the accelerator pedal assembly. The sensor detects the accelera-
tor position and sends a signal to the ECM.
Accelerator pedal position sensor has two sensors. These sensors
are a kind of potentiometer which transform the accelerator pedal
position into output voltage, and emit the voltage signal to the ECM.
The ECM judges the current opening angle of the accelerator pedal
from these signals and controls the throttle control motor based on
these signals.
Idle position of the accelerator pedal is determined by the ECM
receiving the signal from the accelerator pedal position sensor. The
ECM uses this signal for the engine operation such as fuel cut.
DTC LogicINFOID:0000000005930090
DTC DETECTION LOGIC
DTC CONFIRMATION PROCEDURE
1.PRECONDITIONING
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
TESTING CONDITION:
Before performing the following procedure, confirm that battery voltage is more than 8 V at idle.
>> GO TO 2.
2.PERFORM DTC CONFIRMATION PROCEDURE
1. Start engine and let it idle for 1 second.
2. Check DTC.
Is DTC detected?
YES >> Go to EC-407, "Diagnosis Procedure".
NO >> INSPECTION END
PBIB1741E
DTC No. Trouble diagnosis name DTC detecting conditionPossible cause
P2127 Accelerator pedal position
sensor 2 circuit low input An excessively low voltage from the APP
sensor 2 is sent to ECM. • Harness or connectors
(APP sensor 2 circuit is open or shorted.)
[Crankshaft position sensor (POS) circuit
is shorted.]
(Refrigerant pressure sensor circuit is
shorted.)
(EVAP control system pressure sensor
circuit is shorted.)
• Accelerator pedal position sensor (APP sensor 2)
• Crankshaft position sensor (POS)
• Refrigerant pressure sensor
• EVAP control system pressure sensor
P2128
Accelerator pedal position
sensor 2 circuit high input An excessively high
voltage from the APP
sensor 2 is sent to ECM.
Revision: May 2010 2011 Versa
