TROUBLE DIAGNOSISEC-587
< SERVICE INFORMATION > [MR18DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
1. Get the detailed information from the customer about the symptom (the condition and the environment
when the incident/malfunction occurred) using the “Diagnostic Work Sheet”.
2. Ask if the customer requests I/M examination.
Malfunction information, obtained>>GO TO 2.
No malfunction information, but a request for I/M examination>>GO TO 13.
2.CHECK DTC
1. Check DTC.
2. Perform the following procedure if DTC is displayed.
- Record DTC and freeze frame data. (Print them out with CONSULT-III or GST.)
- Erase DTC. (Refer to EC-542, "
Emission-related Diagnostic Information".)
- Study the relationship between the cause detected by DTC and the symptom described by the customer.
(Symptom Table is useful. Refer to EC-592, "
Symptom Matrix Chart".)
3. Check related service bulletins for information.
Are any symptoms described and any DTCs detected?
Symptom is described, DTC is detected>>GO TO 3.
Symptom is described, DTC is not detected>>GO TO 4.
Symptom is not described, DTC is detected>>GO TO 5.
3.CONFIRM THE SYMPTOM
Try to confirm the symptom described by the customer (except MIL ON).
Also study the normal operation and fa il-safe related to the symptom.
Diagnosis Work Sheet is useful to verify the incident.
Verify relation between the symptom and t he condition when the symptom is detected.
>> GO TO 5.
4.CONFIRM THE SYMPTOM
Try to confirm the symptom described by the customer.
Also study the normal operation and fa il-safe related to the symptom.
Diagnosis Work Sheet is useful to verify the incident.
Verify relation between the symptom and t he condition when the symptom is detected.
>> GO TO 6.
5.PERFORM DTC CONFIRMATION PROCEDURE
Perform DTC CONFIRMATION PROCEDURE for the di splayed DTC, and then make sure that DTC is
detected again.
If two or more DTCs are detected, refer to EC-590, "
DTC Inspection Priority Chart" and determine trouble
diagnosis order.
NOTE:
• Freeze frame data is useful if the DTC is not detected.
• Perform Component Function Check if DTC CONF IRMATION PROCEDURE is not included on Service
Manual. This simplified check procedure is an effect ive alternative though DTC cannot be detected during
this check.
If the result of Component Function Check is NG, it is the same as the detection of DTC by DTC CONFIR-
MATION PROCEDURE.
Is DTC detected?
YES >> GO TO 10.
NO >> Check according to EC-624, "
Description".
6.PERFORM BASIC INSPECTION
Perform EC-574, "
Basic Inspection".
Do you have CONSULT-III?
YES >> GO TO 7.
NO >> GO TO 9.
Revision: May 2010 2011 Versa

EC-588
< SERVICE INFORMATION >[MR18DE]
TROUBLE DIAGNOSIS
7.PERFORM SPEC IN DATA MONITOR MODE
With CONSULT-III
Make sure that “MAS A/F SE-B1”, “MAS A/F SE-B2”, “B/FUEL SCHDL”, “A/F ALPHA-B1”, and “A/F ALPHA-
B2” are within the SP value using CONSULT-III “SPEC” in “DATA MONITOR” mode. Refer to EC-624, "
Inspec-
tion Procedure".
Is the measurement value within the SP value?
YES >> GO TO 9.
NO >> GO TO 8.
8.DETECT MALFUNCTIONING PART BY TROUBL E DIAGNOSIS - SPECIFICATION VALUE
Detect malfunctioning part according to EC-624, "
Diagnosis Procedure".
Is a malfunctioning part detected?
YES >> GO TO 11.
NO >> GO TO 9.
9.DETECT MALFUNCTIONING SYSTEM BY SYMPTOM TABLE
Detect malfunctioning system according to EC-592, "
Symptom Matrix Chart" based on the confirmed symptom
in step 4, and determine the trouble diagnosis order based on possible causes and symptoms.
>> GO TO 10.
10.DETECT MALFUNCTIONING PA RT BY DIAGNOSIS PROCEDURE
Inspect according to Diagnos is Procedure of the system.
NOTE:
The Diagnosis Procedure in EC section described based on open circuit inspection. A short circuit inspection
is also required for the circuit check in the Diagnosis Procedure. For details, refer to GI-25, "
How to Perform
Efficient Diagnosis for an Electrical Incident".
Is a malfunctioning part detected?
YES >> GO TO 11.
NO >> Monitor input data from related sensors or check voltage of related ECM terminals using CON- SULT-III. Refer to EC-605, "
ECM Terminal and Reference Value", EC-620, "CONSULT-III Refer-
ence Value in Data Monitor Mode".
11 .REPAIR OR REPLACE THE MALFUNCTIONING PART
1. Repair or replace the malfunctioning part.
2. Reconnect parts or connectors disconnected during Diagnosis Procedure again after repair and replace- ment.
3. Check DTC. If DTC is displayed, erase it. Refer to EC-542, "
Emission-related Diagnostic Information".
>> GO TO 12.
12.FINAL CHECK
When DTC was detected in step 2, perform DTC CO NFIRMATION PROCEDURE or Component Function
Check again, and then make sure that the malfunction have been completely repaired.
When symptom was described from the customer, refer to confirmed symptom in step 3 or 4, and make sure
that the symptom is not detected.
Is DTC detected and does symptom remain?
YES-1 >> DTC is detected: GO TO 10.
YES-2 >> Symptom remains: GO TO 6.
NO-1 >> No request for I/M examination from the custom er: Before returning the vehicle to the customer,
always erase unnecessary DTC in ECM and TCM (Transmission Control Module). Refer to EC-
542, "Emission-related Diagnostic Information".
NO-2 >> I/M examination, request ed from the customer: GO TO 13.
13.PREPARE FOR I/M EXAMINATION
1. Set SRT codes. Refer to EC-542, "
Emission-related Diagnostic Information".
2. Erase permanent DTCs. Refer to EC-542, "
Emission-related Diagnostic Information".
Revision: May 2010 2011 Versa

TROUBLE DIAGNOSISEC-589
< SERVICE INFORMATION > [MR18DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
>> INSPECTION END
DIAGNOSTIC WORKSHEET
Description
There are many operating conditions
that lead to the malfunction of
engine components. A good grasp of such conditions can make trou-
bleshooting faster and more accurate.
In general, each customer feels differently about an incident. It is
important to fully understand the symptoms or conditions for a cus-
tomer complaint.
Utilize a diagnostic worksheet as shown in the following "Worksheet
Sample" in order to organize all the information for troubleshooting.
Some conditions may cause the MI L to come on steady or blink and
DTC to be detected. Examples:
• Vehicle ran out of fuel, which caused the engine to misfire.
• Fuel filler cap was left off or incorrectly screwed on, allowing fuel to evaporate into the atmosphere.

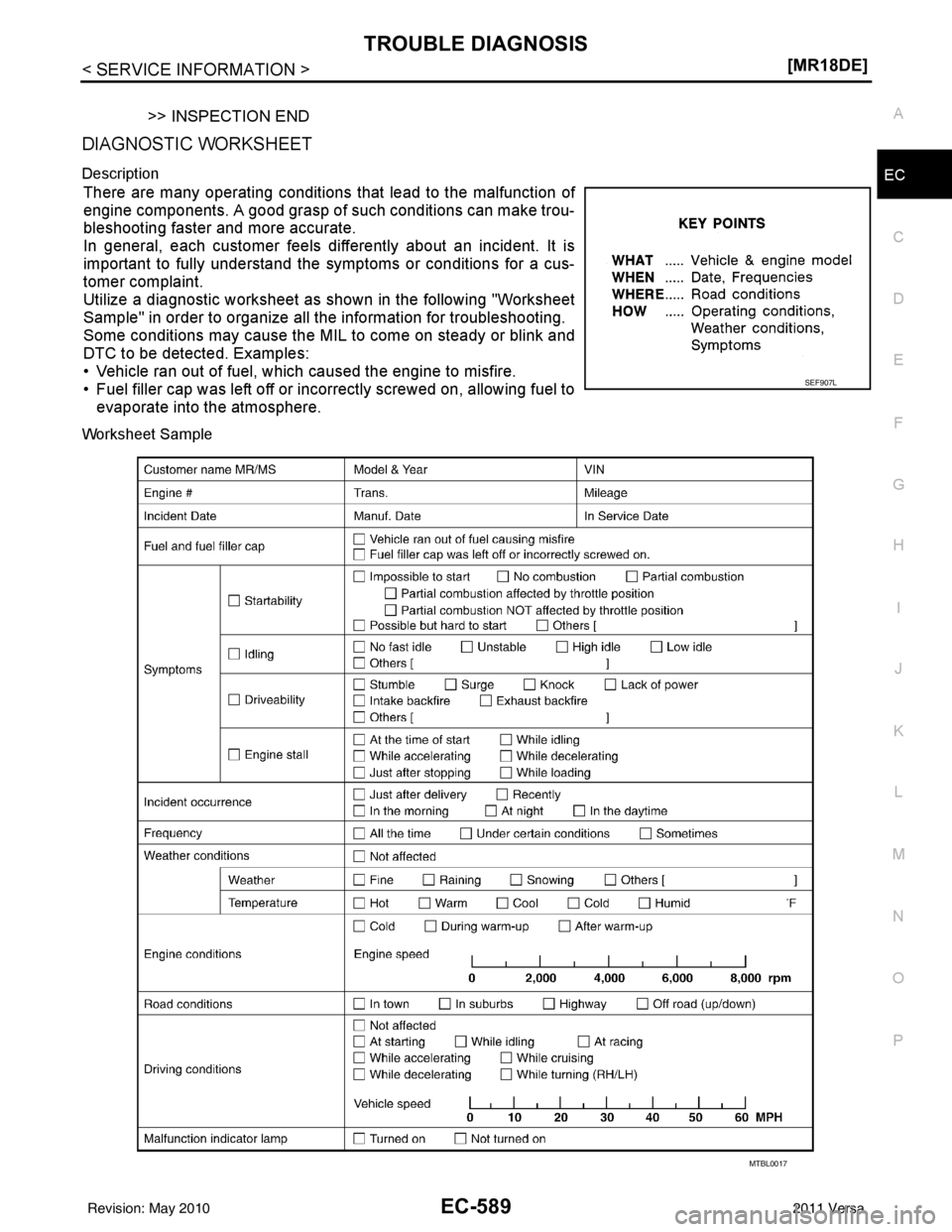

Worksheet Sample
SEF907L
MTBL0017
Revision: May 2010 2011 Versa

EC-590
< SERVICE INFORMATION >[MR18DE]
TROUBLE DIAGNOSIS
DTC Inspection Priority Chart
INFOID:0000000006341731
If some DTCs are displayed at the same time, perform inspections one by one based on the following priority
chart.
Fail-Safe ChartINFOID:0000000006341732
When the DTC listed below is detected, the ECM enters fail-safe mode and the MIL lights up.
Priority Detected items (DTC)
1 • U0101 U0140 U1001 CAN communication line • P0101 P0102 P0103 Mass air flow sensor
• P0112 P0113 P0127 Intake air temperature sensor
• P0116 P0117 P0118 P0125 Engine coolant temperature sensor
• P0122 P0123 P0222 P0223 P1225 P1226 P2135 Throttle position sensor
• P0128 Thermostat function
• P0181 P0182 P0183 Fuel tank temperature sensor
• P0327 P0328 Knock sensor
• P0335 Crankshaft position sensor (POS)
• P0340 Camshaft position sensor (PHASE)
• P0460 P0461 P0462 P0463 Fuel level sensor
• P0500 Vehicle speed sensor
• P0605 P0607 ECM
• P0643 Sensor power supply
• P0705 Transmission range switch
• P0850 Park/neutral position (PNP) switch
• P1610 - P1615 NATS
• P2122 P2123 P2127 P2128 P2138 Accelerator pedal position sensor
2 • P0031 P0032 Air fuel ratio (A/F) sensor 1 heater • P0037 P0038 Heated oxygen sensor 2 heater
• P0075 Intake valve timing control solenoid valve
• P0130 P0131 P0132 P014C P014D P2A00 Air fuel ratio (A/F) sensor 1
• P0137 P0138 P0139 Heated oxygen sensor 2
• P0441 EVAP control system purge flow monitoring
• P0443 P0444 P0445 EVAP canister purge volume control solenoid valve
• P0447 P0448 EVAP canister vent control valve
• P0451 P0452 P0453 EVAP control system pressure sensor
• P1217 Engine over temperature (OVERHEAT)
• P1805 Brake switch
• P2100 P2103 Throttle control motor relay
• P2101 Electric throttle control function
• P2118 Throttle control motor
3 • P0011 Intake valve timing control • P0171 P0172 Fuel injection system function
• P0300 - P0304 Misfire
• P0420 Three way catalyst function
• P0442 P0456 EVAP co ntrol system (SMALL LEAK, VERY SMALL LEAK)
• P0455 EVAP control system (GROSS LEAK)
• P0506 P0507 Idle speed control system
• P050A P050B P050E Cold start control
• P0710 P0715 P0720 P0725 P0731 P0732 P0733 P0734 P0740 P0744 P0745 P0746 P0750 P0755 P0776 P0778 P0840 P0845 P1705 P1740 P1760 P1777 P1778 A/T or CVT related sensors, solenoid valves and switches
• P1148 Closed loop control
• P1211 TCS control unit
• P1212 TCS communication line
• P1564 ASCD steering switch
• P1572 ASCD brake switch
• P1574 ASCD vehicle speed sensor
• P1715 Input speed sensor
• P2119 Electric throttle control actuator
Revision: May 2010 2011 Versa

TROUBLE DIAGNOSISEC-591
< SERVICE INFORMATION > [MR18DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
• When there is an open circuit on MIL circuit, the ECM c
annot warn the driver by lighting up MIL when there
is malfunction on engine control system.
Therefore, when electrical controlled throttle and pa rt of ECM related diagnoses are continuously detected
as NG for 5 trips, ECM warns the driver that engine control system malfunctions and MIL circuit is open by
means of operating fail-safe function.
The fail-safe function also operates when above diagnoses except MIL circuit are detected and demands the
driver to repair the malfunction.
DTC No. Detected items Engine operating condition in fail-safe mode
P0102
P0103 Mass air flow sensor circuit Engine speed will not rise more than 2,400 rpm due to the fuel cut.
P0117
P0118 Engine coolant temperature
sensor circuit Engine coolant temperature will be determined by ECM based on the following condi-
tion.
CONSULT-III displays the engine coolant temperature decided by ECM.
Condition Engine coolant temperature decided
(CONSULT-III display)
Just as ignition switch is turned ON
or START 40
°C (104 °F)
Approx. 4 minutes or more after
engine starting. 80
°C (176 °F)
Except as shown above 40 - 80°
C (104 - 176 °F)
(Depends on the time)
When the fail-safe system for engine coolant temperature sensor is activated, the cool-
ing fan operates while engine is running.
P0122
P0123
P0222
P0223
P2135 Throttle position sensor The ECM controls the electric throttle control actuator in regulating the throttle opening
in order for the idle position to be within +10 degrees.
The ECM regulates the opening speed of the throttle valve to be slower than the normal
condition.
So, the acceleration will be poor.
P0643 Sensor power supply ECM stops the electric throttle control actuator control, throttle valve is maintained at a fixed opening (approx. 5 degrees) by the return spring.
P2100
P2103 Throttle control relay ECM stops the electric throttle control actuator control, throttle valve is maintained at a
fixed opening (approx. 5 degrees) by the return spring.
P2101 Electric throttle control func- tion ECM stops the electric throttle control actuator control, throttle valve is maintained at a
fixed opening (approx. 5 degrees) by the return spring.
P2118 Throttle control motor ECM stops the electric throttle control actuator control, throttle valve is maintained at a fixed opening (approx. 5 degrees) by the return spring.
P2119 Electric throttle control actu- ator (When electric throttle control actuator does not function properly due to the return
spring malfunction:)
ECM controls the electric throttle actuator by regulating the throttle opening around the
idle position. The engine speed will not rise more than 2,000 rpm.
(When throttle valve opening angle in fail-safe mode is not in specified range:)
ECM controls the electric throttle control ac
tuator by regulating the throttle opening to
20 degrees or less.
(When ECM detects the throttle valve is stuck open:)
While the vehicle is driving, it slows down gradually by fuel cut. After the vehicle stops,
the engine stalls.
The engine can restart in N or P (A/T, CVT), Neutral (M/T) position, and engine speed
will not exceed 1,000 rpm or more.
P2122
P2123
P2127
P2128
P2138 Accelerator pedal position
sensor
The ECM controls the electric throttle control actuator in regulating the throttle opening
in order for the idle position to be within +10 degrees.
The ECM regulates the opening speed of the throttle valve to be slower than the normal
condition.
So, the acceleration will be poor.
Engine operating condition in fail-safe mode
Engine speed will not rise more than 2,500 rpm due to the fuel cut
Revision: May 2010 2011 Versa

EC-592
< SERVICE INFORMATION >[MR18DE]
TROUBLE DIAGNOSIS
Symptom Matrix Chart
INFOID:0000000006341733
SYSTEM — BASIC ENGINE CONTROL SYSTEM
SYMPTOM
Reference
HARD/NO START/RESTART (EXCP. HA)
ENGINE STALL
HESITATION/SURGING/FLAT SPOT
SPARK KNOCK/DETONATION
LACK OF POWER/POOR ACCELERATION
HIGH IDLE/LOW IDLE
ROUGH IDLE/HUNTING
IDLING VIBRATION
SLOW/NO RETURN TO IDLE
OVERHEATS/WATER TEMPERATURE HIGH
EXCESSIVE FUEL CONSUMPTION
EXCESSIVE OIL CONSUMPTION
BATTERY DEAD (UNDER CHARGE)
Warranty symptom code AA AB AC AD AE AF AG AH AJ AK AL AM HA
Fuel Fuel pump circuit 11232 22 3 2EC-1014
Fuel pressure regulator system 334444444 4 EC-582
Fuel injector circuit11232 22 2EC-1009
Evaporative emission system 334444444 4 EC-526
Air Positive crankcase ventilation sys-
tem 334444444 41
EC-538
Incorrect idle speed adjustment 1 1 1 1 1EC-574
Electric throttle control actuator 112332222 2 2 EC-952,
EC-963
IgnitionIncorrect ignition timing adjustment33111 11 1EC-574
Ignition circuit 11222 22 2EC-1019
Main power supply and ground circuit 22333 33 23 EC-633
Mass air flow sensor circuit
1
12 2
222 2 EC-664,
EC-672
Engine coolant temperature sensor circuit
333
EC-683
,
EC-686
,
EC-696
Air fuel ratio (A/F) sensor 1 circuit EC-704
,
EC-710
,
EC-716
,
EC-750
,
EC-989
Throttle position sensor circuit
22EC-691
,
EC-778
,
EC-921
,
EC-923
,
EC-977
Accelerator pedal position sensor circuit 3 2 1 EC-898
,
EC-965
,
EC-970
,
EC-982
Knock sensor circuit 23EC-789
Crankshaft position sensor (POS) circuit 2 2 EC-793
Revision: May 20102011 Versa

TROUBLE DIAGNOSISEC-593
< SERVICE INFORMATION > [MR18DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
1 - 6: The numbers refer to the order of inspection.
(continued on next table)
SYSTEM — ENGINE MECHANICAL & OTHER
Camshaft position sensor (PHASE) circuit 3 2
EC-799
Vehicle speed signal circuit2 3 33EC-887
ECM 22333333333 EC-895
Intake valve timing control solenoid valve cir-
cuit32 13223 3
EC-659
Park/neutral position (PNP) signal circuit3 3 3 33EC-903
Refrigerant pressure sensor circuit 233 4 EC-1028
Electrical load signal circuit 3EC-1007
Air conditioner circuit 223333333 3 2 MTC-23
ABS actuator and electric unit (control unit)4 BRC-46
SYMPTOM
Reference
HARD/NO START/RESTART (EXCP. HA)
ENGINE STALL
HESITATION/SURGING/FLAT SPOT
SPARK KNOCK/DETONATION
LACK OF POWER/POOR ACCELERATION
HIGH IDLE/LOW IDLE
ROUGH IDLE/HUNTING
IDLING VIBRATION
SLOW/NO RETURN TO IDLE
OVERHEATS/WATER TEMPERATURE HIGH
EXCESSIVE FUEL CONSUMPTION
EXCESSIVE OIL CONSUMPTION
BATTERY DEAD (UNDER CHARGE)
Warranty symptom code AA AB AC AD AE AF AG AH AJ AK AL AM HA
Revision: May 2010 2011 Versa

EC-594
< SERVICE INFORMATION >[MR18DE]
TROUBLE DIAGNOSIS
SYMPTOM
Reference
HARD/NO START/RESTART (EXCP. HA)
ENGINE STALL
HESITATION/SURGING/FLAT SPOT
SPARK KNOCK/DETONATION
LACK OF POWER/POOR ACCELERATION
HIGH IDLE/LOW IDLE
ROUGH IDLE/HUNTING
IDLING VIBRATION
SLOW/NO RETURN TO IDLE
OVERHEATS/WATER TEMPERATURE HIGH
EXCESSIVE FUEL CONSUMPTION
EXCESSIVE OIL CONSUMPTION
BATTERY DEAD (UNDER CHARGE)
Warranty symptom code AA AB AC AD AE AF AG AH AJ AK AL AM HA
Fuel Fuel tank 5
5 FL-10
Fuel piping
5 5 5 5 55EM-154
Va p o r l o c k —
Valve deposit 5 555 55 5—
Poor fuel (Heavy weight gasoline,
Low octane) —
Air Air duct
55555 5 EM-135
Air cleaner
EM-136
Air leakage from air duct
(Mass air flow sensor — electric
throttle control actuator)
5555 EM-135
Electric throttle control actuator
EM-137
Air leakage from intake manifold/
Collector/GasketEM-137
Cranking Battery
111111
11
SC-7
Generator circuit
SC-22
Starter circuit3 SC-16
Signal plate6 EM-203
Park/neutral position (PNP)
switch (M/T)
Transmission range switch (A/T
or CVT)4
MT-57,
AT- 9 4
,
CVT-65
Engine Cylinder head 55555 55 5 EM-188
Cylinder head gasket 4 3
Cylinder block
66666 66 64
EM-203
Piston
Piston ring
Connecting rod
Bearing
Crankshaft
Revision: May 2010 2011 Versa

TROUBLE DIAGNOSISEC-595
< SERVICE INFORMATION > [MR18DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
1 - 6: The numbers refer to the order of inspection. Va l v e
mecha-
nism
Timing chain
55555 55 5EM-160
Camshaft
EM-170
Intake valve timing controlEM-170
Intake valve
3EM-190
Exhaust valve
Exhaust Exhaust manifold/Tube/Muffler/ Gasket 55555 55 5EM-141
,
EX-10
Three way catalyst
Lubrica-
tion Oil pan/Oil strainer/Oil pump/Oil
filter/Oil gallery
55555 55 5EM-144
,
LU-21
Oil level (Low)/Filthy oil LU-17
Cooling Radiator/Hose/Radiator filler cap
55555 55 45 CO-40
Thermostat
5CO-47
Water control valve CO-51
Water pumpCO-45
Water galleryCO-34
Cooling fan
5CO-44
Coolant level (Low)/Contaminat-
ed coolant
CO-36
NVIS (NISSAN Vehicle
Immobilizer System-
NATS) 11
BL-257
SYMPTOM
Reference
HARD/NO START/RESTART (EXCP. HA)
ENGINE STALL
HESITATION/SURGING/FLAT SPOT
SPARK KNOCK/DETONATION
LACK OF POWER/POOR ACCELERATION
HIGH IDLE/LOW IDLE
ROUGH IDLE/HUNTING
IDLING VIBRATION
SLOW/NO RETURN TO IDLE
OVERHEATS/WATER TEMPERATURE HIGH
EXCESSIVE FUEL CONSUMPTION
EXCESSIVE OIL CONSUMPTION
BATTERY DEAD (UNDER CHARGE)
Warranty symptom code AA AB AC AD AE AF AG AH AJ AK AL AM HA
Revision: May 2010 2011 Versa

EC-596
< SERVICE INFORMATION >[MR18DE]
TROUBLE DIAGNOSIS

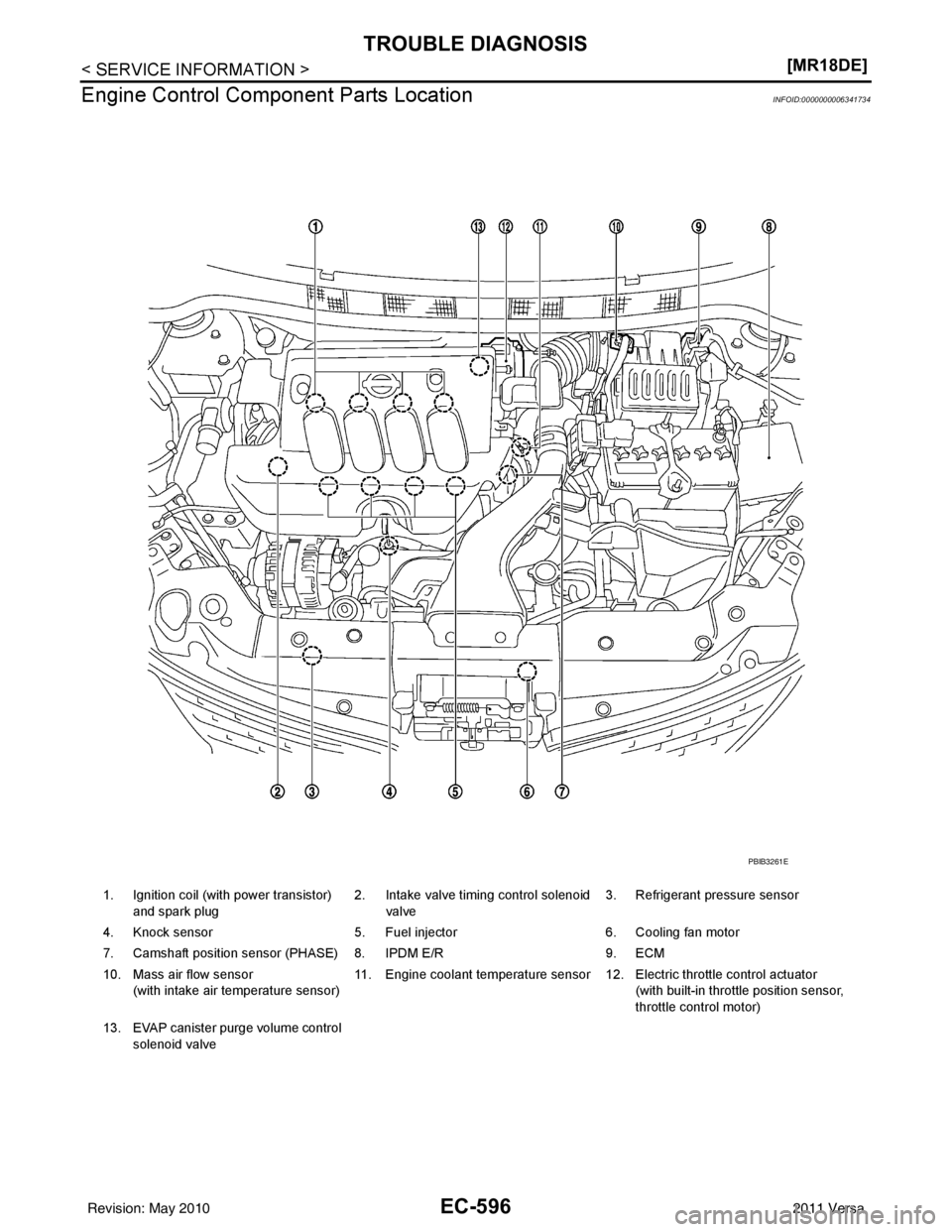

Engine Control Comp onent Parts Location
INFOID:0000000006341734
1. Ignition coil (with power transistor)
and spark plug 2. Intake valve timing control solenoid
valve 3. Refrigerant pressure sensor
4. Knock sensor 5. Fuel injector 6. Cooling fan motor
7. Camshaft position sensor (PHASE) 8. IPDM E/R 9. ECM
10. Mass air flow sensor (with intake air temperature sensor) 11. Engine coolant temperature sensor 12. Electric throttle control actuator
(with built-in throttle position sensor,
throttle control motor)
13. EVAP canister purge volume control solenoid valve
PBIB3261E
Revision: May 2010 2011 Versa
