height adjustment NISSAN TITAN 2008 Owners Manual

Seat lifter (if so equipped for driver’s
seat)
Push the front or rear end of the switch up or
down to adjust the angle and height of the seat
cushion.
Lumbar support (driver’s seat)
The lumbar support feature provides lower back
support to the driver. Move the lever up or down
to adjust the seat lumbar area.
HEAD RESTRAINT ADJUSTMENT
To raise the head restraint, pull it up. To lower,
push and hold the lock knob and push the head
restraint down.
The head restraints on the rear bench seat are
removable. The front seat head restraints are not
removable.
LRS0634LRS0635LRS0286
1-6Safety—Seats, seat belts and supplemental restraint system
ZREVIEW COPYÐ2008 Titan(tzw)
Owners ManualÐUSA_English(nna)
10/11/07Ðroot
X
ProCarManuals.com

Shoulder belt height adjustment (front
outboard seats)
The shoulder belt anchor height should be ad-
justed to the position best for you. (See “Precau-
tions on seat belt usage” earlier in this section.)
To adjust, pull out
s1the adjustment button and
move the shoulder belt anchor
s2to the desired
position, so the belt passes over the center of the
shoulder. The belt should be away from your face
and neck, but not falling off your shoulder. Re-
lease the adjustment button to lock the shoulder
belt anchor into position.
WARNING
cAfter adjustment, release the adjust-
ment button and try to move the shoul-
der belt anchor up and down to make
sure it is securely fixed in position.
cThe shoulder belt anchor height should
be adjusted to the position best for you.
Failure to do so may reduce the effec-
tiveness of the entire restraint system
and increase the chance or severity of
injury in an accident.
TWO-POINT TYPE SEAT BELT
WITHOUT RETRACTOR (center of
the front bench seat) (if so equipped)Front seats
LRS0242LRS0642
1-20Safety—Seats, seat belts and supplemental restraint system
ZREVIEW COPYÐ2008 Titan(tzw)
Owners ManualÐUSA_English(nna)
10/11/07Ðdebbie
X
ProCarManuals.com

Several manufacturers offer child restraints for
infants and small children of various sizes. When
selecting any child restraint, keep the following
points in mind:
cChoose only a restraint with a label certifying
that it complies with Federal Motor Vehicle
Safety Standard 213 or Canadian Motor
Vehicle Safety Standard 213.
cCheck the child restraint in your vehicle to be
sure it is compatible with the vehicle’s seat
and seat belt system.
cIf the child restraint is compatible with your
vehicle, place your child in the child restraint
and check the various adjustments to be
sure the child restraint is compatible with
your child. Choose a child restraint that is
designed for your child’s height and weight.
Always follow all recommended procedures.
All U.S. states and Canadian provinces or
territories require that infants and small
children be restrained in an approved child
restraint at all times while the vehicle is
being operated.
LOWER ANCHORS AND TETHERS
FOR CHILDREN SYSTEM (LATCH)
Your vehicle is equipped with special anchor
points that are used with Lower Anchors and
Tethers for CHildren System (LATCH) compat-
ible child restraints. This system may also be
referred to as the ISOFIX or ISOFIX compatible
system. With this system, you do not have to use
a vehicle seat belt to secure the child restraint.
The LATCH anchor points are provided to install
child restraints in the rear outboard seating posi-
tions only. Do not attempt to install a child restraint
in the center position using the LATCH anchors.
LATCH lower anchor point locations
The LATCH anchors are located at the rear of the
seat cushion near the seatback. A label is at-
tached to the seatback to help you locate the
LATCH anchors.
WARNING
cAttach LATCH system compatible child
restraints only at the locations shown. If
a child restraint is not secured properly,
your child could be seriously injured or
killed in an accident.
LATCH system anchor locations
LRS0429
LATCH label locations
LRS0395
Safety—Seats, seat belts and supplemental restraint system1-25
ZREVIEW COPYÐ2008 Titan(tzw)
Owners ManualÐUSA_English(nna)
10/11/07Ðdebbie
X
ProCarManuals.com

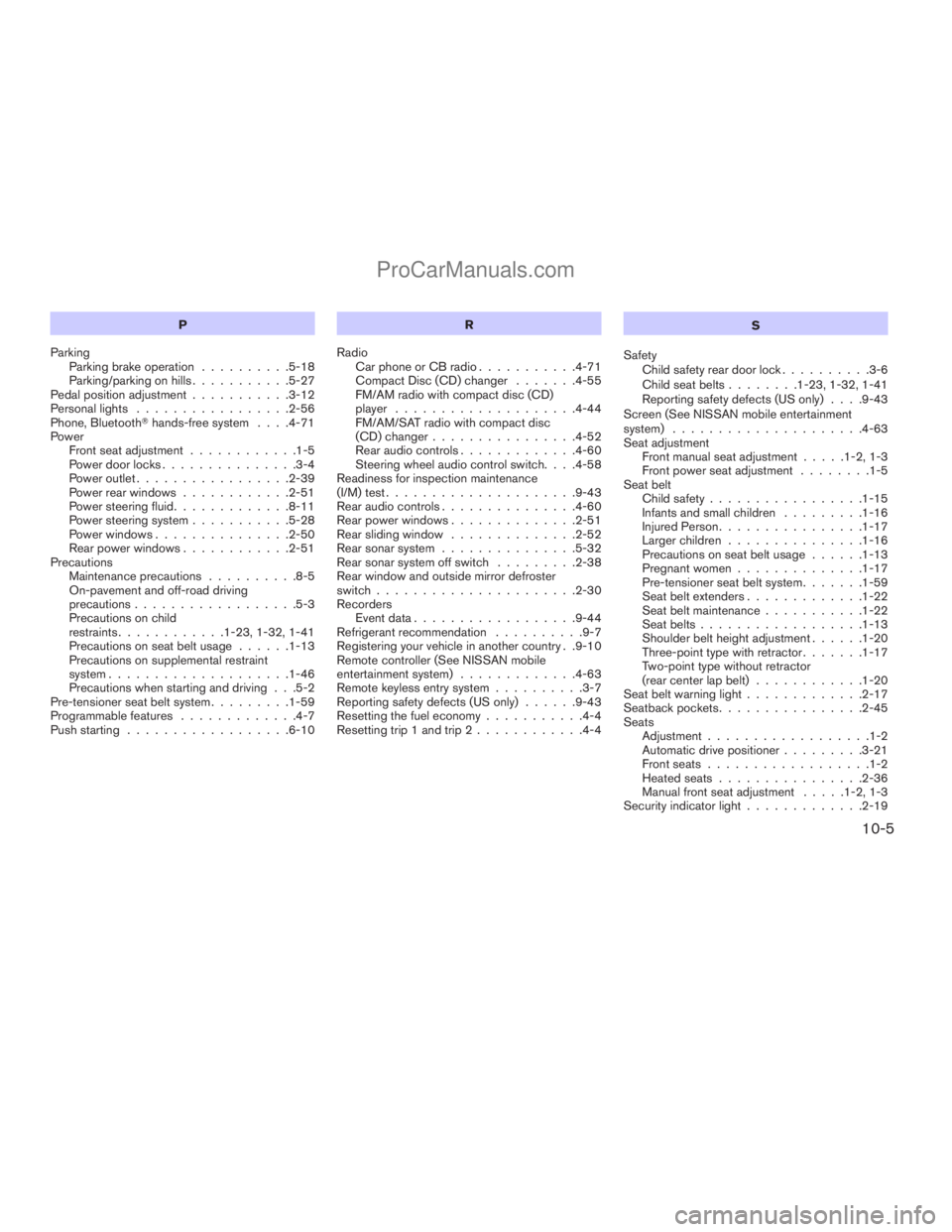

P
Parking
Parking brake operation..........5-18
Parking/parking on hills...........5-27
Pedal position adjustment...........3-12
Personal lights.................2-56
Phone, BluetoothThands-free system. . . .4-71
Power
Front seat adjustment............1-5
Power door locks...............3-4
Power outlet.................2-39
Power rear windows............2-51
Power steering fluid.............8-11
Power steering system...........5-28
Power windows...............2-50
Rear power windows............2-51
Precautions
Maintenance precautions..........8-5
On-pavement and off-road driving
precautions..................5-3
Precautions on child
restraints............1-23, 1-32, 1-41
Precautions on seat belt usage......1-13
Precautions on supplemental restraint
system....................1-46
Precautions when starting and driving . . .5-2
Pre-tensioner seat belt system.........1-59
Programmable features.............4-7
Push starting..................6-10R
Radio
Car phone or CB radio...........4-71
Compact Disc (CD) changer.......4-55
FM/AM radio with compact disc (CD)
player....................4-44
FM/AM/SAT radio with compact disc
(CD) changer................4-52
Rear audio controls.............4-60
Steering wheel audio control switch. . . .4-58
Readiness for inspection maintenance
(I/M) test.....................9-43
Rear audio controls...............4-60
Rear power windows..............2-51
Rear sliding window..............2-52
Rear sonar system...............5-32
Rear sonar system off switch.........2-38
Rear window and outside mirror defroster
switch......................2-30
Recorders
Event data..................9-44
Refrigerant recommendation..........9-7
Registering your vehicle in another country . .9-10
Remote controller (See NISSAN mobile
entertainment system).............4-63
Remote keyless entry system..........3-7
Reporting safety defects (US only)......9-43
Resetting the fuel economy...........4-4
Resetting trip 1 and trip 2............4-4S
Safety
Child safety rear door lock..........3-6
Child seat belts........1-23, 1-32, 1-41
Reporting safety defects (US only). . . .9-43
Screen (See NISSAN mobile entertainment
system).....................4-63
Seat adjustment
Front manual seat adjustment.....1-2, 1-3
Front power seat adjustment........1-5
Seat belt
Child safety.................1-15
Infants and small children.........1-16
Injured Person................1-17
Larger children...............1-16
Precautions on seat belt usage......1-13
Pregnant women..............1-17
Pre-tensioner seat belt system.......1-59
Seat belt extenders.............1-22
Seat belt maintenance...........1-22
Seat belts..................1-13
Shoulder belt height adjustment......1-20
Three-point type with retractor.......1-17
Two-point type without retractor
(rear center lap belt)............1-20
Seat belt warning light.............2-17
Seatback pockets................2-45
Seats
Adjustment..................1-2
Automatic drive positioner.........3-21
Front seats..................1-2
Heated seats................2-36
Manual front seat adjustment.....1-2, 1-3
Security indicator light.............2-19
10-5
ZREVIEW COPYÐ2008 Titan(tzw)
Owners ManualÐUSA_English(nna)
10/12/07Ðdebbie
X
ProCarManuals.com

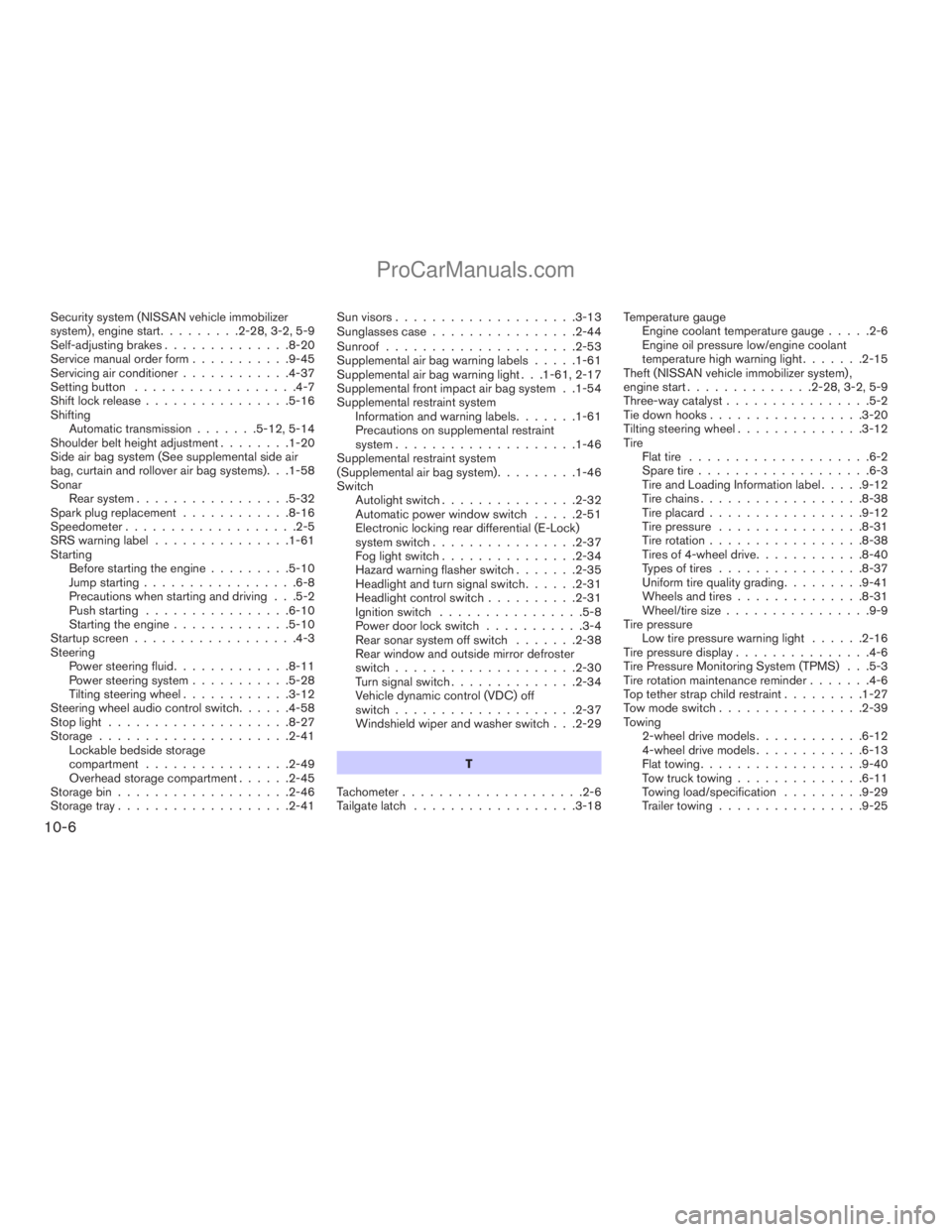

Security system (NISSAN vehicle immobilizer
system) , engine start.........2-28, 3-2, 5-9
Self-adjusting brakes..............8-20
Service manual order form...........9-45
Servicing air conditioner............4-37
Setting button..................4-7
Shift lock release................5-16
Shifting
Automatic transmission.......5-12, 5-14
Shoulder belt height adjustment........1-20
Side air bag system (See supplemental side air
bag, curtain and rollover air bag systems). . .1-58
Sonar
Rear system.................5-32
Spark plug replacement............8-16
Speedometer...................2-5
SRS warning label...............1-61
Starting
Before starting the engine.........5-10
Jump starting.................6-8
Precautions when starting and driving . . .5-2
Push starting................6-10
Starting the engine.............5-10
Startup screen..................4-3
Steering
Power steering fluid.............8-11
Power steering system...........5-28
Tilting steering wheel............3-12
Steering wheel audio control switch......4-58
Stop light....................8-27
Storage.....................2-41
Lockable bedside storage
compartment................2-49
Overhead storage compartment......2-45
Storage bin...................2-46
Storage tray...................2-41Sun visors....................3-13
Sunglasses case................2-44
Sunroof.....................2-53
Supplemental air bag warning labels.....1-61
Supplemental air bag warning light . . .1-61, 2-17
Supplemental front impact air bag system . .1-54
Supplemental restraint system
Information and warning labels.......1-61
Precautions on supplemental restraint
system....................1-46
Supplemental restraint system
(Supplemental air bag system).........1-46
Switch
Autolight switch...............2-32
Automatic power window switch.....2-51
Electronic locking rear differential (E-Lock)
system switch................2-37
Fog light switch...............2-34
Hazard warning flasher switch.......2-35
Headlight and turn signal switch......2-31
Headlight control switch..........2-31
Ignition switch................5-8
Power door lock switch...........3-4
Rear sonar system off switch.......2-38
Rear window and outside mirror defroster
switch....................2-30
Turn signal switch..............2-34
Vehicle dynamic control (VDC) off
switch....................2-37
Windshield wiper and washer switch . . .2-29
T
Tachometer....................2-6
Tailgate latch..................3-18Temperature gauge
Engine coolant temperature gauge.....2-6
Engine oil pressure low/engine coolant
temperature high warning light.......2-15
Theft (NISSAN vehicle immobilizer system) ,
engine start..............2-28, 3-2, 5-9
Three-way catalyst................5-2
Tie down hooks.................3-20
Tilting steering wheel..............3-12
Tire
Flat tire....................6-2
Spare tire...................6-3
Tire and Loading Information label.....9-12
Tire chains..................8-38
Tire placard.................9-12
Tire pressure................8-31
Tire rotation.................8-38
Tires of 4-wheel drive............8-40
Types of tires................8-37
Uniform tire quality grading.........9-41
Wheels and tires..............8-31
Wheel/tire size................9-9
Tire pressure
Low tire pressure warning light......2-16
Tire pressure display...............4-6
Tire Pressure Monitoring System (TPMS) . . .5-3
Tire rotation maintenance reminder.......4-6
Top tether strap child restraint.........1-27
Tow mode switch................2-39
Towing
2-wheel drive models............6-12
4-wheel drive models............6-13
Flat towing..................9-40
Tow truck towing..............6-11
Towing load/specification.........9-29
Trailer towing................9-25
10-6
ZREVIEW COPYÐ2008 Titan(tzw)
Owners ManualÐUSA_English(nna)
10/12/07Ðdebbie
X
ProCarManuals.com
