NISSAN TITAN 2013 1.G Owners Manual
Manufacturer: NISSAN, Model Year: 2013, Model line: TITAN, Model: NISSAN TITAN 2013 1.GPages: 458, PDF Size: 2.29 MB
Page 121 of 458

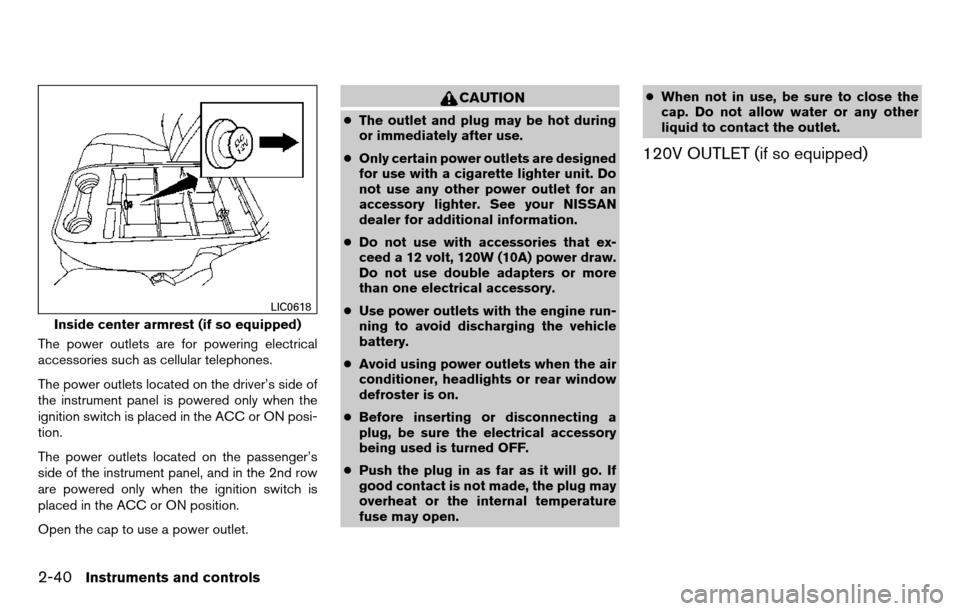

The power outlets are for powering electrical
accessories such as cellular telephones.
The power outlets located on the driver’s side of
the instrument panel is powered only when the
ignition switch is placed in the ACC or ON posi-
tion.
The power outlets located on the passenger’s
side of the instrument panel, and in the 2nd row
are powered only when the ignition switch is
placed in the ACC or ON position.
Open the cap to use a power outlet.
CAUTION
●The outlet and plug may be hot during
or immediately after use.
● Only certain power outlets are designed
for use with a cigarette lighter unit. Do
not use any other power outlet for an
accessory lighter. See your NISSAN
dealer for additional information.
● Do not use with accessories that ex-
ceed a 12 volt, 120W (10A) power draw.
Do not use double adapters or more
than one electrical accessory.
● Use power outlets with the engine run-
ning to avoid discharging the vehicle
battery.
● Avoid using power outlets when the air
conditioner, headlights or rear window
defroster is on.
● Before inserting or disconnecting a
plug, be sure the electrical accessory
being used is turned OFF.
● Push the plug in as far as it will go. If
good contact is not made, the plug may
overheat or the internal temperature
fuse may open. ●
When not in use, be sure to close the
cap. Do not allow water or any other
liquid to contact the outlet.
120V OUTLET (if so equipped)
Inside center armrest (if so equipped)
LIC0618
2-40Instruments and controls
Page 122 of 458

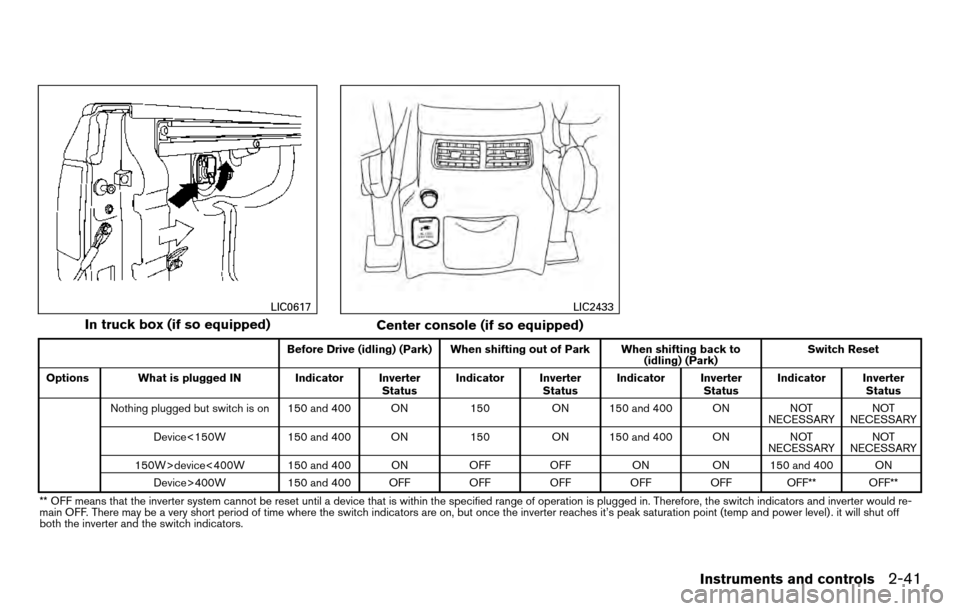

Before Drive (idling) (Park) When shifting out of Park When shifting back to(idling) (Park)Switch Reset
Options What is plugged IN Indicator Inverter StatusIndicator Inverter
StatusIndicator Inverter
StatusIndicator Inverter
Status
Nothing plugged but switch is on 150 and 400 ON 150ON 150 and 400 ON NOT
NECESSARY NOT
NECESSARY
Device<150W 150 and 400 ON 150ON 150 and 400 ON NOT
NECESSARY NOT
NECESSARY
150W>device<400W 150 and 400 ON OFFOFF ONON 150 and 400 ON
Device>400W 150 and 400 OFF OFFOFFOFFOFF OFF** OFF**
** OFF means that the inverter system cannot be reset until a device that is within the specified range of operation is plugged in. Therefore, the switch indicators and inverter would re-
main OFF. There may be a very short period of time where the switch indicators are on, but once the inverter reaches it’s peak saturation point (temp and power level) . it will shut off
both the inverter and the switch indicators.
In truck box (if so equipped)
LIC0617
Center console (if so equipped)
LIC2433
Instruments and controls2-41
Page 123 of 458

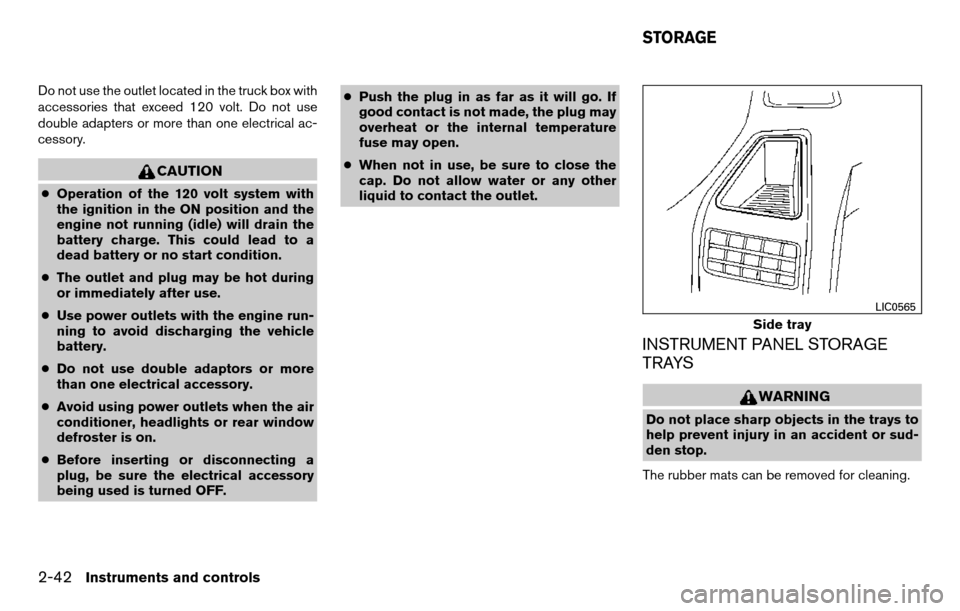

Do not use the outlet located in the truck box with
accessories that exceed 120 volt. Do not use
double adapters or more than one electrical ac-
cessory.
CAUTION
●Operation of the 120 volt system with
the ignition in the ON position and the
engine not running (idle) will drain the
battery charge. This could lead to a
dead battery or no start condition.
● The outlet and plug may be hot during
or immediately after use.
● Use power outlets with the engine run-
ning to avoid discharging the vehicle
battery.
● Do not use double adaptors or more
than one electrical accessory.
● Avoid using power outlets when the air
conditioner, headlights or rear window
defroster is on.
● Before inserting or disconnecting a
plug, be sure the electrical accessory
being used is turned OFF. ●
Push the plug in as far as it will go. If
good contact is not made, the plug may
overheat or the internal temperature
fuse may open.
● When not in use, be sure to close the
cap. Do not allow water or any other
liquid to contact the outlet.
INSTRUMENT PANEL STORAGE
TRAYS
WARNING
Do not place sharp objects in the trays to
help prevent injury in an accident or sud-
den stop.
The rubber mats can be removed for cleaning.
Side tray
LIC0565
STORAGE
2-42Instruments and controls
Page 124 of 458

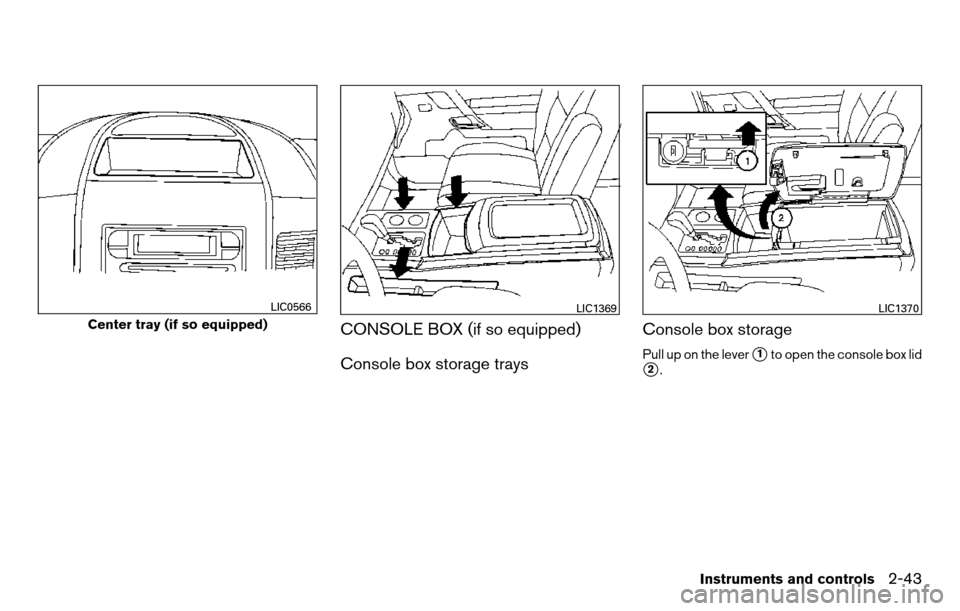

CONSOLE BOX (if so equipped)
Console box storage traysConsole box storage
Pull up on the lever1to open the console box lid
2.
Center tray (if so equipped)
LIC0566LIC1369LIC1370
Instruments and controls2-43
Page 125 of 458

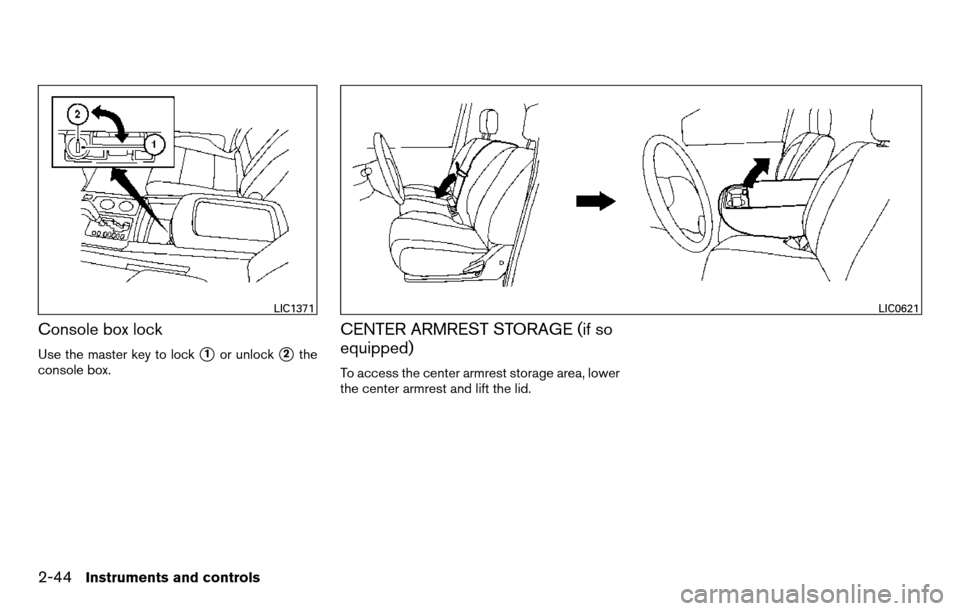

Console box lock
Use the master key to lock1or unlock2the
console box.
CENTER ARMREST STORAGE (if so
equipped)
To access the center armrest storage area, lower
the center armrest and lift the lid.
LIC1371LIC0621
2-44Instruments and controls
Page 126 of 458

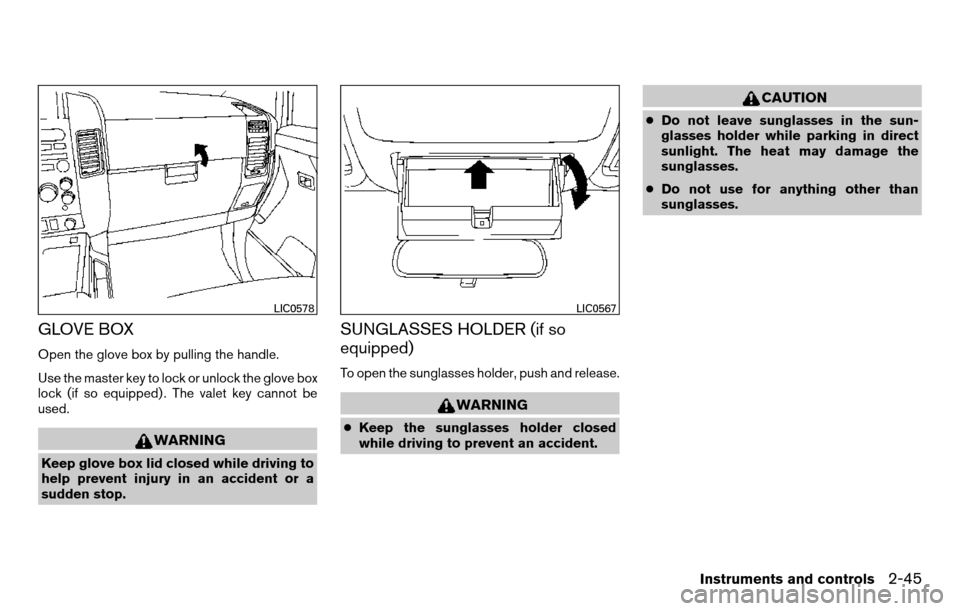

GLOVE BOX
Open the glove box by pulling the handle.
Use the master key to lock or unlock the glove box
lock (if so equipped) . The valet key cannot be
used.
WARNING
Keep glove box lid closed while driving to
help prevent injury in an accident or a
sudden stop.
SUNGLASSES HOLDER (if so
equipped)
To open the sunglasses holder, push and release.
WARNING
●Keep the sunglasses holder closed
while driving to prevent an accident.
CAUTION
● Do not leave sunglasses in the sun-
glasses holder while parking in direct
sunlight. The heat may damage the
sunglasses.
● Do not use for anything other than
sunglasses.
LIC0578LIC0567
Instruments and controls2-45
Page 127 of 458

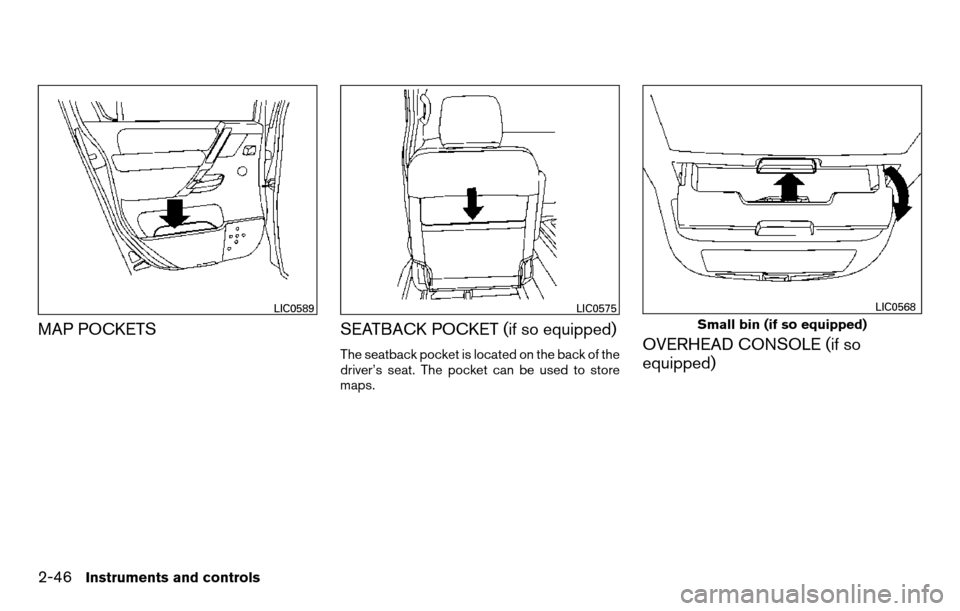

MAP POCKETSSEATBACK POCKET (if so equipped)
The seatback pocket is located on the back of the
driver’s seat. The pocket can be used to store
maps.OVERHEAD CONSOLE (if so
equipped)
LIC0589LIC0575
Small bin (if so equipped)
LIC0568
2-46Instruments and controls
Page 128 of 458

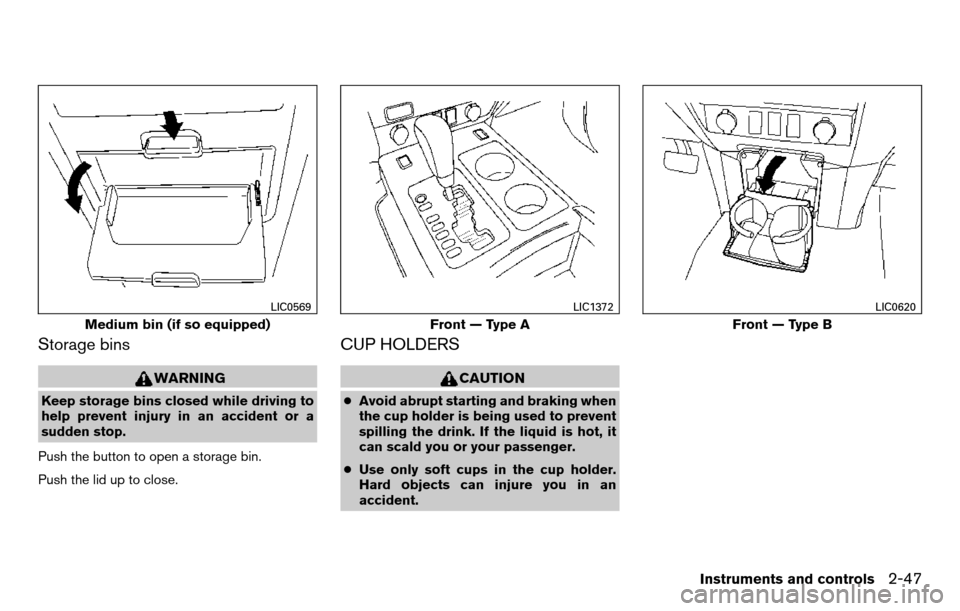

Storage bins
WARNING
Keep storage bins closed while driving to
help prevent injury in an accident or a
sudden stop.
Push the button to open a storage bin.
Push the lid up to close.
CUP HOLDERS
CAUTION
● Avoid abrupt starting and braking when
the cup holder is being used to prevent
spilling the drink. If the liquid is hot, it
can scald you or your passenger.
● Use only soft cups in the cup holder.
Hard objects can injure you in an
accident.
Medium bin (if so equipped)
LIC0569
Front — Type A
LIC1372
Front — Type B
LIC0620
Instruments and controls2-47
Page 129 of 458

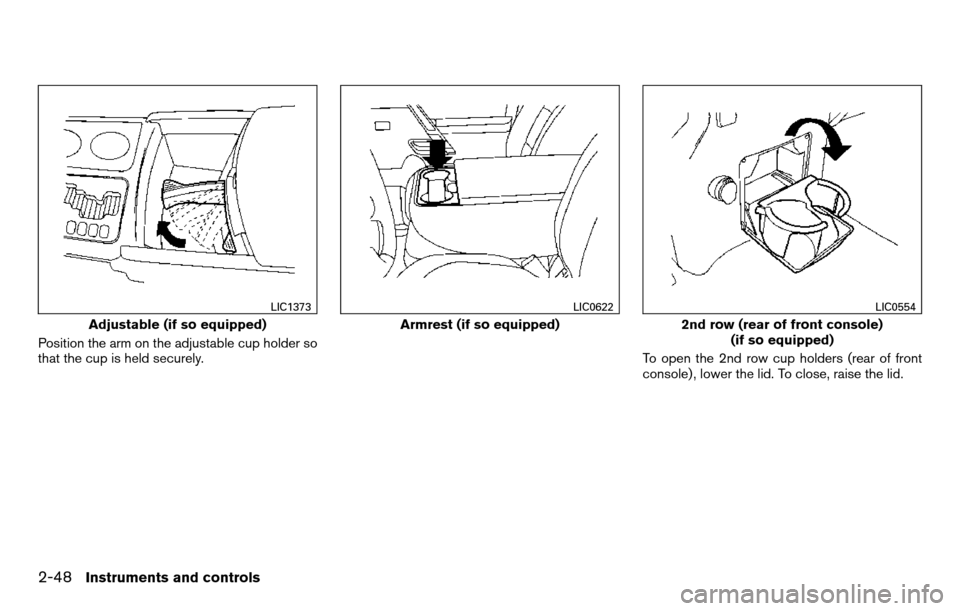

Position the arm on the adjustable cup holder so
that the cup is held securely.To open the 2nd row cup holders (rear of front
console) , lower the lid. To close, raise the lid.
Adjustable (if so equipped)
LIC1373
Armrest (if so equipped)
LIC0622
2nd row (rear of front console)
(if so equipped)
LIC0554
2-48Instruments and controls
Page 130 of 458

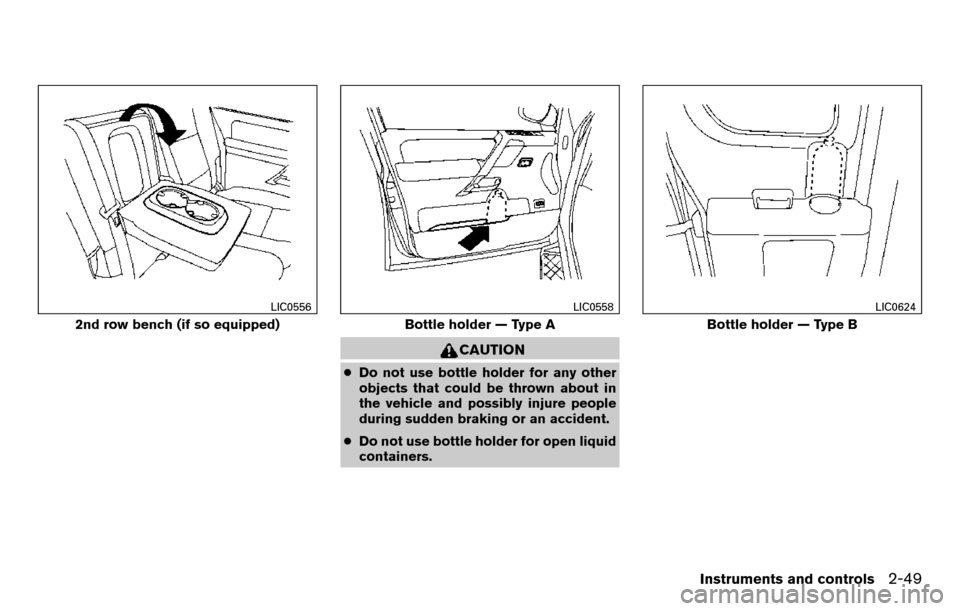

CAUTION
●Do not use bottle holder for any other
objects that could be thrown about in
the vehicle and possibly injure people
during sudden braking or an accident.
● Do not use bottle holder for open liquid
containers.
2nd row bench (if so equipped)
LIC0556
Bottle holder — Type A
LIC0558
Bottle holder — Type B
LIC0624
Instruments and controls2-49
