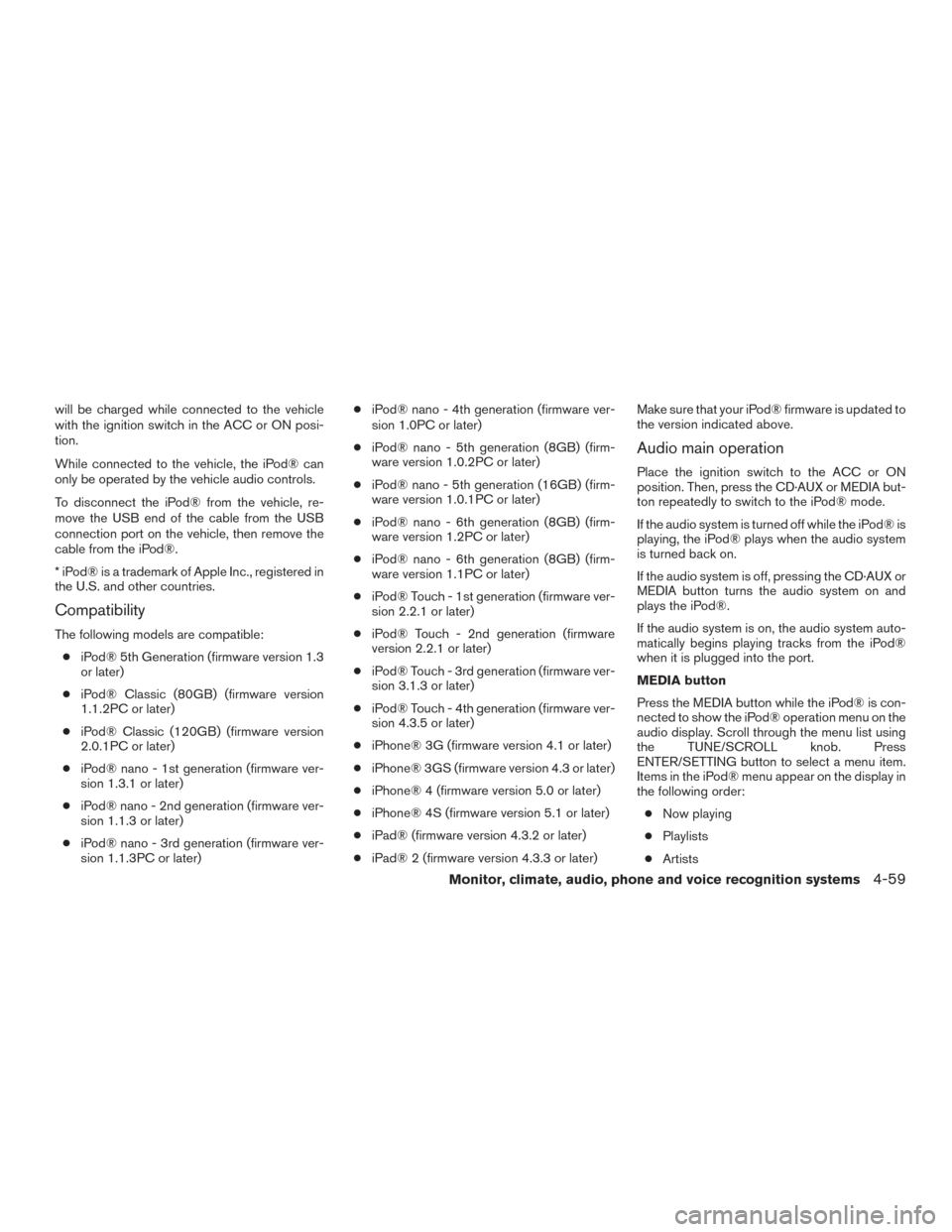

Page 247 of 457
will be charged while connected to the vehicle
with the ignition switch in the ACC or ON posi-
tion.
While connected to the vehicle, the iPod® can
only be operated by the vehicle audio controls.
To disconnect the iPod® from the vehicle, re-
move the USB end of the cable from the USB
connection port on the vehicle, then remove the
cable from the iPod®.
* iPod® is a trademark of Apple Inc., registered in
the U.S. and other countries.
Compatibility
The following models are compatible:● iPod® 5th Generation (firmware version 1.3
or later)
● iPod® Classic (80GB) (firmware version
1.1.2PC or later)
● iPod® Classic (120GB) (firmware version
2.0.1PC or later)
● iPod® nano - 1st generation (firmware ver-
sion 1.3.1 or later)
● iPod® nano - 2nd generation (firmware ver-
sion 1.1.3 or later)
● iPod® nano - 3rd generation (firmware ver-
sion 1.1.3PC or later) ●
iPod® nano - 4th generation (firmware ver-
sion 1.0PC or later)
● iPod® nano - 5th generation (8GB) (firm-
ware version 1.0.2PC or later)
● iPod® nano - 5th generation (16GB) (firm-
ware version 1.0.1PC or later)
● iPod® nano - 6th generation (8GB) (firm-
ware version 1.2PC or later)
● iPod® nano - 6th generation (8GB) (firm-
ware version 1.1PC or later)
● iPod® Touch - 1st generation (firmware ver-
sion 2.2.1 or later)
● iPod® Touch - 2nd generation (firmware
version 2.2.1 or later)
● iPod® Touch - 3rd generation (firmware ver-
sion 3.1.3 or later)
● iPod® Touch - 4th generation (firmware ver-
sion 4.3.5 or later)
● iPhone® 3G (firmware version 4.1 or later)
● iPhone® 3GS (firmware version 4.3 or later)
● iPhone® 4 (firmware version 5.0 or later)
● iPhone® 4S (firmware version 5.1 or later)
● iPad® (firmware version 4.3.2 or later)
● iPad® 2 (firmware version 4.3.3 or later) Make sure that your iPod® firmware is updated to
the version indicated above.
Audio main operation
Place the ignition switch to the ACC or ON
position. Then, press the CD·AUX or MEDIA but-
ton repeatedly to switch to the iPod® mode.
If the audio system is turned off while the iPod® is
playing, the iPod® plays when the audio system
is turned back on.
If the audio system is off, pressing the CD·AUX or
MEDIA button turns the audio system on and
plays the iPod®.
If the audio system is on, the audio system auto-
matically begins playing tracks from the iPod®
when it is plugged into the port.
MEDIA button
Press the MEDIA button while the iPod® is con-
nected to show the iPod® operation menu on the
audio display. Scroll through the menu list using
the TUNE/SCROLL knob. Press
ENTER/SETTING button to select a menu item.
Items in the iPod® menu appear on the display in
the following order:
● Now playing
● Playlists
● Artists
Monitor, climate, audio, phone and voice recognition systems4-59
Page 249 of 457
iPod®* PLAYER OPERATION WITH
NAVIGATION SYSTEM (if so
equipped)
Connecting iPod®
WARNING
Do not connect, disconnect, or operate the
USB device while driving. Doing so can be
a distraction. If distracted you could lose
control of your vehicle and cause an acci-
dent or serious injury.
CAUTION
●Do not force the USB device into the
USB port. Inserting the USB device
tilted or up-side-down into the port may
damage the port. Make sure that the
USB device is connected correctly into
the USB port.
● Do not grab the USB port cover (if so
equipped) when pulling the USB device
out of the port. This could damage the
port and the cover.
● Do not leave the USB cable in a place
where it can be pulled unintentionally.
Pulling the cable may damage the port.
Refer to your device manufacturer’s owner infor-
mation regarding the proper use and care of the
device.
To connect an iPod® to the vehicle so that the
iPod® can be controlled with the audio system
controls and display screen, use the USB con-
nection port located on the center console below
the heater and air conditioner controls. Connect
the iPod®-specific end of the cable to the iPod®
and the USB end of the cable to the USB con-
nection port on the vehicle. If your iPod® sup-
ports charging via a USB connection, its battery will be charged while connected to the vehicle
with the ignition switch in the ACC or ON posi-
tion.
While connected to the vehicle, the iPod® can
only be operated by the vehicle audio controls.
To disconnect the iPod® from the vehicle, re-
move the USB end of the cable from the USB
connection port on the vehicle, then remove the
cable from the iPod®.
* iPod® is a trademark of Apple Inc., registered in
the U.S. and other countries.
Compatibility
The following models are compatible:
● iPod® Classic 5th generation (firmware ver-
sion 1.3.0 or later)
● iPod® Classic 6th generation (firmware ver-
sion 2.0.1 or later)
● iPod® Classic 7th generation (firmware ver-
sion 2.0.4 or later)
● iPod® Touch 2nd generation (firmware ver-
sion 4.2.1 or later)*
● iPod® Touch 3rd generation (firmware ver-
sion 5.1 or later)
● iPod® Touch 4th generation (firmware ver-
sion 5.1 or later)
LHA2455
Monitor, climate, audio, phone and voice recognition systems4-61
Page 255 of 457
1. SOURCE select switch
2. Tuning switch
3. Volume control switch
STEERING WHEEL SWITCH FOR
AUDIO CONTROL (if so equipped)
The audio system can be operated using the
controls on the steering wheel.
SOURCE select switch
Push the SOURCE select switch to change the
mode in the following sequence: AM→FM →
CD* →USB/iPod®* (if so equipped) →
Bluetooth® audio* (if so equipped) →AUX* →
AM * These modes are only available when compat-
ible media storage is inserted into the device.
Volume control switch
Push the volume control switch to increase or
decrease the volume.
Menu control
switch/ENTER button
While the display is showing a map or audio
screen, tilt the Menu Control switch upward or
downward to select a station, track, CD or folder.
For most audio sources, tilting the switch
up/down for more than 1.5 seconds provides a
different function than a tilting up/down for less
than 1.5 seconds.
AM and FM
● Tilt up/down for less than 1.5 seconds to
increase or decrease the preset station.
● Tilt up/down for more than 1.5 seconds to
seek up or down to the next station.
● Press the ENTER button to show the list of
preset stations.
SXM (if so equipped) ● Tilt up/down for less than 1.5 seconds to
increase or decrease the preset station. ●
Tilt up/down for more than 1.5 seconds to
go to the next or previous channel.
● Press the ENTER button to show the SXM
Menu.
iPod® (if so equipped) ● Tilt up/down for less than 1.5 seconds to
increase or decrease the track number.
● Press the ENTER button to show the iPod
Menu.
CD ● Tilt up/down for less than 1.5 seconds to
increase or decrease the track number.
● Tilt up/down for more than 1.5 seconds to
increase or decrease the folder number (if
playing compressed audio files) .
● Press the ENTER button to show the CD
Menu.
USB (if so equipped) ● Tilt up/down for less than 1.5 seconds to
increase or decrease the track number.
● Tilt up/down for more than 1.5 seconds to
increase or decrease the folder number.
● Press the ENTER button to show the USB
Menu.
LHA2054
Monitor, climate, audio, phone and voice recognition systems4-67
Page 256 of 457
Bluetooth® Audio (if so equipped)● Tilt up/down for less than 1.5 seconds to
skip ahead or back to the next song.
● Tilt up/down for more than 1.5 seconds to
reverse or fast forward the current song.
AUX ● Press the ENTER button to show the AUX
Menu.
ANTENNA
The antenna cannot be shortened, but can be
removed. When you need to remove the antenna,
turn the antenna rod counterclockwise.
To install the antenna rod, turn the antenna rod
clockwise and hand tighten.
CAUTION
● Always properly tighten the antenna
rod during installation or the antenna
rod may break during vehicle operation.
● Be sure that the antenna is removed
before the vehicle enters an automatic
car wash.
● Be sure to fold down the antenna be-
fore the vehicle enters a garage with a
low ceiling. This vehicle is equipped with Smartphone Inte-
gration technology. This allows many compatible
Smartphone applications to be displayed and
easily controlled through the vehicle’s touch-
screen.
NOTE:
A compatible smartphone and registration
is required to use mobile applications or to
access connected features of certain ve-
hicle applications.
REGISTERING WITH
NISSANCONNECTSMWITH MOBILE
APPS
To use the Smartphone Integration feature, it is
necessary for the user to register. In order to
register, visit the NissanConnect
SMwebsite,
www.nissanusa.com/connect/ or
https://canada.nissanconnect.com (For Canada)
and sign up or create an account through the
prompts on the NissanConnect
SMwith Mobile
Apps. Once registered, download the Nissan-
Connect
SMApp from your compatible phone’s
application download source and then log into
the application. If you already have an account
created through the App, please log in.
CONNECT PHONE
To use this feature, a compatible smartphone
must be connected via Bluetooth® or USB to the
vehicle. For additional information on connecting
your phone, refer to Bluetooth® Hands-Free
Phone System without Navigation System” or
“Bluetooth® Hands-Free Phone System with
Navigation System” in this section.
NOTE:
For vehicles with navigation, Apple
iPhones REQUIRE the phone to be plugged
in via USB for NissanConnect
SMApps to
function.
For vehicles without Navigation, Apple
iPhones must be paired via Bluetooth for
NissanConnect
SMApps to function.
NOTE:
For Android phones, NissanConnect
SM
Apps REQUIRES the phone to be paired via
Bluetooth.
NISSANCONNECTSMWITH MOBILE
APPS (if so equipped)
4-68Monitor, climate, audio, phone and voice recognition systems
Page 447 of 457
10 Index
4WD.......................5-24
4WDwarninglight...............2-15
4-Wheel Drive.................5-24
A
Active brake limited slip (ABLS) system . . .5-35
Adjusting pedal position ............3-14
Air bag (See supplemental restraint
system) .....................1-50
Air bag system Front (See supplemental front impact
air bag system) ...............1-57
Airbagwarninglabels.............1-65
Airbagwarninglight...........1-65,2-17
Air bag warning light, supplemental . .1-65, 2-17
Air cleaner housing filter ............8-19
Air conditioner Air conditioner operation ..........4-19
Air conditioner service ...........4-27
Air conditioner specification label .....9-14
Air conditioner system refrigerant and
oil recommendations .............9-8
Heater and air conditioner (automatic)
(if so equipped) ...............4-24
Heater and air conditioner controls ....4-25
Servicing air conditioner ..........4-27
Airflowcharts..................4-20
Alarm system
(See vehicle security system) .........2-27
Anchor point locations .............1-30
Antenna .....................4-68 Anti-lock brake warning light
..........2-13
Anti-lock Braking System (ABS) ........5-34
Audible reminders ...............2-20
Audio system ..................4-27
AM-FM radio with compact disc
(CD) player .................4-35
Audio System AMradioreception.............4-28
Audio system Bluetooth®audio..........4-64,4-65
Audio System Bluetooth® streaming audio ....4-64,4-65
Audio system Compact disc (CD)
player..........4-37,4-41,4-46,4-53
FM/AM radio with compact disc
(CD) player ..............4-35,4-39
FM-AM radio with compact disc
(CD) player .................4-39
FM/AM/SAT radio with compact disc (CD)
player.................4-43,4-48
Audio System FMradioreception.............4-27
iPod® Player .............4-58,4-61
iPod® player operation .......4-58,4-61
Audio system Radio ....................4-27
Steering wheel audio control switch . . .4-67
USB interface ............4-54,4-56
Audio System USB (Universal Serial Bus) Connection
Port..................4-54,4-56
Autolight switch .................2-34 Automatic
Automatic drive positioner . .3-25, 3-26, 3-27
Automatic power window switch .....2-56
Automatic transmission position indicator
light .....................2-26
Driving with automatic transmission ....5-14
Transmission shift selector lock release . .5-18
Automatic anti-glare inside mirror .......3-16
Automatic door locks ..............3-6
Automatic drive positioner ....3-25,3-26,3-27
Automatic transmission fluid temperature
gauge.......................2-8
AUXjack..............4-38, 4-42, 4-54
B
Back button ....................4-7
Battery ..................5-39, 8-15
Charge warning light ............2-14
Battery replacement Keyfob ...................8-26
Before starting the engine ...........5-11
Belt (See drive belt) ..............8-18
Block heater Engine ....................5-41
Bluetooth® audio ............4-64,4-65
Bluetooth® Hands-Free Phone System with
Navigation
System...............4-90
Bluetooth® Hands-Free Phone System without
Navigation System ...............4-79
Boosterseats..................1-46
Page 453 of 457
Steering wheel switch for audio
control/Bluetooth® Hands-Free Phone
System....................4-67
Tow mode switch ..............2-42
Turnsignalswitch..............2-36
Vehicle dynamic control (VDC) off
switch.....................2-39
Windshield wiper and washer switch . . .2-30
T
Tachometer ....................2-5
Tailgate latch ...................3-21
Temperature gauge Engine coolant temperature gauge .....2-5
Engine oil pressure low/engine coolant
temperature high warning light .......2-14
Theft (NISSAN vehicle immobilizer system) ,
engine start ................2-28,5-11
Three-way catalyst ................5-2
Tie down hooks .................3-25
Tilting steering wheel ..............3-14
Tire Flat tire .....................6-2
Spare tire ...................6-4
TireandLoadingInformationlabel.....9-14
Tire chains ..................8-41
Tireplacard..................9-14
Tirepressure.................8-34
Tire rotation..................8-41
Tires of 4-wheel drive ............8-43
Types of tires .................8-40
Uniform tire quality grading .........9-41
Wheels and tires ...............8-34
Wheel/tire size ................9-10 Tire pressure
Low tire pressure warning light .......2-15
Tire Pressure Monitoring System (TPMS) ....5-3
Towing 2-wheel drive models ............6-13
4-wheel drive models ............6-13
Flattowing..................9-41
Towing load/specification ..........9-29
Trailer towing .................9-25
Towing a trailer ..................9-25
Towingyourvehicle...............6-12
Tow mode switch ................2-42
Transceiver HomeLink® Universal
Transceiver .......2-61,2-62,2-63,2-64,
2-64, 2-65
Transfer case ...................5-26
Transmission Driving with automatic transmission ....5-14
Shift selector lock release ..........5-18
Travel (See registering your vehicle in another
country) ......................9-12
Trip odometer ...................2-4
Troubleshooting guide (NISSAN voice recognition
system) .....................4-102
Truck - camper loading .............9-23
Turn signal switch ................2-36
U
Uniform tire quality grading ...........9-41
USB interface ...............4-54,4-56
Audio file operation ..........4-55,4-57
Using four wheel drive (4WD) .........5-24 V
Vanity mirror ...................3-15
Variable voltage control system .........8-18
Vehicle dimensions and weights ........9-10
Vehicle dynamic control (VDC) off switch . . .2-39
Vehicle dynamic control (VDC) system .....5-36
Vehicle Dynamic Control (VDC) system .
. . .5-36
Vehicle identification ...............9-12
Vehicle identification number (VIN)
(Chassis number) ................9-12
Vehicle identification number (VIN) plate ....9-12
Vehicle immobilizer system ........2-28,5-11
Vehicle Information Display ........2-20,2-21
Vehicle loading information ...........9-15
Vehicle recovery .................6-14
Vehicle security system ..........2-27,2-27
Vehicle security system (NISSAN vehicle
immobilizer system) , engine start ....2-28,5-11
Vents.......................4-15
Visors.......................3-15
Voice Prompt Interrupt ..........4-82,4-93
Voice recognition system ............4-98
Voltmeter......................2-7
W
Warning 4WD warning light ..............2-15
Airbagwarninglight.........1-65,2-17
Anti-lock brake warning light ........2-13
Battery charge warning light ........2-14
Brake warning light .............2-13
10-7
