NISSAN TITAN 2015 1.G Owners Manual

NISSAN TITAN 2015 1.G Owners Manual https://www.carmanualsonline.info/img/5/449/w960_449-0.png NISSAN TITAN 2015 1.G Owners Manual

Page 361 of 457

NISSAN TITAN 2015 1.G Owners Manual UnderbodyThe underbody is frequently ex-
posed to corrosive substances such as those
used on icy roads or to control dust. It is very
important to remove these substances from the
underbody, otherwise

Page 362 of 457

NISSAN TITAN 2015 1.G Owners Manual ●Never leave the engine or automatic
transmission related component har-
nesses disconnected while the ignition
switch is in the ON position.
● Never connect or disconnect the battery
or any trans

Page 363 of 457

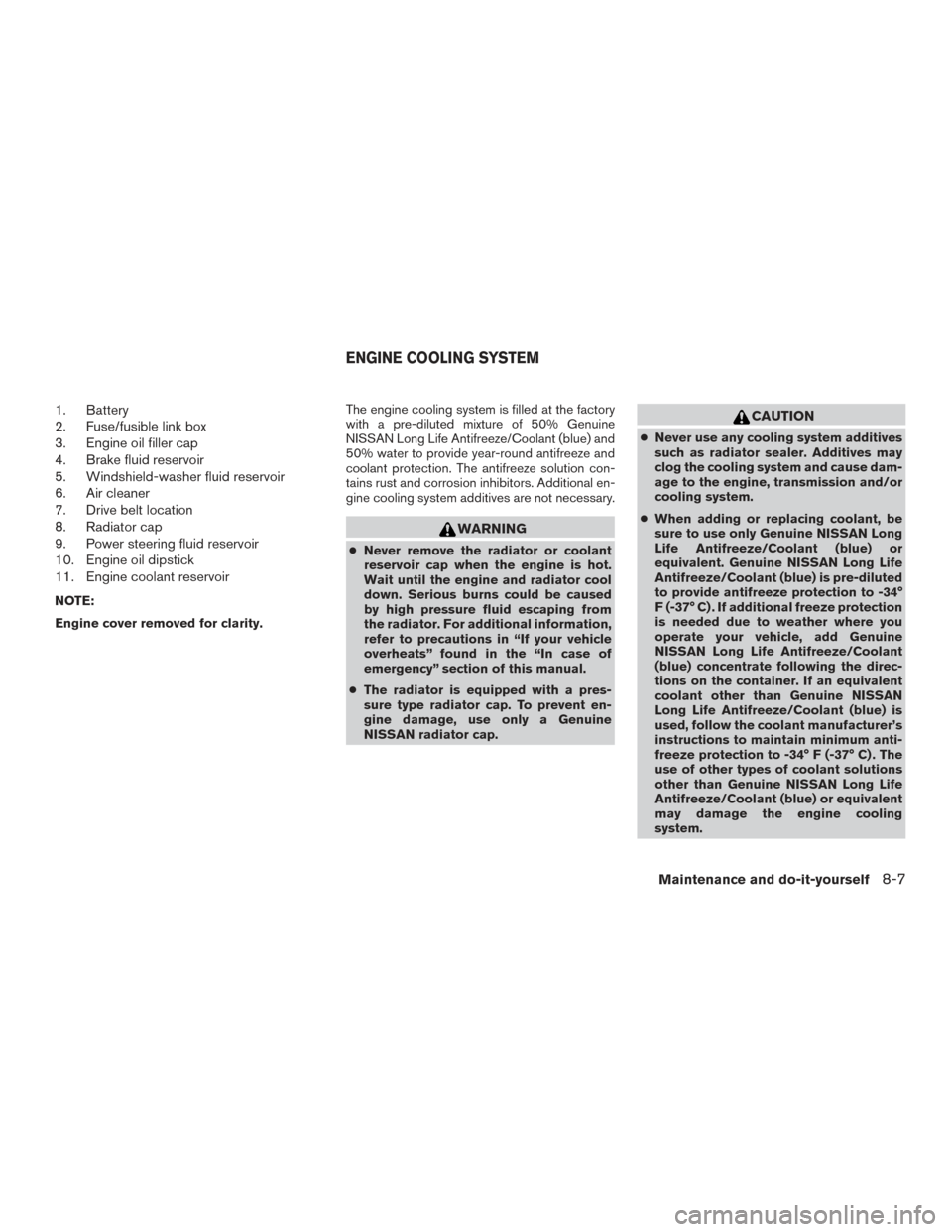

NISSAN TITAN 2015 1.G Owners Manual 1. Battery
2. Fuse/fusible link box
3. Engine oil filler cap
4. Brake fluid reservoir
5. Windshield-washer fluid reservoir
6. Air cleaner
7. Drive belt location
8. Radiator cap
9. Power steering fluid

Page 364 of 457

NISSAN TITAN 2015 1.G Owners Manual ●The life expectancy of the factory-fill
coolant is 105,000 miles (168,000 km) or
7 years. Mixing any other type of cool-
ant other than Genuine NISSAN Long
Life Antifreeze/Coolant (blue) , includ-

Page 365 of 457

NISSAN TITAN 2015 1.G Owners Manual ●Avoid direct skin contact with used
coolant. If skin contact is made, wash
thoroughly with soap or hand cleaner as
soon as possible.
● Keep coolant out of the reach of chil-
dren and pets.
Engine

Page 366 of 457

NISSAN TITAN 2015 1.G Owners Manual CAUTION
Oil level should be checked regularly. Op-
erating the engine with an insufficient
amount of oil can damage the engine, and
such damage is not covered by warranty.
CHANGING ENGINE OIL
1. Park

Page 367 of 457

NISSAN TITAN 2015 1.G Owners Manual CAUTION
Be careful not to burn yourself. The engine
oil may be hot.6. Clean and reinstall the drain plug and a new washer. Securely tighten the drain plug with
a wrench. Do not use excessive force.
Dr

Page 368 of 457

NISSAN TITAN 2015 1.G Owners Manual CHANGING ENGINE OIL FILTER
1. Park the vehicle on a level surface and applythe parking brake.
2. Turn the engine off. 3. Remove bolts
Aand cover.
4. Place a large drain pan under the oil filter
B.
5

Page 369 of 457

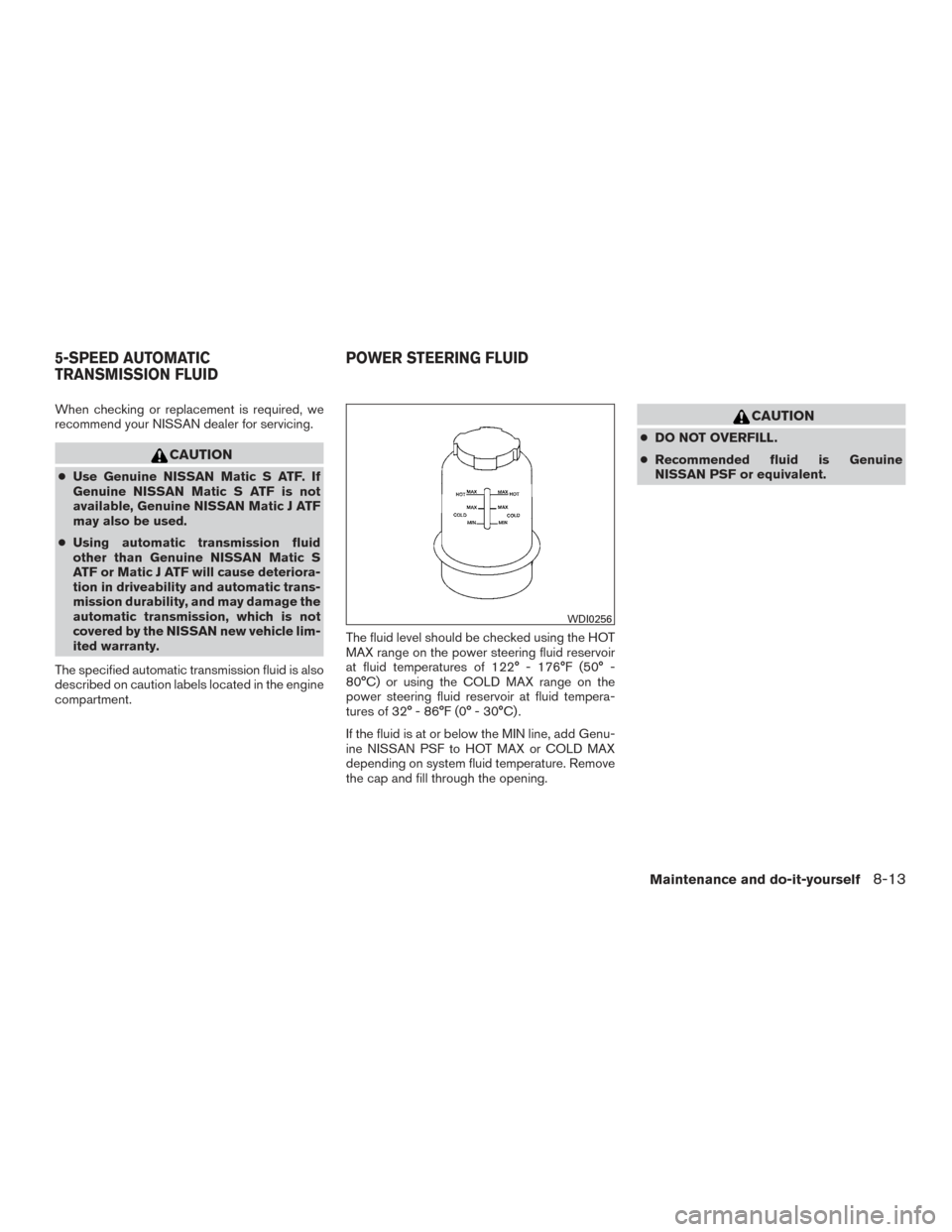

NISSAN TITAN 2015 1.G Owners Manual When checking or replacement is required, we
recommend your NISSAN dealer for servicing.
CAUTION
●Use Genuine NISSAN Matic S ATF. If
Genuine NISSAN Matic S ATF is not
available, Genuine NISSAN Matic

Page 370 of 457

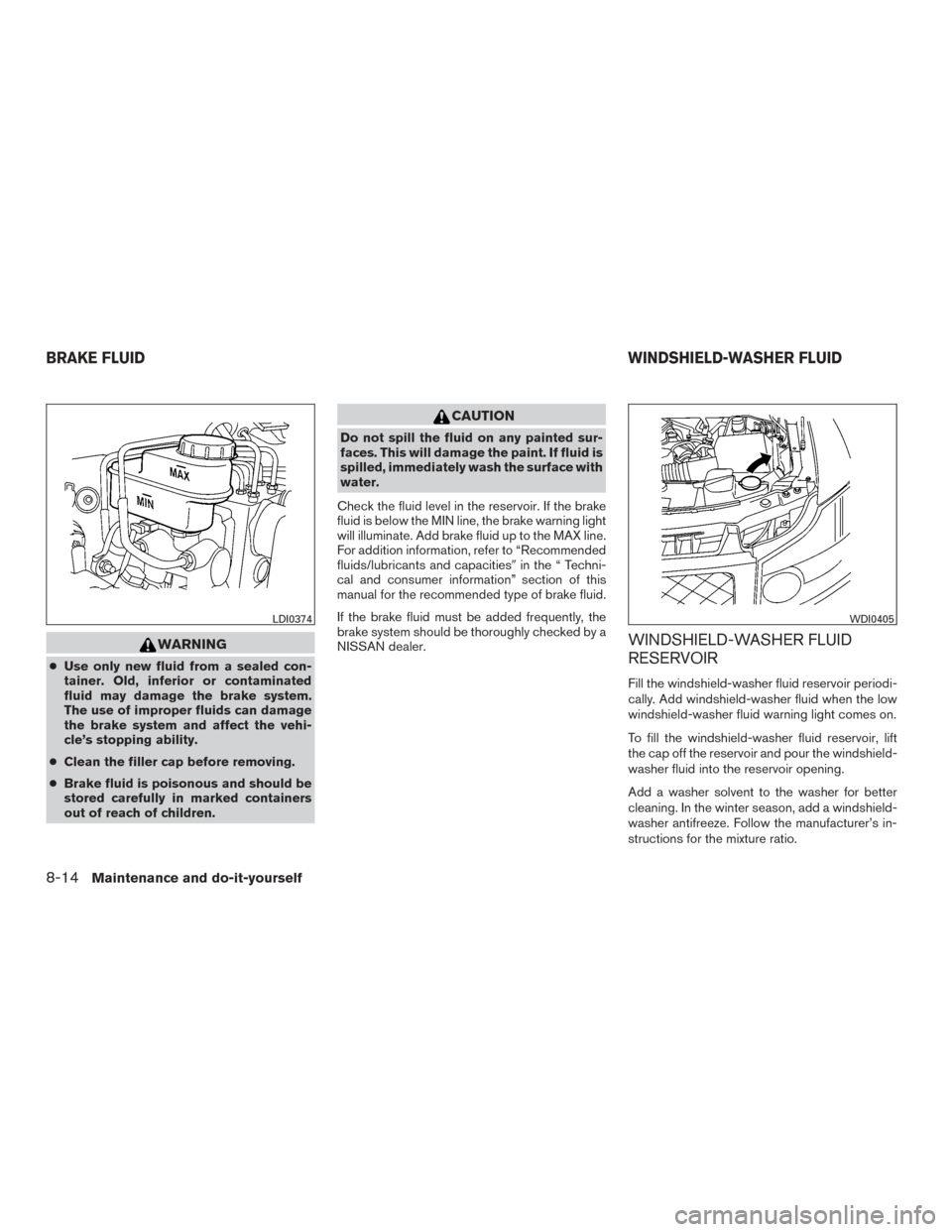

NISSAN TITAN 2015 1.G Owners Manual WARNING
●Use only new fluid from a sealed con-
tainer. Old, inferior or contaminated
fluid may damage the brake system.
The use of improper fluids can damage
the brake system and affect the vehi-
cl
