NISSAN TITAN 2016 2.G Owners Manual
Manufacturer: NISSAN, Model Year: 2016, Model line: TITAN, Model: NISSAN TITAN 2016 2.GPages: 636, PDF Size: 7.17 MB
Page 581 of 636

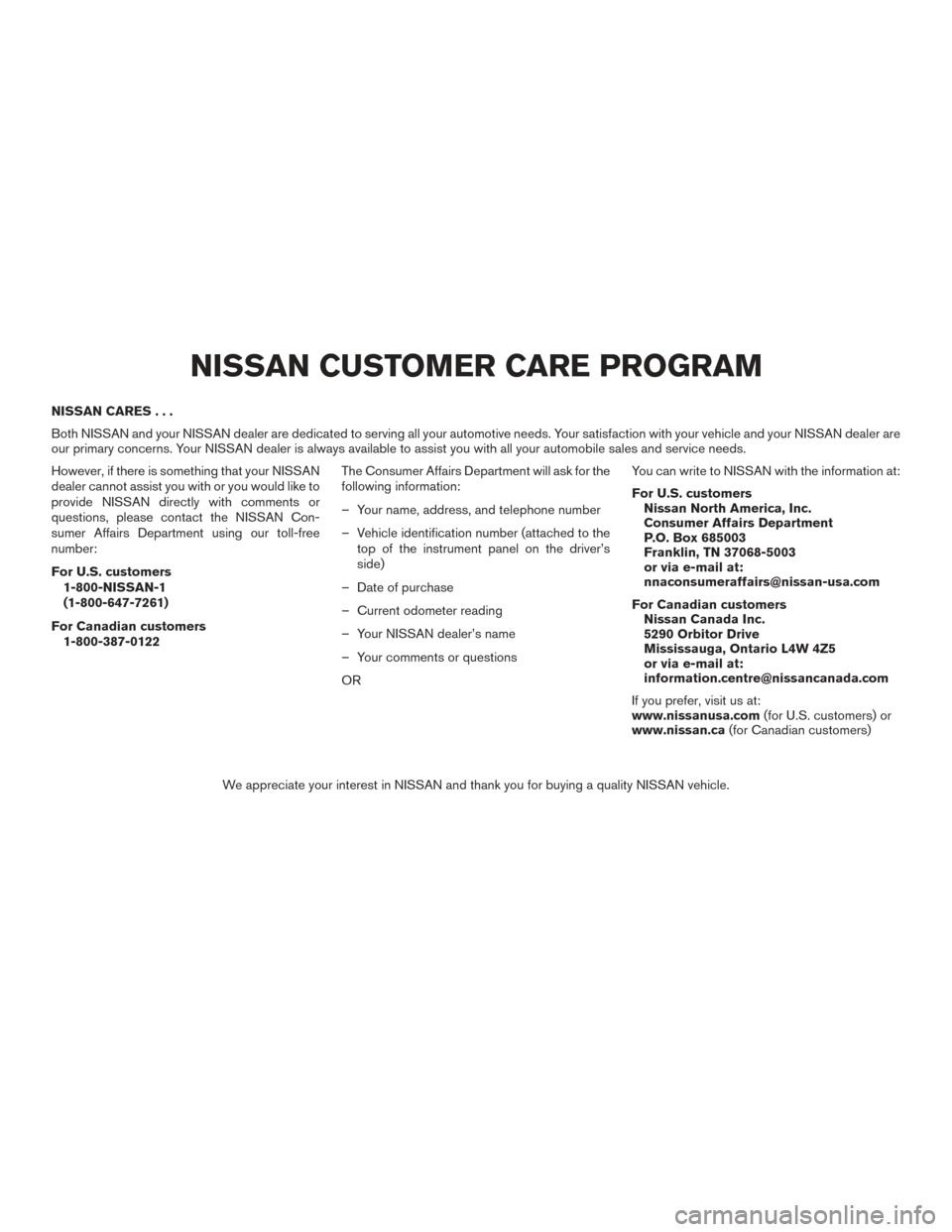

NISSAN CARES...
Both NISSAN and your NISSAN dealer are dedicated to serving all your automotive needs. Your satisfaction with your vehicle and your NISSAN dealer are
our primary concerns. Your NISSAN dealer is always available to assist you with all your automobile sales and service needs.
However, if there is something that your NISSAN
dealer cannot assist you with or you would like to
provide NISSAN directly with comments or
questions, please contact the NISSAN Con-
sumer Affairs Department using our toll-free
number:
For U.S. customers1-800-NISSAN-1
(1-800-647-7261)
For Canadian customers 1-800-387-0122 The Consumer Affairs Department will ask for the
following information:
– Your name, address, and telephone number
– Vehicle identification number (attached to the
top of the instrument panel on the driver’s
side)
– Date of purchase
– Current odometer reading
– Your NISSAN dealer’s name
– Your comments or questions
OR You can write to NISSAN with the information at:
For U.S. customers
Nissan North America, Inc.
Consumer Affairs Department
P.O. Box 685003
Franklin, TN 37068-5003
or via e-mail at:
[email protected]
For Canadian customers Nissan Canada Inc.
5290 Orbitor Drive
Mississauga, Ontario L4W 4Z5
or via e-mail at:
[email protected]
If you prefer, visit us at:
www.nissanusa.com (for U.S. customers) or
www.nissan.ca (for Canadian customers)
We appreciate your interest in NISSAN and thank you for buying a quality NISSAN vehicle.
NISSAN CUSTOMER CARE PROGRAM
Page 582 of 636

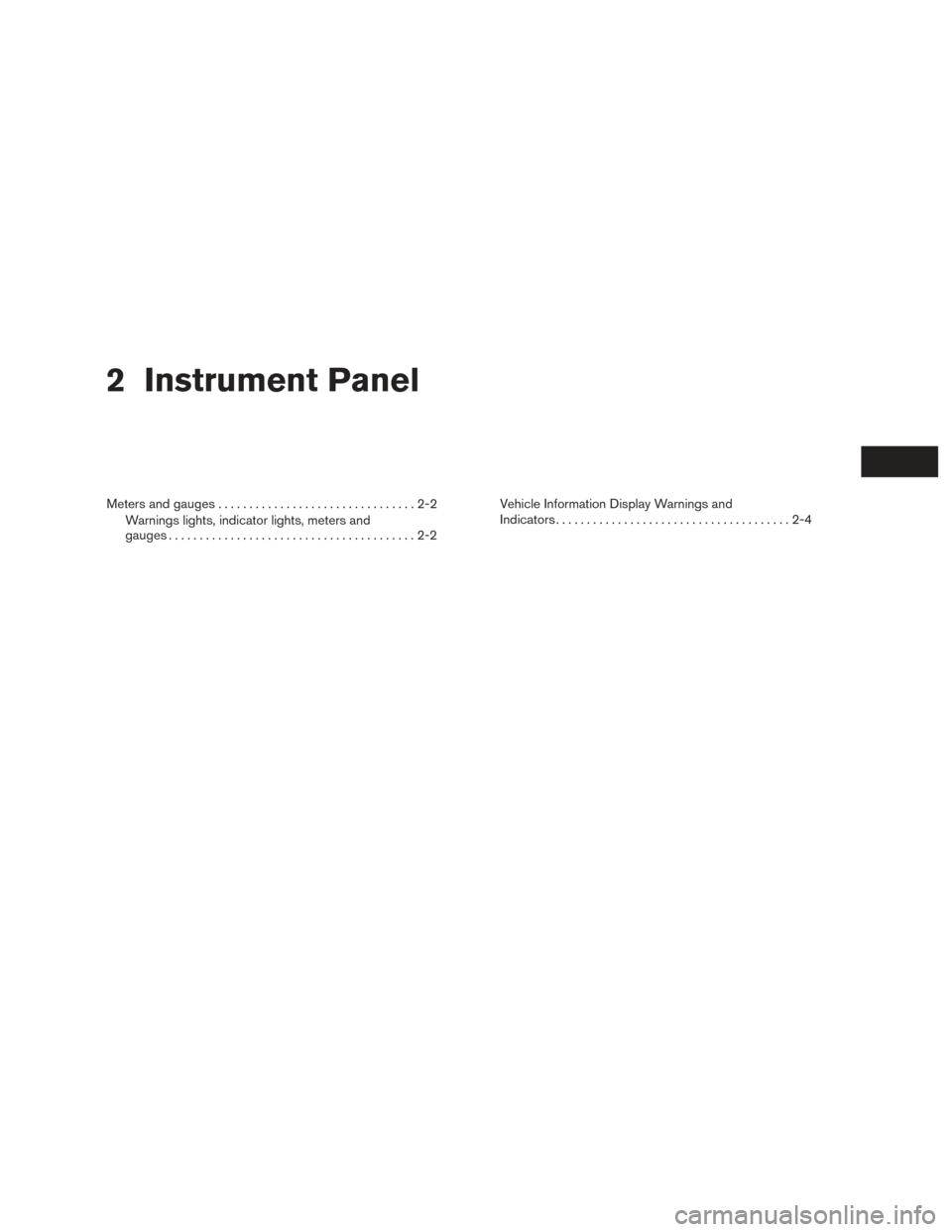

2 Instrument Panel
Meters and gauges................................2-2
Warnings lights, indicator lights, meters and
gauges ........................................2-2 Vehicle Information Display Warnings and
Indicators
......................................2-4
Page 583 of 636
WARNINGS LIGHTS, INDICATOR
LIGHTS, METERS AND GAUGES
These lights, meters and gauges are specific to
the diesel engine.1. Low Diesel Exhaust Fluid (DEF) warning
light
2. Diesel Particulate Filter (DPF) warning light
3. Vehicle information display 4. Water in Fuel warning light
5. Malfunction Warning Light (red)
LIC3469
METERS AND GAUGES
2-2Instrument Panel
Page 584 of 636

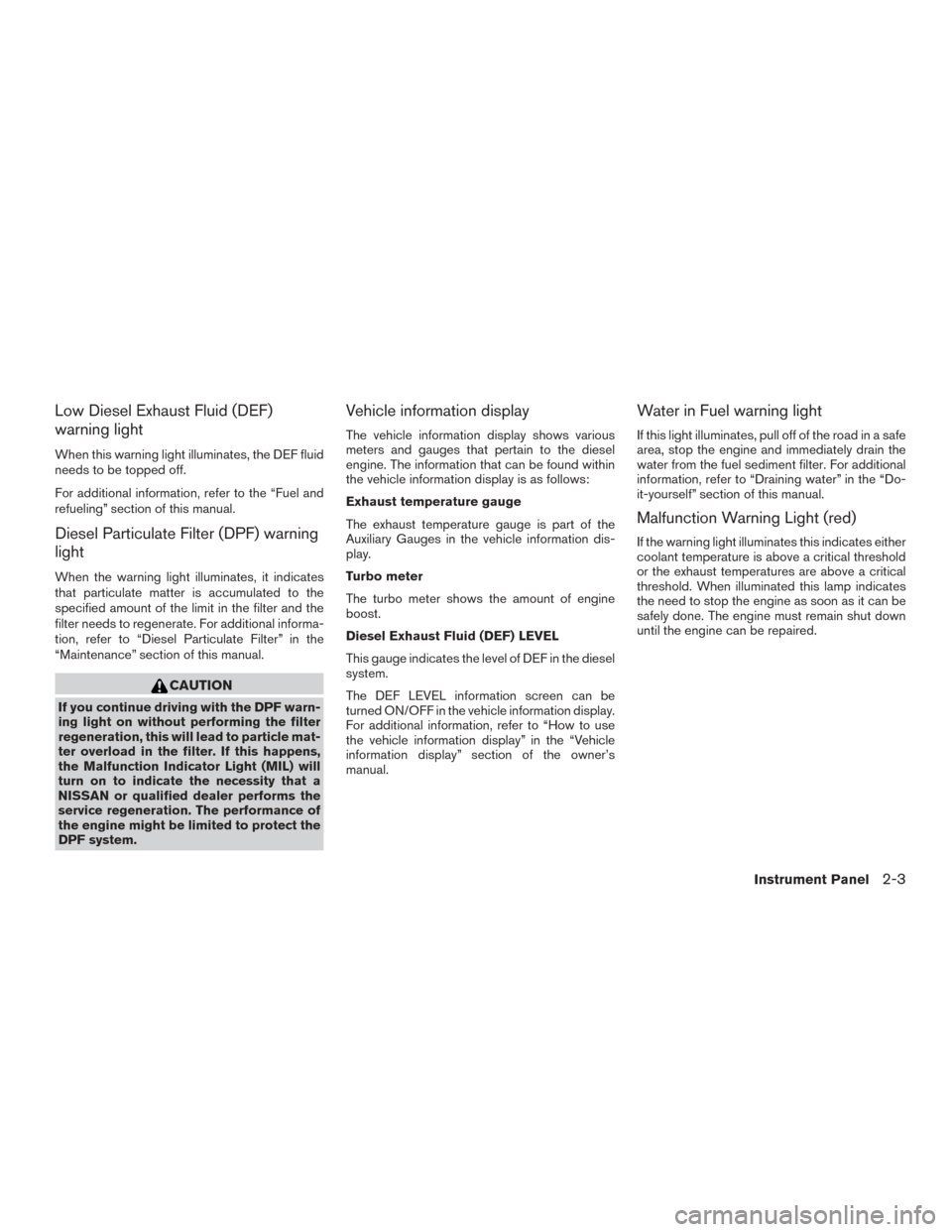

Low Diesel Exhaust Fluid (DEF)
warning light
When this warning light illuminates, the DEF fluid
needs to be topped off.
For additional information, refer to the “Fuel and
refueling” section of this manual.
Diesel Particulate Filter (DPF) warning
light
When the warning light illuminates, it indicates
that particulate matter is accumulated to the
specified amount of the limit in the filter and the
filter needs to regenerate. For additional informa-
tion, refer to “Diesel Particulate Filter” in the
“Maintenance” section of this manual.
CAUTION
If you continue driving with the DPF warn-
ing light on without performing the filter
regeneration, this will lead to particle mat-
ter overload in the filter. If this happens,
the Malfunction Indicator Light (MIL) will
turn on to indicate the necessity that a
NISSAN or qualified dealer performs the
service regeneration. The performance of
the engine might be limited to protect the
DPF system.
Vehicle information display
The vehicle information display shows various
meters and gauges that pertain to the diesel
engine. The information that can be found within
the vehicle information display is as follows:
Exhaust temperature gauge
The exhaust temperature gauge is part of the
Auxiliary Gauges in the vehicle information dis-
play.
Turbo meter
The turbo meter shows the amount of engine
boost.
Diesel Exhaust Fluid (DEF) LEVEL
This gauge indicates the level of DEF in the diesel
system.
The DEF LEVEL information screen can be
turned ON/OFF in the vehicle information display.
For additional information, refer to “How to use
the vehicle information display” in the “Vehicle
information display” section of the owner’s
manual.
Water in Fuel warning light
If this light illuminates, pull off of the road in a safe
area, stop the engine and immediately drain the
water from the fuel sediment filter. For additional
information, refer to “Draining water” in the “Do-
it-yourself” section of this manual.
Malfunction Warning Light (red)
If the warning light illuminates this indicates either
coolant temperature is above a critical threshold
or the exhaust temperatures are above a critical
threshold. When illuminated this lamp indicates
the need to stop the engine as soon as it can be
safely done. The engine must remain shut down
until the engine can be repaired.
Instrument Panel2-3
Page 585 of 636
VEHICLE INFORMATION DISPLAY
WARNINGS AND INDICATORS
1. DEF Low XX% Refill Soon
2. DEF Low XX% Limited Engine Power Soon
3. DEF Low Limited Engine Power In XX Miles4. DEF Empty 5mph Limit Soon: See Owner’s
Manual
5. DEF Empty Refill DEF: See Owner’s Manual
6. DEF System Error See Dealer 7. DEF System Error 5MPH Speed limit XXX
Miles
8. DEF System Error 5MPH Speed Limit Soon
9. DEF System Error 5MPH Speed Limit See Dealer
LIC3468
2-4Instrument Panel
Page 586 of 636

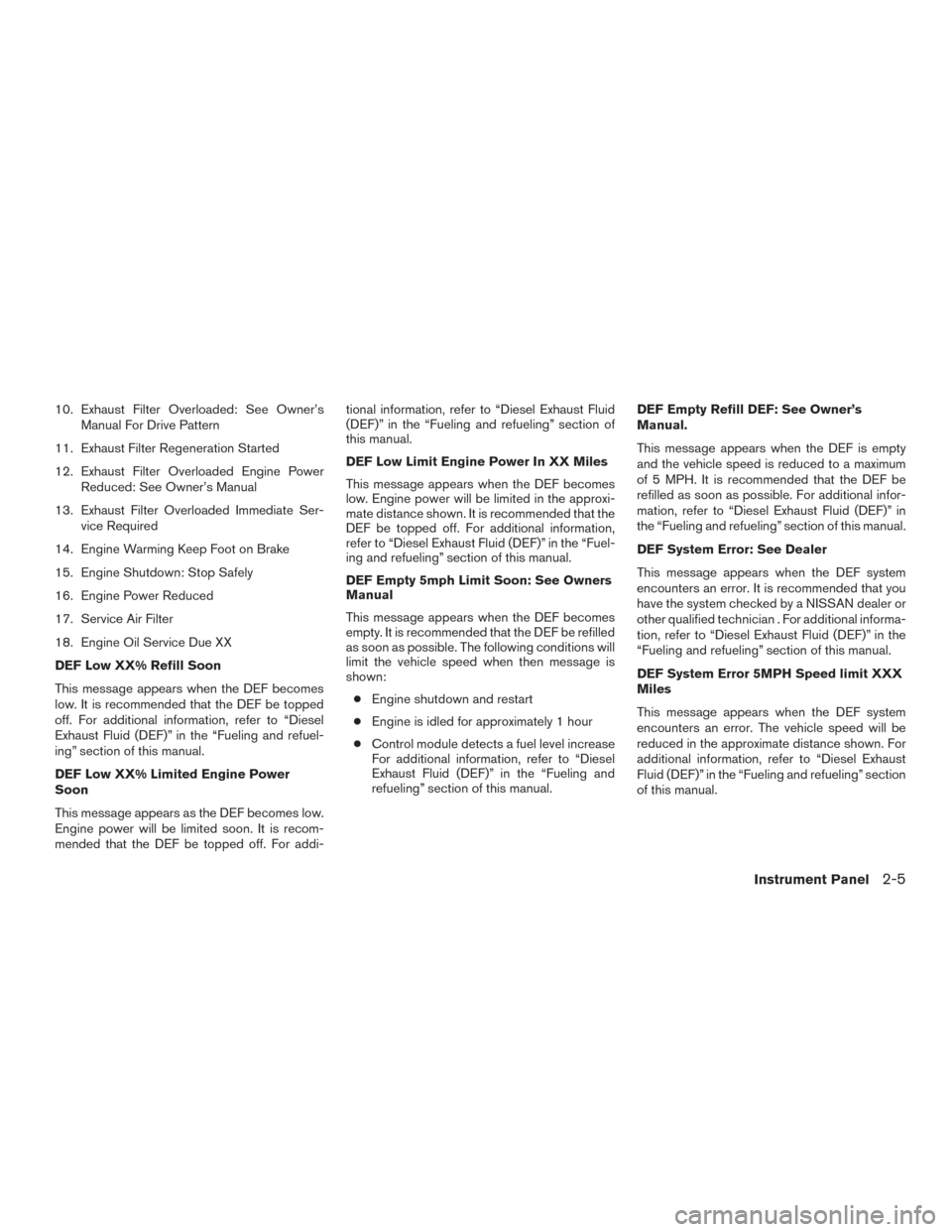

10. Exhaust Filter Overloaded: See Owner’sManual For Drive Pattern
11. Exhaust Filter Regeneration Started
12. Exhaust Filter Overloaded Engine Power Reduced: See Owner’s Manual
13. Exhaust Filter Overloaded Immediate Ser- vice Required
14. Engine Warming Keep Foot on Brake
15. Engine Shutdown: Stop Safely
16. Engine Power Reduced
17. Service Air Filter
18. Engine Oil Service Due XX
DEF Low XX% Refill Soon
This message appears when the DEF becomes
low. It is recommended that the DEF be topped
off. For additional information, refer to “Diesel
Exhaust Fluid (DEF)” in the “Fueling and refuel-
ing” section of this manual.
DEF Low XX% Limited Engine Power
Soon
This message appears as the DEF becomes low.
Engine power will be limited soon. It is recom-
mended that the DEF be topped off. For addi- tional information, refer to “Diesel Exhaust Fluid
(DEF)” in the “Fueling and refueling” section of
this manual.
DEF Low Limit Engine Power In XX Miles
This message appears when the DEF becomes
low. Engine power will be limited in the approxi-
mate distance shown. It is recommended that the
DEF be topped off. For additional information,
refer to “Diesel Exhaust Fluid (DEF)” in the “Fuel-
ing and refueling” section of this manual.
DEF Empty 5mph Limit Soon: See Owners
Manual
This message appears when the DEF becomes
empty. It is recommended that the DEF be refilled
as soon as possible. The following conditions will
limit the vehicle speed when then message is
shown:
● Engine shutdown and restart
● Engine is idled for approximately 1 hour
● Control module detects a fuel level increase
For additional information, refer to “Diesel
Exhaust Fluid (DEF)” in the “Fueling and
refueling” section of this manual. DEF Empty Refill DEF: See Owner’s
Manual.
This message appears when the DEF is empty
and the vehicle speed is reduced to a maximum
of 5 MPH. It is recommended that the DEF be
refilled as soon as possible. For additional infor-
mation, refer to “Diesel Exhaust Fluid (DEF)” in
the “Fueling and refueling” section of this manual.
DEF System Error: See Dealer
This message appears when the DEF system
encounters an error. It is recommended that you
have the system checked by a NISSAN dealer or
other qualified technician . For additional informa-
tion, refer to “Diesel Exhaust Fluid (DEF)” in the
“Fueling and refueling” section of this manual.
DEF System Error 5MPH Speed limit XXX
Miles
This message appears when the DEF system
encounters an error. The vehicle speed will be
reduced in the approximate distance shown. For
additional information, refer to “Diesel Exhaust
Fluid (DEF)” in the “Fueling and refueling” section
of this manual.
Instrument Panel2-5
Page 587 of 636

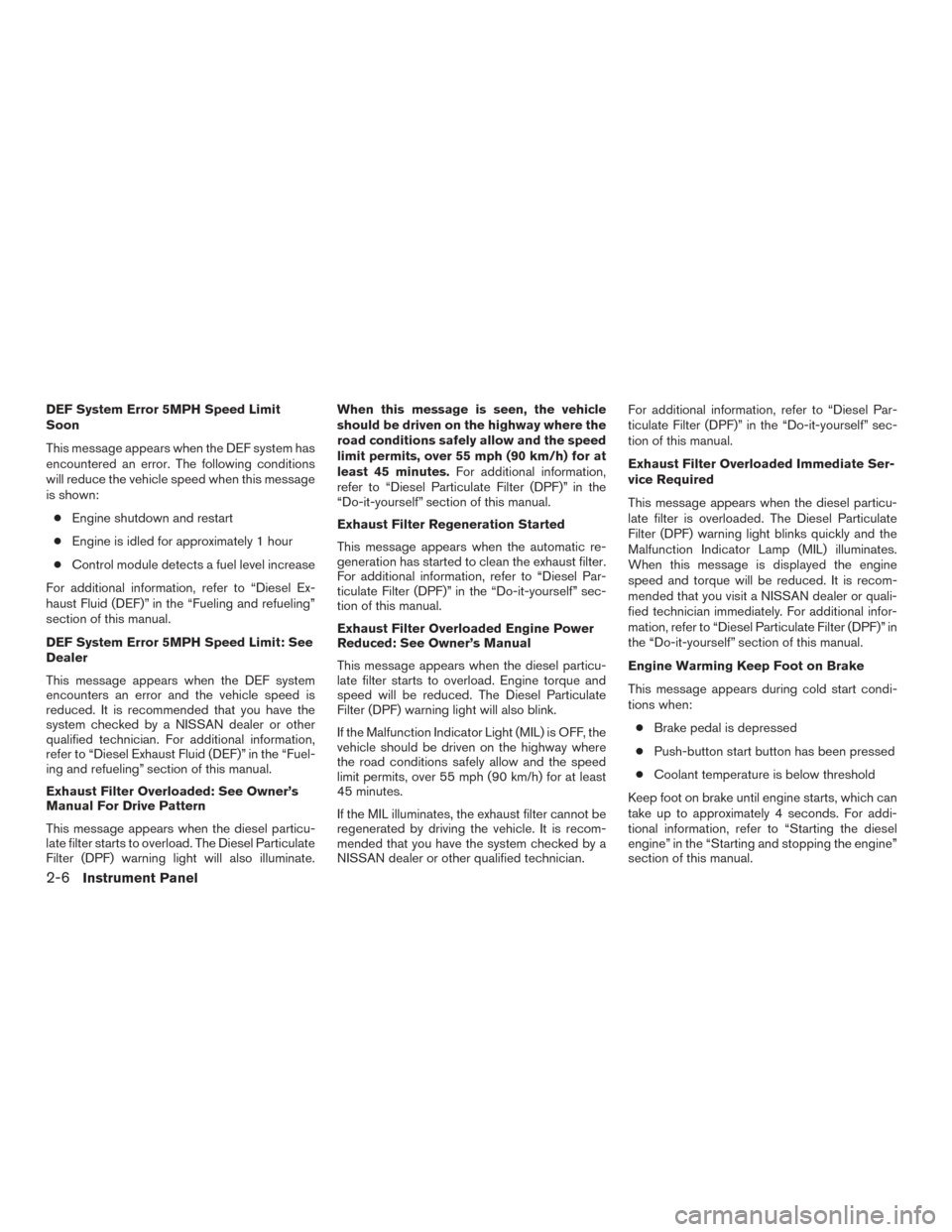

DEF System Error 5MPH Speed Limit
Soon
This message appears when the DEF system has
encountered an error. The following conditions
will reduce the vehicle speed when this message
is shown:● Engine shutdown and restart
● Engine is idled for approximately 1 hour
● Control module detects a fuel level increase
For additional information, refer to “Diesel Ex-
haust Fluid (DEF)” in the “Fueling and refueling”
section of this manual.
DEF System Error 5MPH Speed Limit: See
Dealer
This message appears when the DEF system
encounters an error and the vehicle speed is
reduced. It is recommended that you have the
system checked by a NISSAN dealer or other
qualified technician. For additional information,
refer to “Diesel Exhaust Fluid (DEF)” in the “Fuel-
ing and refueling” section of this manual.
Exhaust Filter Overloaded: See Owner’s
Manual For Drive Pattern
This message appears when the diesel particu-
late filter starts to overload. The Diesel Particulate
Filter (DPF) warning light will also illuminate. When this message is seen, the vehicle
should be driven on the highway where the
road conditions safely allow and the speed
limit permits, over 55 mph (90 km/h) for at
least 45 minutes.
For additional information,
refer to “Diesel Particulate Filter (DPF)” in the
“Do-it-yourself” section of this manual.
Exhaust Filter Regeneration Started
This message appears when the automatic re-
generation has started to clean the exhaust filter.
For additional information, refer to “Diesel Par-
ticulate Filter (DPF)” in the “Do-it-yourself” sec-
tion of this manual.
Exhaust Filter Overloaded Engine Power
Reduced: See Owner’s Manual
This message appears when the diesel particu-
late filter starts to overload. Engine torque and
speed will be reduced. The Diesel Particulate
Filter (DPF) warning light will also blink.
If the Malfunction Indicator Light (MIL) is OFF, the
vehicle should be driven on the highway where
the road conditions safely allow and the speed
limit permits, over 55 mph (90 km/h) for at least
45 minutes.
If the MIL illuminates, the exhaust filter cannot be
regenerated by driving the vehicle. It is recom-
mended that you have the system checked by a
NISSAN dealer or other qualified technician. For additional information, refer to “Diesel Par-
ticulate Filter (DPF)” in the “Do-it-yourself” sec-
tion of this manual.
Exhaust Filter Overloaded Immediate Ser-
vice Required
This message appears when the diesel particu-
late filter is overloaded. The Diesel Particulate
Filter (DPF) warning light blinks quickly and the
Malfunction Indicator Lamp (MIL) illuminates.
When this message is displayed the engine
speed and torque will be reduced. It is recom-
mended that you visit a NISSAN dealer or quali-
fied technician immediately. For additional infor-
mation, refer to “Diesel Particulate Filter (DPF)” in
the “Do-it-yourself” section of this manual.
Engine Warming Keep Foot on Brake
This message appears during cold start condi-
tions when:
● Brake pedal is depressed
● Push-button start button has been pressed
● Coolant temperature is below threshold
Keep foot on brake until engine starts, which can
take up to approximately 4 seconds. For addi-
tional information, refer to “Starting the diesel
engine” in the “Starting and stopping the engine”
section of this manual.
2-6Instrument Panel
Page 588 of 636

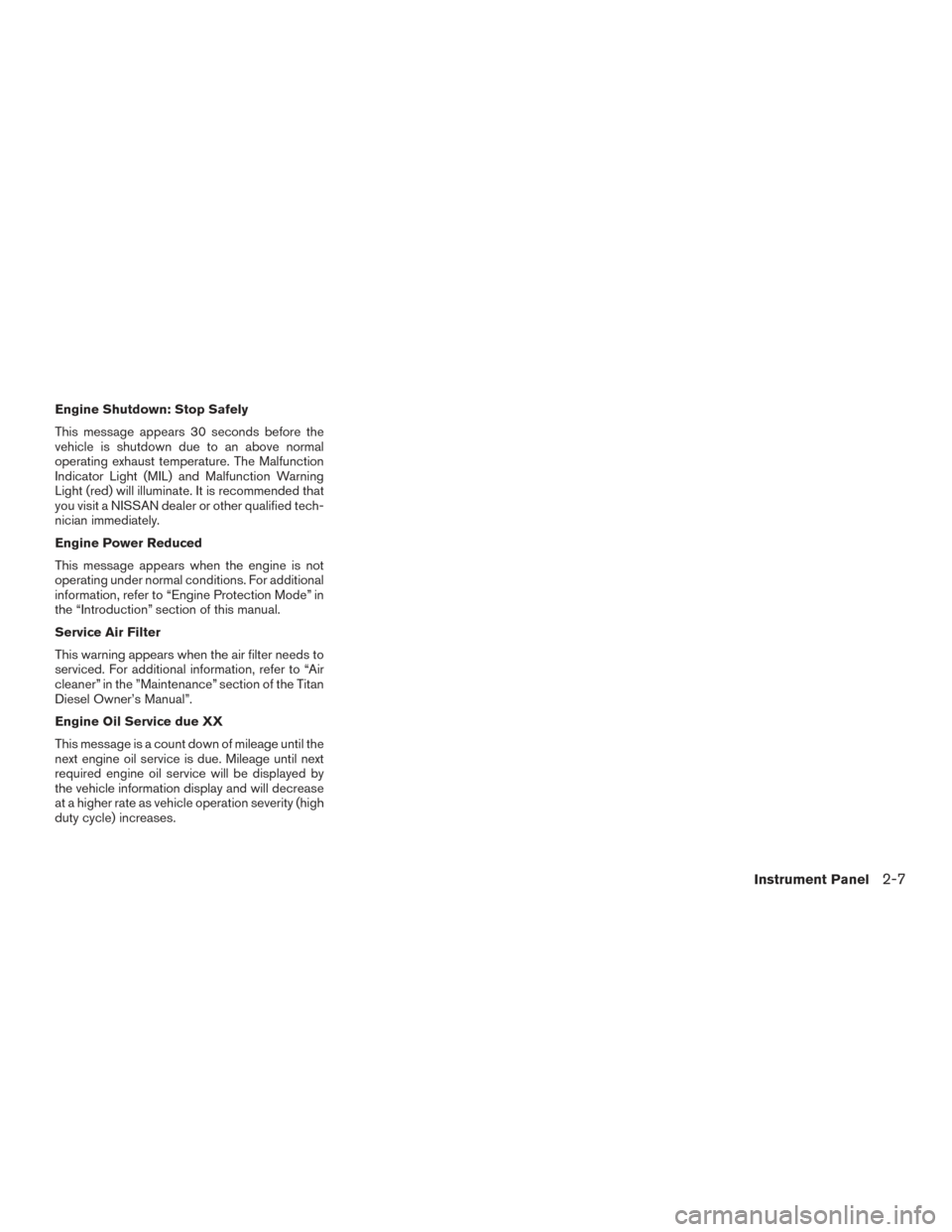

Engine Shutdown: Stop Safely
This message appears 30 seconds before the
vehicle is shutdown due to an above normal
operating exhaust temperature. The Malfunction
Indicator Light (MIL) and Malfunction Warning
Light (red) will illuminate. It is recommended that
you visit a NISSAN dealer or other qualified tech-
nician immediately.
Engine Power Reduced
This message appears when the engine is not
operating under normal conditions. For additional
information, refer to “Engine Protection Mode” in
the “Introduction” section of this manual.
Service Air Filter
This warning appears when the air filter needs to
serviced. For additional information, refer to “Air
cleaner” in the ”Maintenance” section of the Titan
Diesel Owner’s Manual”.
Engine Oil Service due XX
This message is a count down of mileage until the
next engine oil service is due. Mileage until next
required engine oil service will be displayed by
the vehicle information display and will decrease
at a higher rate as vehicle operation severity (high
duty cycle) increases.
Instrument Panel2-7
Page 589 of 636

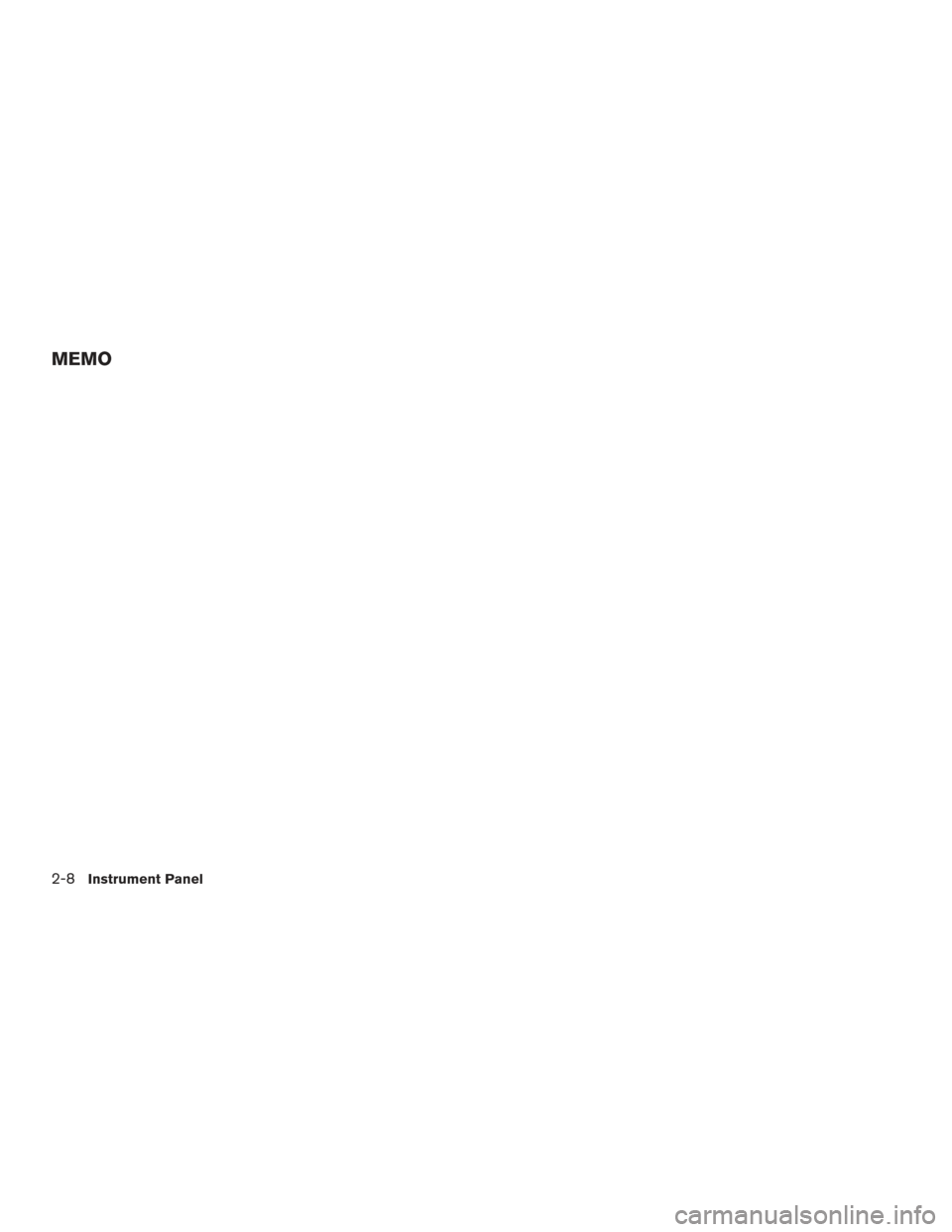

MEMO
2-8Instrument Panel
Page 590 of 636

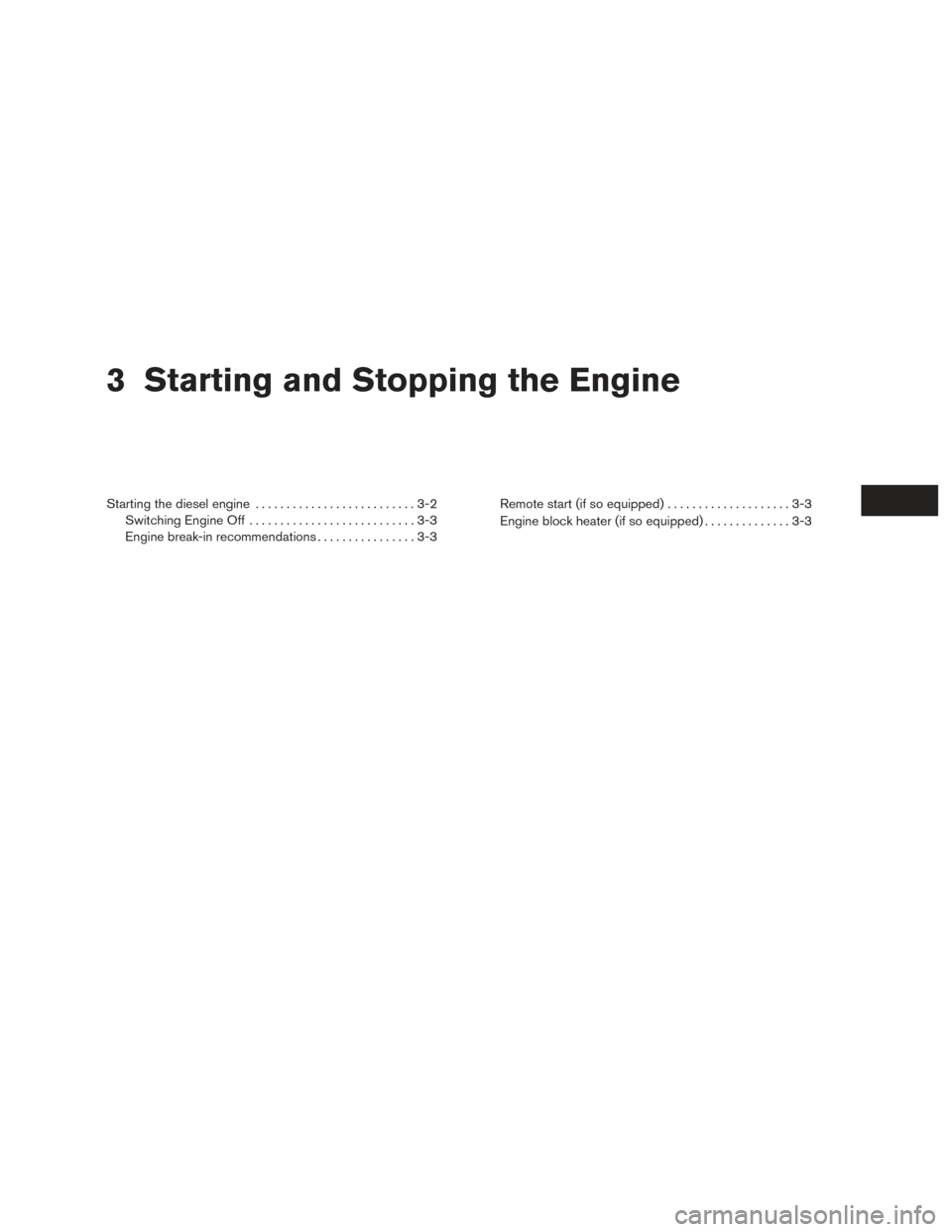

3 Starting and Stopping the Engine
Starting the diesel engine..........................3-2
Switching Engine Off ...........................3-3
Engine break-in recommendations ................3-3Remote start (if so equipped)
....................3-3
Engine block heater (if so equipped) ..............3-3
