NISSAN TITAN 2017 2.G Owner's Manual

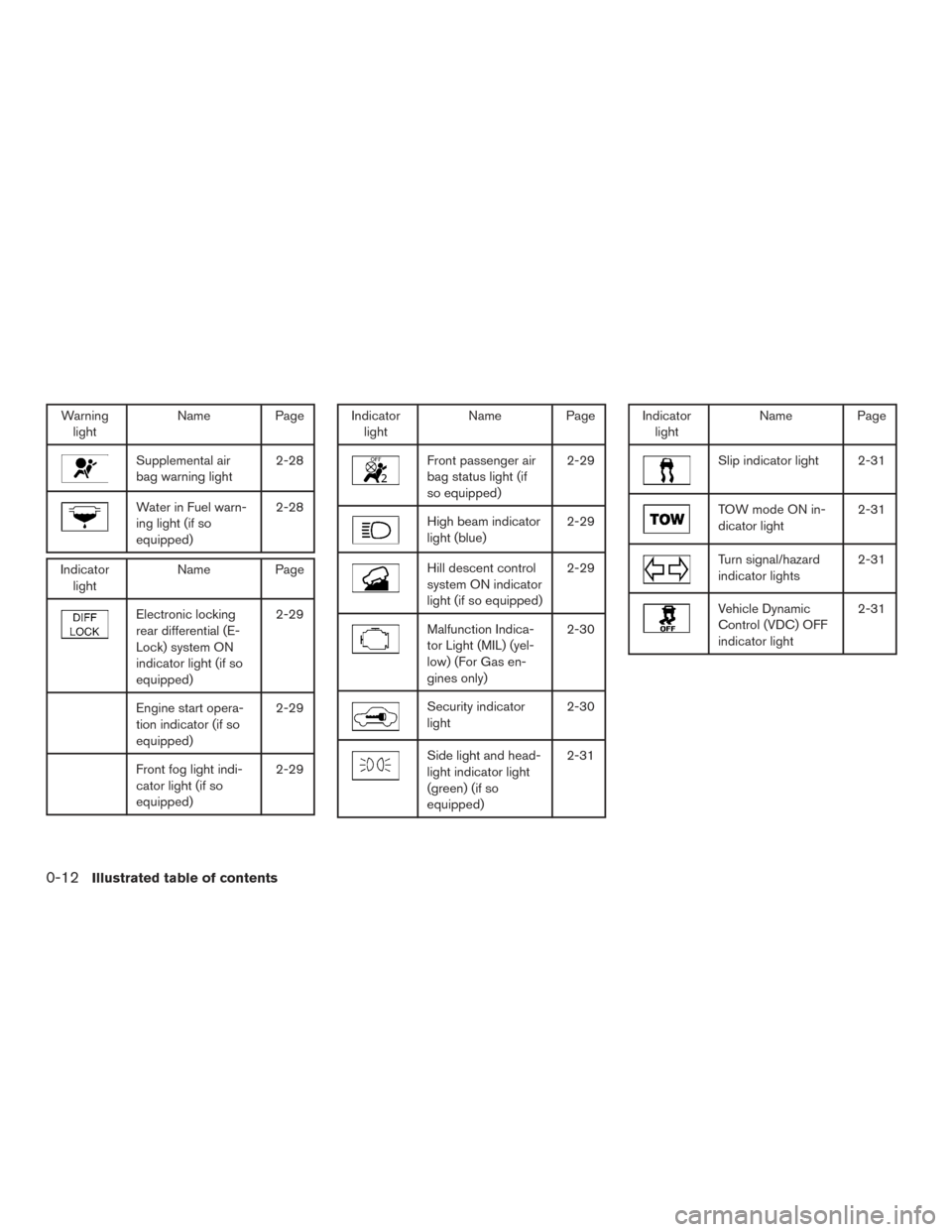

Warninglight Name Page
Supplemental air
bag warning light 2-28
Water in Fuel warn-
ing light (if so
equipped)2-28
Indicator
light Name Page
Electronic locking
rear differential (E-
Lock) system ON
indicator light (if so
equipped) 2-29
Engine start opera-
tion indicator (if so
equipped)
2-29
Front fog light indi-
cator light (if so
equipped)2-29
Indicator
light Name Page
Front passenger air
bag status light (if
so equipped) 2-29
High beam indicator
light (blue)
2-29
Hill descent control
system ON indicator
light (if so equipped)2-29
Malfunction Indica-
tor Light (MIL) (yel-
low) (For Gas en-
gines only)2-30
Security indicator
light
2-30
Side light and head-
light indicator light
(green) (if so
equipped)2-31
Indicator
light Name Page
Slip indicator light 2-31
TOW mode ON in-
dicator light 2-31
Turn signal/hazard
indicator lights2-31
Vehicle Dynamic
Control (VDC) OFF
indicator light2-31
0-12Illustrated table of contents

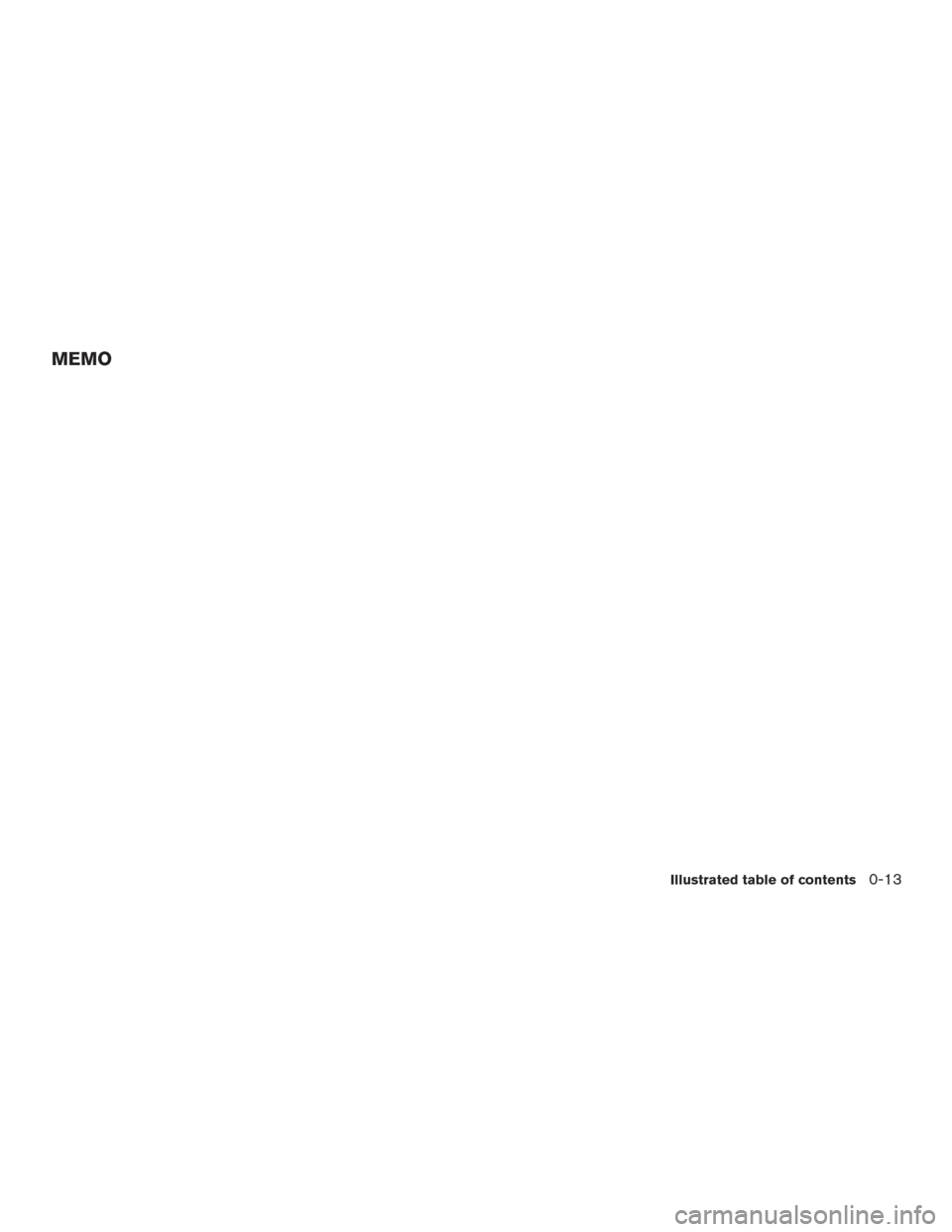

MEMO
Illustrated table of contents0-13

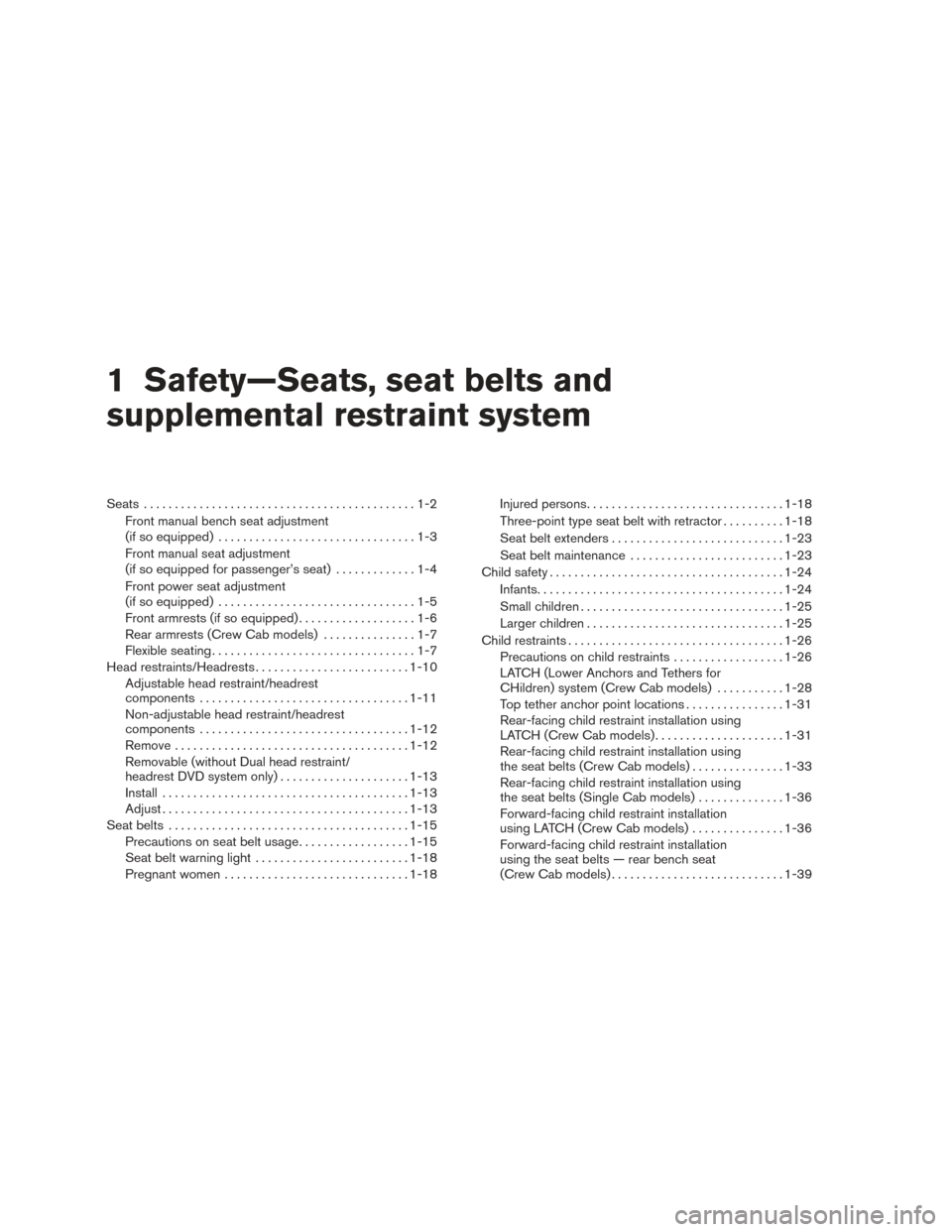

1 Safety—Seats, seat belts and
supplemental restraint system
Seats............................................1-2
Front manual bench seat adjustment
(if so equipped) ................................1-3
Front manual seat adjustment
(if so equipped for passenger’s seat) .............1-4
Front power seat adjustment
(if so equipped) ................................1-5
Front armrests (if so equipped) ...................1-6
Rear armrests (Crew Cab models) ...............1-7
Flexible seating .................................1-7
Head restraints/Headrests ......................... 1-10
Adjustable head restraint/headrest
components .................................. 1-11
Non-adjustable head restraint/headrest
components .................................. 1-12
Remove ...................................... 1-12
Removable (without Dual head restraint/
headrest DVD system only) .....................1-13
Install ........................................ 1-13
Adjust ........................................ 1-13
Seat belts ....................................... 1-15
Precautions on seat belt usage ..................1-15
Seat belt warning light ......................... 1-18
Pregnant women .............................. 1-18Injured persons
................................ 1-18
Three-point type seat belt with retractor ..........1-18
Seat belt extenders ............................ 1-23
Seat belt maintenance ......................... 1-23
Child safety ...................................... 1-24
Infants ........................................ 1-24
Small children ................................. 1-25
Larger children ................................ 1-25
Child restraints ................................... 1-26
Precautions on child restraints ..................1-26
LATCH (Lower Anchors and Tethers for
CHildren) system (Crew Cab models) ...........1-28
Top tether anchor point locations ................1-31
Rear-facing child restraint installation using
LATCH (Crew Cab models) .....................1-31
Rear-facing child restraint installation using
the seat belts (Crew Cab models) . . .............1-33
Rear-facing child restraint installation using
the seat belts (Single Cab models) ..............1-36
Forward-facing

child restraint installation
using LATCH (Crew Cab models) ...............1-36
Forward-facing child restraint installation
using the seat belts — rear bench seat
(Crew Cab models) ............................ 1-39

Forward-facing child restraint installation
using the seat belts — passenger seat and
center seat (Single Cab models)................1-43
Booster seats ................................. 1-47
Supplemental Restraint System (SRS) ..............1-51
Precautions on SRS (with NISSAN
Advanced Air Bag System) (if so equipped) ......1-51
Precautions on SRS (without NISSAN
Advanced Air Bag System) (if so equipped) ......1-65 Front seat-mounted side-impact
supplemental air bag and roof-mounted
curtain side-impact and rollover
supplemental air bag systems
...................1-74
Seat belt with pretensioner(s) (front seats) .......1-76
Supplemental air bag warning labels .............1-77
Supplemental air bag warning light ..............1-78

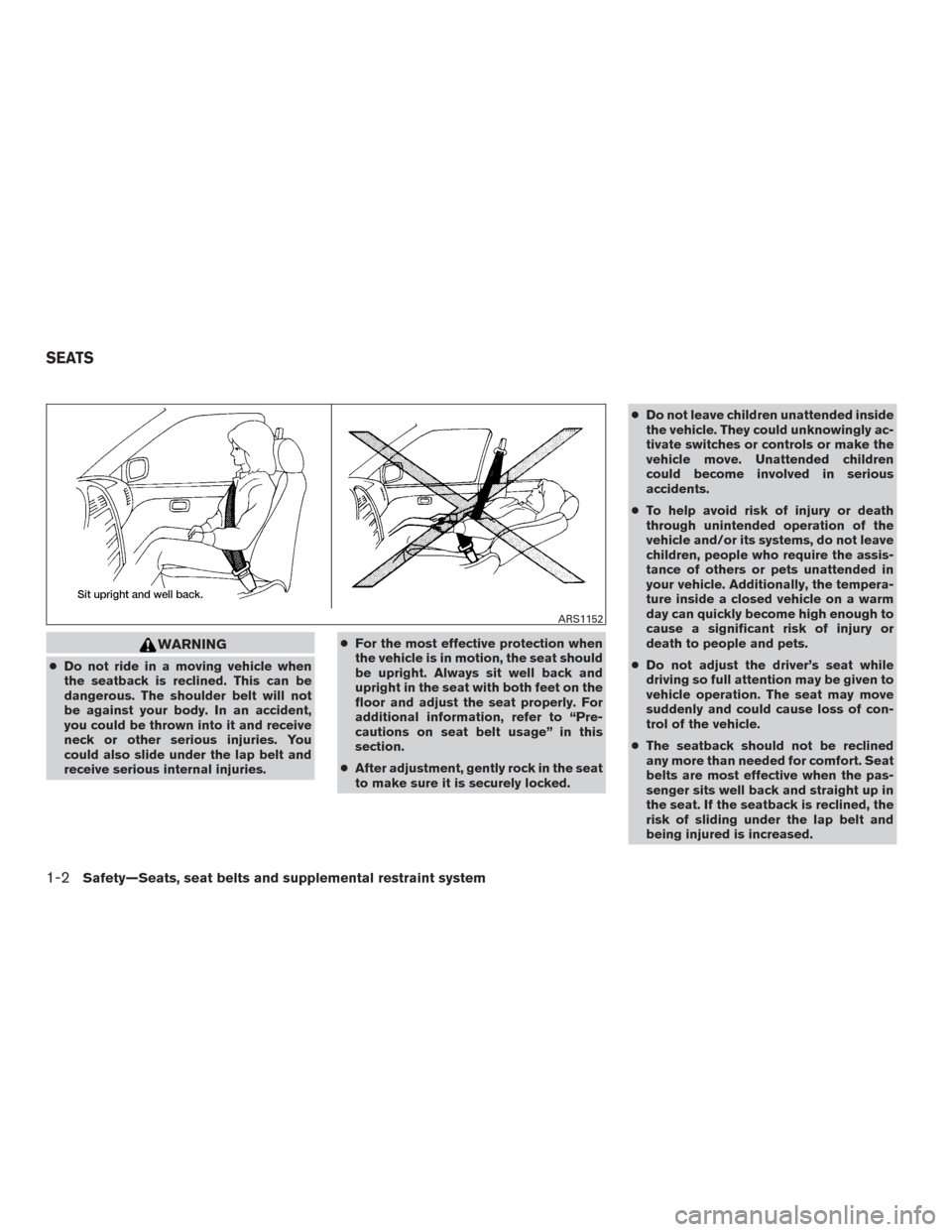

WARNING
●Do not ride in a moving vehicle when
the seatback is reclined. This can be
dangerous. The shoulder belt will not
be against your body. In an accident,
you could be thrown into it and receive
neck or other serious injuries. You
could also slide under the lap belt and
receive serious internal injuries. ●
For the most effective protection when
the vehicle is in motion, the seat should
be upright. Always sit well back and
upright in the seat with both feet on the
floor and adjust the seat properly. For
additional information, refer to “Pre-
cautions on seat belt usage” in this
section.
● After adjustment, gently rock in the seat
to make sure it is securely locked. ●
Do not leave children unattended inside
the vehicle. They could unknowingly ac-
tivate switches or controls or make the
vehicle move. Unattended children
could become involved in serious
accidents.
● To help avoid risk of injury or death
through unintended operation of the
vehicle and/or its systems, do not leave
children, people who require the assis-
tance of others or pets unattended in
your vehicle. Additionally, the tempera-
ture inside a closed vehicle on a warm
day can quickly become high enough to
cause a significant risk of injury or
death to people and pets.
● Do not adjust the driver’s seat while
driving so full attention may be given to
vehicle operation. The seat may move
suddenly and could cause loss of con-
trol of the vehicle.
● The seatback should not be reclined
any more than needed for comfort. Seat
belts are most effective when the pas-
senger sits well back and straight up in
the seat. If the seatback is reclined, the
risk of sliding under the lap belt and
being injured is increased.
ARS1152
SEATS
1-2Safety—Seats, seat belts and supplemental restraint system

CAUTION
When adjusting the seat positions, be
sure not to contact any moving parts to
avoid possible injuries and/or damage.
FRONT MANUAL BENCH SEAT
ADJUSTMENT (if so equipped)
Your vehicle seats can be adjusted manually. For
additional information about adjusting the seats,
refer to the steps outlined in this section.
Forward and backward
Pull the lever up and hold it while you slide the
seat forward or backward to the desired position.
Release the lever to lock the seat in position.
Reclining
To recline the seatback, pull the lever up and lean
back. To bring the seatback forward, pull the lever
up and lean your body forward. Release the lever
to lock the seatback in position.
The reclining feature allows adjustment of the
seatback for occupants of different sizes for
added comfort and to help obtain proper seat
belt fit. For additional information, refer to “Pre-
cautions on seat belt usage” in this section. Also,
the seatback can be reclined to allow occupants
to rest when the vehicle is stopped and the shift
lever is in the P (Park) position.
LRS2559LRS2560
Safety—Seats, seat belts and supplemental restraint system1-3

Front center bench seat adjustment
The front center bench seat folds down by pulling
on the strap. It does not have adjustments in
between the upright and the folded down posi-
tions. It is either in seating position or armrest
position.
FRONT MANUAL SEAT
ADJUSTMENT (if so equipped for
passenger’s seat)
Your vehicle seats can be adjusted manually. For
additional information about adjusting the seats,
refer to the steps outlined in this section.
Forward and backward
Pull the lever up and hold it while you slide the
seat forward or backward to the desired position.
Release the lever to lock the seat in position.
Reclining
To recline the seatback, pull the lever up and lean
back. To bring the seatback forward, pull the lever
up and lean your body forward. Release the lever
to lock the seatback in position.
The reclining feature allows adjustment of the
seatback for occupants of different sizes for
added comfort and to help obtain proper seat
belt fit. For additional information, refer to “Pre-
cautions on seat belt usage” in this section. Also,
the seatback can be reclined to allow occupants
to rest when the vehicle is stopped and the shift
lever is in the P (Park) position.
LRS2787LRS2160LRS2161
1-4Safety—Seats, seat belts and supplemental restraint system

FRONT POWER SEAT ADJUSTMENT
(if so equipped)
Operating tips
●The power seat motor has an auto-reset
overload protection circuit. If the motor
stops during operation, wait 30 seconds
then reactivate the switch.
● Do not operate the power seat switch for a
long period of time when the engine is off.
This will discharge the battery.
For additional information, refer to “Automatic
drive positioner” in the “Pre-driving checks and
adjustments” section of this manual.
Forward and backward
Moving the switch forward or backward will slide
the seat forward or backward to the desired
position.
Reclining
Move the recline switch backward until the de-
sired angle is obtained. To bring the seatback
forward again, move the switch forward and
move your body forward. The seatback will move
forward. The reclining feature allows adjustment of the
seatback for occupants of different sizes for
added comfort and to help obtain proper seat
belt fit. For additional information, refer to “Pre-
cautions on seat belt usage” in this section. Also,
the seatback can be reclined to allow occupants
to rest when the vehicle is stopped and the shift
lever is in P (Park) .
LRS2743
Safety—Seats, seat belts and supplemental restraint system1-5

Seat lifter (driver’s seat)
Push the front or rear end of the switch up or
down to adjust the angle and height of the seat
cushion.
Lumbar support (driver’s seat)
The lumbar support feature provides adjustable
lower back support to the driver. Push the switch
forward or backward to adjust the seatback lum-
bar area.
FRONT ARMRESTS (if so equipped)
To use the center armrest on the front bench seat,
pull on the strap in between the front passenger
and center seats and fold it down to the resting
position.
LRS2744LRS2745LRS0425
1-6Safety—Seats, seat belts and supplemental restraint system

REAR ARMRESTS (Crew Cab
models)
To use the center armrest on the bench seats,
pull on the tab in the center of the seat and fold it
down to the resting position.
FLEXIBLE SEATING
WARNING
●Never allow anyone to ride in the cargo
area or on the rear seats (if so
equipped) when they are in the fold-
down position. In a collision, people
riding in these areas without proper re-
straints are more likely to be seriously
injured or killed.
● Do not allow people to ride in any area
of your vehicle that is not equipped with
seats and seat belts. Be sure everyone
in your vehicle is in a seat and using a
seat belt properly.
● Do not allow more than one person to
use the same seat belt.
● Do not fold down the rear seats when
occupants are in the rear seat area or
any luggage is on the rear seats.
– Make sure that the seat path is clear before moving the seat.
– Be careful not to allow hands or feet to get caught or pinched in the seat. ●
Do not fold down the rear seats (if so
equipped) when occupants are in the
rear seat area (if so equipped) or any
luggage is on the rear seats (if so
equipped) .
● Head restraints/headrests should be
adjusted properly as they may provide
significant protection against injury in
an accident. Always replace and adjust
them properly if they have been re-
moved for any reason.
● If the head restraints/headrests are re-
moved for any reason, they should be
securely stored to prevent them from
causing injury to passengers or damage
to the vehicle in case of sudden braking
or an accident.
● When returning the seatbacks to the
upright position, be certain they are
completely secured in the latched posi-
tion. If they are not completely secured,
passengers may be injured in an acci-
dent or sudden stop.
● Properly secure all cargo to help pre-
vent it from sliding or shifting. Do not
place cargo higher than the seatbacks.
In a sudden stop or collision, unsecured
cargo could cause personal injury.
LRS2748
Safety—Seats, seat belts and supplemental restraint system1-7
