NISSAN TITAN 2018 Owner´s Manual

Warninglight Name Page
NISSAN Intelligent
Key® warning
light (if so
equipped) 2-28
P position select-
ing warning light
(if so equipped)
2-28
Passenger seat
belt warning light
(if so equipped)2-28
Supplemental air
bag warning light
2-29
Water in Fuel
warning light (if so
equipped)2-29
Indicator
light Name Page
Electronic locking
rear differential
(E-Lock) system
ON indicator light
(if so equipped) 2-29
Engine start op-
eration indicator
(if so equipped)
2-30
Front fog light in-
dicator light (if so
equipped)2-30
Front passenger
air bag status
light (if so
equipped)2-30
High beam indi-
cator light (blue)
2-30
Hill descent con-
trol system ON
indicator light (if
so equipped)2-30
Indicator
light Name Page
Malfunction Indi-
cator Light (MIL)
(yellow) 2-30
Security indicator
light
2-31
Side light and
headlight indica-
tor light (green) (if
so equipped)2-31
Slip indicator light 2-31
TOW mode ON
indicator light
2-31
Turn signal/
hazard indicator
lights2-31
Vehicle Dynamic
Control (VDC) OFF
indicator light2-32
0-12Illustrated table of contents

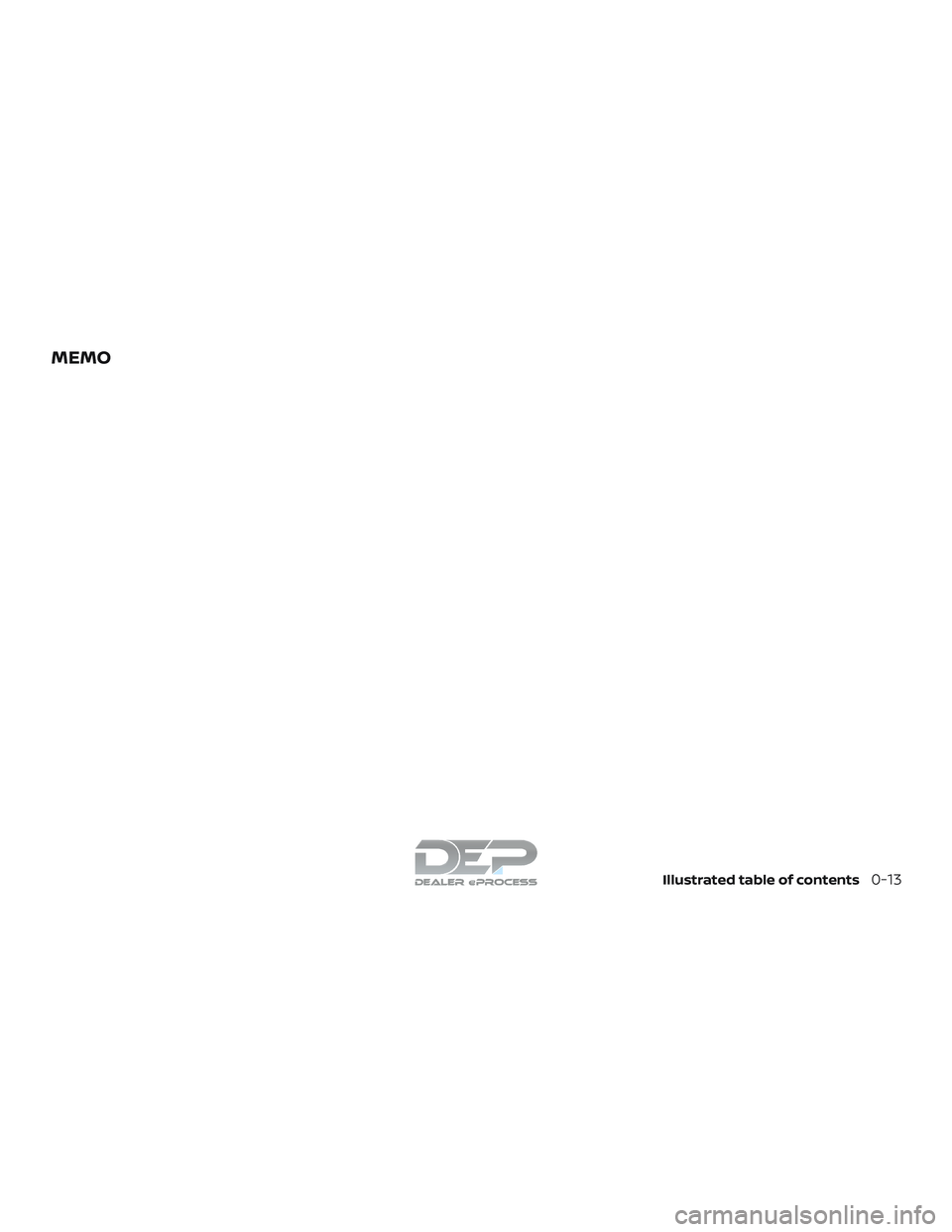

MEMO
Illustrated table of contents0-13

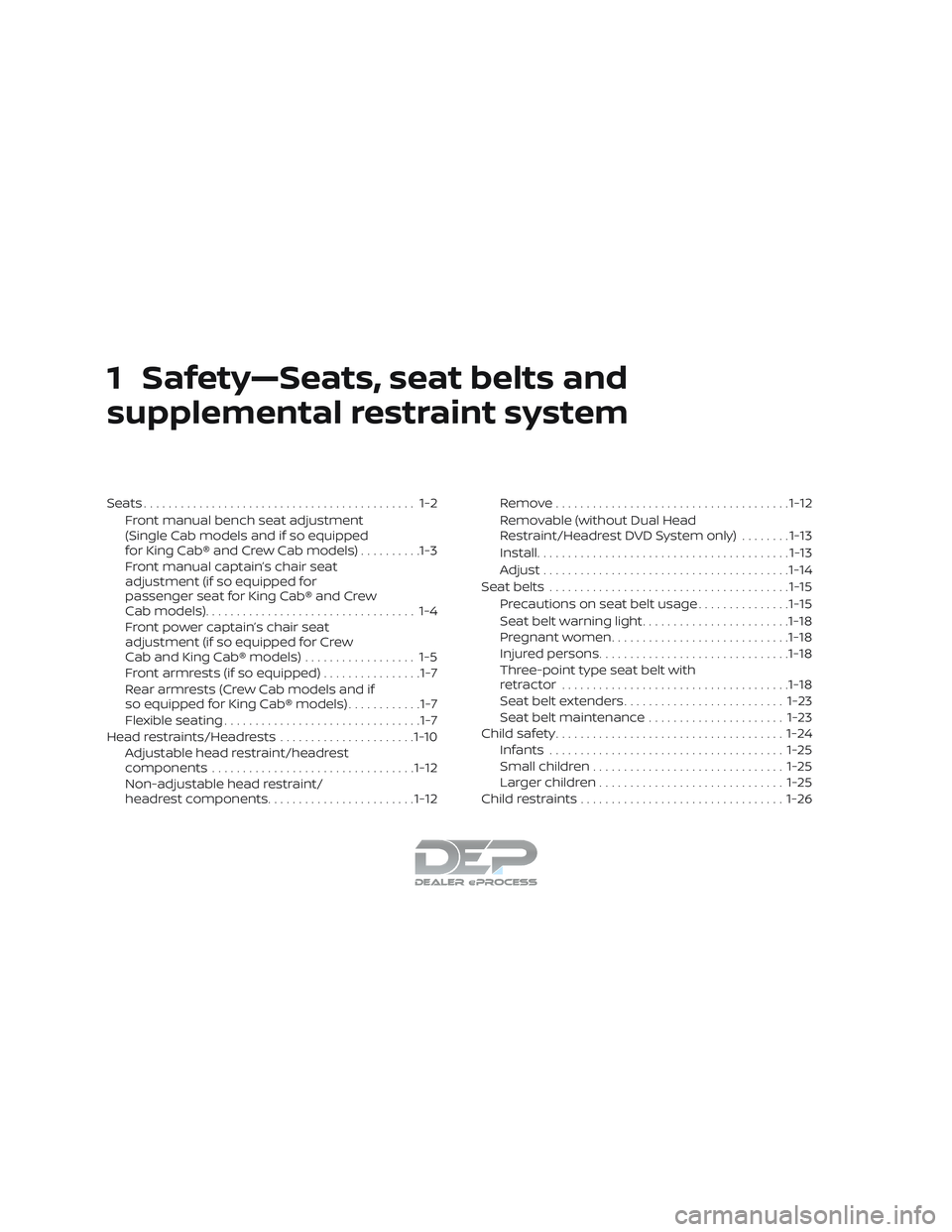

1 Safety—Seats, seat belts and
supplemental restraint system
Seats............................................ 1-2Front manual bench seat adjustment
(Single Cab models and if so equipped
for King Cab® and Crew Cab models) ..........1-3
Front manual captain’s chair seat
adjustment (if so equipped for
passenger seat for King Cab® and Crew
Cab models) .................................. 1-4
Front power captain’s chair seat
adjustment (if so equipped for Crew
Cab and King Cab® models) .................. 1-5
Front armrests (if so equipped) ................1-7
Rear armrests (Crew Cab models and if
so equipped for King Cab® models) ............1-7
Flexible seating ................................1-7
Head restraints/Headrests ......................1-10
Adjustable head restraint/headrest
components ................................. 1-12
Non-adjustable head restraint/
headrest components ........................ 1-12Remove......................................
1-12
Removable (without Dual Head
Restraint/Headrest DVD System only) ........1-13
Install ......................................... 1-13
Adjust ........................................ 1-14
Seatbelts ....................................... 1-15
Precautions on seat belt usage ...............1-15
Seat belt warning light ........................ 1-18
Pregnant women ............................. 1-18
Injured persons ............................... 1-18
Three-point type seat belt with
retractor ..................................... 1-18
Seat belt extenders .......................... 1-23
Seat belt maintenance ......................1-23
Child safety ..................................... 1-24
Infants ...................................... 1-25
Small children ............................... 1-25
Larger children .............................. 1-25

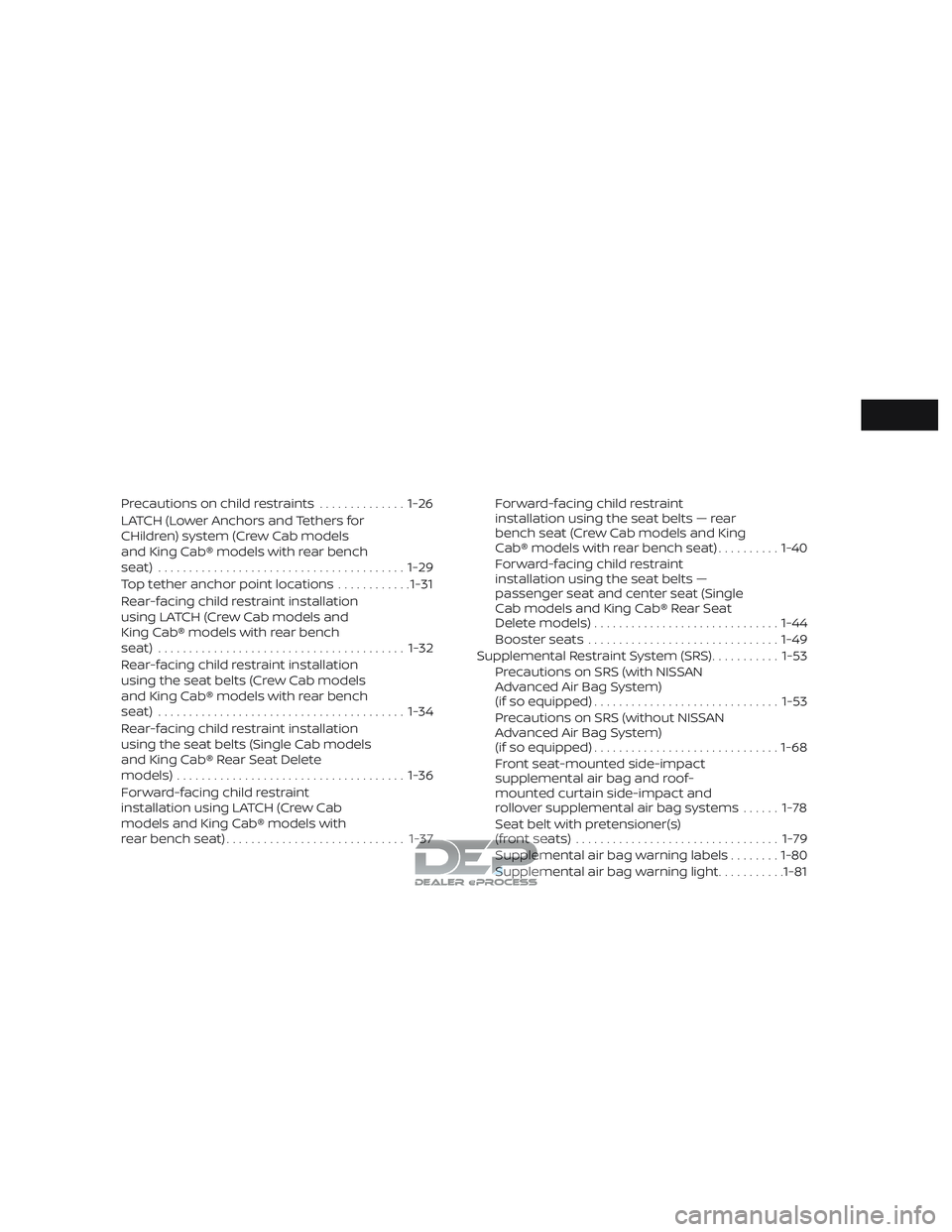

Child restraints ................................. 1-26

Precautions on child restraints..............1-26
LATCH (Lower Anchors and Tethers for
CHildren) system (Crew Cab models
and King Cab® models with rear bench
seat) ........................................ 1-29
Top tether anchor point locations ............1-31
Rear-facing child restraint installation
using LATCH (Crew Cab models and
King Cab® models with rear bench
seat) ........................................ 1-32
Rear-facing child restraint installation
using the seat belts (Crew Cab models
and King Cab® models with rear bench
seat) ........................................ 1-34
Rear-facing child restraint installation
using the seat belts (Single Cab models
and King Cab® Rear Seat Delete
models) ..................................... 1-36
Forward-facing child restraint
installation using LATCH (Crew Cab
models and King Cab® models with
rear bench seat) ............................. 1-37Forward-facing child restraint
installation using the seat belts — rear
bench seat (Crew Cab models and King
Cab® models with rear bench seat)
..........1-40
Forward-facing child restraint
installation using the seat belts —
passenger seat and center seat (Single
Cab models and King Cab® Rear Seat
Delete models) .............................. 1-44
Booster seats ............................... 1-49
Supplemental Restraint System (SRS) ...........1-53
Precautions on SRS (with NISSAN
Advanced Air Bag System)
(if so equipped) .............................. 1-53
Precautions on SRS (without NISSAN
Advanced Air Bag System)
(if so equipped) .............................. 1-68
Front seat-mounted side-impact
supplemental air bag and roof-
mounted curtain side-impact and
rollover supplemental air bag systems ......1-78
Seat belt with pretensioner(s)
(front seats) ................................. 1-79
Supplemental air bag warning labels ........1-80
Supplemental air bag warning light ...........1-81

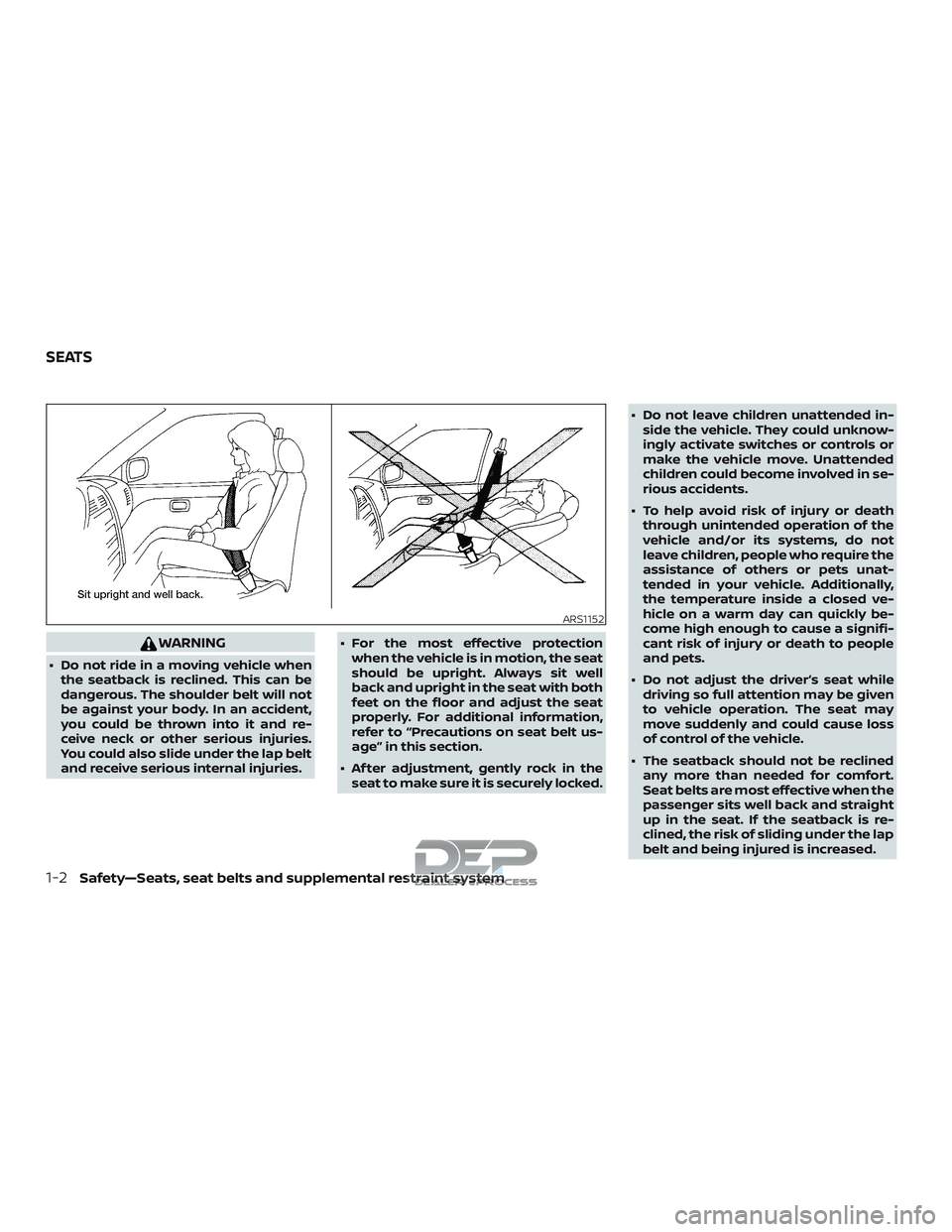

WARNING
∙ Do not ride in a moving vehicle whenthe seatback is reclined. This can be
dangerous. The shoulder belt will not
be against your body. In an accident,
you could be thrown into it and re-
ceive neck or other serious injuries.
You could also slide under the lap belt
and receive serious internal injuries. ∙ For the most effective protection
when the vehicle is in motion, the seat
should be upright. Always sit well
back and upright in the seat with both
feet on the floor and adjust the seat
properly. For additional information,
refer to “Precautions on seat belt us-
age” in this section.
∙ Af ter adjustment, gently rock in the seat to make sure it is securely locked. ∙ Do not leave children unattended in-
side the vehicle. They could unknow-
ingly activate switches or controls or
make the vehicle move. Unattended
children could become involved in se-
rious accidents.
∙ To help avoid risk of injury or death through unintended operation of the
vehicle and/or its systems, do not
leave children, people who require the
assistance of others or pets unat-
tended in your vehicle. Additionally,
the temperature inside a closed ve-
hicle on a warm day can quickly be-
come high enough to cause a signifi-
cant risk of injury or death to people
and pets.
∙ Do not adjust the driver’s seat while driving so full attention may be given
to vehicle operation. The seat may
move suddenly and could cause loss
of control of the vehicle.
∙ The seatback should not be reclined any more than needed for comfort.
Seat belts are most effective when the
passenger sits well back and straight
up in the seat. If the seatback is re-
clined, the risk of sliding under the lap
belt and being injured is increased.
ARS1152
SEATS
1-2Safety—Seats, seat belts and supplemental restraint system

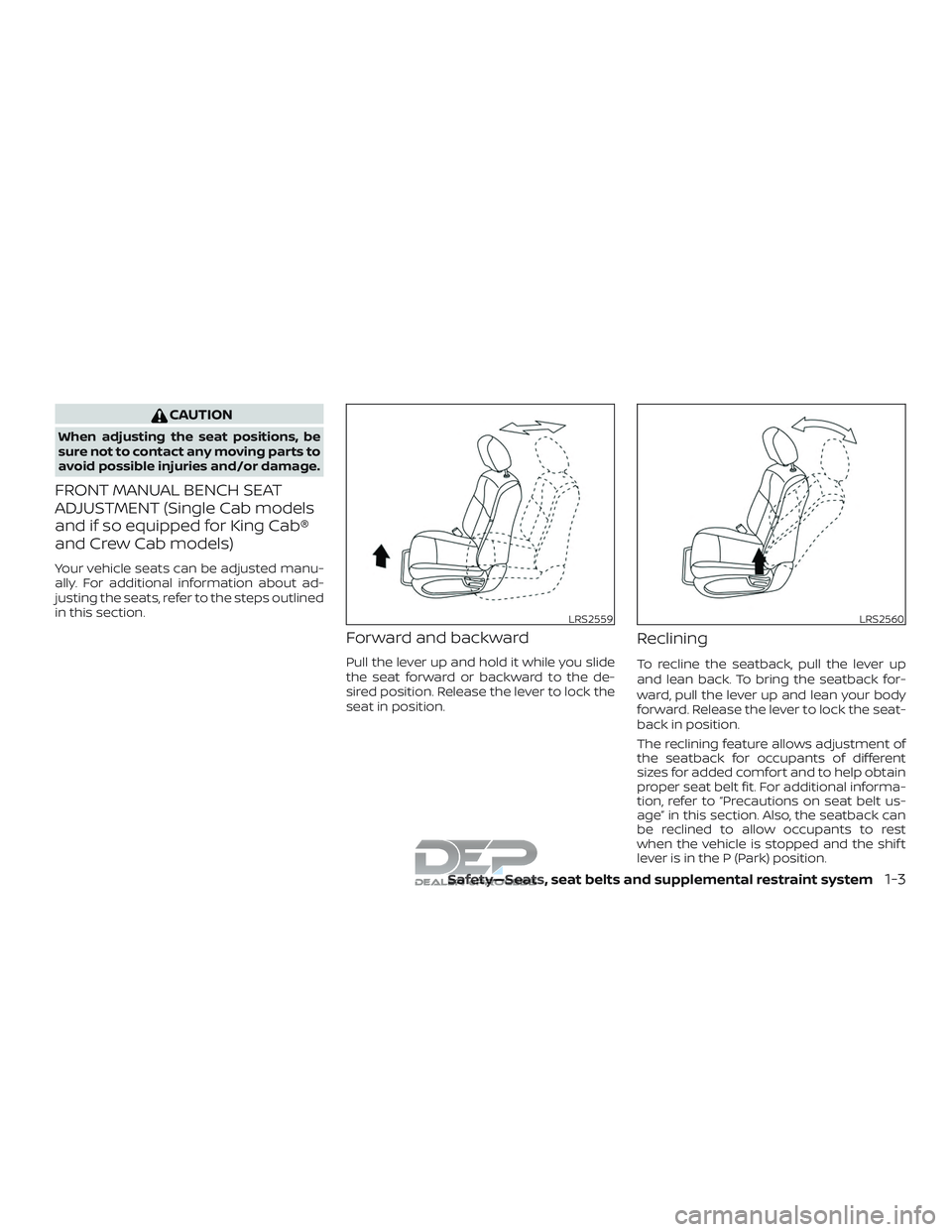

CAUTION
When adjusting the seat positions, be
sure not to contact any moving parts to
avoid possible injuries and/or damage.
FRONT MANUAL BENCH SEAT
ADJUSTMENT (Single Cab models
and if so equipped for King Cab®
and Crew Cab models)
Your vehicle seats can be adjusted manu-
ally. For additional information about ad-
justing the seats, refer to the steps outlined
in this section.
Forward and backward
Pull the lever up and hold it while you slide
the seat forward or backward to the de-
sired position. Release the lever to lock the
seat in position.
Reclining
To recline the seatback, pull the lever up
and lean back. To bring the seatback for-
ward, pull the lever up and lean your body
forward. Release the lever to lock the seat-
back in position.
The reclining feature allows adjustment of
the seatback for occupants of different
sizes for added comfort and to help obtain
proper seat belt fit. For additional informa-
tion, refer to “Precautions on seat belt us-
age” in this section. Also, the seatback can
be reclined to allow occupants to rest
when the vehicle is stopped and the shif t
lever is in the P (Park) position.
LRS2559LRS2560
Safety—Seats, seat belts and supplemental restraint system1-3

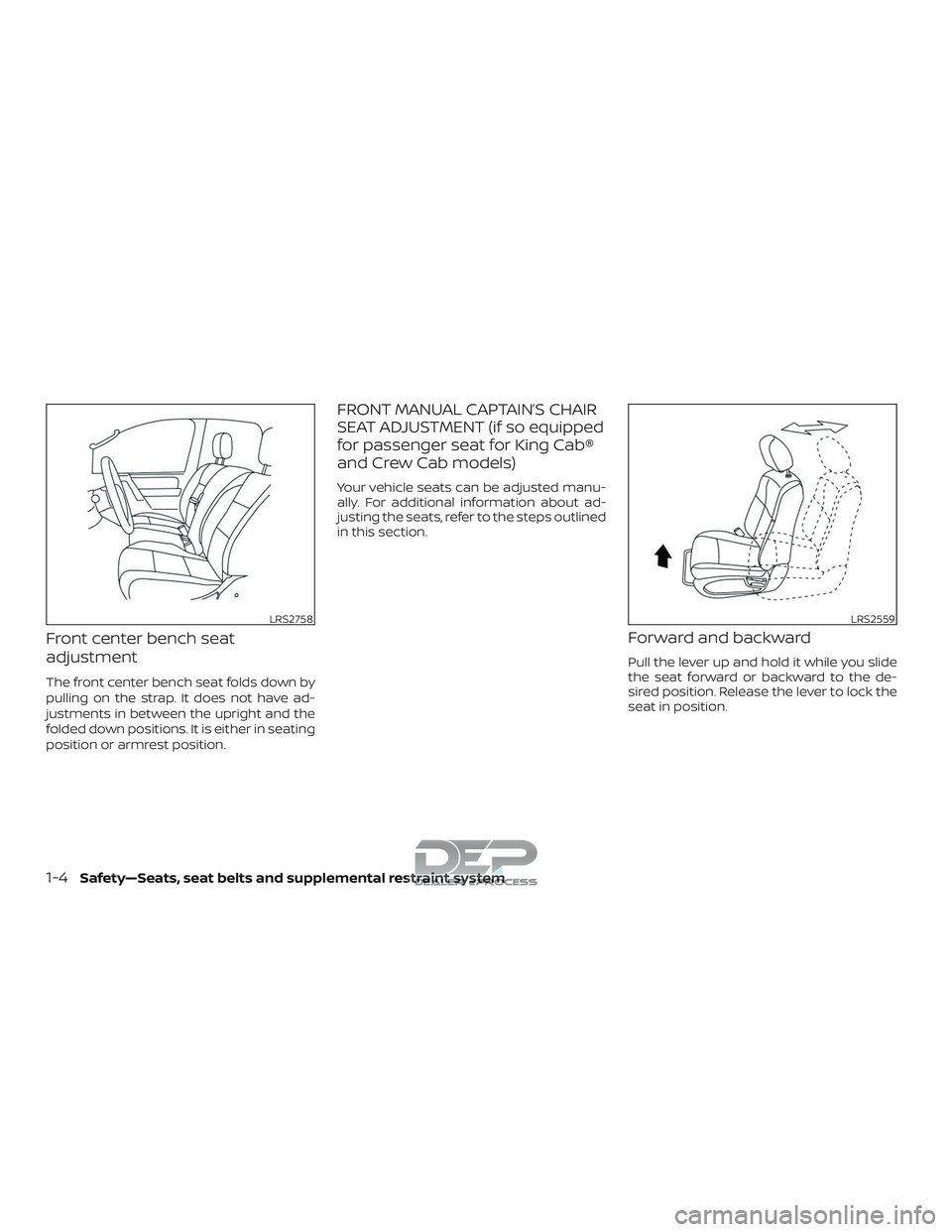

Front center bench seat
adjustment
The front center bench seat folds down by
pulling on the strap. It does not have ad-
justments in between the upright and the
folded down positions. It is either in seating
position or armrest position.
FRONT MANUAL CAPTAIN’S CHAIR
SEAT ADJUSTMENT (if so equipped
for passenger seat for King Cab®
and Crew Cab models)
Your vehicle seats can be adjusted manu-
ally. For additional information about ad-
justing the seats, refer to the steps outlined
in this section.
Forward and backward
Pull the lever up and hold it while you slide
the seat forward or backward to the de-
sired position. Release the lever to lock the
seat in position.
LRS2758LRS2559
1-4Safety—Seats, seat belts and supplemental restraint system

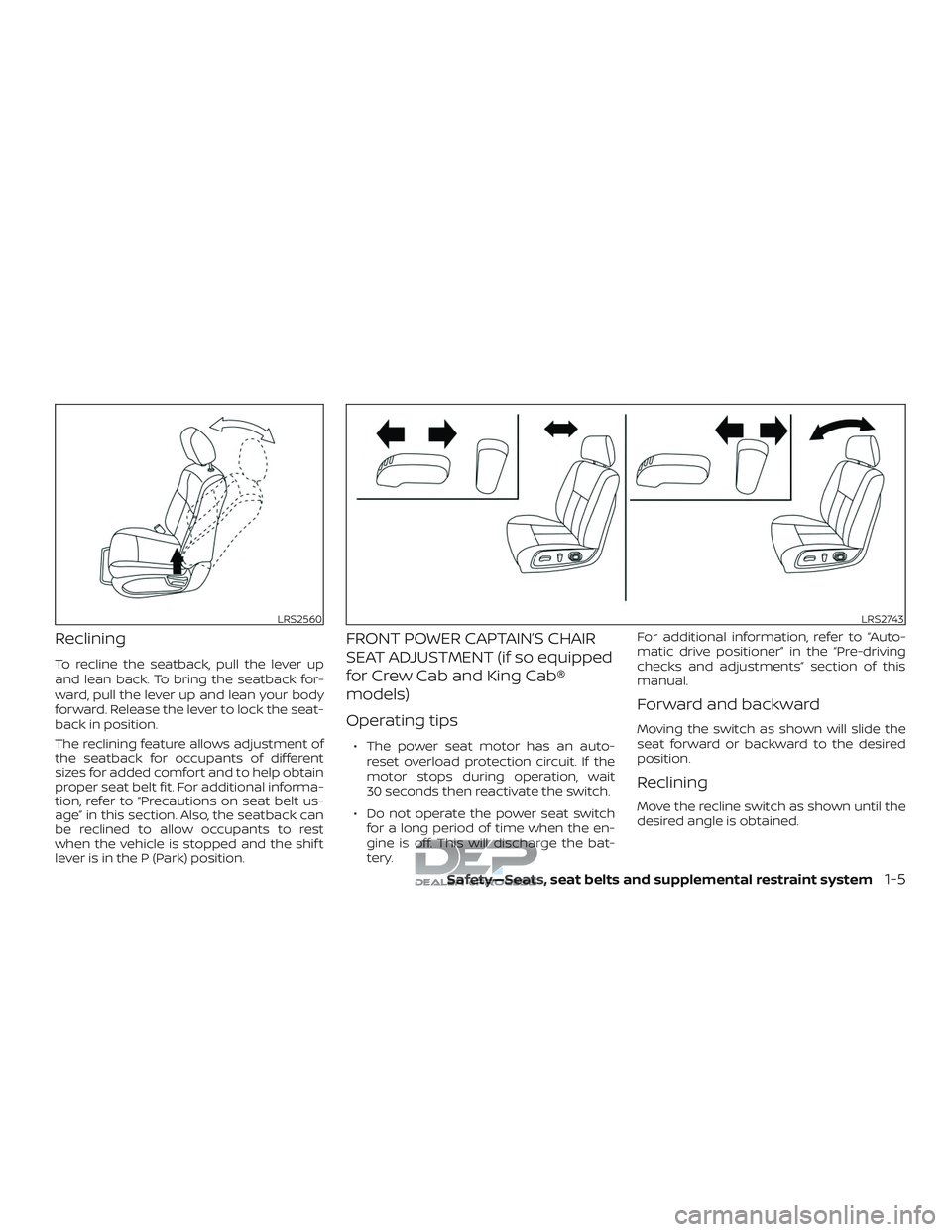

Reclining
To recline the seatback, pull the lever up
and lean back. To bring the seatback for-
ward, pull the lever up and lean your body
forward. Release the lever to lock the seat-
back in position.
The reclining feature allows adjustment of
the seatback for occupants of different
sizes for added comfort and to help obtain
proper seat belt fit. For additional informa-
tion, refer to “Precautions on seat belt us-
age” in this section. Also, the seatback can
be reclined to allow occupants to rest
when the vehicle is stopped and the shif t
lever is in the P (Park) position.
FRONT POWER CAPTAIN’S CHAIR
SEAT ADJUSTMENT (if so equipped
for Crew Cab and King Cab®
models)
Operating tips
∙ The power seat motor has an auto-reset overload protection circuit. If the
motor stops during operation, wait
30 seconds then reactivate the switch.
∙ Do not operate the power seat switch for a long period of time when the en-
gine is off. This will discharge the bat-
tery. For additional information, refer to “Auto-
matic drive positioner” in the “Pre-driving
checks and adjustments” section of this
manual.
Forward and backward
Moving the switch as shown will slide the
seat forward or backward to the desired
position.
Reclining
Move the recline switch as shown until the
desired angle is obtained.
LRS2560LRS2743
Safety—Seats, seat belts and supplemental restraint system1-5

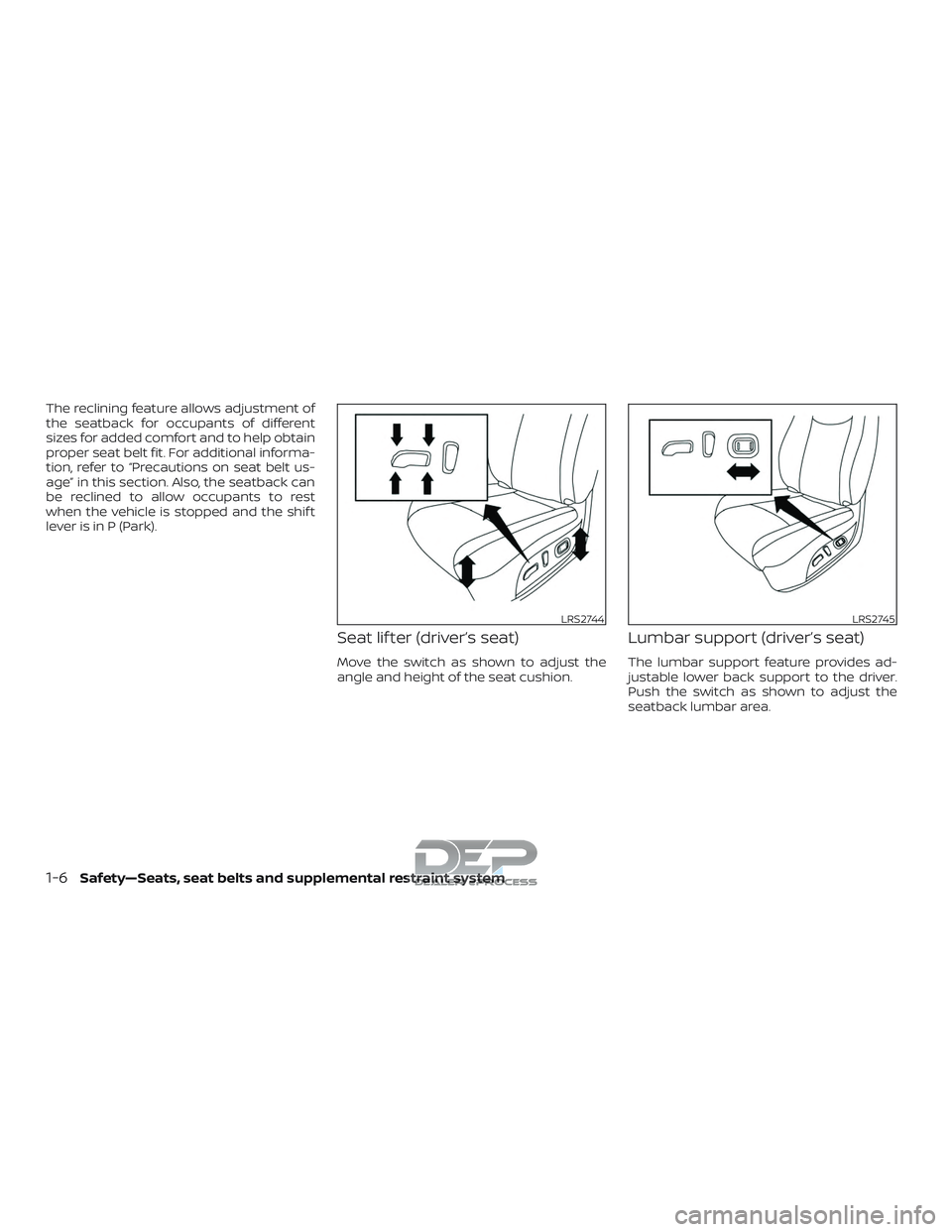

The reclining feature allows adjustment of
the seatback for occupants of different
sizes for added comfort and to help obtain
proper seat belt fit. For additional informa-
tion, refer to “Precautions on seat belt us-
age” in this section. Also, the seatback can
be reclined to allow occupants to rest
when the vehicle is stopped and the shif t
lever is in P (Park).
Seat lif ter (driver’s seat)
Move the switch as shown to adjust the
angle and height of the seat cushion.
Lumbar support (driver’s seat)
The lumbar support feature provides ad-
justable lower back support to the driver.
Push the switch as shown to adjust the
seatback lumbar area.
LRS2744LRS2745
1-6Safety—Seats, seat belts and supplemental restraint system

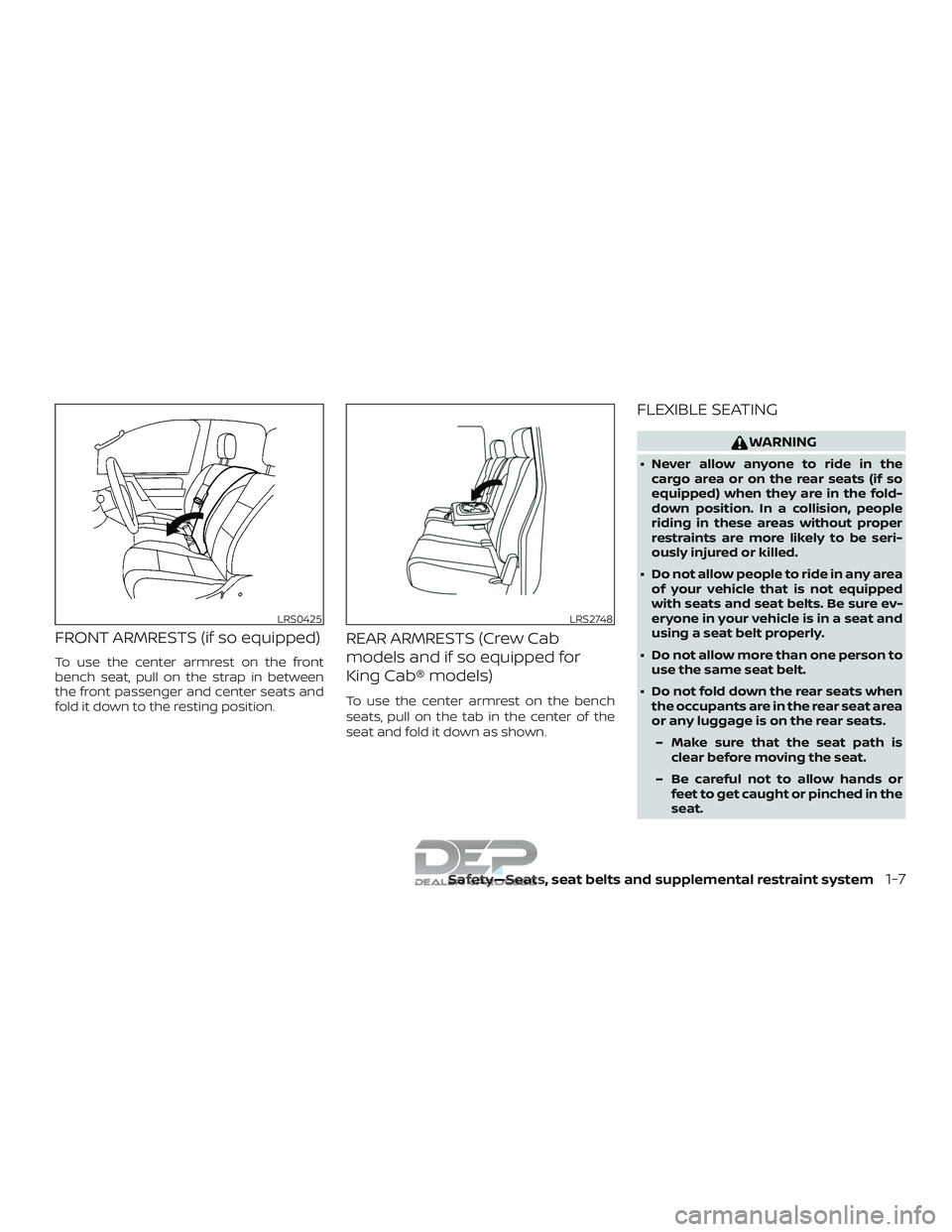

FRONT ARMRESTS (if so equipped)
To use the center armrest on the front
bench seat, pull on the strap in between
the front passenger and center seats and
fold it down to the resting position.
REAR ARMRESTS (Crew Cab
models and if so equipped for
King Cab® models)
To use the center armrest on the bench
seats, pull on the tab in the center of the
seat and fold it down as shown.
FLEXIBLE SEATING
WARNING
∙ Never allow anyone to ride in thecargo area or on the rear seats (if so
equipped) when they are in the fold-
down position. In a collision, people
riding in these areas without proper
restraints are more likely to be seri-
ously injured or killed.
∙ Do not allow people to ride in any area of your vehicle that is not equipped
with seats and seat belts. Be sure ev-
eryone in your vehicle is in a seat and
using a seat belt properly.
∙ Do not allow more than one person to use the same seat belt.
∙ Do not fold down the rear seats when the occupants are in the rear seat area
or any luggage is on the rear seats.
– Make sure that the seat path is clear before moving the seat.
– Be careful not to allow hands or feet to get caught or pinched in the
seat.
LRS0425LRS2748
Safety—Seats, seat belts and supplemental restraint system1-7
