Page 651 of 682

NISSAN TITAN 2019  Owner´s Manual In order to maintain the proper operation
of a diesel engine, it is important to take
proper care of it, which includes cleaning as
indicated.
CLEANING THE ENGINE
Engines are more efficient when they

Page 652 of 682

NISSAN TITAN 2019  Owner´s Manual WARNING
∙ Failure to maintain the functionalholes in the exhaust system clean and
free of debris or foreign material may
result in the holes becoming blocked
or plugged. Do not modif y or remove
sec

Page 653 of 682

NISSAN TITAN 2019  Owner´s Manual MEMO
6-4Vehicle Care

Page 654 of 682

NISSAN TITAN 2019  Owner´s Manual 7 Do-it-yourself
Engine compartment check locations........... 7-2
Engine cooling system .......................... 7-3
Checking engine coolant level ................ 7-4
Changing engine coolant .....

Page 655 of 682

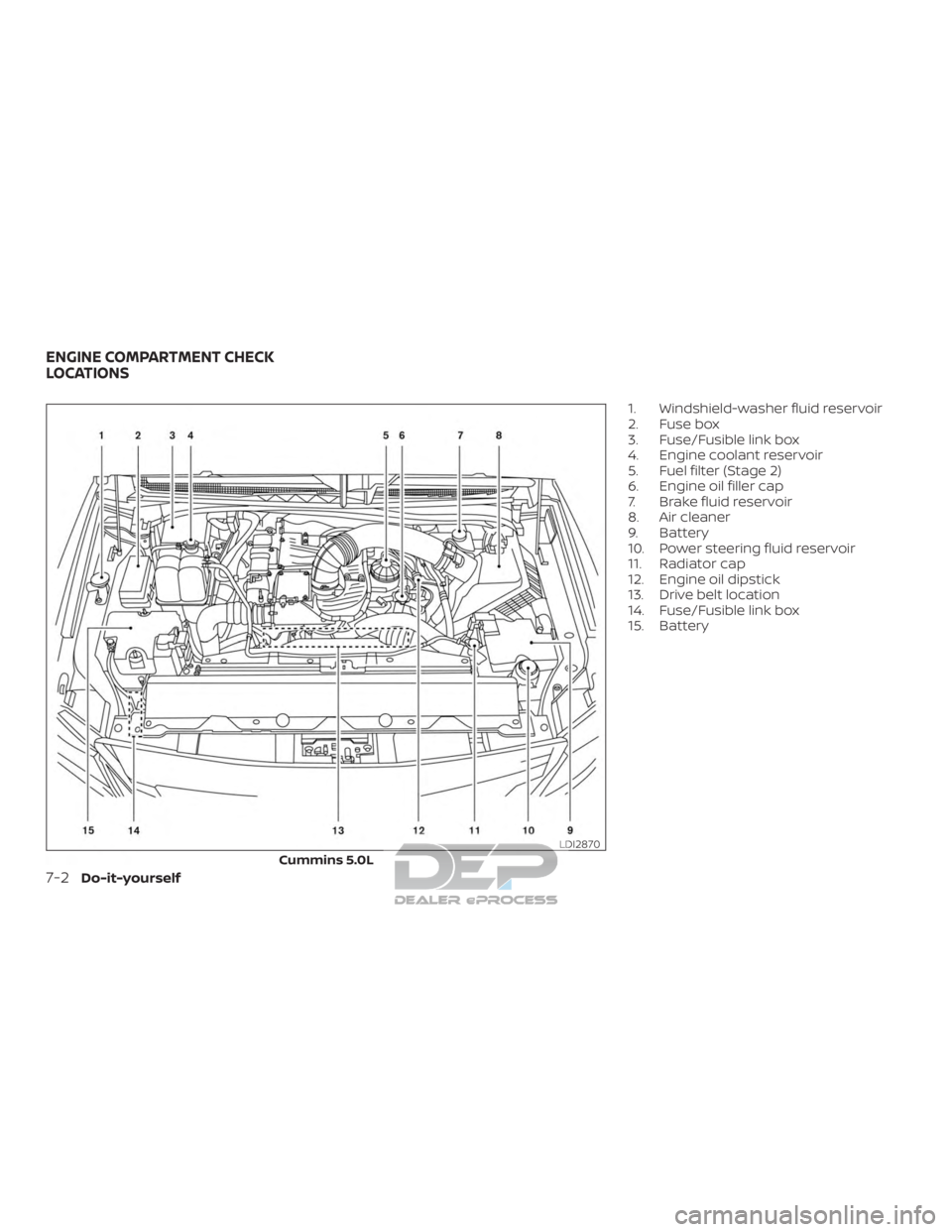

NISSAN TITAN 2019  Owner´s Manual 1. Windshield-washer fluid reservoir
2. Fuse box
3. Fuse/Fusible link box
4. Engine coolant reservoir
5. Fuel filter (Stage 2)
6. Engine oil filler cap
7. Brake fluid reservoir
8. Air cleaner
9. Batte

Page 656 of 682

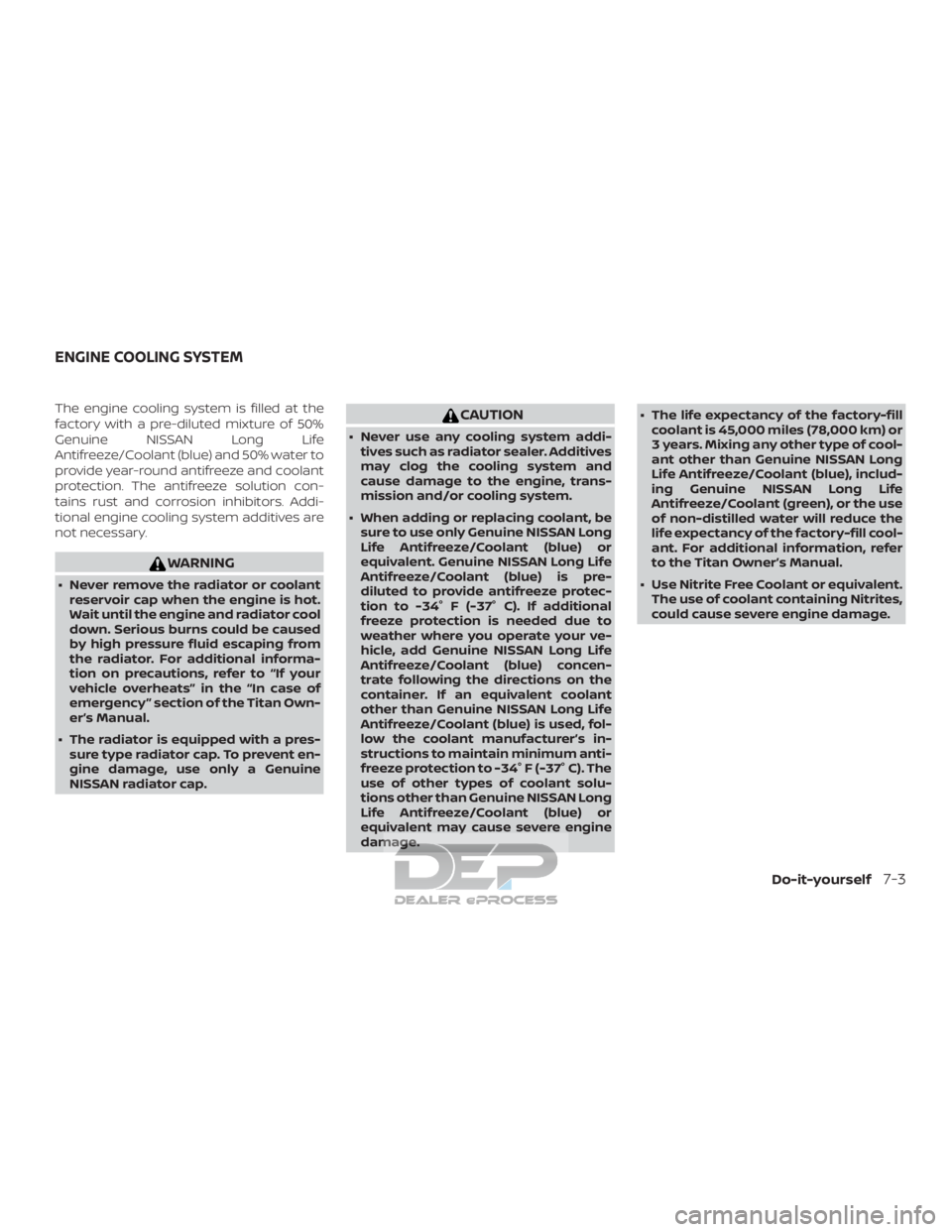

NISSAN TITAN 2019  Owner´s Manual The engine cooling system is filled at the
factory with a pre-diluted mixture of 50%
Genuine NISSAN Long Life
Antifreeze/Coolant (blue) and 50% water to
provide year-round antifreeze and coolant
prote

Page 657 of 682

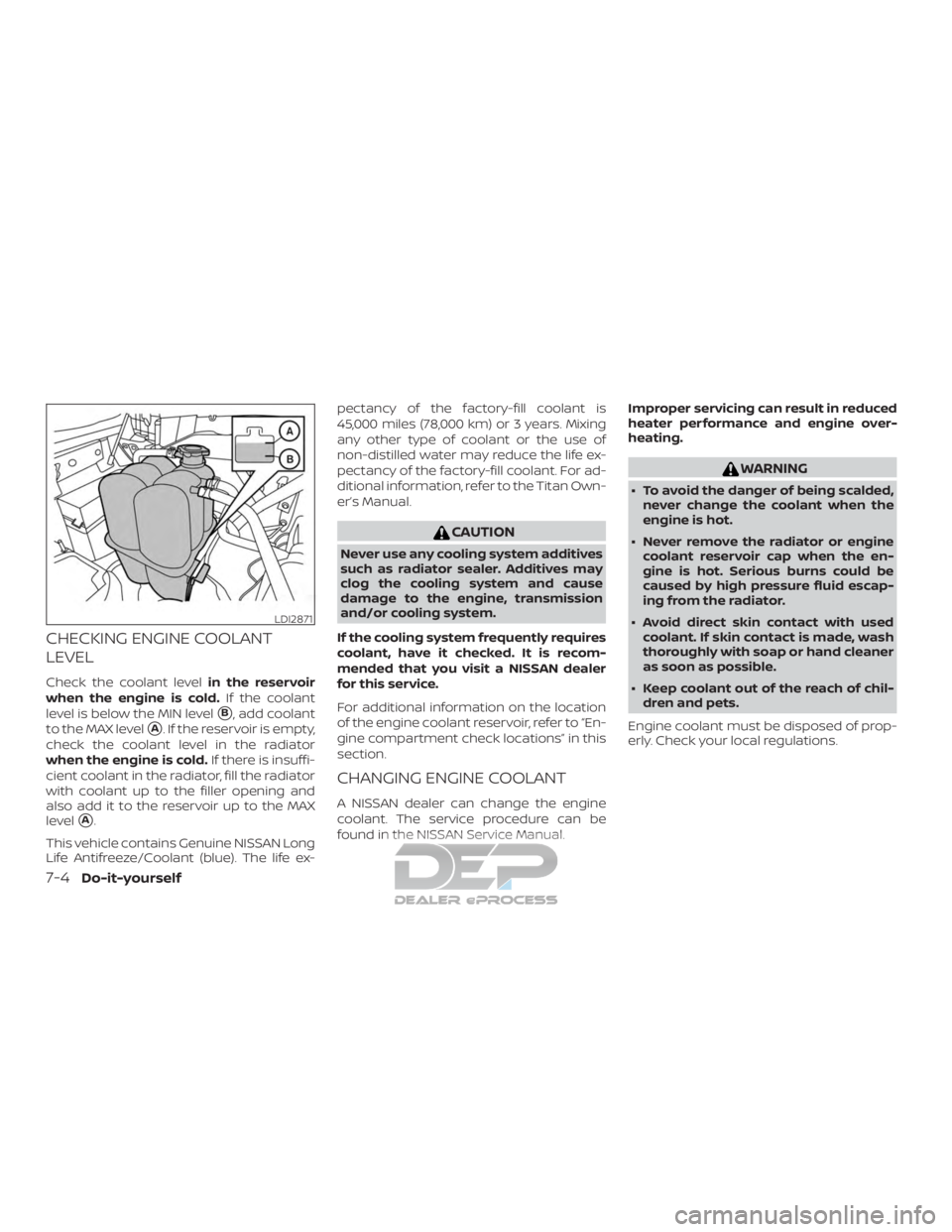

NISSAN TITAN 2019  Owner´s Manual CHECKING ENGINE COOLANT
LEVEL
Check the coolant levelin the reservoir
when the engine is cold. If the coolant
level is below the MIN level
B, add coolant
to the MAX level
A. If the reservoir is empt

Page 658 of 682

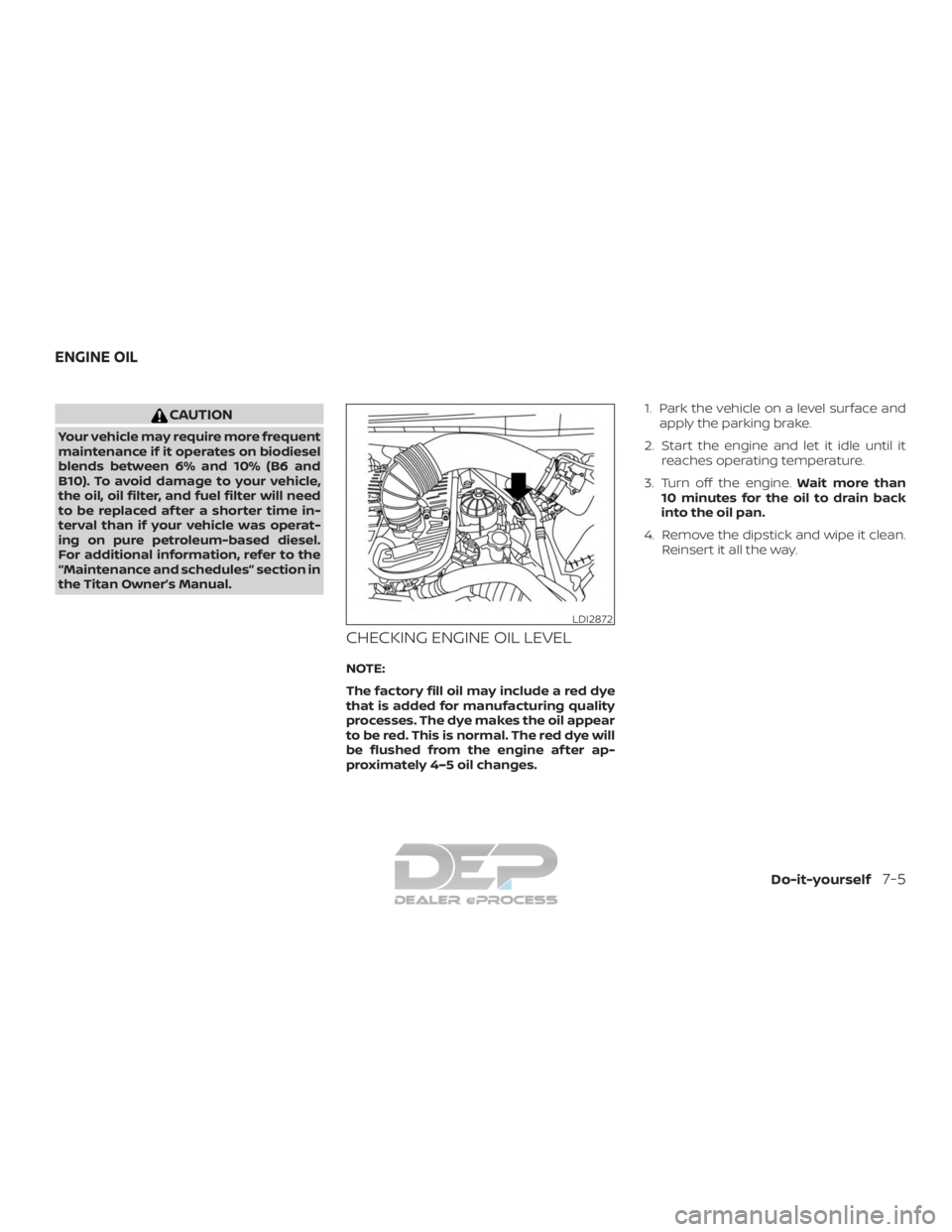

NISSAN TITAN 2019  Owner´s Manual CAUTION
Your vehicle may require more frequent
maintenance if it operates on biodiesel
blends between 6% and 10% (B6 and
B10). To avoid damage to your vehicle,
the oil, oil filter, and fuel filter wil

Page 659 of 682

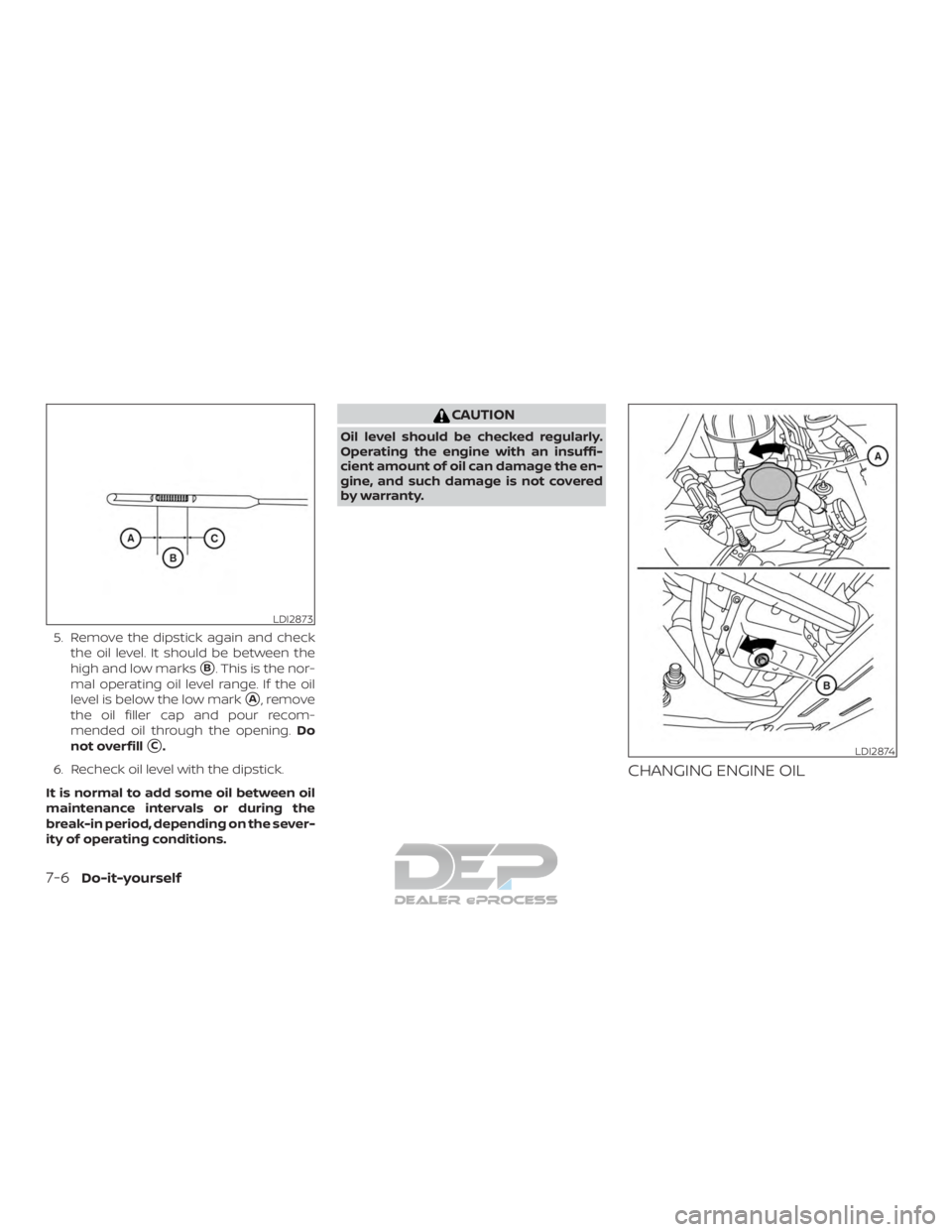

NISSAN TITAN 2019  Owner´s Manual 5. Remove the dipstick again and checkthe oil level. It should be between the
high and low marks
B. This is the nor-
mal operating oil level range. If the oil
level is below the low mark
A, remove
t

Page 660 of 682

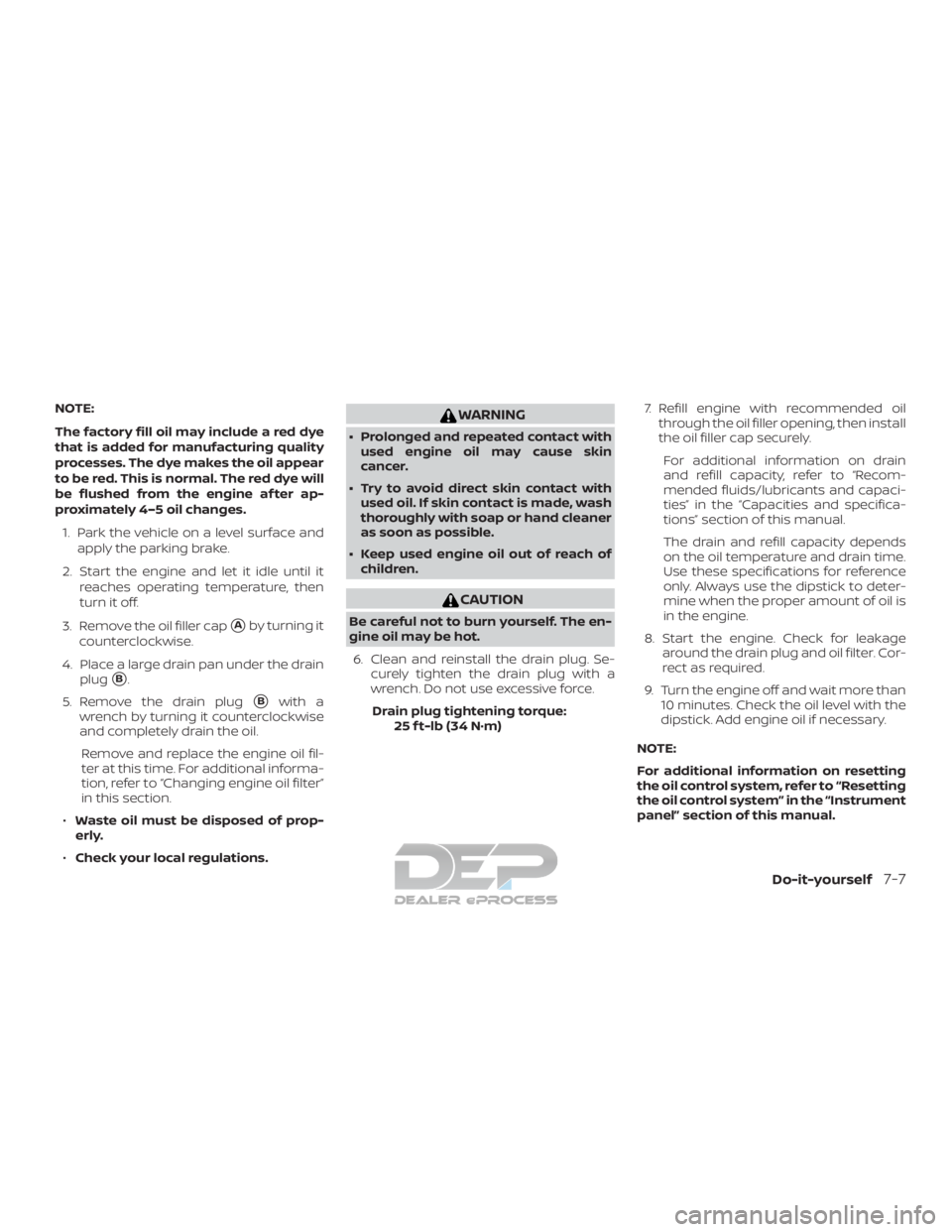

NISSAN TITAN 2019  Owner´s Manual NOTE:
The factory fill oil may include a red dye
that is added for manufacturing quality
processes. The dye makes the oil appear
to be red. This is normal. The red dye will
be flushed from the engine
