VEHICLE INFORMATION DISPLAY

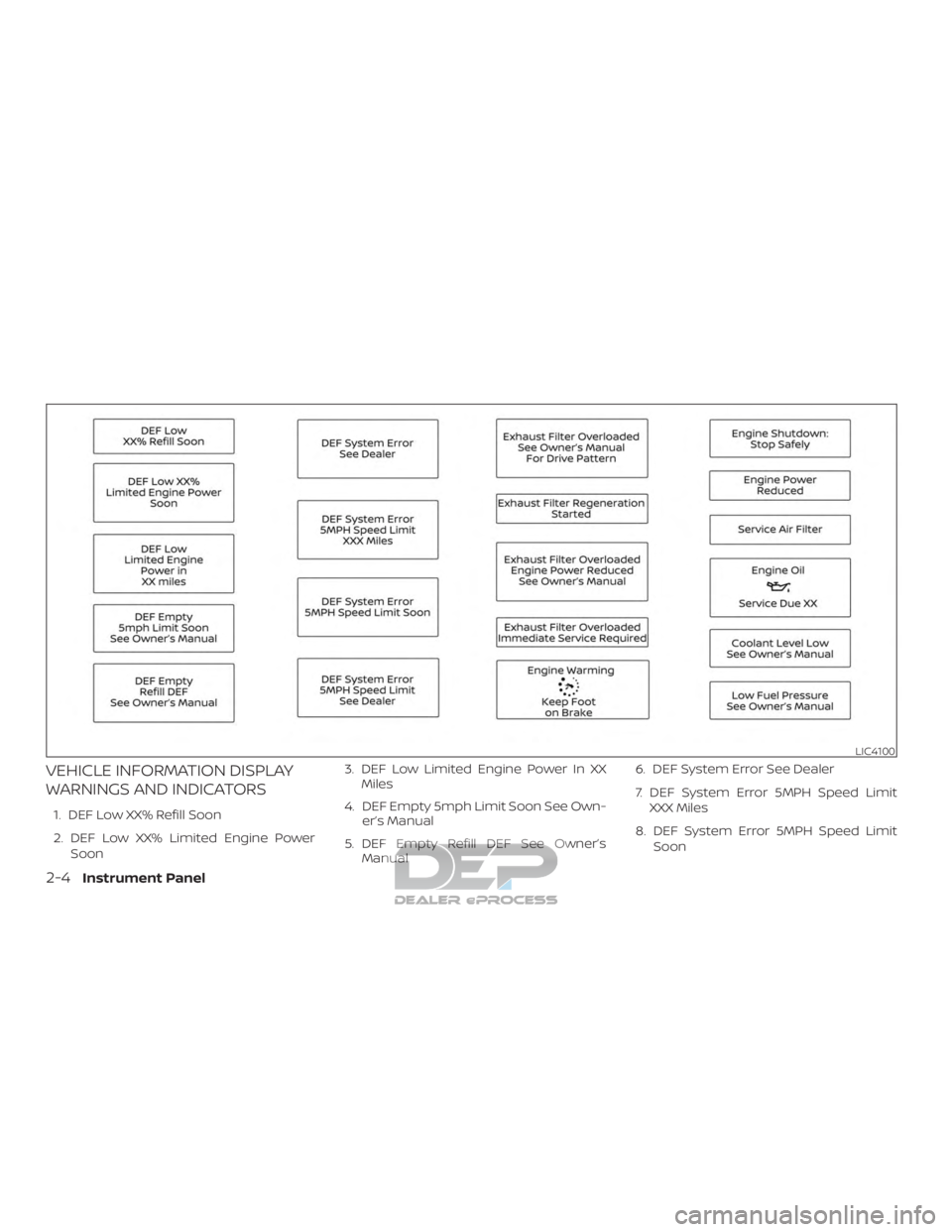

WARNINGS AND INDICATORS
1. DEF Low XX% Refill Soon
2. DEF Low XX% Limited Engine PowerSoon 3. DEF Low Limited Engine Power In XX
Miles
4. DEF Empty 5mph Limit Soon See Own- er’s Manual
5. DEF Empty Refill DEF See Owner’s Manual 6. DEF System Error See Dealer
7. DEF System Error 5MPH Speed Limit
XXX Miles
8. DEF System Error 5MPH Speed Limit Soon
LIC4100
2-4Instrument Panel
Page 632 of 682

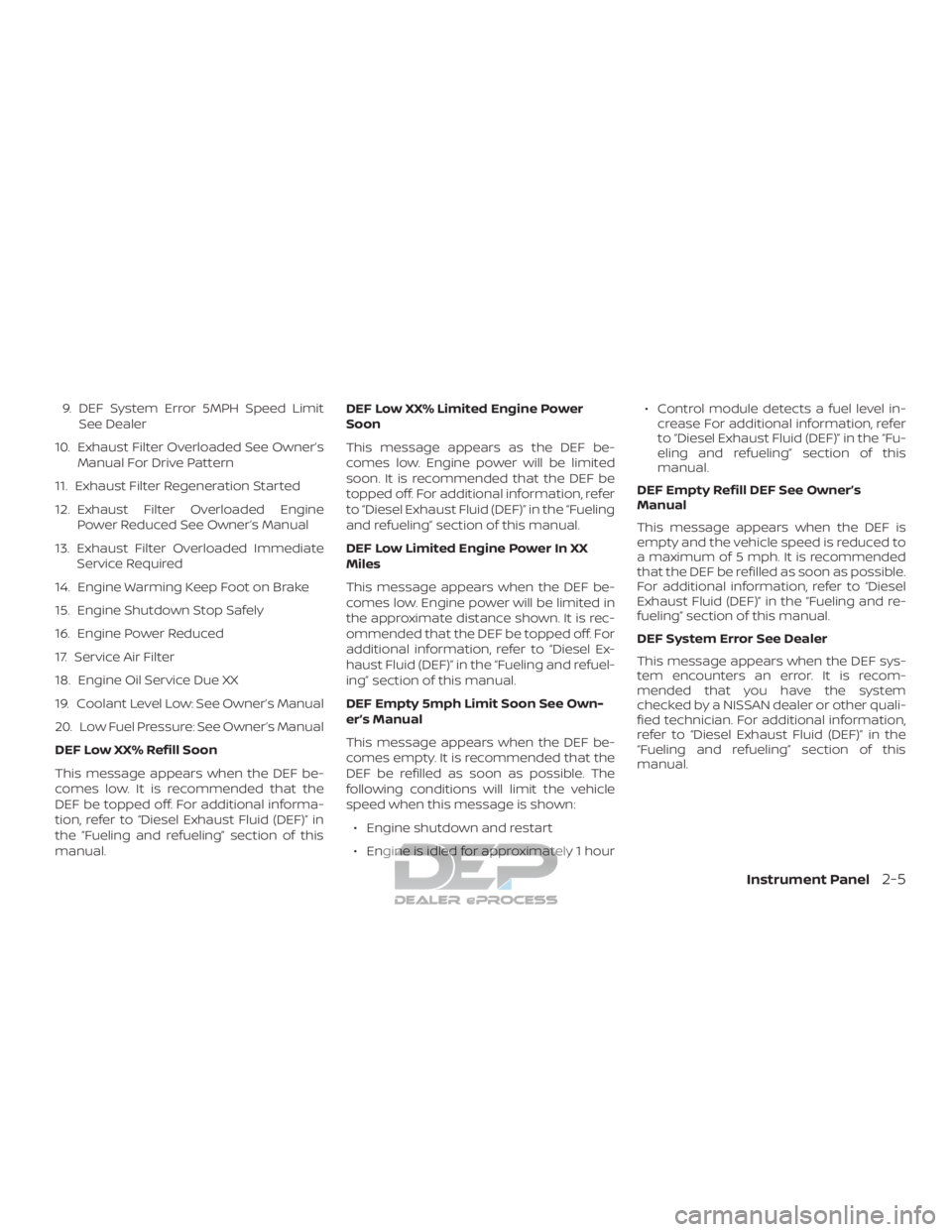

9. DEF System Error 5MPH Speed LimitSee Dealer
10. Exhaust Filter Overloaded See Owner’s Manual For Drive Pattern
11. Exhaust Filter Regeneration Started
12. Exhaust Filter Overloaded Engine Power Reduced See Owner’s Manual
13. Exhaust Filter Overloaded Immediate Service Required
14. Engine Warming Keep Foot on Brake
15. Engine Shutdown Stop Safely
16. Engine Power Reduced
17. Service Air Filter
18. Engine Oil Service Due XX
19. Coolant Level Low: See Owner’s Manual
20. Low Fuel Pressure: See Owner’s Manual
DEF Low XX% Refill Soon
This message appears when the DEF be-
comes low. It is recommended that the
DEF be topped off. For additional informa-
tion, refer to “Diesel Exhaust Fluid (DEF)” in
the “Fueling and refueling” section of this
manual. DEF Low XX% Limited Engine Power
Soon
This message appears as the DEF be-
comes low. Engine power will be limited
soon. It is recommended that the DEF be
topped off. For additional information, refer
to “Diesel Exhaust Fluid (DEF)” in the “Fueling
and refueling” section of this manual.
DEF Low Limited Engine Power In XX
Miles
This message appears when the DEF be-
comes low. Engine power will be limited in
the approximate distance shown. It is rec-
ommended that the DEF be topped off. For
additional information, refer to “Diesel Ex-
haust Fluid (DEF)” in the “Fueling and refuel-
ing” section of this manual.
DEF Empty 5mph Limit Soon See Own-
er’s Manual
This message appears when the DEF be-
comes empty. It is recommended that the
DEF be refilled as soon as possible. The
following conditions will limit the vehicle
speed when this message is shown:
∙ Engine shutdown and restart
∙ Engine is idled for approximately 1 hour ∙ Control module detects a fuel level in-
crease For additional information, refer
to “Diesel Exhaust Fluid (DEF)” in the “Fu-
eling and refueling” section of this
manual.
DEF Empty Refill DEF See Owner’s
Manual
This message appears when the DEF is
empty and the vehicle speed is reduced to
a maximum of 5 mph. It is recommended
that the DEF be refilled as soon as possible.
For additional information, refer to “Diesel
Exhaust Fluid (DEF)” in the “Fueling and re-
fueling” section of this manual.
DEF System Error See Dealer
This message appears when the DEF sys-
tem encounters an error. It is recom-
mended that you have the system
checked by a NISSAN dealer or other quali-
fied technician. For additional information,
refer to “Diesel Exhaust Fluid (DEF)” in the
“Fueling and refueling” section of this
manual.
Instrument Panel2-5
Page 633 of 682

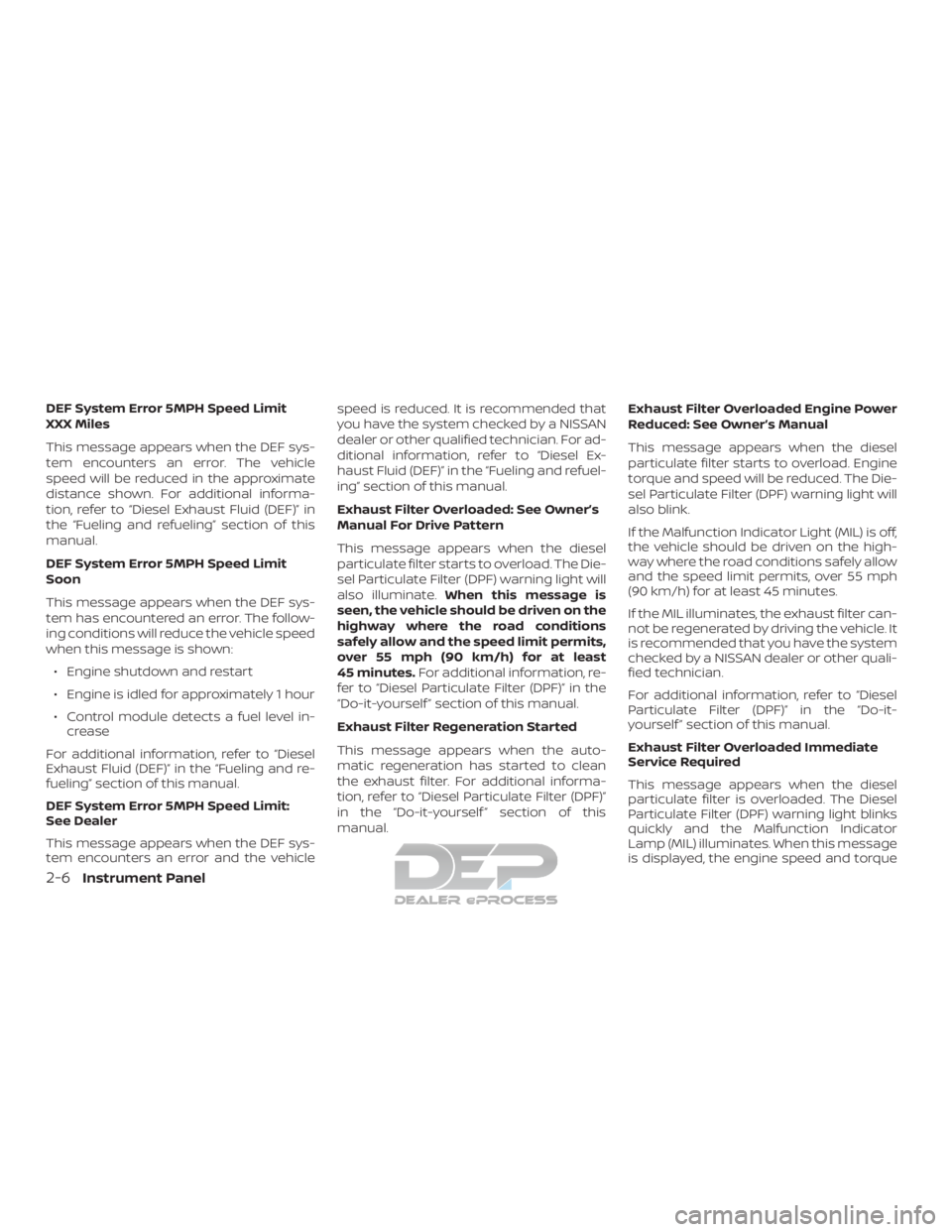

DEF System Error 5MPH Speed Limit
XXX Miles
This message appears when the DEF sys-
tem encounters an error. The vehicle
speed will be reduced in the approximate
distance shown. For additional informa-
tion, refer to “Diesel Exhaust Fluid (DEF)” in
the “Fueling and refueling” section of this
manual.
DEF System Error 5MPH Speed Limit
Soon
This message appears when the DEF sys-
tem has encountered an error. The follow-
ing conditions will reduce the vehicle speed
when this message is shown:∙ Engine shutdown and restart
∙ Engine is idled for approximately 1 hour
∙ Control module detects a fuel level in- crease
For additional information, refer to “Diesel
Exhaust Fluid (DEF)” in the “Fueling and re-
fueling” section of this manual.
DEF System Error 5MPH Speed Limit:
See Dealer
This message appears when the DEF sys-
tem encounters an error and the vehicle speed is reduced. It is recommended that
you have the system checked by a NISSAN
dealer or other qualified technician. For ad-
ditional information, refer to “Diesel Ex-
haust Fluid (DEF)” in the “Fueling and refuel-
ing” section of this manual.
Exhaust Filter Overloaded: See Owner’s
Manual For Drive Pattern
This message appears when the diesel
particulate filter starts to overload. The Die-
sel Particulate Filter (DPF) warning light will
also illuminate.
When this message is
seen, the vehicle should be driven on the
highway where the road conditions
safely allow and the speed limit permits,
over 55 mph (90 km/h) for at least
45 minutes. For additional information, re-
fer to “Diesel Particulate Filter (DPF)” in the
“Do-it-yourself ” section of this manual.
Exhaust Filter Regeneration Started
This message appears when the auto-
matic regeneration has started to clean
the exhaust filter. For additional informa-
tion, refer to “Diesel Particulate Filter (DPF)”
in the “Do-it-yourself ” section of this
manual. Exhaust Filter Overloaded Engine Power
Reduced: See Owner’s Manual
This message appears when the diesel
particulate filter starts to overload. Engine
torque and speed will be reduced. The Die-
sel Particulate Filter (DPF) warning light will
also blink.
If the Malfunction Indicator Light (MIL) is off,
the vehicle should be driven on the high-
way where the road conditions safely allow
and the speed limit permits, over 55 mph
(90 km/h) for at least 45 minutes.
If the MIL illuminates, the exhaust filter can-
not be regenerated by driving the vehicle. It
is recommended that you have the system
checked by a NISSAN dealer or other quali-
fied technician.
For additional information, refer to “Diesel
Particulate Filter (DPF)” in the “Do-it-
yourself ” section of this manual.
Exhaust Filter Overloaded Immediate
Service Required
This message appears when the diesel
particulate filter is overloaded. The Diesel
Particulate Filter (DPF) warning light blinks
quickly and the Malfunction Indicator
Lamp (MIL) illuminates. When this message
is displayed, the engine speed and torque
2-6Instrument Panel
Page 634 of 682

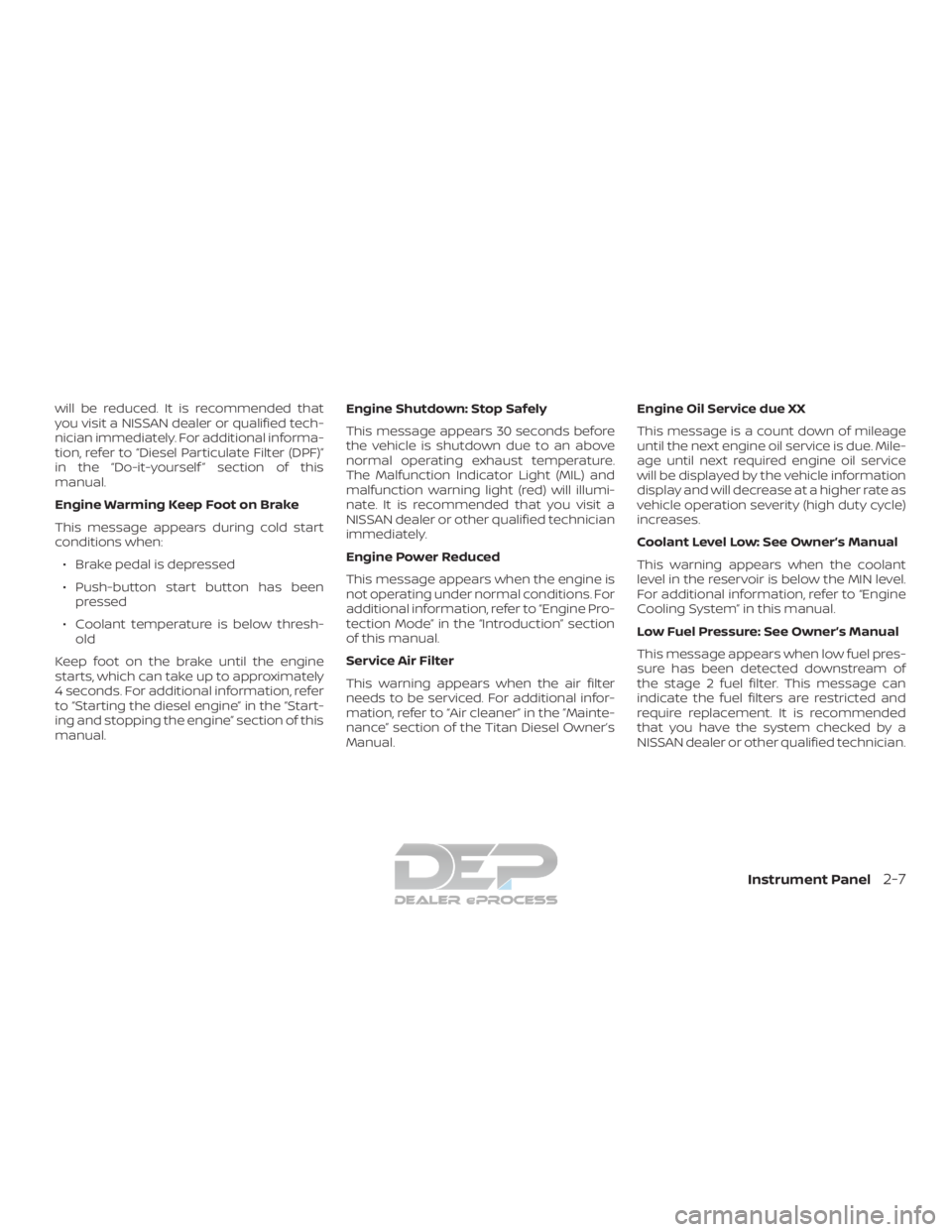

will be reduced. It is recommended that
you visit a NISSAN dealer or qualified tech-
nician immediately. For additional informa-
tion, refer to “Diesel Particulate Filter (DPF)”
in the “Do-it-yourself ” section of this
manual.
Engine Warming Keep Foot on Brake
This message appears during cold start
conditions when:∙ Brake pedal is depressed
∙ Push-button start button has been pressed
∙ Coolant temperature is below thresh- old
Keep foot on the brake until the engine
starts, which can take up to approximately
4 seconds. For additional information, refer
to “Starting the diesel engine” in the “Start-
ing and stopping the engine” section of this
manual. Engine Shutdown: Stop Safely
This message appears 30 seconds before
the vehicle is shutdown due to an above
normal operating exhaust temperature.
The Malfunction Indicator Light (MIL) and
malfunction warning light (red) will illumi-
nate. It is recommended that you visit a
NISSAN dealer or other qualified technician
immediately.
Engine Power Reduced
This message appears when the engine is
not operating under normal conditions. For
additional information, refer to “Engine Pro-
tection Mode” in the “Introduction” section
of this manual.
Service Air Filter
This warning appears when the air filter
needs to be serviced. For additional infor-
mation, refer to “Air cleaner” in the ”Mainte-
nance” section of the Titan Diesel Owner’s
Manual.Engine Oil Service due XX
This message is a count down of mileage
until the next engine oil service is due. Mile-
age until next required engine oil service
will be displayed by the vehicle information
display and will decrease at a higher rate as
vehicle operation severity (high duty cycle)
increases.
Coolant Level Low: See Owner’s Manual
This warning appears when the coolant
level in the reservoir is below the MIN level.
For additional information, refer to “Engine
Cooling System” in this manual.
Low Fuel Pressure: See Owner’s Manual
This message appears when low fuel pres-
sure has been detected downstream of
the stage 2 fuel filter. This message can
indicate the fuel filters are restricted and
require replacement. It is recommended
that you have the system checked by a
NISSAN dealer or other qualified technician.
Instrument Panel2-7
Page 635 of 682

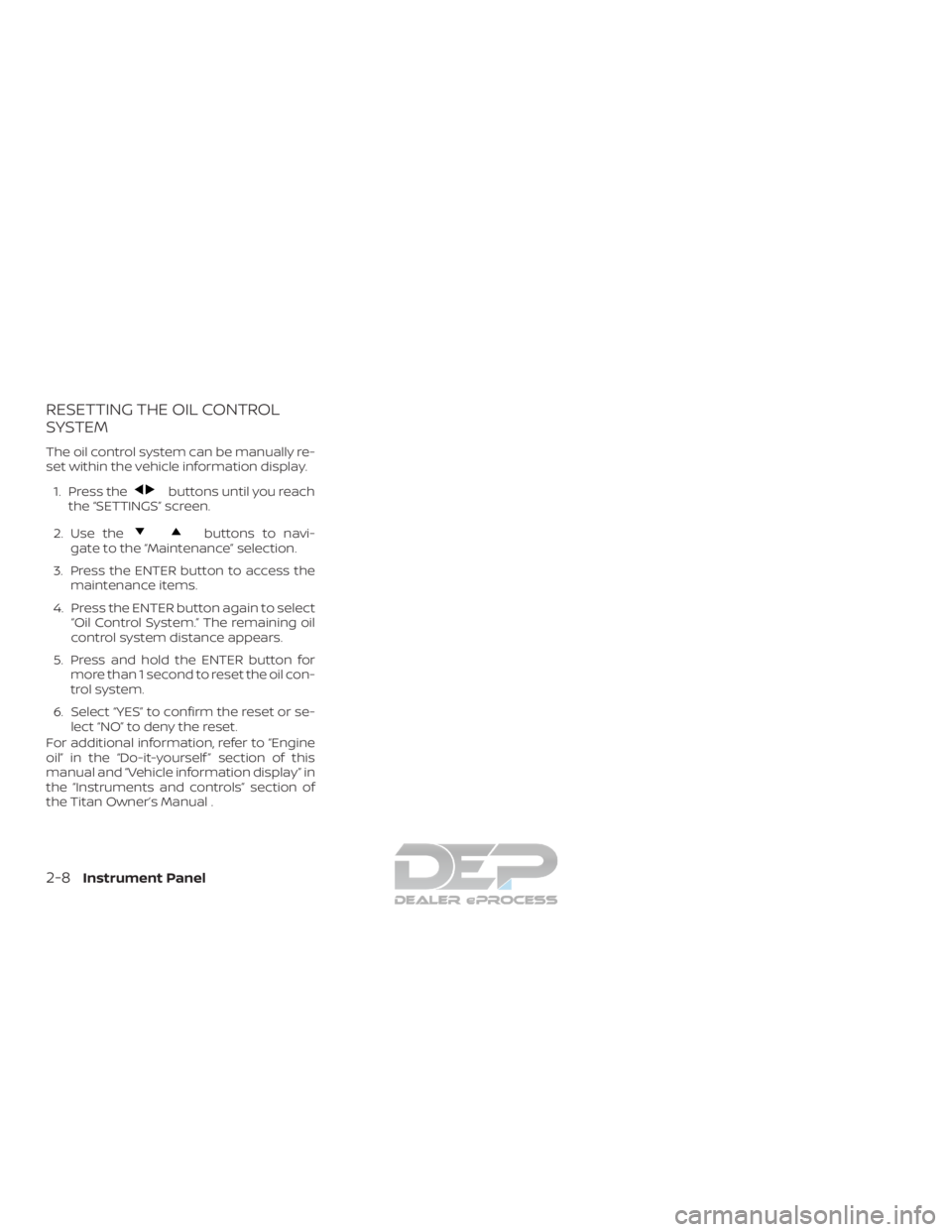

RESETTING THE OIL CONTROL
SYSTEM
The oil control system can be manually re-
set within the vehicle information display.1. Press the
buttons until you reach
the “SETTINGS” screen.
2. Use the
buttons to navi-
gate to the “Maintenance” selection.
3. Press the ENTER button to access the maintenance items.
4. Press the ENTER button again to select “Oil Control System.” The remaining oil
control system distance appears.
5. Press and hold the ENTER button for more than 1 second to reset the oil con-
trol system.
6. Select “YES” to confirm the reset or se- lect “NO” to deny the reset.
For additional information, refer to “Engine
oil” in the “Do-it-yourself ” section of this
manual and “Vehicle information display” in
the “Instruments and controls” section of
the Titan Owner’s Manual .
2-8Instrument Panel
Page 636 of 682

3 Starting and Stopping the Engine
Starting the diesel engine.......................3-2
Switching engine off ..........................3-3
Engine break-in recommendations ...........3-3Remote Engine Start (if so equipped)
.........3-3
Engine block heater (if so equipped) ..........3-4
Page 637 of 682

WARNING
∙ Do not use starting fluid, such asether, in the air intake system. Use of
such fluid could cause engine dam-
age and/or personal injury.
∙ Do not add gasoline, alcohol or kero- sene to diesel fuel.
CAUTION
∙ Read all starting instructions carefullyprior to starting your vehicle.
∙ When starting the engine in ex- tremely cold temperatures, it is rec-
ommended to allow the engine to idle
for several minutes before driving the
vehicle.
∙ The use of the factory engine block heater (if so equipped) will assist in
starting the engine in extreme cold
ambient temperatures. For additional
information, refer to the “Starting and
driving” section of the Titan Owner’s

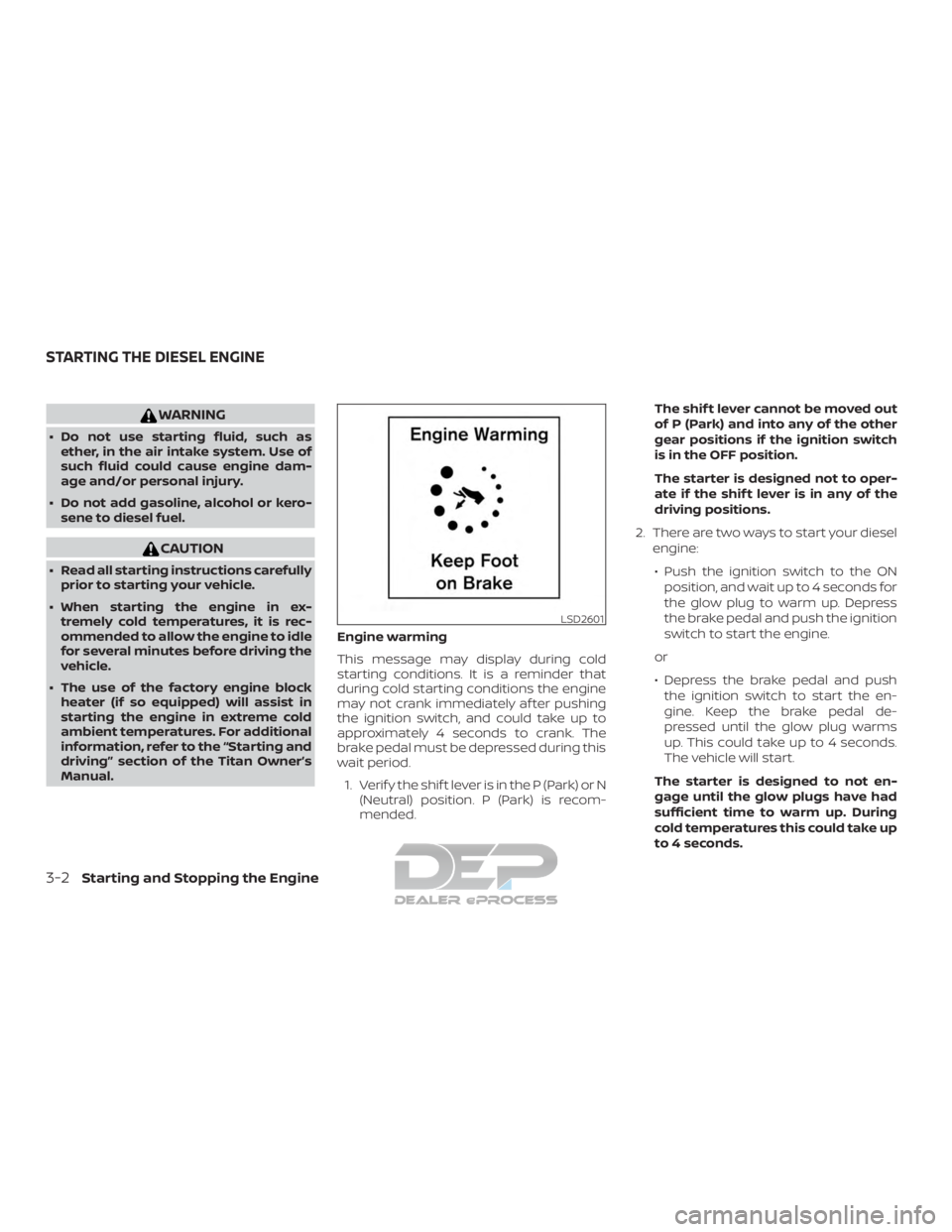

Manual. Engine warming
This message may display during cold
starting conditions. It is a reminder that
during cold starting conditions the engine
may not crank immediately af ter pushing
the ignition switch, and could take up to
approximately 4 seconds to crank. The
brake pedal must be depressed during this
wait period.
1. Verif y the shif t lever is in the P (Park) or N (Neutral) position. P (Park) is recom-
mended. The shif t lever cannot be moved out
of P (Park) and into any of the other
gear positions if the ignition switch
is in the OFF position.
The starter is designed not to oper-
ate if the shif t lever is in any of the
driving positions.
2. There are two ways to start your diesel engine:
∙ Push the ignition switch to the ON position, and wait up to 4 seconds for
the glow plug to warm up. Depress
the brake pedal and push the ignition
switch to start the engine.
or
∙ Depress the brake pedal and push the ignition switch to start the en-
gine. Keep the brake pedal de-
pressed until the glow plug warms
up. This could take up to 4 seconds.
The vehicle will start.
The starter is designed to not en-
gage until the glow plugs have had
sufficient time to warm up. During
cold temperatures this could take up
to 4 seconds.
LSD2601

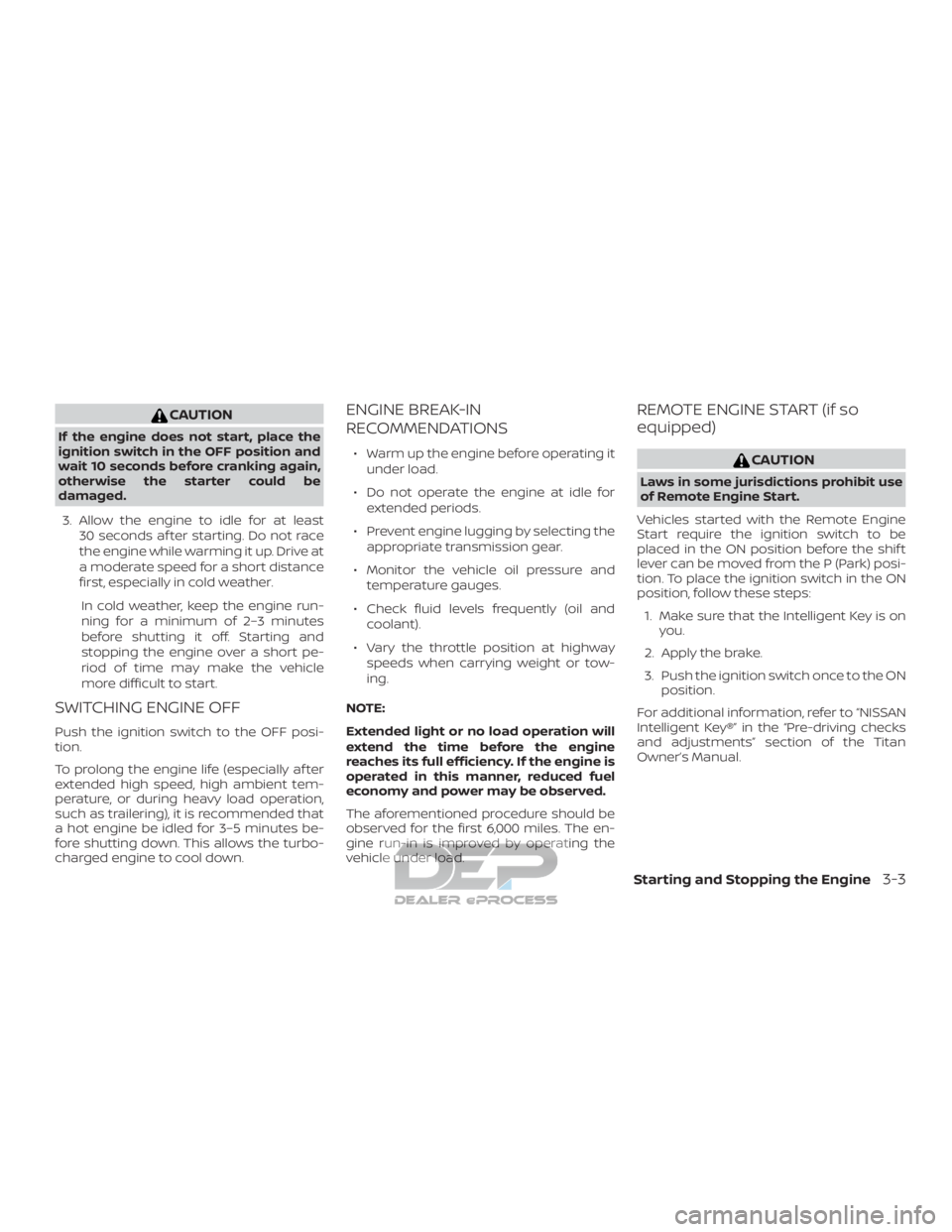

STARTING THE DIESEL ENGINE
3-2Starting and Stopping the Engine
Page 638 of 682

CAUTION
If the engine does not start, place the
ignition switch in the OFF position and
wait 10 seconds before cranking again,
otherwise the starter could be
damaged.3. Allow the engine to idle for at least 30 seconds af ter starting. Do not race
the engine while warming it up. Drive at
a moderate speed for a short distance
first, especially in cold weather.
In cold weather, keep the engine run-
ning for a minimum of 2–3 minutes
before shutting it off. Starting and
stopping the engine over a short pe-
riod of time may make the vehicle
more difficult to start.
SWITCHING ENGINE OFF
Push the ignition switch to the OFF posi-
tion.
To prolong the engine life (especially af ter
extended high speed, high ambient tem-
perature, or during heavy load operation,
such as trailering), it is recommended that
a hot engine be idled for 3–5 minutes be-
fore shutting down. This allows the turbo-
charged engine to cool down.
ENGINE BREAK-IN
RECOMMENDATIONS
∙ Warm up the engine before operating it under load.
∙ Do not operate the engine at idle for extended periods.
∙ Prevent engine lugging by selecting the appropriate transmission gear.
∙ Monitor the vehicle oil pressure and temperature gauges.
∙ Check fluid levels frequently (oil and coolant).
∙ Vary the throttle position at highway speeds when carrying weight or tow-
ing.
NOTE:
Extended light or no load operation will
extend the time before the engine
reaches its full efficiency. If the engine is
operated in this manner, reduced fuel
economy and power may be observed.
The aforementioned procedure should be
observed for the first 6,000 miles. The en-
gine run-in is improved by operating the
vehicle under load.
REMOTE ENGINE START (if so
equipped)
CAUTION
Laws in some jurisdictions prohibit use
of Remote Engine Start.
Vehicles started with the Remote Engine
Start require the ignition switch to be
placed in the ON position before the shif t
lever can be moved from the P (Park) posi-
tion. To place the ignition switch in the ON
position, follow these steps: 1. Make sure that the Intelligent Key is on you.
2. Apply the brake.
3. Push the ignition switch once to the ON position.
For additional information, refer to “NISSAN
Intelligent Key®” in the “Pre-driving checks
and adjustments” section of the Titan
Owner’s Manual.
Starting and Stopping the Engine3-3
Page 639 of 682

ENGINE BLOCK HEATER (if so
equipped)
The power cable to operate the heater is
available as a service part from an autho-
rized NISSAN dealer.
For additional information, refer to “Engine
block heater” in the “Starting and driving”
section of the Titan Owner’s Manual.
3-4Starting and Stopping the Engine
Page 640 of 682

4 Fuel and Refueling
Fuel-filler door...................................4-2
Fuel-filler door ................................4-2
Diesel fuel-filler cap ...........................4-2 Diesel Exhaust Fluid (DEF)
........................4-4
Diesel Exhaust Fluid (DEF) fill cap ..............4-4
