DTC P0755 SHIFT SOLENOID VALVE B
Revision: June 20062007 Versa
TCM terminal data are reference values, measured between each terminal and ground.
Diagnostic ProcedureUCS005PT
1. CHECK INPUT SIGNAL
With CONSULT-II
1. Start engine.
2. Select “MAIN SIGNALS” in “DATA MONITOR” mode for “A/T” with CONSULT-II.
3. Read out the value of “SHIFT S/V B” while driving.
Check the value changes according to driving speed.
Without CONSULT-II
1. Start engine.
2. Check voltage between TCM connector terminal and ground.
OK or NG
OK >> GO TO 5.
NG >> GO TO 2.
Terminal Wire color Item ConditionJudgement standard
(Approx.)
12 G Shift solenoid valve BWhen shift solenoid valve B operates.
(When driving in “D
1 ” or “D2 ”.)Battery voltage
When shift solenoid valve B does not
operate.
(When driving in “D
3 ” or “D4 ”.)0 V
Item name Condition Display value
SHIFT S/V BWhen shift solenoid valve B operates.
(When driving in “D
1 ” or “D2 ”.)ON
When shift solenoid valve B does not operate.
(When driving in “D
3 ” or “D4 ”.)OFF
SCIA3251E
ItemConnec-
torTerminal ConditionJudge-
ment stan-
dard
(Approx.)
Shift sole-
noid valve BE3112 -
GroundWhen shift solenoid valve
B operates.
(When driving in “D
1 ” or
“D
2 ”.)Battery
voltage
When shift solenoid valve
B does not operate.
(When driving in “D
3 ” or
“D
4 ”.)0 V
SCIA3253E

DTC P0755 SHIFT SOLENOID VALVE B
AT-159
D
E
F
G
H
I
J
K
L
MA
B
AT
Revision: June 20062007 Versa
2. CHECK SHIFT SOLENOID VALVE B CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect TCM connector.
3. Check resistance between TCM connector terminal and ground.
OK or NG
OK >> GO TO 5.
NG >> GO TO 3.
3. CHECK HARNESS BETWEEN TCM AND TERMINAL CORD ASSEMBLY HARNESS CONNECTOR
1. Turn ignition switch OFF.
2. Disconnect terminal cord assembly harness connector and TCM connector.
3. Check continuity between terminal cord assembly harness con-
nector terminal and TCM connector terminal.
4. If OK, check harness for short to ground and short to power.
5. If OK, check continuity between ground and transaxle assembly.
6. Reinstall any part removed.
OK or NG
OK >> GO TO 4.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
4. CHECK VALVE RESISTANCE
1. Turn ignition switch OFF.
2. Disconnect terminal cord assembly connector in engine room.
3. Check resistance between terminal cord assembly harness con-
nector terminal and ground.
OK or NG
OK >> GO TO 5.
NG >> Repair or replace damaged parts.
5. CHECK DTC
Perform AT-156, "
DTC Confirmation Procedure" .
OK or NG
OK >>INSPECTION END
NG >> GO TO 6.
Solenoid Valve Connector Terminal Resistance (Approx.)
Shift solenoid valve B E31 12 - Ground 5 - 20 Ω
SCIA3254E
Item Connector Terminal Continuity
TCM E31 12
Ye s
Terminal cord assembly
harness connectorF30 1
SCIA3255E
Solenoid valve Connector Terminal Resistance (Approx.)
Shift solenoid valve B F30 1 - Ground 5 - 20 Ω
SCIA3454E

AT-160
DTC P0755 SHIFT SOLENOID VALVE B
Revision: June 20062007 Versa
6. CHECK TCM
1. Check TCM input/output signal. Refer to AT - 7 8 , "
TCM Terminals and Reference Value" .
2. If NG, recheck TCM pin terminals for damage or loose connection with harness connector.
OK or NG
OK >>INSPECTION END
NG >> Repair or replace damaged parts.
Component InspectionUCS005PU
SHIFT SOLENOID VALVE B

For removal, refer to AT-242, "Control Valve Assembly and Accumulators" .
Resistance Check

Check resistance between terminal and ground.
Operation Check

Check solenoid valve by listening for its operating sound while
applying battery voltage to the terminal and ground.
Solenoid valve Connector Terminal Resistance (Approx.)
Shift solenoid valve B F30 1 - Ground 5 - 20 Ω
SCIA2055E
SCIA2058E

DTC P1760 OVERRUN CLUTCH SOLENOID VALVE
AT-161
D
E
F
G
H
I
J
K
L
MA
B
AT
Revision: June 20062007 Versa
DTC P1760 OVERRUN CLUTCH SOLENOID VALVEPFP:31940
DescriptionUCS005Q1
The overrun clutch solenoid valve is activated by the TCM in response to signals sent from the PNP switch,
overdrive control switch, vehicle speed and ECM (throttle opening). The overrun clutch operation will then be
controlled.
CONSULT-II Reference ValueUCS005Q2
On Board Diagnosis LogicUCS005Q3

This is an OBD-II self-diagnostic item.

Diagnostic trouble code “P1760 OVERRUN CLUTCH S/V” with CONSULT-II or 6th judgement flicker with-
out CONSULT-II is detected when TCM detects an improper voltage drop when it tries to operate solenoid
valve.
Possible CauseUCS005Q4

Harness or connector
(The solenoid circuit is open or shorted.)

Overrun clutch solenoid valve
DTC Confirmation ProcedureUCS005Q5
CAUTION:

Always drive vehicle at a safe speed.

If performing this “DTC Confirmation Procedure” again, always turn ignition switch OFF and wait
at least 10 seconds before continuing.
After the repair, perform the following procedure to confirm the malfunction is eliminated.
WITH CONSULT-II
1. Turn ignition switch ON and select “DATA MONITOR” mode for
“A/T” with CONSULT-II.
2. Touch “START”.
3. Start engine.
4. Accelerate vehicle to a speed of more than 10 km/h (6 MPH)
with “D” position (OD ON).
5. Release accelerator pedal completely with “D” position (OD
OFF).
6. If the check result is NG, go to AT-163, "
Diagnostic Procedure" .
WITH GST
Follow the procedure “WITH CONSULT-II”.
WITHOUT CONSULT-II
1. Start engine.
2. Drive vehicle under the following conditions:
Selector lever position: “D” position (OD ON)
Vehicle speed: Higher than 10 km/h (6 MPH)
3. Perform self-diagnosis. Refer to AT- 9 0 , "
Diagnostic Procedure Without CONSULT-II" .
4. If the check result is NG, go to AT-163, "
Diagnostic Procedure" .
Item name Condition Display value
OVERRUN/C S/VWhen overrun clutch solenoid valve operates. (When
overrun clutch disengaged. Refer to AT- 2 2
.)ON
When overrun clutch solenoid valve does not operate.
(When overrun clutch engaged. Refer to AT - 2 2
.)OFF
BCIA0031E

AT-162
DTC P1760 OVERRUN CLUTCH SOLENOID VALVE
Revision: June 20062007 Versa

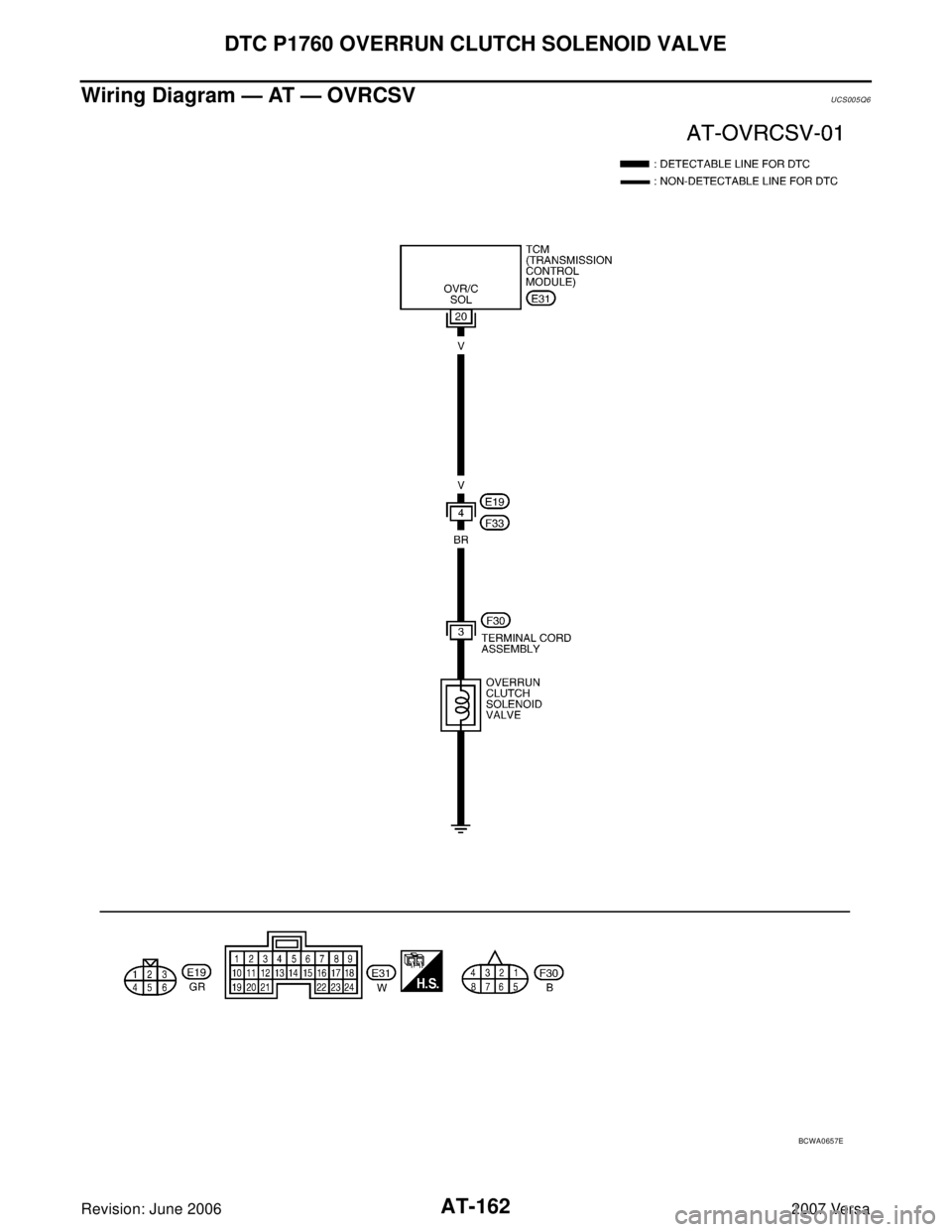

Wiring Diagram — AT — OVRCSVUCS005Q6
BCWA0657E

DTC P1760 OVERRUN CLUTCH SOLENOID VALVE
AT-163
D
E
F
G
H
I
J
K
L
MA
B
AT
Revision: June 20062007 Versa
TCM terminal data are reference values, measured between each terminal and ground.
Diagnostic ProcedureUCS005Q7
1. CHECK INPUT SIGNAL
With CONSULT-II
1. Start engine.
2. Select “MAIN SIGNALS” in “DATA MONITOR” mode for “A/T” with CONSULT-II.
3. Read out the value of “OVERRUN/C S/V” while driving.
Check the value changes according to driving speed.
Without CONSULT-II
1. Start engine.
2. Check voltage between TCM connector terminal and ground.
OK or NG
OK >> GO TO 5.
NG >> GO TO 2.
Terminal Wire color Item ConditionJudgement standard
(Approx.)
20 VOverrun clutch solenoid
valveWhen overrun clutch solenoid valve
operates. (When overrun clutch dis-
engaged. Refer to AT- 2 2
.)Battery voltage
When overrun clutch solenoid valve
dose not operate. (When overrun
clutch engaged. Refer to AT- 2 2
.)0 V
Item name Condition Display value
OVERRUN/C S/VWhen overrun clutch solenoid valve oper-
ates. (When overrun clutch disengaged.
Refer to AT- 2 2
.)ON
When overrun clutch solenoid valve does
not operate. (When overrun clutch
engaged. Refer to AT- 2 2
.)OFF
SCIA3257E
Item Connec-
torTerminal ConditionJudge-
ment stan-
dard
(Approx.)
Overrun
clutch sole-
noid valve E31 20 -
GroundWhen overrun clutch
solenoid valve operates.
(When overrun clutch
disengaged. Refer to AT -
22 .)Battery
voltage
When overrun clutch
solenoid valve dose not
operate. (When overrun
clutch engaged. Refer to
AT-2 2
.)0 V
SCIA3258E

AT-164
DTC P1760 OVERRUN CLUTCH SOLENOID VALVE
Revision: June 20062007 Versa
2. CHECK OVERRUN CLUTCH SOLENOID VALVE CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect TCM connector.
3. Check resistance between TCM connector terminal and ground.
OK or NG
OK >> GO TO 5.
NG >> GO TO 3.
3. CHECK HARNESS BETWEEN TCM AND TERMINAL CORD ASSEMBLY HARNESS CONNECTOR
1. Turn ignition switch OFF.
2. Disconnect terminal cord assembly harness connector and TCM connector.
3. Check continuity between terminal cord assembly harness con-
nector terminal and TCM connector terminal.
4. If OK, check harness for short to ground and short to power.
5. If OK, check continuity between ground and transaxle assembly.
6. Reinstall any part removed.
OK or NG
OK >> GO TO 4.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
4. CHECK VALVE RESISTANCE
1. Turn ignition switch OFF.
2. Disconnect terminal cord assembly connector in engine room.
3. Check resistance between terminal cord assembly harness con-
nector terminal and ground.
OK or NG
OK >> GO TO 5.
NG >> Repair or replace damaged parts.
5. CHECK DTC
Perform AT-161, "
DTC Confirmation Procedure" .
OK or NG
OK >>INSPECTION END
NG >> GO TO 6.
Solenoid Valve Connector Terminal Resistance (Approx.)
Overrun clutch solenoid
valve E31 20 - Ground 20 - 30 Ω
SCIA3259E
Item Connector Terminal Continuity
TCM E31 20
Ye s
Terminal cord assembly
harness connectorF30 3
SCIA3260E
Solenoid valve Connector Terminal Resistance (Approx.)
Overrun clutch solenoid
valveF30 3 - Ground 20 - 30 Ω
SCIA3455E

DTC P1760 OVERRUN CLUTCH SOLENOID VALVE
AT-165
D
E
F
G
H
I
J
K
L
MA
B
AT
Revision: June 20062007 Versa
6. CHECK TCM
1. Check TCM input/output signal. Refer to AT-78, "
TCM Terminals and Reference Value" .
2. If NG, recheck TCM pin terminals for damage or loose connection with harness connector.
OK or NG
OK >>INSPECTION END
NG >> Repair or replace damaged parts.
Component InspectionUCS005Q8
OVERRUN CLUTCH SOLENOID VALVE

For removal, refer to AT-242, "Control Valve Assembly and Accumulators" .
Resistance Check

Check resistance between terminal and ground.
Operation Check

Check solenoid valve by listening for its operating sound while
applying battery voltage to the terminal and ground.
Solenoid valve Connector Terminal Resistance (Approx.)
Overrun clutch solenoid
valveF30 3 - Ground 20 - 30 Ω
SCIA2059E
SCIA2062E

AT-166
DTC VEHICLE SPEED SENSOR MTR
Revision: June 20062007 Versa
DTC VEHICLE SPEED SENSOR MTRPFP:24814
DescriptionUCS005Q9
The vehicle speed sensor·MTR is built into the speedometer assembly. The sensor functions as an auxiliary
device to the revolution sensor when it is malfunctioning. The TCM will then use a signal sent from the vehicle
speed sensor·MTR.
CONSULT-II Reference ValueUCS005QA
Remarks: Specification data are reference values.
On Board Diagnosis LogicUCS005QB

This is not an OBD-II self-diagnostic item.

Diagnostic trouble code “VHCL SPEED SEN-MTR” with CONSULT-II or 2nd judgement flicker without
CONSULT-II is detected when TCM does not receive the proper voltage signal from the sensor.
Possible CauseUCS005QC

Harness or connector
(The sensor circuit is open or shorted.)

Vehicle speed sensor
DTC Confirmation ProcedureUCS005QD
CAUTION:

Always drive vehicle at a safe speed.

If performing this “DTC Confirmation Procedure” again, always turn ignition switch OFF and wait
at least 10 seconds before continuing.
After the repair, perform the following procedure to confirm the malfunction is eliminated.
WITH CONSULT-II
1. Turn ignition switch ON and select “DATA MONITOR” mode for
“A/T” with CONSULT-II.
2. Touch “START”.
3. Start engine and accelerate vehicle from 0 to 25 km/h (0 to 16
MPH).
4. If the check result is NG, go to AT-168, "
Diagnostic Procedure" .
WITHOUT CONSULT-II
1. Start engine.
2. Drive vehicle under the following conditions:
Selector lever position: “D” position
Vehicle speed: Higher than 25 km/h (16 MPH)
3. Perform self-diagnosis. Refer to AT-90, "
Diagnostic Procedure Without CONSULT-II" .
4. If the check result is NG, go to AT-168, "
Diagnostic Procedure" .
Item name Condition Display value
VHCL/S SE-MTR During driving Approximately matches the speedometer reading.
BCIA0031E

DTC VEHICLE SPEED SENSOR MTR
AT-167
D
E
F
G
H
I
J
K
L
MA
B
AT
Revision: June 20062007 Versa

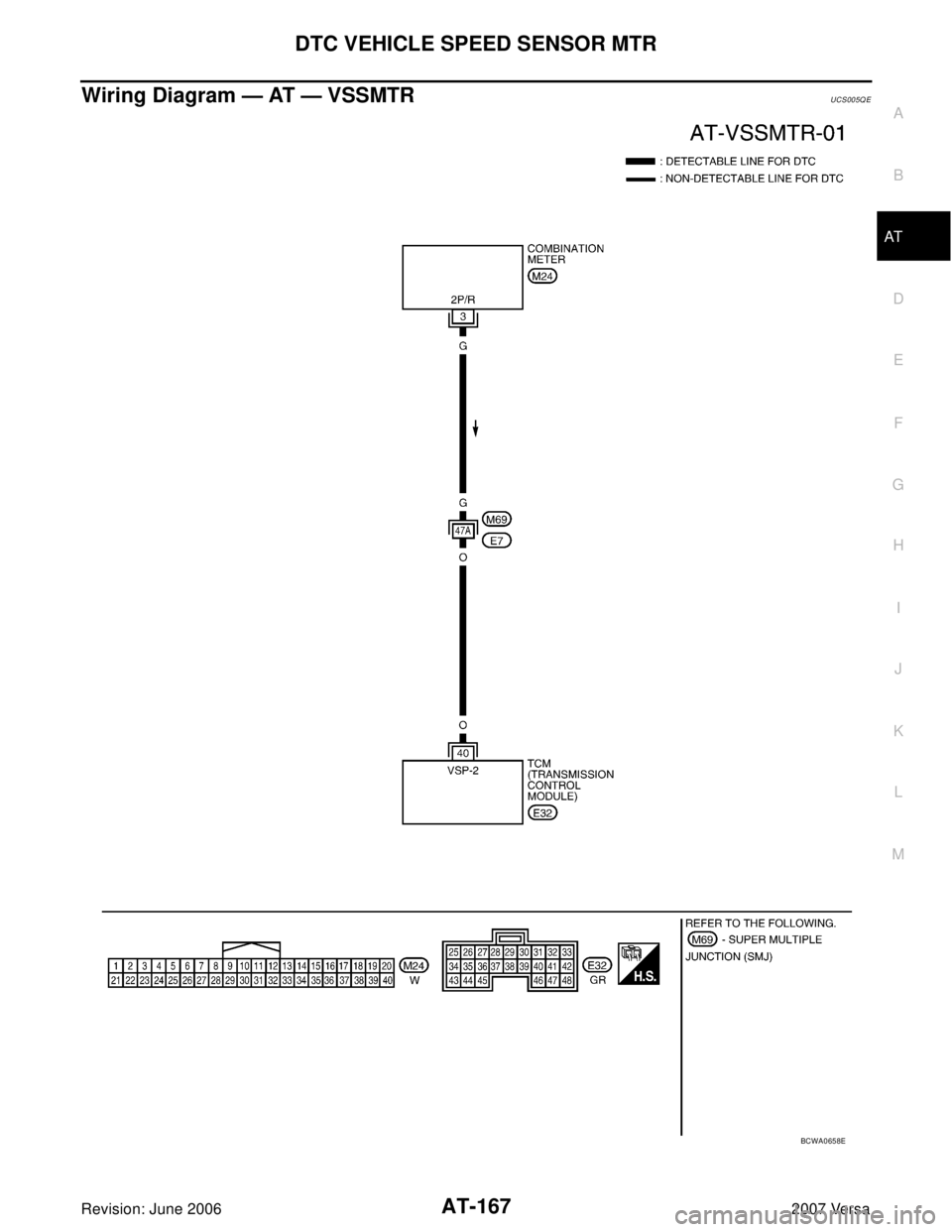

Wiring Diagram — AT — VSSMTRUCS005Q E
BCWA0658E
