INTAKE DOOR
MTC-69
C
D
E
F
G
H
I
K
L
MA
B
MTC
Revision: June 20062007 Versa
INTAKE DOORPFP:27245
Intake Door Cable AdjustmentEJS00586
1. Remove instrument lower finisher. Refer to IP-10, "INSTRUMENT PANEL ASSEMBLY" .
2. Remove outer cable of intake door cable (1) from clamp (A).
3. Set intake door lever to REC position.
4. Push intake door link (2) in the direction shown by the arrow,
and then carefully pull outer cable to controller side, and install
clamp (A).
5. Operate intake door lever to insure that inner cable moves
smoothly.
CAUTION:
When clamping the outer cable, do not move the inner
cable.
SJIA0650E

MTC-70
AIR MIX DOOR
Revision: June 20062007 Versa
AIR MIX DOORPFP:27180
Air Mix Door Cable AdjustmentEJS00587
1. Remove steering member. Refer to MTC-64, "A/C UNIT ASSEMBLY" .
2. Remove outer cable of air mix door cable (1) from clamp (A).
3. Set temperature control dial to full cold position.
4. Push air mix door lever (2) in the direction shown by arrow, and
then carefully pull outer cable toward controller side, and install
clamp (A).
5. Operate temperature control dial to insure that inner cable
moves smoothly.
CAUTION:
When clamping the outer cable, do not move the inner
cable.
SJIA1150E

MODE DOOR
MTC-71
C
D
E
F
G
H
I
K
L
MA
B
MTC
Revision: June 20062007 Versa
MODE DOORPFP:27181
Mode Door Cable AdjustmentEJS00588
1. Remove glove box assembly and instrument lower cover (RH). Refer to IP-10, "INSTRUMENT PANEL
ASSEMBLY" .
2. Remove outer cable of mode door cable (1) from clamp (A).
3. Set mode control dial to VENT position.
4. Push main link (2) in the direction shown by the arrow, and then
carefully pull outer cable to controller side, and install clamp (A).
5. Operate mode control dial to insure that inner cable moves
smoothly.
CAUTION:
When clamping the outer cable, do not move the inner
cable.
6. Turn mode control dial to each position.
7. Confirm that discharge air comes out according to the air distribution table. Refer to MTC-22, "
Discharge
Air Flow" .
SJIA0654E

MTC-72
BLOWER FAN RESISTOR
Revision: June 20062007 Versa
BLOWER FAN RESISTORPFP:27150
Removal and InstallationEJS00589
REMOVAL
1. Remove the instrument lower finisher. Refer to IP-10, "INSTRUMENT PANEL ASSEMBLY" .
2. Remove the console side cover. Refer to IP-10, "
INSTRUMENT PANEL ASSEMBLY" .
3. Remove the brake pedal assembly. Refer to BR-6, "
BRAKE PEDAL" .
4. Disconnect the blower fan resistor connector.
5. Remove the blower fan resistor screws (A), then remove the
blower fan resistor (1).
INSTALLATION
Installation is in the reverse order of removal.
SJIA0656E

HEATER CORE
MTC-73
C
D
E
F
G
H
I
K
L
MA
B
MTC
Revision: June 20062007 Versa
HEATER COREPFP:27140
Removal and InstallationEJS0058A
REMOVAL
1. Remove the A/C unit assembly. Refer to MTC-64, "A/C UNIT ASSEMBLY" .
2. Remove the foot duct (left). Refer to MTC-78, "
Removal" .
3. Remove the heater pipe cover screw, then remove the heater pipe cover.
4. Remove the heater pipe clip screw, then remove the heater pipe clip.
5. Slide the heater core out of the A/C unit assembly.
INSTALLATION
Installation is in the reverse order of removal.
1. Heater pipe cover 2. Heater pipe clip 3. Heater core
A. Heater pipe cover screw B. Heater pipe clip screw
LJIA0200E

MTC-74
AIR CONDITIONER FILTER
Revision: June 20062007 Versa

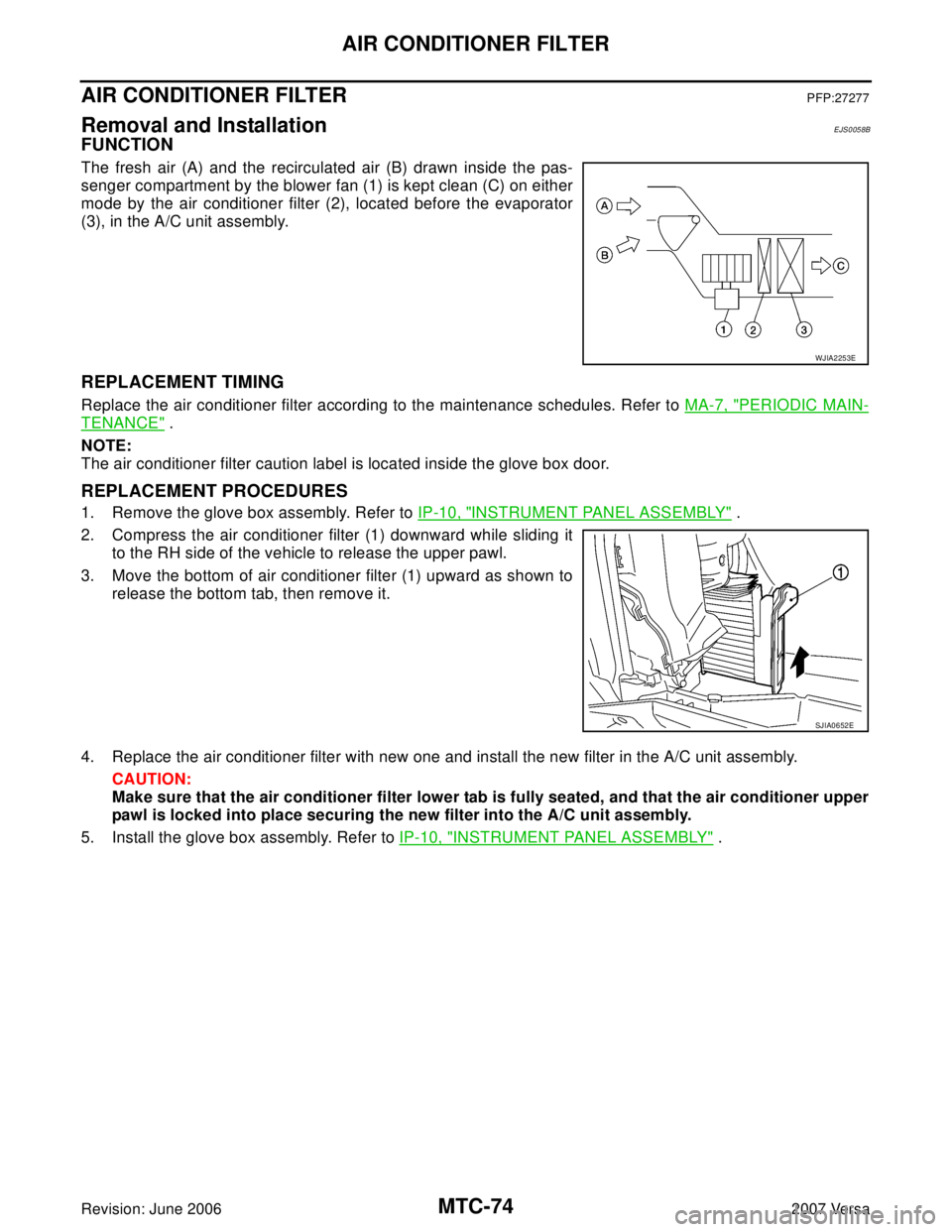

AIR CONDITIONER FILTERPFP:27277
Removal and InstallationEJS0058B
FUNCTION
The fresh air (A) and the recirculated air (B) drawn inside the pas-
senger compartment by the blower fan (1) is kept clean (C) on either
mode by the air conditioner filter (2), located before the evaporator
(3), in the A/C unit assembly.
REPLACEMENT TIMING
Replace the air conditioner filter according to the maintenance schedules. Refer to MA-7, "PERIODIC MAIN-
TENANCE" .
NOTE:
The air conditioner filter caution label is located inside the glove box door.
REPLACEMENT PROCEDURES
1. Remove the glove box assembly. Refer to IP-10, "INSTRUMENT PANEL ASSEMBLY" .
2. Compress the air conditioner filter (1) downward while sliding it
to the RH side of the vehicle to release the upper pawl.
3. Move the bottom of air conditioner filter (1) upward as shown to
release the bottom tab, then remove it.
4. Replace the air conditioner filter with new one and install the new filter in the A/C unit assembly.
CAUTION:
Make sure that the air conditioner filter lower tab is fully seated, and that the air conditioner upper
pawl is locked into place securing the new filter into the A/C unit assembly.
5. Install the glove box assembly. Refer to IP-10, "
INSTRUMENT PANEL ASSEMBLY" .
WJIA2253E
SJIA0652E

DUCTS AND GRILLES
MTC-75
C
D
E
F
G
H
I
K
L
MA
B
MTC
Revision: June 20062007 Versa
DUCTS AND GRILLESPFP:27860
Removal and InstallationEJS0058C

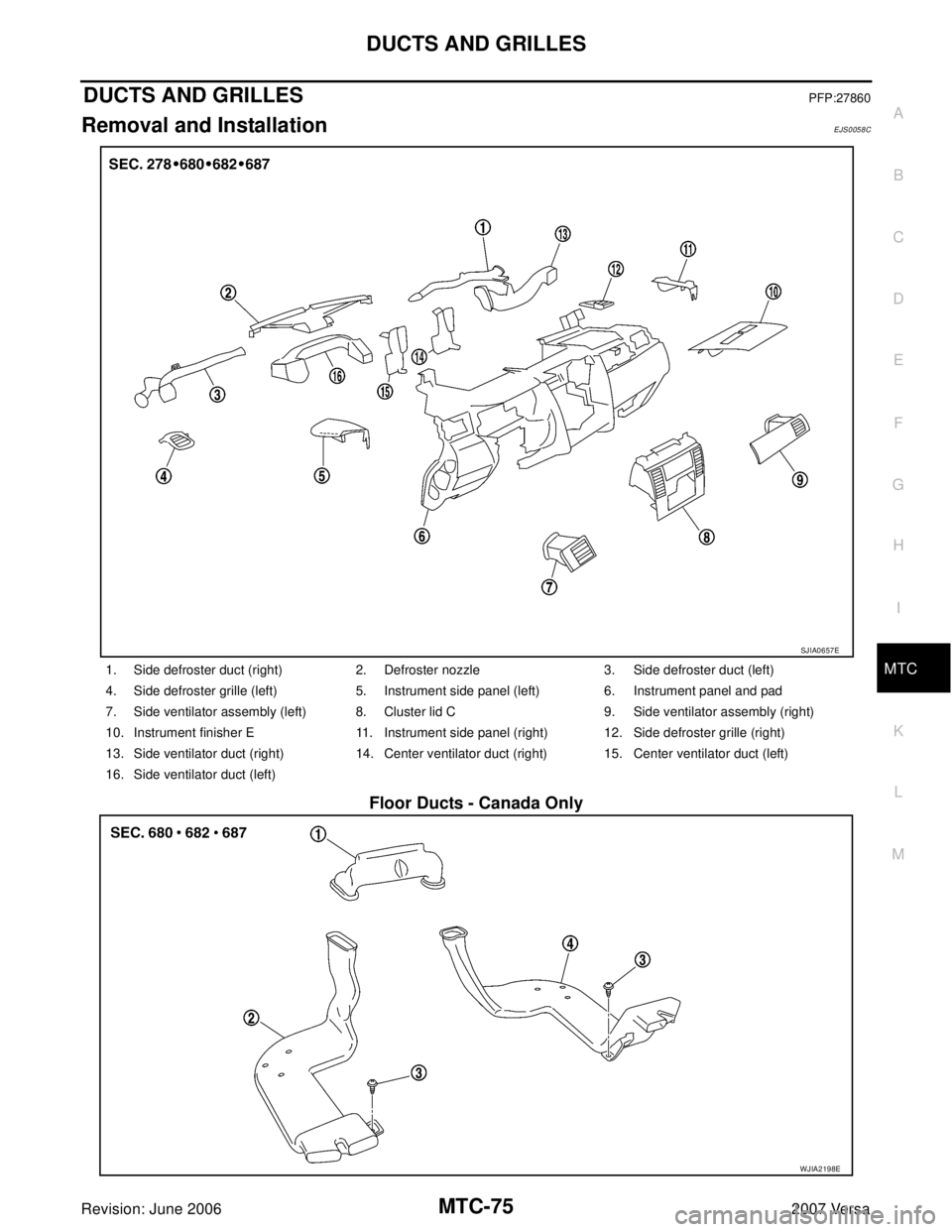

Floor Ducts - Canada Only
1. Side defroster duct (right) 2. Defroster nozzle 3. Side defroster duct (left)
4. Side defroster grille (left) 5. Instrument side panel (left) 6. Instrument panel and pad
7. Side ventilator assembly (left) 8. Cluster lid C 9. Side ventilator assembly (right)
10. Instrument finisher E 11. Instrument side panel (right) 12. Side defroster grille (right)
13. Side ventilator duct (right) 14. Center ventilator duct (right) 15. Center ventilator duct (left)
16. Side ventilator duct (left)
SJIA0657E
WJIA2198E

MTC-76
DUCTS AND GRILLES
Revision: June 20062007 Versa
CENTER VENTILATOR GRILLES
Removal
1. Remove cluster lid C. Refer to IP-10, "INSTRUMENT PANEL ASSEMBLY" .
2. Remove center ventilator grills (1) from cluster lid C using suit-
able tool (A).
Installation
Installation is in the reverse order of removal.
SIDE VENTILATOR GRILLES (LH/RH)
Removal
1. Remove side ventilator assembly (LH). Refer to IP-10, "INSTRUMENT PANEL ASSEMBLY" .
2. Remove side ventilator grille (LH) (1) using suitable tool (A).
3. Remove side ventilator assembly (RH). Refer to IP-10, "
INSTRUMENT PANEL ASSEMBLY" .
4. Remove side ventilator grille (RH) (1) using suitable tool (A).
Installation
Installation is in the reverse order of removal.
1. Front floor duct 2. Rear floor duct (left) 3. Clip
4. Rear floor duct (right)
ZJIA0661E
SJIA0658E
SJIA0659E

DUCTS AND GRILLES
MTC-77
C
D
E
F
G
H
I
K
L
MA
B
MTC
Revision: June 20062007 Versa

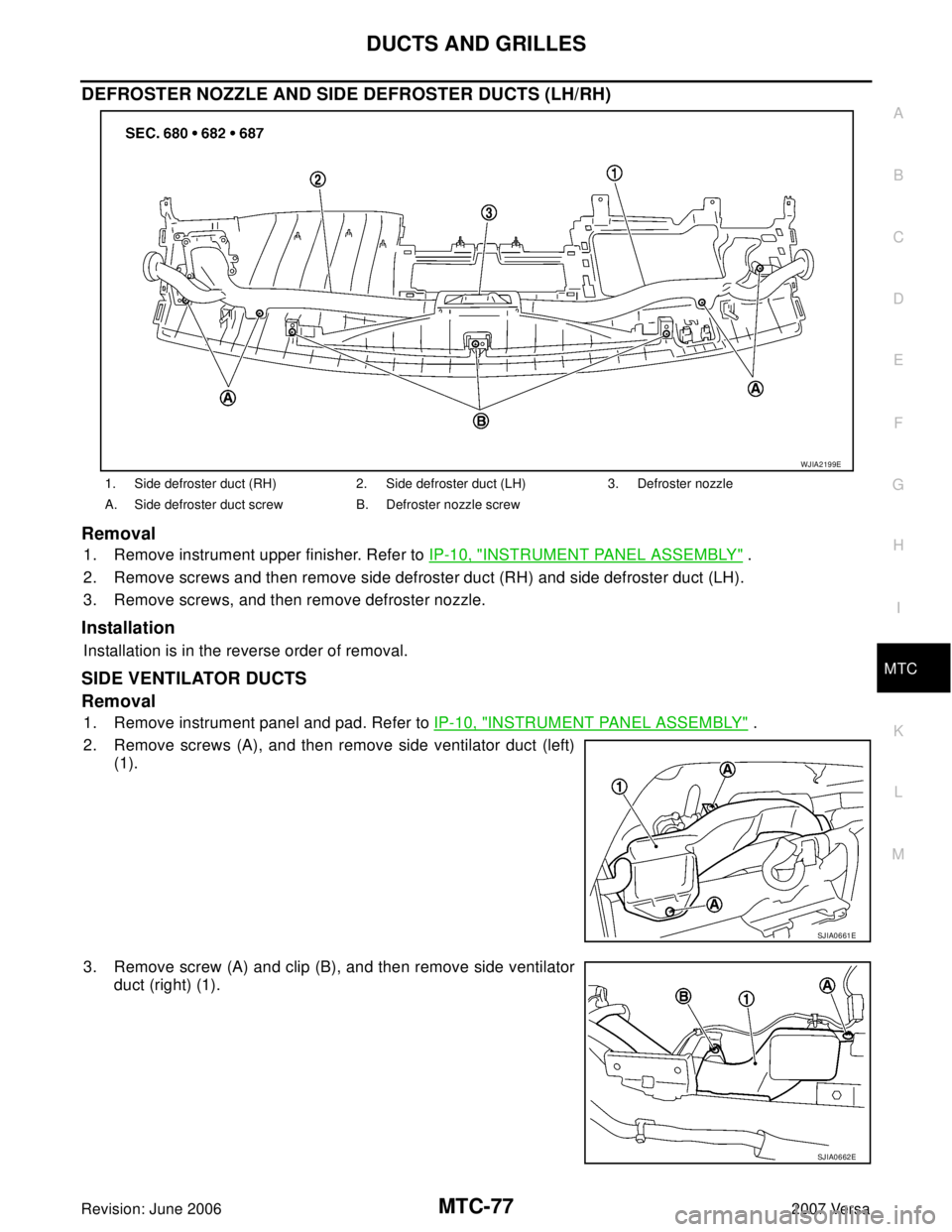

DEFROSTER NOZZLE AND SIDE DEFROSTER DUCTS (LH/RH)
Removal
1. Remove instrument upper finisher. Refer to IP-10, "INSTRUMENT PANEL ASSEMBLY" .
2. Remove screws and then remove side defroster duct (RH) and side defroster duct (LH).
3. Remove screws, and then remove defroster nozzle.
Installation
Installation is in the reverse order of removal.
SIDE VENTILATOR DUCTS
Removal
1. Remove instrument panel and pad. Refer to IP-10, "INSTRUMENT PANEL ASSEMBLY" .
2. Remove screws (A), and then remove side ventilator duct (left)
(1).
3. Remove screw (A) and clip (B), and then remove side ventilator
duct (right) (1).
1. Side defroster duct (RH) 2. Side defroster duct (LH) 3. Defroster nozzle
A. Side defroster duct screw B. Defroster nozzle screw
WJIA2199E
SJIA0661E
SJIA0662E

MTC-78
DUCTS AND GRILLES
Revision: June 20062007 Versa
Installation
Installation is in the reverse order of removal.

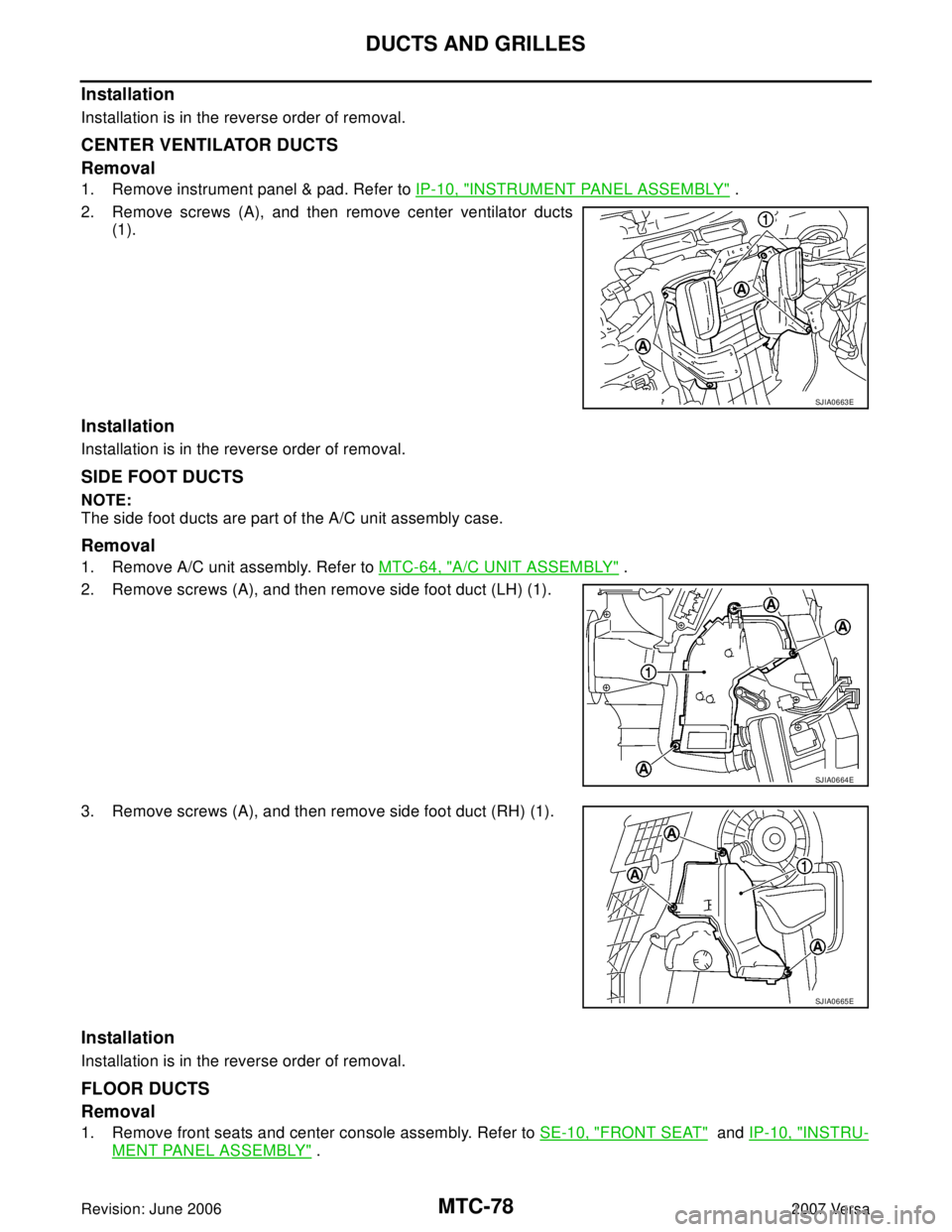

CENTER VENTILATOR DUCTS
Removal
1. Remove instrument panel & pad. Refer to IP-10, "INSTRUMENT PANEL ASSEMBLY" .
2. Remove screws (A), and then remove center ventilator ducts
(1).
Installation
Installation is in the reverse order of removal.
SIDE FOOT DUCTS
NOTE:
The side foot ducts are part of the A/C unit assembly case.
Removal
1. Remove A/C unit assembly. Refer to MTC-64, "A/C UNIT ASSEMBLY" .
2. Remove screws (A), and then remove side foot duct (LH) (1).
3. Remove screws (A), and then remove side foot duct (RH) (1).
Installation
Installation is in the reverse order of removal.
FLOOR DUCTS
Removal
1. Remove front seats and center console assembly. Refer to SE-10, "FRONT SEAT" and IP-10, "INSTRU-
MENT PANEL ASSEMBLY" .
SJIA0663E
