Page 470 of 2896
BCM (BODY CONTROL MODULE)
BCS-7
C
D
E
F
G
H
I
J
L
MA
B
BCS
Revision: June 20062007 Versa
BCM is activated with low current consumption mode.
CAN communication is not active.
When CAN communication operation is detected, it switches to CAN communication status.
When a state of the following switches changes, it switches to CAN communication state:
–Ignition switch
–Key switch (without Intelligent Key)
–Key switch and ignition knob switch (with Intelligent Key)
–Hazard switch
–Door lock/unlock switch
–Front door switch (LH, RH)
–Rear door switch (LH, RH)
–Back door lock assembly
–Combination switch (passing, lighting switch 1st position, front fog lamp)
–Keyfob (lock/unlock signal)
–Front door key cylinder switch LH
When control performed only by BCM is required by switch, it shifts to CAN communication inactive
mode.
Status of combination switch reading function is changed.
SYSTEMS CONTROLLED BY BCM DIRECTLY
Power door lock system. Refer to BL-23, "POWER DOOR LOCK SYSTEM" .
Remote keyless entry system. Refer to BL-54, "REMOTE KEYLESS ENTRY SYSTEM" .
Power window system. Refer to GW-17, "POWER WINDOW SYSTEM" . NOTE
Room lamp timer. Refer to LT- 9 1 , "INTERIOR ROOM LAMP" .
Rear wiper and washer system. Refer to WW-30, "REAR WIPER AND WASHER SYSTEM" .
NOTE:
Power supply only. No system control.
SYSTEMS CONTROLLED BY BCM AND IPDM E/R
Panic system. Refer to BL-54, "REMOTE KEYLESS ENTRY SYSTEM" .
Vehicle security (theft warning) system. Refer to BL-193, "VEHICLE SECURITY (THEFT WARNING)
SYSTEM" .
NVIS(NATS) system. Refer to BL-212, "NATS (Nissan Anti-Theft System)" .
Headlamp, tail lamp and battery saver control systems. Refer to LT- 7 5 , "PARKING, LICENSE PLATE AND
TA I L L A M P S" , LT- 5 , "HEADLAMP (FOR USA)" or LT-27, "HEADLAMP (FOR CANADA) - DAYTIME
LIGHT SYSTEM -" .
Front fog lamp. Refer to LT-41, "FRONT FOG LAMP" .
Front wiper and washer system. Refer to WW-4, "FRONT WIPER AND WASHER SYSTEM" .
Rear window defogger system. Refer to GW-50, "REAR WINDOW DEFOGGER" .
SYSTEMS CONTROLLED BY BCM AND COMBINATION METER
Warning chime. Refer to DI-47, "WARNING CHIME" .
Turn signal and hazard warning lamps. Refer to LT- 5 1 , "TURN SIGNAL AND HAZARD WARNING
LAMPS" .
SYSTEMS CONTROLLED BY BCM AND INTELLIGENT KEY UNIT
Intelligent Key system. Refer to BL-80, "INTELLIGENT KEY SYSTEM" .
Page 471 of 2896
BCS-8
BCM (BODY CONTROL MODULE)
Revision: June 20062007 Versa
MAJOR COMPONENTS AND CONTROL SYSTEM
CAN Communication System DescriptionEKS00I82
Refer to LAN-4, "SYSTEM DESCRIPTION" .
System Input Output
Remote keyless entry systemRemote keyless entry receiver
(keyfob)
All door locking actuators
Turn signal lamp (LH, RH)
Combination meter (turn signal lamp)
Intelligent Key system Intelligent Key unit
All door locking actuators
Turn signal lamp (LH, RH)
Combination meter (turn signal lamp)
Power door lock systemFront power door lock/unlock
switch (LH, RH)All door locking actuators
Power supply (IGN) to power window Ignition power supply Power supply to power window system
Power supply (BAT) to power window Battery power supply Power supply to power window system
Panic alarm
Key switch
KeyfobIPDM E/R
Battery saver control
Ignition switch
Combination switchIPDM E/R
Headlamp Combination switch IPDM E/R
Tail lamp Combination switch IPDM E/R
Front fog lamp Combination switch IPDM E/R
Turn signal lamp Combination switch
Turn signal lamp
Combination meter
Hazard lamp Hazard switch
Turn signal lamp
Combination meter
Room lamp timer
Key switch
Keyfob
Main power window and door
lock/unlock switch
Front door switch LH
All door switchInterior room lamp
Key warning chime
Key switch
Front door switch LHCombination meter (warning buzzer)
Light warning chime
Combination switch
Key switch
Front door switch LHCombination meter (warning buzzer)
Seat belt warning chime
Seat belt buckle switch LH
Ignition switchCombination meter (warning buzzer)
Front wiper and washer system
Combination switch
Ignition switchIPDM E/R
Rear window defogger Rear window defogger switch IPDM E/R
Rear wiper and washer system
Combination switch
Ignition switchRear wiper motor
A/C switch signal Front air control ECM
Blower fan switch signal Front air control ECM
A/C indicator signal Front air control A/C indicator
Low tire pressure warning system Remote keyless entry receiver Combination meter
Page 476 of 2896
BCM (BODY CONTROL MODULE)
BCS-13
C
D
E
F
G
H
I
J
L
MA
B
BCS
Revision: June 20062007 Versa

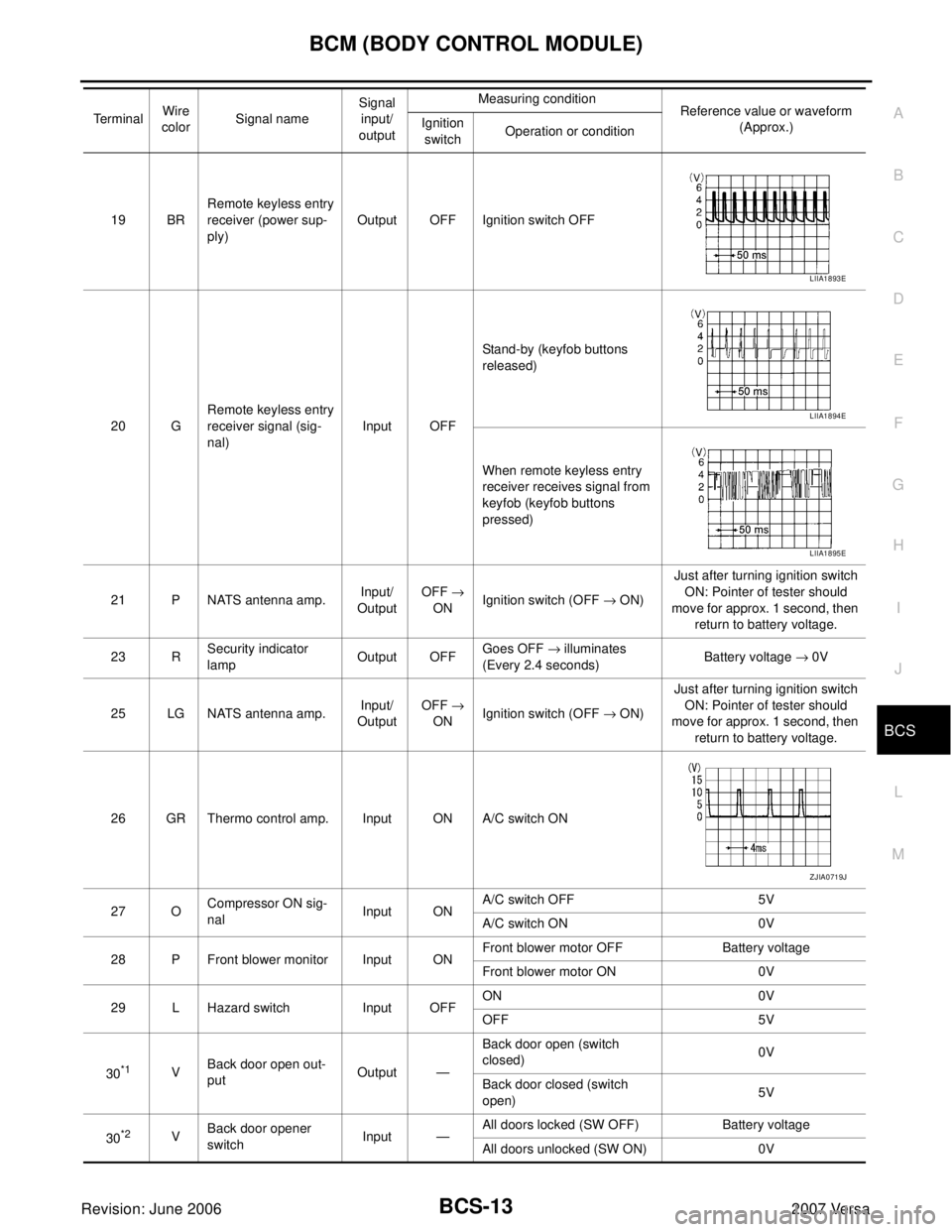

19 BRRemote keyless entry
receiver (power sup-
ply)Output OFF Ignition switch OFF
20 GRemote keyless entry
receiver signal (sig-
nal)Input OFFStand-by (keyfob buttons
released)
When remote keyless entry
receiver receives signal from
keyfob (keyfob buttons
pressed)
21 P NATS antenna amp.Input/
OutputOFF →
ONIgnition switch (OFF → ON)Just after turning ignition switch
ON: Pointer of tester should
move for approx. 1 second, then
return to battery voltage.
23 RSecurity indicator
lampOutput OFFGoes OFF → illuminates
(Every 2.4 seconds)Battery voltage → 0V
25 LG NATS antenna amp.Input/
OutputOFF →
ONIgnition switch (OFF → ON)Just after turning ignition switch
ON: Pointer of tester should
move for approx. 1 second, then
return to battery voltage.
26 GR Thermo control amp. Input ON A/C switch ON
27 OCompressor ON sig-
nalInput ONA/C switch OFF 5V
A/C switch ON 0V
28 P Front blower monitor Input ONFront blower motor OFF Battery voltage
Front blower motor ON 0V
29 L Hazard switch Input OFFON 0V
OFF 5V
30
*1VBack door open out-
putOutput —Back door open (switch
closed)0V
Back door closed (switch
open)5V
30
*2VBack door opener
switchInput —All doors locked (SW OFF) Battery voltage
All doors unlocked (SW ON) 0V TerminalWire
colorSignal nameSignal
input/
outputMeasuring condition
Reference value or waveform
(Approx.) Ignition
switchOperation or condition
LIIA1893E
LIIA1894E
LIIA1895E
ZJIA0719J
Page 488 of 2896
BCM (BODY CONTROL MODULE)
BCS-25
C
D
E
F
G
H
I
J
L
MA
B
BCS
Revision: June 20062007 Versa
Removal and Installation of BCMEKS00IA6
REMOVAL
1. Remove the glove box. Refer to IP-21, "GLOVE BOX ASSEMBLY" .
2. Remove the BCM screws, disconnect the connectors and
remove the BCM.
INSTALLATION
Installation is in the reverse order of removal.
NOTE:
When replacing BCM, it must be configured. Refer to BCS-19, "Configuration" .
When replacing BCM, perform initialization of NATS system and registration of all NATS ignition key IDs.
Refer to BL-212, "
NATS (Nissan Anti-Theft System)" .
When replacing BCM, if new BCM does not come with keyfobs attached, all existing keyfobs must be re-
registered.
WKIA5672E
Page 491 of 2896
BL-2Revision: June 20062007 Versa Door Lock Actuator Check (Front RH and Rear LH/
RH) ......................................................................... 49
Front Door Key Cylinder Switch LH Check ............. 50
Passenger Select Unlock Relay Circuit Check (With
Intelligent Key) ........................................................ 51
REMOTE KEYLESS ENTRY SYSTEM ..................... 54
Component Parts and Harness Connector Location ... 54
System Description ................................................. 55
INPUTS ............................................................... 55
OPERATED PROCEDURE ................................. 56
CAN Communication System Description .............. 56
Schematic ............................................................... 57
Wiring Diagram — KEYLES — ............................... 58
............................................................................. 58
Terminals and Reference Values for BCM .............. 61
How to Perform Trouble Diagnoses ........................ 61
Preliminary Check .................................................. 61
CHECK BCM CONFIGURATION ........................ 61
CONSULT-II Function (BCM) .................................. 61
CONSULT-II START PROCEDURE .................... 61
CONSULT-II APPLICATION ITEMS .................... 61
Work Flow ............................................................... 64
Trouble Diagnosis Symptom Chart ......................... 64
Keyfob Battery and Function Check ....................... 66
ACC Switch Check ................................................. 67
Door Switch Check ................................................. 68
Key Switch (Insert) Check ...................................... 70
Hazard Function Check .......................................... 71
Horn Function Check .............................................. 71
Interior Lamp and Ignition Keyhole Illumination
Function Check ....................................................... 72
Remote Keyless Entry Receiver Check .................. 73
Keyfob Function (Lock) Check ............................... 75
Keyfob Function (Unlock) Check ............................ 75
ID Code Entry Procedure ....................................... 76
KEYFOB ID SET UP WITH CONSULT-II ............ 76
KEYFOB ID SET UP WITHOUT CONSULT-II ..... 77
Keyfob Battery Replacement .................................. 78
Removal and Installation of Remote Keyless Entry
Receiver ................................................................. 79
REMOVAL ........................................................... 79
INSTALLATION .................................................... 79
INTELLIGENT KEY SYSTEM ................................... 80
Component Parts and Harness Connector Location ... 80
System Description ................................................. 82
DOOR LOCK/UNLOCK FUNCTION ................... 83
KEY REMINDER FUNCTION .............................. 85
REMOTE KEYLESS ENTRY FUNCTIONS ......... 86
ENGINE START FUNCTION ............................... 89
WARNING CHIME/BUZZER/LAMPS FUNC-
TION .................................................................... 90
CHANGE SETTINGS FUNCTION ....................... 93
INTELLIGENT KEY REGISTRATION .................. 93
STEERING LOCK SOLENOID REGISTRATION ... 93
CAN Communication System Description .............. 93
Schematic ............................................................... 94
Wiring Diagram — I/KEY — ................................... 96
Intelligent Key Unit Harness Connector Terminal
Layout ...................................................................106Terminals and Reference Values for Intelligent Key
Unit ........................................................................ 106
Steering Lock Solenoid Harness Connector Termi-
nal Layout ............................................................. 108
Terminals and Reference Values for Steering Lock
Solenoid ................................................................ 108
Terminals and Reference Values for BCM ............ 108
Trouble Diagnosis Procedure ................................ 109
PRELIMINARY CHECK ..................................... 109
WORK FLOW ....................................................110
CONSULT-II Functions (INTELLIGENT KEY) ....... 111
CONSULT-II Start Procedure ................................ 111
BASIC OPERATION .......................................... 111
CONSULT-II Application Items .............................. 111
SELF-DIAGNOSTIC RESULTS ......................... 111
DATA MONITOR ................................................ 111
ACTIVE TEST ....................................................112
WORK SUPPORT .............................................113
Trouble Diagnosis Symptom Chart .......................114
KEY WARNING LAMP (GREEN) ILLUMINATES .114
KEY WARNING LAMP (RED) ILLUMINATES ...114
KEY WARNING LAMP DOES NOT ILLUMINATE .115
NON DTC ITEM .................................................115
ENGINE START CONDITION CHECK ..............116
ALL FUNCTIONS OF INTELLIGENT KEY SYS-
TEM DO NOT OPERATE ..................................116
DOOR LOCK/UNLOCK FUNCTION MALFUNC-
TION ..................................................................116
REMOTE KEYLESS ENTRY FUNCTION MAL-
FUNCTION ........................................................118
HAZARD AND BUZZER REMINDER FUNC-
TION MALFUNCTION .......................................119
WARNING CHIME/BUZZER FUNCTION MAL-
FUNCTION ........................................................ 120
WARNING LAMP FUNCTION MALFUNCTION . 122
CAN Communication System Check .................... 122
Power Supply and Ground Circuit Check ............. 123
Key Switch (Intelligent Key Unit Input) Check ....... 124
Key Switch (BCM Input) Check ............................. 126
Ignition Knob Switch Check .................................. 127
Door Switch Check ............................................... 129
Door Request Switch Check ................................. 132
Back Door Request Switch Check ........................ 134
Unlock Sensor Check ........................................... 136
Intelligent Key Warning Buzzer (Driver Door) Check . 138
Outside Key Antenna (Driver Side and Passenger
Side) Check .......................................................... 139
Outside Key Antenna (Rear Bumper) Check ........ 141
Inside Key Antenna Check .................................... 143
Steering Lock Solenoid Check .............................. 144
Key Interlock Solenoid (With M/T) Check ............. 147
Ignition Switch Position Check .............................. 148
Stop Lamp Switch Check (With CVT) ................... 148
Stop Lamp Switch Check (With M/T) .................... 149
Check CVT Device (Park Position Switch) Check . 151
“P-SHIFT” Warning Lamp (With CVT) Check ....... 153
“LOCK” Warning Lamp (With M/T) Check ............. 154
“KEY” Warning Lamp (RED) Check ...................... 155
“KEY” Warning Lamp (GREEN) Check ................. 156
Page 496 of 2896
PREPARATION
BL-7
C
D
E
F
G
H
J
K
L
MA
B
BL
Revision: June 20062007 Versa
PREPARATIONPFP:00002
Special service toolEIS0090K
Commercial Service ToolsEIS009D3
Tool number
(Kent-Moore No.)
Tool nameDescription
—
(J-39570)
Chassis earLocating the noise
—
(J-43980)
NISSAN Squeak and Rat-
tle KitRepairing the cause of noise
—
(J-43241)
Remote Keyless Entry
TesterUsed to test key fobs
SIIA0993E
SIIA0994E
LEL946A
Tool name Description
Engine ear Locating the noise
SIIA0995E
Page 526 of 2896
POWER DOOR LOCK SYSTEM
BL-37
C
D
E
F
G
H
J
K
L
MA
B
BL
Revision: June 20062007 Versa
Terminals and Reference Value for BCMEIS0090Z
Refer to BCS-12, "Terminals and Reference Values for BCM" .
Work FlowEIS009BY
1. Check the symptom and customer's requests.
2. Understand the outline of system. Refer to BL-24, "
System Description" .
3. According to the trouble diagnosis chart, repair or replace the cause of the malfunction. Refer to BL-114,
"Trouble Diagnosis Symptom Chart" .
4. Does power door lock system operate normally? OK: GO TO 5, NG: GO TO 3.
5. Inspection End.
CONSULT–II Function (BCM)EIS009BZ
CONSULT-II can display each diagnostic item using the diagnostic test modes shown following.
CONSULT–II START PROCEDURE
Refer to GI-38, "CONSULT-II Start Procedure" .
WORK SUPPORT
DATA MONITOR
BCM
diagnostic test itemDiagnostic mode Description
Inspection by partWORK SUPPORTSupports inspections and adjustments. Commands are transmitted to the
BCM for setting the status suitable for required operation, input/output sig-
nals are received from the BCM and received date is displayed.
DATA MONITOR Displays BCM input/output data in real time.
ACTIVE TESTOperation of electrical loads can be checked by sending drive signal to
them.
SELF-DIAG RESULTS Displays BCM self-diagnosis results.
CAN DIAG SUPPORT MNTRThe result of transmit/receive diagnosis of CAN communication can be
read.
ECU PART NUMBER BCM part number can be read.
CONFIGURATION Performs BCM configuration read/write functions.
Work item Description
DOOR LOCK-UNLOCK SET Select unlock mode can be changed in this mode. Selects ON-OFF of select unlock mode.
ANTI-LOCK OUT SETKey reminder door mode can be changed in this mode. Selects ON-OFF of key reminder door
mode.
Monitor item Content
IGN ON SW Indicates [ON/OFF] condition of ignition switch in ON position.
KEY ON SW Indicates [ON/OFF] condition of key switch.
CDL LOCK SW Indicates [ON/OFF] condition of lock signal from door lock and unlock switch.
CDL UNLOCK SW Indicates [ON/OFF] condition of unlock signal from door lock and unlock switch.
DOOR SW-DR Indicates [ON/OFF] condition of front door switch LH.
DOOR SW-AS Indicates [ON/OFF] condition of front door switch RH.
DOOR SW-RR Indicates [ON/OFF] condition of rear door switch RH.
DOOR SW-RL Indicates [ON/OFF] condition of rear door switch LH.
BACK DOOR SW Indicates [ON/OFF] condition of back door switch.
KEY CYL LK-SW Indicates [ON/OFF] condition of lock signal from key cylinder.
KEY CYL UN-SW Indicates [ON/OFF] condition of unlock signal from key cylinder.
KEYLESS LOCK* Indicates [ON/OFF] condition of lock signal from keyfob.
KEYLESS UNLOCK* Indicates [ON/OFF] condition of unlock signal from keyfob.
Page 544 of 2896
REMOTE KEYLESS ENTRY SYSTEM
BL-55
C
D
E
F
G
H
J
K
L
MA
B
BL
Revision: June 20062007 Versa
System DescriptionEIS0091A
INPUTS
Power is supplied at all times
through 40A fusible link (letter g , located in the fuse and fusible link box)
to BCM terminal 70
through 10A fuse [No. 8, located in the fuse block (J/B)]
to BCM terminal 57.
When the key switch is ON (key is inserted in ignition key cylinder), power is supplied
through 10A fuse [No. 14, located in the fuse block (J/B)]
through key switch terminals 2 and 1
to BCM terminal 37.
When the ignition switch is ACC or ON, power is supplied
through 10A fuse [No. 20, located in the fuse block (J/B)]
to BCM terminal 11.
Ground is supplied
to BCM terminal 67
through body grounds M57 and M61.
When the front door switch LH is ON (door is OPEN), ground is supplied
to BCM terminal 47
through front door switch LH terminal 2
through front door switch LH case ground.
When the front door switch RH is ON (door is OPEN), ground is supplied
to BCM terminal 12
through front door switch RH terminal 2
through front door switch RH case ground.
When the rear door switch LH is ON (door is OPEN), ground is supplied
to BCM terminal 48
through rear door switch LH terminal 1
through rear door switch LH case ground.
When the rear door switch RH is ON (door is OPEN), ground is supplied
to BCM meter terminal 13
through rear door switch RH terminal 1
through rear door switch RH case ground.
When the back door lock assembly (back door switch) is ON (back door is OPEN), ground is supplied
to BCM terminal 43
through back door lock assembly (back door switch) terminals 3 and 4
through body grounds B117, B132 and D402.
Keyfob signal is inputted to BCM from remote keyless entry receiver.
The remote keyless entry system controls operation of the
power door lock
hazard reminder
auto door lock
panic alarm
room lamp
Page 545 of 2896
BL-56
REMOTE KEYLESS ENTRY SYSTEM
Revision: June 20062007 Versa
OPERATED PROCEDURE
Power Door Lock Operation
BCM receives a LOCK signal from keyfob. BCM locks all doors with input of LOCK signal from keyfob.
BCM receives a UNLOCK signal from keyfob. BCM unlocks all doors with input of UNLOCK signal from key-
fob.
Hazard and Horn Reminder
When the doors are locked or unlocked by keyfob, power is supplied to sound horns and flash hazard warning
lamps as follows
LOCK operation: 3 or 4 mode (lamps flash twice)
UNLOCK operation: 2 or 4 mode (lamps flash once)
Horns sound once with LOCK function when this feature is set ON.
The hazard reminder has modes 1, 2, 3 or 4. The horn reminder can be turned ON/OFF with any LOCK mode.
Operating function of hazard reminder
Hazard and horn reminders do not operate if any door switch is ON (any door is OPEN).
How to change hazard and horn reminder modes
With CONSULT-II
Hazard reminder can be changed using “HAZARD LAMP SET” mode in “WORK SUPPORT”.
Horn reminder can be changed using “HORN CHIRP SET” mode in “WORK SUPPORT”.
Refer to BL-61, "
Work Support" .
Without CONSULT-II
Refer to Owner's Manual for instructions.
Auto Door Lock Operation
Auto lock function signal is sent for operation when any of the following signals are not sent within 1 minute
after the unlock signal is sent from the keyfob:
when door switch is turned ON for open.
when the key switch is turned ON.
when the lock signal is sent from the keyfob.
Auto door lock mode can be changed using “AUTO LOCK SET” mode in “WORK SUPPORT”.
Refer to BL-61, "
Work Support" .
Panic Alarm Operation
When key switch is OFF (when ignition key is not inserted in key cylinder), BCM turns on and off horn intermit-
tently with input of PANIC ALARM signal from keyfob.
BCM outputs to IPDM E/R for panic alarm signal (horn signal) as DATA LINE (CAN H line and CAN L line).
The alarm automatically turns off after 25 seconds or when BCM receives any signal from keyfob.
Panic alarm operation mode can be changed using “PANIC ALARM SET” mode in “WORK SUPPORT”.
Refer to BL-61, "
Work Support" .
Interior Lamp Operation
When the following conditions come:
condition of interior lamp switch is in the DOOR position;
door switch OFF (when all the doors are closed);
Remote keyless entry system turns on interior lamp (for 30 seconds) with input of UNLOCK signal from key-
fob. For detailed description, refer to LT- 9 1 , "
INTERIOR ROOM LAMP" .
CAN Communication System DescriptionEIS0091B
Refer to LAN-4, "SYSTEM DESCRIPTION" .
Mode 1 Mode 2 Mode 3 Mode 4
Keyfob operation Lock Unlock Lock Unlock Lock Unlock Lock Unlock
Hazard warning lamp
flash— — — Twice Once — Once Twice
Horns sound (ON/OFF) ON: once — ON: once — ON: once — ON: once —
Page 550 of 2896
REMOTE KEYLESS ENTRY SYSTEM
BL-61
C
D
E
F
G
H
J
K
L
MA
B
BL
Revision: June 20062007 Versa
Terminals and Reference Values for BCMEIS0091E
Refer to BCS-12, "Terminals and Reference Values for BCM" .
How to Perform Trouble DiagnosesEIS00A3F
1. Confirm the symptom or customer complaint.
2. Understand operation, description and function description. Refer to BL-55, "
System Description" .
3. Perform the Preliminary Check. Refer to LT- 1 2 , "
Preliminary Check" .
4. Check symptom and repair or replace the component.
5. Does the remote keyless entry system operate normally? If YES, GO TO 6. If NO, GO TO 4.
6. INSPECTION END
Preliminary CheckEIS00A3G
CHECK BCM CONFIGURATION
1. CHECK BCM CONFIGURATION
Confirm BCM configuration for "KEYLESS ENTRY" is set to "WITH". Refer to BCS-19, "
READ CONFIGURA-
TION PROCEDURE" .
OK or NG
OK >> Refer to BL-64, "Work Flow" .
NG >> Change BCM configuration for "KEYLESS ENTRY" to "WITH". Refer to BCS-21, "
WRITE CON-
FIGURATION PROCEDURE" .
CONSULT-II Function (BCM)EIS0091F
CONSULT-II can display each diagnostic item using the diagnostic test modes shown following.
CONSULT-II START PROCEDURE
Refer to GI-38, "CONSULT-II Start Procedure" .
CONSULT-II APPLICATION ITEMS
Work Support
BCM
diagnostic test itemDiagnostic mode Description
Inspection by partWORK SUPPORTSupports inspections and adjustments. Commands are transmitted to the
BCM for setting the status suitable for required operation, input/output sig-
nals are received from the BCM and received date is displayed.
DATA MONITOR Displays BCM input/output data in real time.
ACTIVE TESTOperation of electrical loads can be checked by sending drive signal to
them.
SELF-DIAG RESULTS Displays BCM self-diagnosis results.
CAN DIAG SUPPORT MNTRThe result of transmit/receive diagnosis of CAN communication can be
read.
ECU PART NUMBER BCM part number can be read.
CONFIGURATION Performs BCM configuration read/write functions.
Test Item Description
REMO CONT ID REGIST Keyfob ID code can be registered.
REMO CONT ID ERASER Keyfob ID code can be erased.
REMO CONT ID CONFIR It can be checked whether keyfob ID code is registered or not in this mode.
PANIC ALRM SETPanic alarm operation mode can be changed in this mode. The operation mode will be
changed when “CURRENT SETTING” on CONSULT-II screen is touched.
HAZARD LAMP SETHazard reminder mode can be changed in this mode. The hazard reminder mode will be
changed when “CURRENT SETTING” on CONSULT-II screen is touched.
