NISSAN VERSA 2006  Workshop  Service Repair Manual PRECAUTIONS
SRS-3
C
D
E
F
G
I
J
K
L
MA
B
SRS
Revision: June 20062007 Versa
PRECAUTIONSPFP:00001
Precautions for Supplemental Restraint System (SRS) “AIR BAG” and “SEAT
BELT PRE-TENSIONER”
EHS

Page 2732 of 2896

NISSAN VERSA 2006  Workshop  Service Repair Manual SRS-4
SUPPLEMENTAL RESTRAINT SYSTEM (SRS)
Revision: June 20062007 Versa
SUPPLEMENTAL RESTRAINT SYSTEM (SRS)PFP:28556
SRS ConfigurationEHS001UR

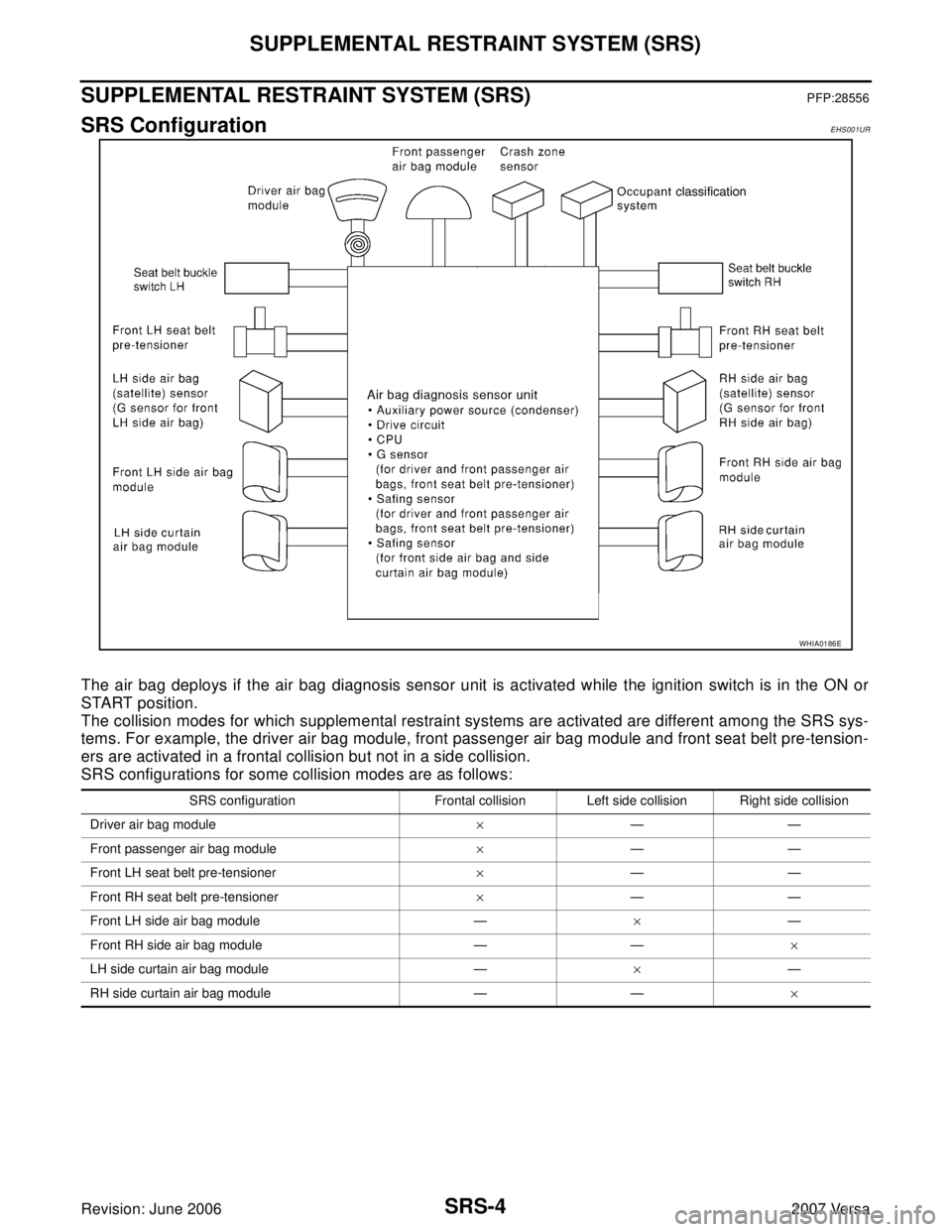

The air bag deploys if the air bag diagnosis sensor unit

Page 2733 of 2896

NISSAN VERSA 2006  Workshop  Service Repair Manual SUPPLEMENTAL RESTRAINT SYSTEM (SRS)
SRS-5
C
D
E
F
G
I
J
K
L
MA
B
SRS
Revision: June 20062007 Versa
Driver Air Bag ModuleEHS001VD

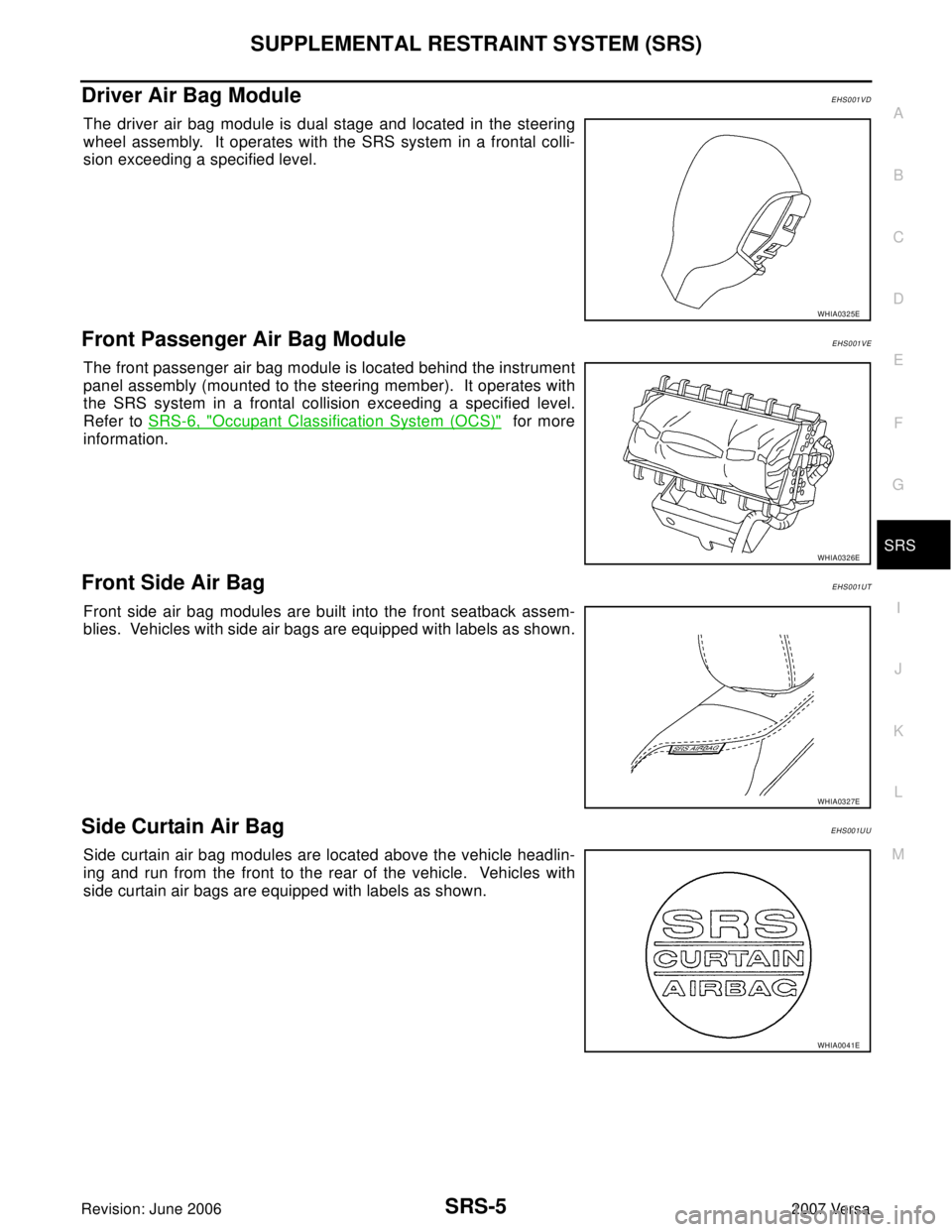

The driver air bag module is dual stage and located in the steering
whe

Page 2734 of 2896

NISSAN VERSA 2006  Workshop  Service Repair Manual SRS-6
SUPPLEMENTAL RESTRAINT SYSTEM (SRS)
Revision: June 20062007 Versa
Front Seat Belt Pre-tensioner with Load LimiterEHS001US
The seat belt pre-tensioner system with load limiter is installed for
bo

Page 2735 of 2896

NISSAN VERSA 2006  Workshop  Service Repair Manual SUPPLEMENTAL RESTRAINT SYSTEM (SRS)
SRS-7
C
D
E
F
G
I
J
K
L
MA
B
SRS
Revision: June 20062007 Versa
1. Belt tension sensor 2. Occupant classification system blad-
der3. Occupant classification system s

Page 2736 of 2896

NISSAN VERSA 2006  Workshop  Service Repair Manual SRS-8
SUPPLEMENTAL RESTRAINT SYSTEM (SRS)
Revision: June 20062007 Versa
Direct-connect SRS Component ConnectorsEHS001UW
The following SRS components use direct-connect style harness connectors.
Drive

Page 2737 of 2896

NISSAN VERSA 2006  Workshop  Service Repair Manual TROUBLE DIAGNOSIS
SRS-9
C
D
E
F
G
I
J
K
L
MA
B
SRS
Revision: June 20062007 Versa
TROUBLE DIAGNOSISPFP:00004
Trouble Diagnosis IntroductionEHS001UX
CAUTION:
Do not use electrical test equipment on any

Page 2738 of 2896

NISSAN VERSA 2006  Workshop  Service Repair Manual SRS-10
TROUBLE DIAGNOSIS
Revision: June 20062007 Versa
WORK FLOW
*1:SRS-9*2:SRS-21*3:SRS-29
*4:SRS-34
WHIA0098E

Page 2739 of 2896

NISSAN VERSA 2006  Workshop  Service Repair Manual TROUBLE DIAGNOSIS
SRS-11
C
D
E
F
G
I
J
K
L
MA
B
SRS
Revision: June 20062007 Versa
SRS Components Parts LocationEHS001UY

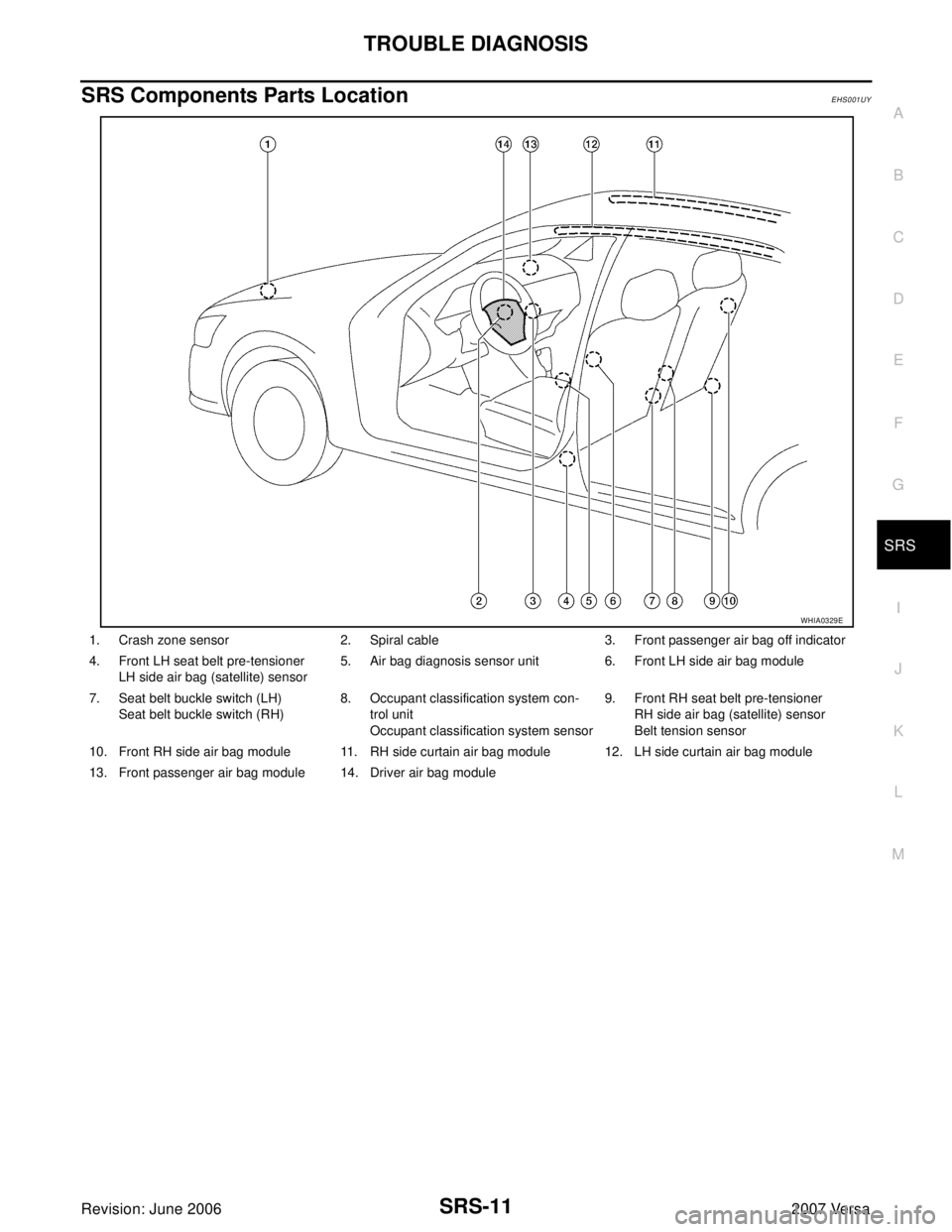

1. Crash zone sensor 2. Spiral cable 3. Front passenger air bag off indicator
4.

Page 2740 of 2896

NISSAN VERSA 2006  Workshop  Service Repair Manual SRS-12
TROUBLE DIAGNOSIS
Revision: June 20062007 Versa
SchematicEHS001UZ
WHWA0296E
