Precautions for Procedures without Cowl Top CoverEKS00I1E
When performing the procedure after removing cowl top cover, cover
the lower end of windshield with urethane, etc.
PIIB3706J

WW-4
FRONT WIPER AND WASHER SYSTEM
Revision: June 20062007 Versa
FRONT WIPER AND WASHER SYSTEMPFP:28810
Components Parts and Harness Connector LocationEKS00I1G
System DescriptionEKS00I1H

Front wiper relays (front wiper relay, front wiper high relay) are located in the IPDM E/R (intelligent power
distribution module engine room).

Wiper switch (combination switch) is composed of a combination of 5 output terminals and 5 input termi-
nals. Terminal combination status is read by BCM (body control module) when switch is turned ON.

BCM controls front wiper LO, HI, and INT (intermittent) operation.

IPDM E/R operates wiper motor according to CAN communication signals from BCM.
OUTLINE
Power is supplied at all times

to ignition relay, located in IPDM E/R, from battery directly,

through 40A fusible link (letter g, located in fuse, fusible link and relay box)

to BCM terminal 70,

through 30A fuse (No. 39, located in IPDM E/R)

to front wiper relay located in IPDM E/R

through 15A fuse (No. 52, located in IPDM E/R), and

through 20A fuse (No. 53, located in IPDM E/R)

to CPU located in IPDM E/R.
When ignition switch is in ON or START position, power is supplied

through ignition relay (located in IPDM E/R)
1. IPDM E/R E45, E46 and E48 2. BCM M18 and M20 (view with glove
box removed)3. Front wiper motor E1 (View with
cowl top cover removed)
4. Front and rear washer motor E2
(View with front fender protector LH
removed)5. Combination switch (wiper switch)
M28
WKIA5467E

FRONT WIPER AND WASHER SYSTEM
WW-5
C
D
E
F
G
H
I
J
L
MA
B
WW
Revision: June 20062007 Versa

to front wiper relay (located in IPDM E/R), and

to front wiper high relay (located in IPDM E/R) and

to CPU (located in IPDM E/R),

through 10A fuse [No. 6, located in fuse block (J/B)]

to BCM terminal 38,

through 15A fuse [No. 4, located in fuse block (J/B)]

to combination switch terminal 14.
Ground is supplied

to IPDM E/R terminals 39 and 59 and

to front wiper motor terminal 2

through grounds E15 and E24,

to BCM terminal 67

to combination switch terminal 12

through grounds M57 and M61.
LOW SPEED WIPER OPERATION
When the front wiper switch is in LO position, the BCM detects the low speed wiper ON signal by means of the
BCM wiper switch reading function.
The BCM sends a front wiper request signal (LO) through the CAN communication line

from BCM terminals 39 and 40

to IPDM E/R terminals 40 and 41.
When the IPDM E/R receives front wiper request signal (LO), it turns ON front wiper relay, located in IPDM E/
R, power is supplied

through IPDM E/R terminal 33 and front wiper high relay and front wiper relay

to front wiper motor terminal 3.
Ground is supplied

to front wiper motor terminal 2

through grounds E15 and E24.
With power and ground is supplied, front wiper motor operates at low speed.
HIGH SPEED WIPER OPERATION
When the front wiper switch is in HI position, the BCM detects a high speed wiper ON signal by means of the
BCM wiper switch reading function.
The BCM sends a front wiper request signal (HI) through the CAN communication line

from BCM terminals 39 and 40

to IPDM E/R terminals 40 and 41.
When the IPDM E/R receives front wiper request signal (HI), it turns ON front wiper relay and front wiper high
relay, located in IPDM E/R, power is supplied

through IPDM E/R terminal 32

to front wiper motor terminal 5.
Ground is supplied

to front wiper motor terminal 2

through grounds E15 and E24.
With power and ground is supplied, front wiper motor operates at high speed.
INTERMITTENT OPERATION
Wiper intermittent operation delay interval is determined from the intermittent wiper dial position inputs. During
each intermittent operation delay interval, the BCM sends a front wiper request signal to the IPDM E/R to
operate the wipers.
When the ignition switch is in the ON or START position, and the front wiper switch is turned to the intermittent
position, the BCM detects a front wiper (intermittent) ON signal by means of the BCM wiper switch reading
function.
BCM then sends front wiper (intermittent) request signal through the CAN communication lines

WW-6
FRONT WIPER AND WASHER SYSTEM
Revision: June 20062007 Versa

from BCM terminals 39 and 40

to IPDM E/R terminals 40 and 41.
When BCM determines that combination switch status is front wiper intermittent ON, it performs the following
operations.

BCM detects ON/OFF status of intermittent wiper dial position

BCM calculates operation interval from wiper dial position.

BCM sends a front wiper request signal (INT) to IPDM E/R at calculated operation interval.
When IPDM E/R receives the front wiper request signal (INT), it supplies ground to energize the front wiper
relay. It then sends auto-stop signal to the BCM and conducts intermittent front wiper motor operation.
AUTO STOP OPERATION
With wiper switch turned OFF, wiper motor will continue to operate until wiper arms reach windshield base.
When the wiper arms are not located at base of windshield with wiper switch OFF, ground is supplied

from IPDM E/R terminal 33

to front wiper motor terminal 3, in order to continue wiper motor operation at low speed.
When the wiper arms reach base of windshield, front wiper motor terminals 4 and 2 are connected, and
ground is supplied

to IPDM E/R terminal 38

through front wiper motor terminals 4 and 2

through grounds E15 and E24.
Then the IPDM E/R sends auto stop operation signal to BCM with CAN communication line.
When the BCM receives auto-stop operation signal, BCM sends wiper stop signal to IPDM E/R with CAN com-
munication line.
IPDM E/R stops wiper motor. Wiper motor will then stop wiper arms at the STOP position.
WASHER OPERATION
When the wiper switch is in front wiper washer position, BCM detect front wiper washer signal by BCM wiper
switch reading function. Refer to BCS-3, "
COMBINATION SWITCH READING FUNCTION" .
Combination switch power is supplied

through combination switch terminal 14

to washer motor terminal 1.
Ground is supplied

to front washer motor terminal 2

through combination switch terminal 11

through combination switch terminal 12

through grounds M57 and M61.
With ground is supplied, front washer motor is operated.
When the BCM detects that front washer motor has operated for 0.4 seconds or longer, BCM operates front
wiper motor for low speed.
When the BCM detects washer switch is OFF, low speed operation cycles approximately 2 times and stops.
MIST OPERATION
When the wiper switch is turned to the mist position, wiper low speed operation cycles once and then stops.
For additional information about wiper operation under this condition, refer to WW-5, "
LOW SPEED WIPER
OPERATION" .
If switch is held in mist position, low speed operation continues.
FAIL -S AFE F UN CTI ON
If an abnormality occurs in CAN communications, IPDM E/R holds the condition just before fail-safe status is
initiated until ignition switch is turned OFF. (If wipers were operating in LO just before the initiation of fail-safe
status, they continue to operate in LO until ignition switch is turned OFF.)
COMBINATION SWITCH READING FUNCTION
Refer to LT- 6 8 , "Combination Switch Reading Function" .

FRONT WIPER AND WASHER SYSTEM
WW-7
C
D
E
F
G
H
I
J
L
MA
B
WW
Revision: June 20062007 Versa
CAN Communication System DescriptionEKS00I1I
Refer to LAN-4, "SYSTEM DESCRIPTION" .

WW-8
FRONT WIPER AND WASHER SYSTEM
Revision: June 20062007 Versa
SchematicEKS00I1K
WKWA4990E

FRONT WIPER AND WASHER SYSTEM
WW-9
C
D
E
F
G
H
I
J
L
MA
B
WW
Revision: June 20062007 Versa

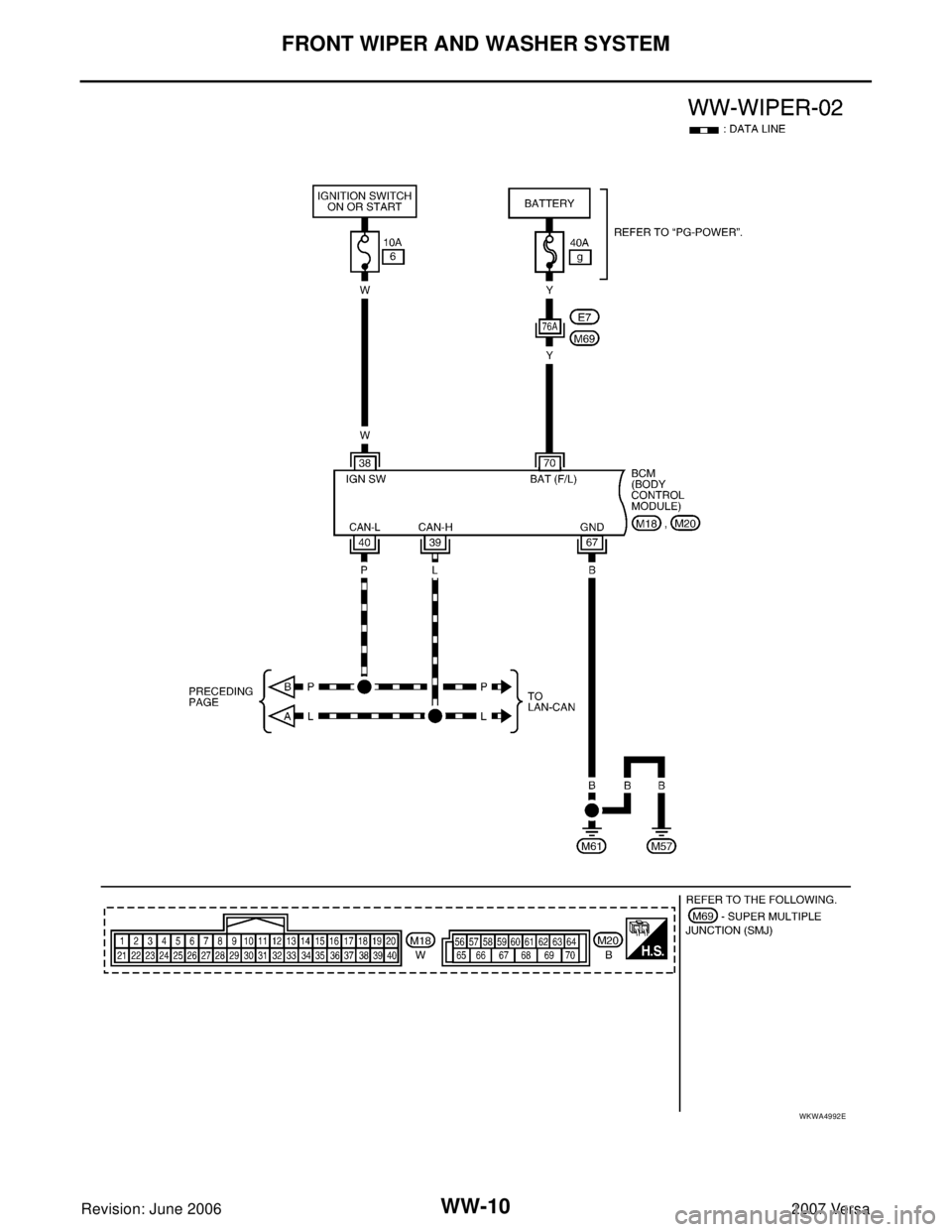

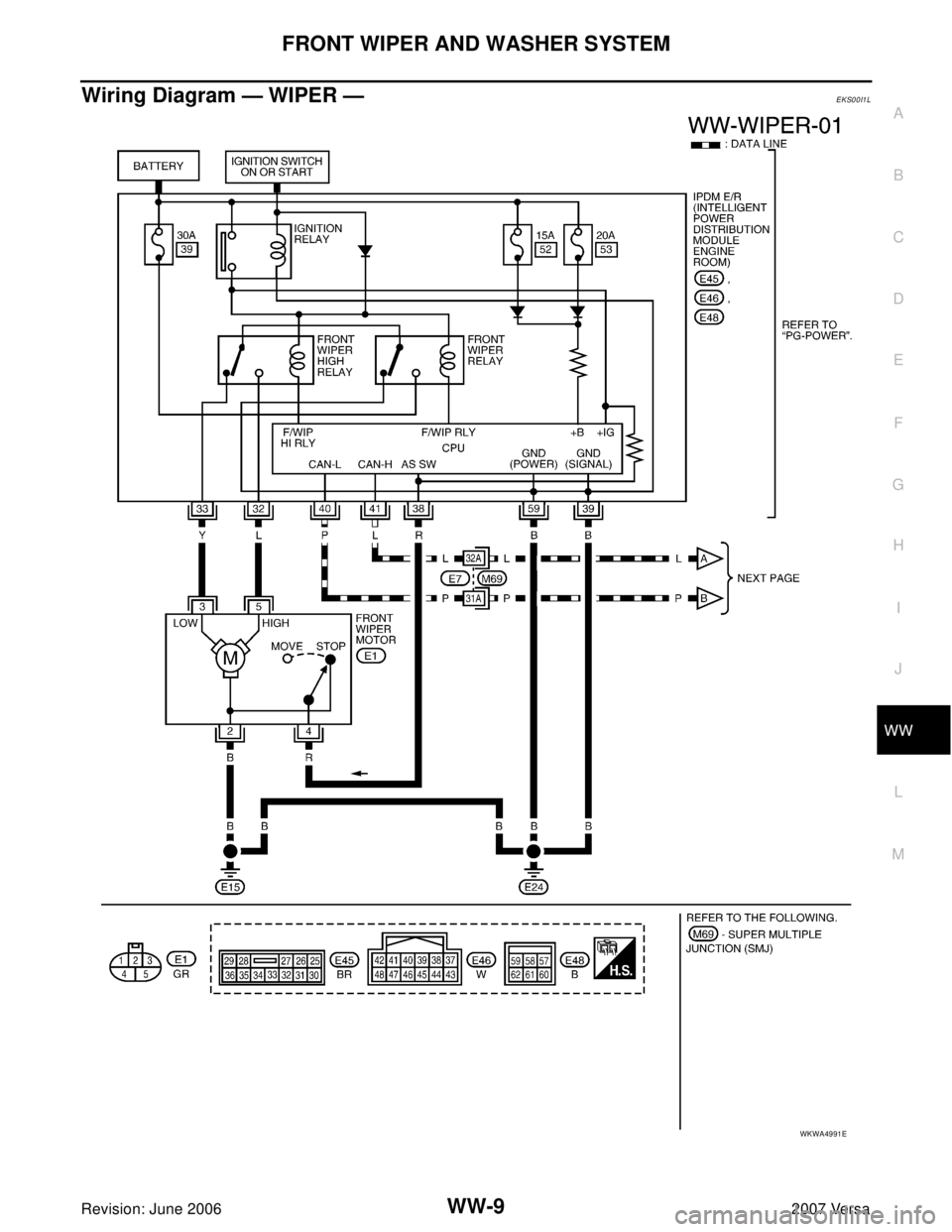

Wiring Diagram — WIPER —EKS00I1L
WKWA4991E

WW-10
FRONT WIPER AND WASHER SYSTEM
Revision: June 20062007 Versa
WKWA4992E

FRONT WIPER AND WASHER SYSTEM
WW-11
C
D
E
F
G
H
I
J
L
MA
B
WW
Revision: June 20062007 Versa
WKWA4993E

WW-12
FRONT WIPER AND WASHER SYSTEM
Revision: June 20062007 Versa
Terminals and Reference Values for BCMEKS00I1M
Refer to BCS-12, "Terminals and Reference Values for BCM" .
Terminals and Reference Values for IPDM E/REKS00I1O
Refer to PG-25, "Terminals and Reference Values for IPDM E/R" .
How to Proceed With Trouble DiagnosisEKS00I1P
1. Confirm symptoms and customer complaint.
2. Understand operation description and function description. Refer to WW-4, "
System Description" .
3. Perform preliminary check. Refer to WW-12, "
Preliminary Check" .
4. Check symptom and repair or replace malfunctioning parts.
5. Does front wiper and washer operate normally? If YES, GO TO 6. If NO, GO TO 4.
6. INSPECTION END
Preliminary CheckEKS00I1Q
CHECK POWER SUPPLY AND GROUND CIRCUIT FOR BCM
Refer to BCS-16, "BCM Power Supply and Ground Circuit Check"
CONSULT-II Functions (BCM)EKS00I1R
CONSULT-II can display each diagnostic item using the diagnostic test modes shown following.
CONSULT-II START PROCEDURE
Refer to GI-38, "CONSULT-II Start Procedure" .
WORK SUPPORT
Operation Procedure
1. Touch “WIPER” on “SELECT TEST ITEM” screen.
2. Touch “WORK SUPPORT” on “SELECT DIAG MODE” screen.
3. Touch “WIPER SPEED SETTING” on “SELECT WORK ITEM” screen.
4. Touch “START”.
5. Touch “CHANGE SETT”.
6. The setting will be changed and “CUSTOMIZING COMPLETED” will be displayed.
7. Touch “END”.
Display Item List
DATA MONITOR
Operation Procedure
1. Touch “WIPER” on “SELECT TEST ITEM” screen.
2. Touch “DATA MONITOR” on “SELECT DIAG MODE” screen.
3. Touch either “ALL SIGNALS” or “SELECTION FROM MENU” on “SELECT MONITOR ITEM” screen.
BCM diagnosis position Diagnosis mode Description
WIPERWORK SUPPORT Changes the setting for each function.
DATA MONITOR Displays BCM input data in real time.
ACTIVE TEST Device operation can be checked by applying a drive signal to device.
BCMSELF-DIAG RESULTS BCM performs self-diagnosis of CAN communication.
CAN DIAG SUPPORT MNTR The result of transmit/receive diagnosis of CAN communication can be read.
Item Description CONSULT-II Factory setting
WIPER SPEED
SETTINGVehicle speed sensing type wiper control mode can be changed in this
mode.ON×
OFF —
ALL SIGNALS Monitors all the signals.
SELECTION FROM MENU Selects items and monitor them.
