NISSAN VERSA 2006 Workshop Service Repair Manual

FRONT WIPER AND WASHER SYSTEM
WW-13
C
D
E
F
G
H
I
J
L
MA
B
WW
Revision: June 20062007 Versa
4. When “SELECTION FROM MENU” is selected, touch items to be monitored. When “ALL SIGNALS” is
selected, all the items will be monitored.
5. Touch “START”.
6. Touch “RECORD” while monitoring, then the status of the monitored item can be recorded. To stop
recording, touch “STOP”.
Display Item List
NOTE: This item is displayed, but cannot be monitored.
ACTIVE TEST
Operation Procedure
1. Touch “WIPER” on “SELECT TEST ITEM” screen.
2. Touch “ACTIVE TEST” on “SELECT DIAG MODE” screen.
3. Touch item to be tested and check operation of the selected item.
4. During the operation check, touching “BACK” deactivates the operation.
Display Item List
Monitor item Contents
IGN ON SW “ON/OFF”Displays “ignition switch ON (ON)/Other OFF or ACC (OFF)” status as judged from ignition
switch signal.
IGN SW CAN “ON/OFF”Displays “ignition switch ON (ON)/Other OFF or ACC (OFF)” status as judged from CAN com-
munication signal.
FR WIPER HI “ON/OFF” Displays “FRONT WIPER HI (ON)/Other (OFF)” status as judged from wiper switch signal.
FR WIPER LOW “ON/OFF” Displays “FRONT WIPER LOW (ON)/Other (OFF)” status as judged from wiper switch signal.
FR WIPER INT “ON/OFF” Displays “FRONT WIPER INT (ON)/Other (OFF)” status as judged from wiper switch signal.
FR WASHER SW “ON/OFF”Displays “FRONT WASHER Switch (ON)/Other (OFF)” status as judged from wiper switch sig-
nal.
INT VOLUME “1 - 7” Displays intermittent operation dial position setting (1 - 7) as judged from wiper switch signal.
FR WIPER STOP “ON/OFF” Displays “Stopped (ON)/Operating (OFF)” status as judged from auto-stop signal.
VEHICLE SPEED “km/h” Displays vehicle speed status as judged from vehicle speed signal.
RR WIPER ON “OFF” Displays “REAR WIPER (ON)/Other (OFF)” status as judged from wiper switch signal.
RR WIPER INT “OFF” Displays "REAR WIPER INT (ON)/Other (OFF)” status as judged from wiper switch signal.
RR WASHER SW “OFF”Displays "REAR WASHER SWITCH (ON)/Other (OFF)” status as judged from wiper switch sig-
nal.
RR WIPER STOP “OFF” Displays “STOPPED (OFF)/Operating (ON)” status as judged from auto-stop switch 1.
RR WIPER STP2 “OFF” Displays “STOPPED (OFF)/Operating (ON)” status as judged from auto-stop switch 2.
H/L WASH SW
NOTE“OFF” —
Test item Display on CONSULT-II screen Description
Front wiper LO output FR WIPER (LO) Front LO wiper can be operated by any ON-OFF operation.
Front wiper HI output FR WIPER (HI) Front HI wiper can be operated by any ON-OFF operation.
Front wiper INT output FR WIPER (INT) Front INT wiper can be operated by any ON-OFF operation.
Rear wiper output RR WIPER Rear wiper can be operated by any ON-OFF operation.

WW-14
FRONT WIPER AND WASHER SYSTEM
Revision: June 20062007 Versa
CONSULT-II Function (IPDM E/R)EKS00I1S
CONSULT-II can display each diagnostic item using the diagnostic test modes shown following.
CONSULT-II START PROCEDURE
Refer to GI-38, "CONSULT-II Start Procedure" .
DATA MONITOR
Operation Procedure
1. Touch “DATA MONITOR” on “SELECT DIAG MODE ” screen.
2. Touch “ALL SIGNALS”, “MAIN SIGNALS” or “SELECTION FROM MENU” on “SELECT MONITOR ITEM”
screen.
3. Touch the required monitoring item on “SELECTION FROM MENU”. In “ALL SIGNALS”, all items are
monitored. In “MAIN SIGNALS”, predetermined items are monitored.
4. Touch “START”.
5. Touch “RECORD” while monitoring to record the status of the item being monitored. To stop recording,
touch “STOP”.
All Signals, Main Signals, Selection From Menu
NOTE:
Perform monitoring of IPDM E/R data with ignition switch ON. When ignition switch is at ACC, the display may
not be correct.
ACTIVE TEST
Operation Procedure
1. Touch “ACTIVE TEST” on “SELECT DIAG MODE” screen.
2. Touch item to be tested, and check operation.
3. Touch “START”.
4. Touch “STOP” while testing to stop the operation.
IPDM E/R diagnostic Mode Description
SELF-DIAG RESULTS Displays IPDM E/R self-diagnosis results.
DATA MONITOR Displays IPDM E/R input/output data in real time.
CAN DIAG SUPPORT MNTR The result of transmit/receive diagnosis of CAN communication can be read.
ACTIVE TEST Operation of electrical loads can be checked by sending drive signal to them.
ALL SIGNALS Monitors all items.
MAIN SIGNALS Monitor the predetermined item.
SELECTION FROM MENU Selects items and monitors them.
Item nameCONSULT-II
screen displayDisplay or unitMonitor item selection
Description
ALL
SIGNALSMAIN
SIGNALSSELECTION
FROM MENU
FR wiper request FR WIP REQSTOP/1LOW/
LOW/HI×× ×Signal status input from BCM
Wiper auto stop WIP AUTO STOP ACT P/STOP P×× ×Output status of IPDM E/R
Wiper protection WIP PROT OFF/BLOCK×× ×Control status of IPDM E/R
Test item CONSULT-II screen display Description
Front wiper (HI, LO) output FRONT WIPERWith a certain operation (OFF, HI ON, LO ON), front wiper relay (Lo, Hi)
can be operated.

FRONT WIPER AND WASHER SYSTEM
WW-15
C
D
E
F
G
H
I
J
L
MA
B
WW
Revision: June 20062007 Versa
Front Wiper Does Not OperateEKS00I1T
CAUTION:

During IPDM E/R fail-safe control, front wipers may not operate. Refer to PG-17, "CAN COMMUNI-
CATION LINE CONTROL" in “PG IPDM E/R” to make sure that it is not in fail-safe status.

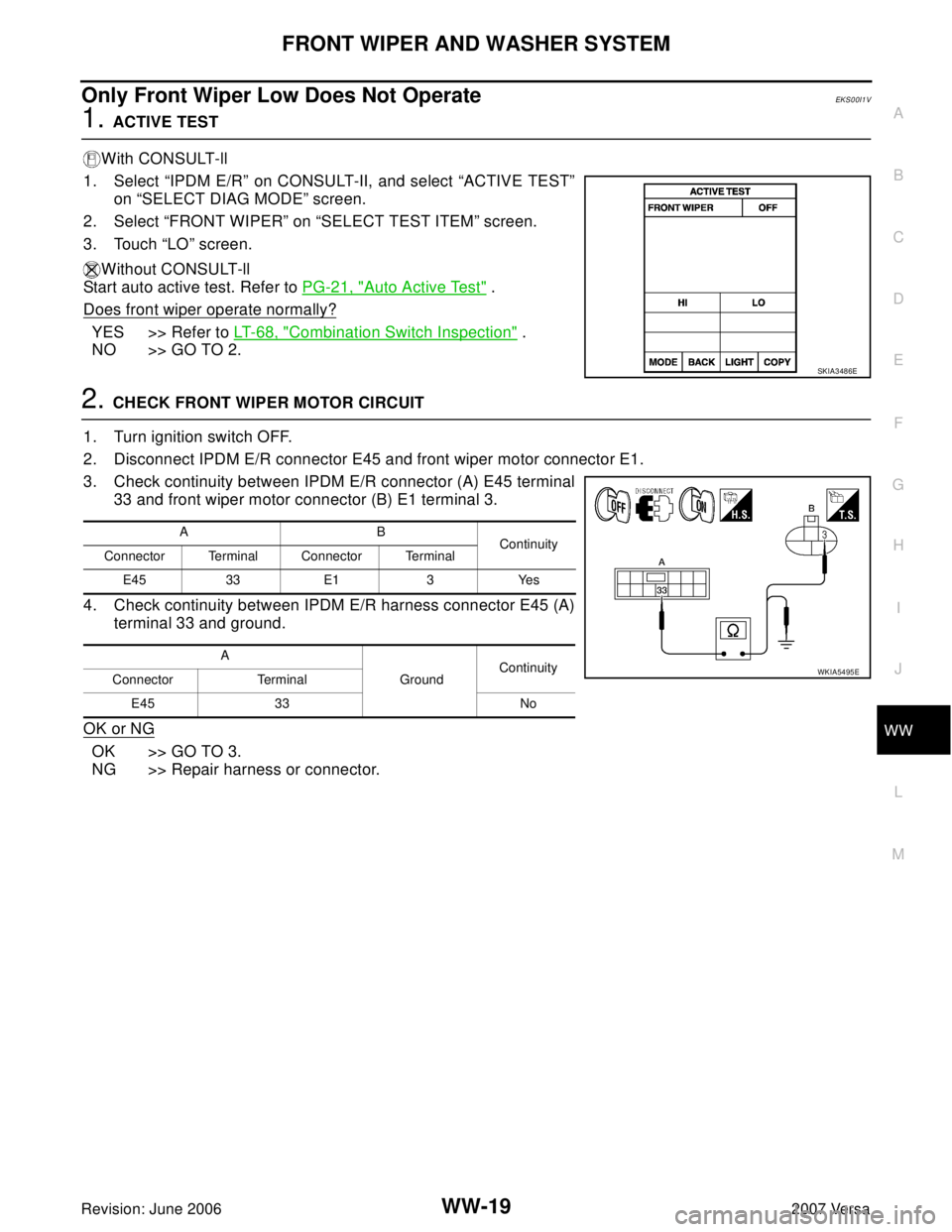

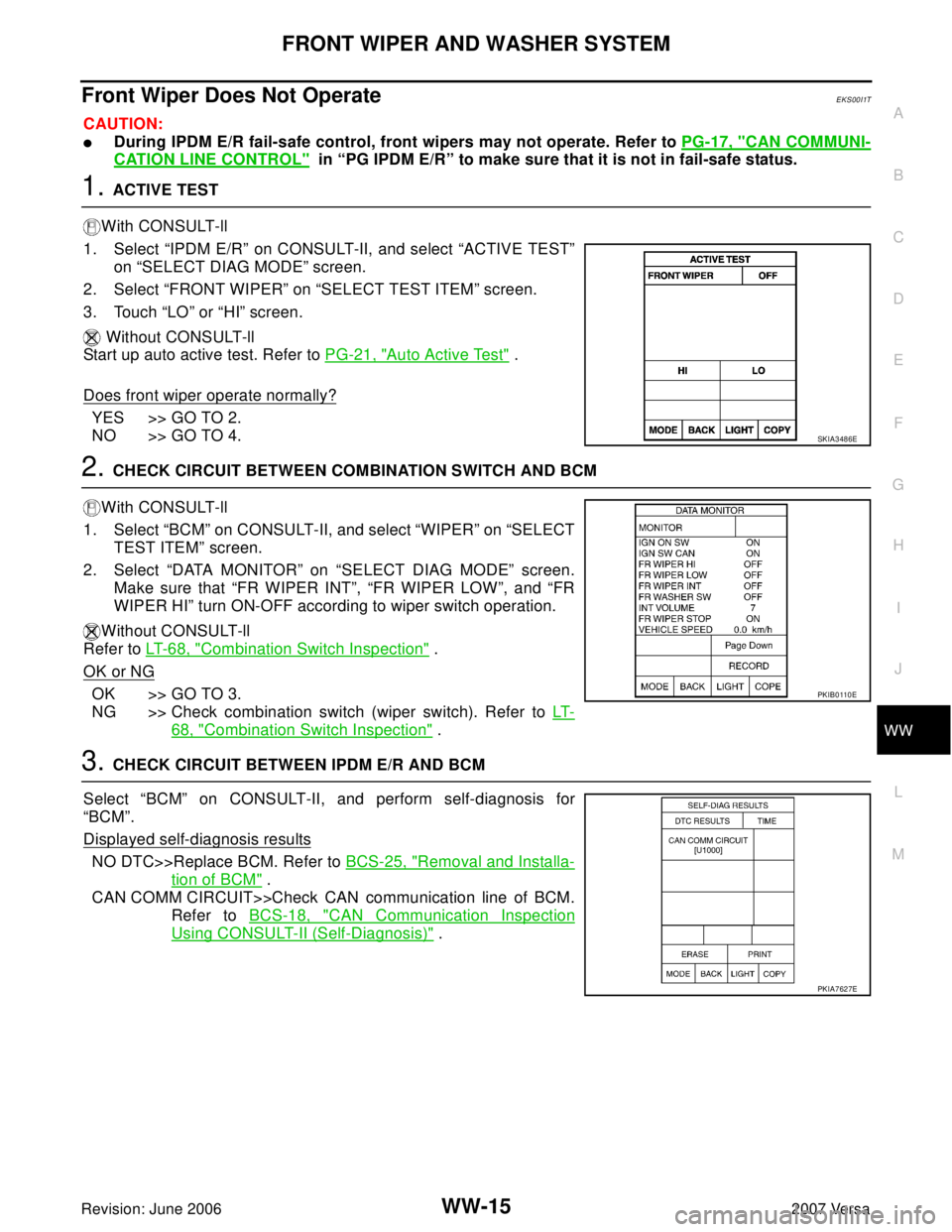

1. ACTIVE TEST
With CONSULT-ll
1. Select “IPDM E/R” on CONSULT-II, and select “ACTIVE TEST”
on “SELECT DIAG MODE” screen.
2. Select “FRONT WIPER” on “SELECT TEST ITEM” screen.
3. Touch “LO” or “HI” screen.
Without CONSULT-ll
Start up auto active test. Refer to PG-21, "
Auto Active Test" .
Does front wiper operate normally?
YES >> GO TO 2.
NO >> GO TO 4.
2. CHECK CIRCUIT BETWEEN COMBINATION SWITCH AND BCM
With CONSULT-ll
1. Select “BCM” on CONSULT-II, and select “WIPER” on “SELECT
TEST ITEM” screen.
2. Select “DATA MONITOR” on “SELECT DIAG MODE” screen.

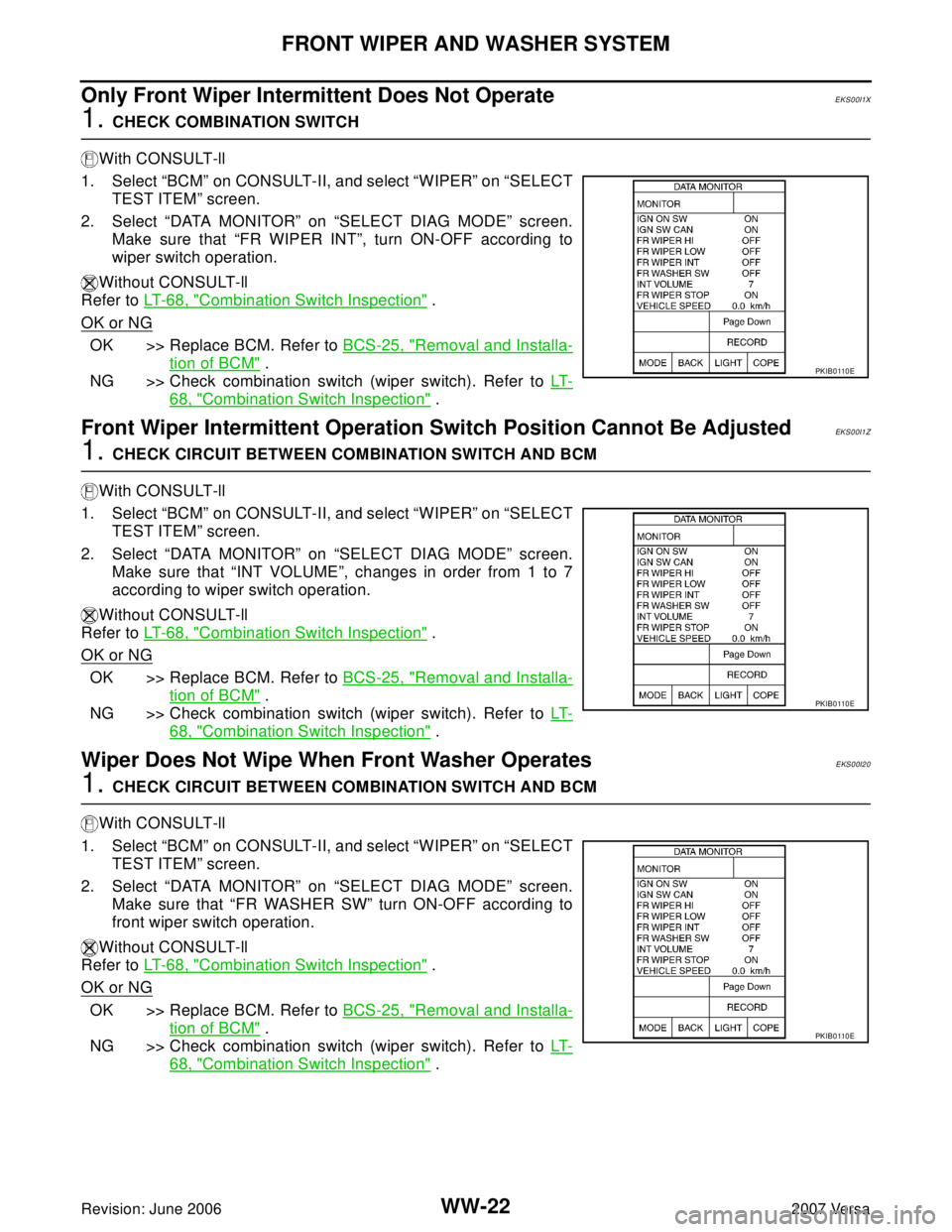

Make sure that “FR WIPER INT”, “FR WIPER LOW”, and “FR
WIPER HI” turn ON-OFF according to wiper switch operation.
Without CONSULT-ll
Refer to LT- 6 8 , "
Combination Switch Inspection" .
OK or NG
OK >> GO TO 3.
NG >> Check combination switch (wiper switch). Refer to LT-
68, "Combination Switch Inspection" .
3. CHECK CIRCUIT BETWEEN IPDM E/R AND BCM
Select “BCM” on CONSULT-II, and perform self-diagnosis for
“BCM”.
Displayed self
-diagnosis results
NO DTC>>Replace BCM. Refer to BCS-25, "Removal and Installa-
tion of BCM" .
CAN COMM CIRCUIT>>Check CAN communication line of BCM.
Refer to BCS-18, "
CAN Communication Inspection
Using CONSULT-II (Self-Diagnosis)" .
SKIA3486E
PKIB0 110 E
PKIA7627E

WW-16
FRONT WIPER AND WASHER SYSTEM
Revision: June 20062007 Versa
4. CHECK GROUND CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect front wiper motor connector E1.

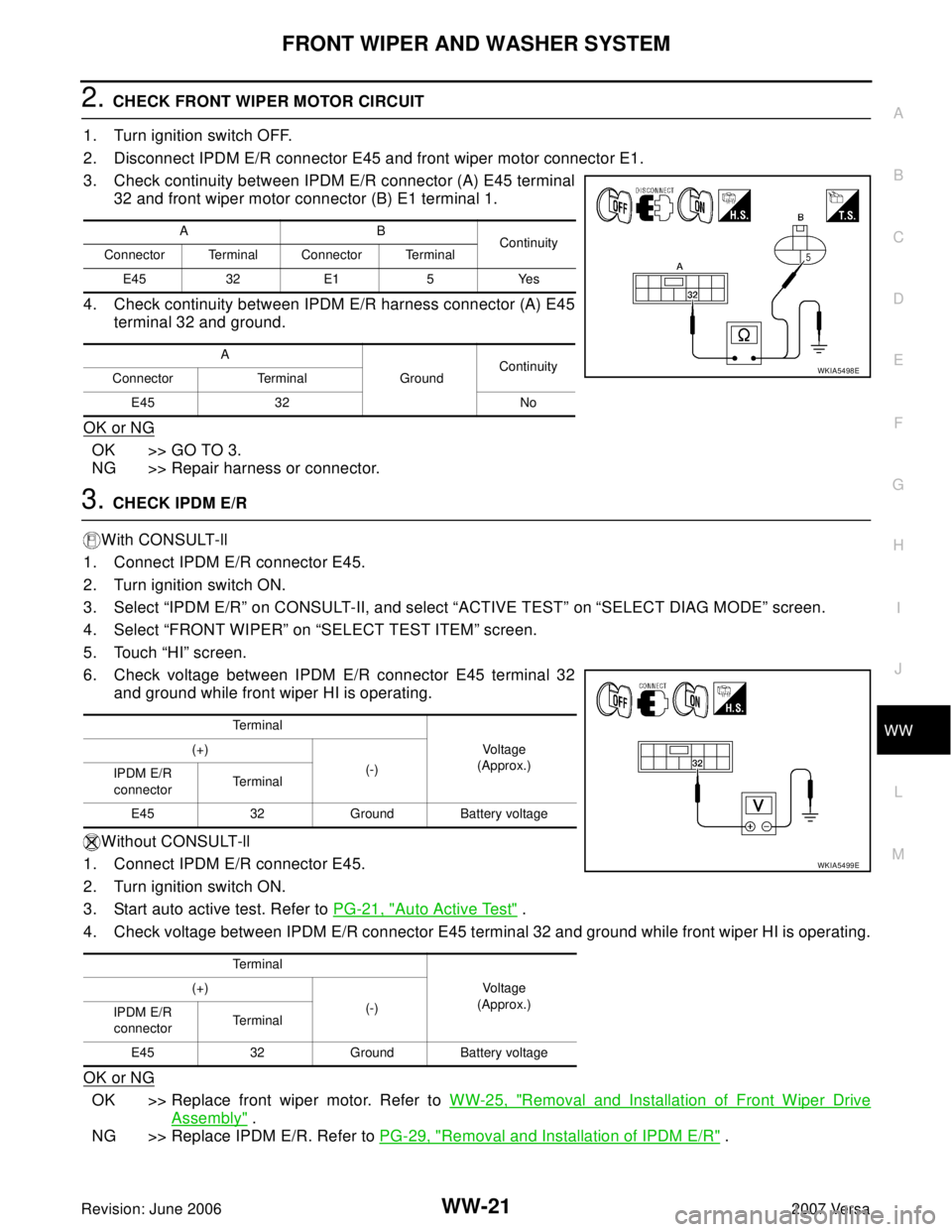

3. Check continuity between front wiper motor connector E1 termi-
nal 2 and ground.
OK or NG
OK >> GO TO 5.
NG >> Repair harness or connector.
5. CHECK FRONT WIPER CIRCUIT
1. Disconnect IPDM E/R connector E45.

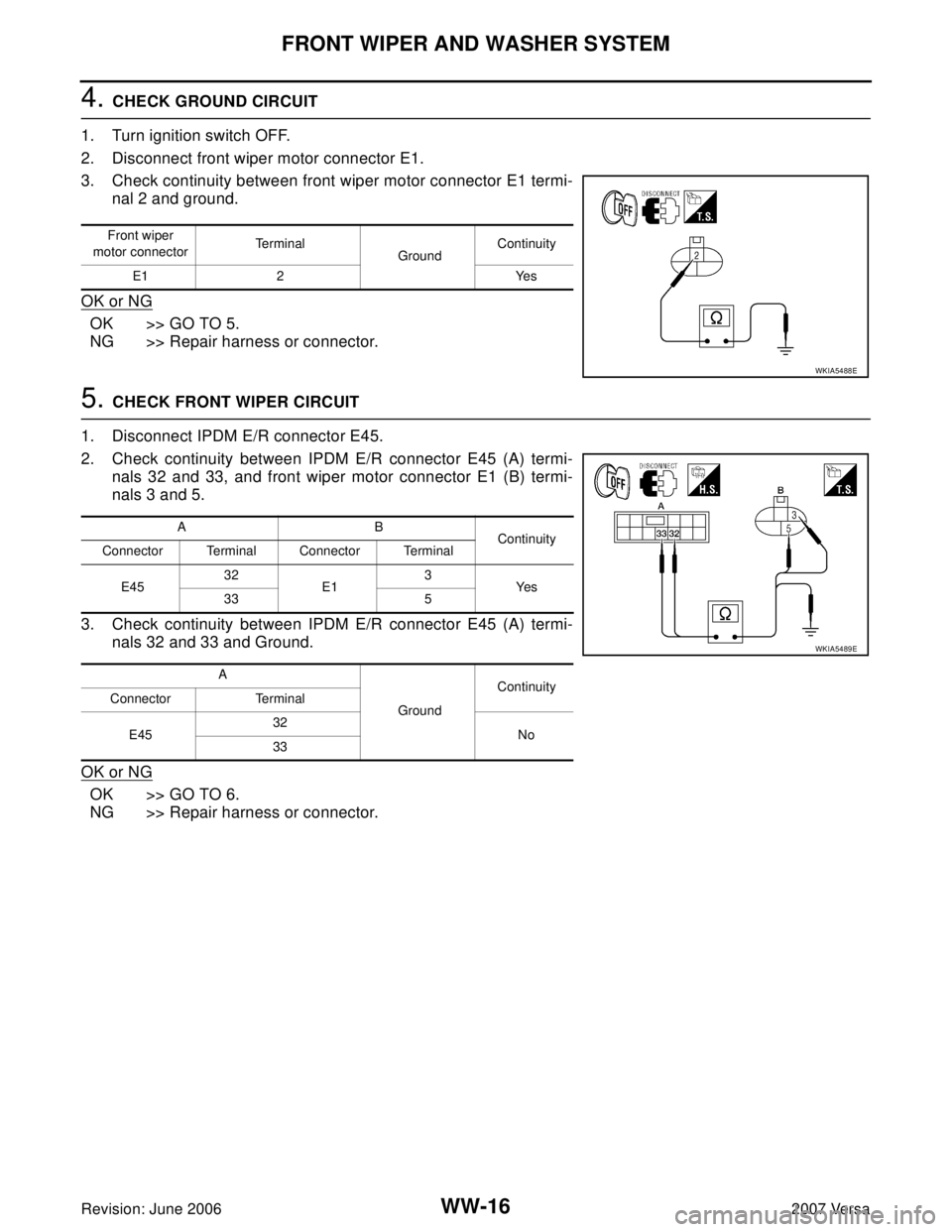

2. Check continuity between IPDM E/R connector E45 (A) termi-
nals 32 and 33, and front wiper motor connector E1 (B) termi-
nals 3 and 5.
3. Check continuity between IPDM E/R connector E45 (A) termi-
nals 32 and 33 and Ground.
OK or NG
OK >> GO TO 6.
NG >> Repair harness or connector.
Front wiper
motor connectorTe r m i n a l
GroundContinuity
E1 2 Yes
WKIA5488E
AB
Continuity
Connector Terminal Connector Terminal
E4532
E13
Ye s
33 5
A
GroundContinuity
Connector Terminal
E4532
No
33
WKIA5489E

FRONT WIPER AND WASHER SYSTEM
WW-17
C
D
E
F
G
H
I
J
L
MA
B
WW
Revision: June 20062007 Versa
6. CHECK IPDM E/R
With CONSULT-ll
1. Connect IPDM E/R connector E45.
2. Turn ignition switch ON.
3. Select “IPDM E/R” by CONSULT-II, and select “ACTIVE TEST” on “SELECT DIAG MODE” screen.
4. Select “FRONT WIPER” on “SELECT TEST ITEM” screen.
5. Touch “LO” or “HI” screen.

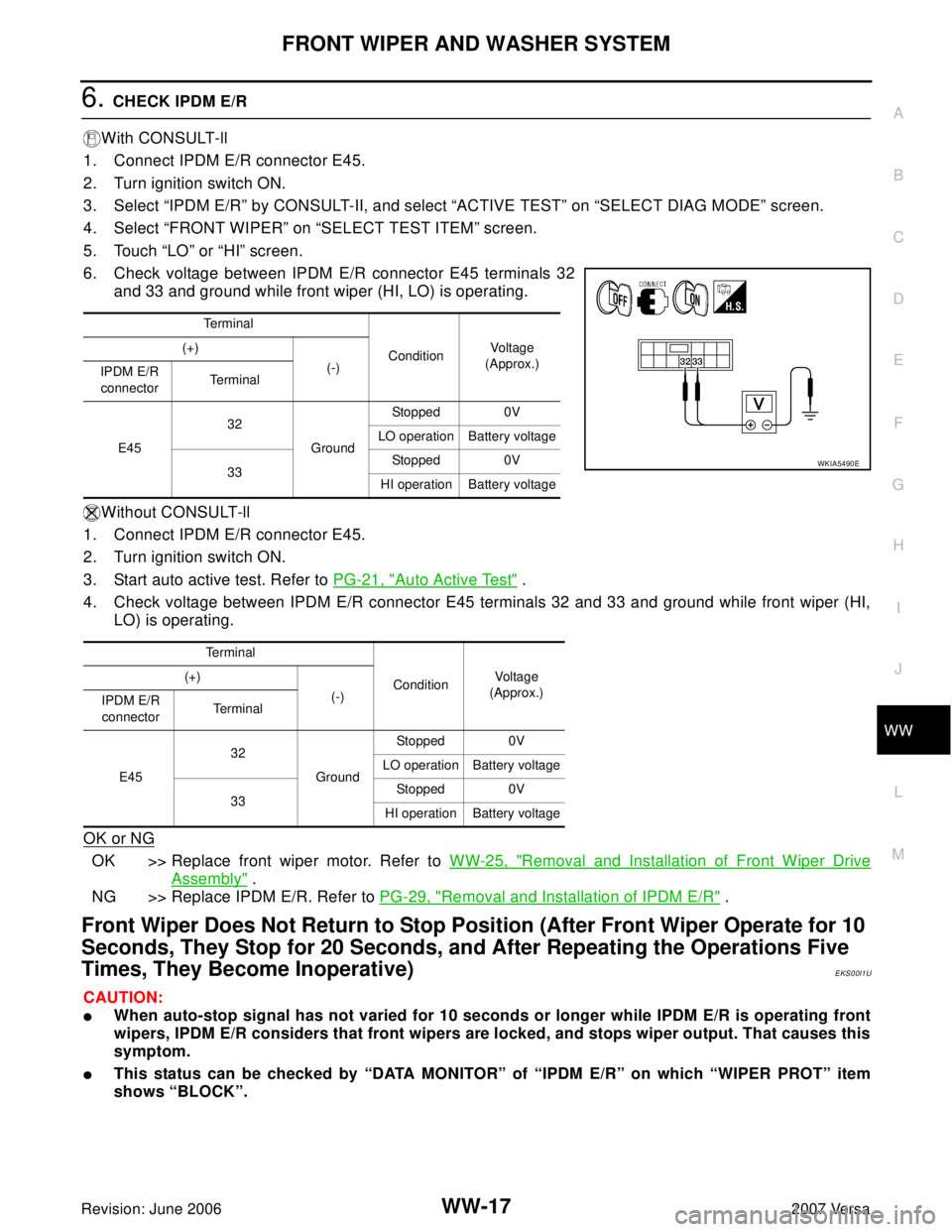

6. Check voltage between IPDM E/R connector E45 terminals 32
and 33 and ground while front wiper (HI, LO) is operating.
Without CONSULT-ll
1. Connect IPDM E/R connector E45.
2. Turn ignition switch ON.
3. Start auto active test. Refer to PG-21, "
Auto Active Test" .
4. Check voltage between IPDM E/R connector E45 terminals 32 and 33 and ground while front wiper (HI,
LO) is operating.
OK or NG
OK >> Replace front wiper motor. Refer to WW-25, "Removal and Installation of Front Wiper Drive
Assembly" .
NG >> Replace IPDM E/R. Refer to PG-29, "
Removal and Installation of IPDM E/R" .
Front Wiper Does Not Return to Stop Position (After Front Wiper Operate for 10
Seconds, They Stop for 20 Seconds, and After Repeating the Operations Five
Times, They Become Inoperative)
EKS00I1U
CAUTION:

When auto-stop signal has not varied for 10 seconds or longer while IPDM E/R is operating front
wipers, IPDM E/R considers that front wipers are locked, and stops wiper output. That causes this
symptom.

This status can be checked by “DATA MONITOR” of “IPDM E/R” on which “WIPER PROT” item
shows “BLOCK”.
Te r m i n a l
ConditionVo ltag e
(Approx.) (+)
(-)
IPDM E/R
connectorTe r m i n a l
E4532
GroundStopped 0V
LO operation Battery voltage
33Stopped 0V
HI operation Battery voltage
Te r m i n a l
ConditionVoltage
(Approx.) (+)
(-)
IPDM E/R
connectorTe r m i n a l
E4532
GroundStopped 0V
LO operation Battery voltage
33Stopped 0V
HI operation Battery voltage
WKIA5490E

WW-18
FRONT WIPER AND WASHER SYSTEM
Revision: June 20062007 Versa
1. CHECK FRONT WIPER STOP SIGNAL
With CONSULT-ll
Select “IPDM E/R” on CONSULT-II. With “DATA MONITOR”, make
sure that “WIP AUTO STOP” turns “ACT P” - “STOP P” linked with
wiper operation.
Without CONSULT-ll
GO TO 2.
OK or NG
OK >> Replace IPDM E/R. Refer to PG-29, "Removal and
Installation of IPDM E/R" .
NG >> GO TO 2.
2. CHECK IPDM E/R
1. Turn ignition switch ON.

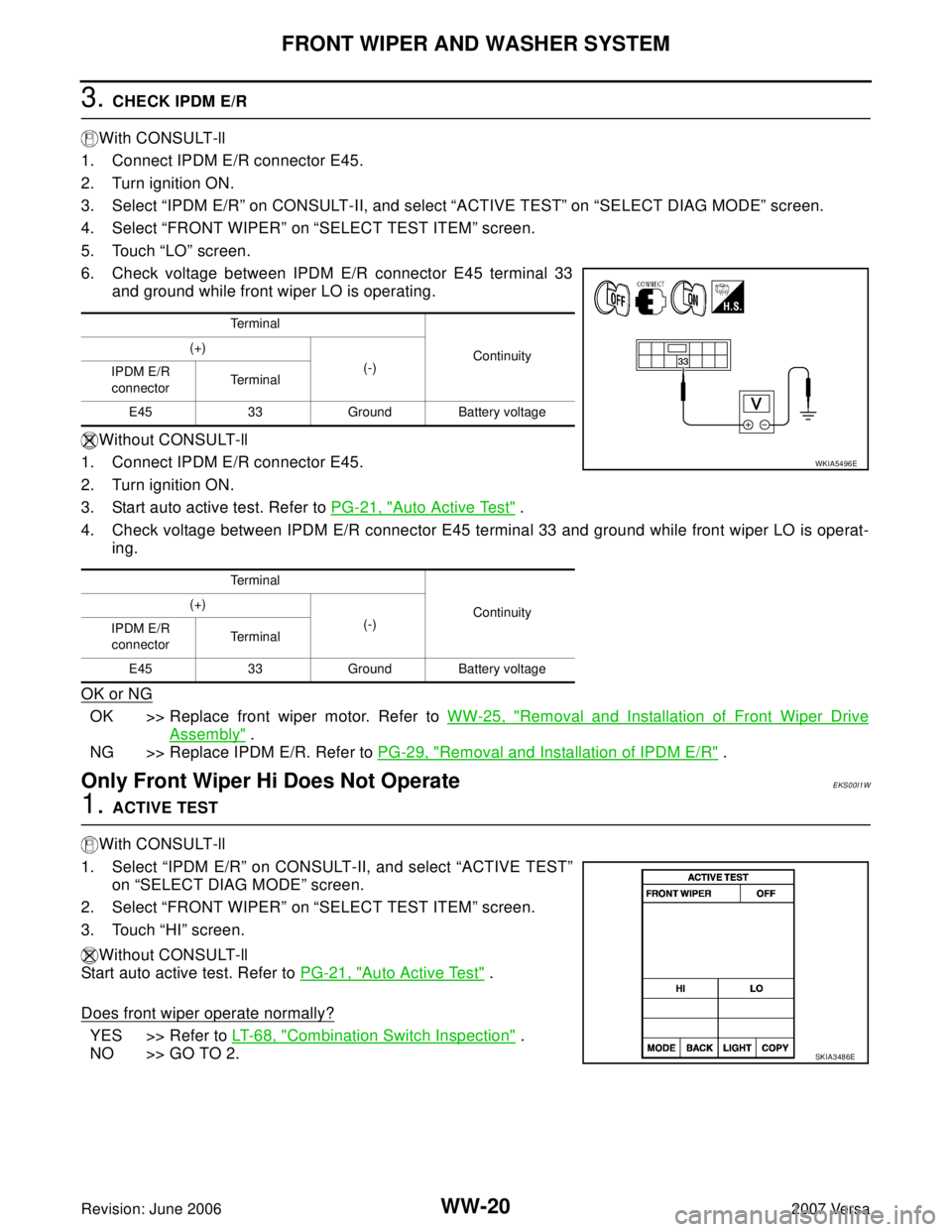

2. Check voltage between IPDM E/R connector E46 terminal 38
and ground while front wiper motor is stopped and while it is
operating.
OK or NG
OK >> Replace IPDM E/R. Refer to PG-29, "Removal and Installation of IPDM E/R" .
NG >> GO TO 3.
3. CHECK FRONT WIPER AUTO STOP CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect IPDM E/R connector E46 and wiper motor connector E1.
3. Check continuity between IPDM E/R connector (A) E46 terminal
38 and front wiper motor connector (B) E1 terminal 4.
4. Check continuity between IPDM E/R harness connector (A) and
Ground.
OK or NG
OK >> Replace front wiper motor. Refer to WW-25, "Removal and Installation of Front Wiper Drive
Assembly" .
NG >> Repair harness or connector.
PKIA7614E
Te r m i n a l
ConditionVo ltag e
(Approx.) (+)
(-)
IPDM E/R
connectorTerminal
E46 38 GroundWiper stopped 0V
Wiper operating Battery voltage
WKIA5491E
AB
Continuity
Connector Terminal Connector Terminal
E46 38 E1 4 Yes
A
GroundContinuity
Connector Terminal
E46 38 No
WKIA5492E

FRONT WIPER AND WASHER SYSTEM
WW-19
C
D
E
F
G
H
I
J
L
MA
B
WW
Revision: June 20062007 Versa
Only Front Wiper Low Does Not OperateEKS00I1V
1. ACTIVE TEST
With CONSULT-ll
1. Select “IPDM E/R” on CONSULT-II, and select “ACTIVE TEST”
on “SELECT DIAG MODE” screen.
2. Select “FRONT WIPER” on “SELECT TEST ITEM” screen.
3. Touch “LO” screen.
Without CONSULT-ll
Start auto active test. Refer to PG-21, "
Auto Active Test" .
Does front wiper operate normally?
YES >> Refer to LT-68, "Combination Switch Inspection" .
NO >> GO TO 2.
2. CHECK FRONT WIPER MOTOR CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect IPDM E/R connector E45 and front wiper motor connector E1.
3. Check continuity between IPDM E/R connector (A) E45 terminal
33 and front wiper motor connector (B) E1 terminal 3.
4. Check continuity between IPDM E/R harness connector E45 (A)
terminal 33 and ground.
OK or NG
OK >> GO TO 3.
NG >> Repair harness or connector.
SKIA3486E
AB
Continuity
Connector Terminal Connector Terminal
E45 33 E1 3 Yes
A
GroundContinuity
Connector Terminal
E45 33 No
WKIA5495E

WW-20
FRONT WIPER AND WASHER SYSTEM
Revision: June 20062007 Versa
3. CHECK IPDM E/R
With CONSULT-ll
1. Connect IPDM E/R connector E45.
2. Turn ignition ON.
3. Select “IPDM E/R” on CONSULT-II, and select “ACTIVE TEST” on “SELECT DIAG MODE” screen.
4. Select “FRONT WIPER” on “SELECT TEST ITEM” screen.
5. Touch “LO” screen.
6. Check voltage between IPDM E/R connector E45 terminal 33
and ground while front wiper LO is operating.
Without CONSULT-ll
1. Connect IPDM E/R connector E45.
2. Turn ignition ON.
3. Start auto active test. Refer to PG-21, "
Auto Active Test" .
4. Check voltage between IPDM E/R connector E45 terminal 33 and ground while front wiper LO is operat-
ing.
OK or NG
OK >> Replace front wiper motor. Refer to WW-25, "Removal and Installation of Front Wiper Drive
Assembly" .
NG >> Replace IPDM E/R. Refer to PG-29, "
Removal and Installation of IPDM E/R" .
Only Front Wiper Hi Does Not OperateEKS00I1W
1. ACTIVE TEST
With CONSULT-ll
1. Select “IPDM E/R” on CONSULT-II, and select “ACTIVE TEST”
on “SELECT DIAG MODE” screen.
2. Select “FRONT WIPER” on “SELECT TEST ITEM” screen.
3. Touch “HI” screen.
Without CONSULT-ll
Start auto active test. Refer to PG-21, "
Auto Active Test" .
Does front wiper operate normally?
YES >> Refer to LT- 6 8 , "Combination Switch Inspection" .
NO >> GO TO 2.
Te r m i n a l
Continuity (+)
(-)
IPDM E/R
connectorTerminal
E45 33 Ground Battery voltage
Te r m i n a l
Continuity (+)
(-)
IPDM E/R
connectorTerminal
E45 33 Ground Battery voltage
WKIA5496E
SKIA3486E

FRONT WIPER AND WASHER SYSTEM
WW-21
C
D
E
F
G
H
I
J
L
MA
B
WW
Revision: June 20062007 Versa
2. CHECK FRONT WIPER MOTOR CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect IPDM E/R connector E45 and front wiper motor connector E1.
3. Check continuity between IPDM E/R connector (A) E45 terminal
32 and front wiper motor connector (B) E1 terminal 1.
4. Check continuity between IPDM E/R harness connector (A) E45
terminal 32 and ground.
OK or NG
OK >> GO TO 3.
NG >> Repair harness or connector.
3. CHECK IPDM E/R
With CONSULT-ll
1. Connect IPDM E/R connector E45.
2. Turn ignition switch ON.
3. Select “IPDM E/R” on CONSULT-II, and select “ACTIVE TEST” on “SELECT DIAG MODE” screen.
4. Select “FRONT WIPER” on “SELECT TEST ITEM” screen.
5. Touch “HI” screen.
6. Check voltage between IPDM E/R connector E45 terminal 32
and ground while front wiper HI is operating.
Without CONSULT-ll
1. Connect IPDM E/R connector E45.
2. Turn ignition switch ON.
3. Start auto active test. Refer to PG-21, "
Auto Active Test" .
4. Check voltage between IPDM E/R connector E45 terminal 32 and ground while front wiper HI is operating.
OK or NG
OK >> Replace front wiper motor. Refer to WW-25, "Removal and Installation of Front Wiper Drive
Assembly" .
NG >> Replace IPDM E/R. Refer to PG-29, "
Removal and Installation of IPDM E/R" .
AB
Continuity
Connector Terminal Connector Terminal
E45 32 E1 5 Yes
A
GroundContinuity
Connector Terminal
E45 32 No
WKIA5498E
Te r m i n a l
Vo l ta g e
(Approx.) (+)
(-)
IPDM E/R
connectorTe r m i n a l
E45 32 Ground Battery voltage
Te r m i n a l
Vo l ta g e
(Approx.) (+)
(-)
IPDM E/R
connectorTe r m i n a l
E45 32 Ground Battery voltage
WKIA5499E

WW-22
FRONT WIPER AND WASHER SYSTEM
Revision: June 20062007 Versa
Only Front Wiper Intermittent Does Not OperateEKS00I1X
1. CHECK COMBINATION SWITCH
With CONSULT-ll
1. Select “BCM” on CONSULT-II, and select “WIPER” on “SELECT
TEST ITEM” screen.
2. Select “DATA MONITOR” on “SELECT DIAG MODE” screen.
Make sure that “FR WIPER INT”, turn ON-OFF according to
wiper switch operation.
Without CONSULT-ll
Refer to LT- 6 8 , "
Combination Switch Inspection" .
OK or NG
OK >> Replace BCM. Refer to BCS-25, "Removal and Installa-
tion of BCM" .
NG >> Check combination switch (wiper switch). Refer to LT-
68, "Combination Switch Inspection" .
Front Wiper Intermittent Operation Switch Position Cannot Be AdjustedEKS00I1Z
1. CHECK CIRCUIT BETWEEN COMBINATION SWITCH AND BCM
With CONSULT-ll
1. Select “BCM” on CONSULT-II, and select “WIPER” on “SELECT
TEST ITEM” screen.
2. Select “DATA MONITOR” on “SELECT DIAG MODE” screen.
Make sure that “INT VOLUME”, changes in order from 1 to 7
according to wiper switch operation.
Without CONSULT-ll
Refer to LT- 6 8 , "
Combination Switch Inspection" .
OK or NG
OK >> Replace BCM. Refer to BCS-25, "Removal and Installa-
tion of BCM" .
NG >> Check combination switch (wiper switch). Refer to LT-
68, "Combination Switch Inspection" .
Wiper Does Not Wipe When Front Washer OperatesEKS00I20
1. CHECK CIRCUIT BETWEEN COMBINATION SWITCH AND BCM
With CONSULT-ll
1. Select “BCM” on CONSULT-II, and select “WIPER” on “SELECT
TEST ITEM” screen.
2. Select “DATA MONITOR” on “SELECT DIAG MODE” screen.
Make sure that “FR WASHER SW” turn ON-OFF according to
front wiper switch operation.
Without CONSULT-ll
Refer to LT- 6 8 , "
Combination Switch Inspection" .
OK or NG
OK >> Replace BCM. Refer to BCS-25, "Removal and Installa-
tion of BCM" .
NG >> Check combination switch (wiper switch). Refer to LT-
68, "Combination Switch Inspection" .
PKIB0 110 E
PKIB0 110 E
PKIB0 110 E
