NISSAN VERSA 2006 Workshop Service Repair Manual

AT-308
REPAIR FOR COMPONENT PARTS
Revision: June 20062007 Versa
Install control valves.
For installation procedures, refer to AT-304, "
ASSEMBLY" .
Retainer Plate (Control Valve Lower Body)
Install proper retainer plates. Refer to AT-306, "COMPONENTS" .
Unit: mm (in)
SCIA4978E
Loca
tionRetainer plate designation Width “A” Length “B” Type
L3 Pressure regulator valve
6.0
(0.236)28.0
(1.102)I L4 Overrun clutch control valve
L5 Accumulator control valve
L6 Shift valve A
L7 Shuttle valve
L12 Shift valve B17.0
(0.669)24.0
(0.945)II
L13 Pressure modifier valve6.0
(0.236)28.0
(1.102)I
SAT0 8 9F

REPAIR FOR COMPONENT PARTS
AT-309
D
E
F
G
H
I
J
K
L
MA
B
AT
Revision: June 20062007 Versa
Reverse ClutchUCS005W 8
COMPONENTS
DISASSEMBLY
1. Check operation of reverse clutch
a. Install seal rings to drum support of oil pump assembly, and set reverse clutch assembly.
b. Apply compressed air into the oil hole at the location as shown
in the figure.
c. Check to see that retaining plate moves to snap ring.
d. If retaining plate does not contact snap ring:

D-ring might be damaged.

Seal lip might be damaged.

Fluid might be leaking past piston check ball.
2. Remove snap ring (1) using a flat-bladed screwdriver A.
3. Remove retaining plate, drive plates, driven plates and dish
plates.
1. Reverse clutch drum 2. D-ring 3. Seal lip
4. Reverse clutch piston 5. Spring retainer assembly 6. Snap ring
7. Dish plate 8. Driven plate 9. Retaining plate
10. Snap ring 11. Drive plate
Refer to GI section to make sure icons (symbol marks) in the figure. Refer to GI-10, "
Components" .
SCIA6939J
SAT1 5 5D
SCIA7024J

AT-310
REPAIR FOR COMPONENT PARTS
Revision: June 20062007 Versa
4. Set Tool A on spring retainer assembly, and remove snap ring
(1) from reverse clutch drum while compressing spring retainer
assembly.
CAUTION:
Set SST directly over return springs.
5. Remove spring retainer assembly from reverse clutch drum.
CAUTION:
Do not remove return springs from spring retainer.
6. Install seal rings to drum support of oil pump assembly (1), and
set reverse clutch drum (2). Then apply compressed air into the
oil hole at the location as shown in the figure to remove reverse
clutch piston (3) from reverse clutch drum (2).
CAUTION:
Do not flow air in too quickly or reverse clutch piston (3)
and ATF could jump out. Carefully flow air in little by little
while protecting with lint-free cloth.
7. Remove D-ring (1) and seal lip (2) from reverse clutch piston (3).Tool number: KV31103200 (J-39186)
SCIA7988E
SCIA5999J
SCIA5998J

REPAIR FOR COMPONENT PARTS
AT-311
D
E
F
G
H
I
J
K
L
MA
B
AT
Revision: June 20062007 Versa

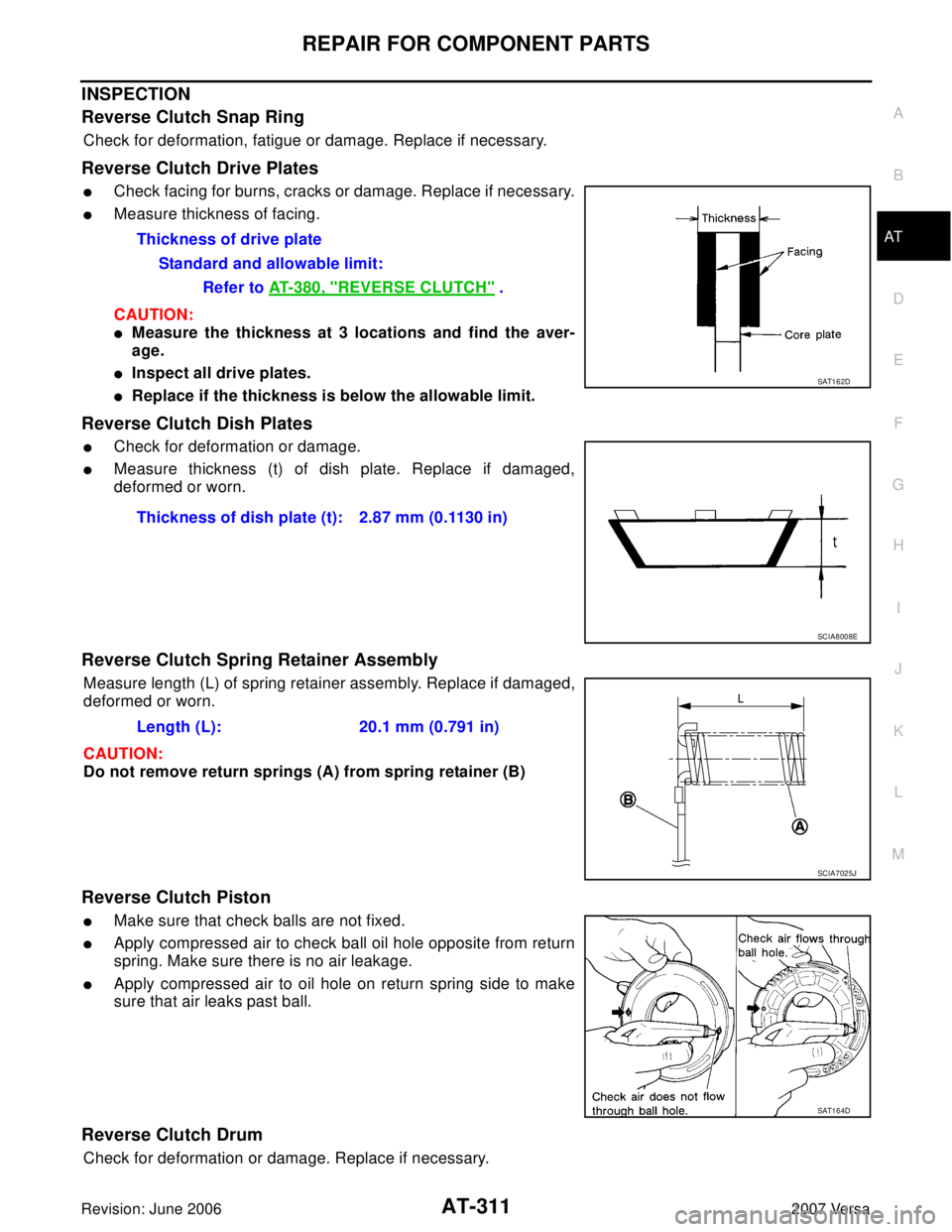

INSPECTION
Reverse Clutch Snap Ring
Check for deformation, fatigue or damage. Replace if necessary.
Reverse Clutch Drive Plates

Check facing for burns, cracks or damage. Replace if necessary.

Measure thickness of facing.
CAUTION:

Measure the thickness at 3 locations and find the aver-
age.

Inspect all drive plates.

Replace if the thickness is below the allowable limit.
Reverse Clutch Dish Plates

Check for deformation or damage.

Measure thickness (t) of dish plate. Replace if damaged,
deformed or worn.
Reverse Clutch Spring Retainer Assembly
Measure length (L) of spring retainer assembly. Replace if damaged,
deformed or worn.
CAUTION:
Do not remove return springs (A) from spring retainer (B)
Reverse Clutch Piston

Make sure that check balls are not fixed.

Apply compressed air to check ball oil hole opposite from return
spring. Make sure there is no air leakage.

Apply compressed air to oil hole on return spring side to make
sure that air leaks past ball.
Reverse Clutch Drum
Check for deformation or damage. Replace if necessary.Thickness of drive plate
Standard and allowable limit:
Refer to AT-380, "
REVERSE CLUTCH" .
SAT1 6 2D
Thickness of dish plate (t): 2.87 mm (0.1130 in)
SCIA8008E
Length (L): 20.1 mm (0.791 in)
SCIA7025J
SAT1 6 4D

AT-312
REPAIR FOR COMPONENT PARTS
Revision: June 20062007 Versa
ASSEMBLY
1. Install D-ring (1) and seal lip (2) on reverse clutch piston (3).
CAUTION:
Be careful with the direction of seal lip (2).
2. Install reverse clutch piston by turning it slowly.
CAUTION:
Apply ATF to inner surface of reverse clutch drum.
3. Install spring retainer assembly (1) to reverse clutch piston (2).
4. Set Tool A on spring retainer assembly, and install snap ring (1)
while compressing spring retainer assembly.
CAUTION:
Set SST directly over return springs.
SCIA5998J
SAT1 5 9D
SCIA6000J
Tool number: KV31103200 (J-39186)
SCIA7988E

REPAIR FOR COMPONENT PARTS
AT-313
D
E
F
G
H
I
J
K
L
MA
B
AT
Revision: June 20062007 Versa
5. Install dish plates, driven plates, drive plates and retaining plate.
(1): Snap ring
(2): Retaining plate
(3): Drive plate
(4): Driven plate
(5): Dish plate
Drive plate/Driven plate: 2/2
CAUTION:
Be careful with the order of plates.
NOTE:
Install two dish plates fitting each installation direction with
reverse clutch drum groove displaced slightly.
6. Install snap ring (1) using a flat-bladed screwdriver A.
7. Measure clearance between retaining plate and snap ring using
feeler gauge. If not within allowable limit, select proper retaining
plate. Refer to “Parts Information” for retaining plate selection.
8. Check operation of reverse clutch. Refer to AT- 3 0 9 , "
DISAS-
SEMBLY" .
SCIA7003J
SAT1 7 0D
SCIA7024J
Specified clearance
Standard and allowable limit:
Refer to AT-380, "
REVERSE CLUTCH" .
SCIA8009E

AT-314
REPAIR FOR COMPONENT PARTS
Revision: June 20062007 Versa
High ClutchUCS005W9
COMPONENTS
DISASSEMBLY
1. Check operation of high clutch.
a. Apply compressed air into the oil hole (A) of input shaft assem-
bly (high clutch drum) at the location as shown in the figure.
CAUTION:
Block the oil hole (A) on the opposite side with lint-free
cloth B.
b. Check to see that retaining plate moves to snap ring.
c. If retaining plate does not contact snap ring:

High clutch piston seal might be damaged.
2. Remove seal rings from input shaft assembly (high clutch drum).
1. Seal ring 2. Driven plate 3. Retaining plate
4. Snap ring 5. Drive plate 6. Snap ring
7. Cancel cover 8. Spring retainer assembly 9. High clutch Piston
10. Input shaft assembly (high clutch
drum)
SCIA6741E
SCIA7032E
SCIA4890E

REPAIR FOR COMPONENT PARTS
AT-315
D
E
F
G
H
I
J
K
L
MA
B
AT
Revision: June 20062007 Versa
3. Remove snap ring using a flat-bladed screwdriver.
4. Remove retaining plate, drive plates and driven plates.
5. Set Tool A on cancel cover, and remove snap ring (1) from input
shaft assembly (high clutch drum) while compressing spring
retainer assembly.
CAUTION:
Do not expand snap ring (1) excessively.
6. Remove cancel cover (1) and spring retainer assembly (2) from
input shaft assembly (high clutch drum) (3).
CAUTION:
Do not remove return springs from spring retainers.
7. Apply compressed air into the oil hole (A) at the location as
shown in the figure to remove high clutch piston from input shaft
assembly (high clutch drum).
CAUTION:

Do not blow air in too quickly, or high clutch piston and
ATF could jump out. Carefully blow air little by little while
protecting with lint-free cloth B.

Block the oil hole on the opposite side with lint-free cloth
B.
SCIA4891E
Tool number: KV31103200 (J-39186)
SCIA6001J
SCIA7036E
SCIA7033E

AT-316
REPAIR FOR COMPONENT PARTS
Revision: June 20062007 Versa

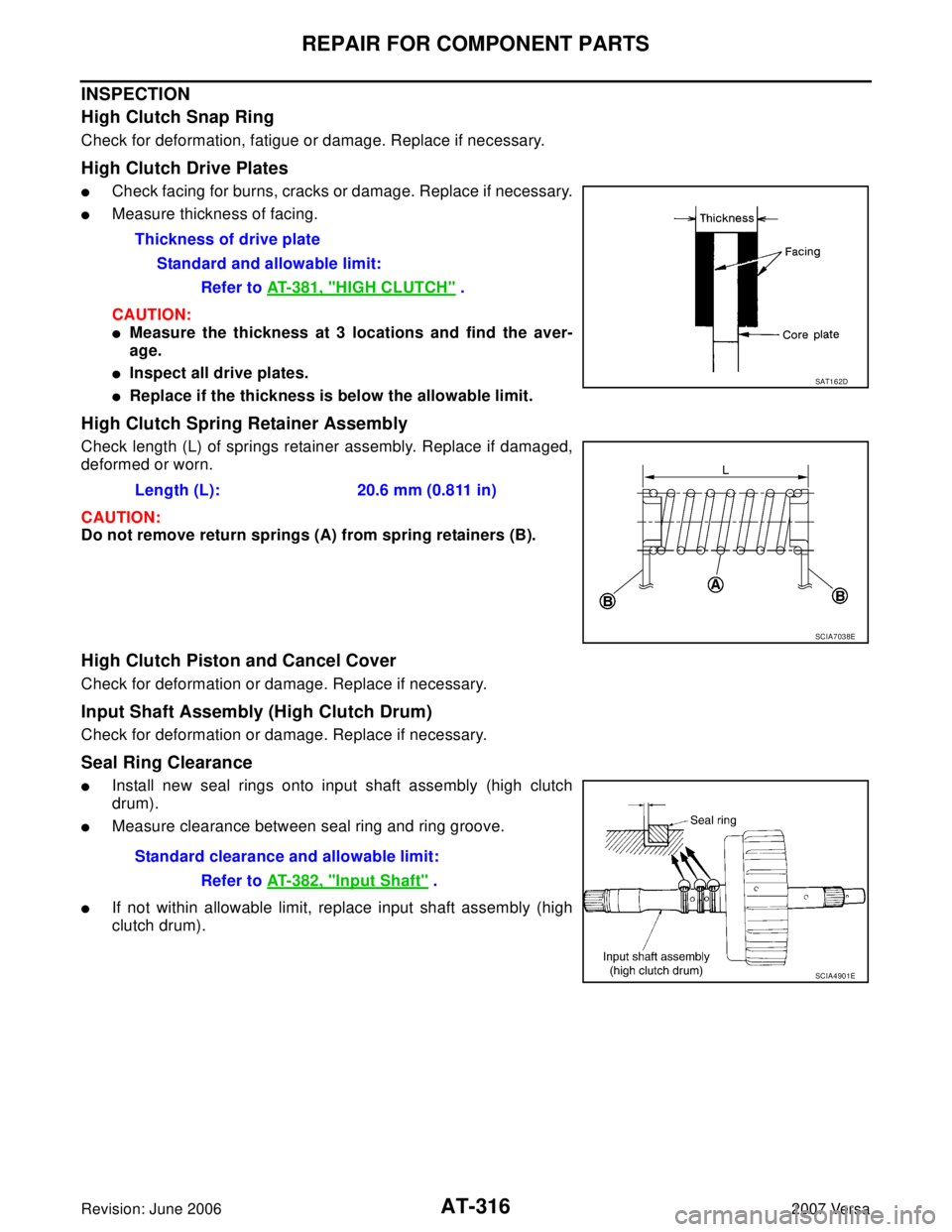

INSPECTION
High Clutch Snap Ring
Check for deformation, fatigue or damage. Replace if necessary.
High Clutch Drive Plates

Check facing for burns, cracks or damage. Replace if necessary.

Measure thickness of facing.
CAUTION:

Measure the thickness at 3 locations and find the aver-
age.

Inspect all drive plates.

Replace if the thickness is below the allowable limit.
High Clutch Spring Retainer Assembly
Check length (L) of springs retainer assembly. Replace if damaged,
deformed or worn.
CAUTION:
Do not remove return springs (A) from spring retainers (B).
High Clutch Piston and Cancel Cover
Check for deformation or damage. Replace if necessary.
Input Shaft Assembly (High Clutch Drum)
Check for deformation or damage. Replace if necessary.
Seal Ring Clearance

Install new seal rings onto input shaft assembly (high clutch
drum).

Measure clearance between seal ring and ring groove.

If not within allowable limit, replace input shaft assembly (high
clutch drum).Thickness of drive plate
Standard and allowable limit:
Refer to AT-381, "
HIGH CLUTCH" .
SAT1 6 2D
Length (L): 20.6 mm (0.811 in)
SCIA7038E
Standard clearance and allowable limit:
Refer to AT-382, "
Input Shaft" .
SCIA4901E

REPAIR FOR COMPONENT PARTS
AT-317
D
E
F
G
H
I
J
K
L
MA
B
AT
Revision: June 20062007 Versa
ASSEMBLY
1. Install high clutch piston by turning it slowly.
CAUTION:
Apply ATF to inner surface of input shaft assembly (high
clutch drum) and high clutch piston.
2. Install spring retainer assembly (2) and cancel cover (1) on input
shaft assembly (high clutch drum) (3).
3. Set Tool A on cancel cover, and install snap ring (1) to input
shaft assembly (high clutch drum) while slowly compressing
spring retainer assembly.
CAUTION:

Do not expand snap ring (1) excessively.

Install spring retainer assembly without tilting.

Do not align snap ring gap with cancel cover stopper.
SAT111F
SCIA7036E
Tool number: KV31103200 (J-39186)
SCIA6001J
SAT11 3 F
