FRONT FENDER
Revision: June 20062007 Versa
FRONT FENDERPFP:63100
Removal and InstallationEIS0090T
REMOVAL
1. Remove the headlamp assemblies. Refer to LT- 2 5 , "Removal and Installation" .
2. Remove the cowl top cover (LH/RH). Refer to EI-20, "
Removal and Installation" .
3. Remove the front fender protector. Refer to EI-22, "
Components" .
4. Remove the bolt and the front fender.
CAUTION:
While removing use a shop cloth to protect the vechicle body from damage.
INSTALLATION
Installation is in the reverse order of removal.
CAUTION:

After installing, apply touch-up paint onto the head of the front fender bolts.

After installing, check front fender adjustment. Refer to BL-14, "Fitting Adjustment" and BL-161,
"Fitting Adjustment" .
1. Front fender 2 Bolt (LH 7 bolts required) (RH 8
bolts required)
LIIA2657E

POWER DOOR LOCK SYSTEM
BL-23
C
D
E
F
G
H
J
K
L
MA
B
BL
Revision: June 20062007 Versa
POWER DOOR LOCK SYSTEMPFP:24814
Component Parts and Harness Connector LocationEIS0090U
LIIA2593E
1. BCM M18, M19, M20
(view with glove box removed)2. Intelligent Key unit M52
(if equipped)3. Front door key cylinder switch LH
D14
4. Front door switch LH B8, RH B108 5. Front door lock actuator LH D3, RH
D1146. Rear door switch LH B6, RH B116
7. Rear door lock actuator LH D205, RH
D3058. Key switch and ignition knob switch
M73 (with Intelligent Key)9. Key switch and key lock solenoid M27
(without Intelligent key)
10. Main power window and door lock/
unlock switch D7, D8
Power window and door lock/unlock
switch RH D10511. Fuse block (with Intelligent Key)
(view with instrument panel LH
removed)12. Passenger select unlock relay M2
(with Intelligent Key)
13. Back door lock assembly (back door
switch) D405 (view with back door open)

BL-24
POWER DOOR LOCK SYSTEM
Revision: June 20062007 Versa
System DescriptionEIS0090V
Power is supplied at all times

through 40A fusible link (letter g , located in the fuse and fusible link box)

to BCM terminal 70

through 10A fuse [No. 8, located in the fuse block (J/B)]

to BCM terminal 57

through 10A fuse [No. 14, located in the fuse block (J/B)]

to key switch terminal 2 (without Intelligent Key system)

through 10A fuse [No. 31, located in the fuse block (J/B)]

to key switch and ignition knob switch terminals 2 and 4 (with Intelligent Key system).
When key switch is ON (key is inserted in ignition key cylinder), power is supplied

through key switch terminal 1 (without Intelligent Key system) or key switch and ignition knob terminal 1
(with Intelligent Key system)

to BCM terminal 37.
Ground is supplied

to BCM terminal 67

through body grounds M57 and M61.
LOCK OPERATION
When the door is locked with main power window and door lock/unlock switch, ground is supplied

to BCM terminal 45

through main power window and door lock and unlock switch terminals 17 and 18

through body grounds M57 and M61.
When the door is locked with power window and door lock/unlock switch RH, ground is supplied

to BCM terminal 45

through power window and door lock and unlock switch RH terminals 1 and 3

through body grounds M57 and M61.
When the door is locked with front door key cylinder switch LH, ground is supplied

to BCM terminal 8

through front door key cylinder switch LH terminals 1 and 2

through body grounds M57 and M61.
UNLOCK OPERATION
When the door is unlocked with main power window and door lock/unlock switch, ground is supplied

to BCM terminal 46

through main power window and door lock/unlock switch terminals 6 and 17

through body grounds M57 and M61.
When the door is unlocked with power window and door lock/unlock switch RH, ground is supplied

to BCM terminal 46

through power window and door lock and unlock switch RH terminals 2 and 3

through body grounds M57 and M61.
When the door is unlocked with front door key cylinder switch LH, ground is supplied

to BCM terminal 7

through front door key cylinder switch LH terminals 2 and 3

through body grounds M57 and M61.
When the front door switch LH is ON (door is OPEN), ground is supplied

to BCM terminal 47

through front door switch LH terminal 2

through front door switch LH case ground.

POWER DOOR LOCK SYSTEM
BL-25
C
D
E
F
G
H
J
K
L
MA
B
BL
Revision: June 20062007 Versa
When the front door switch RH is ON (door is OPEN), ground is supplied

to BCM terminal 12

through front door switch RH terminal 2

through front door switch RH case ground.
When the rear door switch LH is ON (door is OPEN), ground is supplied

to BCM terminal 48

through rear door switch LH terminal 1

through rear door switch LH case ground.
When the rear door switch RH is ON (door is OPEN), ground is supplied

to BCM terminal 13

through rear door switch RH terminal 1

through rear door switch RH case ground.
When the back door switch is ON (back door is OPEN), ground is supplied

to BCM terminal 43

through back door switch terminals 3 and 4

through body grounds B117, B132 and D402.
OUTLINE
Functions available by operating the inside door lock and unlock switches

Interlocked with the locking operation of door lock and unlock switch, door lock actuators of all doors are
locked.

Interlocked with the unlocking operation of door lock and unlock switch, door lock actuators of all doors
are unlocked.
Functions available by operating the front door key cylinder switch LH

Interlocked with the locking operation of front door key cylinder switch LH, door lock actuators of all doors
are locked.

When front door key cylinder switch LH is unlocked, front door lock actuator LH is unlocked.

When front door key cylinder switch LH is unlocked for the second time within 5 seconds after the first
operation, door lock actuators on all doors are unlocked.
Key reminder door system
When door lock and unlock switch is operated to lock doors with ignition key inserted in key cylinder and any
door open, all door lock actuators are locked and then unlocked.
CAN Communication System DescriptionEIS0090W
Refer to LAN-4, "SYSTEM DESCRIPTION" .

BL-26
POWER DOOR LOCK SYSTEM
Revision: June 20062007 Versa
SchematicEIS0090X
WITHOUT INTELLIGENT KEY SYSTEM
WIWA1952E

POWER DOOR LOCK SYSTEM
BL-27
C
D
E
F
G
H
J
K
L
MA
B
BL
Revision: June 20062007 Versa

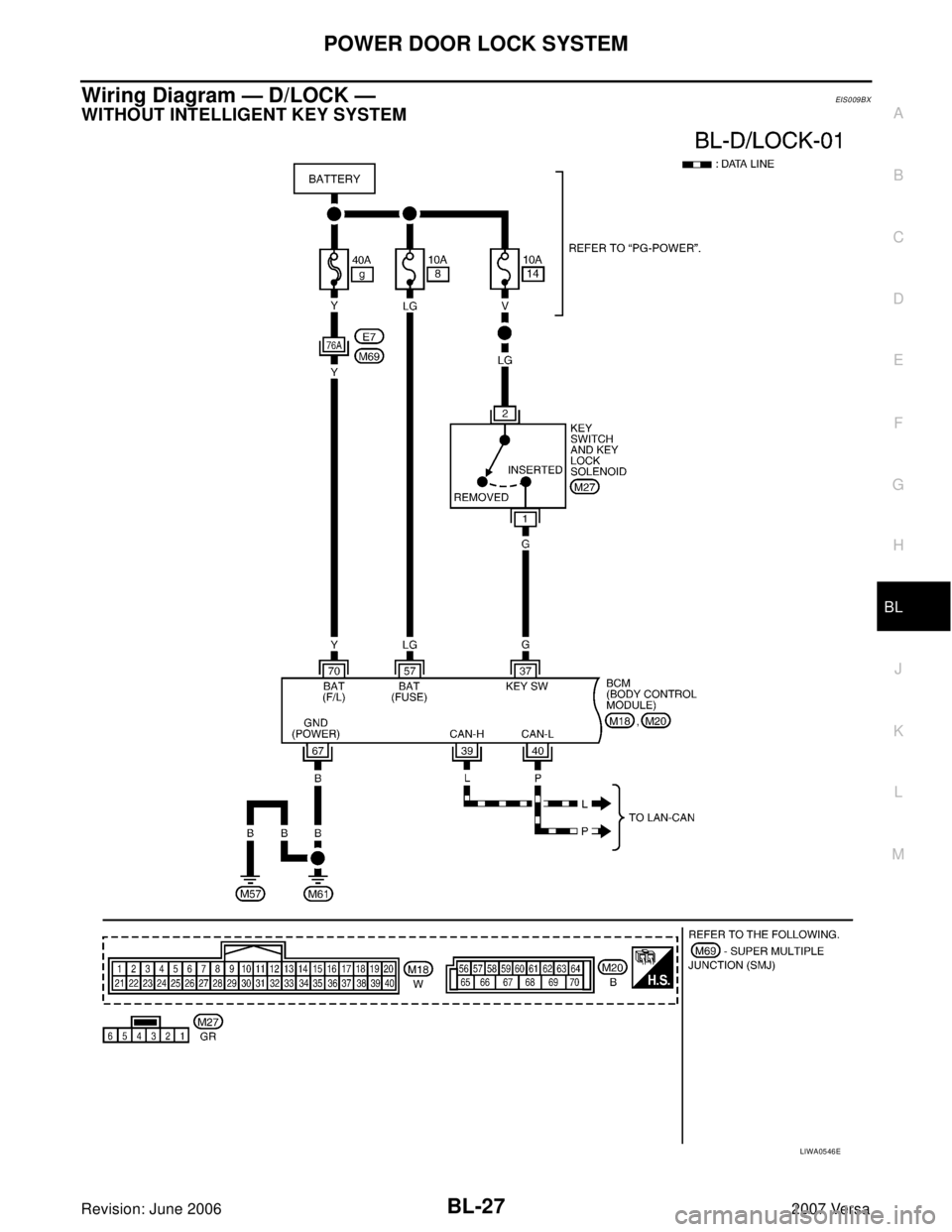

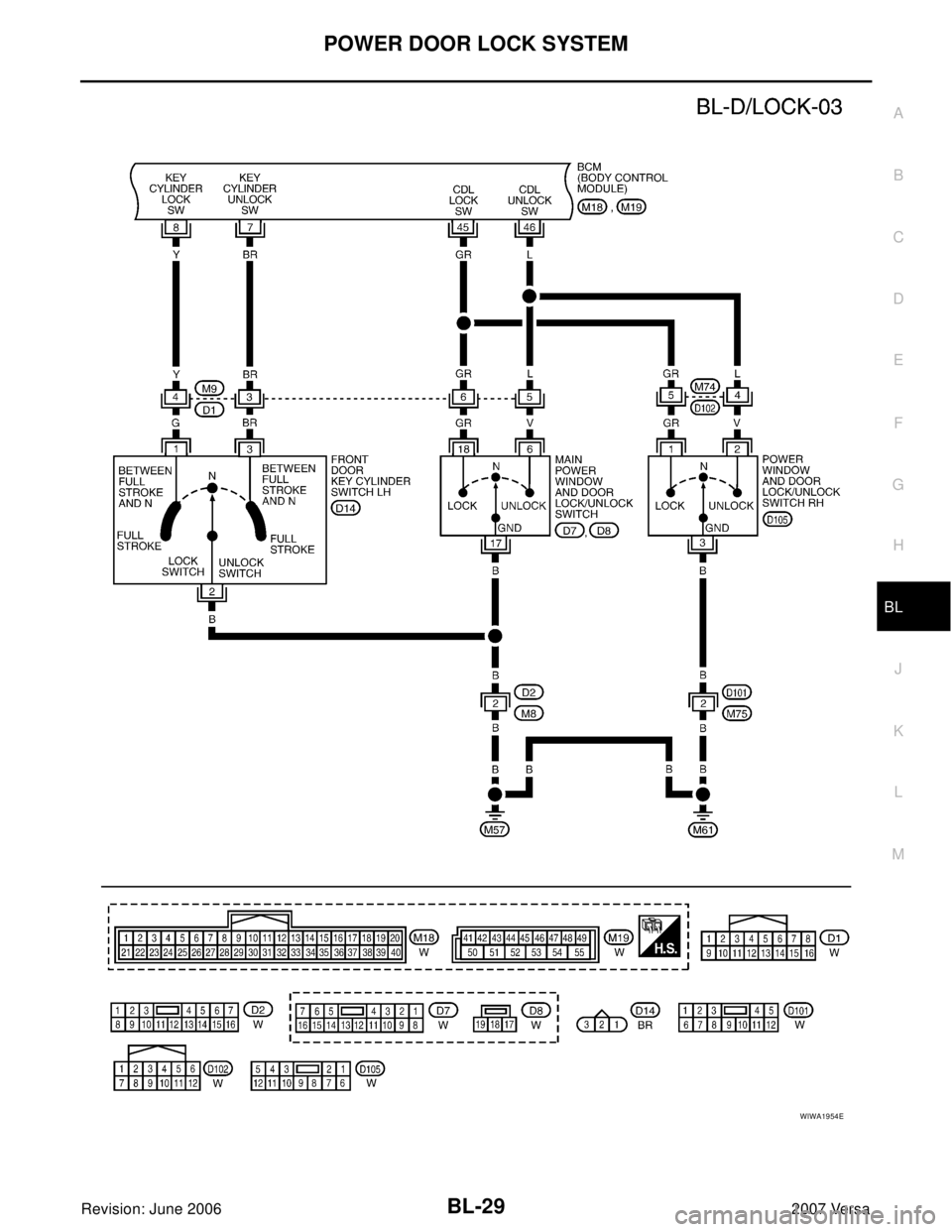

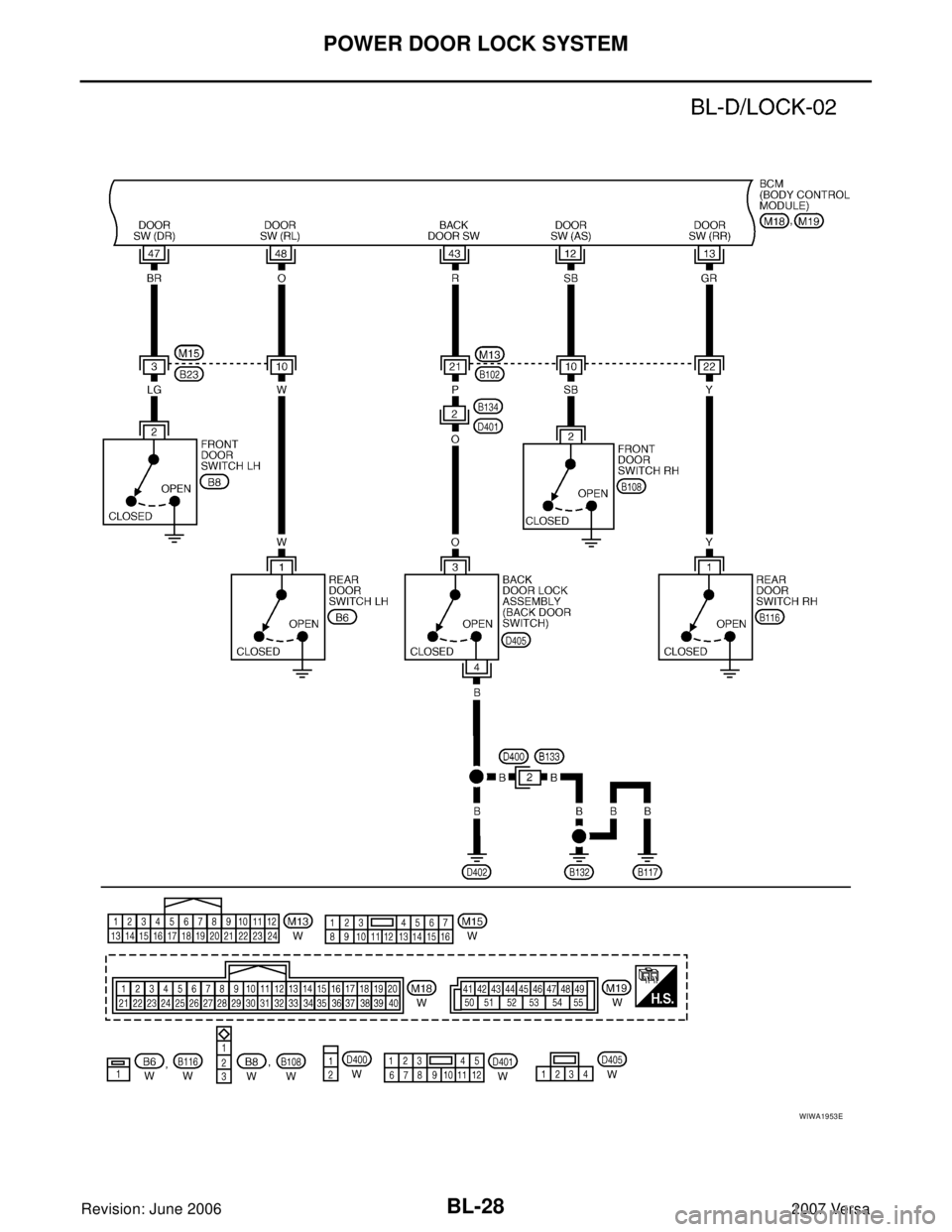

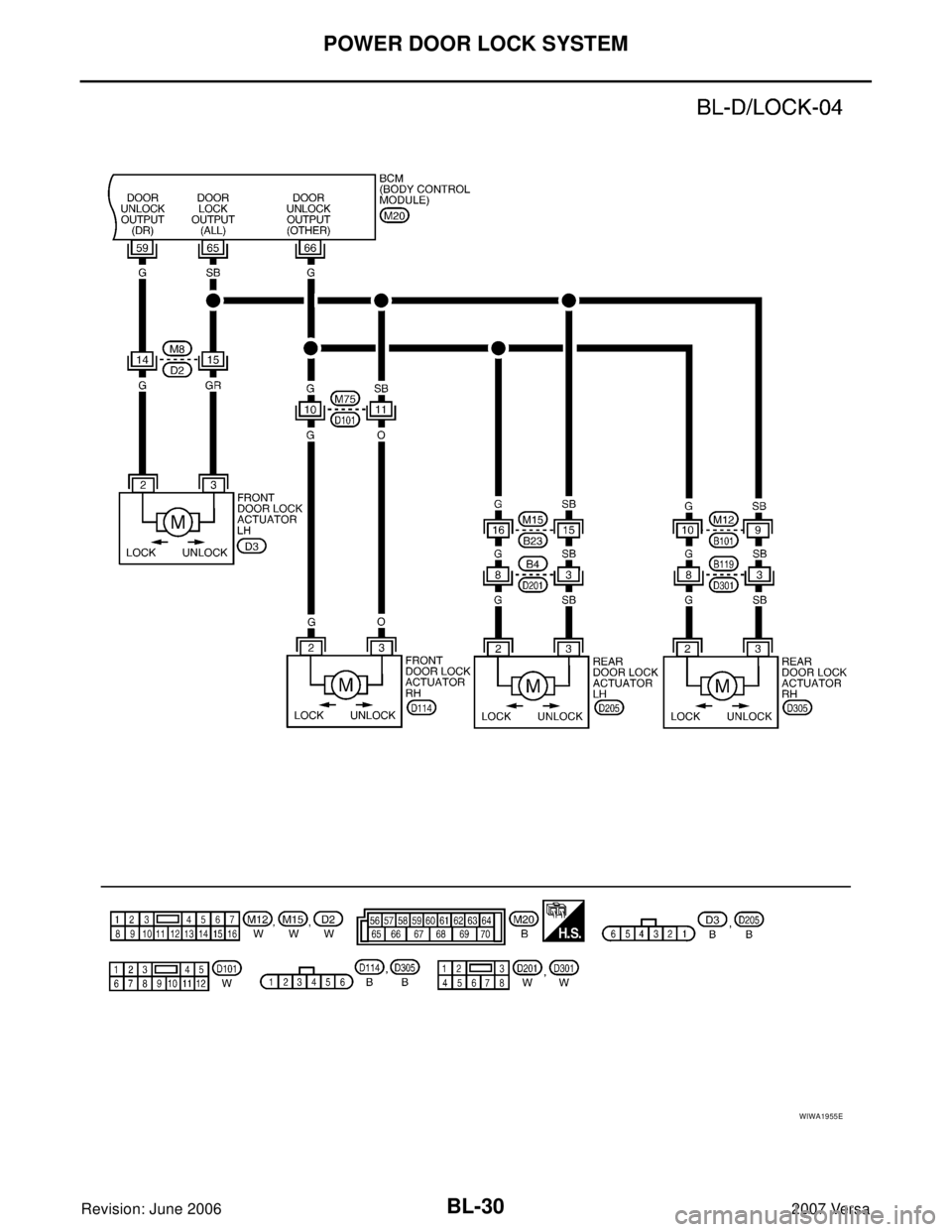

Wiring Diagram — D/LOCK —EIS009BX
WITHOUT INTELLIGENT KEY SYSTEM
LIWA0546E

BL-28
POWER DOOR LOCK SYSTEM
Revision: June 20062007 Versa
WIWA1953E

POWER DOOR LOCK SYSTEM
BL-29
C
D
E
F
G
H
J
K
L
MA
B
BL
Revision: June 20062007 Versa
WIWA1954E

BL-30
POWER DOOR LOCK SYSTEM
Revision: June 20062007 Versa
WIWA1955E

POWER DOOR LOCK SYSTEM
BL-31
C
D
E
F
G
H
J
K
L
MA
B
BL
Revision: June 20062007 Versa
SchematicEIS009C4
WITH INTELLIGENT KEY SYSTEM
WIWA1956E
