Sedan
1. Interior trunk lid release (P. 3-26 )
2. Rear window defroster switch (P. 2-19)
3. Antenna (P. 4-28)
4. Child safety rear door locks (P. 3-6)
5. Fuel-filler door (P. 3-26)
6. Fuel-filler cap, fuel recommendation
(P. 3-27, 9-4)
7. Replacing bulbs (P. 8-29)
8. Trunk opener switch/NISSAN Intelligent
Key ™ (if so equipped) (P. 3-24 / 3-13)
See the page number indicated in paren-
theses for operating details.
WII0102
Illustrated table of contents0-5
REVIEW COPY—2009 Versa(vrs)
Owners Manual—USA_English(nna)
09/10/08—debbie
Page 12 of 305
1. Cargo cover (hatchback model only)
(P. 2-27)
2. Rear seat (P. 1-4)
3. Interior lights (P. 2-34)
4. Front seat (P. 1-2)
5. Sun visors (P. 3-28)
6. Moonroof switch (if so equipped)
(P. 2-32)
7. Map lights (P. 2-34)
8. Sunglasses holder (P. 2-25)
9. Glove box (P. 2-26)
10. Parking brake, parking on hills
(P. 5-23, 5-27)
11. Rear armrest (if so equipped) (P. 1-5)
See the page number indicated in paren-
theses for operating details.
LII0083
PASSENGER COMPARTMENT
0-6Illustrated table of contents
REVIEW COPY—2009 Versa(vrs)
Owners Manual—USA_English(nna)
09/10/08—debbie
Page 13 of 305
1. Outside mirror control switch
(if so equipped) (P. 3-29)
2. Headlight/fog light (if so equipped)/turn
signal switch (P. 2-19)3. Steering wheel switch for audio control
and Bluetoothhands-free phone sys-
tem (if so equipped) (P. 4-27, 4-29)
4. Driver’s supplemental air bag/horn
(P. 1-36, 2-22)
5. Meters and gauges (P. 2-3)6. Cruise control main/set switches
(if so equipped) (P. 5-24)
7. Windshield wiper/washer switch
(P. 2-17, 2-18)
8. Audio system (if so equipped) (P. 4-10)
9. Storage bin (P. 2-23)
10. Center ventilator (P. 4-2)
11. Passenger’s supplemental air bag
(P. 1-36)
12. Side ventilator (P. 4-2)
13. Glove box (P. 2-26)
14. Hazard warning flasher switch (P. 2-22)
15. Cup holders (P. 2-25)
16. Shift selector (P. 5-14)
17. Defroster switch (P. 2-19)
18. Climate control (P. 4-3)
19. Passenger air bag status light (P. 1-44)
20. Ignition switch (P. 5-7)
21. Tilt steering (P. 3-28)
22. Hood release lever (P. 3-22)
23. Fuel-filler lid release lever (P. 3-26)
24. Fuse block (P. 8-23)
25. Instrument brightness control (P. 2-21)
See the page number indicated in paren-
theses for operating details.
WIC1286
INSTRUMENT PANEL
Illustrated table of contents0-7
REVIEW COPY—2009 Versa(vrs)
Owners Manual—USA_English(nna)
09/10/08—debbie
Page 14 of 305
HR16DE
1. Engine oil filler cap (P. 8-9)
2. Brake and clutch (*1) fluid reservoir
(P. 8-15)
3. Air cleaner (P. 8-20)
4. Battery (P. 8-16)
5. Fuse/fusible link box (P. 8-23)
6. Automatic transmission fluid (ATF)
dipstick (*2) (P. 8-13)
7. Radiator cap (P. 8-8)
8. Engine coolant reservoir (P. 8-8)
9. Engine oil dipstick (P. 8-9)
10. Drive belt location (P. 8-18)
11. Windshield washer fluid reservoir
(P. 8-16)
*1 For Manual Transmission (M/T) model
*2 For Automatic Transmission (A/T)
model
See the page number indicated in paren-
theses for operating details.
WDI0697
ENGINE COMPARTMENT CHECK
LOCATIONS
0-8Illustrated table of contents
REVIEW COPY—2009 Versa(vrs)
Owners Manual—USA_English(nna)
09/26/08—tbrooks
Page 15 of 305
MR18DE
1. Engine oil filler cap (P. 8-9)
2. Brake and clutch (*1) fluid reservoir
(P. 8-15)
3. Air cleaner (P. 8-20)
4. Battery (P. 8-16)
5. Fuse/fusible link box (P. 8-23)
6. Automatic transmission fluid (ATF)
dipstick (*2) (P. 8-13)
7. Radiator cap (P. 8-8)
8. Engine oil dipstick (P. 8-9)
9. Engine coolant reservoir (P. 8-8)
10. Drive belt location (P.8-18)
11. Windshield washer fluid reservoir
(P. 8-16)
*1 For Manual Transmission (M/T) model
*2 For Automatic Transmission (A/T)
model
See the page number indicated in paren-
theses for operating details.
LII0171
Illustrated table of contents0-9
REVIEW COPY—2009 Versa(vrs)
Owners Manual—USA_English(nna)
09/10/08—debbie
Page 16 of 305

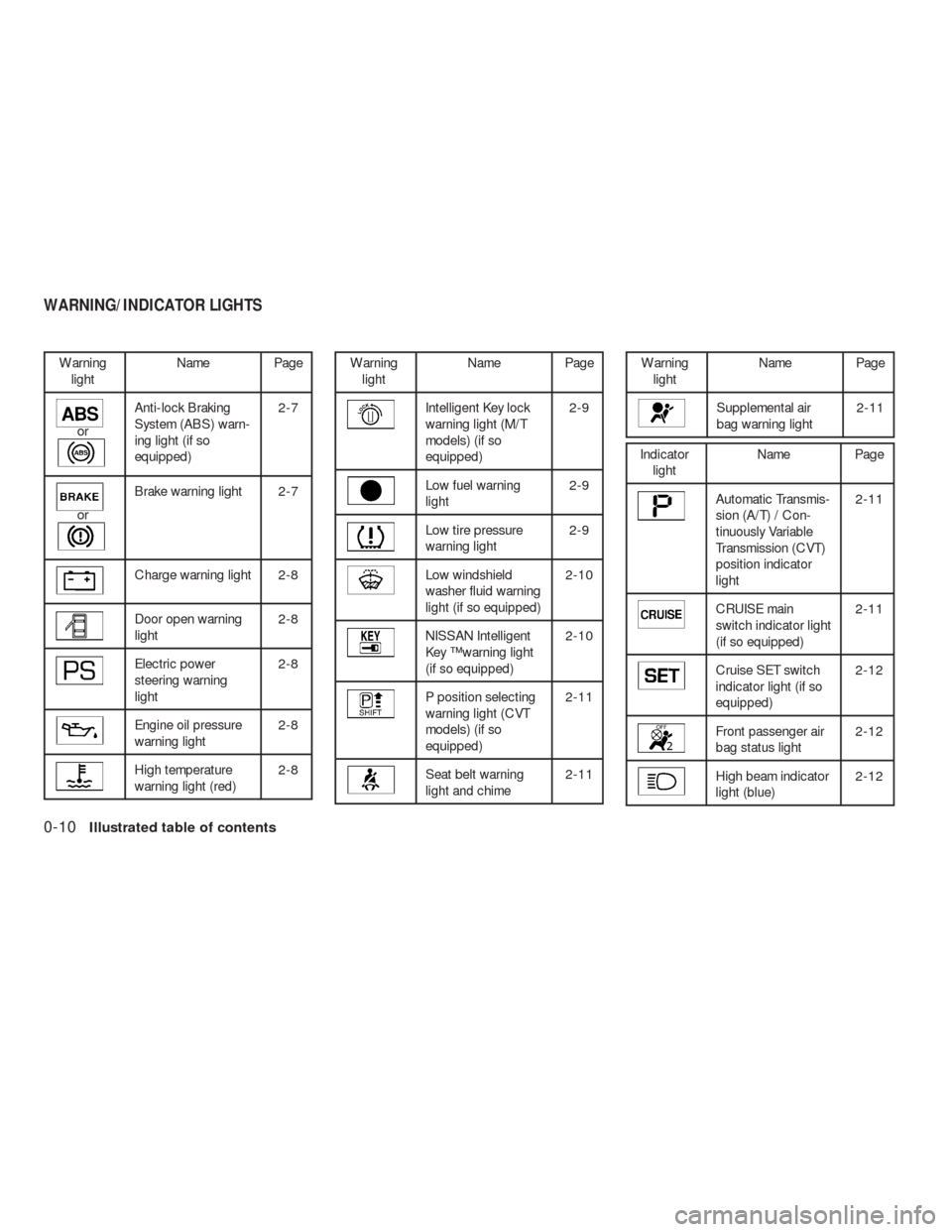

Warning
lightName Page
or
Anti-lock Braking
System (ABS) warn-
ing light (if so
equipped)2-7
or
Brake warning light 2-7
Charge warning light 2-8
Door open warning
light2-8
Electric power
steering warning
light2-8
Engine oil pressure
warning light2-8
High temperature
warning light (red)2-8
Warning
lightName Page
Intelligent Key lock
warning light (M/T
models) (if so
equipped)2-9
Low fuel warning
light2-9
Low tire pressure
warning light2-9
Low windshield
washer fluid warning
light (if so equipped)2-10
NISSAN Intelligent
Key ™ warning light
(if so equipped)2-10
P position selecting
warning light (CVT
models) (if so
equipped)2-11
Seat belt warning
light and chime2-11
Warning
lightName Page
Supplemental air
bag warning light2-11
Indicator
lightName Page
Automatic Transmis-
sion (A/T) / Con-
tinuously Variable
Transmission (CVT)
position indicator
light2-11
CRUISE main
switch indicator light
(if so equipped)2-11
Cruise SET switch
indicator light (if so
equipped)2-12
Front passenger air
bag status light2-12
High beam indicator
light (blue)2-12
WARNING/INDICATOR LIGHTS
0-10Illustrated table of contents
REVIEW COPY—2009 Versa(vrs)
Owners Manual—USA_English(nna)
09/10/08—debbie
Page 17 of 305
Indicator
lightName Page
Low temperature
indicator light (blue)2-12
Malfunction Indica-
tor Light (MIL)2-12
Overdrive OFF indi-
cator light (A/T /
CVT models)2-13
Security indicator
light2-13
Turn signal/hazard
indicator lights2-13
Illustrated table of contents0-11
REVIEW COPY—2009 Versa(vrs)
Owners Manual—USA_English(nna)
09/10/08—debbie
Page 18 of 305
0-12Illustrated table of contents
MEMO

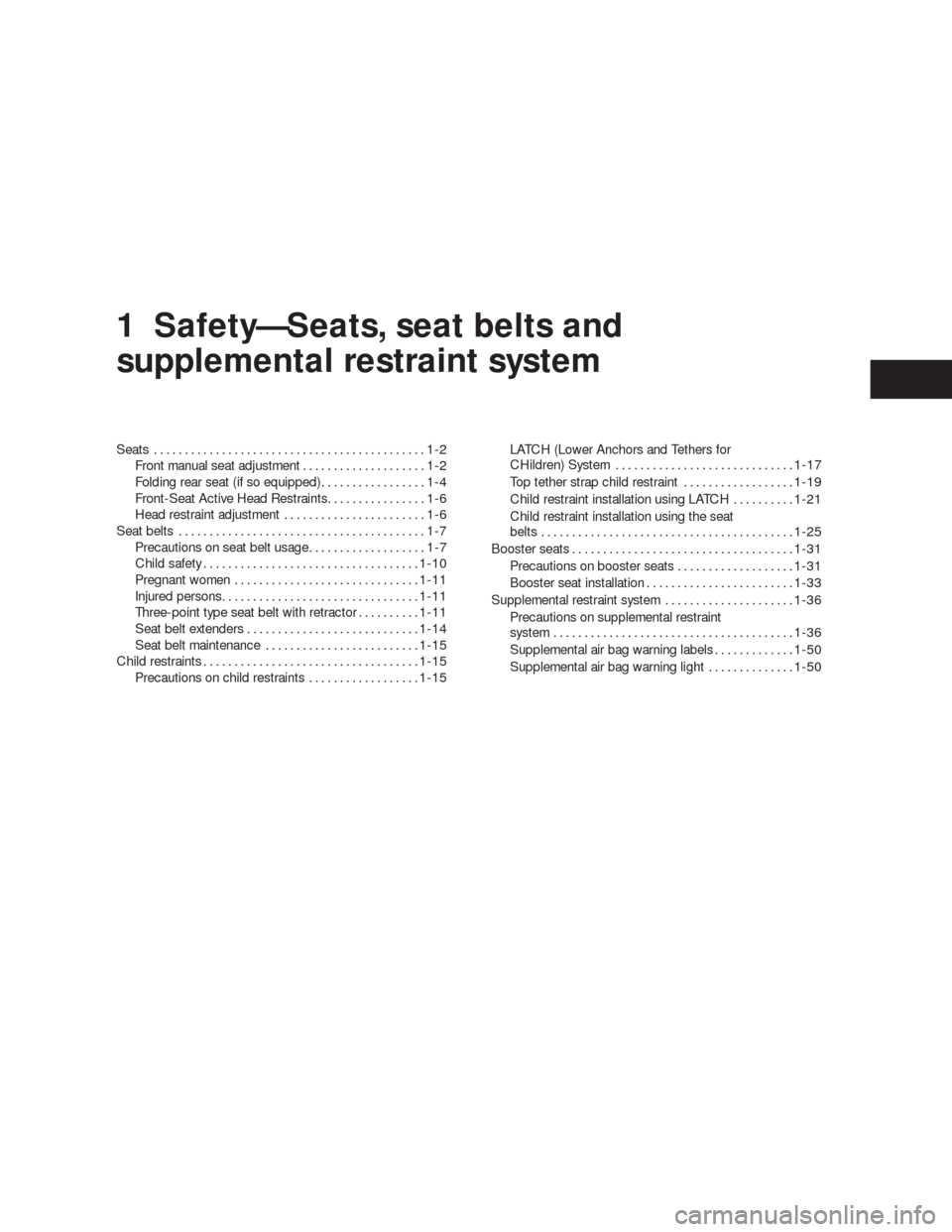

Page 19 of 305
1 Safety—Seats, seat belts and
supplemental restraint system
Seats............................................1-2
Front manual seat adjustment....................1-2
Folding rear seat (if so equipped).................1-4
Front-Seat Active Head Restraints................1-6
Head restraint adjustment.......................1-6
Seat belts........................................1-7
Precautions on seat belt usage...................1-7
Child safety...................................1-10
Pregnant women..............................1-11
Injured persons................................1-11
Three-point type seat belt with retractor..........1-11
Seat belt extenders............................1-14
Seat belt maintenance.........................1-15
Child restraints...................................1-15
Precautions on child restraints..................1-15LATCH (Lower Anchors and Tethers for
CHildren) System.............................1-17
Top tether strap child restraint..................1-19
Child restraint installation using LATCH..........1-21
Child restraint installation using the seat
belts.........................................1-25
Booster seats....................................1-31
Precautions on booster seats...................1-31
Booster seat installation........................1-33
Supplemental restraint system.....................1-36
Precautions on supplemental restraint
system.......................................1-36
Supplemental air bag warning labels.............1-50
Supplemental air bag warning light..............1-50
REVIEW COPY—2009 Versa(vrs)
Owners Manual—USA_English(nna)
09/10/08—debbie
Page 20 of 305
WARNING
●Do not ride in a moving vehicle when
the seatback is reclined. This can be
dangerous. The shoulder belt will not
be against your body. In an accident,
you could be thrown into it and receive
neck or other serious injuries. You
could also slide under the lap belt and
receive serious internal injuries.●For the most effective protection when
the vehicle is in motion, the seat should
be upright. Always sit well back in the
seat with both feet on the floor and
adjust the seat properly. See “Precau-
tions on seat belt usage” later in this
section.
●After adjustment, gently rock in the seat
to make sure it is securely locked.
●Do not leave children unattended inside
the vehicle. They could unknowingly ac-
tivate switches or controls. Unattended
children could become involved in seri-
ous accidents.●The seatback should not be reclined
any more than needed for comfort. Seat
belts are most effective when the pas-
senger sits well back and straight up in
the seat. If the seatback is reclined, the
risk of sliding under the lap belt and
being injured is increased.
CAUTION
When adjusting the seat positions, be
sure not to contact any moving parts to
avoid possible injuries and/or damage.
FRONT MANUAL SEAT
ADJUSTMENTARS1152
SEATS
1-2Safety—Seats, seat belts and supplemental restraint system
