1. Engine hood (P. 3-23)
2. Windshield wiper and washer switch(P. 2-18)
3. Windshield (P. 8-21)
4. Moonroof (if so equipped) (P. 2-33)
5. Power windows (if so equipped)
(P. 2-30)
6. Door locks, keyfob (if so equipped) ,
NISSAN Intelligent Key ™
(if so equipped) , keys
(P. 3-4, 3-7, 3-3, 3-2)
7. Mirrors (P. 3-30)
8. Tire pressure (P. 8-34)
9. Flat tire (P. 6-2)
10. Tire chains (P. 8-41)
11. Headlight and turn signal switch
(P. 2-20)
12. Replacing bulbs (P. 8-29)
13. Fog light switch (if so equipped)
(P. 2-20)
14. Tie down hook (P. 6-13)
See the page number indicated in paren-
theses for operating details.
WII0178
EXTERIOR FRONT
Illustrated table of contents0-3

Hatchback
1. Rear hatch opener switch/NISSANIntelligent Key™ (if so equipped)
(P. 3-24, 3-13)
2. Rear window defroster switch (P. 2-20)
3. Antenna (P. 4-46)
4. Child safety rear door locks (P. 3-7)
5. Fuel-filler door (P. 3-27)
6. Fuel-filler cap, fuel recommendation
(P. 3-28, 9-4)
7. Replacing bulbs (P. 8-29)
8. Interior hatch release (P. 3-25)
9. Rear window washer (P. 2-19)
See the page number indicated in paren-
theses for operating details.
WII0093
EXTERIOR REAR
0-4Illustrated table of contents

Sedan
1. Interior trunk lid release (P. 3-27 )
2. Rear window defroster switch (P. 2-20)
3. Antenna (P. 4-46)
4. Child safety rear door locks (P. 3-7)
5. Fuel-filler door (P. 3-27)
6. Fuel-filler cap, fuel recommendation(P. 3-28, 9-4)
7. Replacing bulbs (P. 8-29)
8. Trunk opener switch/NISSAN Intelligent
Key ™ (if so equipped) (P. 3-25 / 3-13)
See the page number indicated in paren-
theses for operating details.
WII0102
Illustrated table of contents0-5

2 Instruments and controls
Instrument panel...................................2-2
Meters and gauges ................................2-3
Speedometer and odometer .....................2-4
Tachometer ....................................2-5
Fuel gauge ....................................2-5
Warning/indicator lights and audible reminders .......2-6
Checking bulbs ................................2-7
Warning lights .................................2-7
Indicator lights ................................ 2-12
Audible reminders ............................. 2-14
Security systems ................................. 2-15
Vehicle security system (if so equipped) ..........2-15
NISSAN vehicle immobilizer system .............2-17
Windshield wiper and washer switch ...............2-18
Switch operation .............................. 2-18
Rear window wiper and washer switch
(if so equipped) .................................. 2-19
Rear window and outside mirror (if so equipped)
defroster switch .................................. 2-20
Headlight and turn signal switch ....................2-20
Headlight control switch ........................ 2-20
Daytime running light system (Canada only) ......2-21
Instrument brightness control . ..................2-22Turn signal switch
............................. 2-22
Fog light switch (if so equipped) ................2-22
Hazard warning flasher switch .....................2-23
Horn ............................................ 2-23
Vehicle Dynamic Control (VDC) off switch
(if so equipped) .................................. 2-24
Power outlet ..................................... 2-24
Storage ......................................... 2-25
Map pockets .................................. 2-25
Storage trays ................................. 2-25
Sunglasses holder (if so equipped) ..............2-26
Cup holders .................................. 2-27
Glove box .................................... 2-28
Console box (if so equipped) ...................2-28
Covered storage bin ........................... 2-29
Cargo cover (if so equipped)
(Hatchback models only) .......................2-29
Windows ........................................ 2-30
P ower windows

(if so equipped) ................ 2-30
Manual windows (if so equipped) ................2-33
Moonroof (if so equipped) ......................... 2-33
Automatic moonroof ........................... 2-33
Interior light ...................................... 2-35

CHECKING BULBS
With all doors closed, apply the parking brake
and place the ignition switch in the ON position
without starting the engine. The following lights
will come on:
or,,,(blue) ,
,,
If equipped, the following lights come on briefly
and then go off:
or,(red) ,,,
,,,,,
If any light fails to come on, it may indicate
a burned-out bulb or an open circuit in the
electrical system. Have the system repaired
promptly.
WARNING LIGHTS
orAnti-lock BrakingSystem (ABS)
warning light (if so
equipped)
When the ignition switch is placed in the ON
position, the Anti-lock Braking System (ABS)
warning light illuminates and then turns off. This
indicates the ABS is operational.
If the ABS warning light illuminates while the
engine is running, or while driving, it may indicate
the ABS is not functioning properly. Have the
system checked by a NISSAN dealer.
If an ABS malfunction occurs, the anti-lock func-
tion is turned off. The brake system then operates
normally, but without anti-lock assistance. See
Brake system in theStarting and driving sec-
tion.
orBrake warning light
This light functions for both the parking brake and
the foot brake systems. Parking brake indicator
When the ignition switch is placed in the ON
position, the light comes on when the parking
brake is applied.
Low brake fluid warning light
When the ignition switch is placed in the ON
position, the light warns of a low brake fluid level.
If the light comes on while the engine is running
with the parking brake not applied, stop the ve-
hicle and perform the following:
1. Check the brake fluid level. Add brake fluid as necessary. See “Brake fluid” in the “Main-
tenance and do-it-yourself” section of this
manual.
2. If the brake fluid level is correct, have the warning system checked by a NISSAN
dealer.
WARNING
●Your brake system may not be working
properly if the warning light is on. Driv-
ing could be dangerous. If you judge it
to be safe, drive carefully to the nearest
service station for repairs. Otherwise,
have your vehicle towed because driv-
ing it could be dangerous.
Instruments and controls2-7

The light illuminates when the trunk lid is opened.
When the trunk lid is closed, the light goes off.
The light also illuminates with other interior lights
when the interior light switch is in the DOOR
position. See “Interior light” earlier in this section.
The lights will turn off automatically after 15 min-
utes while the trunk lid is open to prevent the
battery from becoming discharged.
For bulb replacement procedures, refer to “Exte-
rior and interior lights” in the “Maintenance and
do-it-yourself” section of this manual.

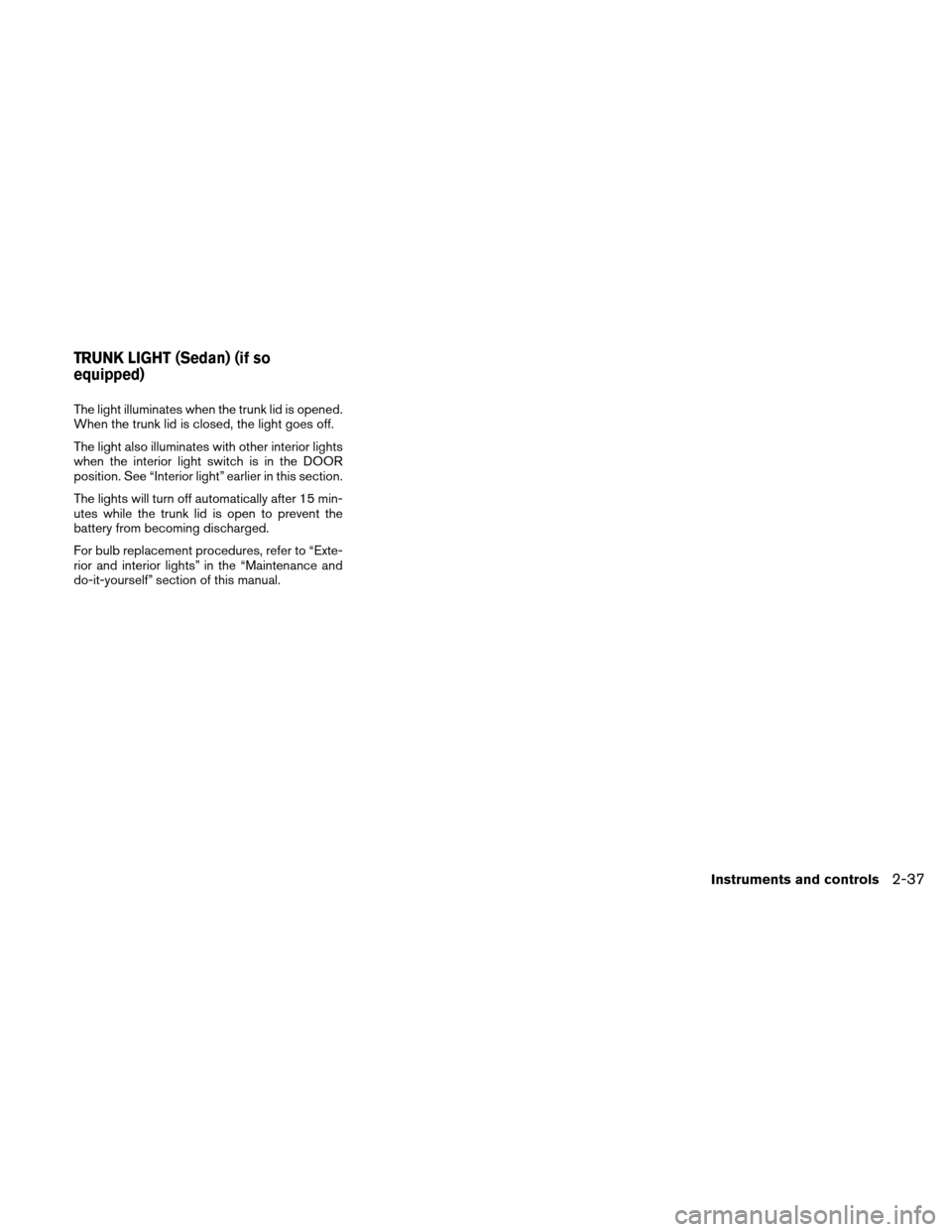

TRUNK LIGHT (Sedan) (if so
equipped)
Instruments and controls2-37

4. Close the lid securely as illustratedCD.
5. Operate the buttons to check the operation.
See a NISSAN dealer if you need assistance for
replacement.
FCC Notice:
Changes or modifications not expressly ap-
proved by the party responsible for compli-
ance could void the user’s authority to op-
erate the equipment.
This device complies with Part 15 of the
FCC Rules and RSS-210 of Industry
Canada. Operation is subject to the following two
conditions: (1) This device may not cause
harmful interference, and (2) this device
must accept any interference received, in-
cluding interference that may cause undes-
ired operation of the device.
HEADLIGHTS
Replacing the halogen headlight bulb
The headlight is a semi-sealed beam type which
uses a replaceable headlight (halogen) bulb.
They can be replaced from inside the engine
compartment without removing the headlight as-
sembly.
See a NISSAN dealer for replacing the head-
lights.
CAUTION
●
Aiming is not necessary after replacing
the bulb. When aiming adjustment is
necessary, contact a NISSAN dealer.
● Do not leave the headlight assembly
open without a bulb installed for a long
period of time. Dust, moisture, smoke,
etc. entering the headlight body may
affect bulb performance. Remove the
bulb from the headlight assembly just
before a replacement bulb is installed.
● Only touch the base when handling the
bulb. Never touch the glass envelope.
Touching the glass could significantly
affect bulb life and/or headlight
performance.WDI0535
LIGHTS
Maintenance and do-it-yourself8-29

●High pressure halogen gas is sealed
inside the halogen bulb. The bulb may
break if the glass envelope is scratched
or the bulb is dropped.
● Use the same number and wattage as
shown in the chart.
Fog may temporarily form inside the lens of the
exterior lights in the rain or in a car wash. A
temperature difference between the inside and
the outside of the lens causes the fog. This is not
a malfunction. If large drops of water collect
inside the lens, contact a NISSAN dealer.EXTERIOR AND INTERIOR LIGHTS
Item Wattage (W)Bulb No.*1
Headlight assembly*2 High/low (Halogen) 60/55HB2
Turn 21PY21W
Front clearance light 5WY5W
Front fog light*2 (if so equipped) 35H8
Map lights (if so equipped) 87Y
Interior light 87Y
Luggage compartment light (hatchback) / Trunk
light (sedan) (if so equipped) 5—
High-mounted stop light Inside 18921
Spoiler*2 (if so equipped) LED—
Hatchback*2 LED—
Rear combination light*2 Turn signal light 217507 LF
Stop/Tail 21/512499 LL
Backup (reversing) 2112498
License plate light*2 52J6
*1 Always check with the Parts Department at a NISSAN dealer for the latest parts information.
*2 If replacement is required contact a NISSAN dealer.
8-30Maintenance and do-it-yourself

Replacement procedures
All other lights are either type A, B, C or D. When
replacing a bulb, first remove the lens, lamp
and/or cover.
Indicates bulb removal
Indicates bulb installationUse a cloth to protect the housing.
SDI1805
Interior light
SDI1499A
8-32Maintenance and do-it-yourself

Use a cloth to protect the housing.Open the trunk to access the bulb base.
Use a cloth to protect the housing.
Map lights (if so equipped)
WDI0624
High-mounted stop light (sedan)
LDI0625
Luggage compartment light(Hatchback)
SDI1873
Maintenance and do-it-yourself8-33
