Page 154 of 338

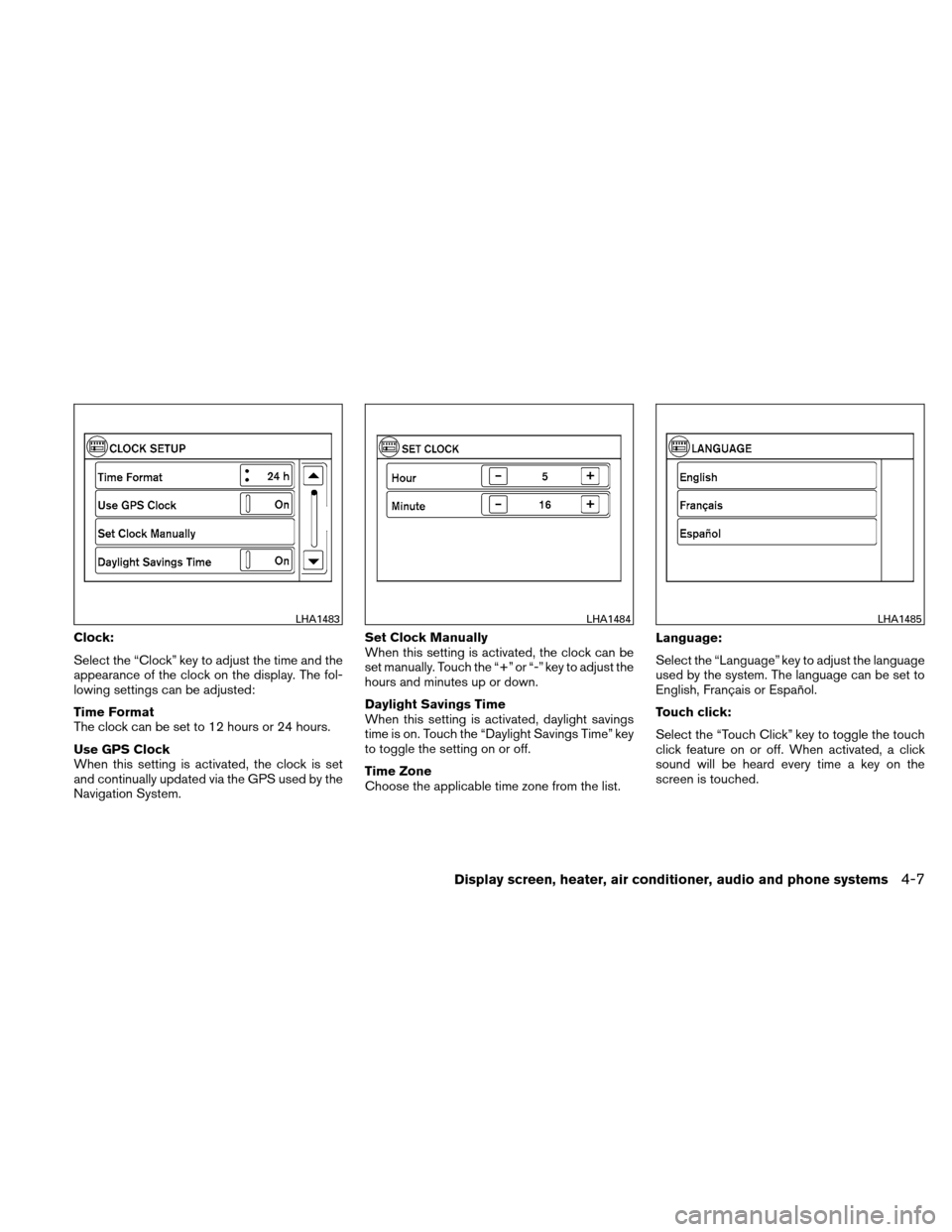

Clock:
Select the “Clock” key to adjust the time and the
appearance of the clock on the display. The fol-
lowing settings can be adjusted:
Time Format
The clock can be set to 12 hours or 24 hours.
Use GPS Clock
When this setting is activated, the clock is set
and continually updated via the GPS used by the
Navigation System.Set Clock Manually
When this setting is activated, the clock can be
set manually. Touch the “+” or “-” key to adjust the
hours and minutes up or down.
Daylight Savings Time
When this setting is activated, daylight savings
time is on. Touch the “Daylight Savings Time” key
to toggle the setting on or off.
Time Zone
Choose the applicable time zone from the list.
Language:
Select the “Language” key to adjust the language
used by the system. The language can be set to
English, Français or Español.
Touch click:
Select the “Touch Click” key to toggle the touch
click feature on or off. When activated, a click
sound will be heard every time a key on the
screen is touched.
LHA1483LHA1484LHA1485
Display screen, heater, air conditioner, audio and phone systems4-7
Page 173 of 338

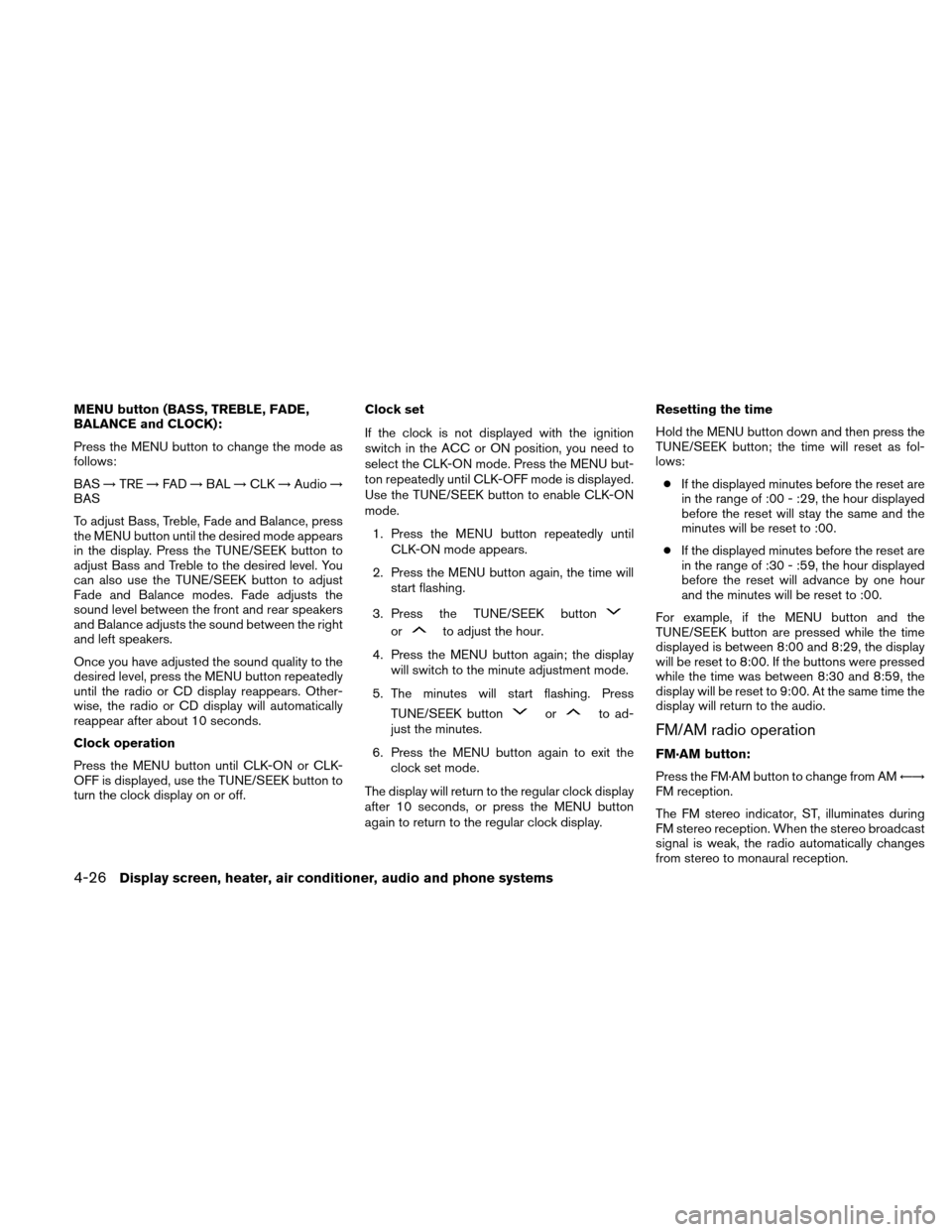

MENU button (BASS, TREBLE, FADE,
BALANCE and CLOCK):
Press the MENU button to change the mode as
follows:
BAS→TRE →FAD →BAL →CLK →Audio →
BAS
To adjust Bass, Treble, Fade and Balance, press
the MENU button until the desired mode appears
in the display. Press the TUNE/SEEK button to
adjust Bass and Treble to the desired level. You
can also use the TUNE/SEEK button to adjust
Fade and Balance modes. Fade adjusts the
sound level between the front and rear speakers
and Balance adjusts the sound between the right
and left speakers.
Once you have adjusted the sound quality to the
desired level, press the MENU button repeatedly
until the radio or CD display reappears. Other-
wise, the radio or CD display will automatically
reappear after about 10 seconds.
Clock operation
Press the MENU button until CLK-ON or CLK-
OFF is displayed, use the TUNE/SEEK button to
turn the clock display on or off. Clock set
If the clock is not displayed with the ignition
switch in the ACC or ON position, you need to
select the CLK-ON mode. Press the MENU but-
ton repeatedly until CLK-OFF mode is displayed.
Use the TUNE/SEEK button to enable CLK-ON
mode.
1. Press the MENU button repeatedly until CLK-ON mode appears.
2. Press the MENU button again, the time will start flashing.
3. Press the TUNE/SEEK button
orto adjust the hour.
4. Press the MENU button again; the display will switch to the minute adjustment mode.
5. The minutes will start flashing. Press TUNE/SEEK button
orto ad-
just the minutes.
6. Press the MENU button again to exit the clock set mode.
The display will return to the regular clock display
after 10 seconds, or press the MENU button
again to return to the regular clock display. Resetting the time
Hold the MENU button down and then press the
TUNE/SEEK button; the time will reset as fol-
lows:
● If the displayed minutes before the reset are
in the range of :00 - :29, the hour displayed
before the reset will stay the same and the
minutes will be reset to :00.
● If the displayed minutes before the reset are
in the range of :30 - :59, the hour displayed
before the reset will advance by one hour
and the minutes will be reset to :00.
For example, if the MENU button and the
TUNE/SEEK button are pressed while the time
displayed is between 8:00 and 8:29, the display
will be reset to 8:00. If the buttons were pressed
while the time was between 8:30 and 8:59, the
display will be reset to 9:00. At the same time the
display will return to the audio.
FM/AM radio operation
FM·AM button:
Press the FM·AM button to change from AM ←→
FM reception.
The FM stereo indicator, ST, illuminates during
FM stereo reception. When the stereo broadcast
signal is weak, the radio automatically changes
from stereo to monaural reception.
4-26Display screen, heater, air conditioner, audio and phone systems
Page 176 of 338

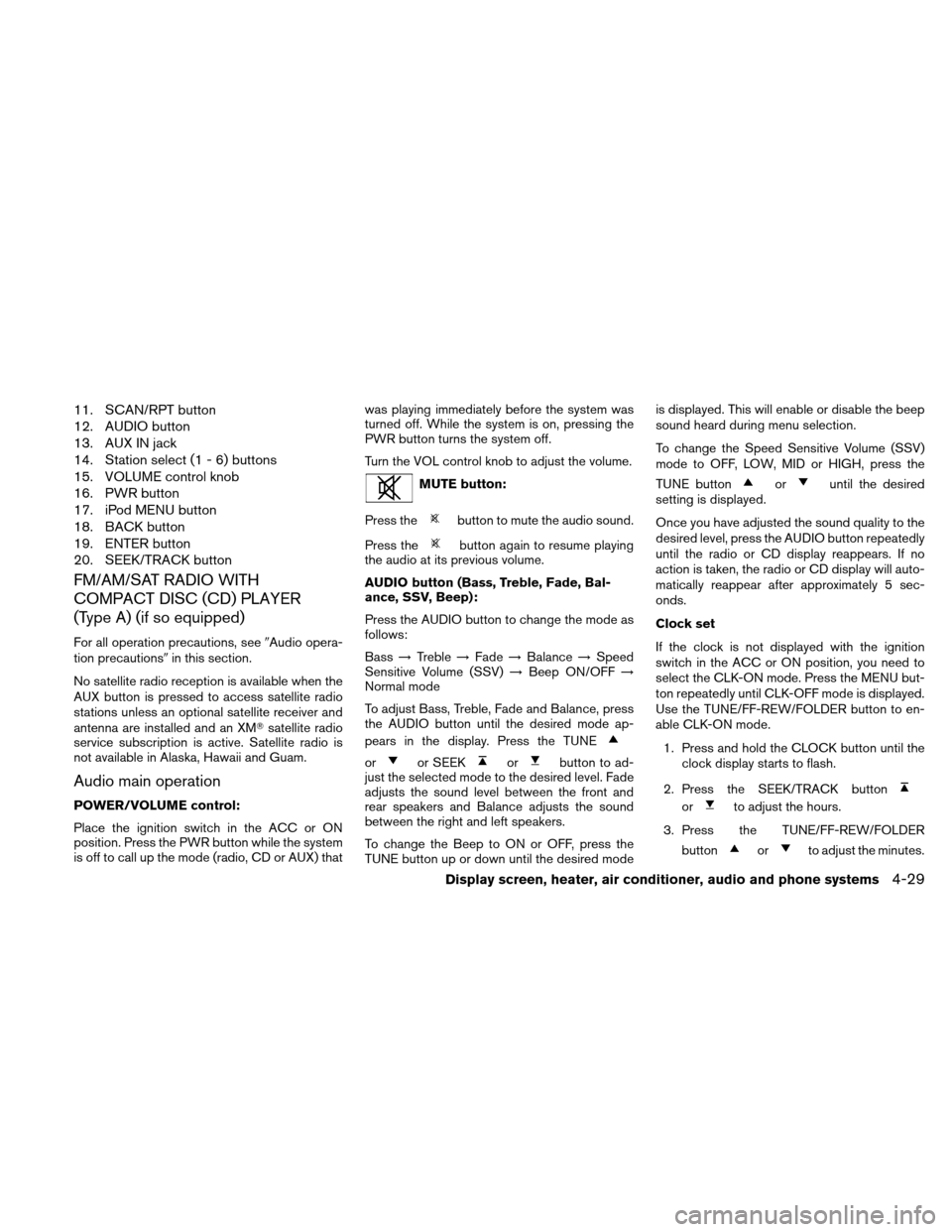

11. SCAN/RPT button
12. AUDIO button
13. AUX IN jack
14. Station select (1 - 6) buttons
15. VOLUME control knob
16. PWR button
17. iPod MENU button
18. BACK button
19. ENTER button
20. SEEK/TRACK button
FM/AM/SAT RADIO WITH
COMPACT DISC (CD) PLAYER
(Type A) (if so equipped)
For all operation precautions, seeAudio opera-
tion precautions in this section.
No satellite radio reception is available when the
AUX button is pressed to access satellite radio
stations unless an optional satellite receiver and
antenna are installed and an XM satellite radio
service subscription is active. Satellite radio is
not available in Alaska, Hawaii and Guam.
Audio main operation
POWER/VOLUME control:
Place the ignition switch in the ACC or ON
position. Press the PWR button while the system
is off to call up the mode (radio, CD or AUX) that was playing immediately before the system was
turned off. While the system is on, pressing the
PWR button turns the system off.
Turn the VOL control knob to adjust the volume.
MUTE button:
Press the
button to mute the audio sound.
Press the
button again to resume playing
the audio at its previous volume.
AUDIO button (Bass, Treble, Fade, Bal-
ance, SSV, Beep):
Press the AUDIO button to change the mode as
follows:
Bass →Treble →Fade →Balance →Speed
Sensitive Volume (SSV) →Beep ON/OFF →
Normal mode
To adjust Bass, Treble, Fade and Balance, press
the AUDIO button until the desired mode ap-
pears in the display. Press the TUNE
oror SEEKorbutton to ad-
just the selected mode to the desired level. Fade
adjusts the sound level between the front and
rear speakers and Balance adjusts the sound
between the right and left speakers.
To change the Beep to ON or OFF, press the
TUNE button up or down until the desired mode is displayed. This will enable or disable the beep
sound heard during menu selection.
To change the Speed Sensitive Volume (SSV)
mode to OFF, LOW, MID or HIGH, press the
TUNE button
oruntil the desired
setting is displayed.
Once you have adjusted the sound quality to the
desired level, press the AUDIO button repeatedly
until the radio or CD display reappears. If no
action is taken, the radio or CD display will auto-
matically reappear after approximately 5 sec-
onds.
Clock set
If the clock is not displayed with the ignition
switch in the ACC or ON position, you need to
select the CLK-ON mode. Press the MENU but-
ton repeatedly until CLK-OFF mode is displayed.
Use the TUNE/FF-REW/FOLDER button to en-
able CLK-ON mode.
1. Press and hold the CLOCK button until the clock display starts to flash.
2. Press the SEEK/TRACK button
orto adjust the hours.
3. Press the TUNE/FF-REW/FOLDER button
orto adjust the minutes.
Display screen, heater, air conditioner, audio and phone systems4-29
Page 177 of 338

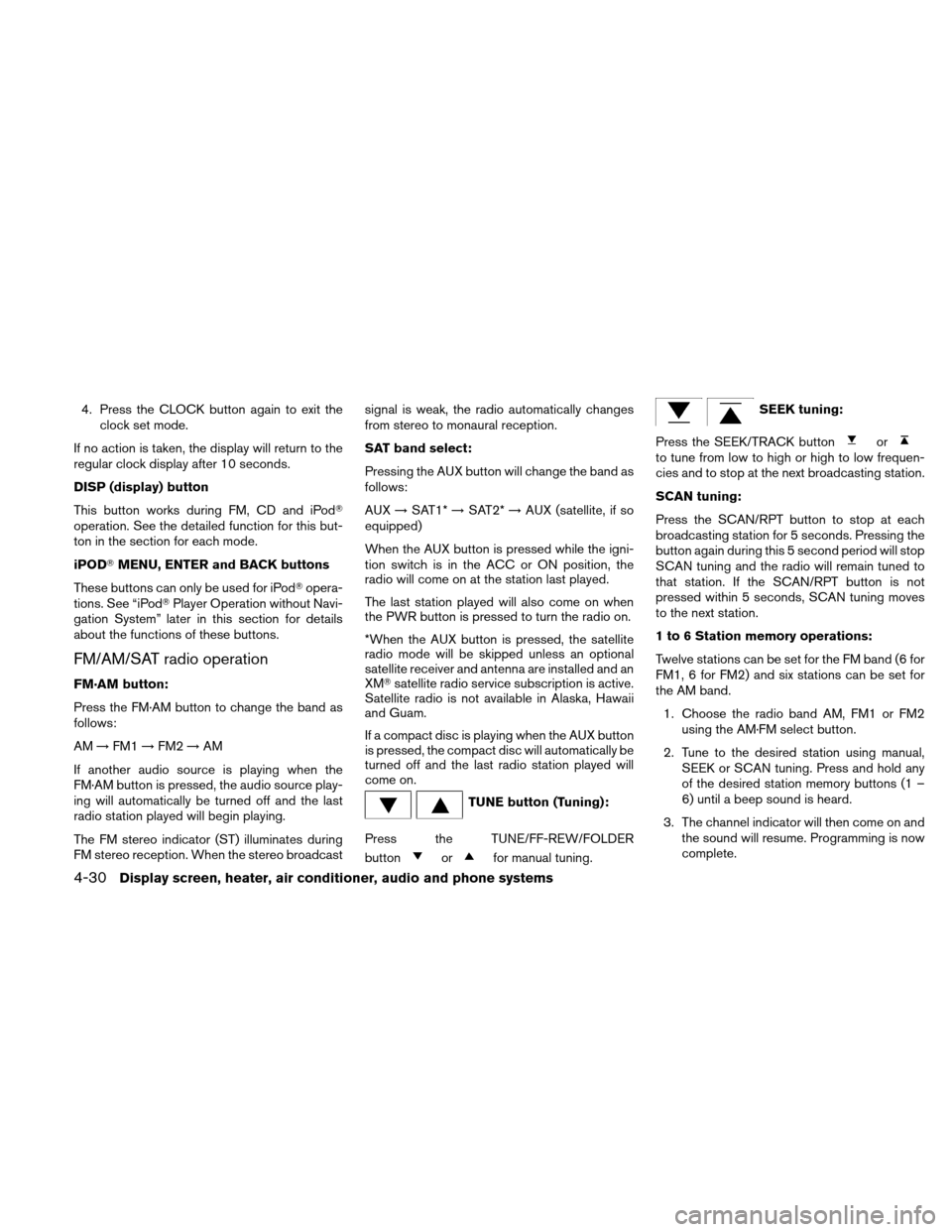

4. Press the CLOCK button again to exit theclock set mode.
If no action is taken, the display will return to the
regular clock display after 10 seconds.
DISP (display) button
This button works during FM, CD and iPod
operation. See the detailed function for this but-
ton in the section for each mode.
iPOD MENU, ENTER and BACK buttons
These buttons can only be used for iPod opera-
tions. See “iPod Player Operation without Navi-
gation System” later in this section for details
about the functions of these buttons.
FM/AM/SAT radio operation
FM·AM button:
Press the FM·AM button to change the band as
follows:
AM →FM1 →FM2 →AM
If another audio source is playing when the
FM·AM button is pressed, the audio source play-
ing will automatically be turned off and the last
radio station played will begin playing.
The FM stereo indicator (ST) illuminates during
FM stereo reception. When the stereo broadcast signal is weak, the radio automatically changes
from stereo to monaural reception.
SAT band select:
Pressing the AUX button will change the band as
follows:
AUX
→SAT1* →SAT2* →AUX (satellite, if so
equipped)
When the AUX button is pressed while the igni-
tion switch is in the ACC or ON position, the
radio will come on at the station last played.
The last station played will also come on when
the PWR button is pressed to turn the radio on.
*When the AUX button is pressed, the satellite
radio mode will be skipped unless an optional
satellite receiver and antenna are installed and an
XM satellite radio service subscription is active.
Satellite radio is not available in Alaska, Hawaii
and Guam.
If a compact disc is playing when the AUX button
is pressed, the compact disc will automatically be
turned off and the last radio station played will
come on.
TUNE button (Tuning):
Press the TUNE/FF-REW/FOLDER
button
orfor manual tuning.
SEEK tuning:
Press the SEEK/TRACK button
orto tune from low to high or high to low frequen-
cies and to stop at the next broadcasting station.
SCAN tuning:
Press the SCAN/RPT button to stop at each
broadcasting station for 5 seconds. Pressing the
button again during this 5 second period will stop
SCAN tuning and the radio will remain tuned to
that station. If the SCAN/RPT button is not
pressed within 5 seconds, SCAN tuning moves
to the next station.
1 to 6 Station memory operations:
Twelve stations can be set for the FM band (6 for
FM1, 6 for FM2) and six stations can be set for
the AM band. 1. Choose the radio band AM, FM1 or FM2 using the AM·FM select button.
2. Tune to the desired station using manual, SEEK or SCAN tuning. Press and hold any
of the desired station memory buttons (1 –
6) until a beep sound is heard.
3. The channel indicator will then come on and the sound will resume. Programming is now
complete.
4-30Display screen, heater, air conditioner, audio and phone systems
Page 331 of 338
Child safety rear door lock............3-7
Chimes, audible reminders ...........2-14
Cleaning exterior and interior ...........7-2
Clock ...................4-26, 4-29
Clutch Clutch fluid ..................8-15
C.M.V.S.S. certification label ..........9-11
Cold weather driving ..............5-32
Compact disc (CD) player . . . .4-27, 4-31, 4-36
Console box ...................2-28
Continuously Variable Transmission (CVT). . .5-17 Continuously Variable Transmission (CVT)
fluid ......................8-13
Driving with Continuously Variable
Transmission (CVT) .............5-17
Control panel buttons ...............4-2
Brightness/contrast button ..........4-8
Enter button ..................4-2
Setting button .................4-5
Controls Audio controls (steering wheel) .......4-45
Heater and air conditioner controls .....4-9
Coolant Capacities and recommended
fuel/lubricants .................9-2
Changing engine coolant ...........8-9
Checking engine coolant level ........8-8
Corrosion protection ...............7-5
Cruise control ..................5-24
Cup holders ...................2-27
Curtain side-impact air bag system
(See supplemental side air bag and curtain
side-impact air bag system) ...........1-52 D
Daytime running light system (Canada only) . .2-21
Defroster switch Rear window and outside mirror defroster
switch .....................2-20
Dimensions and weights .............9-9
Dimmer switch for instrument panel ......2-22
Display controls (see control panel buttons) . .4-2
Door locks ..................3-4, 3-5
Door open warning light .............2-8
Drive belt .....................8-18
Driving Cold weather driving ............5-32
Driving with automatic transmission . . . .5-13
Driving withContinuously
Variable
Transmission (CVT) .............5-17
Driving with manual transmission ......5-21
Precautions when starting and driving . . . .5-2
E
Economy - fuel ..................5-26
Emission control information label .......9-12
Emission control system warranty .......9-18
Engine Before starting the engine ..........5-12
Block heater .................5-33
Capacities and recommended
fuel/lubricants .................9-2
Changing engine coolant ...........8-9
Changing engine oil .............8-10
Changing engine oil filter ..........8-12
Checking engine coolant level ........8-8Checking engine oil level
...........8-9
Engine compartment check locations . . . .8-6
Engine cooling system ............8-8
Engine oil ...................8-9
Engine oil and oil filter recommendation . . .9-6
Engine oil pressure warning light .......2-8
Engine oil viscosity ..............9-6
Engine serial number ............9-11
Engine specifications .............9-8
Starting the engine .............5-12
Enter button ....................4-2
Event data recorders ..............9-20
Exhaust gas (Carbon monoxide) .........5-2
Eyeglass case ..................2-26
F
Flashers
(See hazard warning flasher switch) ......2-23
Flat tire .......................6-2
Floor mat positioning aid .............7-5
Fluid Automatic transmission fluid (ATF) .....8-13
Brake fluid ..................8-15
Capacities and recommended
fuel/lubricants .................9-2
Clutch fluid ..................8-15
Continuously Variable
Transmission (CVT)
fluid ......................8-13
Engine coolant .................8-8
Engine oil ...................8-9
F.M.V.S.S. certification label ...........9-11
Fog light switch .................2-22
Front air bag system
(See supplemental restraint system) ......1-48
10-2
