Page 301 of 350

NISSAN VERSA HATCHBACK 2011 1.G Owners Manual CAUTION
Be careful not to allow children to swallow
the battery or removed parts.
KEYFOB (if so equipped)
Replace the battery in the keyfob as follows:
1Open the lid using a coinA.
2Remove the batt

Page 302 of 350

NISSAN VERSA HATCHBACK 2011 1.G Owners Manual ●Do not touch the internal circuit and electric
terminals as it could cause a malfunction.
● When changing the battery, do not let dust
or oil get on the keyfob.
● There is danger of explosion i

Page 303 of 350

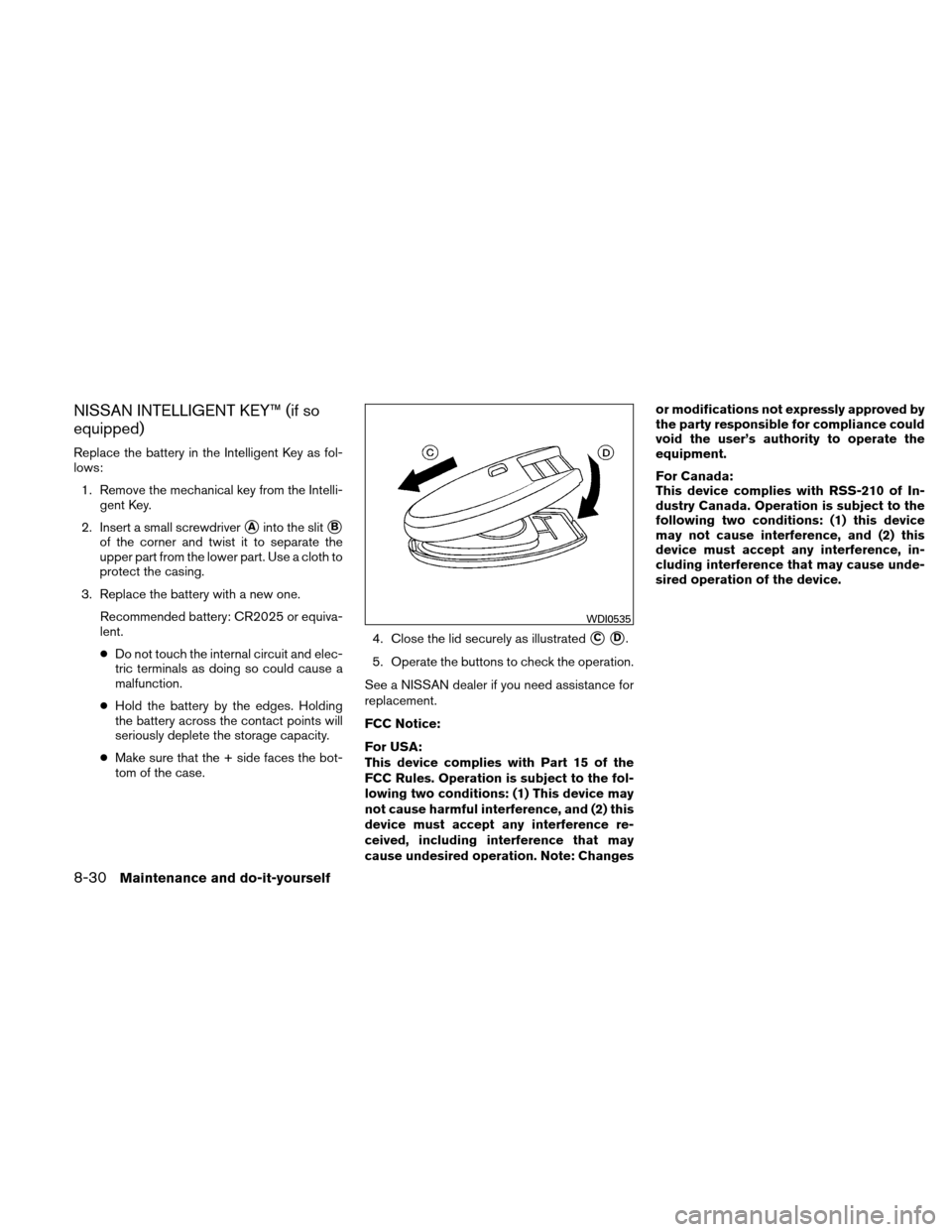

NISSAN VERSA HATCHBACK 2011 1.G Owners Manual NISSAN INTELLIGENT KEY™ (if so
equipped)
Replace the battery in the Intelligent Key as fol-
lows:1. Remove the mechanical key from the Intelli- gent Key.
2. Insert a small screwdriver
Ainto the sli

Page 304 of 350

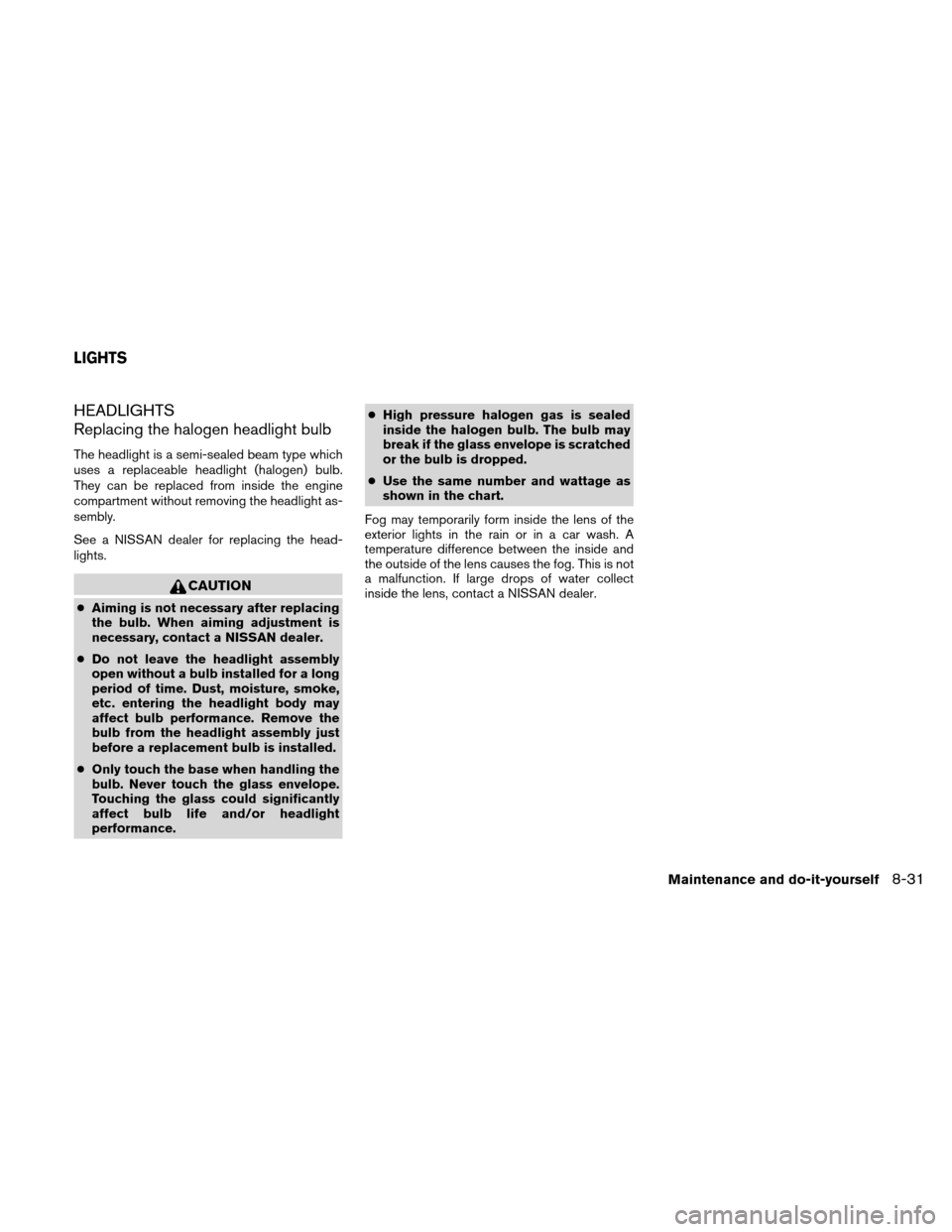

NISSAN VERSA HATCHBACK 2011 1.G Owners Manual HEADLIGHTS
Replacing the halogen headlight bulb
The headlight is a semi-sealed beam type which
uses a replaceable headlight (halogen) bulb.
They can be replaced from inside the engine
compartment with

Page 305 of 350

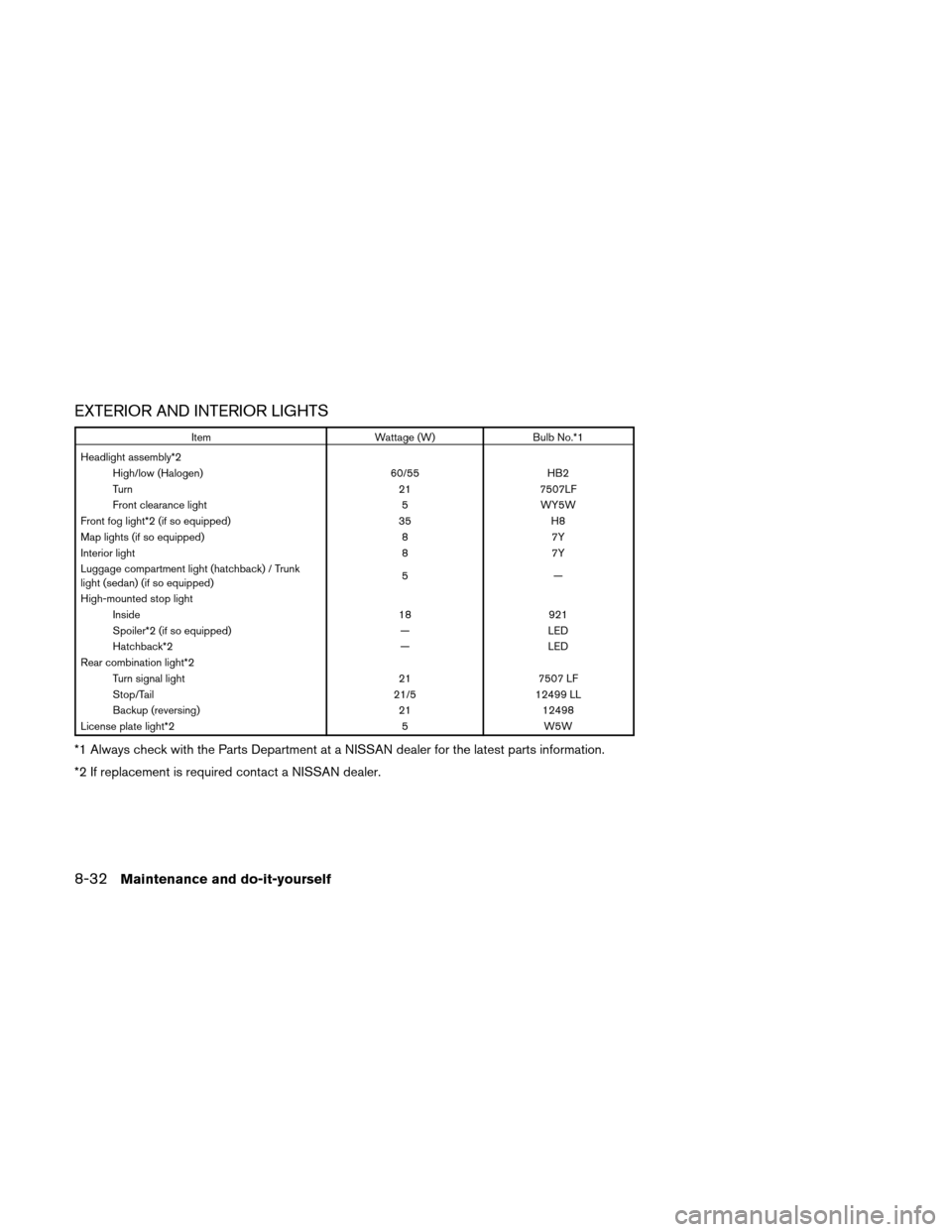

NISSAN VERSA HATCHBACK 2011 1.G Owners Manual EXTERIOR AND INTERIOR LIGHTS
ItemWattage (W)Bulb No.*1
Headlight assembly*2 High/low (Halogen) 60/55HB2
Turn 217507LF
Front clearance light 5WY5W
Front fog light*2 (if so equipped) 35H8
Map lights (if

Page 306 of 350

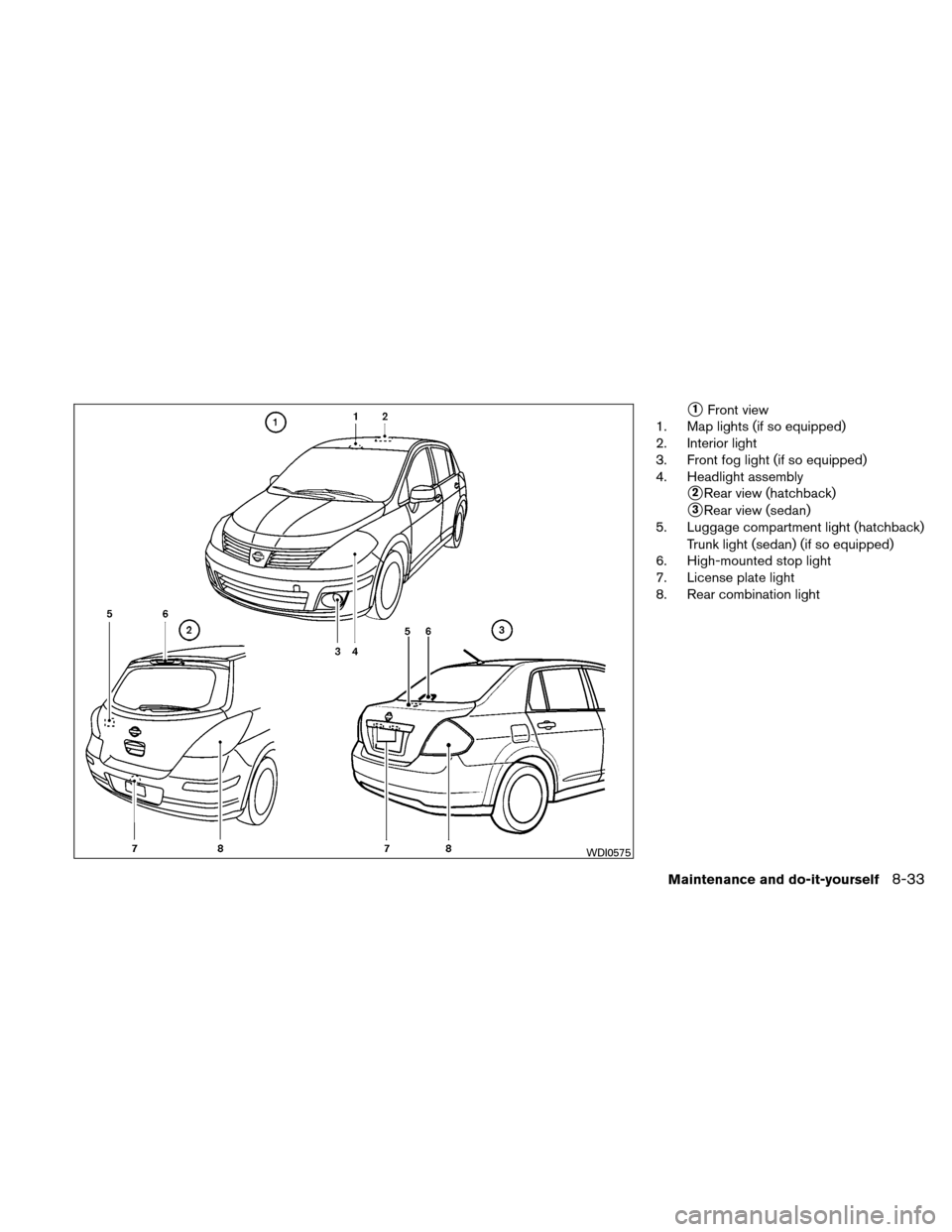

NISSAN VERSA HATCHBACK 2011 1.G Owners Manual 1Front view
1. Map lights (if so equipped)
2. Interior light
3. Front fog light (if so equipped)
4. Headlight assembly
2Rear view (hatchback)
3Rear view (sedan)
5. Luggage compartment light (hatchb

Page 307 of 350

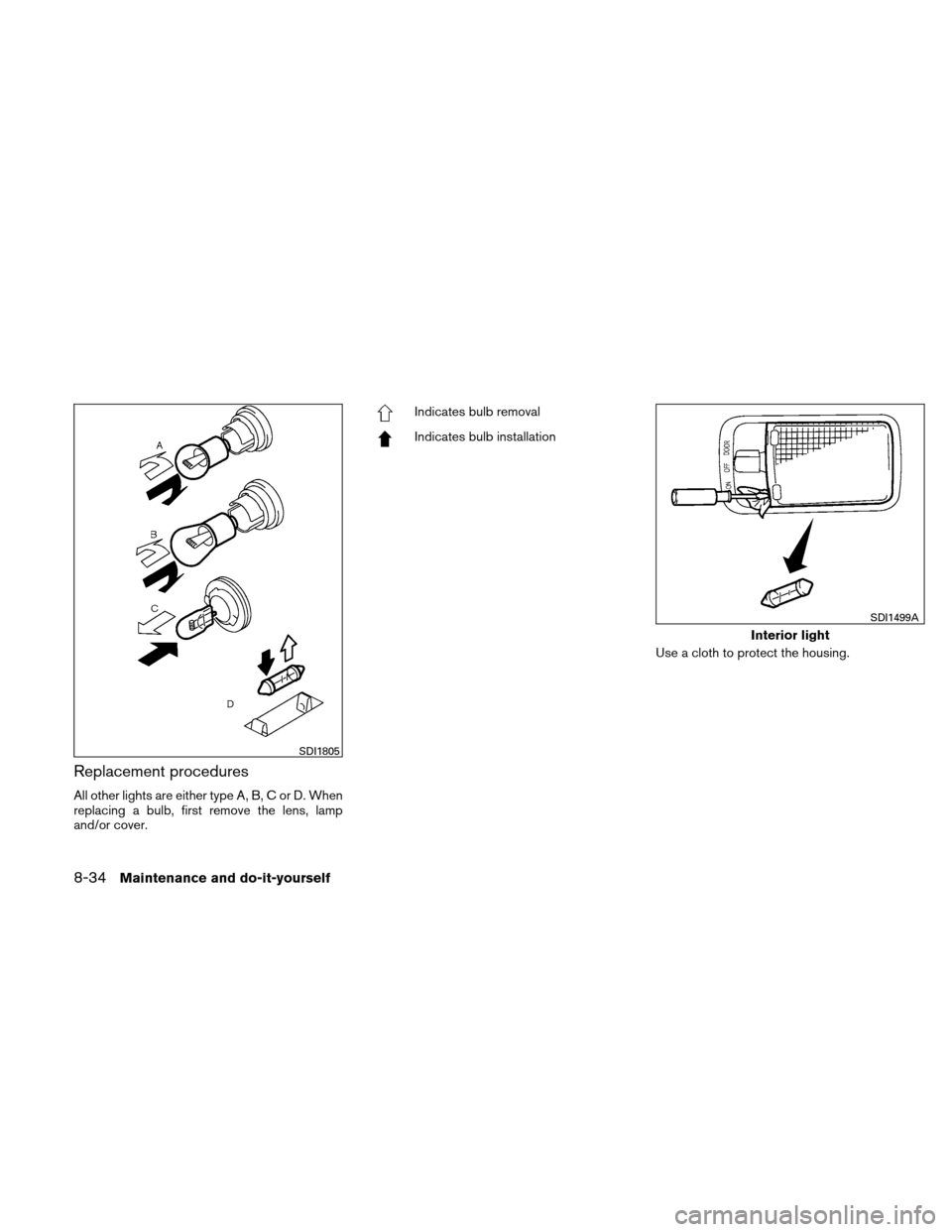

NISSAN VERSA HATCHBACK 2011 1.G Owners Manual Replacement procedures
All other lights are either type A, B, C or D. When
replacing a bulb, first remove the lens, lamp
and/or cover.
Indicates bulb removal
Indicates bulb installationUse a cloth to

Page 308 of 350

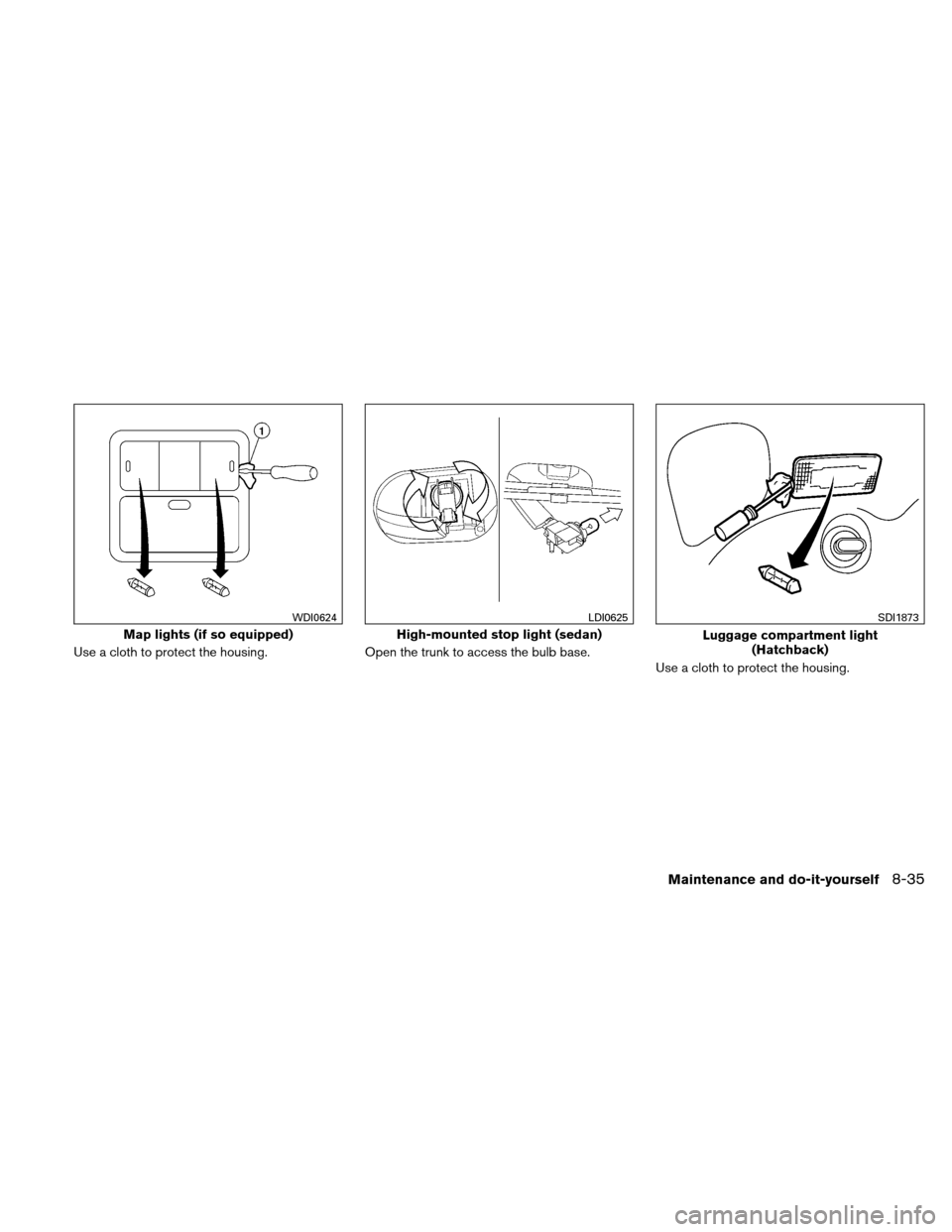

NISSAN VERSA HATCHBACK 2011 1.G Owners Manual Use a cloth to protect the housing.Open the trunk to access the bulb base.
Use a cloth to protect the housing.
Map lights (if so equipped)
WDI0624
High-mounted stop light (sedan)
LDI0625
Luggage compa

Page 309 of 350

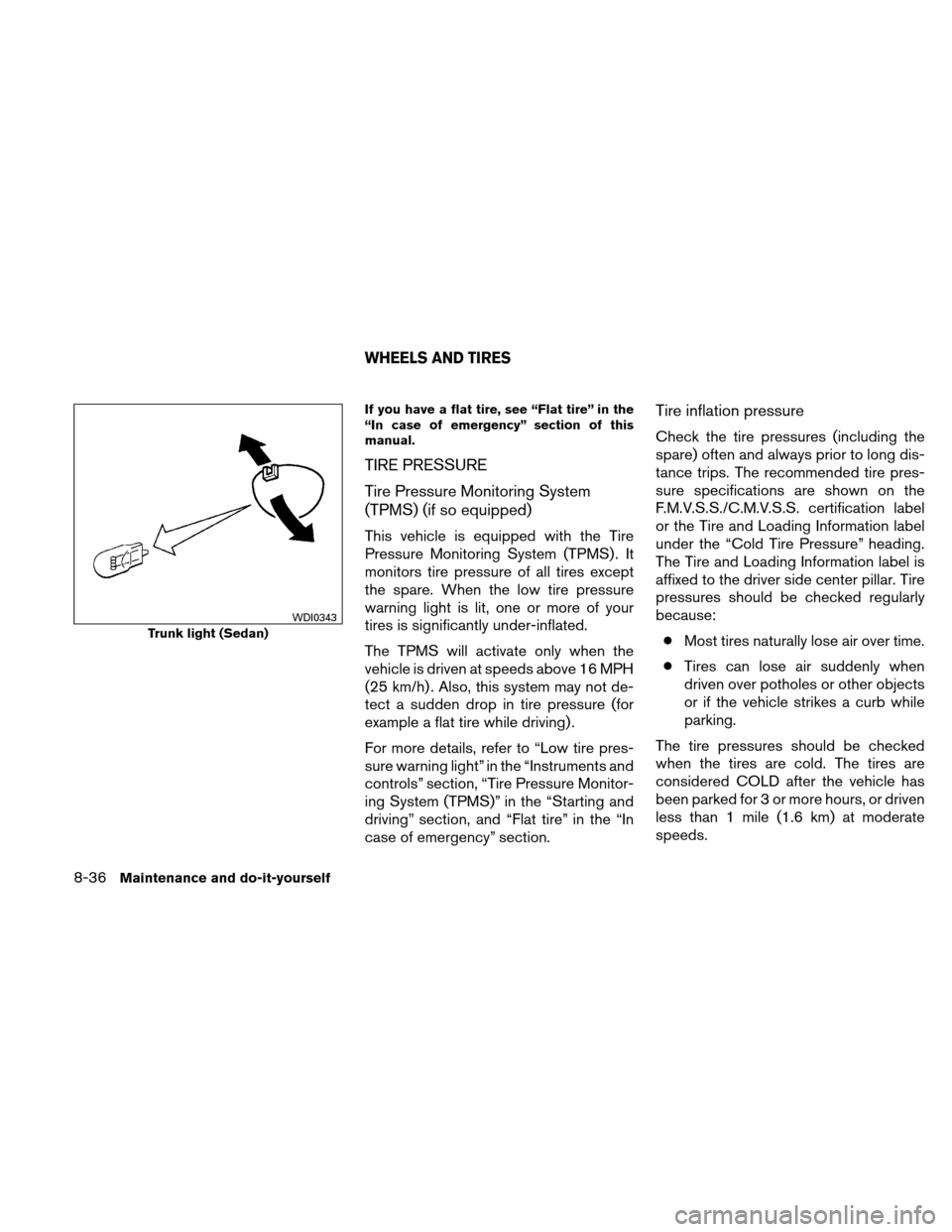

NISSAN VERSA HATCHBACK 2011 1.G Owners Manual If you have a flat tire, see “Flat tire” in the
“In case of emergency” section of this
manual.
TIRE PRESSURE
Tire Pressure Monitoring System
(TPMS) (if so equipped)
This vehicle is equipped wi

Page 310 of 350

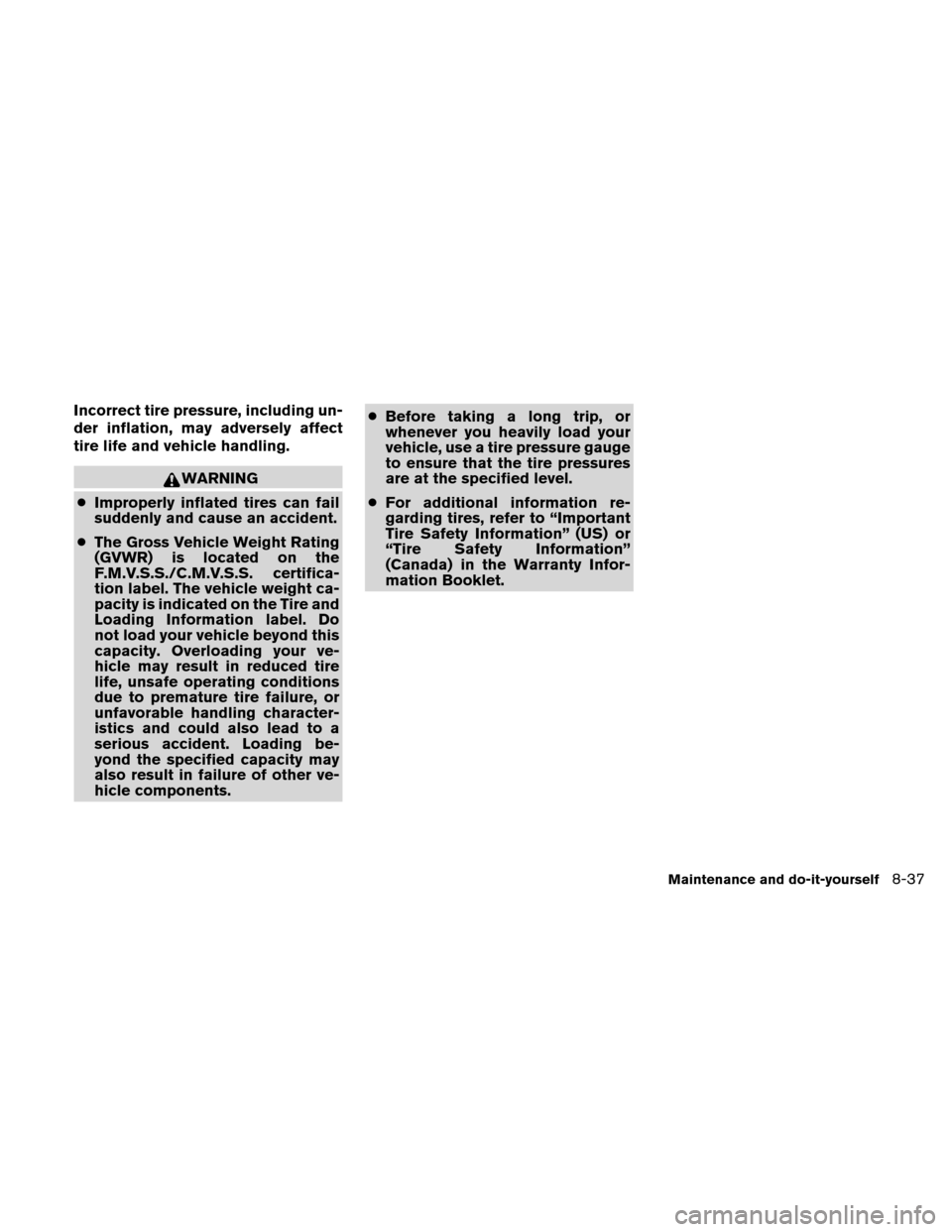

NISSAN VERSA HATCHBACK 2011 1.G Owners Manual Incorrect tire pressure, including un-
der inflation, may adversely affect
tire life and vehicle handling.
WARNING
● Improperly inflated tires can fail
suddenly and cause an accident.
● The Gross
