Page 100 of 320
Auto-reverse function
The auto-reverse function can be activated when
a window is closed by automatic operation.
Depending on the environment or driving
conditions, the auto-reverse function may
be activated if an impact or load similar to
something being caught in the window oc-
curs.
WARNING
There are some small distances immedi-
ately before the closed position which
cannot be detected. Make sure that all
passengers have their hands, etc., inside
the vehicle before closing the window.
If the vehicle’s battery is disconnected, replaced,
or jump started, the power window auto-reverse
function may not operate properly. If this occurs,
please contact a NISSAN dealer to re-initialize
the power window auto-reverse system.
If the control unit detects something caught in a
window equipped with automatic operation as it
is closing, the window will be immediately low-
ered.
When power window switch does not
operate
If the power window automatic function (closing
only) does not operate properly, perform the fol-
lowing procedure to initialize the power window
system. 1. Place the ignition switch in the ON position.
2. Open the window more than halfway by operating the power window switch.
3. Pull up and hold the window switch and hold it to close the window, and then hold the
switch for more than 3 seconds after the
window is closed completely.
4. Release the power window switch. Operate the window by automatic function to confirm
the initialization is complete.
5. Perform steps 2 through 4 above for other windows.
If the power window automatic function does not
operate properly after performing the above pro-
cedure, see a NISSAN dealer for assistance.
AUTOMATIC MOONROOF
The moonroof will only operate when the ignition
switch is placed in the ON position. The auto-
matic moonroof is operational for a period of time,
even if the ignition switch is placed in the ACC or
OFF position. If the driver’s door or the front
passenger’s door is opened during this period of
time, the power to the moonroof is canceled.
Sliding the moonroof
To fully open the moonroof, push the switch
toward
1.
To fully close the moonroof, push the switch
toward
2.
LIC0977
MOONROOF (if so equipped)
Instruments and controls2-33
Page 230 of 320
6 In case of emergency
Flat tire...........................................6-2
Tire Pressure Monitoring System (TPMS)
(if so equipped) ................................6-2
Changing a flat tire .............................6-2
Jump starting .....................................6-7 Push starting
......................................6-9
If your vehicle overheats ............................6-9
Towing your vehicle ............................... 6-10
Towing recommended by NISSAN ..............6-11
Vehicle recovery (freeing a stuck vehicle) . . . ......6-12
Page 236 of 320
To start your engine with a booster battery, the
instructions and precautions below must be fol-
lowed.
If the battery of a vehicle equipped with the
NISSAN Intelligent Key ™ is discharged, the
ignition switch cannot be moved from the
LOCK position, even using the mechanical
key. Connect the jumper cables to another
vehicle, as in the case of a discharged bat-
tery, and then the ignition knob can be
moved from the LOCK position. Then, jump
start the vehicle.
WARNING
●If done incorrectly, jump starting can
lead to a battery explosion, resulting in
severe injury or death. It could also
damage your vehicle.
● Explosive hydrogen gas is always pres-
ent in the vicinity of the battery. Keep all
sparks and flames away from the
battery. ●
Do not allow battery fluid to come into
contact with eyes, skin, clothing or
painted surfaces. Battery fluid is a cor-
rosive sulfuric acid solution which can
cause severe burns. If the fluid should
come into contact with anything, imme-
diately flush the contacted area with
water.
● Keep battery out of the reach of
children.
● The booster battery must be rated at 12
volts. Use of an improperly rated battery
can damage your vehicle.
● Whenever working on or near a battery,
always wear suitable eye protectors (for
example, goggles or industrial safety
spectacles) and remove rings, metal
bands, or any other jewelry. Do not lean
over the battery when jump starting.
● Do not attempt to jump start a frozen
battery. It could explode and cause se-
rious injury.
● Your vehicle has an automatic engine
cooling fan. It could come on at any
time. Keep hands and other objects
away from it. ●
If the battery of a vehicle equipped with
the Intelligent Key system is dis-
charged, the ignition switch cannot be
moved from the LOCK position, even
using the mechanical key. Connect the
jumper cables to another vehicle, as in
the case of a discharged battery, and
then the ignition knob can be moved
from the LOCK position. Then, jump
start the vehicle.
JUMP STARTING
In case of emergency6-7
Page 237 of 320
WARNING
Always follow the instructions below.
Failure to do so could result in damage to
the charging system and cause personal
injury.1. If the booster battery is in another vehicle, position the two vehicles to bring their bat-
teries near each other.
Do not allow the two vehicles to touch. 2. Apply the parking brake. Move the shift se-
lector to N (Neutral) (manual transmission)
or to P (Park) (Automatic or Continuously
Variable Transmission) . Switch off all unnec-
essary electrical systems (lights, heater, air
conditioner, etc.) .
3. Remove vent caps on the battery (if so equipped) . Cover the battery with an old
cloth to reduce explosion hazard.
4. Connect jumper cables in the sequence il- lustrated (
A,B,C,D).
CAUTION
●Always connect positive () to positive
() and negative () to body ground (for
example, strut mounting bolt, engine
lift bracket, etc.) — not to the battery.
● Make sure the jumper cables do not
touch moving parts in the engine com-
partment and that the cable clamps do
not contact any other metal.
5. Start the engine of the booster vehicle and let it run for a few minutes.
For Intelligent Key system equipped models,
use the mechanical key to start the engine.
6. Keep the engine speed of the booster ve- hicle at about 2,000 rpm, and start the en-
gine of the vehicle being jump started.
CAUTION
Do not keep the starter motor engaged for
more than 10 seconds. If the engine does
not start right away, turn the key off and
wait 3 to 4 seconds before trying again.
7.
After starting the engine, carefully disconnect
the negative cable and then the positive cable.
8. Replace the vent caps (if so equipped) . Be sure to dispose of the cloth used to cover
the vent holes as it may be contaminated
with corrosive acid.
WCE0054
6-8In case of emergency
Page 250 of 320
8 Maintenance and do-it-yourself
Maintenance requirements..........................8-2
General maintenance ..............................8-2
Explanation of general maintenance items .........8-2
Maintenance precautions ...........................8-5
Engine compartment check locations ................8-6
Engine cooling system .............................8-7
Checking engine coolant level ...................8-8
Changing engine coolant ........................8-8
Engine oil .........................................8-9
Checking engine oil level ........................8-9
Changing engine oil ........................... 8-10
Changing engine oil filter .......................8-11
Continuously Variable Transmission (CVT) fluid
(if so equipped) .................................. 8-11
4-speed automatic transmission fluid
(if so equipped) .................................. 8-12
Temperature conditions for checking . ............8-12
Brake and clutch (if so equipped) fluid ..............8-13
Brake fluid .................................... 8-14
Clutch fluid (if so equipped) ....................8-14
Windshield-washer fluid ........................... 8-14
Windshield-washer fluid reservoir ...............8-14
Battery .......................................... 8-15Jump starting
................................. 8-16
Drive belt ........................................ 8-17
Spark plugs ...................................... 8-17
Replacing spark plugs ......................... 8-17
Air cleaner ....................................... 8-18
Windshield wiper blades .......................... 8-19
Cleaning ..................................... 8-19
Replacing .................................... 8-19
Brakes .......................................... 8-20
Fuses ........................................... 8-21
Engine compartment ........................... 8-22
Passenger compartment .......................8-23
Battery replacement .............................. 8-25
Keyfob (if so equipped) ........................ 8-26
NISSAN Intelligent Key™ (if so equipped) ........8-27
Lights ........................................... 8-28
Headlights .................................... 8-28
Exterior
and interior lights ....................... 8-29
Wheels and tires ................................. 8-32
Tire pressure . . . ............................... 8-32
Tire labeling ................................... 8-35
Types of tires .................................. 8-38
Tire chains .................................... 8-39
Changing wheels and tires .....................8-39
Page 265 of 320

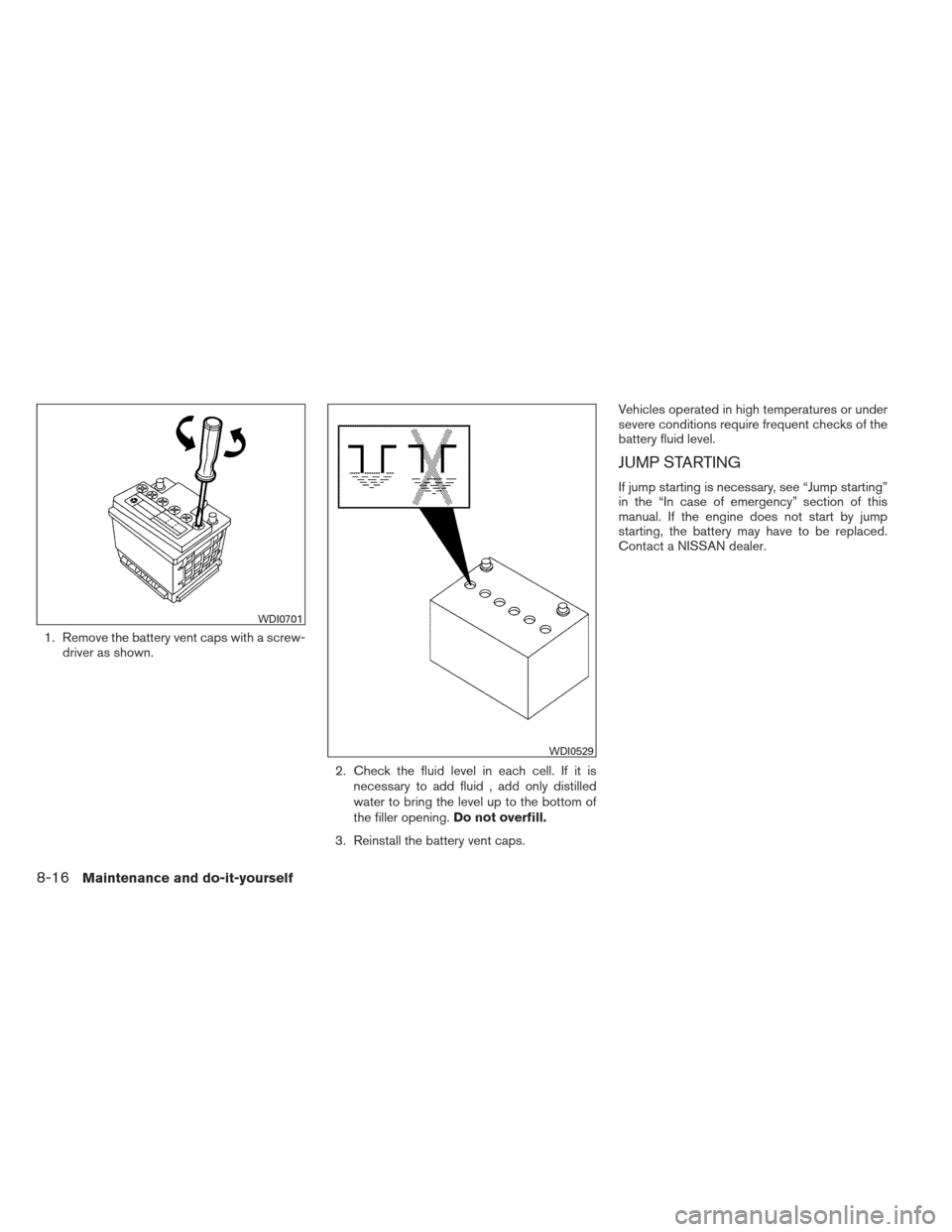

1. Remove the battery vent caps with a screw-driver as shown.
2. Check the fluid level in each cell. If it isnecessary to add fluid , add only distilled
water to bring the level up to the bottom of
the filler opening. Do not overfill.
3. Reinstall the battery vent caps. Vehicles operated in high temperatures or under
severe conditions require frequent checks of the
battery fluid level.
JUMP STARTING
If jump starting is necessary, see “Jump starting”
in the “In case of emergency” section of this
manual. If the engine does not start by jump
starting, the battery may have to be replaced.
Contact a NISSAN dealer.
WDI0701
WDI0529
8-16Maintenance and do-it-yourself
Page 314 of 320
Front air bag system
(See supplemental restraint system)......1-41
Frontseats.....................1-2
Fuel Capacities and recommended
fuel/lubricants .................9-2
Fuel economy ................5-25
Fuel-filler door and cap ...........3-25
Fuel-filler door lock opener lever ......3-25
Fuel gauge ...................2-5
Fueloctanerating...............9-4
Fuel recommendation .............9-3
Loosefuelcapwarning ........2-5,3-26
Fuses.......................8-21
Fusiblelinks ...................8-23
G
Gascap .....................3-25
Gauge Fuel gauge ...................2-5
Odometer ...................2-4
Speedometer .................2-4
Tachometer ..................2-5
Trip odometer .................2-4
Generalmaintenance...............8-2
Glovebox.....................2-29
H
Hands-free phone system, Bluetooth .....4-49
Hazard warning flasher switch .........2-23
Headlightandturnsignalswitch........2-20
Headlightcontrolswitch ............2-20 Headlights
....................8-28
Heater Heater and air conditioner controls .....4-9
Heater operation ...............4-11
Hood release ...................3-23
Horn .......................2-24
I
Ignition switch ...................5-7
Immobilizer system .........2-17,3-4,5-11
Important vehicle information label .......9-10
Increasing fuel economy .............5-25
Indicator lights and audible reminders
(See warning/indicator lights and audible
reminders).....................2-7
Inside automatic anti-glare mirror ........3-29
Inside mirror ...................3-29
Instrument brightness control ..........2-22
Instrument panel ...............0-6,2-2
Instrument panel dimmer switch ........2-22
Intelligent Key system Key operating range .............3-12
Mechanicalkey ................3-3
Remote keyless entry operation .......3-16
Troubleshooting guide ............3-22
Warning signals ...............3-22
Interiorlight....................2-35
iPod Player................4-42,4-44
ISOFIX child restraints .............1-18
J
Jump starting ...................6-7 K
Keyfob battery replacement ...........8-25
Keyless entry With Intelligent Key system
(See Intelligent Key system) .........3-16
Keys, Except Intelligent Key ............3-2
Keys, For Intelligent Key system .........3-2
L
Labels Air conditioner specification label .....9-11
C.M.V.S.S. certification label ........9-10
Emission
control information label .....9-10
Engine serial number ............9-10
F.M.V.S.S. certification label .........9-10
Tire and Loading Information label .....9-11
Vehicle identification number (VIN) plate . .9-9
Warning labels (for SRS) ..........1-48
LATCH (Lower Anchors and Tethers for CHildren)
System ......................1-18
License plate Installing the license plate ..........9-11
Light Airbagwarninglight.........1-48, 2-12
Brake light (See stop light) .........8-29
Bulb check/instrument panel .........2-8
Bulbreplacement..............8-29
Charge warning light .............2-9
Fog light switch ...............2-23
Headlightandturnsignalswitch......2-20
Headlight control switch ..........2-20
Headlights..................8-28
10-3
Page 316 of 320
FM/AM radio with compact disc
(CD) player..................4-30
FM/AM/SAT radio with compact disc
(CD) player ..................4-35
Steering wheel audio control switch ....4-47
Readiness for inspection maintenance
(I/M) test .....................9-19
Rear power windows ..............2-32
Rearseat......................1-4
Rear window and outside mirror defroster
switch .......................2-20
Rear window wiper and washer switches . . .2-19
Recorders Eventdata..................9-19
Refrigerant recommendation ...........9-6
Registering your vehicle in another country . . .9-9
Reporting safety defects (US only) .......9-18
S
Safety Child safety rear door lock ..........3-7
Child seat belts .....1-16,1-23,1-27,1-31
Reporting safety defects (US only) .....9-18
Seat adjustment Front manual seat adjustment ........1-2
Rear seat adjustment .............1-4
Seat belt Child safety ..................1-15
Infantsandsmallchildren..........1-15
Injured Person ................1-11
Largerchildren................1-16
Precautionsonseatbeltusage........1-8
Pregnant women ...............1-11
Seat belt extenders .............1-14 Seatbeltmaintenance............1-14
Seatbelts ...................1-8
Shoulder belt height adjustment
......1-14
Three-point type with retractor .......1-11
Seat belt warning light ..............2-12
Seats Adjustment ...................1-2
Frontseats...................1-2
Manual front seat adjustment .........1-2
Rearseat....................1-4
Security indicator light ..............2-14
Security system (NISSAN vehicle immobilizer
system) , engine start ........2-17,3-4,5-11
Self-adjusting brakes ..............8-20
Service manual order form ...........9-20
Servicing air conditioner .............4-17
Setting button ...................4-5
Shifting Automatic transmission ...........5-18
Continuously Variable Transmission
(CVT) .....................5-14
Manual transmission .............5-21
Shiftlockrelease.............5-15,5-19
Shoulder belt height adjustment ........1-14
Side air bag system (See supplemental
side air bag and curtain side-impact air
bag system) ...................1-45
Sparkplugreplacement.............8-17
Speedometer ...................2-4
SRSwarninglabel................1-48
Starting Before starting the engine ..........5-11
Jump starting .................6-7
Precautions when starting and driving ....5-2
Push starting ..................6-9
Starting the engine .............5-12 Steering
Power steering system ...........5-27
Tilting steering wheel ............3-28
Steering wheel audio control switch ......4-47
Stoplight.....................8-29
Storage......................2-25
Storage tray ...................2-26
Sunglasses case .................2-27
Sunglasses
holder ................2-27
Sunroof (see Moonroof) .............2-33
Sun visors ....................3-28
Supplemental air bag warning labels ......1-48
Supplemental air bag warning light . . .1-48, 2-12
Supplemental front impact air bag system . . .1-41
Supplemental restraint system Information and warning labels .......1-48
Precautions on supplemental restraint
system ....................1-34
Supplemental restraint system
(Supplemental air bag system) .........1-34
Supplemental side and curtain side-impact
air bag system ..................1-45
Switch Automatic power window switch ......2-32
Fog light switch ...............2-23
Hazard warning flasher switch .......2-23
Headlightandturnsignalswitch......2-20
Headlight control switch ..........2-20
Ignition switch .................5-7
Overdrive switch ...............5-20
Power door lock switch ............3-6
Rear window and outside mirror defroster
switch .....................2-20
Rear window wiper and washer
switches...................2-19
Turnsignalswitch..............2-22
10-5
