NISSAN VERSA NOTE 2018 Owner´s Manual

Interior lights................................... 2-43
Map light .................................... 2-44Luggage compartment light
...................2-45

1. Headlight/fog light (if soequipped)/turn signal switch
(P. 2-28)
2. Driver’s supplemental air bag
(P. 1-45)
Horn (P. 2-31)
3. Meters and gauges (P. 2-3)
4. Wiper and washer switch (P. 2-26)
5. Vents (P. 4-35)
6. Rear window and outside mirror
(if so equipped) defroster switch
(P. 2-28)
7. Hazard warning flasher switch
(P. 6-2)
8. Front passenger air bag status
light (P. 1-45)
9. Climate control (P. 4-35)
10. Audio system (P. 4-43)
11. Upper glove box (P. 2-35)
12. Passenger’s supplemental air bag
(P. 1-45)
13. Lower glove box (P. 2-35)
14. Upper glove box release handle
(P. 2-35)
15. Power outlet (P. 2-34)
16. Cup holders (P. 2-35)
17. USB connection port (P. 4-43) AUX IN jack (P. 4-43)
18. Shif t lever (P. 5-16)
LIC3759
INSTRUMENT PANEL
2-2Instruments and controls

19. Cup holders (P. 2-35)
20. Push-button ignition switch(if so equipped) (P. 5-11)
21. Ignition switch (if so equipped)
(P. 5-9)
22. Cruise control switches
(if so equipped) (P. 5-23)
23. Tilt steering (P. 3-31)
24. Bluetooth® Hands-Free Phone
System (P. 4-90, 4-109)
Audio control switches (P. 4-43)
Trip computer control switches
(if so equipped) (P. 2-11)
25. Hood release lever (P. 3-26)
26. Fuel-filler door release lever
(P. 3-28)
27. Vehicle Dynamic Control (VDC) OFF
switch (P. 2-33)
28. Outside mirror control switch
(P. 3-33)
Refer to the page number indicated in
parentheses for operating details.
1. Tachometer
2. Temperature gauge
3. OdometerTwin trip odometer
Trip computer
4. Fuel gauge 5. Speedometer
6. Trip odometer reset switch
Trip computer mode
7. Continuously Variable Transmis-
sion (CVT) position indicator (CVT
models only)
Type A (if so equipped)
LIC2146
METERS AND GAUGES
Instruments and controls2-3

8. Instrument brightness control
CAUTION
∙ To clean the meter lens, use a sof tcloth, dampened with water. Never
use a rough cloth, alcohol, benzine,
thinner or any kind of solvent or paper
towel with a chemical cleaning agent.
They will scratch or cause discolor-
ation to the lens.
∙ Do not spray any liquid such as water on the meter lens. Spraying liquid
may cause the system to malfunction.
1. Tachometer
2. Speedometer 3. Trip computer
Outside Air Temperature (if so
equipped)
4. Trip odometer reset switch Instrument brightness control
Type B (if so equipped)
LIC3660
2-4Instruments and controls

5. Continuously Variable Transmission(CVT) position indicator (CVT mod-
els only)
Odometer
Twin trip odometer
6. Fuel gauge
CAUTION
∙ To clean the meter lens, use a sof t
cloth, dampened with water. Never
use a rough cloth, alcohol, benzine,
thinner or any kind of solvent or paper
towel with a chemical cleaning agent.
They will scratch or cause discolor-
ation to the lens.
∙ Do not spray any liquid such as water on the meter lens. Spraying liquid
may cause the system to malfunction.
SPEEDOMETER AND ODOMETER
This vehicle is equipped with a speedom-
eter and odometer. The speedometer is
located on the right side of the meter clus-
ter. The odometer is located within the trip
computer.
Speedometer
The speedometer indicates vehicle speed.
Type A (if so equipped)
LIC2136
Type B (if so equipped)
LIC2763
Instruments and controls2-5

Odometer/Twin trip odometer
The odometer/twin trip odometer is dis-
played when the ignition switch is placed in
the ON position.
The odometer
1records the total dis-
tance the vehicle has been driven.
The twin trip odometer
2records the dis-
tance of individual trips. Changing the display
Press the change button
3to change the
display as follows:
Type A (if so equipped) : Odometer (ODO) →
Trip
→ Trip→ Instant fuel con-
sumption →Average fuel consumption →
DTE (cruising range) →Outside Air Tem-
perature (if so equipped) →Odometer
(ODO)
Type B (if so equipped) : Trip
→
Trip
→ Trip
Resetting the trip odometer
Press the change/reset button
3for more
than 1 second to reset the currently dis-
played trip odometer to zero.
Type A (if so equipped)
LIC2139
Type B (if so equipped)
LIC2758
2-6Instruments and controls

Loose fuel cap warning message
Push the reset buttonAfor more than
1 second to reset the LOOSE FUEL CAP
warning message af ter the fuel cap has
been tightened. For additional information,
refer to “Fuel-filler cap” in the “Pre-driving
checks and adjustments” section of this
manual.
Check tire pressure warning
message (if so equipped)
The CHECK TIRE PRES (pressure) warning
message is displayed when the low tire
pressure warning light is illuminated and
low tire pressure is detected. Check and
adjust the tire pressure to the recom-
mended COLD tire pressure shown on the
Tire and Loading Information label.
Type A (if so equipped)
LPD2025
Type B (if so equipped)
LIC2836
Type A (if so equipped)
LPD2128
Instruments and controls2-7

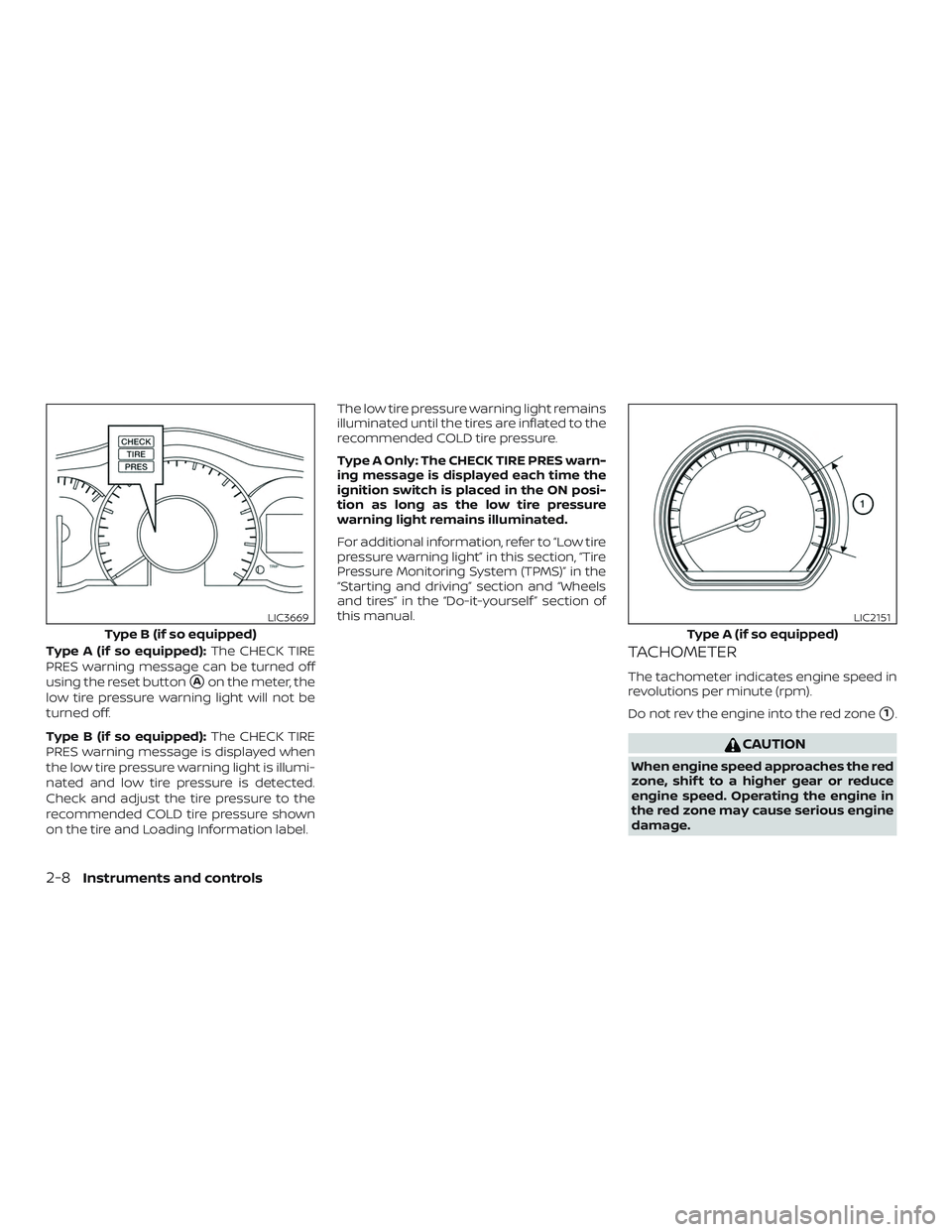

Type A (if so equipped):The CHECK TIRE
PRES warning message can be turned off
using the reset button
Aon the meter, the
low tire pressure warning light will not be
turned off.
Type B (if so equipped): The CHECK TIRE
PRES warning message is displayed when
the low tire pressure warning light is illumi-
nated and low tire pressure is detected.
Check and adjust the tire pressure to the
recommended COLD tire pressure shown
on the tire and Loading Information label. The low tire pressure warning light remains
illuminated until the tires are inflated to the
recommended COLD tire pressure.
Type A Only: The CHECK TIRE PRES warn-
ing message is displayed each time the
ignition switch is placed in the ON posi-
tion as long as the low tire pressure
warning light remains illuminated.
For additional information, refer to “Low tire
pressure warning light” in this section, “Tire
Pressure Monitoring System (TPMS)” in the
“Starting and driving” section and “Wheels
and tires” in the “Do-it-yourself ” section of
this manual.
TACHOMETER
The tachometer indicates engine speed in
revolutions per minute (rpm).
Do not rev the engine into the red zone
1.
CAUTION
When engine speed approaches the red
zone, shif t to a higher gear or reduce
engine speed. Operating the engine in
the red zone may cause serious engine
damage.
Type B (if so equipped)
LIC3669
Type A (if so equipped)
LIC2151
2-8Instruments and controls

ENGINE COOLANT TEMPERATURE
GAUGE
NOTE:
The ignition switch must be placed in the
ON position for the gauge to give a read-
ing.
Type A:The gauge indicates the engine
coolant temperature. The engine coolant
temperature will vary with the outside air
temperature and driving conditions. Type B:
Engine coolant temperature moni-
toring is performed by the high tempera-
ture warning light. For additional informa-
tion, refer to “High temperature warning
light (red)” in this section.
CAUTION
If the gauge indicates a coolant tem-
perature near the hot (H) end of the nor-
mal range, reduce vehicle speed to de-
crease the temperature. If the gauge is
over the normal range, stop the vehicle
as soon as safely possible. If the engine
is overheated, continued operation of
the vehicle may seriously damage the
engine. For additional information, re-
fer to “If your vehicle overheats” in the
“In case of emergency ” section of this
manual.
Type B (if so equipped)
LIC2761
Type A (if so equipped)
LIC2501
Instruments and controls2-9

FUEL GAUGE
The gauge indicates theapproximatefuel
level in the tank when the ignition switch is
placed in the ON position.
The gauge may move slightly during brak-
ing, turning, acceleration, or going up or
down hills.
The low fuel warning light will turn on when
the amount of fuel in the tank is getting low. Refill the fuel tank before the gauge reg-
isters 0 (Empty).
Theindicates that the fuel-filler
door is located on the driver’s side of the
vehicle.
CAUTION
∙ If the vehicle runs out of fuel, thecheck engine light may come on. Re-
fuel as soon as possible. Af ter a few
driving trips, the
light should
turn off. If the light remains on af ter a
few driving trips, have the vehicle in-
spected. It is recommended that you
visit a NISSAN dealer for this service.
∙ For additional information, refer to “Malfunction Indicator Light (MIL)” in
this section.
Type A (if so equipped)
LIC3257
Type B (if so equipped)
LIC2762
2-10Instruments and controls
