NISSAN VERSA NOTE 2018 Owner´s Manual

4 Monitor, climate, audio, phone and
voice recognition systems
Control panel buttons — models without
Navigation System (if so equipped)..............4-4
How to use the touch-screen .................4-5
How to use the
MENU button ...........4-7
(brightness control) button .............4-9
How to use the VOL (volume) knob /
PUSH
(power)button ...................4-9
Selecting menu from launch bar .............4-9
Control panel buttons — models with
Navigation System (if so equipped) .............4-10
How to use the touch-screen .................4-11
HowtousetheBACKbutton ................ 4-13
How to use the [
]button .............. 4-13
Clock Set .................................... 4-15
button................................. 4-15
How to use the ON•OFF button/VOL
(volume) control knob ....................... 4-15
How to use the CAMERA button .............4-15
RearView Monitor (if so equipped) ..............4-16
RearView Monitor system operation .........4-17
How to read the displayed lines ..............4-18
Difference between predicted and
actual distances ............................. 4-18Adjusting the screen
........................ 4-20
RearView Monitor system limitations ........4-21
System maintenance ........................ 4-22
Around View® Monitor (if so equipped) ..........4-23
Around View® Monitor system
operation .................................... 4-24
Difference between predicted and
actual distances ............................. 4-27
How to park with predicted course
lines ......................................... 4-29
How to switch the display ...................4-31
Adjusting the screen ........................ 4-31
Around View® Monitor system
limitations ................................... 4-32
System maintenance ........................ 4-34
Vents ........................................... 4-35
Heater and air conditioner (manual) ............4-35
Controls ..................................... 4-36
Heater operation ............................ 4-37
Air conditioner operation ....................4-38
Air flow charts ............................... 4-39
Servicing air conditioner ........................4-43
Audio system ................................... 4-43
Radio ........................................ 4-43

FM radio reception.......................... 4-43
AM radio reception .......................... 4-44
Satellite radio reception (if so equipped) .....4-44
Audio operation precautions ................4-45
FM/AM radio (if so equipped) ................4-52
FM/AM/SAT radio with Compact Disc
(CD) player (if so equipped) ..................4-57
USB (Universal Serial Bus) connection
port (models without Navigation
System) (if so equipped) .....................4-65
USB (Universal Serial Bus) connection
port (models with Navigation System)
(if so equipped) .............................. 4-68
iPod®* player operation (models
without Navigation System) (if so
equipped) ................................... 4-69
iPod®* player operation (models with
Navigation System) (if so equipped) ..........4-72
Bluetooth® streaming audio (models
without Navigation System)
(if so equipped) .............................. 4-76
Bluetooth® streaming audio
(models with Navigation System)
(if so equipped) .............................. 4-79CD care and cleaning
........................ 4-81
Steering wheel switch for audio control ......4-81
Antenna ..................................... 4-83
NissanConnect® Mobile Apps (if so equipped). . . 4-83 Registering with NissanConnect®
Mobile Apps ................................. 4-83
Connect phone .............................. 4-83
Application download .......................4-84
Siri® Eyes Free (models without Navigation
System) (if so equipped) ........................4-84
Requirements ............................... 4-84
Operating Siri® Eyes Free ....................4-85
Troubleshooting guide ......................4-86
Siri® Eyes Free (models with Navigation
System) (if so equipped) ........................4-87
Requirements ............................... 4-87
Siri® Activation ............................... 4-88
Operating Siri® Eyes Free ....................4-88
Changing Siri® Eyes Free settings ............4-88
Troubleshooting guide ......................4-89
Car phone or CB radio .......................... 4-90
Bluetooth® Hands-Free Phone System
without Navigation System (if so equipped) .....4-90
R

egulatory information ......................4-92

Using the system............................ 4-93
Indicators ................................... 4-94
Control buttons ............................. 4-94
Connecting procedure ......................4-95
Voice commands ........................... 4-97
Phone display screen ........................ 4-99
Making a call ............................... 4-100
Receiving a call ............................. 4-101
During a call ................................ 4-101
Ending a call ................................ 4-101
Text messaging (if so equipped) ............4-102
Bluetooth® connections screen ............4-106
Phone and text message settings ..........4-107
Bluetooth® Hands-Free Phone System with
Navigation System (if so equipped) ............4-109
Regulatory information ......................4-111
Voice commands .......................... 4-112
Connecting procedure .....................4-112
Vehicle phonebook ......................... 4-113Making a call
............................... 4-113
Receiving a call ............................. 4-113
During a call ................................ 4-114
Ending a call ................................ 4-114
Text messaging ............................ 4-114
Bluetooth® settings ........................ 4-116
Phone settings ............................. 4-118
Troubleshooting guide .....................4-119
NISSAN Voice Recognition System
(if so equipped) ................................ 4-120
Using the system ........................... 4-120
System features ............................ 4-121
Bluetooth® Hands-Free Phone System
voice commands ........................... 4-122
Navigation System voice commands .......4-123
Audio system voice commands ............4-124
Information voice commands ..............4-124
My

Apps voice commands .................4-124
Help voice commands ......................4-124
Troubleshooting guide .....................4-125

WARNING
∙ Positioning of the heating or air con-ditioning controls and display con-
trols should not be done while driving
in order that full attention may be
given to the driving operation.
∙ Do not disassemble or modif y this system. If you do, it may result in acci-
dents, fire, or electrical shock.
∙ Do not use this system if you notice any abnormality, such as a frozen
screen or lack of sound. Continued
use of the system may result in acci-
dent, fire or electric shock.
∙ In case you notice any foreign object in the system hardware, spill liquid on
it, or notice smoke or smell coming
from it, stop using the system imme-
diately. Ignoring such conditions may
lead to accidents, fire or electrical
shock. It is recommended that you
visit a NISSAN dealer for servicing.
1.
MENU button
2.
button*
3. Display screen
4.
(brightness control) button 5. VOL (volume) knob / PUSH
(power) button
* For additional information regarding the
Bluetooth® Hands-Free Phone System
control button, refer to “Bluetooth® Hands-
LHA4680
CONTROL PANEL BUTTONS —
MODELS WITHOUT NAVIGATION
SYSTEM (if so equipped)
4-4Monitor, climate, audio, phone and voice recognition systems

Free Phone System without Navigation
System” in this section.
When you use this system, make sure the
engine is running.
If you use the system with the engine not
running for a long time, it will discharge
the battery, and the engine will not start.
Reference symbols:
“Example” — Words marked in quotes refer
to a key shown only on the display. These
keys can be selected by touching the
screen.
HOW TO USE THE TOUCH-SCREEN
CAUTION
∙ The glass display screen may break ifit is hit with a hard or sharp object. If
the glass screen breaks, do not touch
it. Doing so could result in an injury.
∙ To clean the display, never use a rough cloth, alcohol, benzine, thinner or any
kind of solvent or paper towel with a
chemical cleaning agent. They will
scratch or deteriorate the panel. ∙ Do not splash any liquid such as water
or car fragrance on the display. Con-
tact with liquid will cause the system
to malfunction.
To help ensure safe driving, some functions
cannot be operated while driving.
The on-screen functions that are not avail-
able while driving will be “grayed out” or
muted.
WARNING
∙ ALWAYS give your full attention to driving.
∙ Avoid using vehicle features that could distract you. If distracted, you
could lose control of your vehicle and
cause an accident.
LHA4700
Monitor, climate, audio, phone and voice recognition systems4-5

Touch-screen operation
Menu ItemResult
Selecting the item Touch an item to select. To select the “Phone” key, touch the “Phone” key on the screen. Touch the “
”keyto
return to the previous screen.
Adjusting the item Touch the “+” key or the “” key to adjust the settings of an item. Touch the up arrow to scroll up the page one
item at a time. Touch the down arrow to scroll down the page one item at a time.
Inputting characters Touch the number key. There are some options available when inputting characters.
123 Touch to manually enter numbers.
OK Completes the character input.
Touch-screen maintenance
If you clean the display screen, use a dry,
sof t cloth. If additional cleaning is neces-
sary, use a small amount of neutral deter-
gent with a sof t cloth. Never spray the
screen with water or detergent. Dampen
the cloth first and then wipe the screen.
4-6Monitor, climate, audio, phone and voice recognition systems

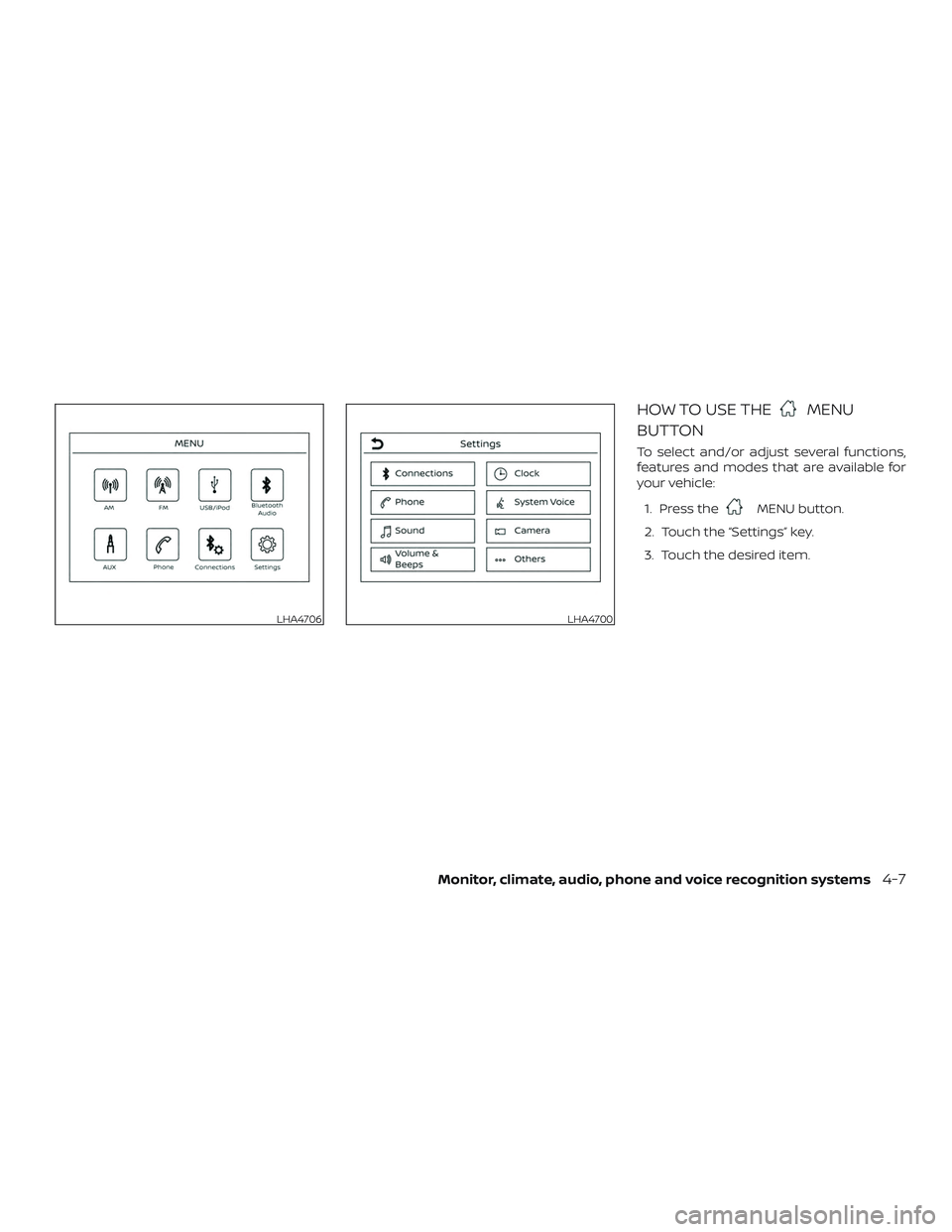

HOW TO USE THEMENU
BUTTON
To select and/or adjust several functions,
features and modes that are available for
your vehicle:
1. Press the
MENU button.
2. Touch the “Settings” key.
3. Touch the desired item.
LHA4706LHA4700
Monitor, climate, audio, phone and voice recognition systems4-7

Menu itemResult
Settings Touch to change the following steps.
Connections Touch this key to select either Bluetooth® phone, Bluetooth® audio or USB audio options. For addi-
tional information, refer to “USB connections screen” and “Bluetooth® connections screen” in this
section.
Phone For additional information, refer to “Bluetooth® Hands-Free Phone System without Navigation Sys-
tem” in this section.
Sound For additional information, refer to “Audio system” in this section.
Volume & Beeps For additional information, refer to “Volume & beeps” in this section.
Clock Touch this key to adjust clock settings.
On-screen Clock Touch to toggle ON or OFF the clock display on the upper right corner of the display screen.
Clock Format Touch to set the clock to 12 hours or 24 hours formats.
Daylight Savings Time Touch to adjusts the daylight saving time to ON or OFF.
Set Clock Manually Touch to adjust the clock manually; then touch to change between AM and PM, the hour and the
minutes.
System Voice For additional information, refer to “Settings” in this section.
Camera Touch this key to change the camera settings.
Others Touch this key to select and/or adjust various functions of this system. A screen with additional op-
tions will appear.
Display Touch this key to adjust the appearance of the display. For additional information, refer to “Adjusting
the screen” in this section.
Language Touch this key to change the language on the display.
OSS Licenses Touch this key to display sof tware licensing information.
Return All Settings To Default Touch this key to return all settings to default and to clear the memory.
4-8Monitor, climate, audio, phone and voice recognition systems

(brightness control) BUTTON
To change the display brightness, press
the
button. Pressing the button again
will change the display to the day or the
night display.
Press and hold the
button for more
than 2 seconds to turn the display off. Press
and hold the button again to turn the dis-
play on.
HOW TO USE THE VOL (volume)
KNOB / PUSH
(power) BUTTON
Press the PUSH(power) button to
turn audio function on and off. Turn the VOL
(volume) knob to adjust audio volume.SELECTING MENU FROM LAUNCH
BAR
Various system functions can be accessed
by touching the items on the Launch Bar
1which is displayed on most of the main
menu screens (the Launch Bar does not
appear on some screens such as settings
screens, camera screens, etc.)
Touch the keys on the Launch Bar to dis-
play the corresponding menu screens. The following menu items are available on
the Launch Bar:
∙AM
∙FM
∙ USB/iPod
∙ Bluetooth
∙AUX
∙ Settings
LHA4707
Monitor, climate, audio, phone and voice recognition systems4-9

1. MAP button*
2. Display screen
3.
button**
4.
button 5.
(brightness control) button
6. BACK button
7. AUDIO button / TUNE knob
8. ON•OFF button / VOL (volume) control knob 9. CAMERA button
10. NAV button*
*For additional information regarding the
navigation system control buttons, refer to
the separate NissanConnect® Owner’s
Manual.
**For additional information regarding the
Bluetooth® Hands-Free Phone System
control button, refer to “Bluetooth® Hands-
Free Phone System with Navigation Sys-
tem” in this section.
When you use this system, make sure the
engine is running.
If you use the system with the engine not
running (ignition ON or ACC) for a long
time, it will discharge the battery, and
the engine will not start.
Reference symbols:
“Example” — Words marked in quotes refer
to a key shown only on the display. These
keys can be selected by touching the
screen.
LHA3621
CONTROL PANEL BUTTONS —
MODELS WITH NAVIGATION SYSTEM
(if so equipped)
4-10Monitor, climate, audio, phone and voice recognition systems
