NISSAN VERSA NOTE 2018 Owner´s Manual

∙ To prevent the Intelligent Key from be-ing lef t inside the vehicle, make sure you
carry the Intelligent Key with you and
then lock the doors.
∙ Do not pull the door handle before pushing the door handle request
switch. The door will be unlocked but
will not open. Release the door handle
once and pull it again to open the door.
NISSAN INTELLIGENT KEY®
OPERATION
You can lock or unlock the doors without
taking the key out of your pocket or bag.
When you carry the Intelligent Key with you,
you can lock or unlock all doors by pushing
the door handle request switch or rear
hatch request switch within the range of
operation.
Locking doors
1. Place the ignition switch to the LOCK
position.
2. Close all doors and the rear hatch.
3. Push any door handle request switch
1or the rear hatch request switch2
while carrying the Intelligent Key with
you.
4. All doors and the rear hatch will lock.
5. The hazard warning lights flash twice and the vehicle chimes twice.
LPD2913LPD2914
Pre-driving checks and adjustments3-15

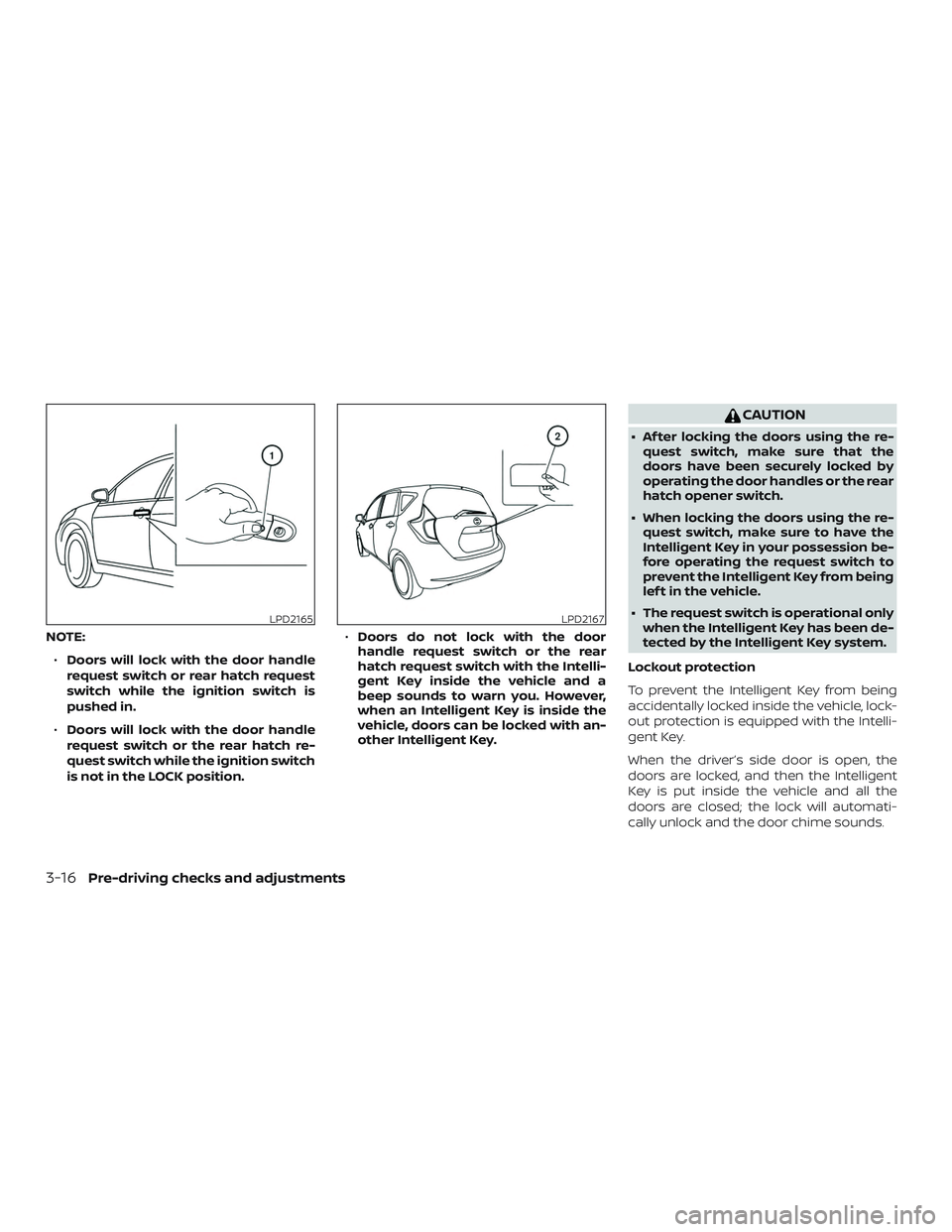

NOTE:∙ Doors will lock with the door handle
request switch or rear hatch request
switch while the ignition switch is
pushed in.
∙ Doors will lock with the door handle
request switch or the rear hatch re-
quest switch while the ignition switch
is not in the LOCK position. ∙
Doors do not lock with the door
handle request switch or the rear
hatch request switch with the Intelli-
gent Key inside the vehicle and a
beep sounds to warn you. However,
when an Intelligent Key is inside the
vehicle, doors can be locked with an-
other Intelligent Key.
CAUTION
∙ Af ter locking the doors using the re- quest switch, make sure that the
doors have been securely locked by
operating the door handles or the rear
hatch opener switch.
∙ When locking the doors using the re- quest switch, make sure to have the
Intelligent Key in your possession be-
fore operating the request switch to
prevent the Intelligent Key from being
lef t in the vehicle.
∙ The request switch is operational only when the Intelligent Key has been de-
tected by the Intelligent Key system.
Lockout protection
To prevent the Intelligent Key from being
accidentally locked inside the vehicle, lock-
out protection is equipped with the Intelli-
gent Key.
When the driver’s side door is open, the
doors are locked, and then the Intelligent
Key is put inside the vehicle and all the
doors are closed; the lock will automati-
cally unlock and the door chime sounds.
LPD2165LPD2167
3-16Pre-driving checks and adjustments

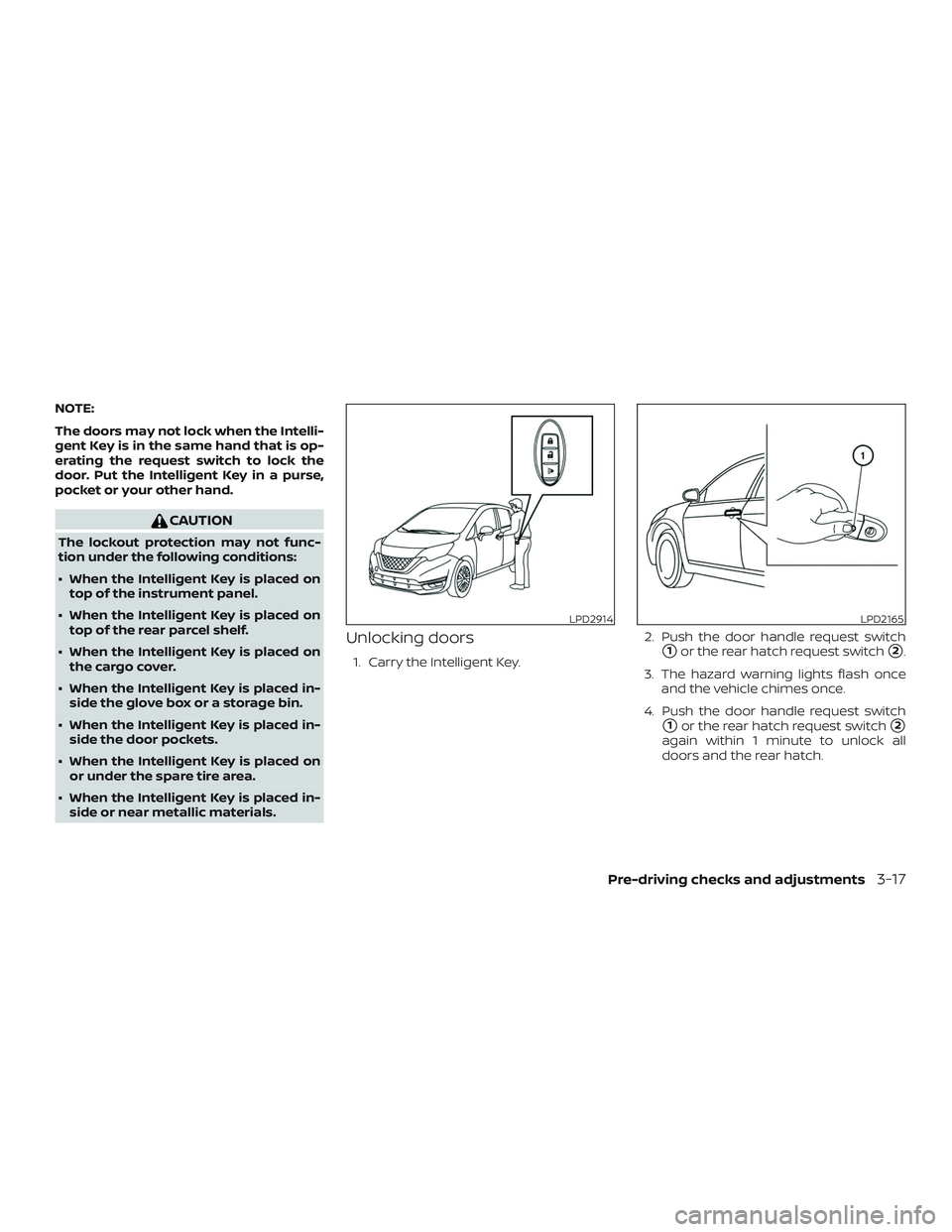

NOTE:
The doors may not lock when the Intelli-
gent Key is in the same hand that is op-
erating the request switch to lock the
door. Put the Intelligent Key in a purse,
pocket or your other hand.
CAUTION
The lockout protection may not func-
tion under the following conditions:
∙ When the Intelligent Key is placed ontop of the instrument panel.
∙ When the Intelligent Key is placed on top of the rear parcel shelf.
∙ When the Intelligent Key is placed on the cargo cover.
∙ When the Intelligent Key is placed in- side the glove box or a storage bin.
∙ When the Intelligent Key is placed in- side the door pockets.
∙ When the Intelligent Key is placed on or under the spare tire area.
∙ When the Intelligent Key is placed in- side or near metallic materials.
Unlocking doors
1. Carry the Intelligent Key. 2. Push the door handle request switch1or the rear hatch request switch2.
3. The hazard warning lights flash once and the vehicle chimes once.
4. Push the door handle request switch
1or the rear hatch request switch2
again within 1 minute to unlock all
doors and the rear hatch.
LPD2914LPD2165
Pre-driving checks and adjustments3-17

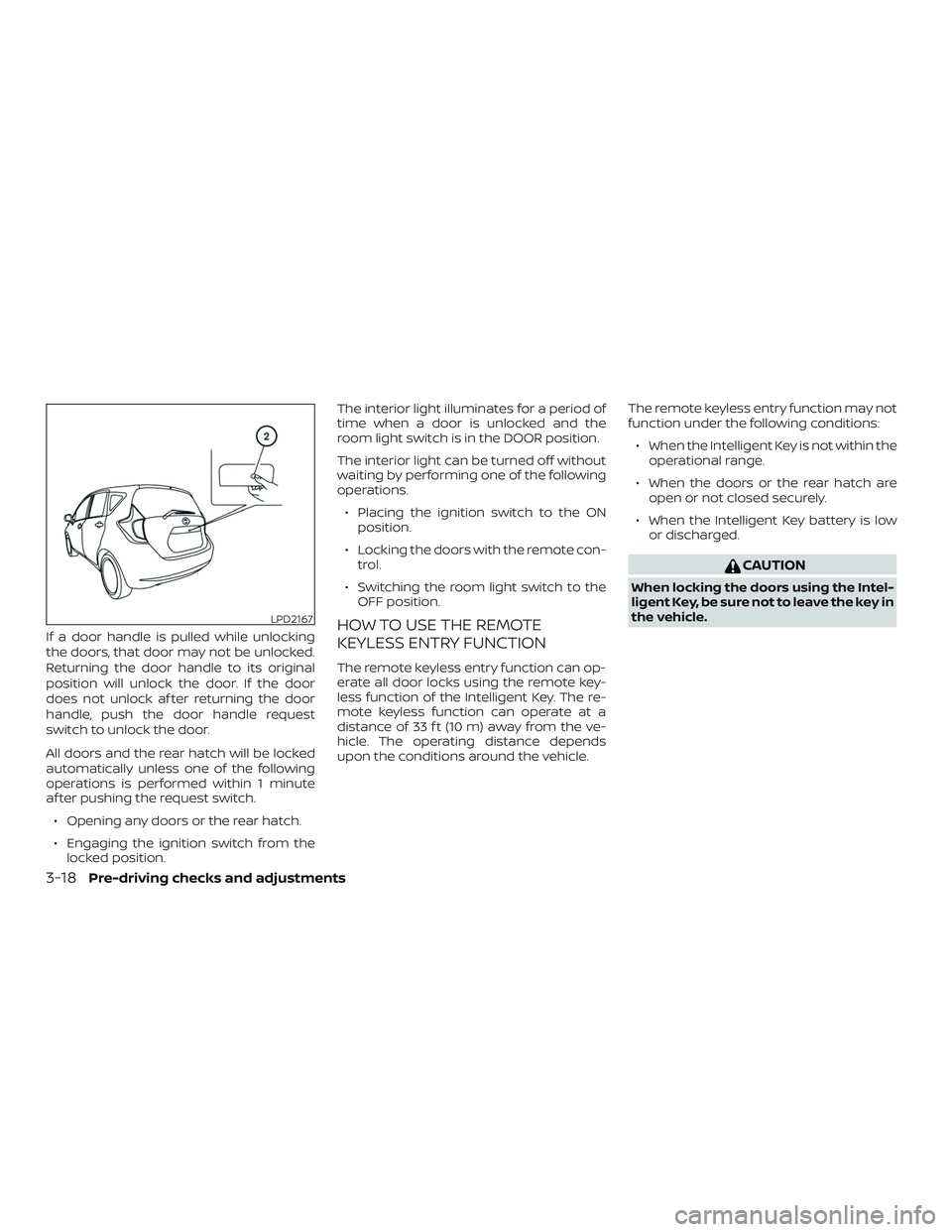

If a door handle is pulled while unlocking
the doors, that door may not be unlocked.
Returning the door handle to its original
position will unlock the door. If the door
does not unlock af ter returning the door
handle, push the door handle request
switch to unlock the door.
All doors and the rear hatch will be locked
automatically unless one of the following
operations is performed within 1 minute
af ter pushing the request switch.∙ Opening any doors or the rear hatch.
∙ Engaging the ignition switch from the locked position. The interior light illuminates for a period of
time when a door is unlocked and the
room light switch is in the DOOR position.
The interior light can be turned off without
waiting by performing one of the following
operations.
∙ Placing the ignition switch to the ON position.
∙ Locking the doors with the remote con- trol.
∙ Switching the room light switch to the OFF position.HOW TO USE THE REMOTE
KEYLESS ENTRY FUNCTION
The remote keyless entry function can op-
erate all door locks using the remote key-
less function of the Intelligent Key. The re-
mote keyless function can operate at a
distance of 33 f t (10 m) away from the ve-
hicle. The operating distance depends
upon the conditions around the vehicle. The remote keyless entry function may not
function under the following conditions:
∙ When the Intelligent Key is not within the operational range.
∙ When the doors or the rear hatch are open or not closed securely.
∙ When the Intelligent Key battery is low or discharged.
CAUTION
When locking the doors using the Intel-
ligent Key, be sure not to leave the key in
the vehicle.
LPD2167
3-18Pre-driving checks and adjustments

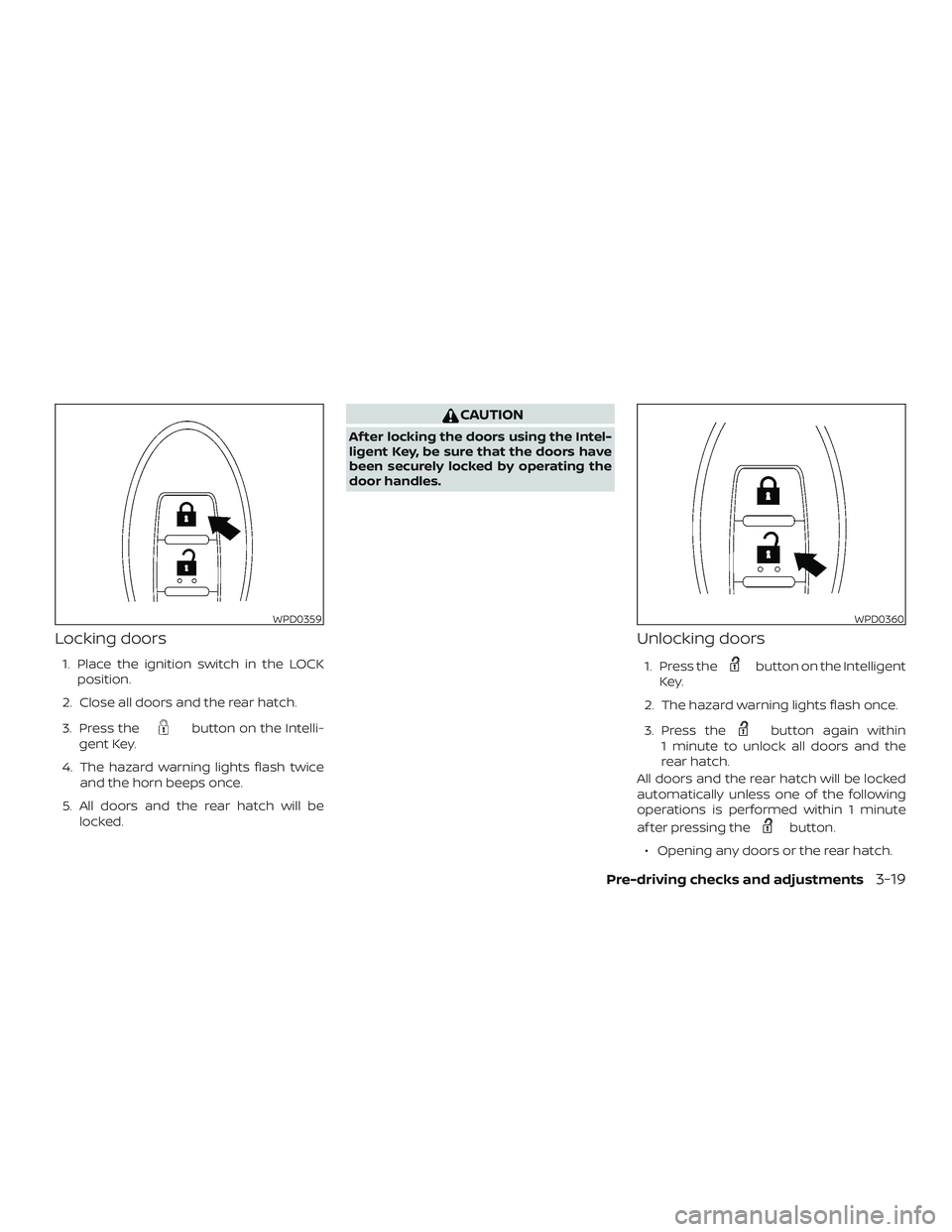

Locking doors
1. Place the ignition switch in the LOCKposition.
2. Close all doors and the rear hatch.
3. Press the
button on the Intelli-
gent Key.
4. The hazard warning lights flash twice and the horn beeps once.
5. All doors and the rear hatch will be locked.
CAUTION
Af ter locking the doors using the Intel-
ligent Key, be sure that the doors have
been securely locked by operating the
door handles.
Unlocking doors
1. Press thebutton on the Intelligent
Key.
2. The hazard warning lights flash once.
3. Press the
button again within
1 minute to unlock all doors and the
rear hatch.
All doors and the rear hatch will be locked
automatically unless one of the following
operations is performed within 1 minute
af ter pressing the
button.
∙ Opening any doors or the rear hatch.
WPD0359WPD0360
Pre-driving checks and adjustments3-19

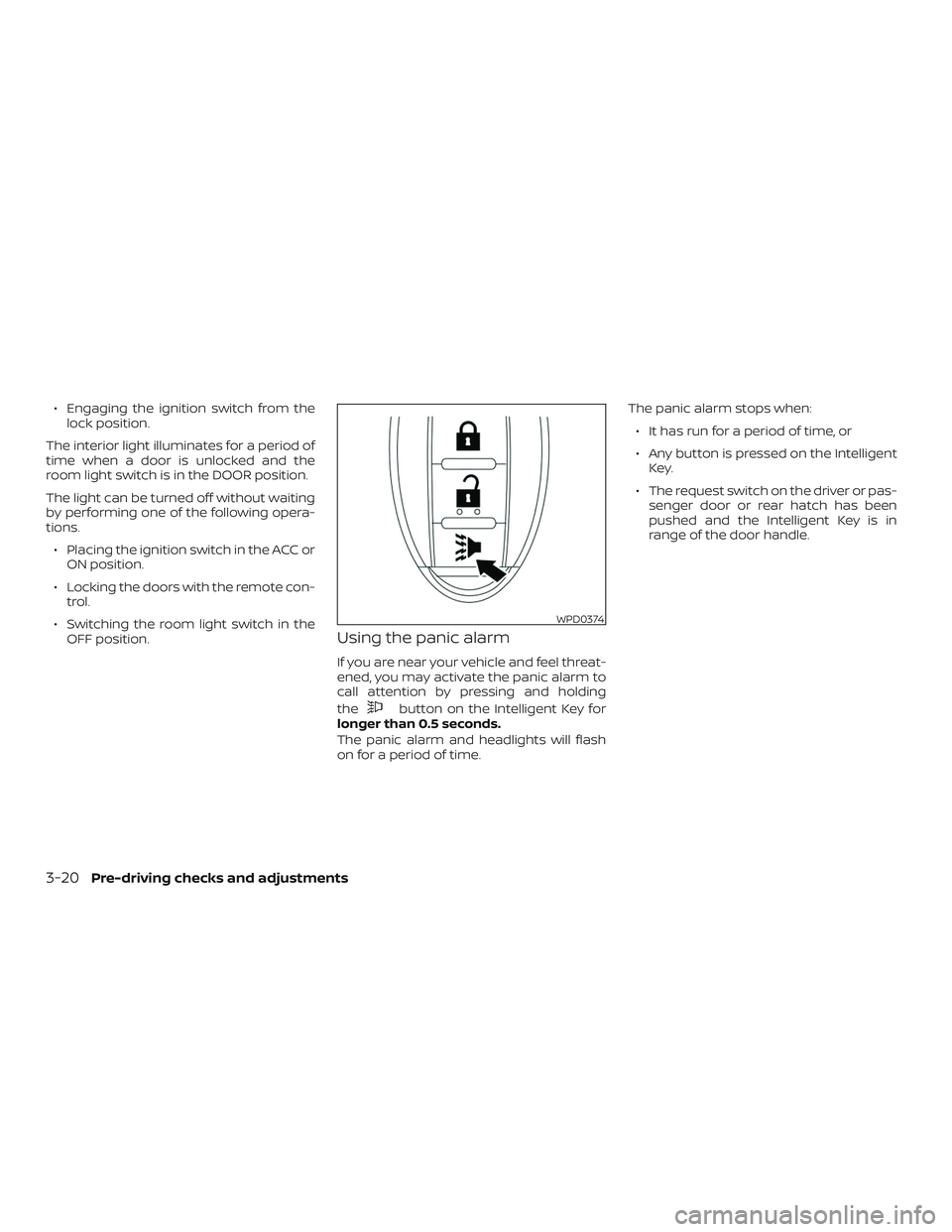

∙ Engaging the ignition switch from thelock position.
The interior light illuminates for a period of
time when a door is unlocked and the
room light switch is in the DOOR position.
The light can be turned off without waiting
by performing one of the following opera-
tions. ∙ Placing the ignition switch in the ACC or ON position.
∙ Locking the doors with the remote con- trol.
∙ Switching the room light switch in the OFF position.
Using the panic alarm
If you are near your vehicle and feel threat-
ened, you may activate the panic alarm to
call attention by pressing and holding
the
button on the Intelligent Key for
longer than 0.5 seconds.
The panic alarm and headlights will flash
on for a period of time. The panic alarm stops when:
∙ It has run for a period of time, or
∙ Any button is pressed on the Intelligent Key.
∙ The request switch on the driver or pas- senger door or rear hatch has been
pushed and the Intelligent Key is in
range of the door handle.
WPD0374
3-20Pre-driving checks and adjustments

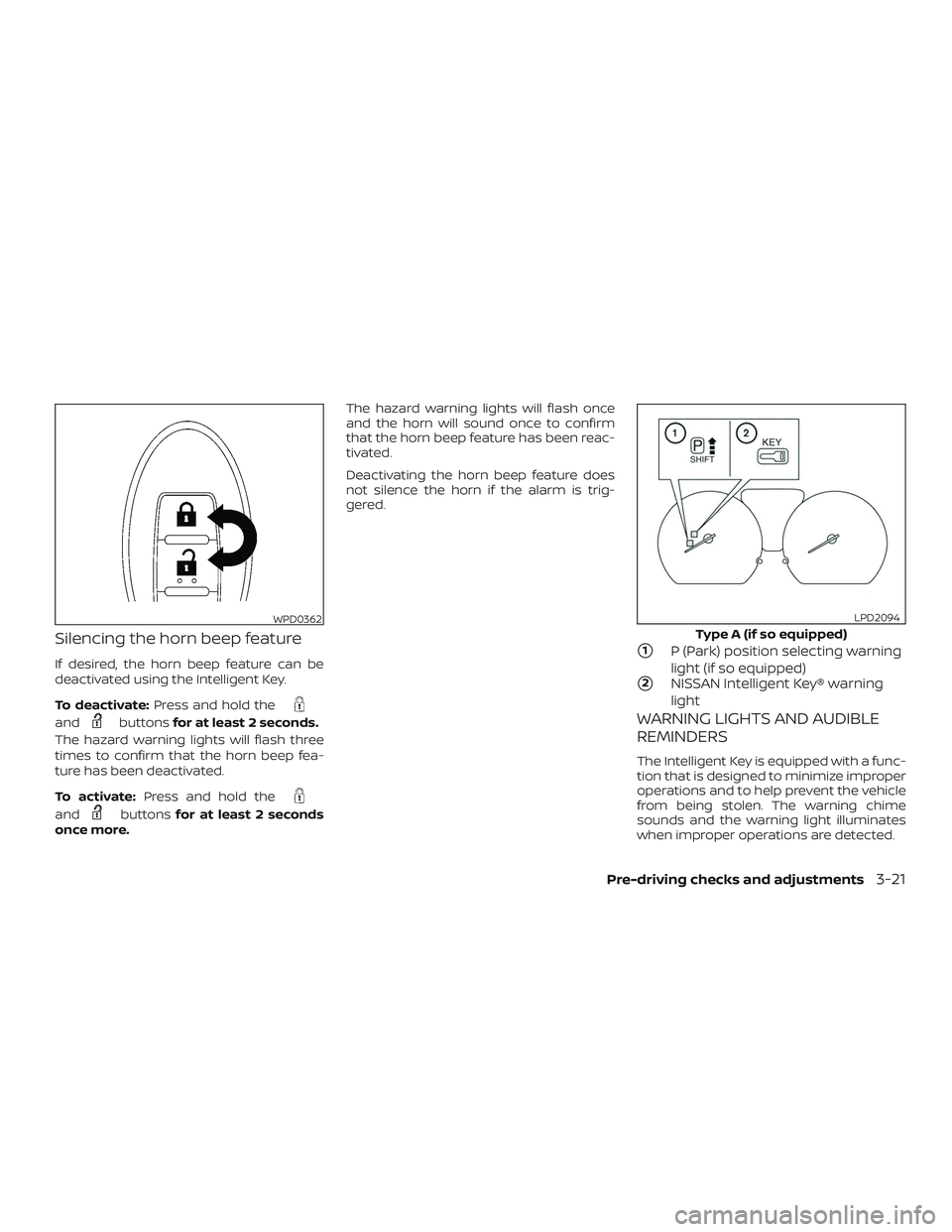

Silencing the horn beep feature
If desired, the horn beep feature can be
deactivated using the Intelligent Key.
To deactivate:Press and hold the
andbuttonsfor at least 2 seconds.
The hazard warning lights will flash three
times to confirm that the horn beep fea-
ture has been deactivated.
To activate: Press and hold the
andbuttonsfor at least 2 seconds
once more. The hazard warning lights will flash once
and the horn will sound once to confirm
that the horn beep feature has been reac-
tivated.
Deactivating the horn beep feature does
not silence the horn if the alarm is trig-
gered.
1P (Park) position selecting warning
light (if so equipped)
2NISSAN Intelligent Key® warning
light
WARNING LIGHTS AND AUDIBLE
REMINDERS
The Intelligent Key is equipped with a func-
tion that is designed to minimize improper
operations and to help prevent the vehicle
from being stolen. The warning chime
sounds and the warning light illuminates
when improper operations are detected.
WPD0362
Type A (if so equipped)
LPD2094
Pre-driving checks and adjustments3-21

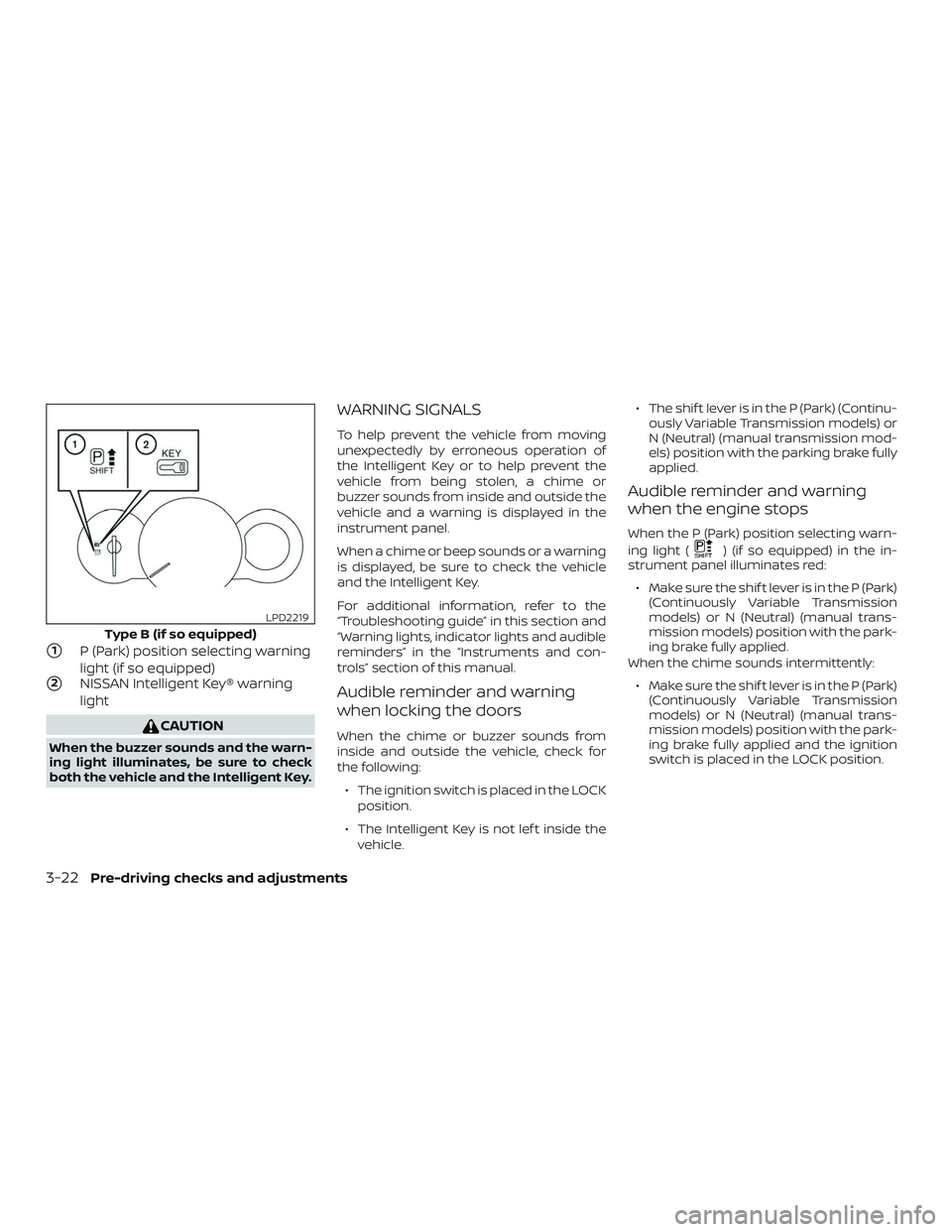

1P (Park) position selecting warning
light (if so equipped)
2NISSAN Intelligent Key® warning
light
CAUTION
When the buzzer sounds and the warn-
ing light illuminates, be sure to check
both the vehicle and the Intelligent Key.
WARNING SIGNALS
To help prevent the vehicle from moving
unexpectedly by erroneous operation of
the Intelligent Key or to help prevent the
vehicle from being stolen, a chime or
buzzer sounds from inside and outside the
vehicle and a warning is displayed in the
instrument panel.
When a chime or beep sounds or a warning
is displayed, be sure to check the vehicle
and the Intelligent Key.
For additional information, refer to the
“Troubleshooting guide” in this section and
“Warning lights, indicator lights and audible
reminders” in the “Instruments and con-
trols” section of this manual.
Audible reminder and warning
when locking the doors
When the chime or buzzer sounds from
inside and outside the vehicle, check for
the following:∙ The ignition switch is placed in the LOCK position.
∙ The Intelligent Key is not lef t inside the vehicle. ∙ The shif t lever is in the P (Park) (Continu-
ously Variable Transmission models) or
N (Neutral) (manual transmission mod-
els) position with the parking brake fully
applied.
Audible reminder and warning
when the engine stops
When the P (Park) position selecting warn-
ing light (
) (if so equipped) in the in-
strument panel illuminates red:
∙ Make sure the shif t lever is in the P (Park) (Continuously Variable Transmission
models) or N (Neutral) (manual trans-
mission models) position with the park-
ing brake fully applied.
When the chime sounds intermittently:
∙ Make sure the shif t lever is in the P (Park) (Continuously Variable Transmission
models) or N (Neutral) (manual trans-
mission models) position with the park-
ing brake fully applied and the ignition
switch is placed in the LOCK position.
Type B (if so equipped)
LPD2219
3-22Pre-driving checks and adjustments

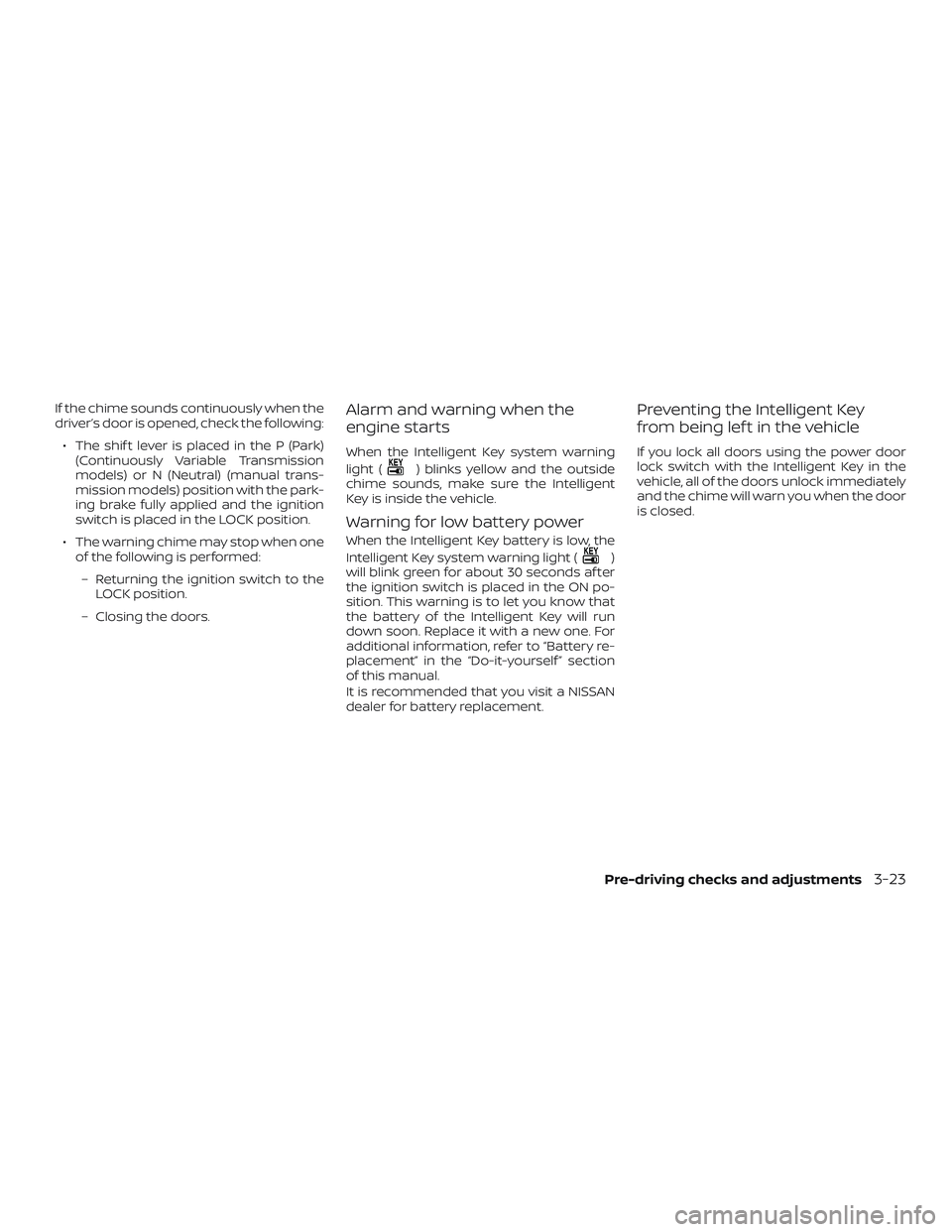

If the chime sounds continuously when the
driver’s door is opened, check the following:∙ The shif t lever is placed in the P (Park) (Continuously Variable Transmission
models) or N (Neutral) (manual trans-
mission models) position with the park-
ing brake fully applied and the ignition
switch is placed in the LOCK position.
∙ The warning chime may stop when one of the following is performed:
– Returning the ignition switch to the LOCK position.
– Closing the doors.Alarm and warning when the
engine starts
When the Intelligent Key system warning
light (
) blinks yellow and the outside
chime sounds, make sure the Intelligent
Key is inside the vehicle.
Warning for low battery power
When the Intelligent Key battery is low, the
Intelligent Key system warning light (
)
will blink green for about 30 seconds af ter
the ignition switch is placed in the ON po-
sition. This warning is to let you know that
the battery of the Intelligent Key will run
down soon. Replace it with a new one. For
additional information, refer to “Battery re-
placement” in the “Do-it-yourself ” section
of this manual.
It is recommended that you visit a NISSAN
dealer for battery replacement.
Preventing the Intelligent Key
from being lef t in the vehicle
If you lock all doors using the power door
lock switch with the Intelligent Key in the
vehicle, all of the doors unlock immediately
and the chime will warn you when the door
is closed.
Pre-driving checks and adjustments3-23

TROUBLESHOOTING GUIDE
(Continuously Variable
Transmission only)
SymptomPossible CauseRemedy
When pushing the ignition switch to
stop the engine The P (Park) warning light in the instru-
ment panel illuminates and the inside
chime sounds continuously. The shif t lever is not in the P (Park)
position.
Make sure that the shif t lever is in the
P (Park) position.
When opening the driver’s door A warning chime sounds continuously. The ignition switch is in the ACC
position.Place the ignition switch in the OFF
position.
When pushing the door handle re-
quest switch to lock the door The outside chime sounds for a few
seconds.
The Intelligent Key is inside the vehicle.Be sure to carry the Intelligent Key
with you.
When closing the doors The P (Park) warning light in the instru-
ment panel illuminates and the out-
side chime sounds continuously. The ignition switch is in the ACC or
OFF position and the shif t lever is not
in the P (Park) position.Make sure that the shif t lever is in the
P (Park) position and place the ignition
switch in the OFF position.
The outside chime sounds for approxi-
mately 3 seconds and all doors unlock. The Intelligent Key is in the vehicle. Be sure to carry the Intelligent Key
with you.
When pressing the
button on
the Intelligent Key to the lock the door The outside chime sounds for a few
seconds and all the doors unlock.
The Intelligent Key is inside the vehicle. Be sure to carry the Intelligent Key
with you.
3-24Pre-driving checks and adjustments
