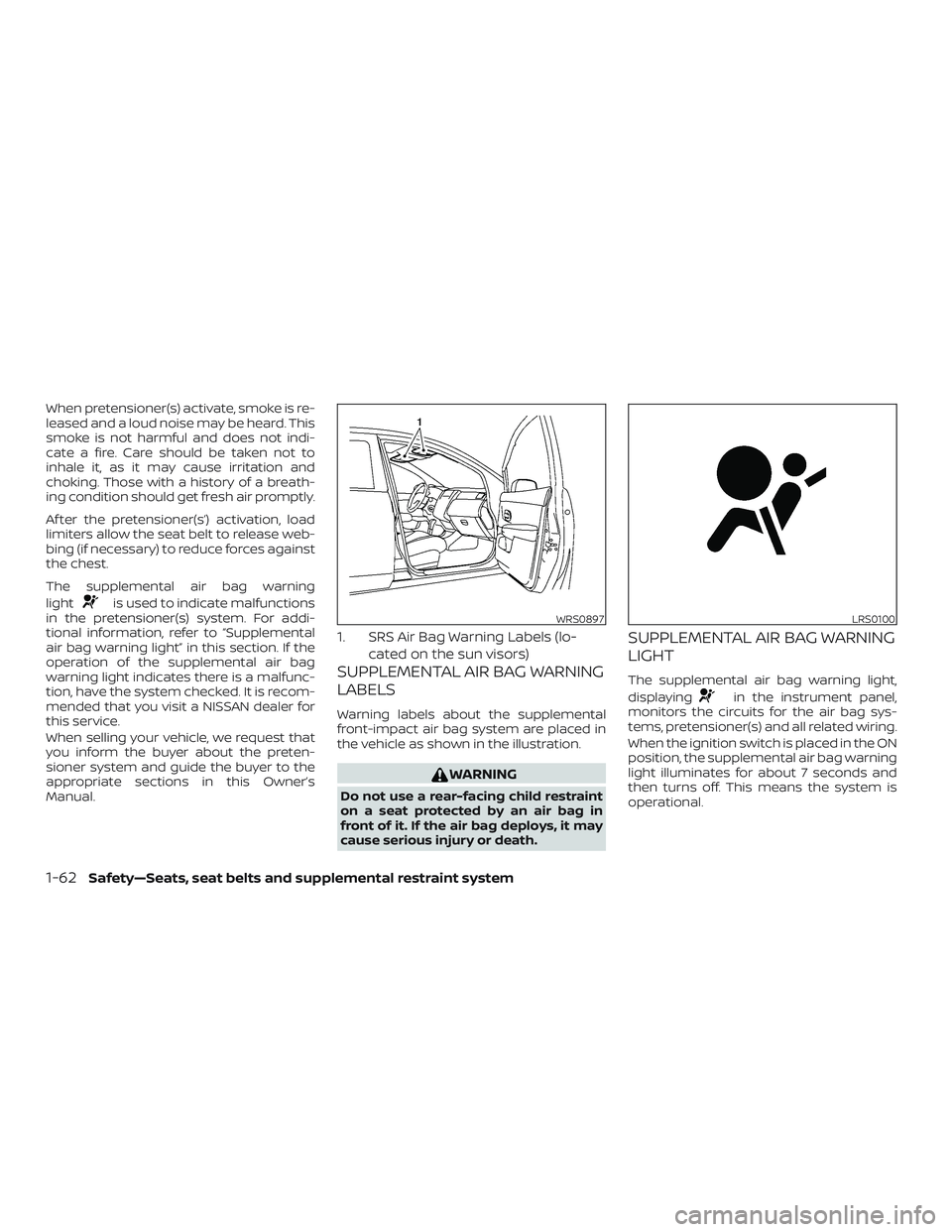

When pretensioner(s) activate, smoke is re-
leased and a loud noise may be heard. This
smoke is not harmful and does not indi-
cate a fire. Care should be taken not to
inhale it, as it may cause irritation and
choking. Those with a history of a breath-
ing condition should get fresh air promptly.
Af ter the pretensioner(s’) activation, load
limiters allow the seat belt to release web-
bing (if necessary) to reduce forces against
the chest.
The supplemental air bag warning
light
is used to indicate malfunctions
in the pretensioner(s) system. For addi-
tional information, refer to “Supplemental
air bag warning light” in this section. If the
operation of the supplemental air bag
warning light indicates there is a malfunc-
tion, have the system checked. It is recom-
mended that you visit a NISSAN dealer for
this service.
When selling your vehicle, we request that
you inform the buyer about the preten-
sioner system and guide the buyer to the
appropriate sections in this Owner’s
Manual.
1. SRS Air Bag Warning Labels (lo-
cated on the sun visors)
SUPPLEMENTAL AIR BAG WARNING
LABELS
Warning labels about the supplemental
front-impact air bag system are placed in
the vehicle as shown in the illustration.
WARNING
Do not use a rear-facing child restraint
on a seat protected by an air bag in
front of it. If the air bag deploys, it may
cause serious injury or death.
SUPPLEMENTAL AIR BAG WARNING
LIGHT
The supplemental air bag warning light,
displaying
in the instrument panel,
monitors the circuits for the air bag sys-
tems, pretensioner(s) and all related wiring.
When the ignition switch is placed in the ON
position, the supplemental air bag warning
light illuminates for about 7 seconds and
then turns off. This means the system is
operational.
WRS0897LRS0100
1-62Safety—Seats, seat belts and supplemental restraint system

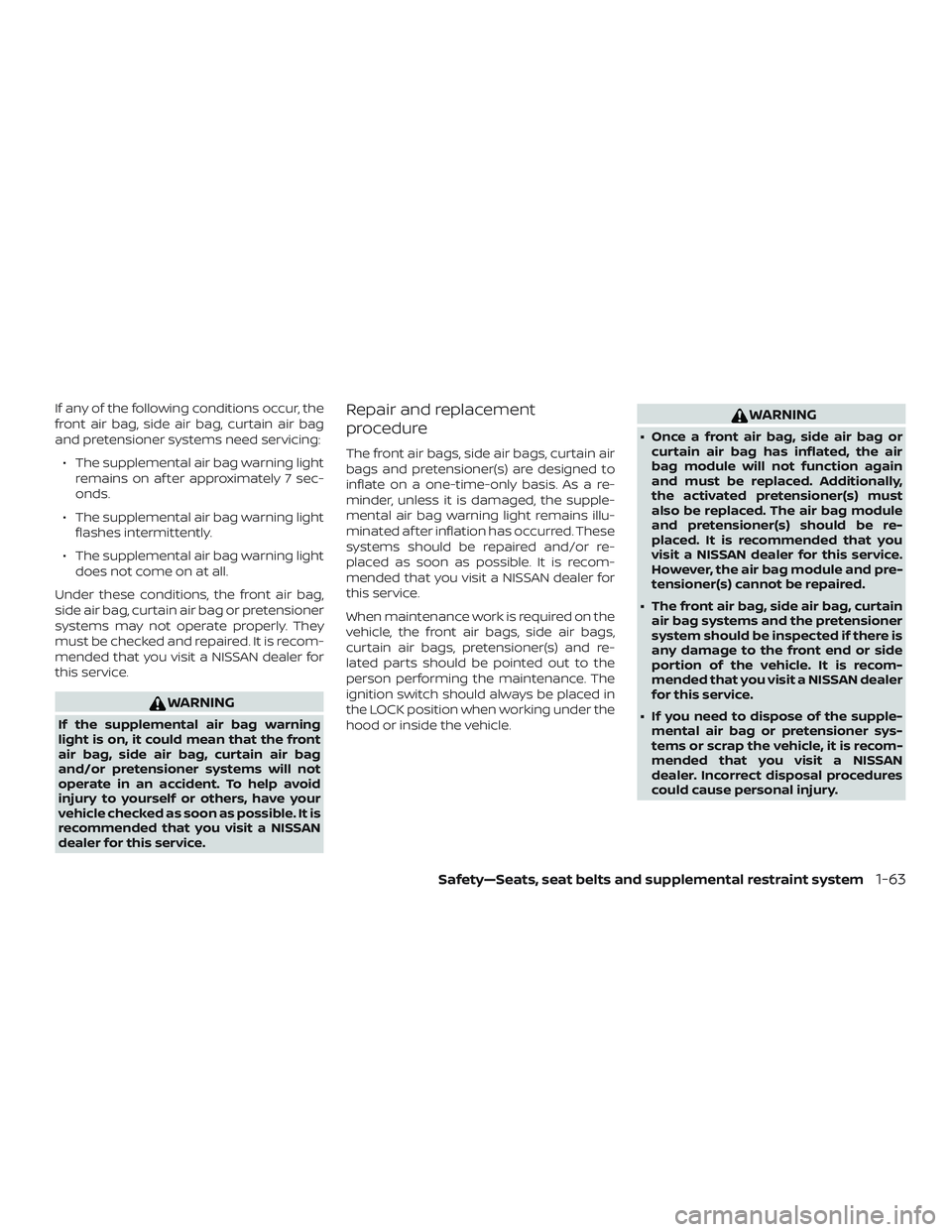

If any of the following conditions occur, the
front air bag, side air bag, curtain air bag
and pretensioner systems need servicing:∙ The supplemental air bag warning light remains on af ter approximately 7 sec-
onds.
∙ The supplemental air bag warning light flashes intermittently.
∙ The supplemental air bag warning light does not come on at all.
Under these conditions, the front air bag,
side air bag, curtain air bag or pretensioner
systems may not operate properly. They
must be checked and repaired. It is recom-
mended that you visit a NISSAN dealer for
this service.
WARNING
If the supplemental air bag warning
light is on, it could mean that the front
air bag, side air bag, curtain air bag
and/or pretensioner systems will not
operate in an accident. To help avoid
injury to yourself or others, have your
vehicle checked as soon as possible. It is
recommended that you visit a NISSAN
dealer for this service.
Repair and replacement
procedure
The front air bags, side air bags, curtain air
bags and pretensioner(s) are designed to
inflate on a one-time-only basis. As a re-
minder, unless it is damaged, the supple-
mental air bag warning light remains illu-
minated af ter inflation has occurred. These
systems should be repaired and/or re-
placed as soon as possible. It is recom-
mended that you visit a NISSAN dealer for
this service.
When maintenance work is required on the
vehicle, the front air bags, side air bags,
curtain air bags, pretensioner(s) and re-
lated parts should be pointed out to the
person performing the maintenance. The
ignition switch should always be placed in
the LOCK position when working under the
hood or inside the vehicle.
WARNING
∙ Once a front air bag, side air bag or curtain air bag has inflated, the air
bag module will not function again
and must be replaced. Additionally,
the activated pretensioner(s) must
also be replaced. The air bag module
and pretensioner(s) should be re-
placed. It is recommended that you
visit a NISSAN dealer for this service.
However, the air bag module and pre-
tensioner(s) cannot be repaired.
∙ The front air bag, side air bag, curtain air bag systems and the pretensioner
system should be inspected if there is
any damage to the front end or side
portion of the vehicle. It is recom-
mended that you visit a NISSAN dealer
for this service.
∙ If you need to dispose of the supple- mental air bag or pretensioner sys-
tems or scrap the vehicle, it is recom-
mended that you visit a NISSAN
dealer. Incorrect disposal procedures
could cause personal injury.
Safety—Seats, seat belts and supplemental restraint system1-63

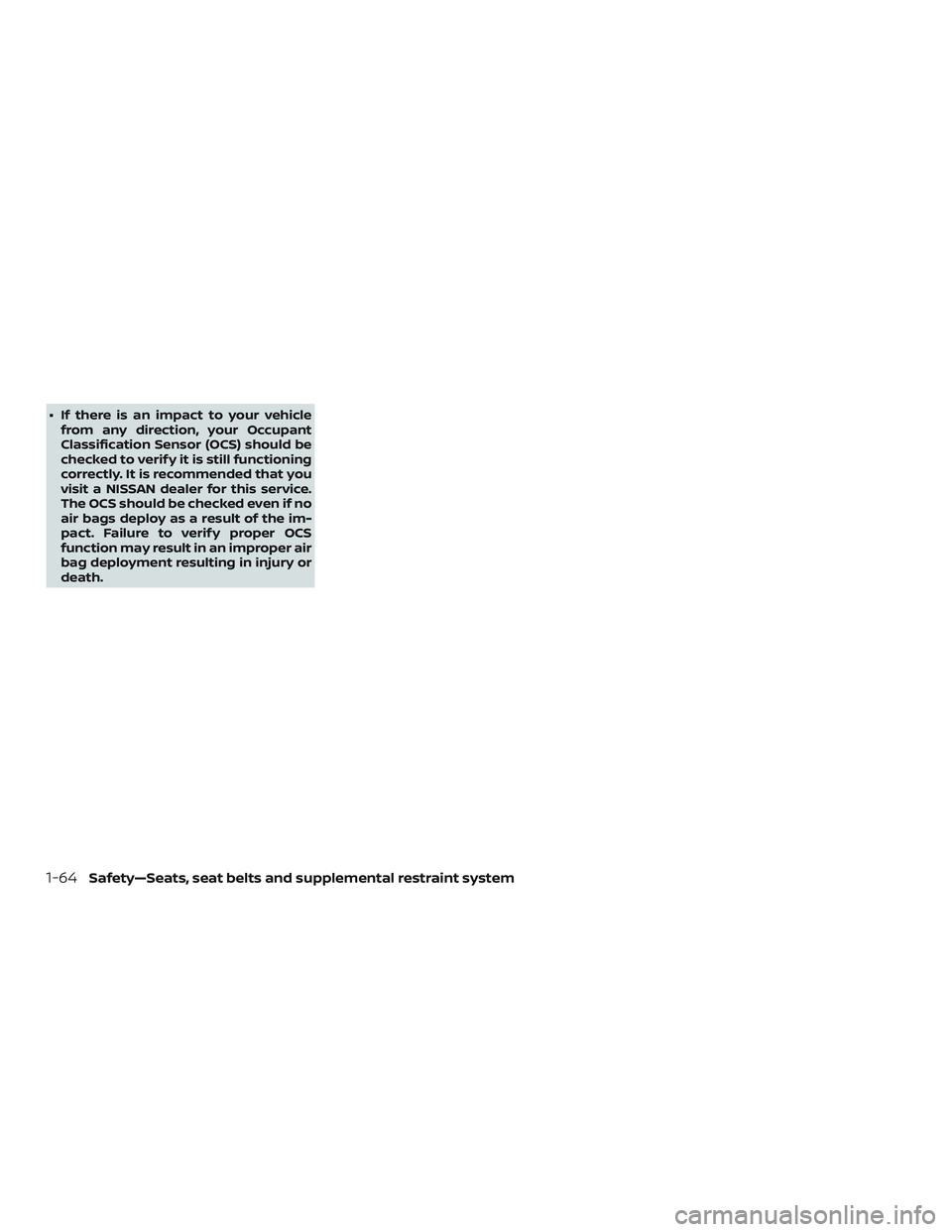

∙ If there is an impact to your vehiclefrom any direction, your Occupant
Classification Sensor (OCS) should be
checked to verif y it is still functioning
correctly. It is recommended that you
visit a NISSAN dealer for this service.
The OCS should be checked even if no
air bags deploy as a result of the im-
pact. Failure to verif y proper OCS
function may result in an improper air
bag deployment resulting in injury or
death.
1-64Safety—Seats, seat belts and supplemental restraint system

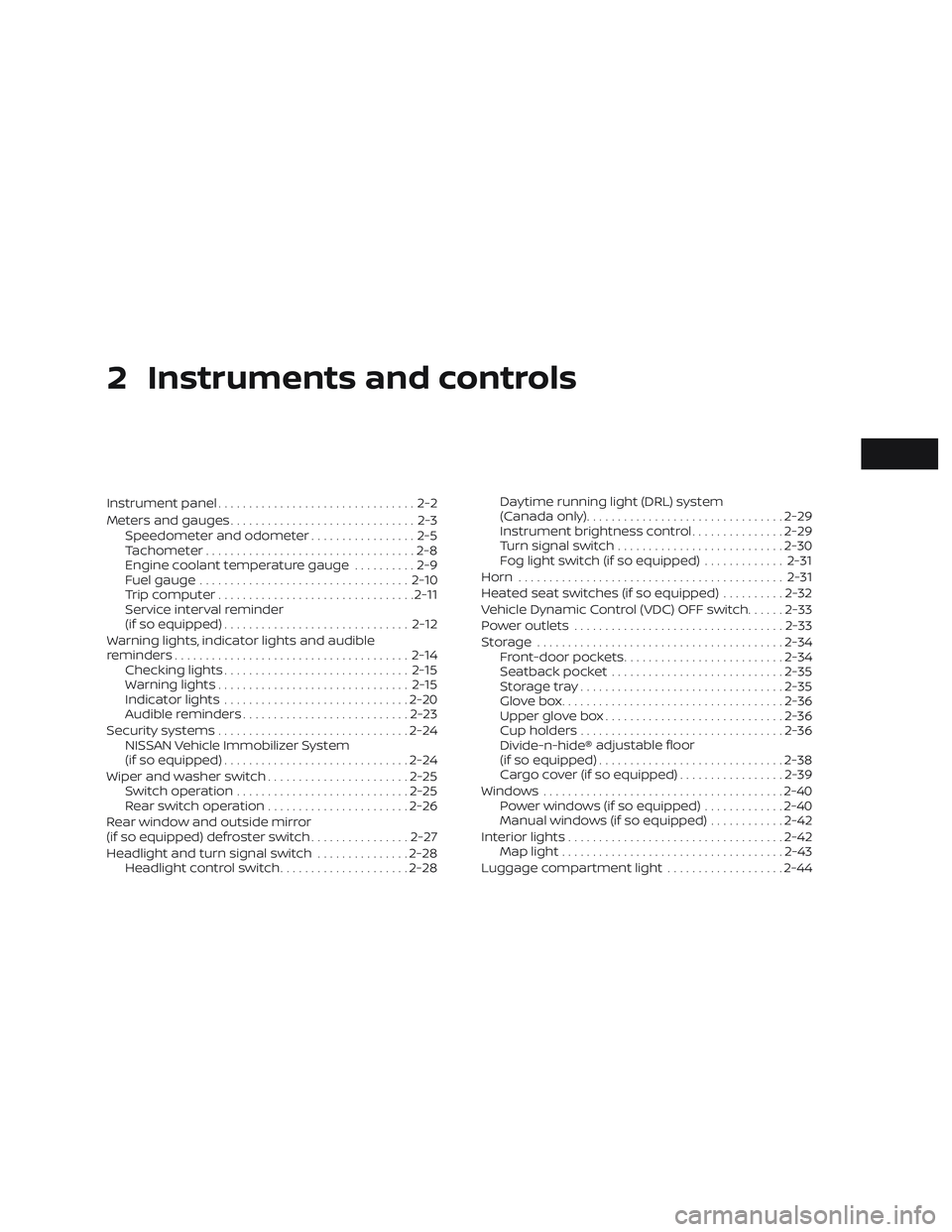

2 Instruments and controls
Instrument panel................................2-2
Meters and gauges ..............................2-3
Speedometer and odometer .................2-5
Tachometer ..................................2-8
Engine coolant temperature gauge ..........2-9
Fuel gauge .................................. 2-10
Trip computer ................................ 2-11
Service interval reminder
(if so equipped) .............................. 2-12
Warning lights, indicator lights and audible
reminders ...................................... 2-14
Checking lights .............................. 2-15
Warning lights ............................... 2-15
Indicator lights .............................. 2-20
Audible reminders ........................... 2-23
Security systems ............................... 2-24
NISSAN Vehicle Immobilizer System
(if so equipped) .............................. 2-24
Wiper and washer switch .......................2-25
Switch operation ............................ 2-25
Rear switch operation .......................2-26
Rear window and outside mirror
(if so equipped) defroster switch ................2-27
Headlight and turn signal switch ...............2-28
Headlight control switch .....................2-28Daytime running light (DRL) system
(Canada only)
................................ 2-29
Instrument brightness control ...............2-29
Turn signal switch ........................... 2-30
Fog light switch (if so equipped) .............2-31
Horn ........................................... 2-31
Heated seat switches (if so equipped) ..........2-32
Vehicle Dynamic Control (VDC) OFF switch ......2-33
Power outlets .................................. 2-33
Storage ........................................ 2-34
Front-door pockets .......................... 2-34
Seatback pocket ............................ 2-35
Storagetray................................. 2-35
Glovebox.................................... 2-36
Upper glove box ............................. 2-36
Cup holders ................................. 2-36
Divide-n-hide®
adjustable floor
(if so equipped) .............................. 2-38
Cargo cover (if so equipped) .................2-39
Windows ....................................... 2-40
Power windows (if so equipped) .............2-40
Manual windows (if so equipped) ............2-42
Interior lights ................................... 2-42
Map light .................................... 2-43
Luggage compartment light ...................2-44

1. Headlight/fog light(if so equipped)/turn signal switch
(P. 2-28)
2. Driver’s supplemental air bag
(P. 1-44)
Horn (P. 2-31)
3. Meters and gauges (P. 2-3)
4. Wiper and washer switch (P. 2-25)
5. Vents (P. 4-28)
6. Rear window and outside mirror
(if so equipped) defroster switch
(P. 2-27)
7. Hazard warning flasher switch
(P. 6-2)
8. Front passenger air bag status
light (P. 1-44)
9. Climate control (P. 4-28)
10. Audio system (P. 4-36)
11. Upper glove box (P. 2-34)
12. Passenger’s supplemental air bag
(P. 1-44)
13. Lower glove box (P. 2-34)
14. Upper glove box release handle
(P. 2-34)
15. Power outlet (P. 2-33)
16. Cup holders (P. 2-34)
LIC3759
INSTRUMENT PANEL
2-2Instruments and controls

17. USB connection port(if so equipped) (P. 4-61)
AUX IN jack (if so equipped) (P. 4-61)
18. Shif t lever (P. 5-15)
19. Cup holders (P. 2-34)
20. Push-button ignition switch
(if so equipped) (P. 5-10)
21. Ignition switch (if so equipped)
(P. 5-8)
22. Cruise control switches
(if so equipped) (P. 5-22)
23. Tilt steering (P. 3-31)
24. Bluetooth® Hands-Free Phone
System (P. 4-81, 4-96, 4-108)
Audio control switches
(if so equipped) (P. 4-36)
Trip computer control switches
(if so equipped) (P. 2-11)
25. Hood release lever (P. 3-26)
26. Fuel-filler door release lever
(P. 3-28)
27. Vehicle Dynamic Control (VDC) OFF
switch (P. 2-33)
28. Outside mirror control switch
(P. 3-33)
Refer to the page number indicated in
parentheses for operating details.
1. Tachometer
2. Temperature gauge
3. OdometerTwin trip odometer
Trip computer 4. Fuel gauge
5. Speedometer
6. Trip odometer reset switch
Trip computer mode
Type A (if so equipped)
LIC2146
METERS AND GAUGES
Instruments and controls2-3

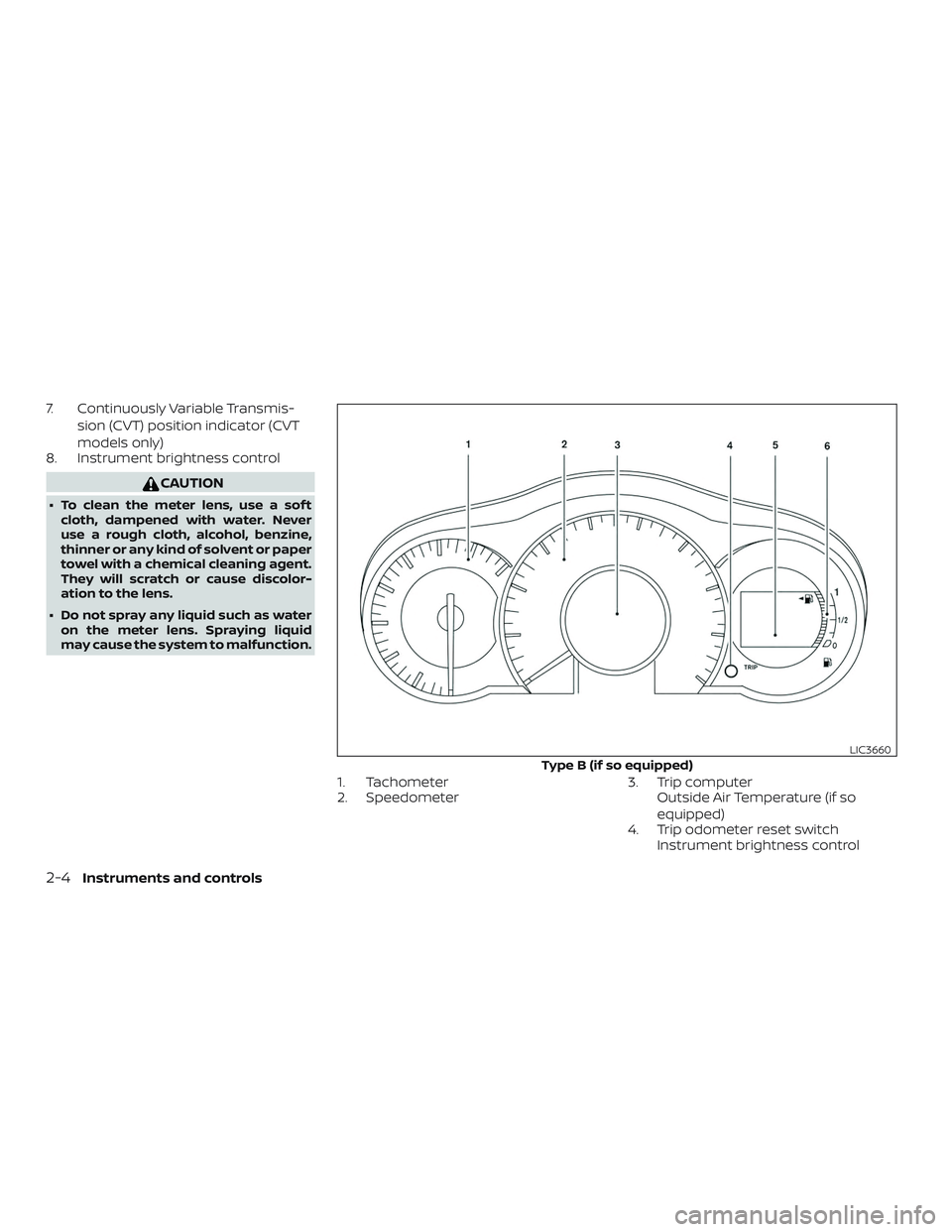

7. Continuously Variable Transmis-sion (CVT) position indicator (CVT
models only)
8. Instrument brightness control
CAUTION
∙ To clean the meter lens, use a sof t
cloth, dampened with water. Never
use a rough cloth, alcohol, benzine,
thinner or any kind of solvent or paper
towel with a chemical cleaning agent.
They will scratch or cause discolor-
ation to the lens.
∙ Do not spray any liquid such as water on the meter lens. Spraying liquid
may cause the system to malfunction.
1. Tachometer
2. Speedometer 3. Trip computer
Outside Air Temperature (if so
equipped)
4. Trip odometer reset switch Instrument brightness control
Type B (if so equipped)
LIC3660
2-4Instruments and controls

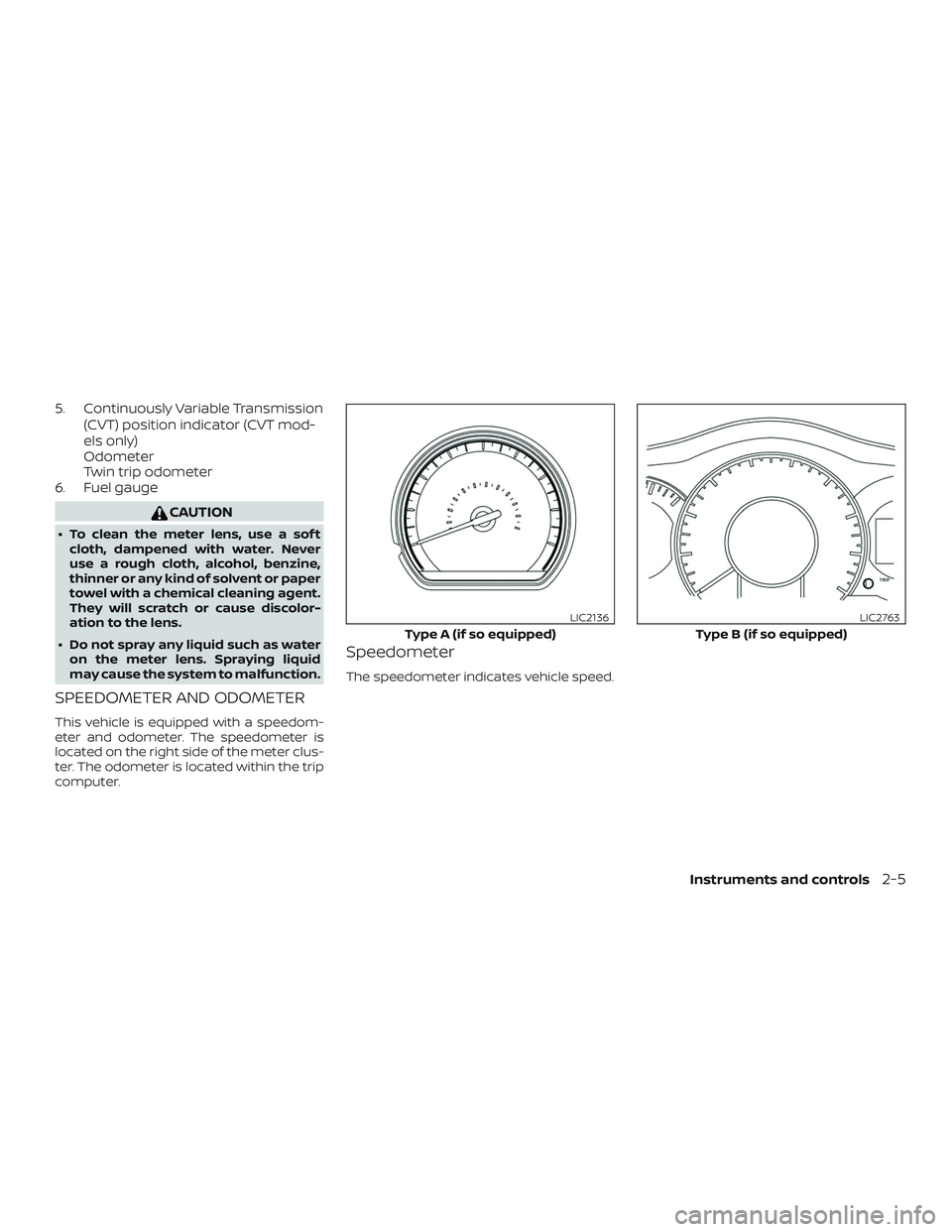

5. Continuously Variable Transmission(CVT) position indicator (CVT mod-
els only)
Odometer
Twin trip odometer
6. Fuel gauge
CAUTION
∙ To clean the meter lens, use a sof t
cloth, dampened with water. Never
use a rough cloth, alcohol, benzine,
thinner or any kind of solvent or paper
towel with a chemical cleaning agent.
They will scratch or cause discolor-
ation to the lens.
∙ Do not spray any liquid such as water on the meter lens. Spraying liquid
may cause the system to malfunction.
SPEEDOMETER AND ODOMETER
This vehicle is equipped with a speedom-
eter and odometer. The speedometer is
located on the right side of the meter clus-
ter. The odometer is located within the trip
computer.
Speedometer
The speedometer indicates vehicle speed.
Type A (if so equipped)
LIC2136
Type B (if so equipped)
LIC2763
Instruments and controls2-5

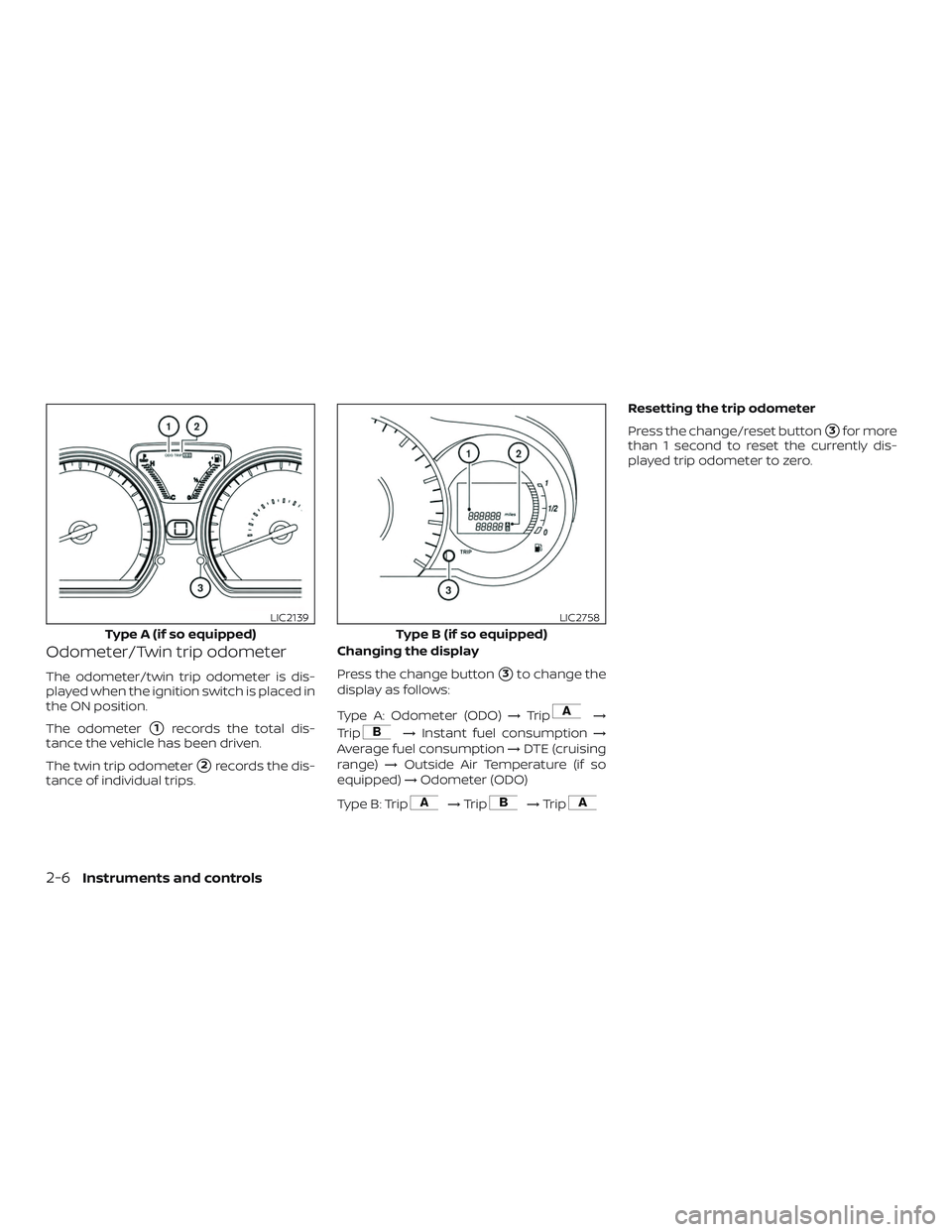

Odometer/Twin trip odometer
The odometer/twin trip odometer is dis-
played when the ignition switch is placed in
the ON position.
The odometer
1records the total dis-
tance the vehicle has been driven.
The twin trip odometer
2records the dis-
tance of individual trips. Changing the display
Press the change button
3to change the
display as follows:
Type A: Odometer (ODO) →Trip
→
Trip
→ Instant fuel consumption →
Average fuel consumption →DTE (cruising
range) →Outside Air Temperature (if so
equipped) →Odometer (ODO)
Type B: Trip
→ Trip→Trip
Resetting the trip odometer
Press the change/reset button
3for more
than 1 second to reset the currently dis-
played trip odometer to zero.
Type A (if so equipped)
LIC2139
Type B (if so equipped)
LIC2758
2-6Instruments and controls

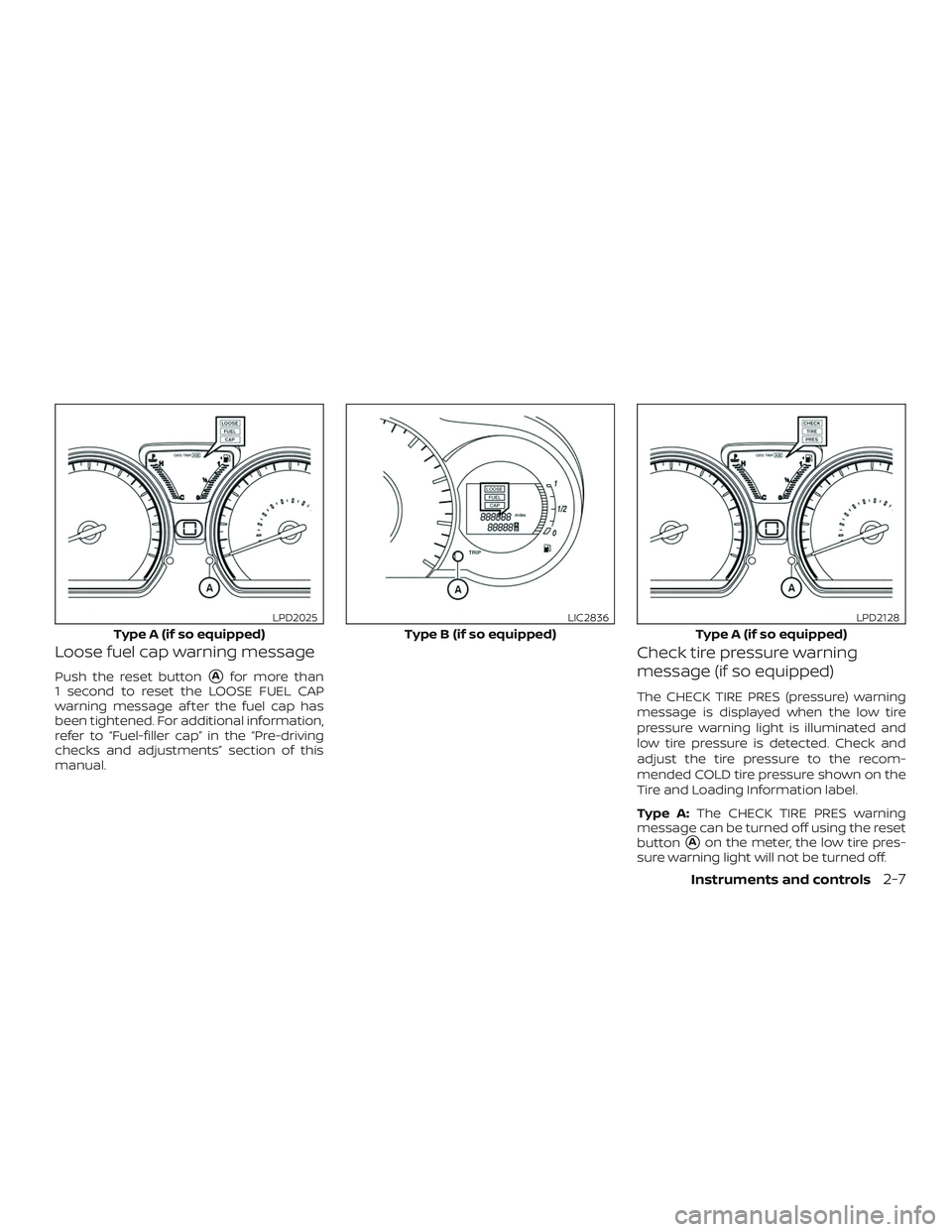

Loose fuel cap warning message
Push the reset buttonAfor more than
1 second to reset the LOOSE FUEL CAP
warning message af ter the fuel cap has
been tightened. For additional information,
refer to “Fuel-filler cap” in the “Pre-driving
checks and adjustments” section of this
manual.
Check tire pressure warning
message (if so equipped)
The CHECK TIRE PRES (pressure) warning
message is displayed when the low tire
pressure warning light is illuminated and
low tire pressure is detected. Check and
adjust the tire pressure to the recom-
mended COLD tire pressure shown on the
Tire and Loading Information label.
Type A: The CHECK TIRE PRES warning
message can be turned off using the reset
button
Aon the meter, the low tire pres-
sure warning light will not be turned off.
Type A (if so equipped)
LPD2025
Type B (if so equipped)
LIC2836
Type A (if so equipped)
LPD2128
Instruments and controls2-7
