NISSAN VERSA NOTE 2019 Owner´s Manual

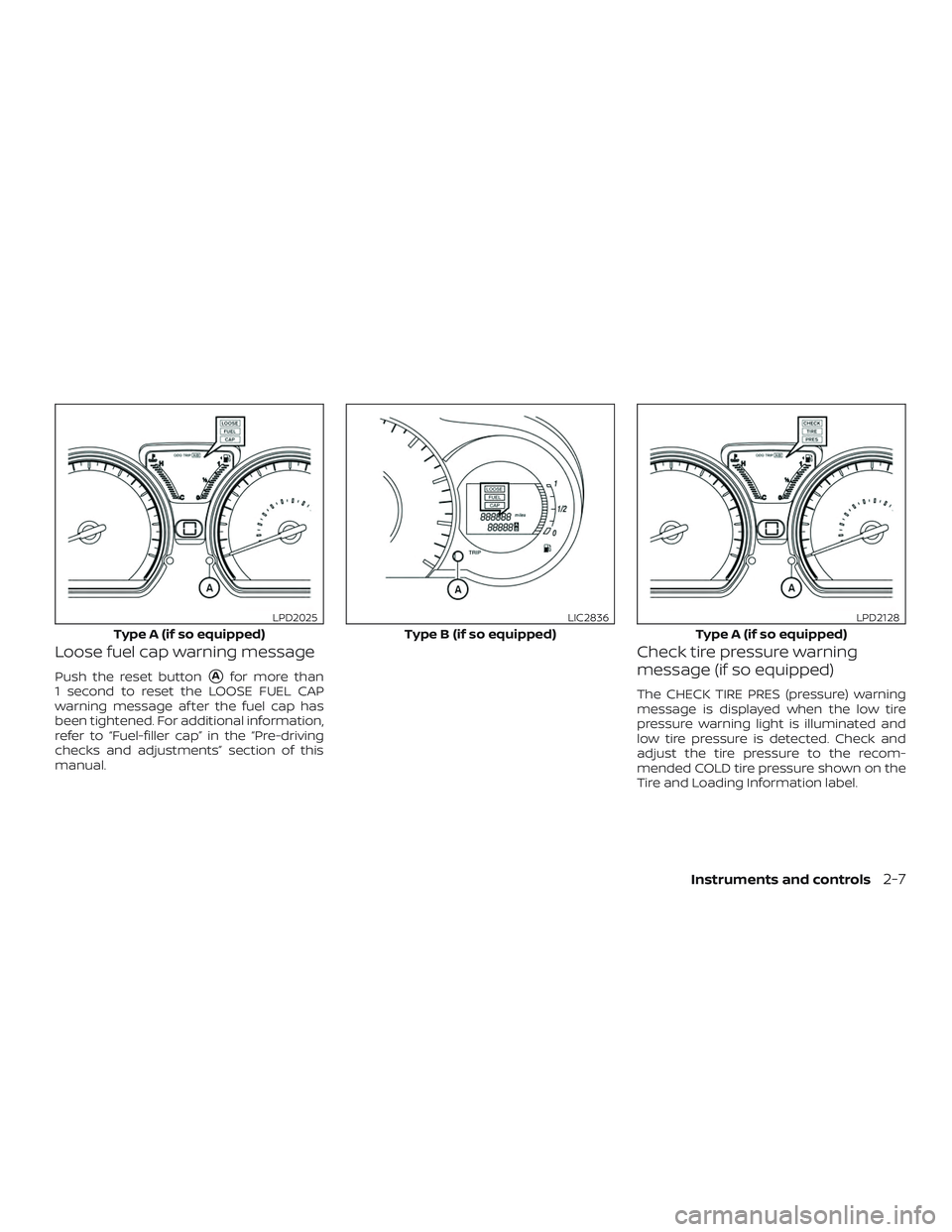

Loose fuel cap warning message
Push the reset buttonAfor more than
1 second to reset the LOOSE FUEL CAP
warning message af ter the fuel cap has
been tightened. For additional information,
refer to “Fuel-filler cap” in the “Pre-driving
checks and adjustments” section of this
manual.
Check tire pressure warning
message (if so equipped)
The CHECK TIRE PRES (pressure) warning
message is displayed when the low tire
pressure warning light is illuminated and
low tire pressure is detected. Check and
adjust the tire pressure to the recom-
mended COLD tire pressure shown on the
Tire and Loading Information label.
Type A (if so equipped)
LPD2025
Type B (if so equipped)
LIC2836
Type A (if so equipped)
LPD2128
Instruments and controls2-7

Type A (if so equipped):The CHECK TIRE
PRES warning message can be turned off
using the reset button
Aon the meter, the
low tire pressure warning light will not be
turned off.
Type B (if so equipped): The CHECK TIRE
PRES warning message is displayed when
the low tire pressure warning light is illumi-
nated and low tire pressure is detected.
Check and adjust the tire pressure to the
recommended COLD tire pressure shown
on the tire and Loading Information label. The low tire pressure warning light remains
illuminated until the tires are inflated to the
recommended COLD tire pressure.
Type A Only (if so equipped): The CHECK
TIRE PRES warning message is displayed
each time the ignition switch is placed in
the ON position as long as the low tire
pressure warning light remains illumi-
nated.
For additional information, refer to “Low tire
pressure warning light” in this section, “Tire
Pressure Monitoring System (TPMS)” in the
“Starting and driving” section and “Wheels
and tires” in the “Do-it-yourself ” section of
this manual.

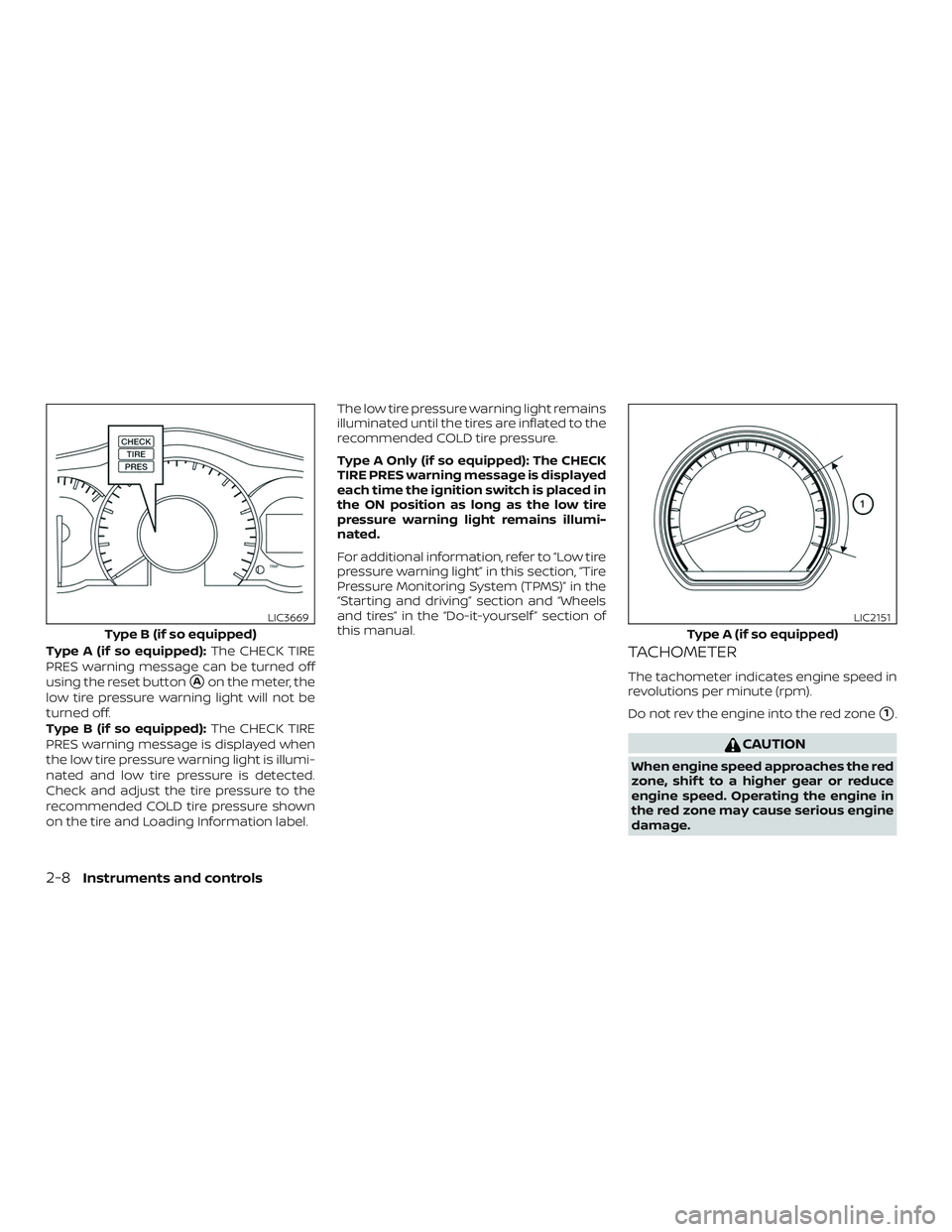

TACHOMETER
The tachometer indicates engine speed in
revolutions per minute (rpm).
Do not rev the engine into the red zone
1.
CAUTION
When engine speed approaches the red
zone, shif t to a higher gear or reduce
engine speed. Operating the engine in
the red zone may cause serious engine
damage.
Type B (if so equipped)
LIC3669
Type A (if so equipped)
LIC2151
2-8Instruments and controls

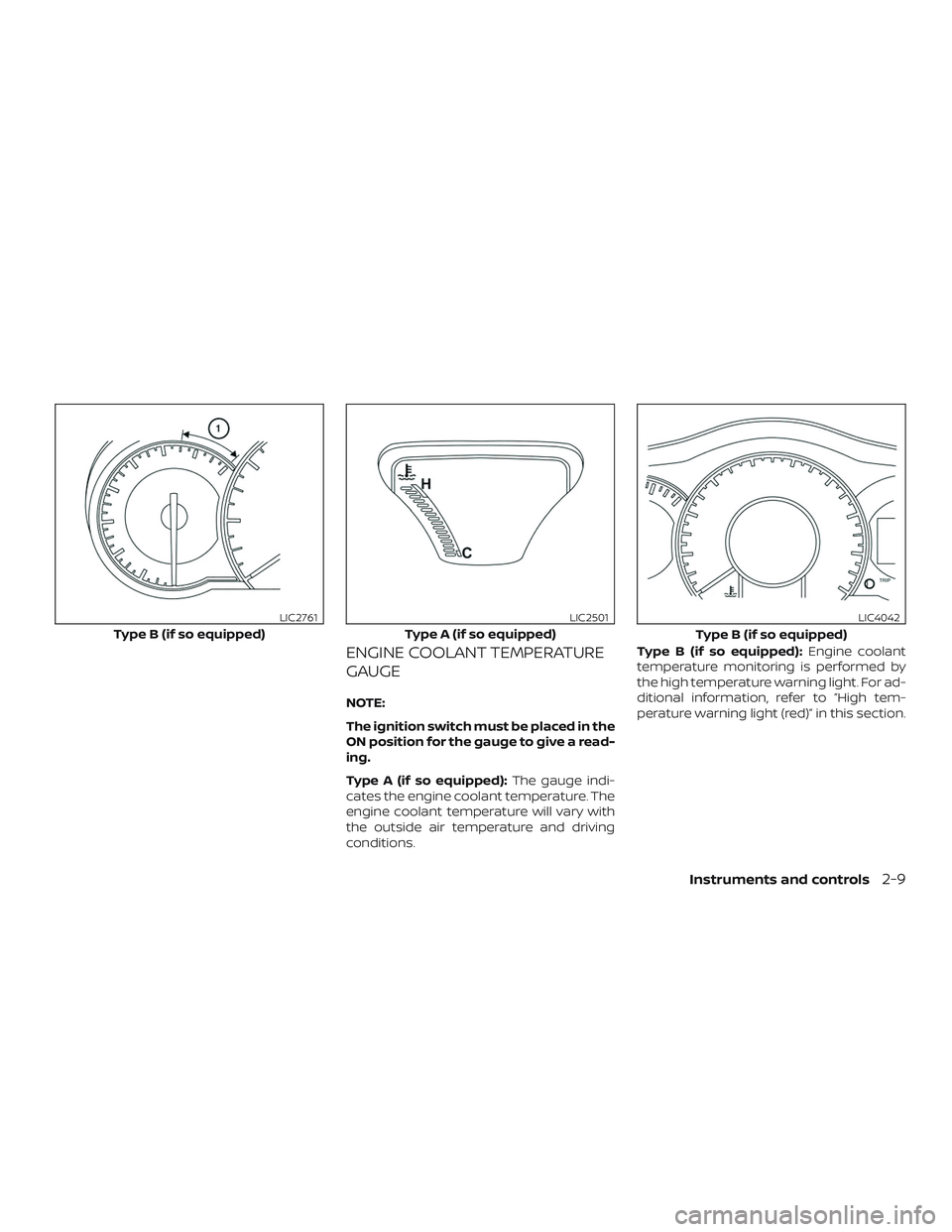

ENGINE COOLANT TEMPERATURE
GAUGE
NOTE:
The ignition switch must be placed in the
ON position for the gauge to give a read-
ing.
Type A (if so equipped):The gauge indi-
cates the engine coolant temperature. The
engine coolant temperature will vary with
the outside air temperature and driving
conditions. Type B (if so equipped):
Engine coolant
temperature monitoring is performed by
the high temperature warning light. For ad-
ditional information, refer to “High tem-
perature warning light (red)” in this section.
Type B (if so equipped)
LIC2761
Type A (if so equipped)
LIC2501
Type B (if so equipped)
LIC4042
Instruments and controls2-9

CAUTION
If the gauge indicates a coolant tem-
perature near the hot (H) end of the nor-
mal range, reduce vehicle speed to de-
crease the temperature. If the gauge is
over the normal range, stop the vehicle
as soon as safely possible. If the engine
is overheated, continued operation of
the vehicle may seriously damage the
engine. For additional information, re-
fer to “If your vehicle overheats” in the
“In case of emergency ” section of this
manual.

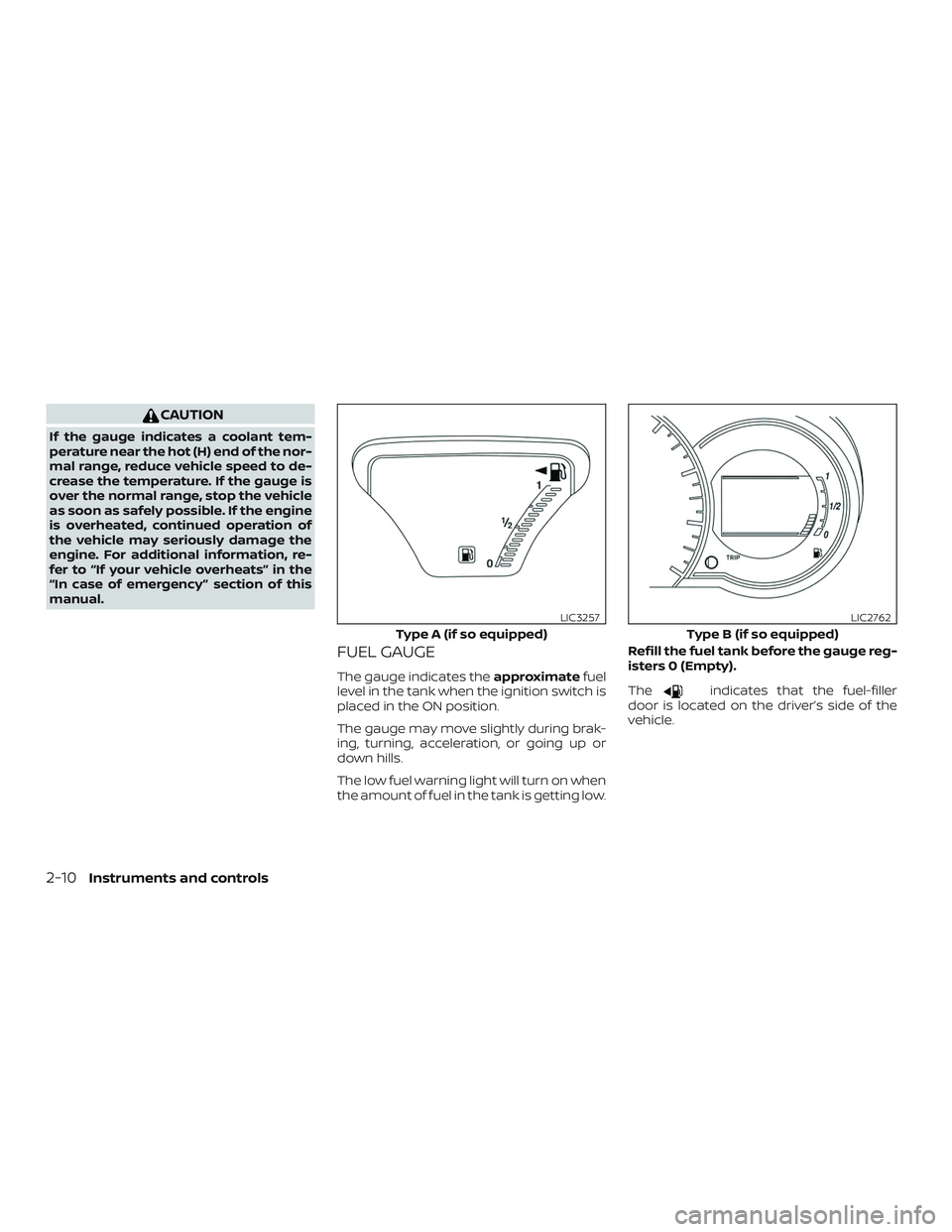

FUEL GAUGE
The gauge indicates theapproximatefuel
level in the tank when the ignition switch is
placed in the ON position.
The gauge may move slightly during brak-
ing, turning, acceleration, or going up or
down hills.
The low fuel warning light will turn on when
the amount of fuel in the tank is getting low. Refill the fuel tank before the gauge reg-
isters 0 (Empty).
Theindicates that the fuel-filler
door is located on the driver’s side of the
vehicle.
Type A (if so equipped)
LIC3257
Type B (if so equipped)
LIC2762
2-10Instruments and controls

CAUTION
∙ If the vehicle runs out of fuel, thecheck engine light may come on. Re-
fuel as soon as possible. Af ter a few
driving trips, the
light should
turn off. If the light remains on af ter a
few driving trips, have the vehicle in-
spected. It is recommended that you
visit a NISSAN dealer for this service.
∙ For additional information, refer to “Malfunction Indicator Light (MIL)” in
this section.

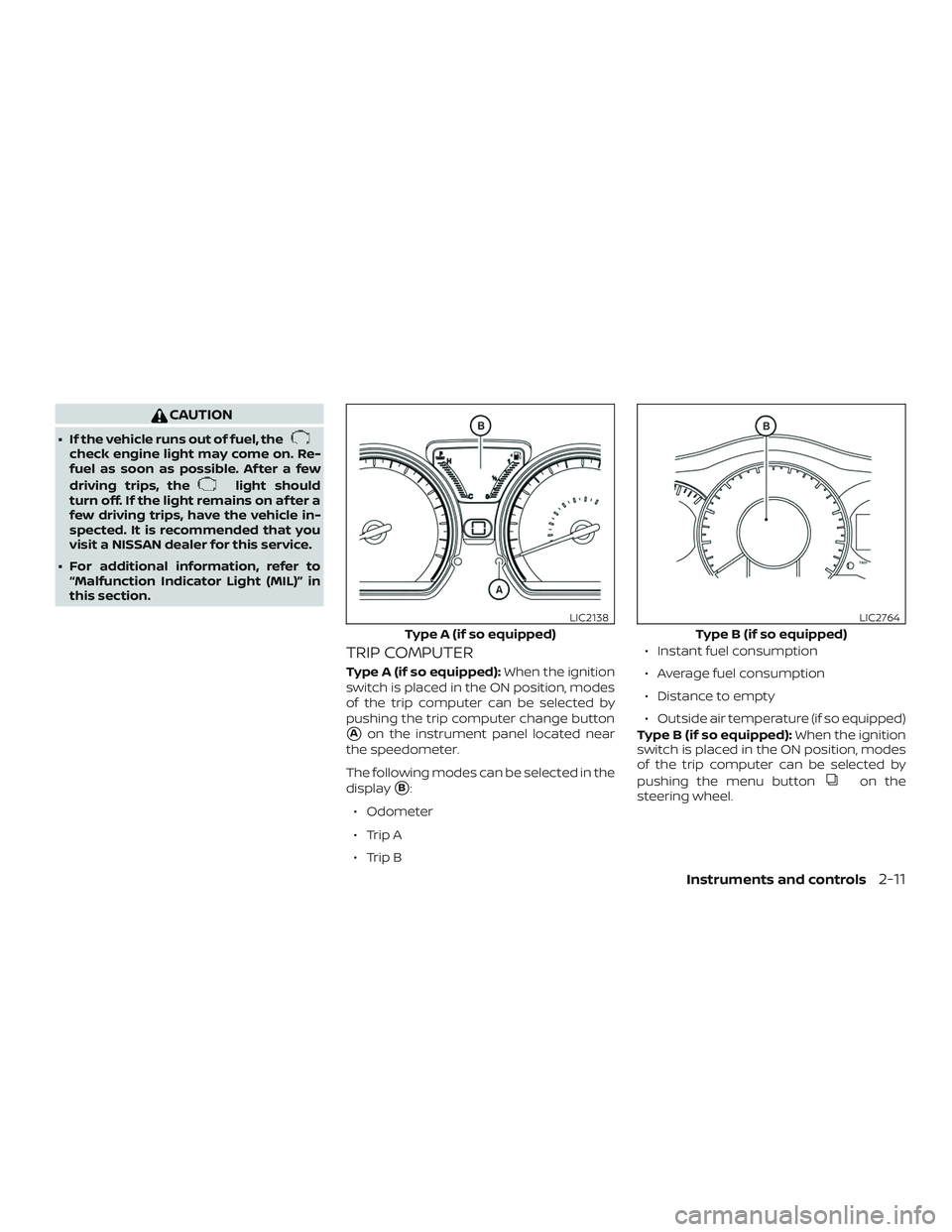

TRIP COMPUTER
Type A (if so equipped): When the ignition
switch is placed in the ON position, modes
of the trip computer can be selected by
pushing the trip computer change button
Aon the instrument panel located near
the speedometer.
The following modes can be selected in the
display
B:
∙ Odometer
∙ Trip A
∙ Trip B ∙ Instant fuel consumption
∙ Average fuel consumption
∙ Distance to empty
∙ Outside air temperature (if so equipped)
Type B (if so equipped): When the ignition
switch is placed in the ON position, modes
of the trip computer can be selected by
pushing the menu buttonon the
steering wheel.
Type A (if so equipped)
LIC2138
Type B (if so equipped)
LIC2764
Instruments and controls2-11

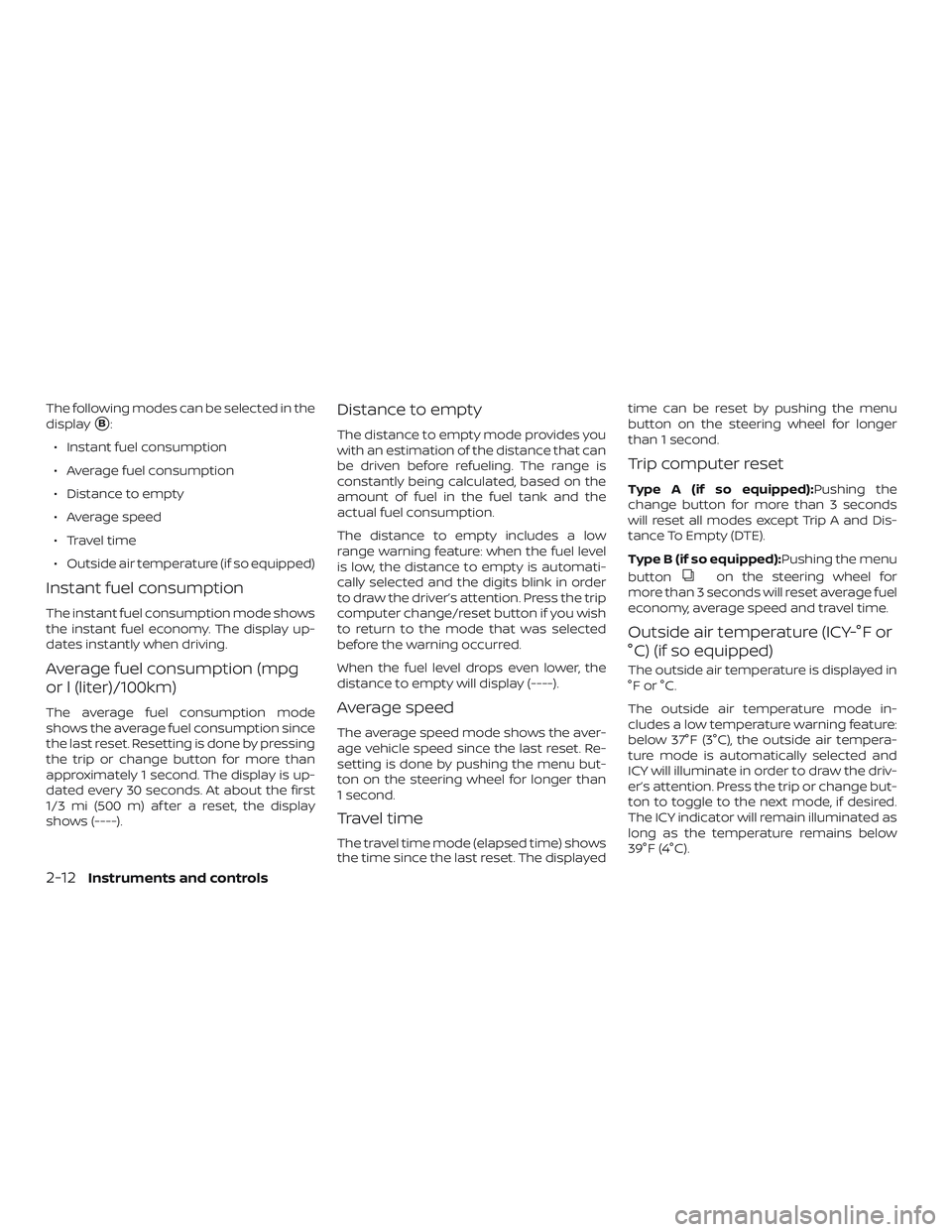

The following modes can be selected in the
display
B:
∙ Instant fuel consumption
∙ Average fuel consumption
∙ Distance to empty
∙ Average speed
∙ Travel time
∙ Outside air temperature (if so equipped)
Instant fuel consumption
The instant fuel consumption mode shows
the instant fuel economy. The display up-
dates instantly when driving.
Average fuel consumption (mpg
or l (liter)/100km)
The average fuel consumption mode
shows the average fuel consumption since
the last reset. Resetting is done by pressing
the trip or change button for more than
approximately 1 second. The display is up-
dated every 30 seconds. At about the first
1/3 mi (500 m) af ter a reset, the display
shows (----).
Distance to empty
The distance to empty mode provides you
with an estimation of the distance that can
be driven before refueling. The range is
constantly being calculated, based on the
amount of fuel in the fuel tank and the
actual fuel consumption.
The distance to empty includes a low
range warning feature: when the fuel level
is low, the distance to empty is automati-
cally selected and the digits blink in order
to draw the driver’s attention. Press the trip
computer change/reset button if you wish
to return to the mode that was selected
before the warning occurred.
When the fuel level drops even lower, the
distance to empty will display (----).
Average speed
The average speed mode shows the aver-
age vehicle speed since the last reset. Re-
setting is done by pushing the menu but-
ton on the steering wheel for longer than
1 second.
Travel time
The travel time mode (elapsed time) shows
the time since the last reset. The displayed time can be reset by pushing the menu
button on the steering wheel for longer
than 1 second.
Trip computer reset
Type A (if so equipped):Pushing the
change button for more than 3 seconds
will reset all modes except Trip A and Dis-
tance To Empty (DTE).
Type B (if so equipped):Pushing the menu
button
on the steering wheel for
more than 3 seconds will reset average fuel
economy, average speed and travel time.
Outside air temperature (ICY-°F or
°C) (if so equipped)
The outside air temperature is displayed in
°F or °C.
The outside air temperature mode in-
cludes a low temperature warning feature:
below 37°F (3°C), the outside air tempera-
ture mode is automatically selected and
ICY will illuminate in order to draw the driv-
er’s attention. Press the trip or change but-
ton to toggle to the next mode, if desired.
The ICY indicator will remain illuminated as
long as the temperature remains below
39°F (4°C).
2-12Instruments and controls

The ambient temperature sensor is lo-
cated in front of the radiator. The sensor
may be affected by road or engine heat,
wind directions and other driving condi-
tions. The display may differ from the ac-
tual ambient temperature or the tempera-
ture displayed on various signs or
billboards.

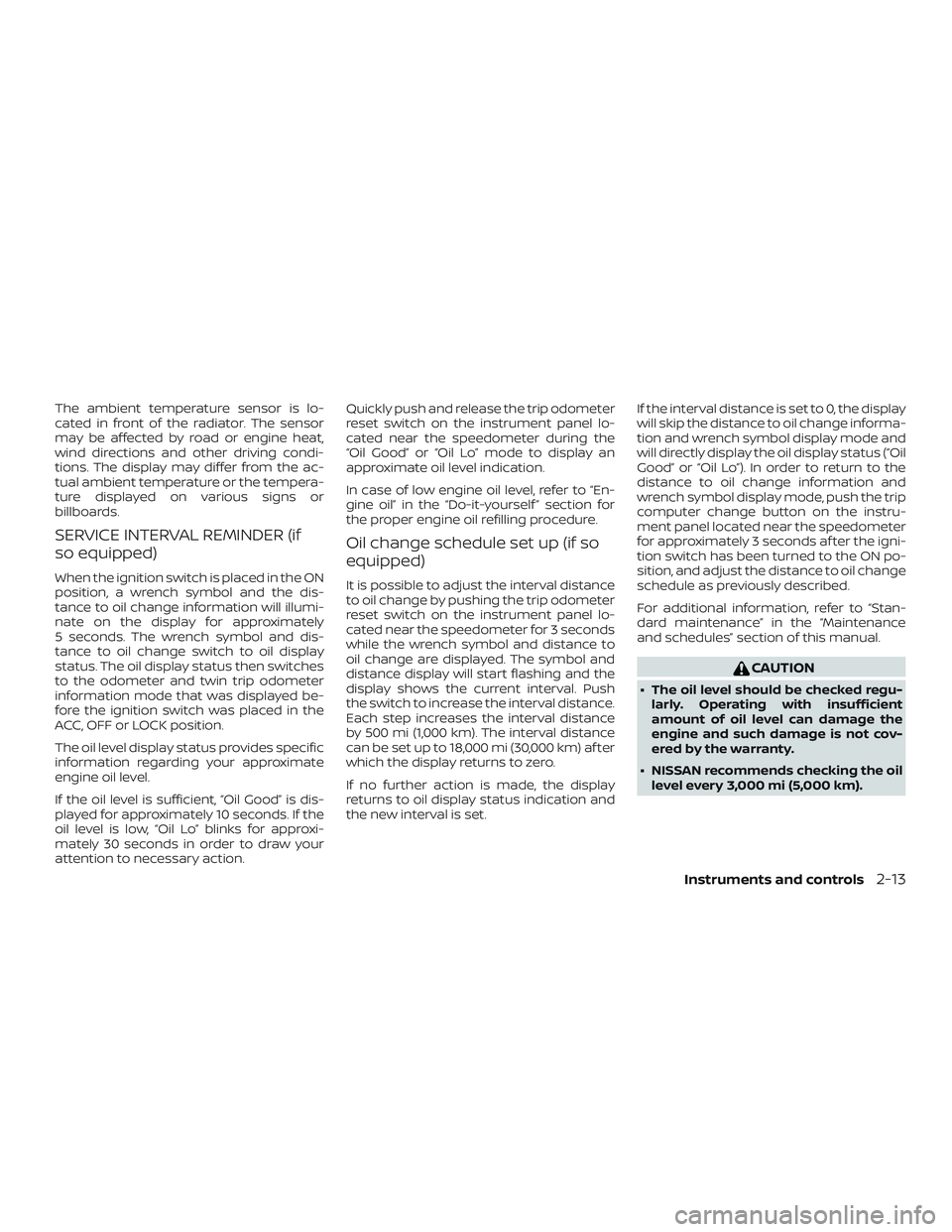

SERVICE INTERVAL REMINDER (if
so equipped)
When the ignition switch is placed in the ON
position, a wrench symbol and the dis-
tance to oil change information will illumi-
nate on the display for approximately
5 seconds. The wrench symbol and dis-
tance to oil change switch to oil display
status. The oil display status then switches
to the odometer and twin trip odometer
information mode that was displayed be-
fore the ignition switch was placed in the
ACC, OFF or LOCK position.
The oil level display status provides specific
information regarding your approximate
engine oil level.
If the oil level is sufficient, “Oil Good” is dis-
played for approximately 10 seconds. If the
oil level is low, “Oil Lo” blinks for approxi-
mately 30 seconds in order to draw your
attention to necessary action.Quickly push and release the trip odometer
reset switch on the instrument panel lo-
cated near the speedometer during the
“Oil Good” or “Oil Lo” mode to display an
approximate oil level indication.
In case of low engine oil level, refer to “En-
gine oil” in the “Do-it-yourself ” section for
the proper engine oil refilling procedure.
Oil change schedule set up (if so
equipped)
It is possible to adjust the interval distance
to oil change by pushing the trip odometer
reset switch on the instrument panel lo-
cated near the speedometer for 3 seconds
while the wrench symbol and distance to
oil change are displayed. The symbol and
distance display will start flashing and the
display shows the current interval. Push
the switch to increase the interval distance.
Each step increases the interval distance
by 500 mi (1,000 km). The interval distance
can be set up to 18,000 mi (30,000 km) af ter
which the display returns to zero.
If no further action is made, the display
returns to oil display status indication and
the new interval is set.
If the interval distance is set to 0, the display
will skip the distance to oil change informa-
tion and wrench symbol display mode and
will directly display the oil display status (“Oil
Good” or “Oil Lo”). In order to return to the
distance to oil change information and
wrench symbol display mode, push the trip
computer change button on the instru-
ment panel located near the speedometer
for approximately 3 seconds af ter the igni-
tion switch has been turned to the ON po-
sition, and adjust the distance to oil change
schedule as previously described.
For additional information, refer to “Stan-
dard maintenance” in the “Maintenance
and schedules” section of this manual.
CAUTION
∙ The oil level should be checked regu-
larly. Operating with insufficient
amount of oil level can damage the
engine and such damage is not cov-
ered by the warranty.
∙ NISSAN recommends checking the oil level every 3,000 mi (5,000 km).
Instruments and controls2-13

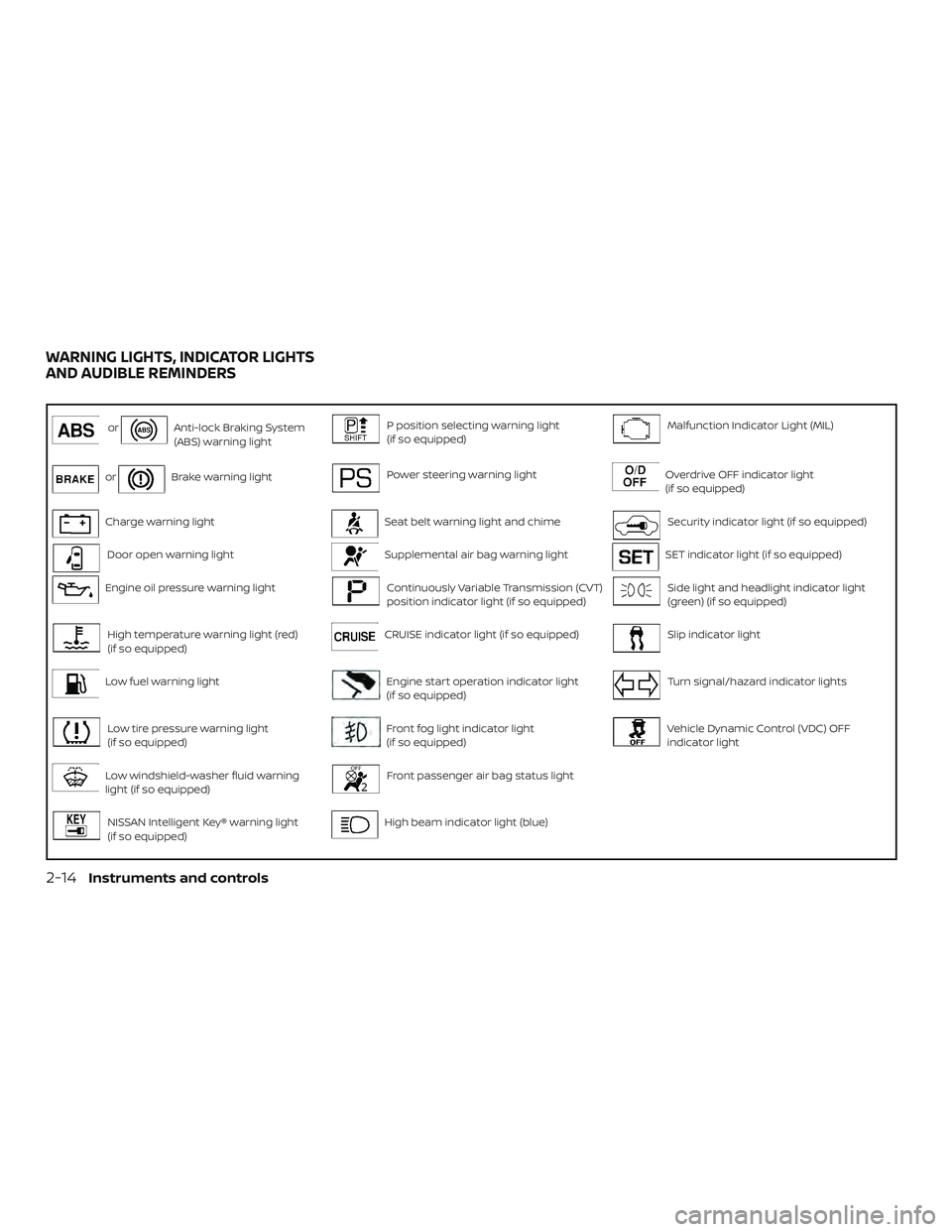

orAnti-lock Braking System
(ABS) warning lightP position selecting warning light
(if so equipped)Malfunction Indicator Light (MIL)
orBrake warning lightPower steering warning lightOverdrive OFF indicator light
(if so equipped)
Charge warning lightSeat belt warning light and chimeSecurity indicator light (if so equipped)
Door open warning lightSupplemental air bag warning lightSET indicator light (if so equipped)
Engine oil pressure warning lightContinuously Variable Transmission (CVT)
position indicator light (if so equipped)Side light and headlight indicator light
(green) (if so equipped)
High temperature warning light (red)
(if so equipped)CRUISE indicator light (if so equipped)Slip indicator light
Low fuel warning lightEngine start operation indicator light
(if so equipped)Turn signal/hazard indicator lights
Low tire pressure warning light
(if so equipped)Front fog light indicator light
(if so equipped)Vehicle Dynamic Control (VDC) OFF
indicator light
Low windshield-washer fluid warning
light (if so equipped)Front passenger air bag status light
NISSAN Intelligent Key® warning light
(if so equipped)High beam indicator light (blue)
WARNING LIGHTS, INDICATOR LIGHTS
AND AUDIBLE REMINDERS
2-14Instruments and controls

CHECKING LIGHTS
With all doors closed, apply the parking
brake, fasten the seat belts and place the
ignition switch in the ON position without
starting the engine. The following lights (if
so equipped) will come on:
or,,,,
The following lights (if so equipped) will
come on briefly and then go off:
or,(red),,,
,,,,
If any light does not come on or operate in
a way other than described, it may indicate
a burned-out bulb and/or a system mal-
function. Have the system checked. It is
recommended that you visit a NISSAN
dealer for this service.
WARNING LIGHTS
This vehicle has various warning lights that
may illuminate to indicate a potential prob-
lem. For additional information, refer to the
specific light in this section.
orAnti-lock BrakingSystem (ABS)
warning light
When the ignition switch is placed in the ON
position, the ABS warning light illuminates
and then turns off. This indicates the ABS is
operational.
If the ABS warning light illuminates while
the engine is running or while driving, it
may indicate the ABS is not functioning
properly. Have the system checked. It is
recommended that you visit a NISSAN
dealer for this service.
If an ABS malfunction occurs, the anti-lock
function is turned off. The brake system
then operates normally but without anti-
lock assistance. For additional information,
refer to “Brake system” in the “Starting and
driving” section of this manual.
orBrake warninglight
This light functions for both the parking
brake and the foot brake systems. Parking brake indicator
When the ignition switch is placed in the ON
position, the light comes on when the park-
ing brake is applied.
Low brake fluid warning light
When the ignition switch is placed in the ON
position, the light warns of a low brake fluid
level. If the light comes on while the engine
is running with the parking brake not ap-
plied, stop the vehicle and perform the fol-
lowing:
1. Check the brake fluid level. Add brake fluid as necessary. For additional infor-
mation, refer to “Brake fluid” in the “Do-
it-yourself ” section of this manual.
2. If the brake fluid level is correct, have the warning system checked. It is rec-
ommended that you visit a NISSAN
dealer for this service.
Instruments and controls2-15

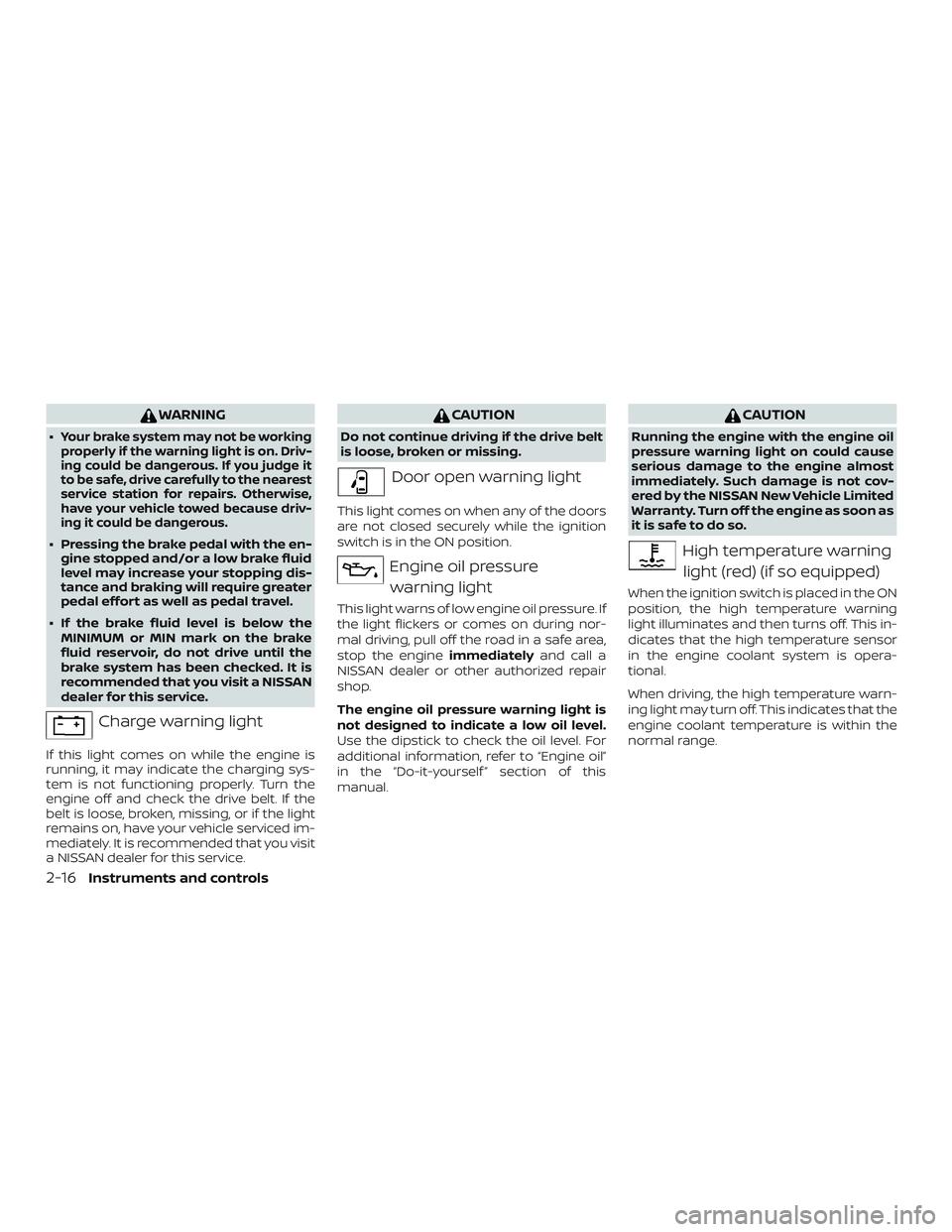

WARNING
∙Your brake system may not be working
properly if the warning light is on. Driv-
ing could be dangerous. If you judge it
to be safe, drive carefully to the nearest
service station for repairs. Otherwise,
have your vehicle towed because driv-
ing it could be dangerous.
∙ Pressing the brake pedal with the en- gine stopped and/or a low brake fluid
level may increase your stopping dis-
tance and braking will require greater
pedal effort as well as pedal travel.
∙ If the brake fluid level is below the MINIMUM or MIN mark on the brake
fluid reservoir, do not drive until the
brake system has been checked. It is
recommended that you visit a NISSAN
dealer for this service.
Charge warning light
If this light comes on while the engine is
running, it may indicate the charging sys-
tem is not functioning properly. Turn the
engine off and check the drive belt. If the
belt is loose, broken, missing, or if the light
remains on, have your vehicle serviced im-
mediately. It is recommended that you visit
a NISSAN dealer for this service.
CAUTION
Do not continue driving if the drive belt
is loose, broken or missing.
Door open warning light
This light comes on when any of the doors
are not closed securely while the ignition
switch is in the ON position.
Engine oil pressure
warning light
This light warns of low engine oil pressure. If
the light flickers or comes on during nor-
mal driving, pull off the road in a safe area,
stop the engine immediatelyand call a
NISSAN dealer or other authorized repair
shop.
The engine oil pressure warning light is
not designed to indicate a low oil level.
Use the dipstick to check the oil level. For
additional information, refer to “Engine oil”
in the “Do-it-yourself ” section of this
manual.
CAUTION
Running the engine with the engine oil
pressure warning light on could cause
serious damage to the engine almost
immediately. Such damage is not cov-
ered by the NISSAN New Vehicle Limited
Warranty. Turn off the engine as soon as
it is safe to do so.
High temperature warning
light (red) (if so equipped)
When the ignition switch is placed in the ON
position, the high temperature warning
light illuminates and then turns off. This in-
dicates that the high temperature sensor
in the engine coolant system is opera-
tional.
When driving, the high temperature warn-
ing light may turn off. This indicates that the
engine coolant temperature is within the
normal range.
2-16Instruments and controls
