NISSAN VERSA NOTE 2019 Owner´s Manual

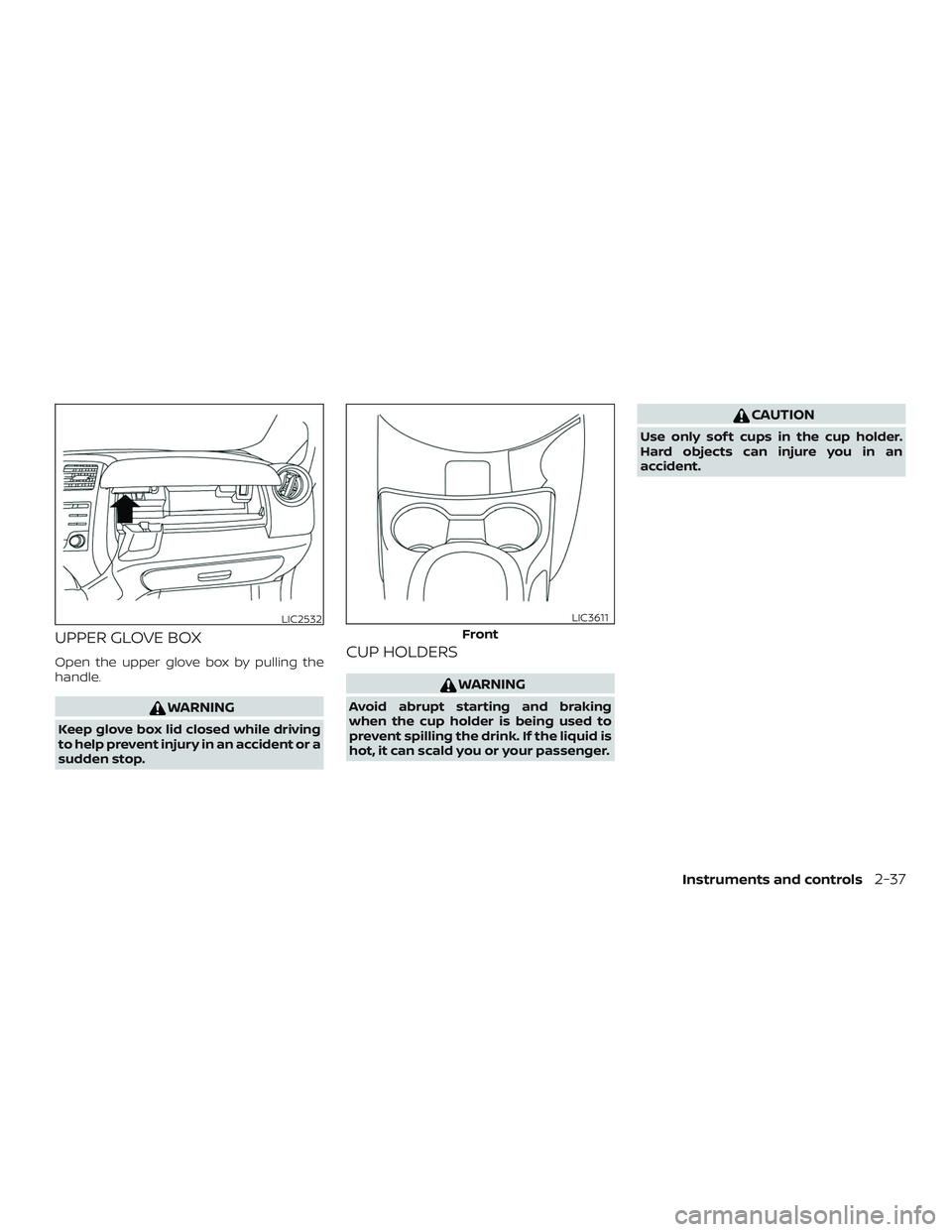

UPPER GLOVE BOX
Open the upper glove box by pulling the
handle.
WARNING
Keep glove box lid closed while driving
to help prevent injury in an accident or a
sudden stop.
CUP HOLDERS
WARNING
Avoid abrupt starting and braking
when the cup holder is being used to
prevent spilling the drink. If the liquid is
hot, it can scald you or your passenger.
CAUTION
Use only sof t cups in the cup holder.
Hard objects can injure you in an
accident.
LIC2532
Front
LIC3611
Instruments and controls2-37

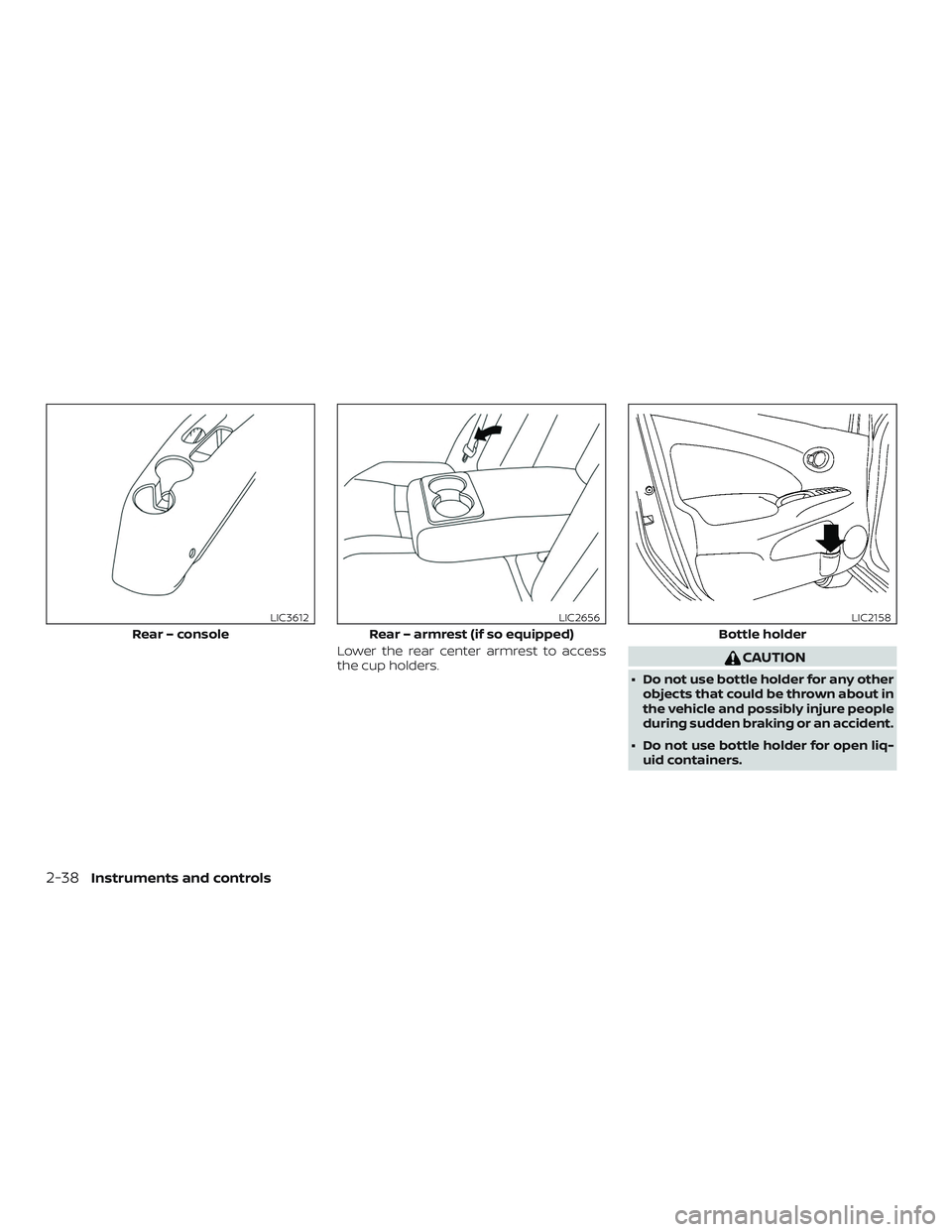

Lower the rear center armrest to access
the cup holders.CAUTION
∙ Do not use bottle holder for any otherobjects that could be thrown about in
the vehicle and possibly injure people
during sudden braking or an accident.
∙ Do not use bottle holder for open liq- uid containers.
Rear – console
LIC3612
Rear – armrest (if so equipped)
LIC2656
Bottle holder
LIC2158
2-38Instruments and controls

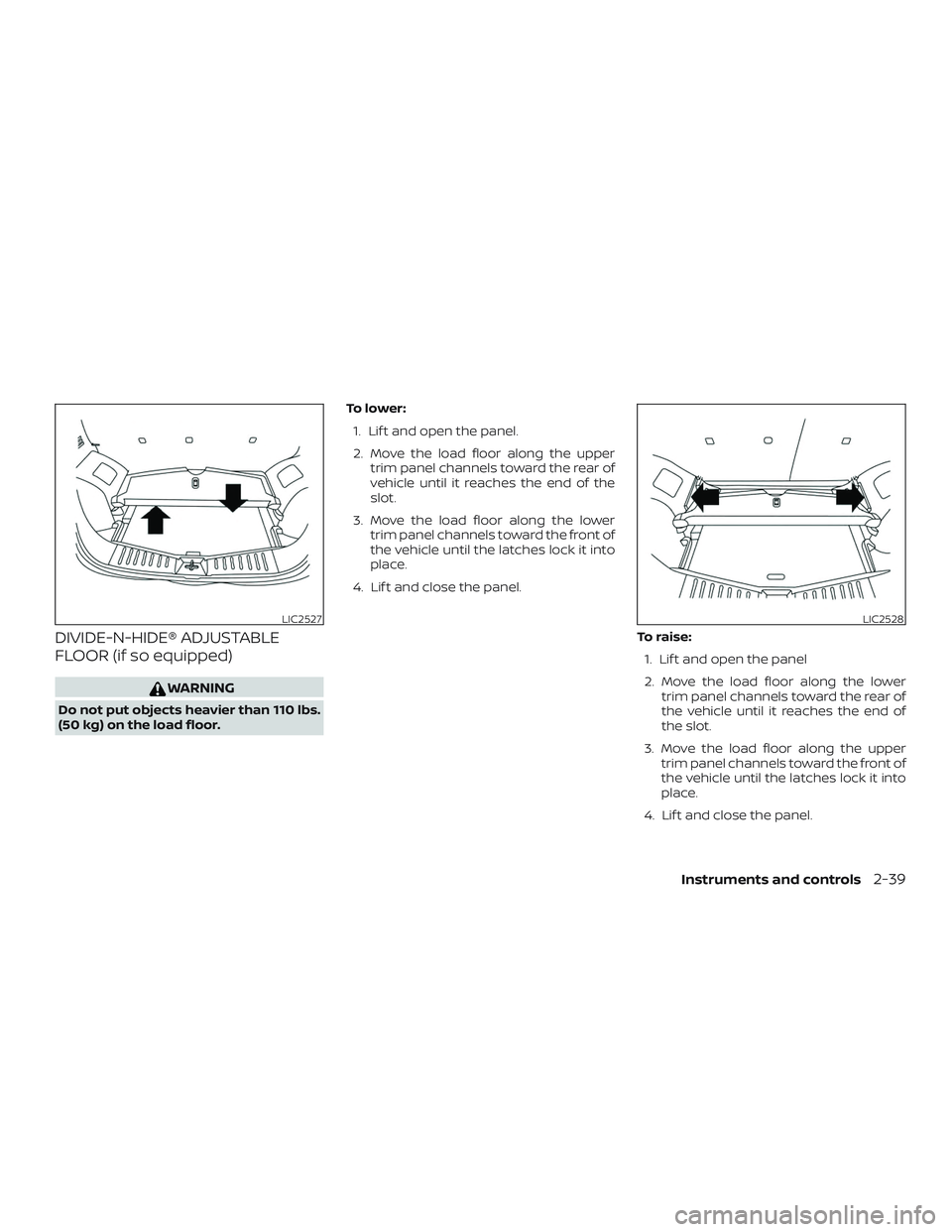

DIVIDE-N-HIDE® ADJUSTABLE
FLOOR (if so equipped)
WARNING
Do not put objects heavier than 110 lbs.
(50 kg) on the load floor.To l o w e r :
1. Lif t and open the panel.
2. Move the load floor along the upper trim panel channels toward the rear of
vehicle until it reaches the end of the
slot.
3. Move the load floor along the lower trim panel channels toward the front of
the vehicle until the latches lock it into
place.
4. Lif t and close the panel.
To raise:1. Lif t and open the panel
2. Move the load floor along the lower trim panel channels toward the rear of
the vehicle until it reaches the end of
the slot.
3. Move the load floor along the upper trim panel channels toward the front of
the vehicle until the latches lock it into
place.
4. Lif t and close the panel.
LIC2527LIC2528
Instruments and controls2-39

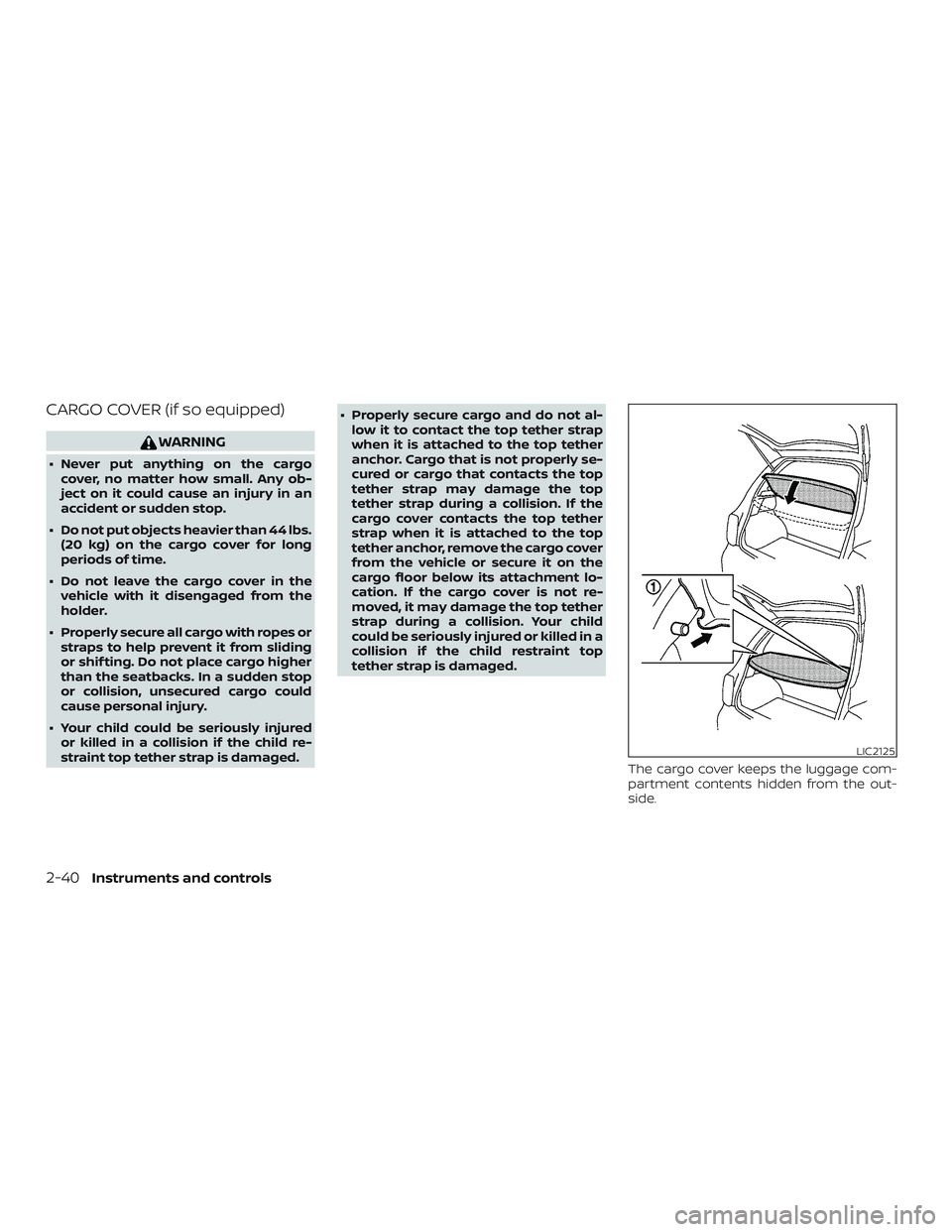

CARGO COVER (if so equipped)
WARNING
∙ Never put anything on the cargocover, no matter how small. Any ob-
ject on it could cause an injury in an
accident or sudden stop.
∙ Do not put objects heavier than 44 lbs. (20 kg) on the cargo cover for long
periods of time.
∙ Do not leave the cargo cover in the vehicle with it disengaged from the
holder.
∙ Properly secure all cargo with ropes or straps to help prevent it from sliding
or shif ting. Do not place cargo higher
than the seatbacks. In a sudden stop
or collision, unsecured cargo could
cause personal injury.
∙ Your child could be seriously injured or killed in a collision if the child re-
straint top tether strap is damaged. ∙ Properly secure cargo and do not al-
low it to contact the top tether strap
when it is attached to the top tether
anchor. Cargo that is not properly se-
cured or cargo that contacts the top
tether strap may damage the top
tether strap during a collision. If the
cargo cover contacts the top tether
strap when it is attached to the top
tether anchor, remove the cargo cover
from the vehicle or secure it on the
cargo floor below its attachment lo-
cation. If the cargo cover is not re-
moved, it may damage the top tether
strap during a collision. Your child
could be seriously injured or killed in a
collision if the child restraint top
tether strap is damaged.
The cargo cover keeps the luggage com-
partment contents hidden from the out-
side.
LIC2125
2-40Instruments and controls

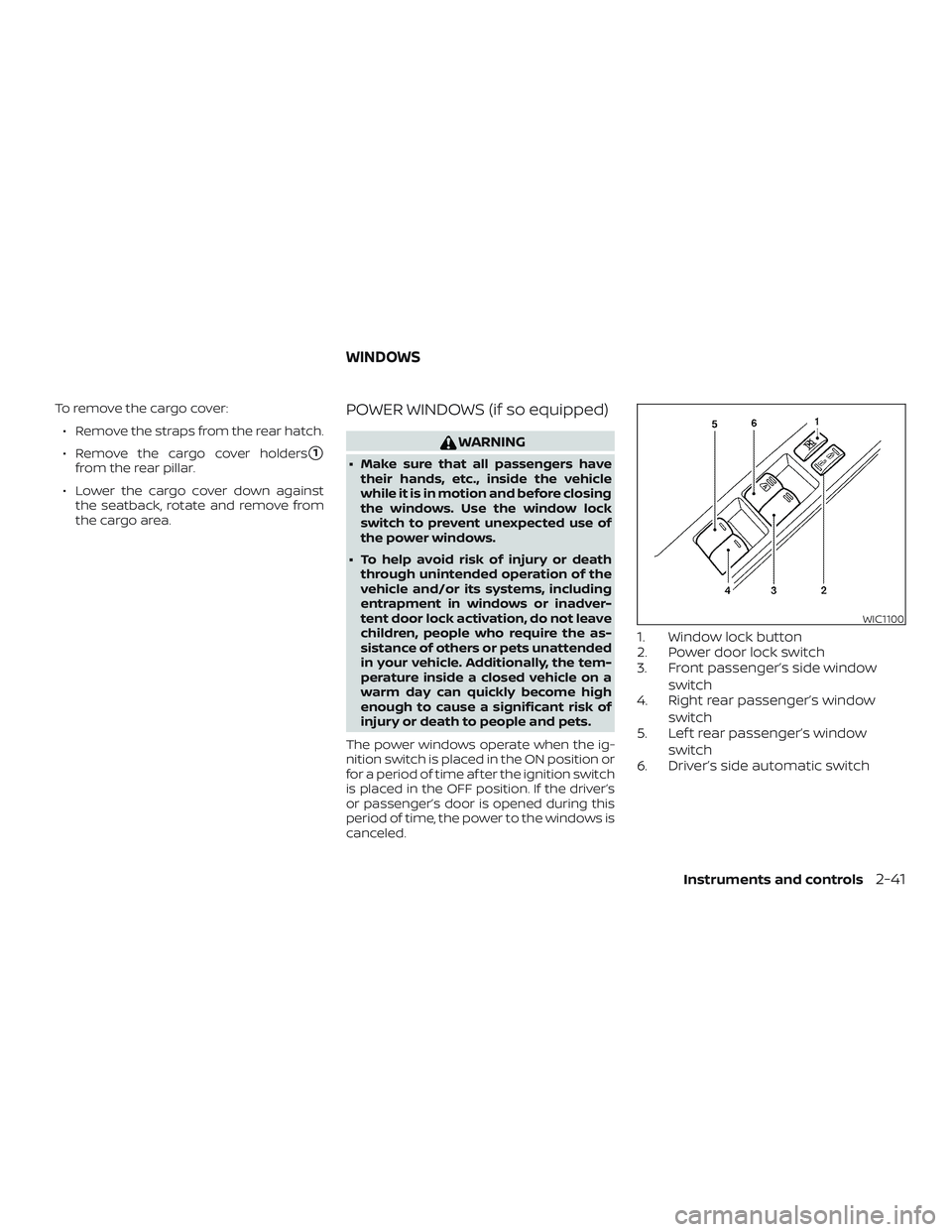

To remove the cargo cover:∙ Remove the straps from the rear hatch.
∙ Remove the cargo cover holders
1
from the rear pillar.
∙ Lower the cargo cover down against the seatback, rotate and remove from
the cargo area.
POWER WINDOWS (if so equipped)
WARNING
∙ Make sure that all passengers havetheir hands, etc., inside the vehicle
while it is in motion and before closing
the windows. Use the window lock
switch to prevent unexpected use of
the power windows.
∙ To help avoid risk of injury or death through unintended operation of the
vehicle and/or its systems, including
entrapment in windows or inadver-
tent door lock activation, do not leave
children, people who require the as-
sistance of others or pets unattended
in your vehicle. Additionally, the tem-
perature inside a closed vehicle on a
warm day can quickly become high
enough to cause a significant risk of
injury or death to people and pets.
The power windows operate when the ig-
nition switch is placed in the ON position or
for a period of time af ter the ignition switch
is placed in the OFF position. If the driver’s
or passenger’s door is opened during this
period of time, the power to the windows is
canceled.
1. Window lock button
2. Power door lock switch
3. Front passenger’s side window switch
4. Right rear passenger’s window
switch
5. Lef t rear passenger’s window
switch
6. Driver’s side automatic switch
WIC1100
WINDOWS
Instruments and controls2-41

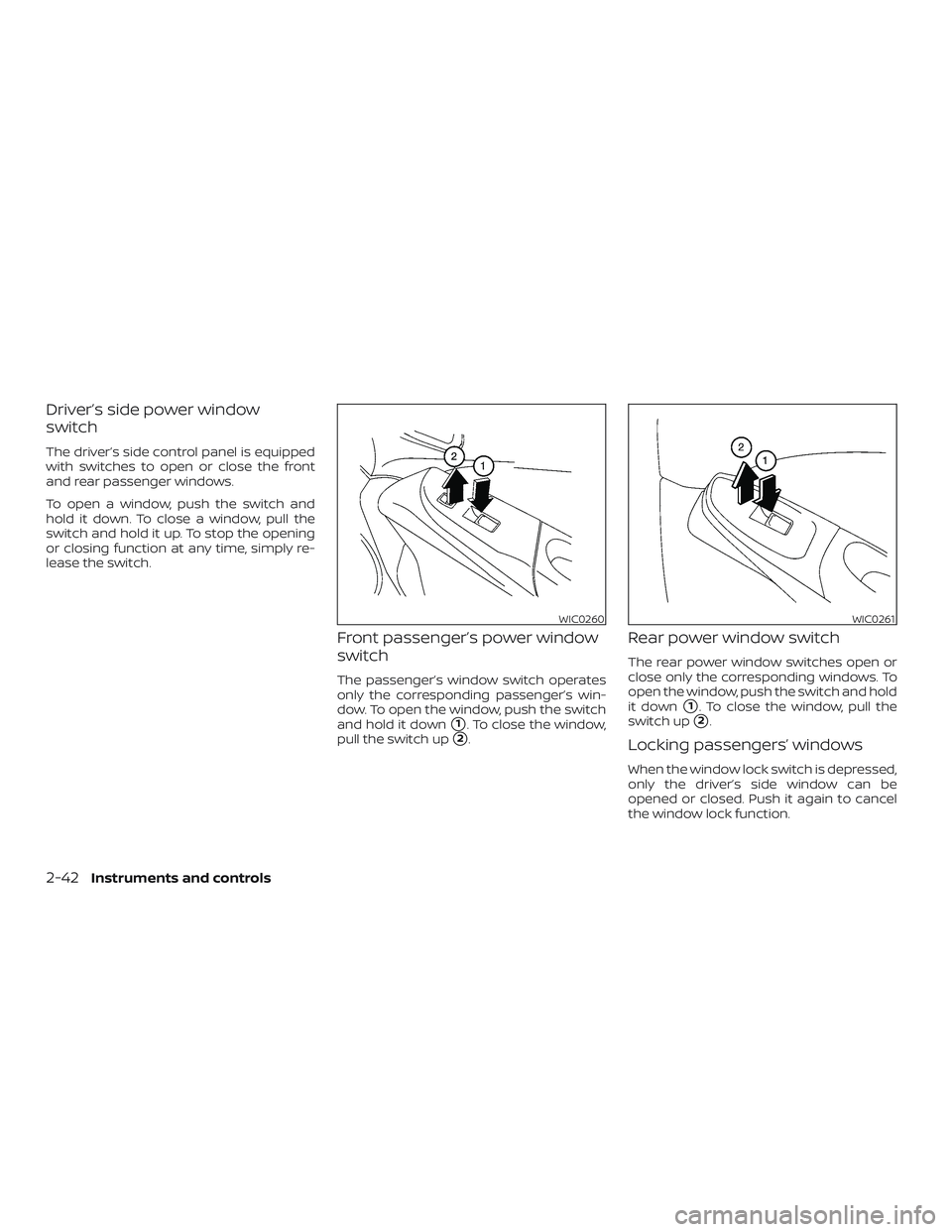

Driver’s side power window
switch
The driver’s side control panel is equipped
with switches to open or close the front
and rear passenger windows.
To open a window, push the switch and
hold it down. To close a window, pull the
switch and hold it up. To stop the opening
or closing function at any time, simply re-
lease the switch.
Front passenger’s power window
switch
The passenger’s window switch operates
only the corresponding passenger’s win-
dow. To open the window, push the switch
and hold it down
1. To close the window,
pull the switch up
2.
Rear power window switch
The rear power window switches open or
close only the corresponding windows. To
open the window, push the switch and hold
it down
1. To close the window, pull the
switch up
2.
Locking passengers’ windows
When the window lock switch is depressed,
only the driver’s side window can be
opened or closed. Push it again to cancel
the window lock function.
WIC0260WIC0261
2-42Instruments and controls

Automatic operation
To fully open a window equipped with au-
tomatic operation, push the window
switch down to the second detent and re-
lease it; it need not be held. The window
automatically opens all the way. To stop
the window, lif t the switch up while the win-
dow is opening.
MANUAL WINDOWS (if so
equipped)
The side windows can be opened or closed
by turning the hand crank on each door.The interior light has a three-position
switch and operates regardless of ignition
switch position.
When the switch is in the ON position1,
the interior lights illuminate, regardless of
door position. The lights will go off af ter a
period of time unless the ignition switch is
placed in the ACC or ON position.
LIC3770LIC3352SIC2063A
INTERIOR LIGHTS
Instruments and controls2-43

When the switch is in the DOOR position2,
the interior lights will stay on for a period of
time when:
∙ The doors are unlocked by the key fob, a key or the power door lock switch while
all doors are closed and the ignition
switch is placed in the OFF position.
∙ The driver’s door is opened and then closed while the key is removed from
the ignition switch.
∙ The key is removed from the ignition switch while all doors are closed.
The lights will turn off while the timer is
activated when: ∙ The driver’s door is locked by the key fob, a key, or the power door lock switch.
∙ The ignition switch is placed in the ON position.
When the switch is in the OFF position
3,
the interior lights do not illuminate, regard-
less of door position.
The lights will turn off automatically af ter a
period of time while doors are open to pre-
vent the battery from becoming dis-
charged.
CAUTION
Do not use for extended periods of time
with the engine stopped. This could re-
sult in a discharged battery.
MAP LIGHT
The map light has a three-position switch
and operates regardless of ignition switch
position.
When the switch is in the ON position
3,
the map light illuminates, regardless of
door position. The light will go off af ter a
period of time unless the ignition switch is
placed in the ACC or ON position.
LIC2126
2-44Instruments and controls

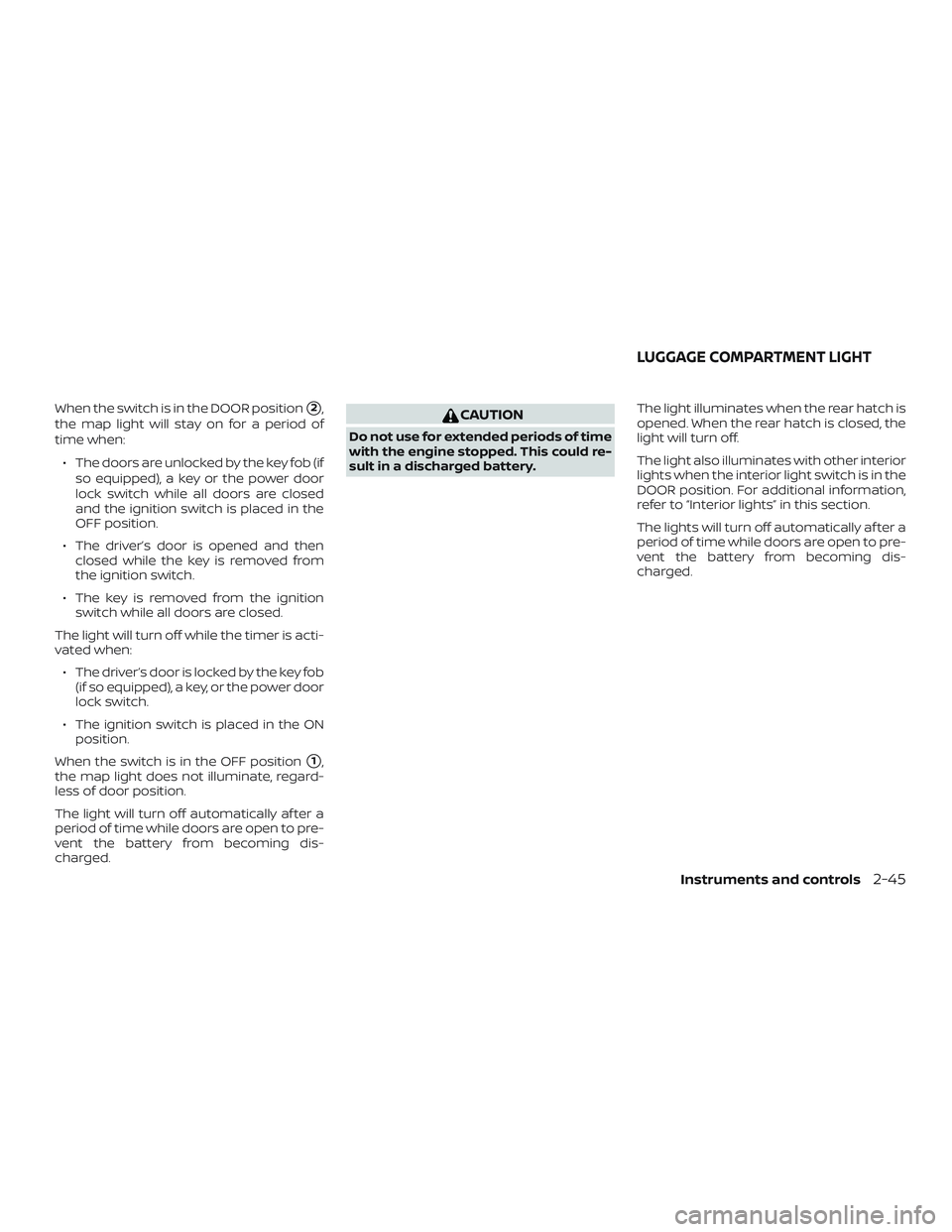

When the switch is in the DOOR position2,
the map light will stay on for a period of
time when:
∙ The doors are unlocked by the key fob (if so equipped), a key or the power door
lock switch while all doors are closed
and the ignition switch is placed in the
OFF position.
∙ The driver’s door is opened and then closed while the key is removed from
the ignition switch.
∙ The key is removed from the ignition switch while all doors are closed.
The light will turn off while the timer is acti-
vated when: ∙ The driver’s door is locked by the key fob (if so equipped), a key, or the power door
lock switch.
∙ The ignition switch is placed in the ON position.
When the switch is in the OFF position
1,
the map light does not illuminate, regard-
less of door position.
The light will turn off automatically af ter a
period of time while doors are open to pre-
vent the battery from becoming dis-
charged.
CAUTION
Do not use for extended periods of time
with the engine stopped. This could re-
sult in a discharged battery. The light illuminates when the rear hatch is
opened. When the rear hatch is closed, the
light will turn off.
The light also illuminates with other interior
lights when the interior light switch is in the
DOOR position. For additional information,
refer to “Interior lights” in this section.
The lights will turn off automatically af ter a
period of time while doors are open to pre-
vent the battery from becoming dis-
charged.
LUGGAGE COMPARTMENT LIGHT
Instruments and controls2-45

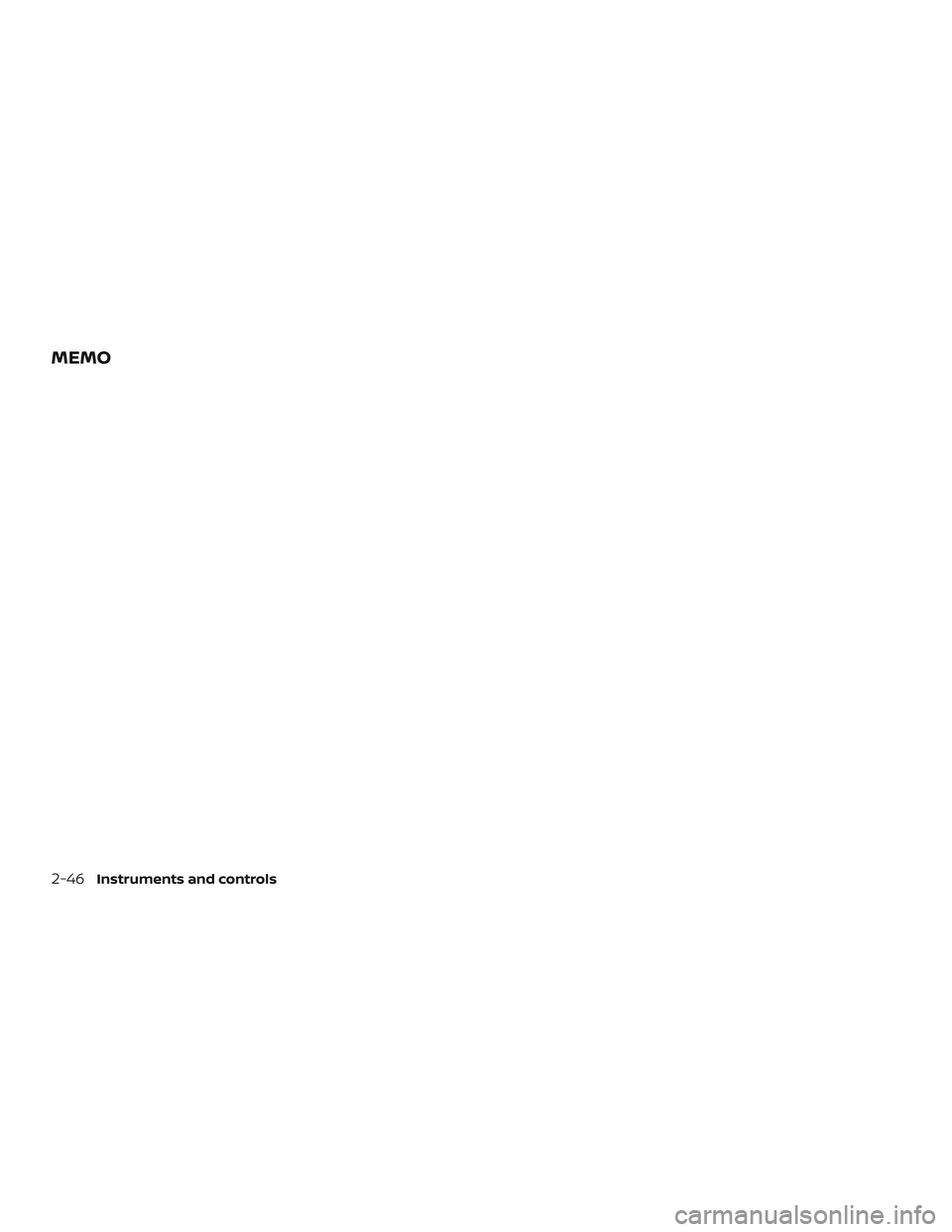

MEMO
2-46Instruments and controls
