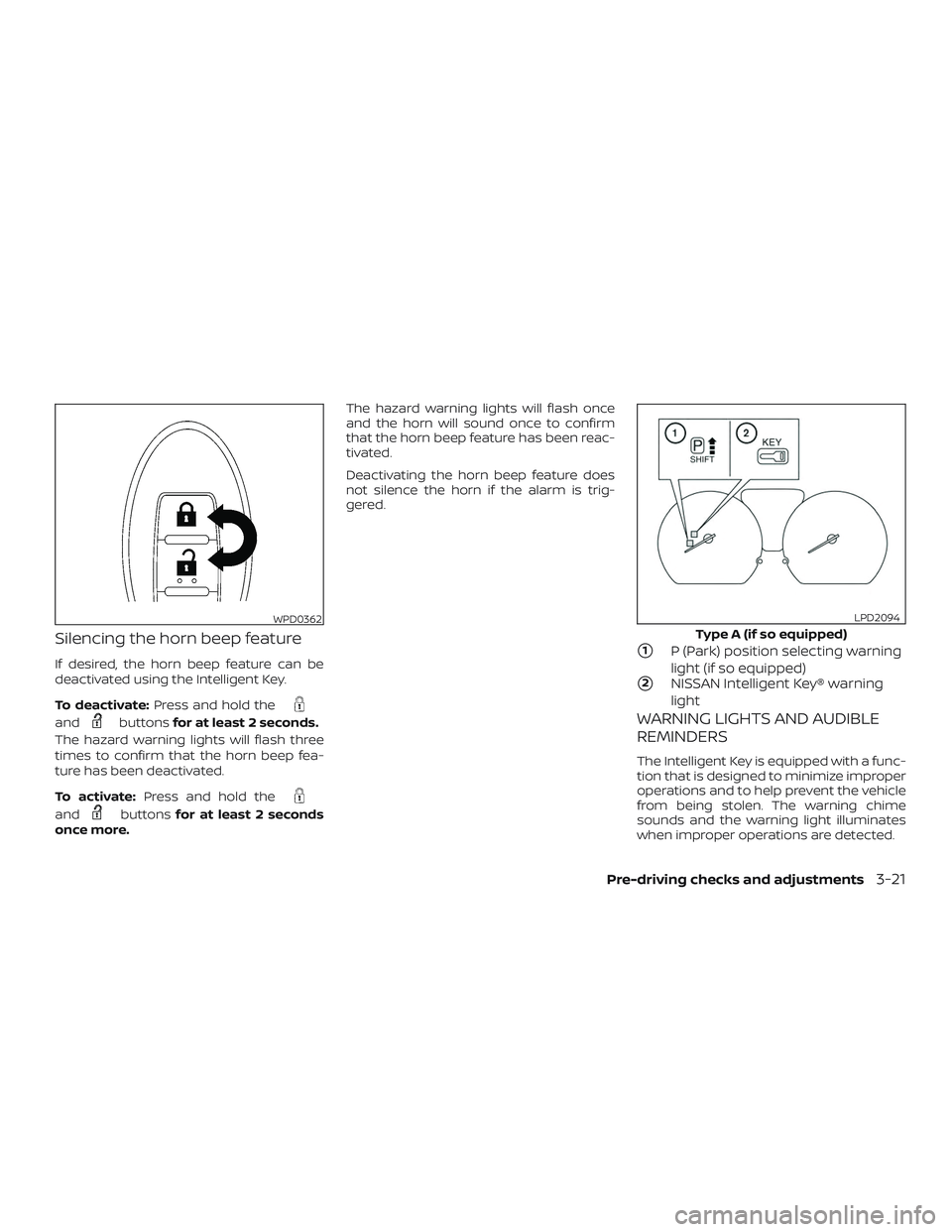

Silencing the horn beep feature
If desired, the horn beep feature can be
deactivated using the Intelligent Key.
To deactivate:Press and hold the
andbuttonsfor at least 2 seconds.
The hazard warning lights will flash three
times to confirm that the horn beep fea-
ture has been deactivated.
To activate: Press and hold the
andbuttonsfor at least 2 seconds
once more. The hazard warning lights will flash once
and the horn will sound once to confirm
that the horn beep feature has been reac-
tivated.
Deactivating the horn beep feature does
not silence the horn if the alarm is trig-
gered.
1P (Park) position selecting warning
light (if so equipped)
2NISSAN Intelligent Key® warning
light
WARNING LIGHTS AND AUDIBLE
REMINDERS
The Intelligent Key is equipped with a func-
tion that is designed to minimize improper
operations and to help prevent the vehicle
from being stolen. The warning chime
sounds and the warning light illuminates
when improper operations are detected.
WPD0362
Type A (if so equipped)
LPD2094
Pre-driving checks and adjustments3-21

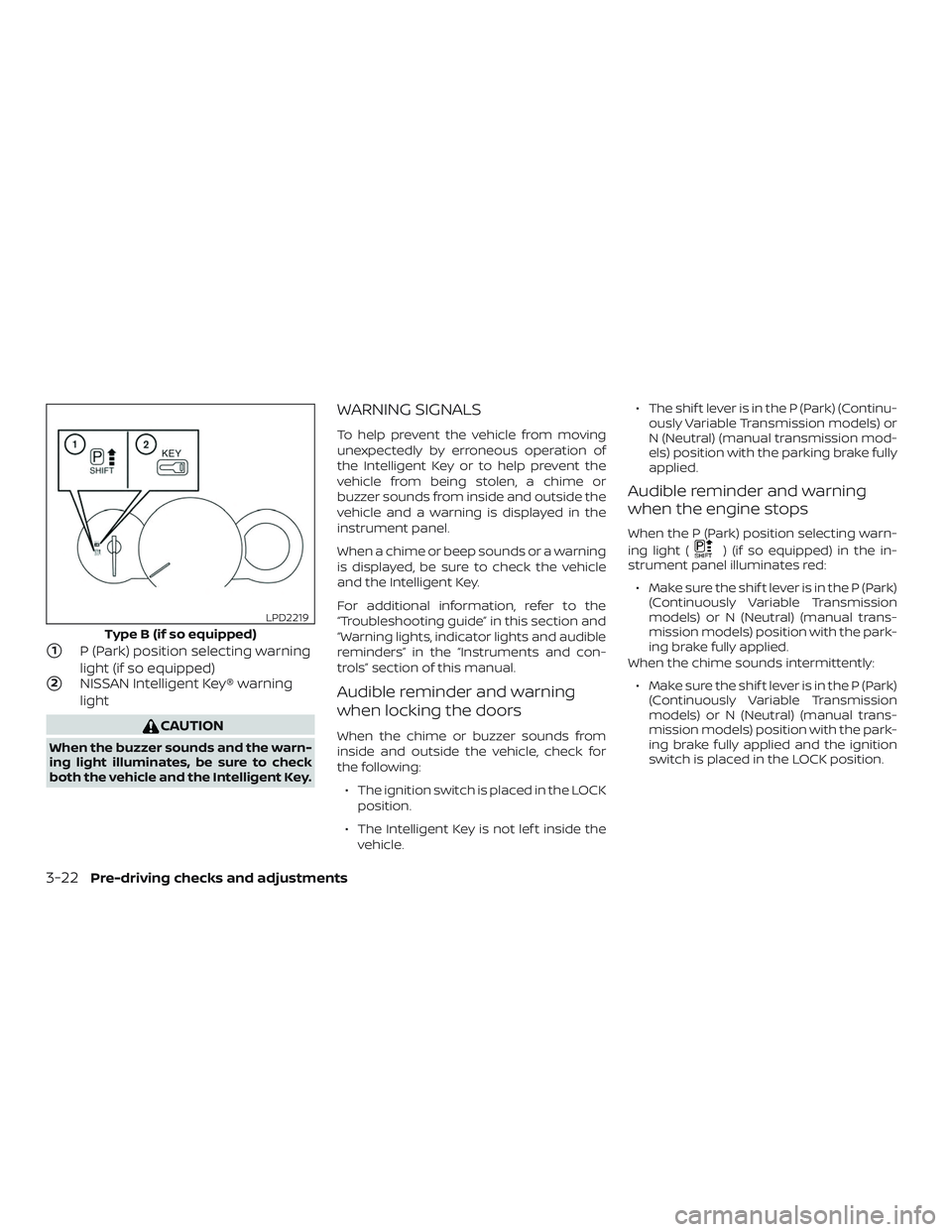

1P (Park) position selecting warning
light (if so equipped)
2NISSAN Intelligent Key® warning
light
CAUTION
When the buzzer sounds and the warn-
ing light illuminates, be sure to check
both the vehicle and the Intelligent Key.
WARNING SIGNALS
To help prevent the vehicle from moving
unexpectedly by erroneous operation of
the Intelligent Key or to help prevent the
vehicle from being stolen, a chime or
buzzer sounds from inside and outside the
vehicle and a warning is displayed in the
instrument panel.
When a chime or beep sounds or a warning
is displayed, be sure to check the vehicle
and the Intelligent Key.
For additional information, refer to the
“Troubleshooting guide” in this section and
“Warning lights, indicator lights and audible
reminders” in the “Instruments and con-
trols” section of this manual.
Audible reminder and warning
when locking the doors
When the chime or buzzer sounds from
inside and outside the vehicle, check for
the following:∙ The ignition switch is placed in the LOCK position.
∙ The Intelligent Key is not lef t inside the vehicle. ∙ The shif t lever is in the P (Park) (Continu-
ously Variable Transmission models) or
N (Neutral) (manual transmission mod-
els) position with the parking brake fully
applied.
Audible reminder and warning
when the engine stops
When the P (Park) position selecting warn-
ing light (
) (if so equipped) in the in-
strument panel illuminates red:
∙ Make sure the shif t lever is in the P (Park) (Continuously Variable Transmission
models) or N (Neutral) (manual trans-
mission models) position with the park-
ing brake fully applied.
When the chime sounds intermittently:
∙ Make sure the shif t lever is in the P (Park) (Continuously Variable Transmission
models) or N (Neutral) (manual trans-
mission models) position with the park-
ing brake fully applied and the ignition
switch is placed in the LOCK position.
Type B (if so equipped)
LPD2219
3-22Pre-driving checks and adjustments

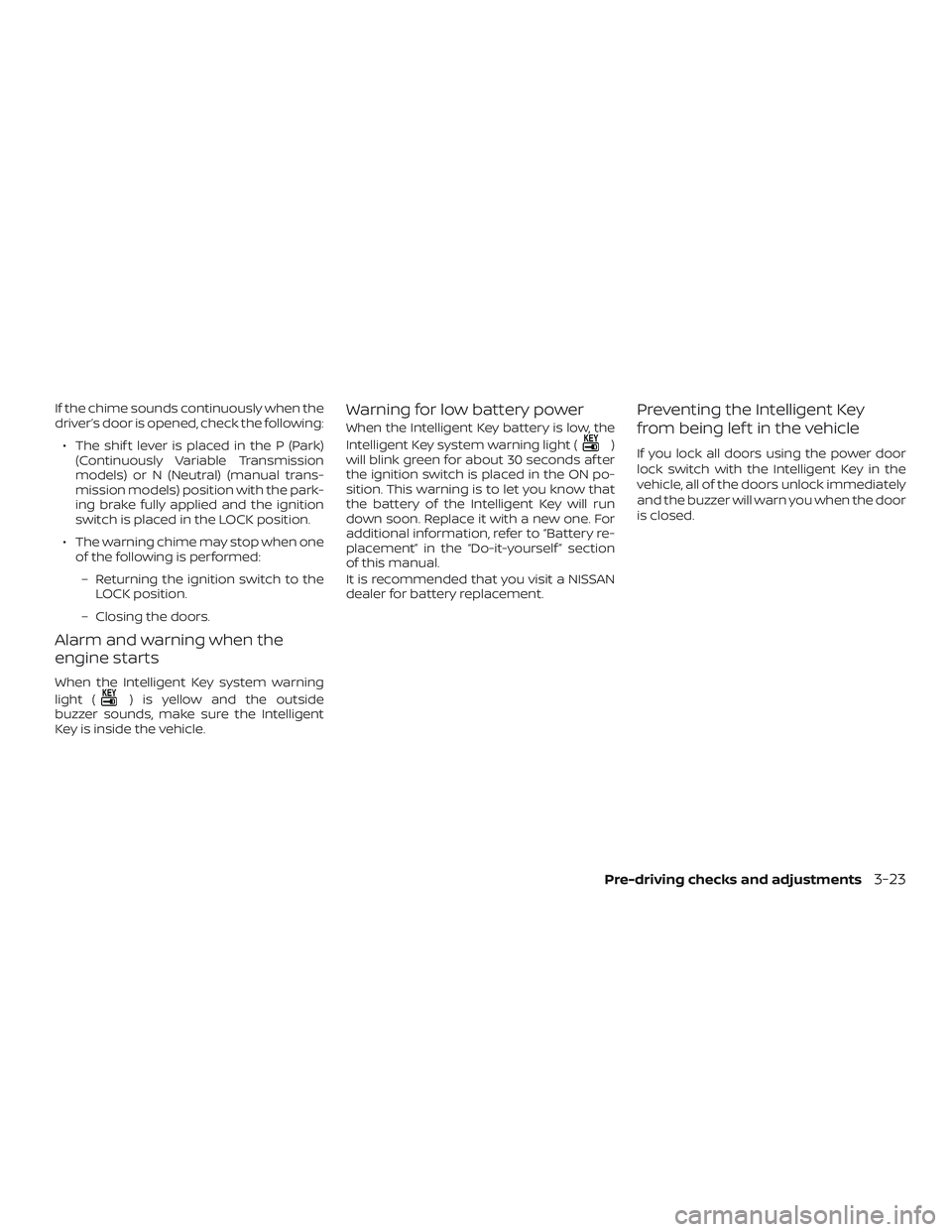

If the chime sounds continuously when the
driver’s door is opened, check the following:∙ The shif t lever is placed in the P (Park) (Continuously Variable Transmission
models) or N (Neutral) (manual trans-
mission models) position with the park-
ing brake fully applied and the ignition
switch is placed in the LOCK position.
∙ The warning chime may stop when one of the following is performed:
– Returning the ignition switch to the LOCK position.
– Closing the doors.
Alarm and warning when the
engine starts
When the Intelligent Key system warning
light (
) is yellow and the outside
buzzer sounds, make sure the Intelligent
Key is inside the vehicle.
Warning for low battery power
When the Intelligent Key battery is low, the
Intelligent Key system warning light (
)
will blink green for about 30 seconds af ter
the ignition switch is placed in the ON po-
sition. This warning is to let you know that
the battery of the Intelligent Key will run
down soon. Replace it with a new one. For
additional information, refer to “Battery re-
placement” in the “Do-it-yourself ” section
of this manual.
It is recommended that you visit a NISSAN
dealer for battery replacement.
Preventing the Intelligent Key
from being lef t in the vehicle
If you lock all doors using the power door
lock switch with the Intelligent Key in the
vehicle, all of the doors unlock immediately
and the buzzer will warn you when the door
is closed.
Pre-driving checks and adjustments3-23

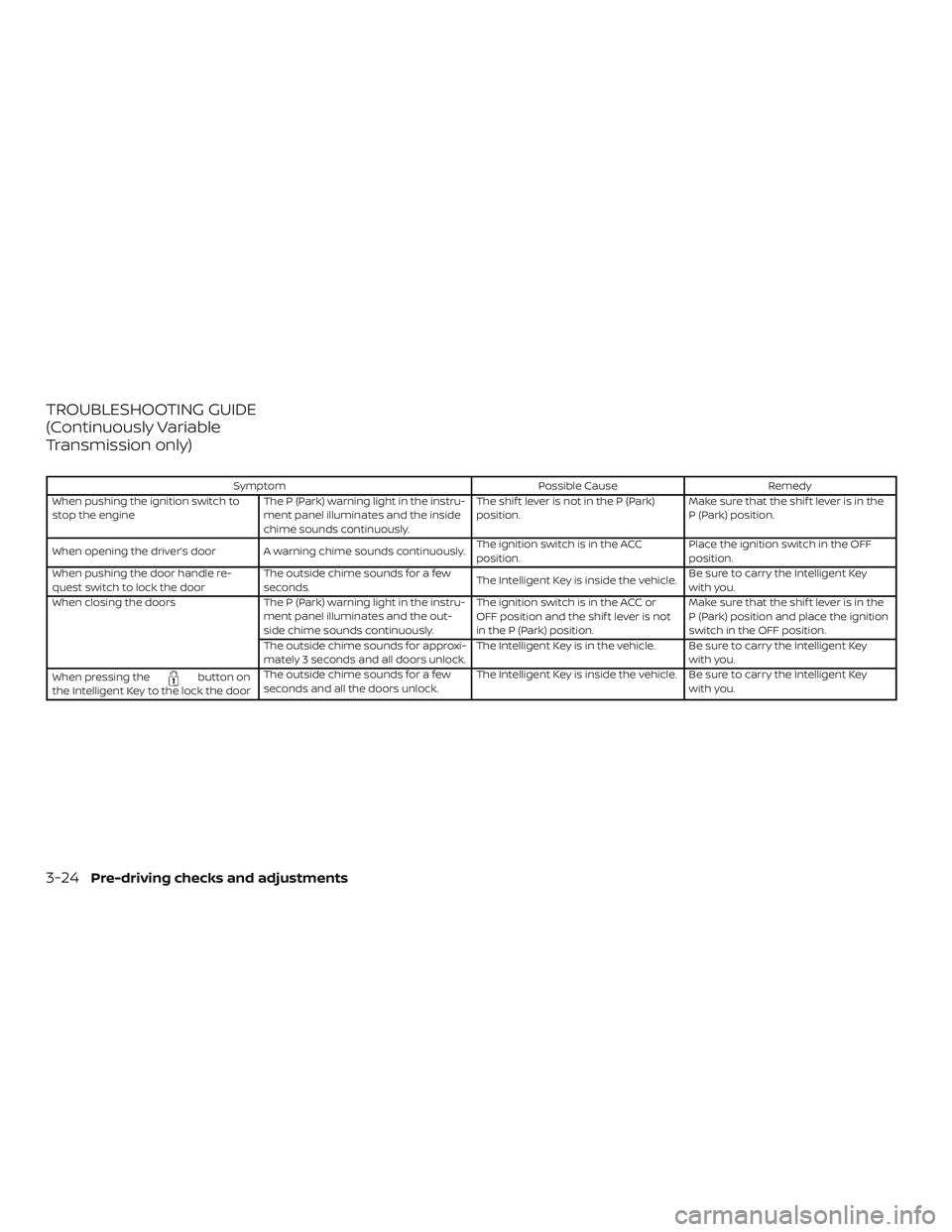

TROUBLESHOOTING GUIDE
(Continuously Variable
Transmission only)
SymptomPossible CauseRemedy
When pushing the ignition switch to
stop the engine The P (Park) warning light in the instru-
ment panel illuminates and the inside
chime sounds continuously. The shif t lever is not in the P (Park)
position.
Make sure that the shif t lever is in the
P (Park) position.
When opening the driver’s door A warning chime sounds continuously. The ignition switch is in the ACC
position.Place the ignition switch in the OFF
position.
When pushing the door handle re-
quest switch to lock the door The outside chime sounds for a few
seconds.
The Intelligent Key is inside the vehicle.Be sure to carry the Intelligent Key
with you.
When closing the doors The P (Park) warning light in the instru-
ment panel illuminates and the out-
side chime sounds continuously. The ignition switch is in the ACC or
OFF position and the shif t lever is not
in the P (Park) position.Make sure that the shif t lever is in the
P (Park) position and place the ignition
switch in the OFF position.
The outside chime sounds for approxi-
mately 3 seconds and all doors unlock. The Intelligent Key is in the vehicle. Be sure to carry the Intelligent Key
with you.
When pressing the
button on
the Intelligent Key to the lock the door The outside chime sounds for a few
seconds and all the doors unlock.
The Intelligent Key is inside the vehicle. Be sure to carry the Intelligent Key
with you.
3-24Pre-driving checks and adjustments

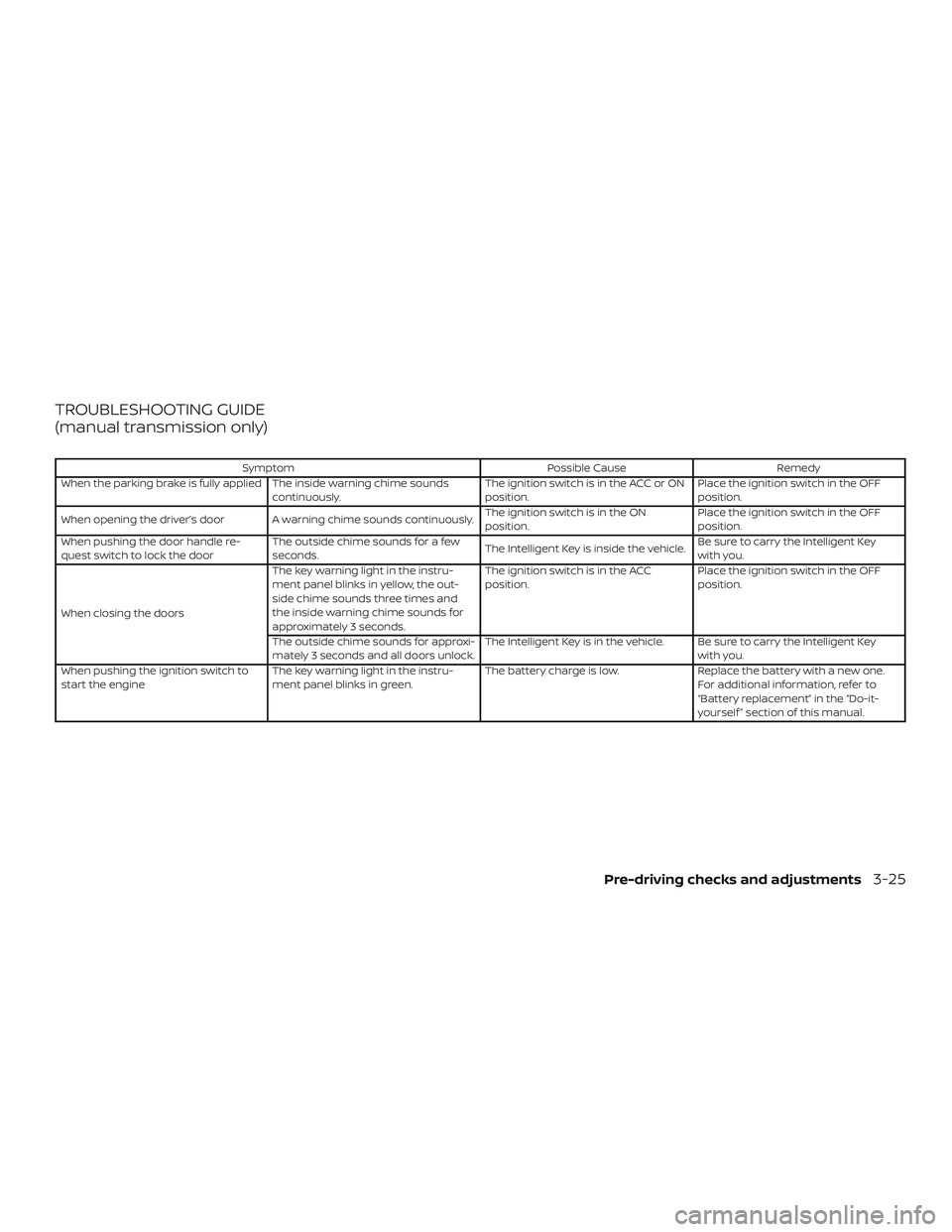

TROUBLESHOOTING GUIDE
(manual transmission only)
SymptomPossible CauseRemedy
When the parking brake is fully applied The inside warning chime sounds continuously. The ignition switch is in the ACC or ON
position.Place the ignition switch in the OFF
position.
When opening the driver’s door A warning chime sounds continuously. The ignition switch is in the ON
position.Place the ignition switch in the OFF
position.
When pushing the door handle re-
quest switch to lock the door The outside chime sounds for a few
seconds.
The Intelligent Key is inside the vehicle.Be sure to carry the Intelligent Key
with you.
When closing the doors The key warning light in the instru-
ment panel blinks in yellow, the out-
side chime sounds three times and
the inside warning chime sounds for
approximately 3 seconds. The ignition switch is in the ACC
position.
Place the ignition switch in the OFF
position.
The outside chime sounds for approxi-
mately 3 seconds and all doors unlock. The Intelligent Key is in the vehicle. Be sure to carry the Intelligent Key
with you.
When pushing the ignition switch to
start the engine The key warning light in the instru-
ment panel blinks in green. The battery charge is low.
Replace the battery with a new one.
For additional information, refer to
“Battery replacement” in the “Do-it-
yourself ” section of this manual.
Pre-driving checks and adjustments3-25

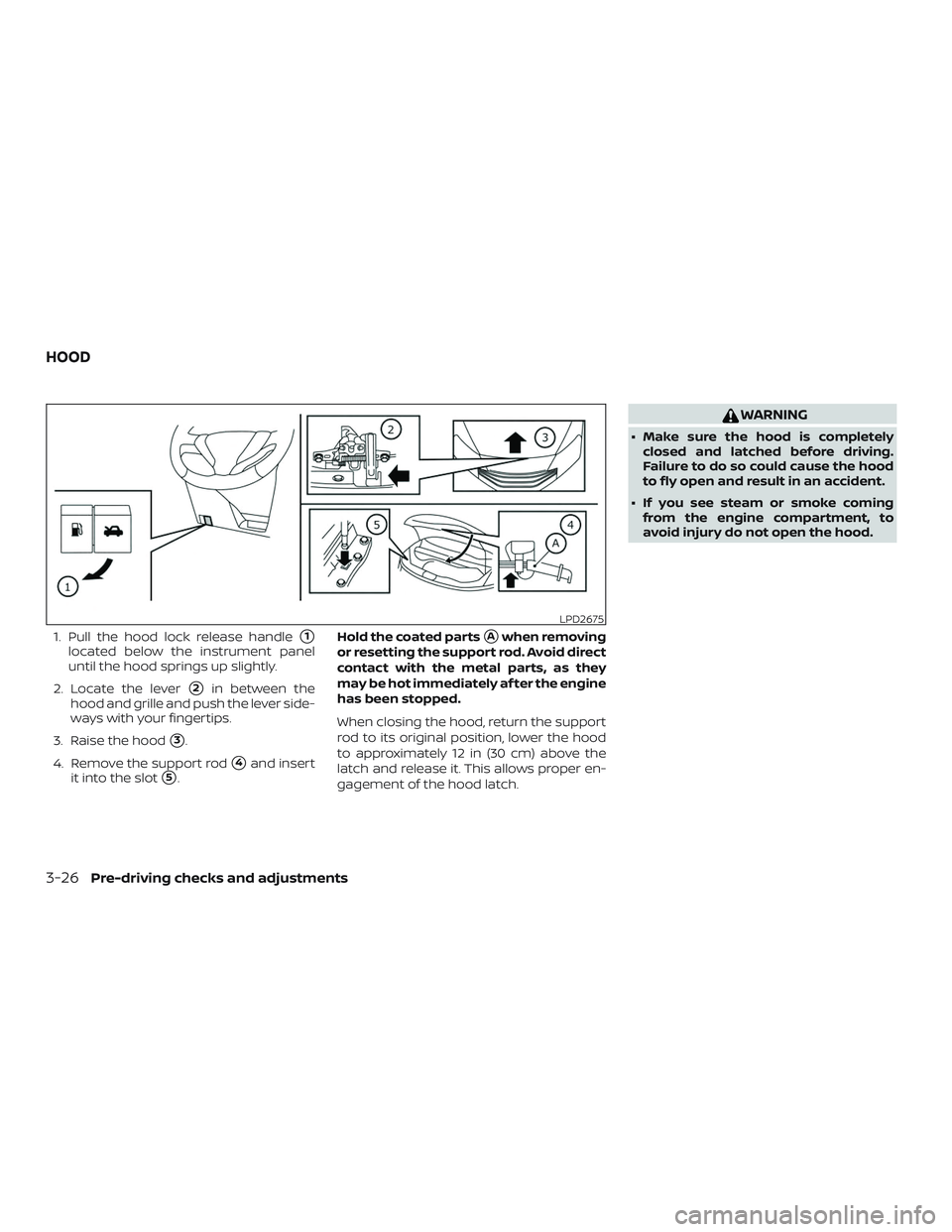

1. Pull the hood lock release handle1
located below the instrument panel
until the hood springs up slightly.
2. Locate the lever
2in between the
hood and grille and push the lever side-
ways with your fingertips.
3. Raise the hood
3.
4. Remove the support rod
4and insert
it into the slot
5. Hold the coated parts
Awhen removing
or resetting the support rod. Avoid direct
contact with the metal parts, as they
may be hot immediately af ter the engine
has been stopped.
When closing the hood, return the support
rod to its original position, lower the hood
to approximately 12 in (30 cm) above the
latch and release it. This allows proper en-
gagement of the hood latch.
WARNING
∙ Make sure the hood is completely closed and latched before driving.
Failure to do so could cause the hood
to fly open and result in an accident.
∙ If you see steam or smoke coming from the engine compartment, to
avoid injury do not open the hood.
LPD2675
HOOD
3-26Pre-driving checks and adjustments

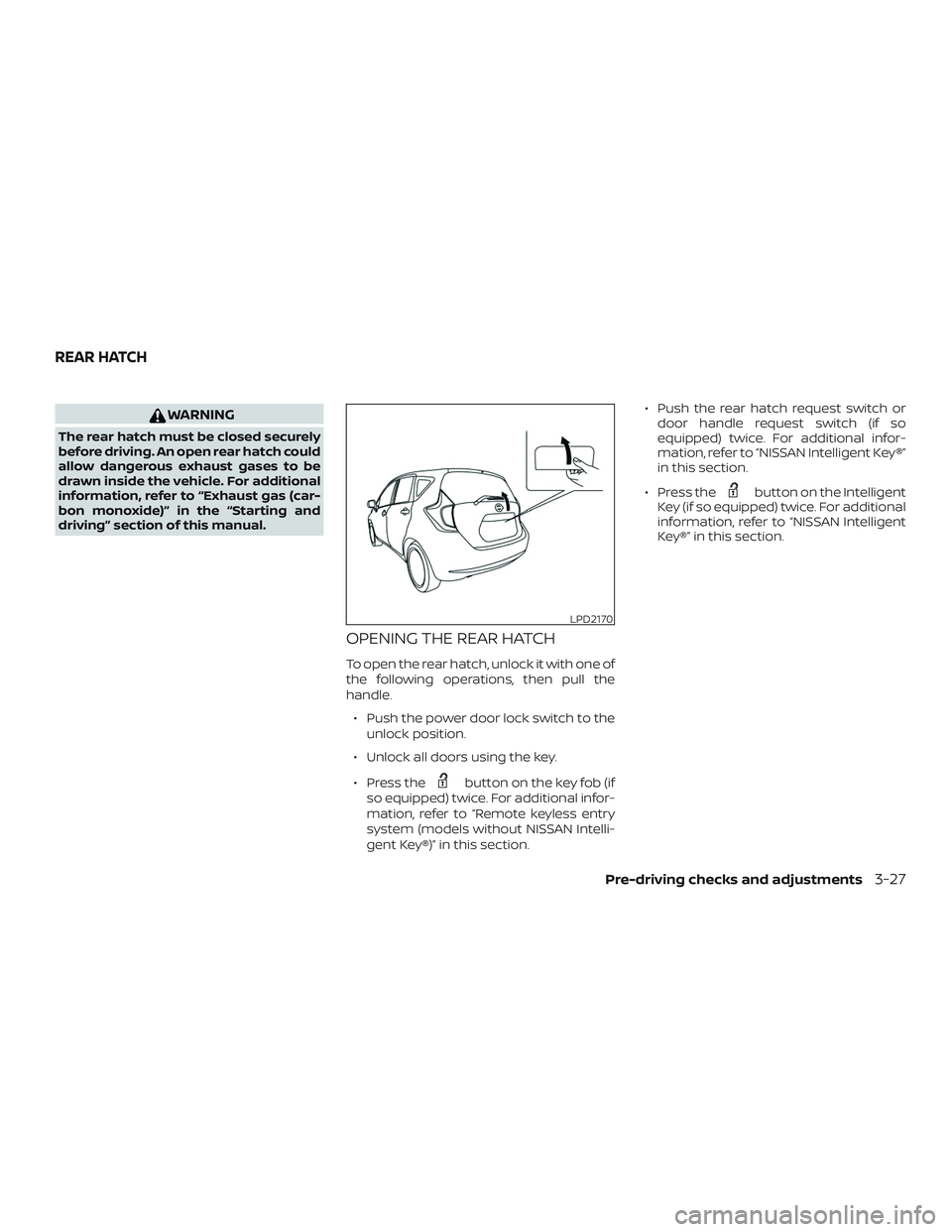

WARNING
The rear hatch must be closed securely
before driving. An open rear hatch could
allow dangerous exhaust gases to be
drawn inside the vehicle. For additional
information, refer to “Exhaust gas (car-
bon monoxide)” in the “Starting and
driving” section of this manual.
OPENING THE REAR HATCH
To open the rear hatch, unlock it with one of
the following operations, then pull the
handle.∙ Push the power door lock switch to the unlock position.
∙ Unlock all doors using the key.
∙ Press the
button on the key fob (if
so equipped) twice. For additional infor-
mation, refer to “Remote keyless entry
system (models without NISSAN Intelli-
gent Key®)” in this section. ∙ Push the rear hatch request switch or
door handle request switch (if so
equipped) twice. For additional infor-
mation, refer to “NISSAN Intelligent Key®”
in this section.
∙ Press the
button on the Intelligent
Key (if so equipped) twice. For additional
information, refer to “NISSAN Intelligent
Key®” in this section.
LPD2170
REAR HATCH
Pre-driving checks and adjustments3-27

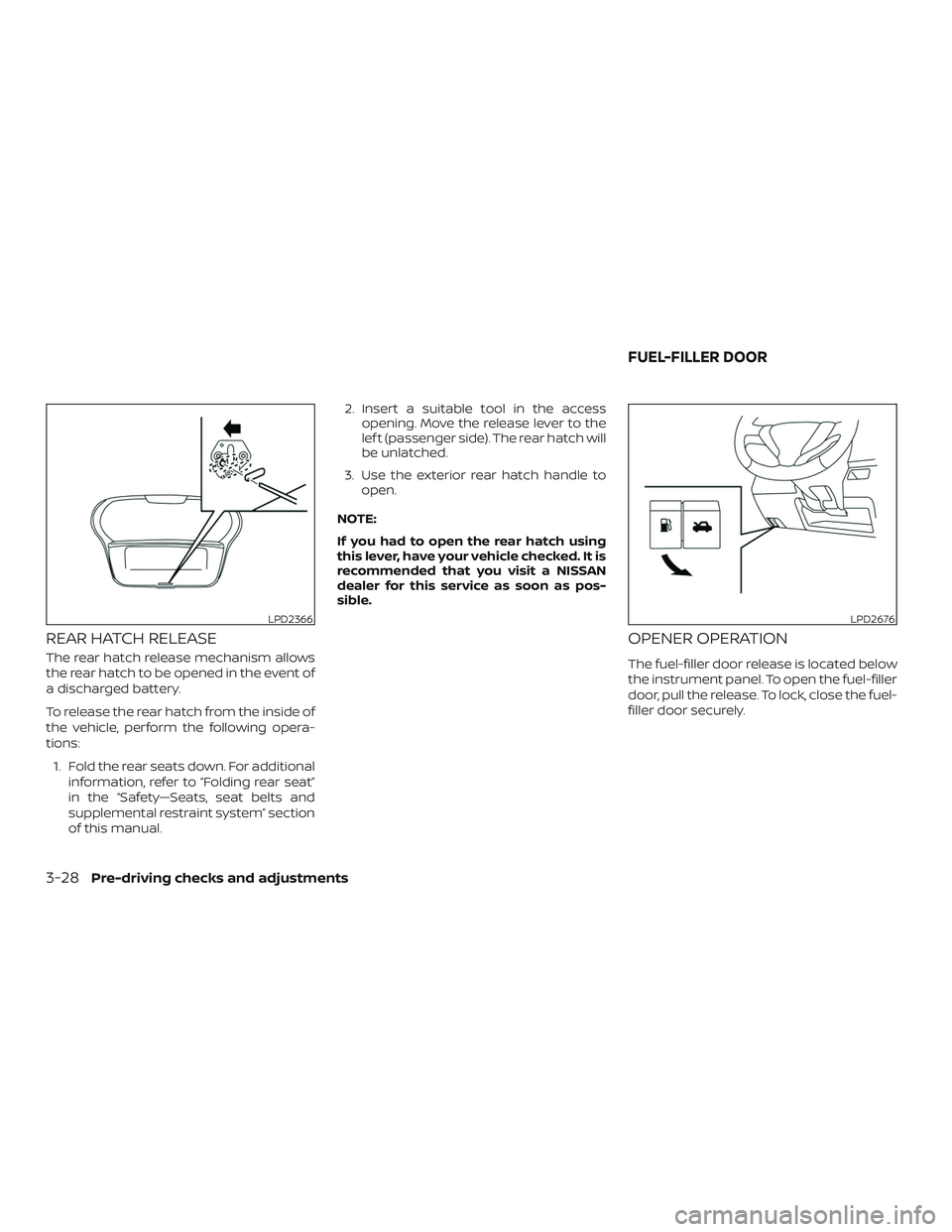

REAR HATCH RELEASE
The rear hatch release mechanism allows
the rear hatch to be opened in the event of
a discharged battery.
To release the rear hatch from the inside of
the vehicle, perform the following opera-
tions:1. Fold the rear seats down. For additional information, refer to “Folding rear seat”
in the “Safety—Seats, seat belts and
supplemental restraint system” section
of this manual. 2. Insert a suitable tool in the access
opening. Move the release lever to the
lef t (passenger side). The rear hatch will
be unlatched.
3. Use the exterior rear hatch handle to open.
NOTE:
If you had to open the rear hatch using
this lever, have your vehicle checked. It is
recommended that you visit a NISSAN
dealer for this service as soon as pos-
sible.
OPENER OPERATION
The fuel-filler door release is located below
the instrument panel. To open the fuel-filler
door, pull the release. To lock, close the fuel-
filler door securely.
LPD2366LPD2676
FUEL-FILLER DOOR
3-28Pre-driving checks and adjustments

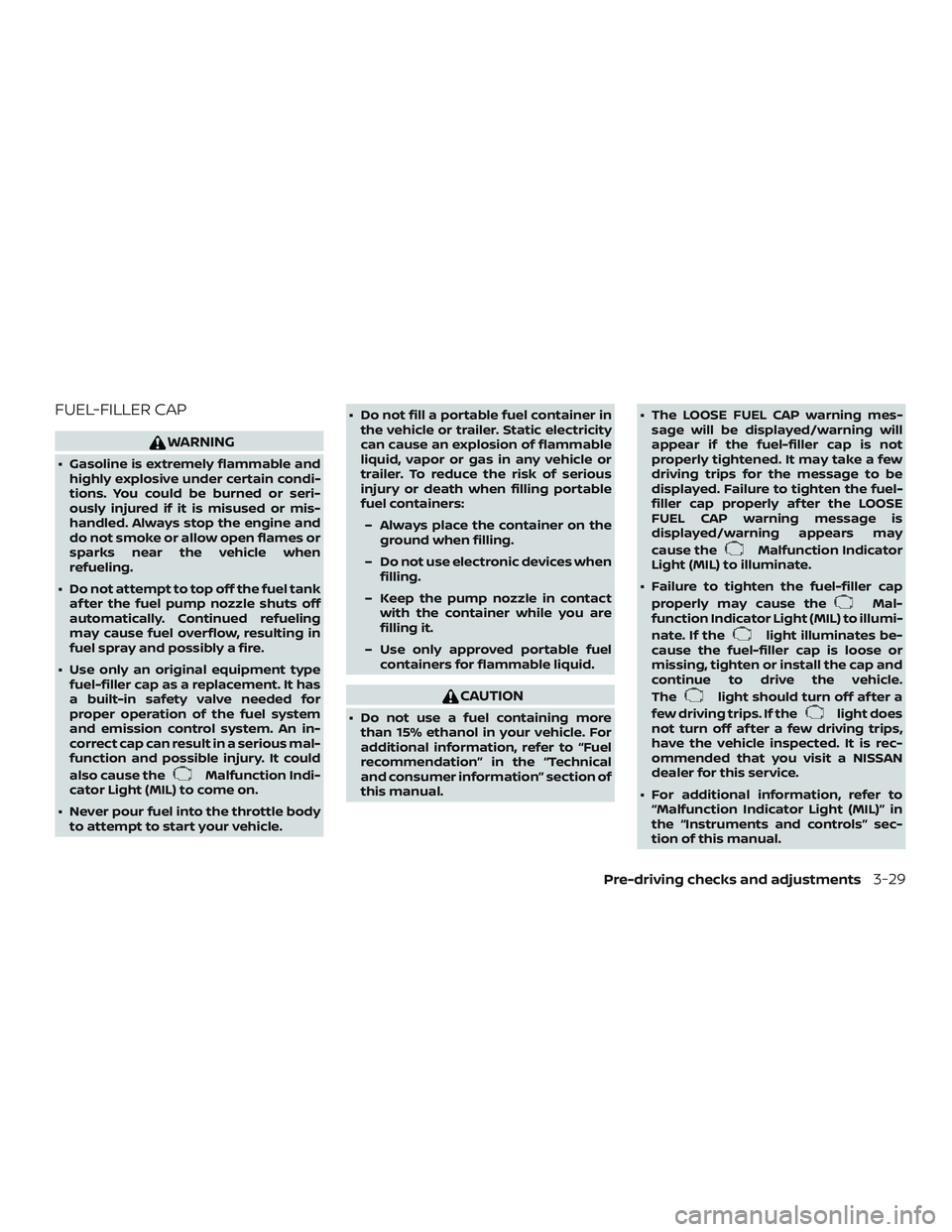

FUEL-FILLER CAP
WARNING
∙ Gasoline is extremely flammable andhighly explosive under certain condi-
tions. You could be burned or seri-
ously injured if it is misused or mis-
handled. Always stop the engine and
do not smoke or allow open flames or
sparks near the vehicle when
refueling.
∙ Do not attempt to top off the fuel tank af ter the fuel pump nozzle shuts off
automatically. Continued refueling
may cause fuel overflow, resulting in
fuel spray and possibly a fire.
∙ Use only an original equipment type fuel-filler cap as a replacement. It has
a built-in safety valve needed for
proper operation of the fuel system
and emission control system. An in-
correct cap can result in a serious mal-
function and possible injury. It could
also cause the
Malfunction Indi-
cator Light (MIL) to come on.
∙ Never pour fuel into the throttle body to attempt to start your vehicle. ∙ Do not fill a portable fuel container in
the vehicle or trailer. Static electricity
can cause an explosion of flammable
liquid, vapor or gas in any vehicle or
trailer. To reduce the risk of serious
injury or death when filling portable
fuel containers:
– Always place the container on the ground when filling.
– Do not use electronic devices when filling.
– Keep the pump nozzle in contact with the container while you are
filling it.
– Use only approved portable fuel containers for flammable liquid.
CAUTION
∙ Do not use a fuel containing morethan 15% ethanol in your vehicle. For
additional information, refer to “Fuel
recommendation” in the “Technical
and consumer information” section of
this manual. ∙ The LOOSE FUEL CAP warning mes-
sage will be displayed/warning will
appear if the fuel-filler cap is not
properly tightened. It may take a few
driving trips for the message to be
displayed. Failure to tighten the fuel-
filler cap properly af ter the LOOSE
FUEL CAP warning message is
displayed/warning appears may
cause the
Malfunction Indicator
Light (MIL) to illuminate.
∙ Failure to tighten the fuel-filler cap properly may cause the
Mal-
function Indicator Light (MIL) to illumi-
nate. If the
light illuminates be-
cause the fuel-filler cap is loose or
missing, tighten or install the cap and
continue to drive the vehicle.
The
light should turn off af ter a
few driving trips. If the
light does
not turn off af ter a few driving trips,
have the vehicle inspected. It is rec-
ommended that you visit a NISSAN
dealer for this service.
∙ For additional information, refer to “Malfunction Indicator Light (MIL)” in
the “Instruments and controls” sec-
tion of this manual.
Pre-driving checks and adjustments3-29

∙ If fuel is spilled on the vehicle body,flush it away with water to avoid paint
damage.
NOTE:
Changing ignition switch status during
the refueling process may cause a delay
in fuel gauge response.
To remove the fuel-filler cap:1. Turn the fuel-filler cap counterclock- wise to remove.
2. Put the fuel-filler cap on the cap holder
1while refueling.
To install the fuel-filler cap: 1. Insert the fuel-filler cap straight into the fuel-filler tube.
2. Turn the fuel-filler cap clockwise until click is heard.
LOOSE FUEL CAP warning
message
The LOOSE FUEL CAP warning will appear
in the trip computer when the fuel-filler cap
is not tightened correctly af ter the vehicle
has been refueled. It may take a few driving
trips for the message to be displayed. To
turn off the warning message, perform the
following:
1. Remove and install the fuel-filler cap as previously described as soon as pos-
sible.
LPD2172
Type A (if so equipped)
LPD2025
3-30Pre-driving checks and adjustments
