Page 71 of 365

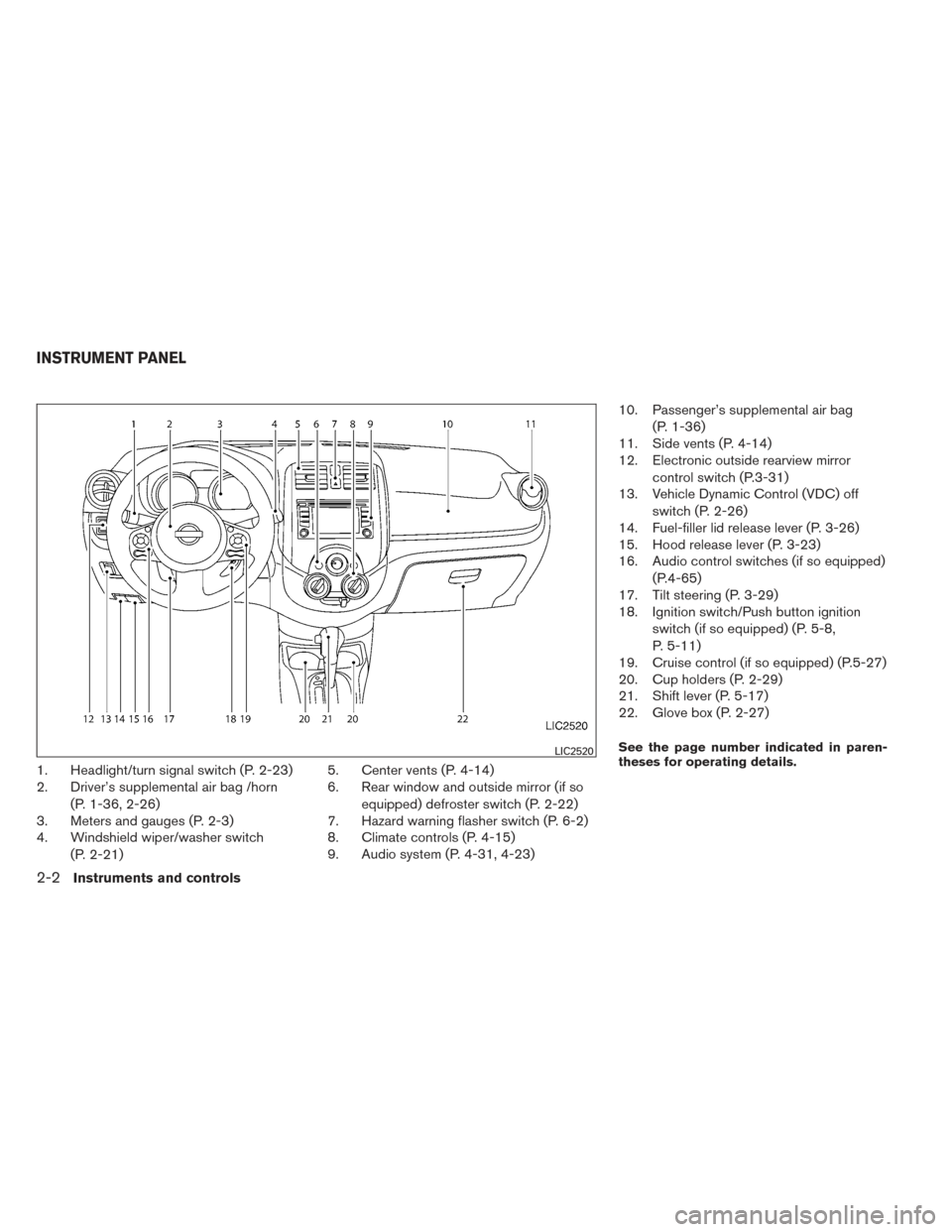

1. Headlight/turn signal switch (P. 2-23)
2. Driver’s supplemental air bag /horn(P. 1-36, 2-26)
3. Meters and gauges (P. 2-3)
4. Windshield wiper/washer switch
(P. 2-21) 5. Center vents (P. 4-14)
6. Rear window and outside mirror (if so
equipped) defroster switch (P. 2-22)
7. Hazard warning flasher switch (P. 6-2)
8. Climate controls (P. 4-15)
9. Audio system (P. 4-31, 4-23) 10. Passenger’s supplemental air bag
(P. 1-36)
11. Side vents (P. 4-14)
12. Electronic outside rearview mirror
control switch (P.3-31)
13. Vehicle Dynamic Control (VDC) off
switch (P. 2-26)
14. Fuel-filler lid release lever (P. 3-26)
15. Hood release lever (P. 3-23)
16. Audio control switches (if so equipped)
(P.4-65)
17. Tilt steering (P. 3-29)
18. Ignition switch/Push button ignition
switch (if so equipped) (P. 5-8,
P. 5-11)
19. Cruise control (if so equipped) (P.5-27)
20. Cup holders (P. 2-29)
21. Shift lever (P. 5-17)
22. Glove box (P. 2-27)
See the page number indicated in paren-
theses for operating details.LIC2520
INSTRUMENT PANEL
2-2Instruments and controls
Page 72 of 365
1. Tachometer
2. Speedometer
3. Trip odometer reset switch/trip com-puter mode
4. Instrument brightness control 5. Continuously Variable Transmission
(CVT) / AT Automatic Transmission po-
sition indicator (CVT / A/T models only)
6. Odometer/twin trip odometer/trip com-
puter 7. Fuel gauge
Type A
LIC2283
METERS AND GAUGES
Instruments and controls2-3
Page 73 of 365
1. Tachometer
2. Temperature gauge
3. Odometer/twin trip odometer/trip com-puter
4. Fuel gauge 5. Speedometer
6. Trip odometer reset switch/trip com-
puter mode 7. Continuously Variable Transmission
(CVT) / Manual Transmission shift indi-
catorposition indicator
8. Instrument brightness control
Type B
LIC2146
2-4Instruments and controls
Page 74 of 365

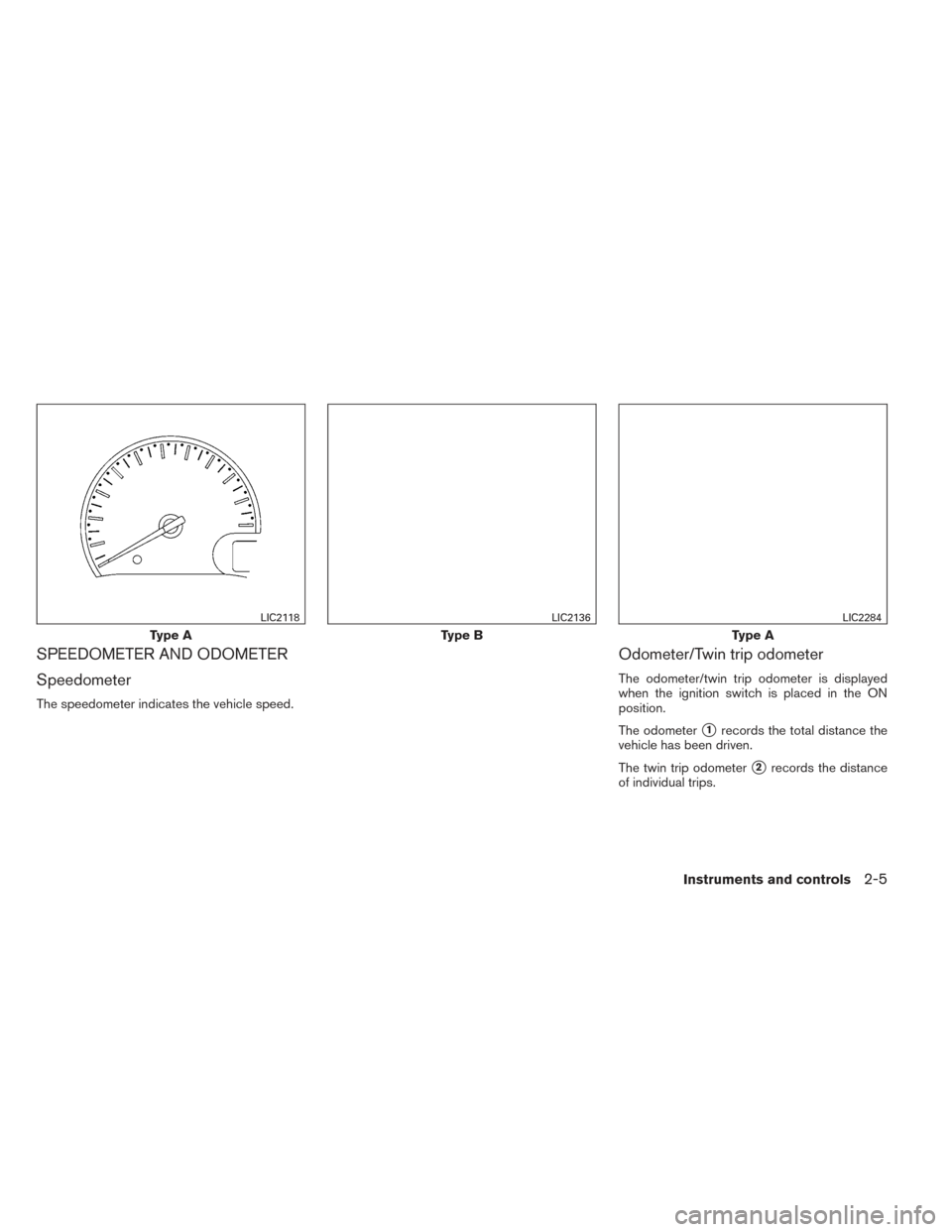

SPEEDOMETER AND ODOMETER
Speedometer
The speedometer indicates the vehicle speed.
Odometer/Twin trip odometer
The odometer/twin trip odometer is displayed
when the ignition switch is placed in the ON
position.
The odometer
1records the total distance the
vehicle has been driven.
The twin trip odometer
2records the distance
of individual trips.
Type A
LIC2118
Type B
LIC2136
Type A
LIC2284
Instruments and controls2-5
Page 75 of 365
Changing the display:
Press the change button
3to change the dis-
play as follows:
Odometer (ODO) →Trip
→Trip→
Instant fuel consumption →Average fuel con-
sumption →DTE (cruising range) →Odometer
(ODO)
Resetting the trip odometer:
Press the change button
3for more than 1 sec-
ond to reset the currently displayed trip odometer
to zero.
Loose fuel cap warning message
Push the reset buttonAfor more than 1 second
to reset the LOOSE FUEL CAP warning mes-
sage after the fuel cap has been tightened. For
additional information see “Fuel-filler cap” in the
“Pre-driving checks and adjustments” section of
this manual.
Type B
LIC2139
Type A
LIC2285
Type B
LPD2025
2-6Instruments and controls
Page 76 of 365

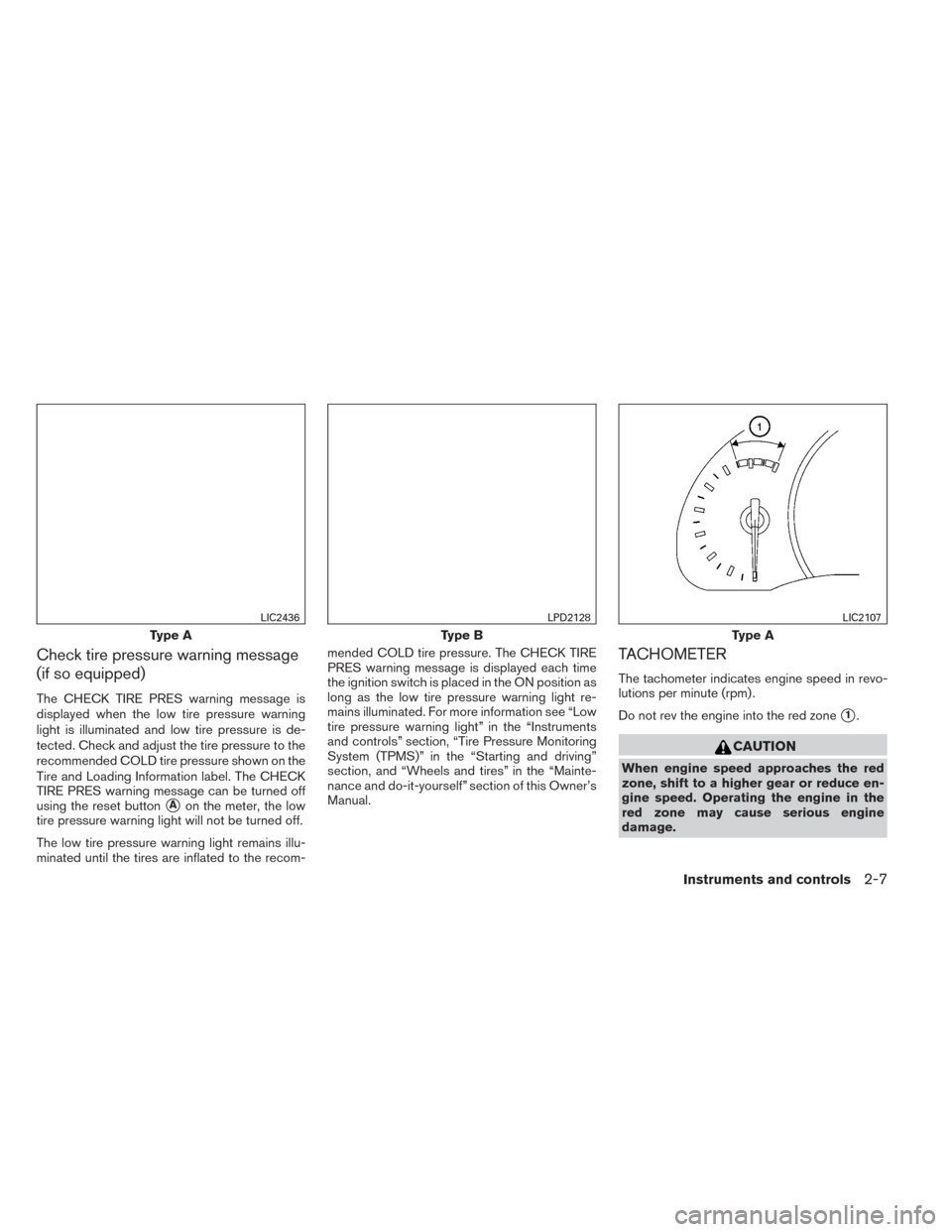

Check tire pressure warning message
(if so equipped)
The CHECK TIRE PRES warning message is
displayed when the low tire pressure warning
light is illuminated and low tire pressure is de-
tected. Check and adjust the tire pressure to the
recommended COLD tire pressure shown on the
Tire and Loading Information label. The CHECK
TIRE PRES warning message can be turned off
using the reset button
Aon the meter, the low
tire pressure warning light will not be turned off.
The low tire pressure warning light remains illu-
minated until the tires are inflated to the recom- mended COLD tire pressure. The CHECK TIRE
PRES warning message is displayed each time
the ignition switch is placed in the ON position as
long as the low tire pressure warning light re-
mains illuminated. For more information see “Low
tire pressure warning light” in the “Instruments
and controls” section, “Tire Pressure Monitoring
System (TPMS)” in the “Starting and driving”
section, and “Wheels and tires” in the “Mainte-
nance and do-it-yourself” section of this Owner’s
Manual.
TACHOMETER
The tachometer indicates engine speed in revo-
lutions per minute (rpm) .
Do not rev the engine into the red zone
1.
CAUTION
When engine speed approaches the red
zone, shift to a higher gear or reduce en-
gine speed. Operating the engine in the
red zone may cause serious engine
damage.
Type A
LIC2436
Type B
LPD2128
Type A
LIC2107
Instruments and controls2-7
Page 77 of 365
FUEL GAUGE
The gauge indicatesAtheapproximate fuel
level in the tank when the ignition switch is placed
in the ON position.
The gauge may move slightly during braking,
turning, acceleration, or going up or down hills.
Type A: The fuel level segments will blink when
the amount of fuel in the tank is getting low.
Type B: The low fuel warning light will turn on
when the amount of fuel in the tank is getting low.
Refill the fuel tank before the gauge regis-
ters E (Empty) . The
indicates that the fuel-filler door is
located on the driver’s side of the vehicle.
Type B
LIC2151
Type A
LIC2286
Type B
LIC2287
2-8Instruments and controls
Page 78 of 365
CAUTION
●If the vehicle runs out of fuel, thecheck engine light may come on. Refuel
as soon as possible. After a few driving
trips, the
light should turn off. If
the light remains on after a few driving
trips, have the vehicle inspected by a
NISSAN dealer.
● For additional information, see “Mal-
function Indicator Light (MIL)” later in
this section.
TRIP COMPUTER
When the ignition switch is placed in the ON
position, modes of the trip computer can be
selected by pushing the trip computer change
button
Aon the instrument panel located near
the speedometer. The following modes can be
selected in the display
B:
● Instant fuel consumption
● Average fuel consumption
● Distance to empty
Instant fuel economy
The instant fuel economy mode shows the instant
fuel consumption. The display updates instantly
when driving.
Average fuel consumption
The average fuel consumption mode shows the
average fuel consumption since the last reset.
Resetting is done by pushing the trip computer
change button
Afor more than approximately
1 second.
Type A
LIC2288
Type B
LIC2138
Instruments and controls2-9
Page 79 of 365
Distance to empty
The distance to empty mode provides you with an
estimation of the distance that can be driven
before refueling. The range is constantly being
calculated, based on the amount of fuel in the fuel
tank and the actual fuel consumption.
The distance to empty includes a low range
warning feature: when the fuel level is low, the
distance to empty is automatically selected and
the digits blink in order to draw the driver’s atten-
tion. Press the trip computer change button
Aif
you wish to return to the mode that was selected
before the warning occurred.
When the fuel level drops even lower, the dis-
tance to empty will display (----) .
Trip computer reset
Pushing the change button for more than 3 sec-
onds will reset all modes except Trip A and dis-
tance to empty (dte) .
SERVICE INTERVAL REMINDER (if so
equipped)
When the ignition switch is placed in the ON
position, a wrench symbol and the distance to oil
change information will illuminate on the display
for approximately 5 seconds. The wrench symbol
and distance to oil change switch to oil display status. Then the oil display status switches to
odometer and twin trip odometer/trip computer
information mode that was displayed before the
ignition switch was placed in the ACC, OFF or
LOCK position.
The oil level display status provides specific in-
formation regarding your approximate engine oil
level.
If the oil level is sufficient, “Oil Good” is displayed
for approximately 10 seconds. If the oil level is
low, “Oil Lo” blinks for approximately 30 seconds
in order to draw your attention to necessary ac-
tion.
Quickly push and release the trip computer
change button
Aon the instrument panel lo-
cated near the speedometer
Bduring the “Oil
Good” or “Oil Lo” mode to display an approxi-
mate oil level indication.
In case of low engine oil level, see “Engine oil” in
the “Maintenance and do-it-yourself” section for
the proper engine oil refilling procedure.
Oil change schedule set up
It is possible to adjust the interval distance to oil
change by pushing the trip computer change
button
Aon the instrument panel located near
the speedometer
Bfor 3 seconds while the
wrench symbol and distance to oil change are
displayed. The symbol and distance display will start flashing and the display shows the current
interval. Push the switch to increase the interval
distance. Each step increases the interval dis-
tance by 500 mi (1,000 km). The interval distance
can be set up to 18,000 mi (30,000 km) after
which the display returns to zero.
If no further action is made, the display returns to
oil display status indication and the new interval is
set.
If the interval distance is set to 0, the display will
skip the distance to oil change information and
wrench symbol display mode and will directly
display the oil display status (“Oil Good” or “Oil
Lo”) . In order to return to the distance to oil
change information and wrench symbol display
mode, push the trip computer change button
A
on the instrument panel located near the speed-
ometer
Bfor approximately 3 seconds after the
ignition switch has been turned to the ON posi-
tion, and adjust the distance to oil change sched-
ule as previously described.
See the Warranty Information & Maintenance
Booklet for the appropriate interval distance to oil
change.
2-10Instruments and controls
Page 80 of 365
CAUTION
●The oil level should be checked regu-
larly. Operating with insufficient
amount of oil level can damage the en-
gine and such damage is not covered by
the warranty.
● NISSAN recommends checking the oil
level every 3,000 mi (5,000 km).
